Page 231 of 542

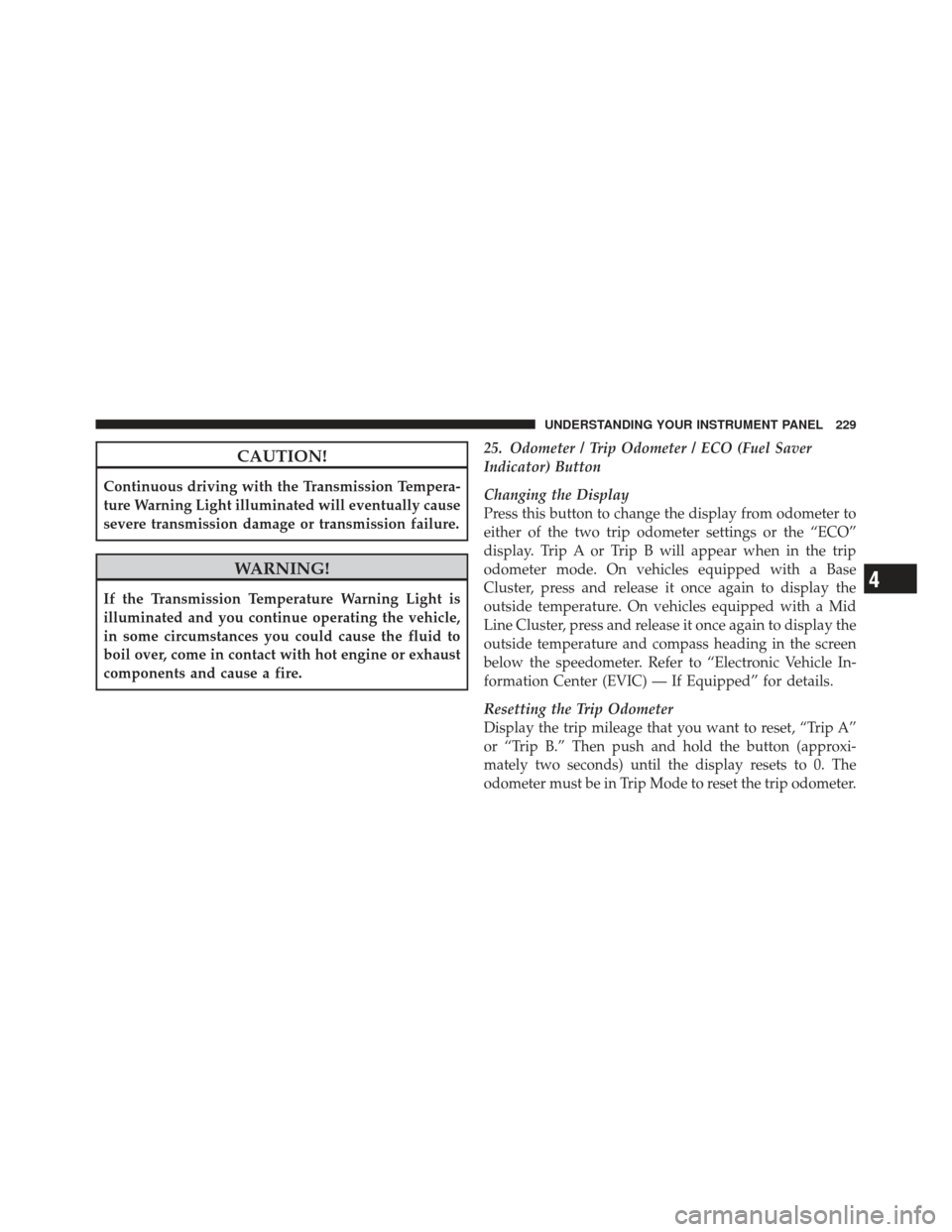

JEEP LIBERTY 2011 KK / 2.G Owners Manual CAUTION!
Continuous driving with the Transmission Tempera-
ture Warning Light illuminated will eventually cause
severe transmission damage or transmission failure.
WARNING!
If the Transmission Tempera

Page 232 of 542

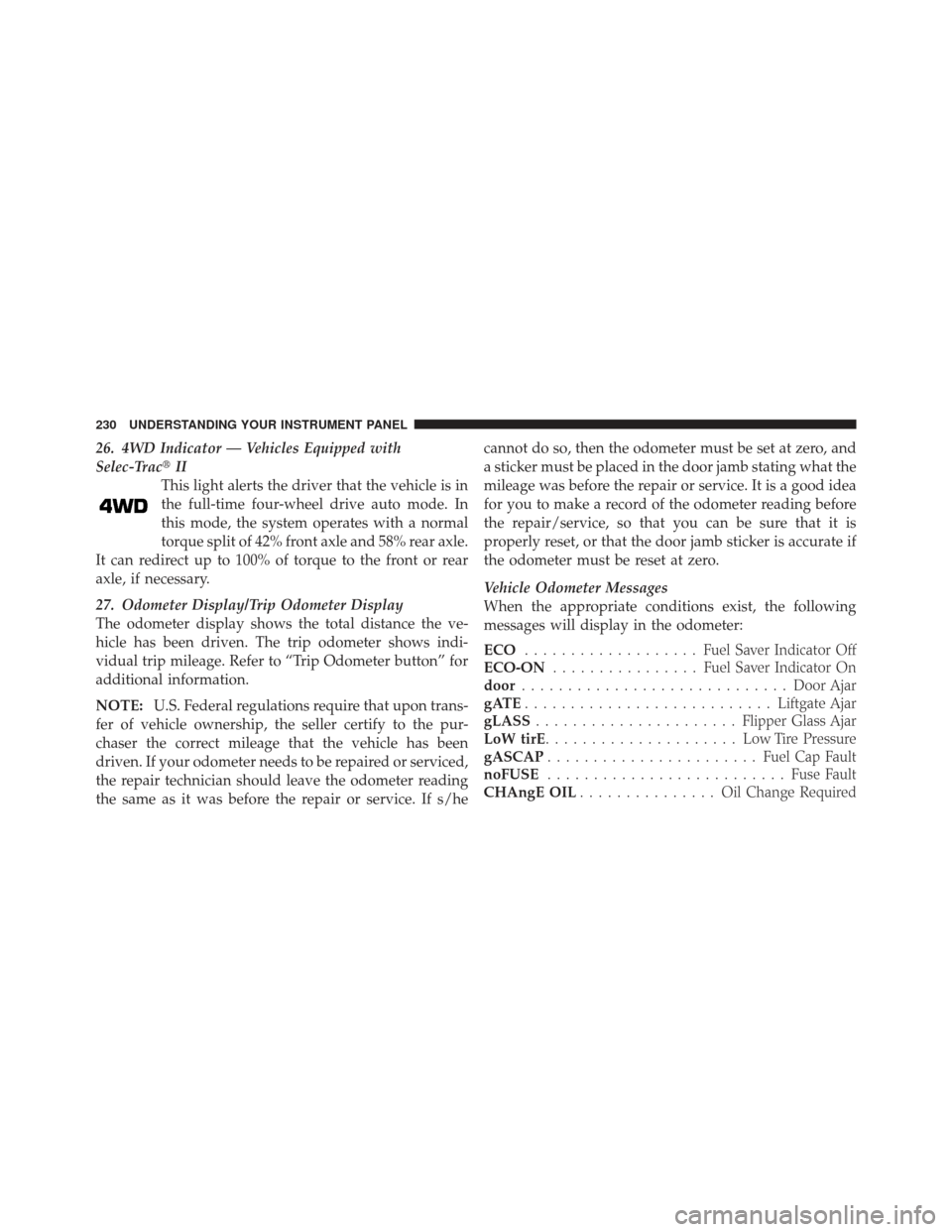

JEEP LIBERTY 2011 KK / 2.G Owners Manual 26. 4WD Indicator — Vehicles Equipped with
Selec-TracII
This light alerts the driver that the vehicle is in
the full-time four-wheel drive auto mode. In
this mode, the system operates with a normal

Page 233 of 542

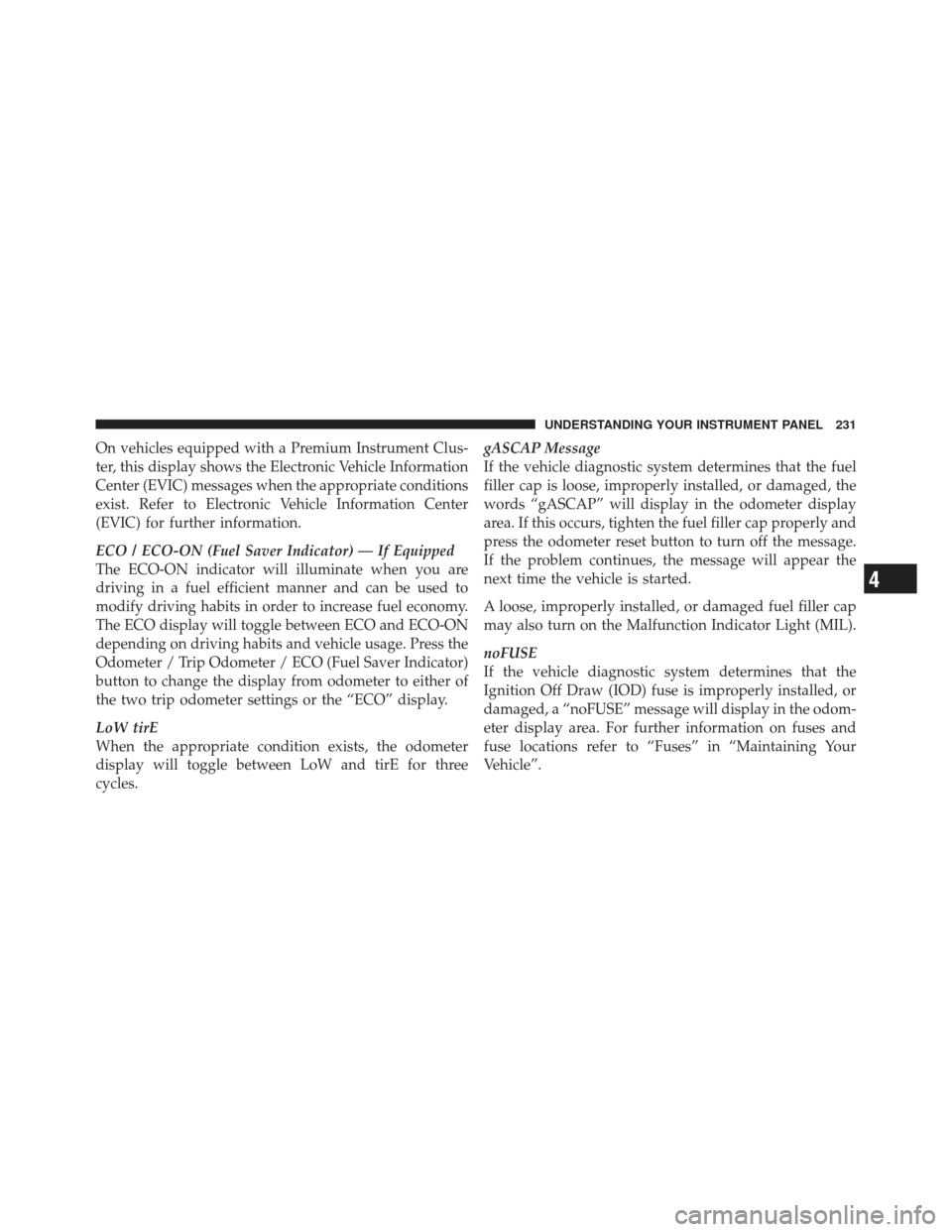

JEEP LIBERTY 2011 KK / 2.G Owners Manual On vehicles equipped with a Premium Instrument Clus-
ter, this display shows the Electronic Vehicle Information
Center (EVIC) messages when the appropriate conditions
exist. Refer to Electronic Vehicl

Page 234 of 542

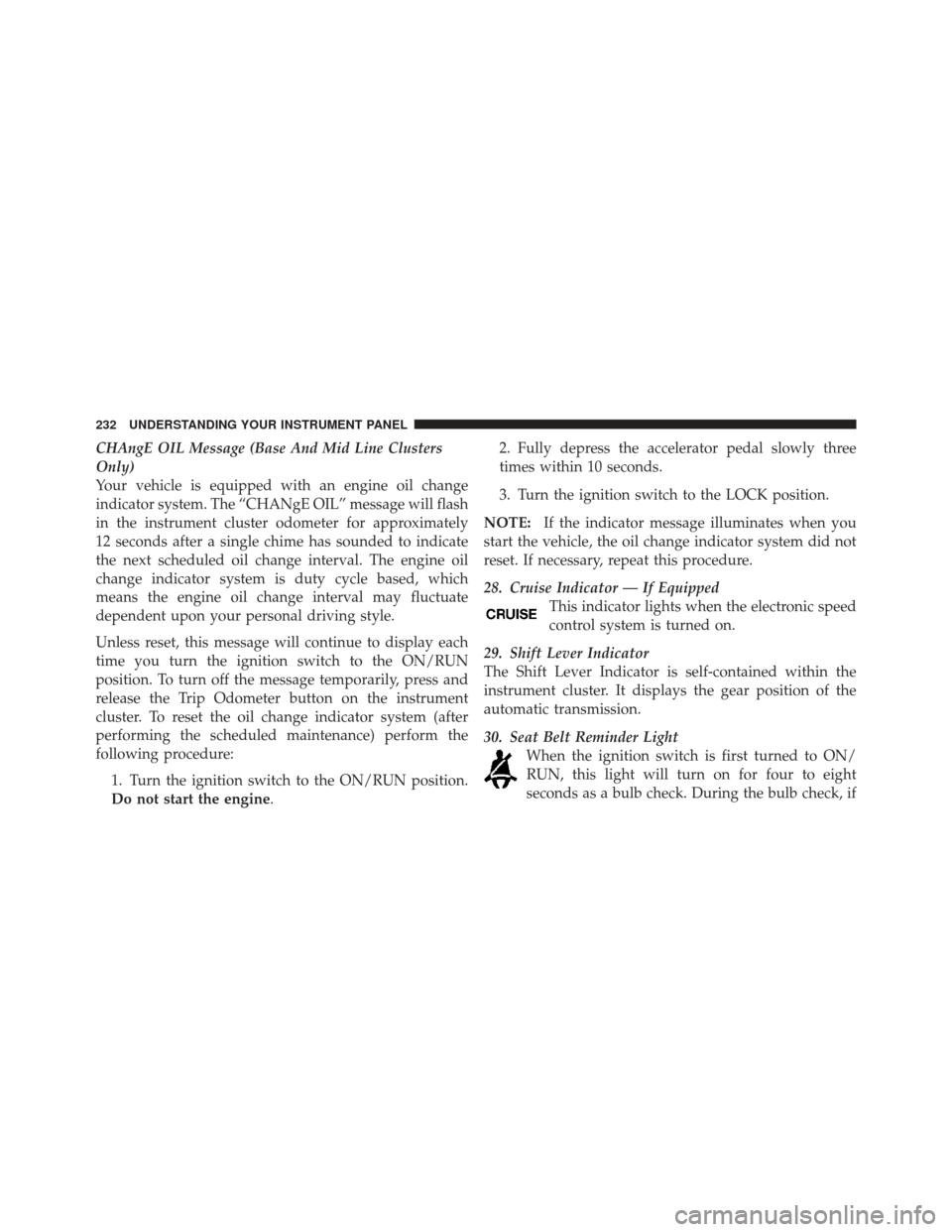

JEEP LIBERTY 2011 KK / 2.G Owners Manual CHAngE OIL Message (Base And Mid Line Clusters
Only)
Your vehicle is equipped with an engine oil change
indicator system. The “CHANgE OIL” message will flash
in the instrument cluster odometer for

Page 235 of 542

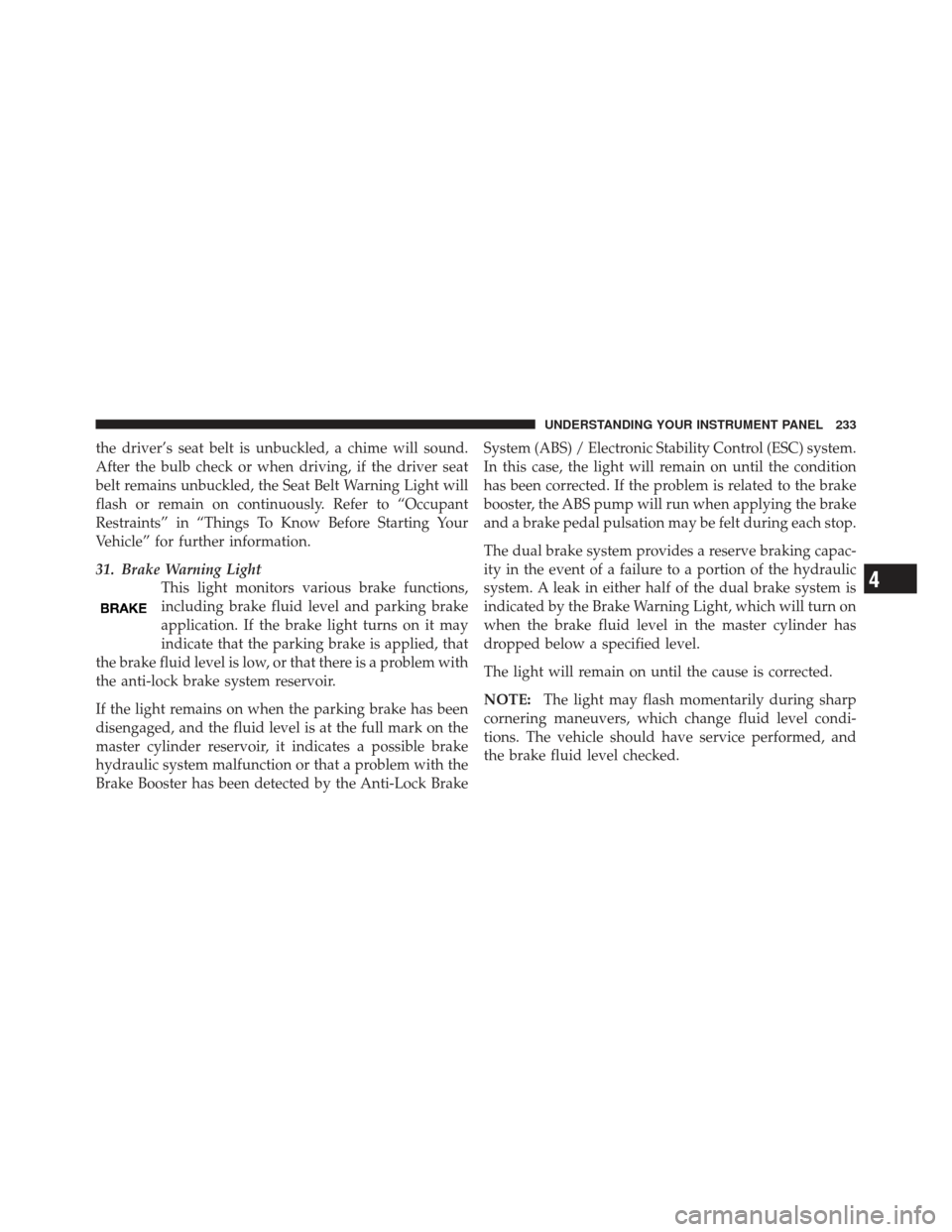

JEEP LIBERTY 2011 KK / 2.G Owners Manual the driver’s seat belt is unbuckled, a chime will sound.
After the bulb check or when driving, if the driver seat
belt remains unbuckled, the Seat Belt Warning Light will
flash or remain on continuo

Page 236 of 542

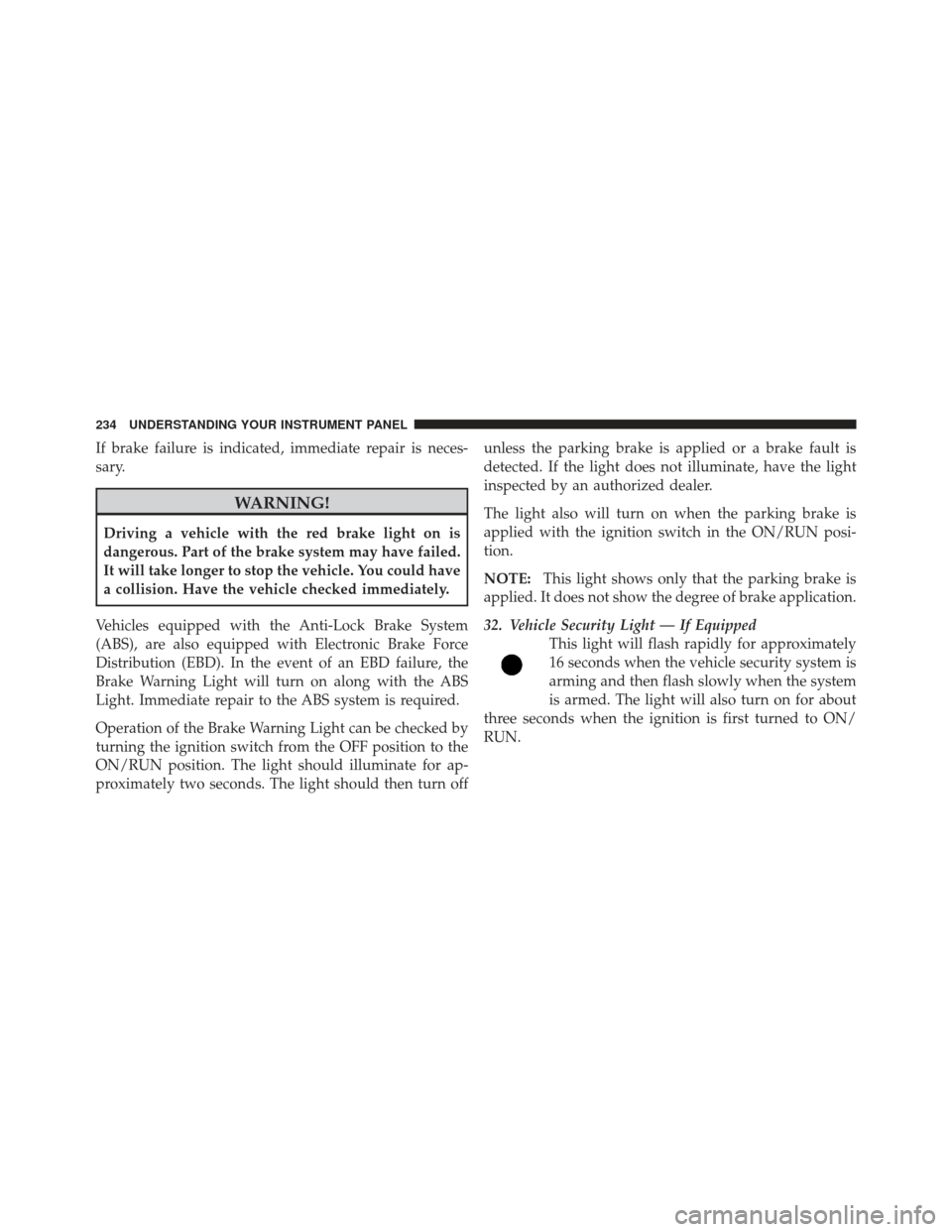

JEEP LIBERTY 2011 KK / 2.G Owners Manual If brake failure is indicated, immediate repair is neces-
sary.
WARNING!
Driving a vehicle with the red brake light on is
dangerous. Part of the brake system may have failed.
It will take longer to st

Page 237 of 542

JEEP LIBERTY 2011 KK / 2.G Owners Manual 33. Airbag Warning LightThis light will turn on for four to eight seconds
as a bulb check when the ignition switch is first
turned to ON/RUN. If the light is either not on
during starting, stays on, o

Page 238 of 542

JEEP LIBERTY 2011 KK / 2.G Owners Manual This system conveniently allows the driver to select a
variety of useful information by pressing the switches
mounted on the steering wheel. The EVIC consists of the
following:
•System Status
•Veh

Page 239 of 542

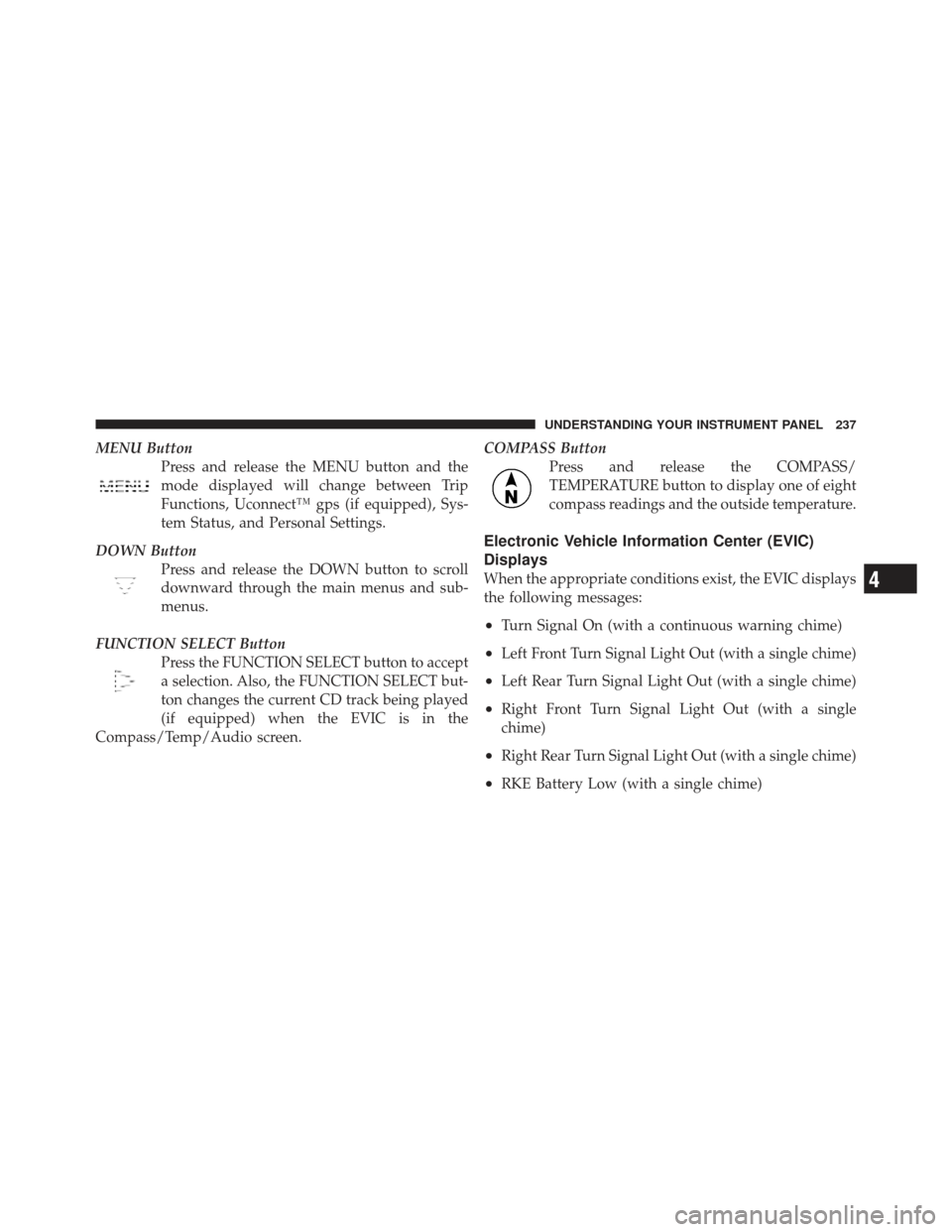

JEEP LIBERTY 2011 KK / 2.G Owners Manual MENU ButtonPress and release the MENU button and the
mode displayed will change between Trip
Functions, Uconnect™ gps (if equipped), Sys-
tem Status, and Personal Settings.
DOWN Button Press and rel

Page 240 of 542

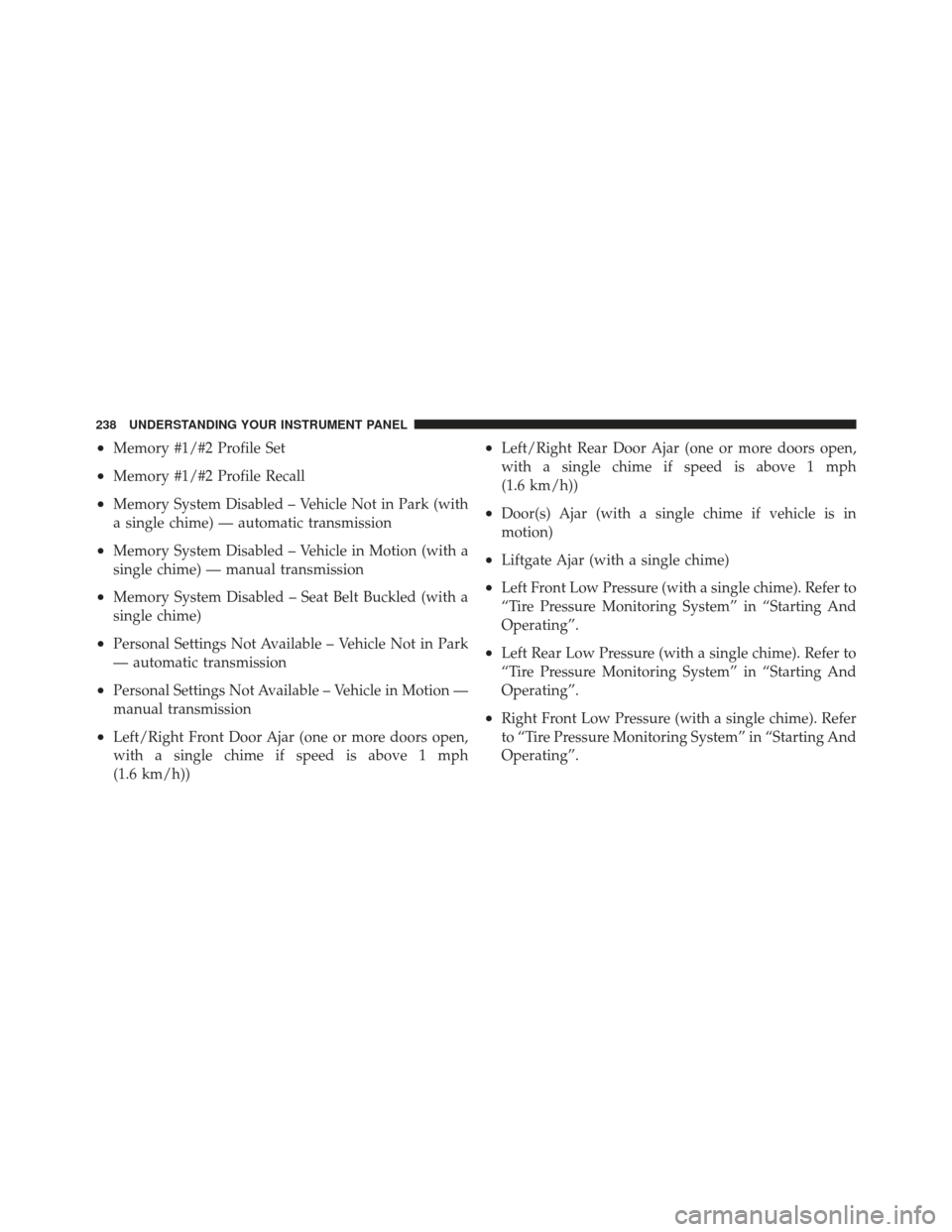

JEEP LIBERTY 2011 KK / 2.G Owners Manual •Memory #1/#2 Profile Set
•Memory #1/#2 Profile Recall
•Memory System Disabled – Vehicle Not in Park (with
a single chime) — automatic transmission
•Memory System Disabled – Vehicle in M
