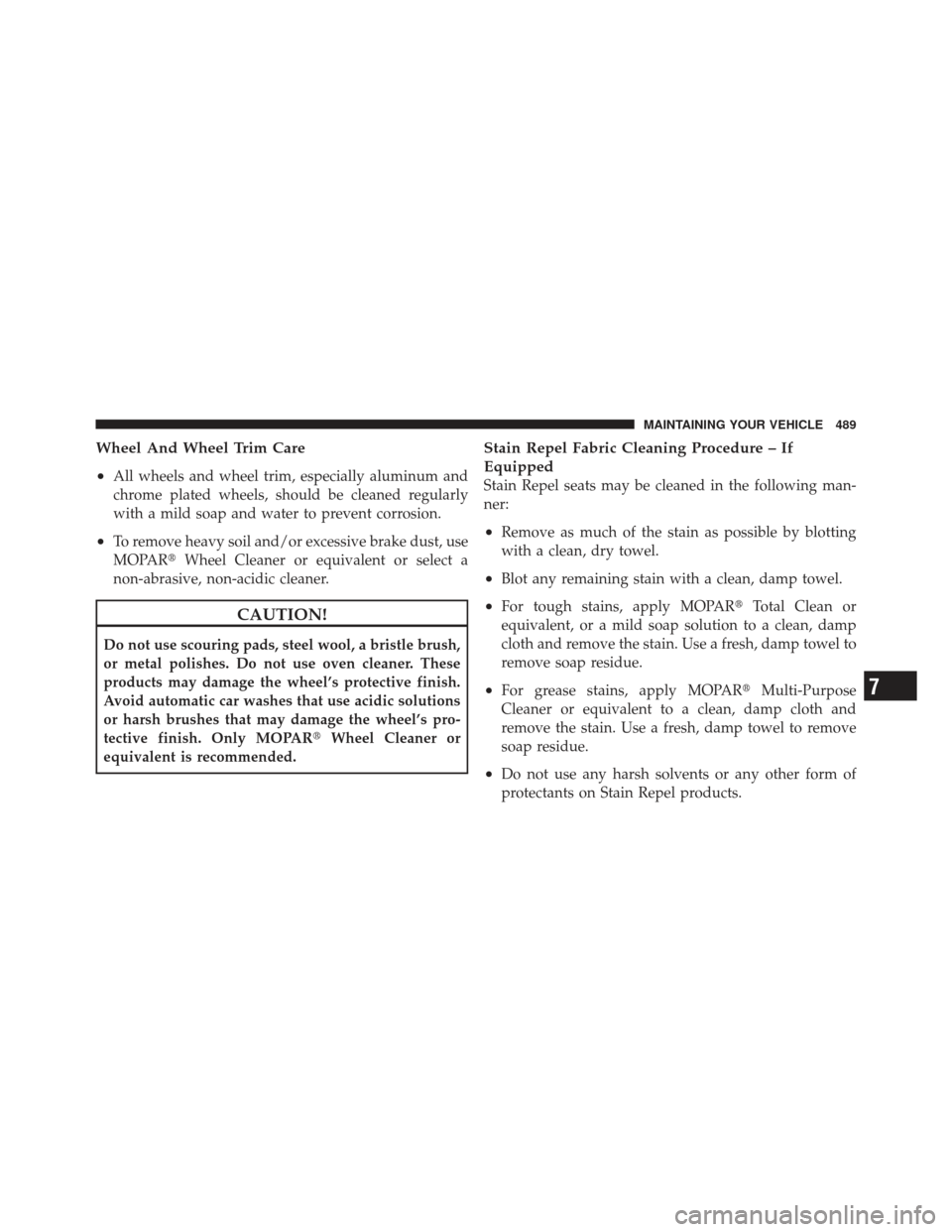

Wheel And Wheel Trim Care
•
All wheels and wheel trim, especially aluminum and
chrome plated wheels, should be cleaned regularly
with a mild soap and water to prevent corrosion.
•To remove heavy soil and/or excessive brake dust, use
MOPARWheel Cleaner or equivalent or select a
non-abrasive, non-acidic cleaner.
CAUTION!
Do not use scouring pads, steel wool, a bristle brush,
or metal polishes. Do not use oven cleaner. These
products may damage the wheel’s protective finish.
Avoid automatic car washes that use acidic solutions
or harsh brushes that may damage the wheel’s pro-
tective finish. Only MOPAR Wheel Cleaner or
equivalent is recommended.
Stain Repel Fabric Cleaning Procedure – If
Equipped
Stain Repel seats may be cleaned in the following man-
ner:
•Remove as much of the stain as possible by blotting
with a clean, dry towel.
•Blot any remaining stain with a clean, damp towel.
•For tough stains, apply MOPAR Total Clean or
equivalent, or a mild soap solution to a clean, damp
cloth and remove the stain. Use a fresh, damp towel to
remove soap residue.
•For grease stains, apply MOPAR Multi-Purpose
Cleaner or equivalent to a clean, damp cloth and
remove the stain. Use a fresh, damp towel to remove
soap residue.
•Do not use any harsh solvents or any other form of
protectants on Stain Repel products.
7
MAINTAINING YOUR VEHICLE 489

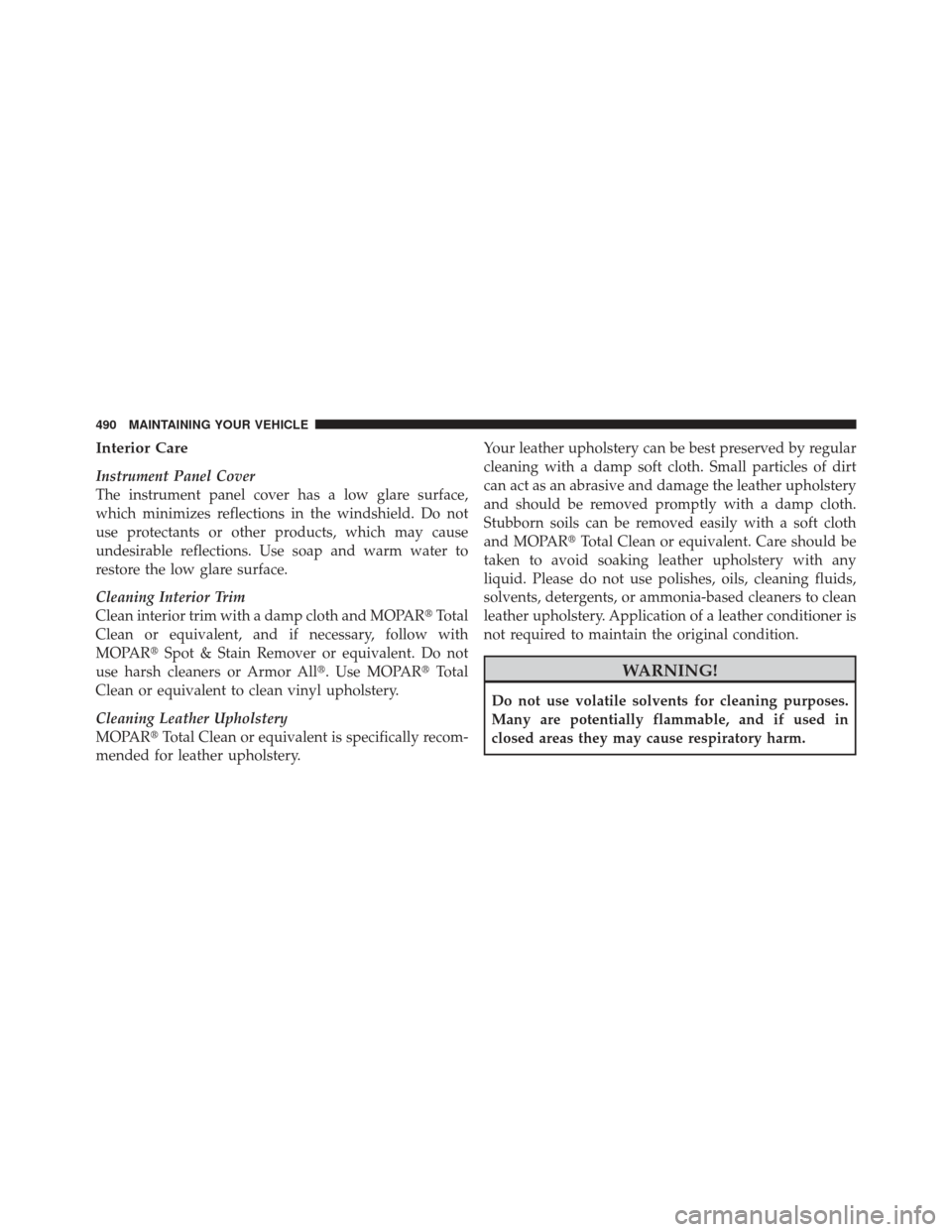

Interior Care
Instrument Panel Cover
The instrument panel cover has a low glare surface,
which minimizes reflections in the windshield. Do not
use protectants or other products, which may cause
undesirable reflections. Use soap and warm water to
restore the low glare surface.
Cleaning Interior Trim
Clean interior trim with a damp cloth and MOPARTotal
Clean or equivalent, and if necessary, follow with
MOPAR Spot & Stain Remover or equivalent. Do not
use harsh cleaners or Armor All. Use MOPAR Total
Clean or equivalent to clean vinyl upholstery.
Cleaning Leather Upholstery
MOPAR Total Clean or equivalent is specifically recom-
mended for leather upholstery. Your leather upholstery can be best preserved by regular
cleaning with a damp soft cloth. Small particles of dirt
can act as an abrasive and damage the leather upholstery
and should be removed promptly with a damp cloth.
Stubborn soils can be removed easily with a soft cloth
and MOPAR
Total Clean or equivalent. Care should be
taken to avoid soaking leather upholstery with any
liquid. Please do not use polishes, oils, cleaning fluids,
solvents, detergents, or ammonia-based cleaners to clean
leather upholstery. Application of a leather conditioner is
not required to maintain the original condition.
WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas they may cause respiratory harm.
490 MAINTAINING YOUR VEHICLE

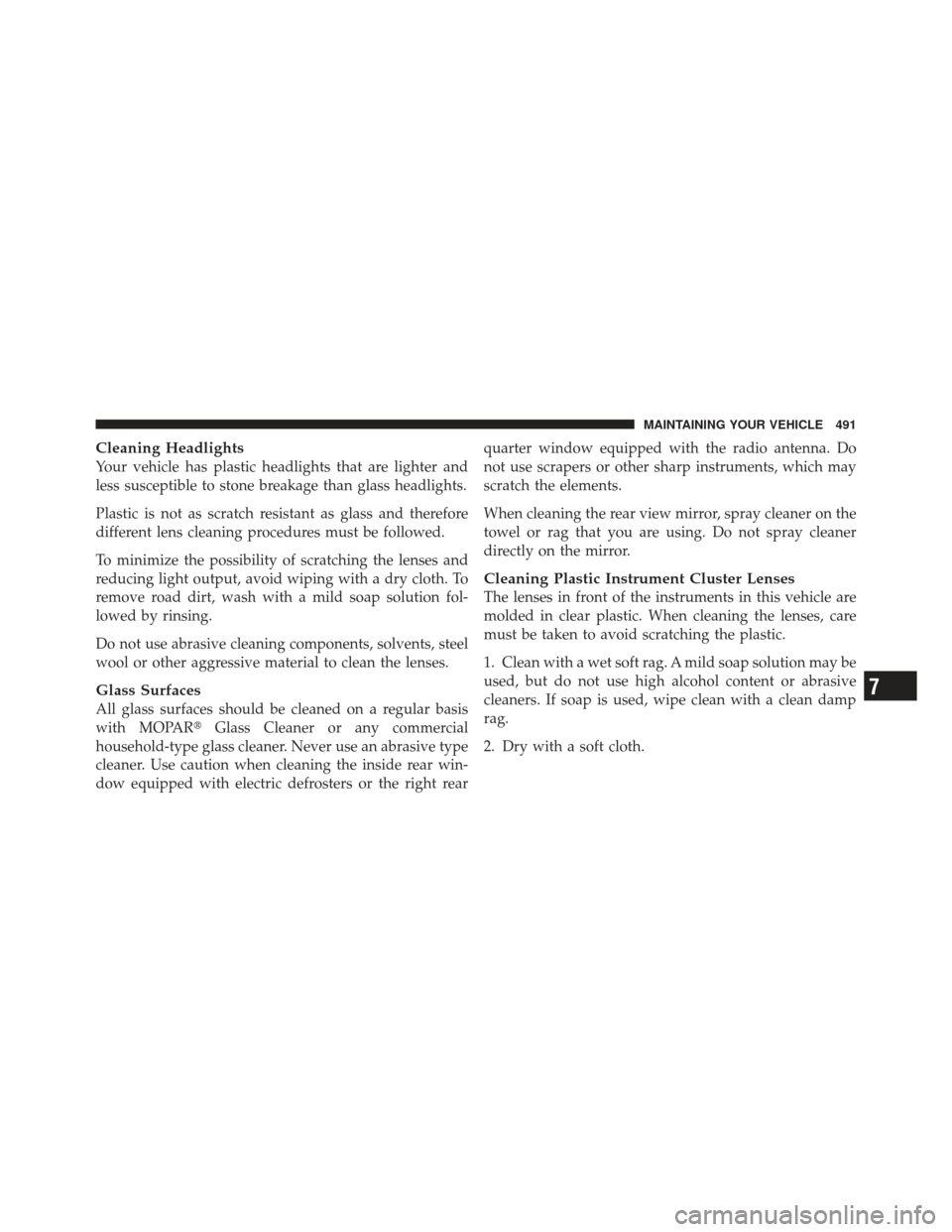

Cleaning Headlights
Your vehicle has plastic headlights that are lighter and
less susceptible to stone breakage than glass headlights.
Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.
To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MOPARGlass Cleaner or any commercial
household-type glass cleaner. Never use an abrasive type
cleaner. Use caution when cleaning the inside rear win-
dow equipped with electric defrosters or the right rear quarter window equipped with the radio antenna. Do
not use scrapers or other sharp instruments, which may
scratch the elements.
When cleaning the rear view mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft rag. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft cloth.
7
MAINTAINING YOUR VEHICLE 491

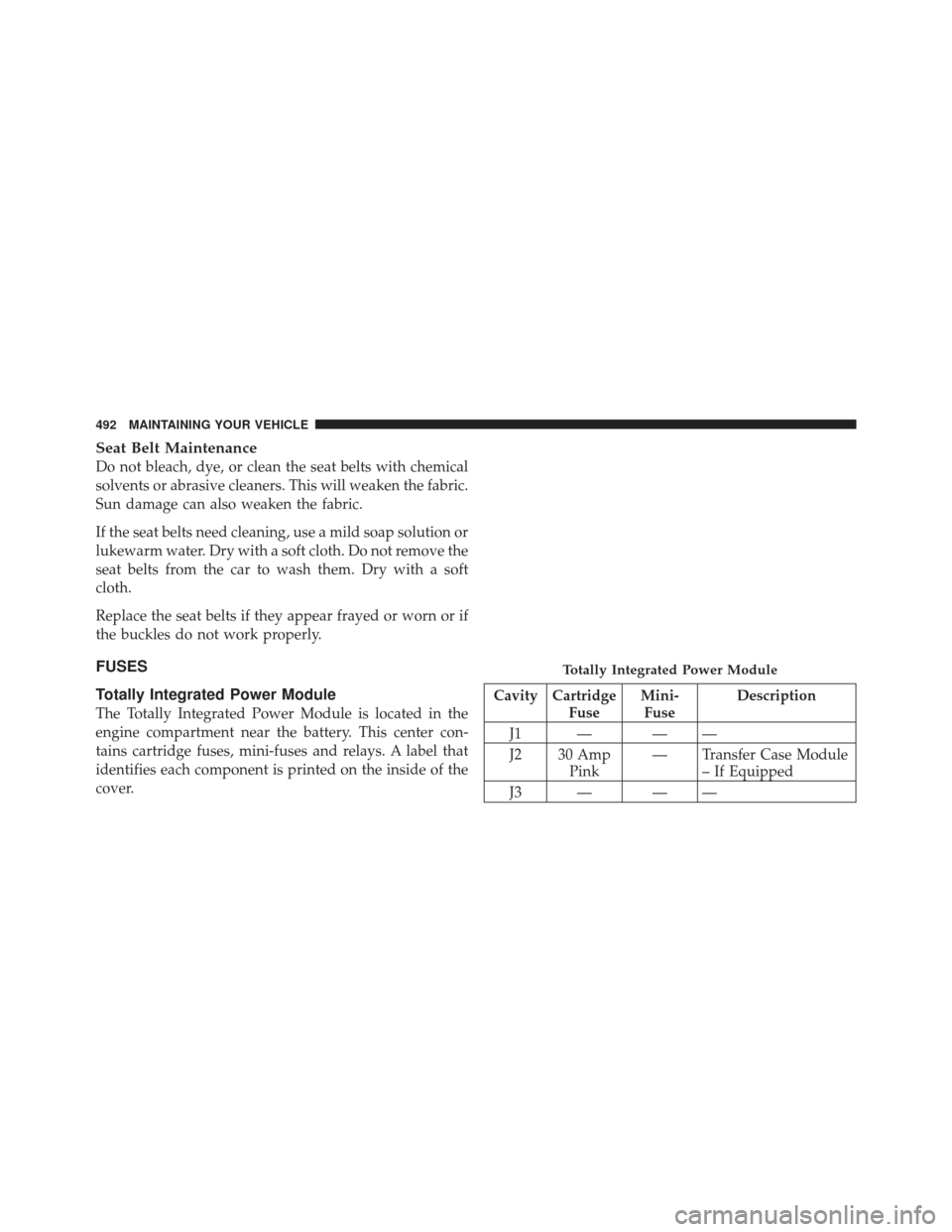

Seat Belt Maintenance
Do not bleach, dye, or clean the seat belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the seat belts need cleaning, use a mild soap solution or
lukewarm water. Dry with a soft cloth. Do not remove the
seat belts from the car to wash them. Dry with a soft
cloth.
Replace the seat belts if they appear frayed or worn or if
the buckles do not work properly.
FUSES
Totally Integrated Power Module
The Totally Integrated Power Module is located in the
engine compartment near the battery. This center con-
tains cartridge fuses, mini-fuses and relays. A label that
identifies each component is printed on the inside of the
cover.
Cavity CartridgeFuseMini-
Fuse Description
J1 — — —
J2 30 Amp Pink — Transfer Case Module
– If Equipped
J3 — — —
Totally Integrated Power Module
492 MAINTAINING YOUR VEHICLE

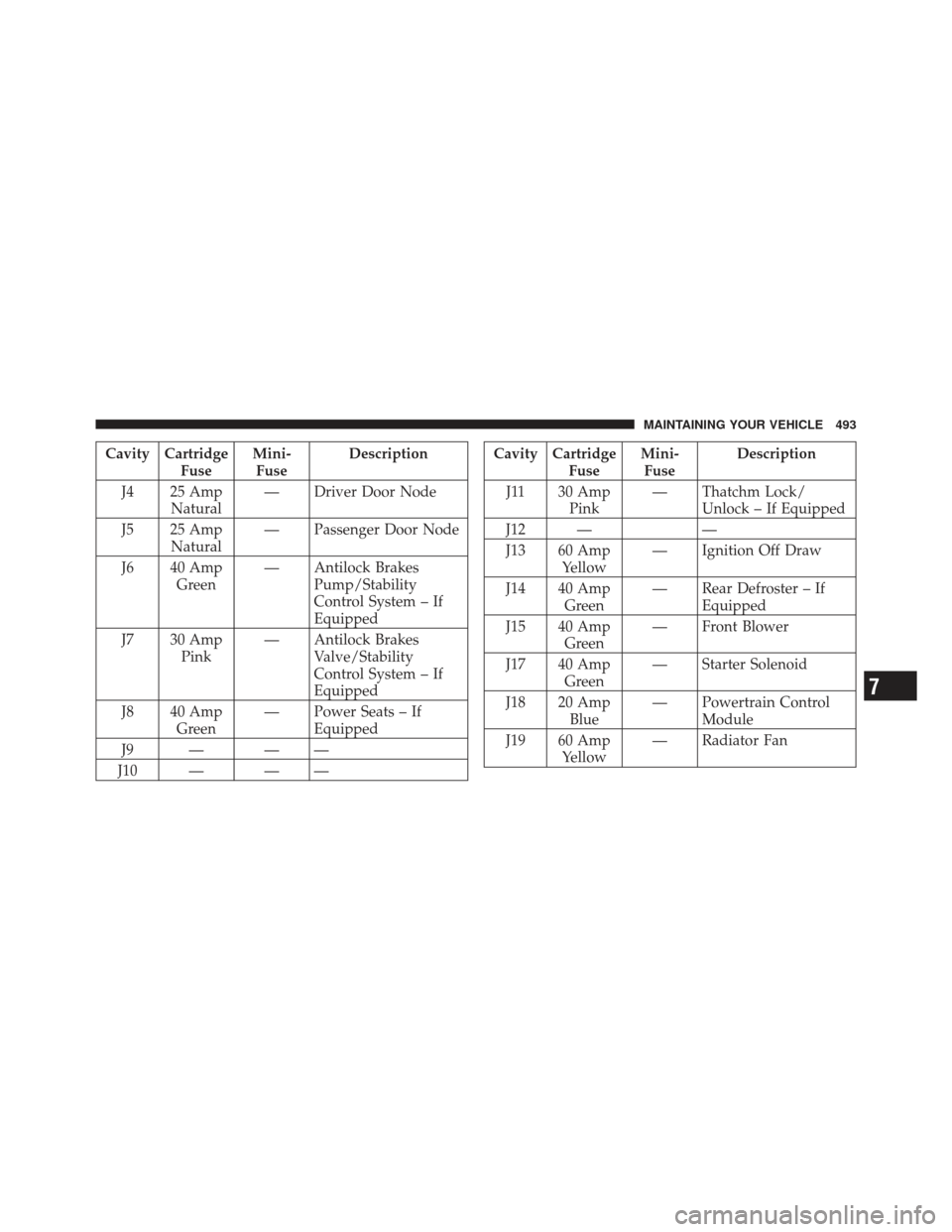

Cavity CartridgeFuseMini-
Fuse Description
J4 25 Amp Natural — Driver Door Node
J5 25 Amp Natural — Passenger Door Node
J6 40 Amp Green — Antilock Brakes
Pump/Stability
Control System – If
Equipped
J7 30 Amp Pink — Antilock Brakes
Valve/Stability
Control System – If
Equipped
J8 40 Amp Green — Power Seats – If
Equipped
J9 — — —
J10 — — —Cavity Cartridge FuseMini-
Fuse Description
J11 30 Amp Pink — Thatchm Lock/
Unlock – If Equipped
J12 — —
J13 60 Amp Yellow — Ignition Off Draw
J14 40 Amp Green — Rear Defroster – If
Equipped
J15 40 Amp Green — Front Blower
J17 40 Amp Green — Starter Solenoid
J18 20 Amp Blue — Powertrain Control
Module
J19 60 Amp Yellow — Radiator Fan
7
MAINTAINING YOUR VEHICLE 493

Cavity CartridgeFuseMini-
Fuse Description

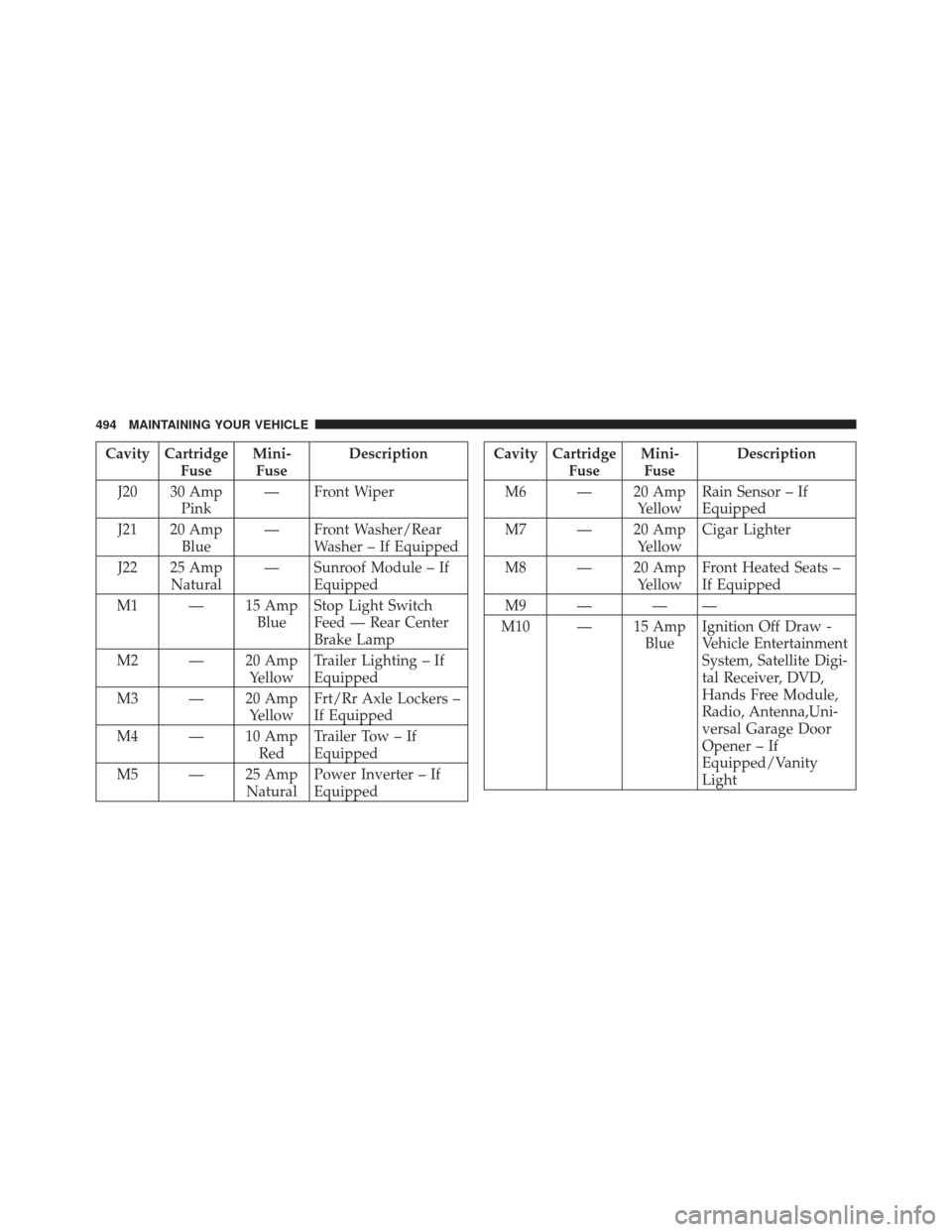

J20 30 Amp Pink — Front Wiper
J21 20 Amp Blue — Front Washer/Rear
Washer – If Equipped
J22 25 Amp Natural — Sunroof Module – If
Equipped
M1 — 15 Amp BlueStop Light Switch
Feed — Rear Center
Brake Lamp
M2 — 20 Amp YellowTrailer Lighting – If
Equipped
M3 — 20 Amp YellowFrt/Rr Axle Lockers –
If Equipped
M4 — 10 Amp RedTrailer Tow – If
Equipped
M5 — 25 Amp NaturalPower Inverter – If
EquippedCavity Cartridge
FuseMini-
Fuse Description
M6 — 20 Amp YellowRain Sensor – If
Equipped
M7 — 20 Amp YellowCigar Lighter
M8 — 20 Amp YellowFront Heated Seats –
If Equipped
M9 — — —
M10 — 15 Amp BlueIgnition Off Draw -
Vehicle Entertainment
System, Satellite Digi-
tal Receiver, DVD,
Hands Free Module,
Radio, Antenna,Uni-
versal Garage Door
Opener – If
Equipped/Vanity
Light
494 MAINTAINING YOUR VEHICLE

Cavity CartridgeFuseMini-
Fuse Description

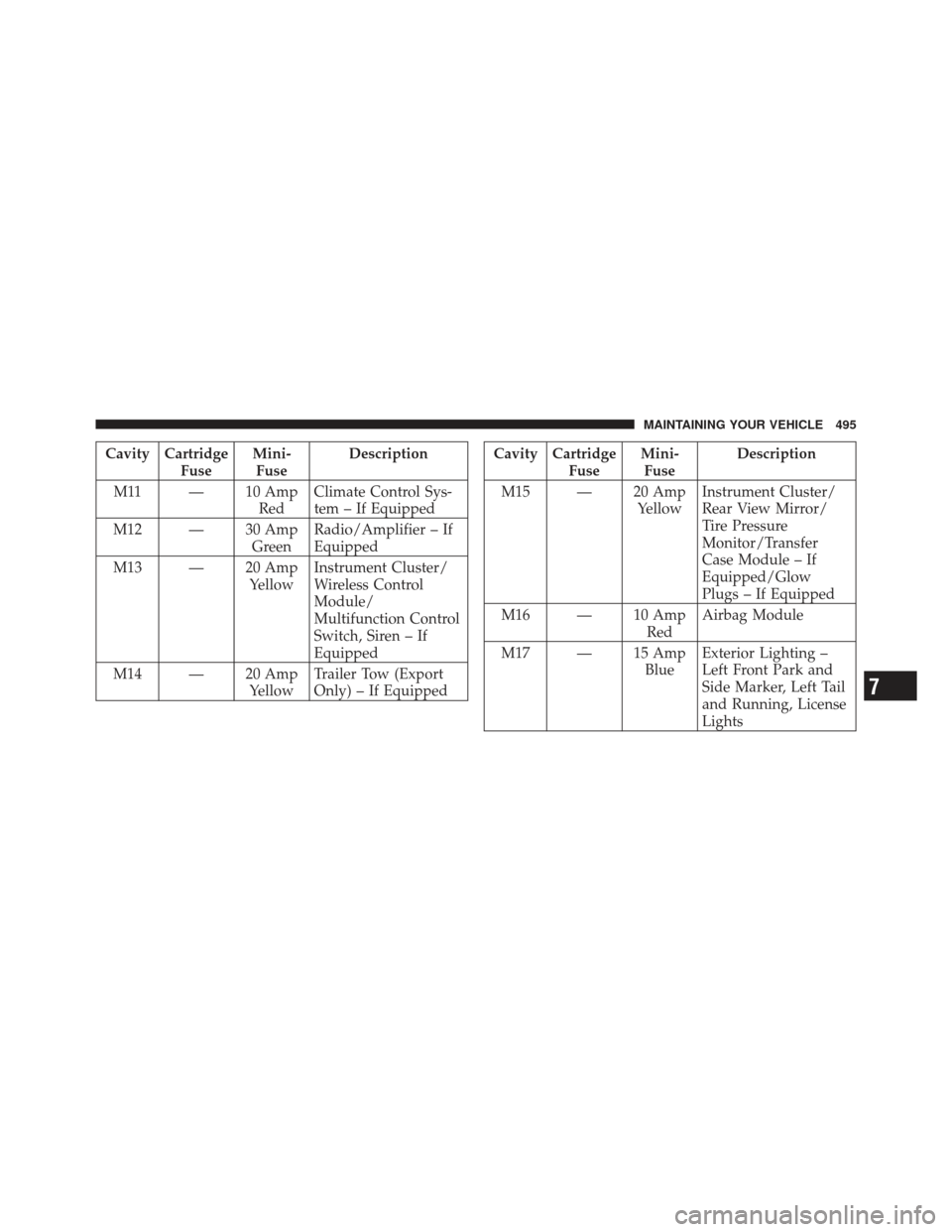

M11 — 10 Amp RedClimate Control Sys-
tem – If Equipped
M12 — 30 Amp GreenRadio/Amplifier – If
Equipped
M13 — 20 Amp YellowInstrument Cluster/
Wireless Control
Module/
Multifunction Control
Switch, Siren – If
Equipped
M14 — 20 Amp YellowTrailer Tow (Export
Only) – If EquippedCavity Cartridge
FuseMini-
Fuse Description
M15 — 20 Amp YellowInstrument Cluster/
Rear View Mirror/
Tire Pressure
Monitor/Transfer
Case Module – If
Equipped/Glow
Plugs – If Equipped
M16 — 10 Amp RedAirbag Module
M17 — 15 Amp BlueExterior Lighting –
Left Front Park and
Side Marker, Left Tail
and Running, License
Lights
7
MAINTAINING YOUR VEHICLE 495

Cavity CartridgeFuseMini-
Fuse Description

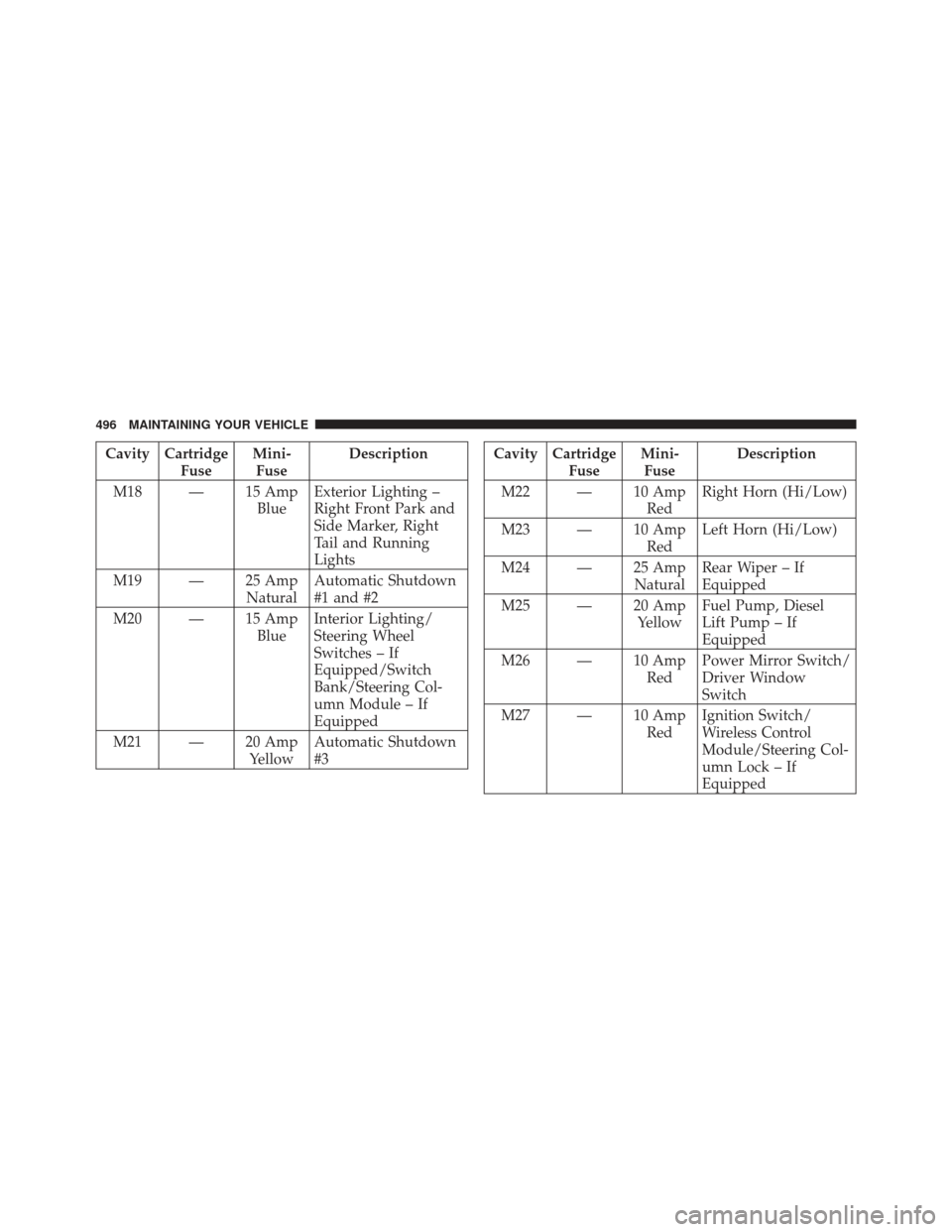

M18 — 15 Amp BlueExterior Lighting –
Right Front Park and
Side Marker, Right
Tail and Running
Lights
M19 — 25 Amp NaturalAutomatic Shutdown
#1 and #2
M20 — 15 Amp BlueInterior Lighting/
Steering Wheel
Switches – If
Equipped/Switch
Bank/Steering Col-
umn Module – If
Equipped
M21 — 20 Amp YellowAutomatic Shutdown
#3Cavity Cartridge
FuseMini-
Fuse Description
M22 — 10 Amp RedRight Horn (Hi/Low)
M23 — 10 Amp RedLeft Horn (Hi/Low)
M24 — 25 Amp NaturalRear Wiper – If
Equipped
M25 — 20 Amp YellowFuel Pump, Diesel
Lift Pump – If
Equipped
M26 — 10 Amp RedPower Mirror Switch/
Driver Window
Switch
M27 — 10 Amp RedIgnition Switch/
Wireless Control
Module/Steering Col-
umn Lock – If
Equipped
496 MAINTAINING YOUR VEHICLE

Cavity CartridgeFuseMini-
Fuse Description

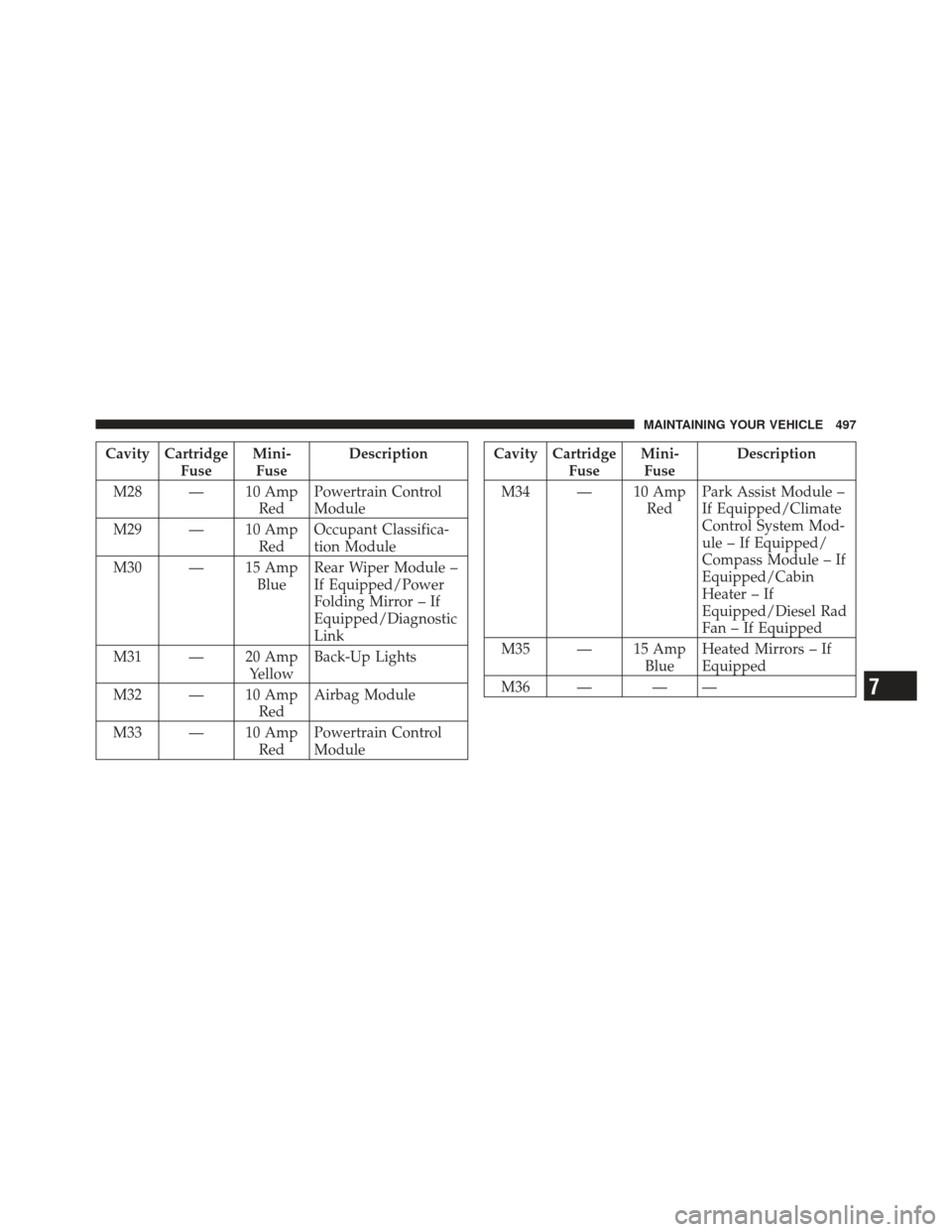

M28 — 10 Amp RedPowertrain Control
Module
M29 — 10 Amp RedOccupant Classifica-
tion Module
M30 — 15 Amp BlueRear Wiper Module –
If Equipped/Power
Folding Mirror – If
Equipped/Diagnostic
Link
M31 — 20 Amp YellowBack-Up Lights
M32 — 10 Amp RedAirbag Module
M33 — 10 Amp RedPowertrain Control
ModuleCavity Cartridge
FuseMini-
Fuse Description
M34 — 10 Amp RedPark Assist Module –
If Equipped/Climate
Control System Mod-
ule – If Equipped/
Compass Module – If
Equipped/Cabin
Heater – If
Equipped/Diesel Rad
Fan – If Equipped
M35 — 15 Amp BlueHeated Mirrors – If
Equipped
M36 — — —
7
MAINTAINING YOUR VEHICLE 497

Cavity CartridgeFuseMini-
Fuse Description

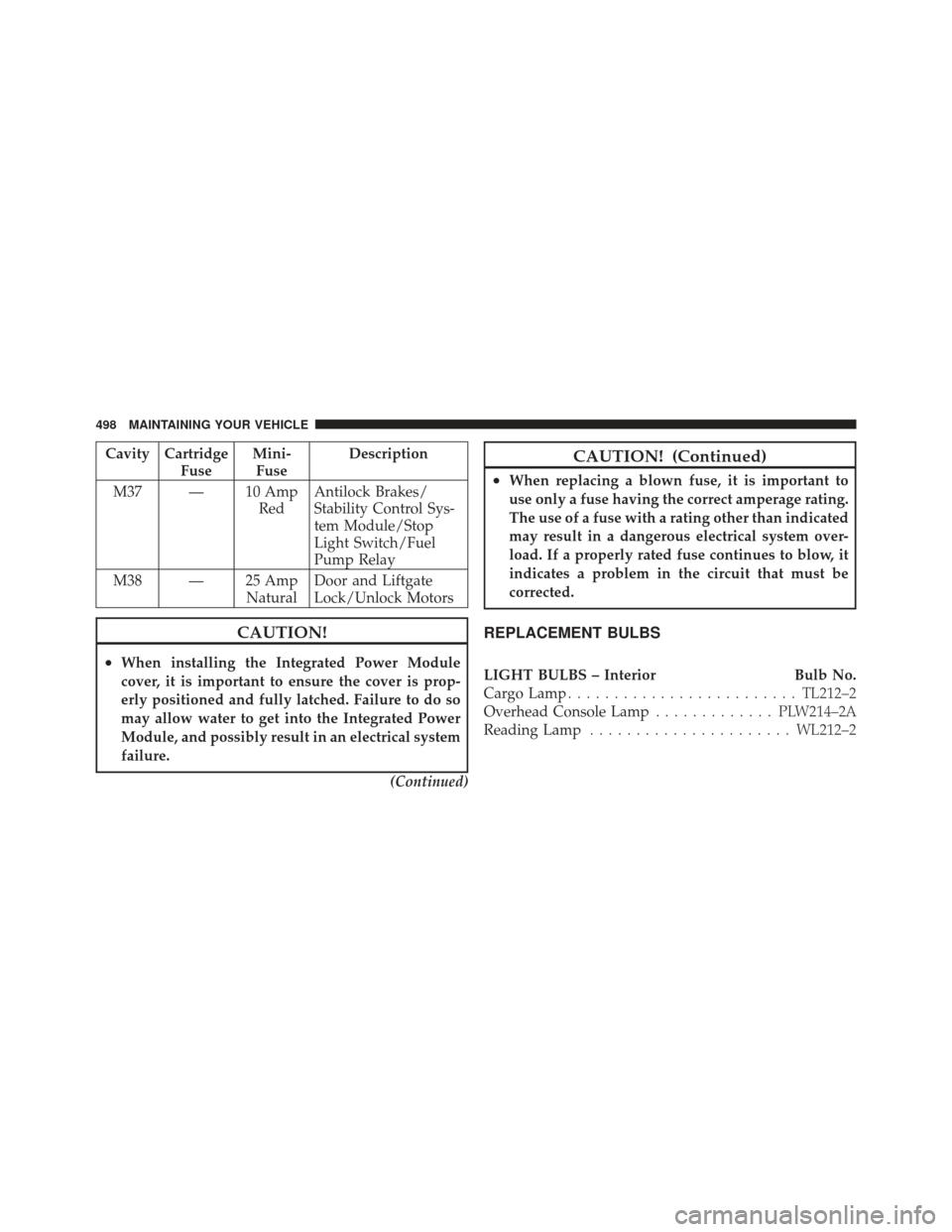

M37 — 10 Amp RedAntilock Brakes/
Stability Control Sys-
tem Module/Stop
Light Switch/Fuel
Pump Relay
M38 — 25 Amp NaturalDoor and Liftgate
Lock/Unlock Motors
CAUTION!
•When installing the Integrated Power Module
cover, it is important to ensure the cover is prop-
erly positioned and fully latched. Failure to do so
may allow water to get into the Integrated Power
Module, and possibly result in an electrical system
failure.
(Continued)
CAUTION! (Continued)
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
REPLACEMENT BULBS
LIGHT BULBS – Interior Bulb No.
Cargo Lamp ......................... TL212–2
Overhead Console Lamp ............. PLW214–2A
Reading Lamp ...................... WL212–2
