Page 222 of 558
Media Center 230 (REQ) — AM/FM Stereo
Radio And 6–Disc CD/DVD Changer
(MP3/WMA AUX Jack) .................. 254
▫ Operating Instructions - Radio Mode ...... 254
▫ Operation Instructions - (Disc Mode For CD
And MP3/WMA Audio Play, DVD-Video) . . . 262
▫ Notes On Playing MP3/WMA Files ....... 264
▫ List Button
(Disc Mode For MP3/WMA Play) ......... 267
▫ Info Button
(Disc Mode For MP3/WMA Play) ......... 267
▫ Uconnect™ Multimedia
(Satellite Radio) — If Equipped .......... 269
Media Center 730N/430/430N (RHR/RER/
RBZ/RHB) CD/DVD/HDD/NAV — If
Equipped ............................ 273
▫ Operating Instructions (Voice Command
System) — If Equipped ................ 274
▫ Operating Instructions
(Uconnect™ Phone) — If Equipped ....... 274
Media Center 130 (Sales Code RES) ......... 274
▫ Operating Instructions — Radio Mode ..... 274
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 277
▫ Notes On Playing MP3 Files ............ 279
▫ Operation Instructions - Auxiliary Mode .... 282
220 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 256 of 558
MEDIA CENTER 230 (REQ) — AM/FM STEREO
RADIO AND 6–DISC CD/DVD CHANGER
(MP3/WMA AUX JACK)
NOTE:The radio sales code is located on the lower right
side of the radio faceplate.
Operating Instructions - Radio Mode
NOTE: The ignition switch must be in the ON or ACC
position to operate the radio.
Power Switch/Volume Control (Rotary)
Push the ON/VOLUME control knob to turn on the
radio. Press the ON/VOLUME control knob a second
time to turn off the radio.
Electronic Volume Control
The electronic volume control turns continuously (360
degrees) in either direction without stopping. Turning the
ON/VOLUME control knob to the right increases the
volume and to the left decreases it.
When the audio system is turned ON, the sound will be
set at the same volume level as last played.
Media Center 230 (REQ)
254 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 270 of 558

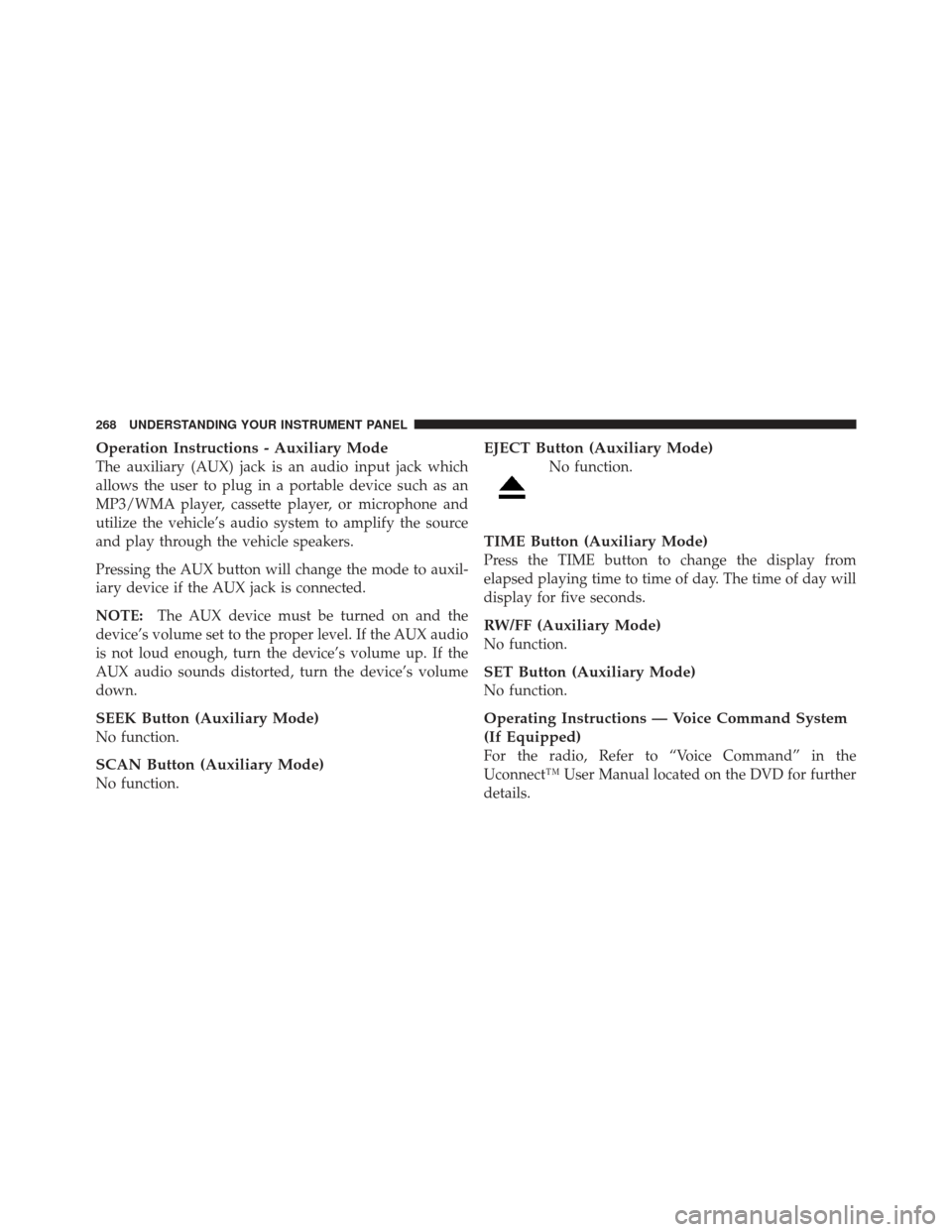

Operation Instructions - Auxiliary Mode
The auxiliary (AUX) jack is an audio input jack which
allows the user to plug in a portable device such as an
MP3/WMA player, cassette player, or microphone and
utilize the vehicle’s audio system to amplify the source
and play through the vehicle speakers.
Pressing the AUX button will change the mode to auxil-
iary device if the AUX jack is connected.
NOTE:The AUX device must be turned on and the
device’s volume set to the proper level. If the AUX audio
is not loud enough, turn the device’s volume up. If the
AUX audio sounds distorted, turn the device’s volume
down.
SEEK Button (Auxiliary Mode)
No function.
SCAN Button (Auxiliary Mode)
No function.
EJECT Button (Auxiliary Mode)
No function.
TIME Button (Auxiliary Mode)
Press the TIME button to change the display from
elapsed playing time to time of day. The time of day will
display for five seconds.
RW/FF (Auxiliary Mode)
No function.
SET Button (Auxiliary Mode)
No function.
Operating Instructions — Voice Command System
(If Equipped)
For the radio, Refer to “Voice Command” in the
Uconnect™ User Manual located on the DVD for further
details.
268 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 284 of 558
•Number of files and folders - Loading times will
increase with more files and folders
To increase the speed of disc loading, it is recommended
to use CD-R media and single-session discs. To create a
single-session disc, enable the “Disc at Once” option
before writing to the disc.
Operation Instructions - Auxiliary Mode
The auxiliary (AUX) jack is an audio input jack, which
allows the user to plug in a portable device, such as an
MP3 player, or cassette player, and utilize the vehicle’s
audio system to amplify the source and play through the
vehicle speakers. Pressing the DISC/AUX button will change the mode to
auxiliary device if the AUX jack is connected.
NOTE:
The AUX device must be turned on and the
device’s volume set to proper level. If the AUX audio is
not loud enough, turn the device’s volume up. If the AUX
audio sounds distorted, turn the device’s volume down.
TIME Button (Auxiliary Mode)
Press this button to change the display to time of day. The
time of day will display for five seconds (when ignition is
OFF).
MEDIA CENTER 130 WITH SATELLITE RADIO
(SALES CODE RES+RSC)
NOTE: The radio sales code is located on the lower right
side of the radio faceplate.
282 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 290 of 558
the minutes using the right side TUNE/SCROLL
control knob. Press the TUNE/SCROLL control knob
to save time change.
AM/FM Button
Press the button to select either AM or FM mode.
SET/RND Button — To Set the Pushbutton
Memory
When you are receiving a station that you wish to
commit to pushbutton memory, press the SET/RND
button. The symbol SET 1 will now show in the display
window. Select the button (1–6) you wish to lock onto this
station and press and release that button. If a button is
not selected within five seconds after pressing the SET/
RND button, the station will continue to play but will not
be stored into pushbutton memory.You may add a second station to each pushbutton by
repeating the above procedure with this exception: Press
the SET/RND button twice and SET 2 will show in the
display window. Each button can be set for SET 1 and
SET 2 in both AM and FM. This allows a total of 12 AM
and 12 FM stations to be stored into pushbutton memory.
The stations stored in SET 2 memory can be selected by
pressing the pushbutton twice.
Every time a preset button is used, a corresponding
button number will display.
Buttons1-6
These buttons tune the radio to the stations that you
commit to pushbutton memory (12 AM and 12 FM
stations).
DISC/AUX Button
Pressing the DISC/AUX button will allow you to switch
from AM/FM modes to DISC/AUX mode.
288 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 296 of 558
Press and hold the INFO button again for three seconds
to return toelapsed time display.
Operation Instructions - Auxiliary Mode
The auxiliary (AUX) jack is an audio input jack which
allows the user to plug in a portable device such as an
MP3 player or cassette player and utilize the vehicle’s
audio system to amplify the source and play through the
vehicle speakers.
Pressing the AUX button will change the mode to auxil-
iary device if the AUX jack is connected.
NOTE:The AUX device must be turned on and the
device’s volume set to the proper level. If the AUX audio
is not loud enough, turn the device’s volume up. If the
AUX audio sounds distorted, turn the device’s volume
down.
TIME Button (Auxiliary Mode)
Press this button to change the display to time of day. The
time of day will display for five seconds (when the
ignition is OFF).
Uconnect™ Multimedia (Satellite Radio) — If
Equipped
Satellite radio uses direct satellite-to-receiver broadcast-
ing technology to provide clear digital sound, coast to
coast. The subscription service provider is Sirius Satellite
Radio. This service offers over 130 channels of music,
sports, news, entertainment, and programming for chil-
dren, directly from its satellites and broadcasting studios.
NOTE: Sirius service is not available in Hawaii and has
limited coverage in Alaska.
System Activation
Sirius Satellite Radio service is pre-activated, and you
may begin listening immediately to the one year of audio
service that is included with the factory-installed satellite
294 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 301 of 558
The right-hand control is a rocker-type switch with a
pushbutton in the center and controls the volume and
mode of the sound system. Pressing the top of the rocker
switch will increase the volume, and pressing the bottom
of the rocker switch will decrease the volume.Pressing the center button will make the radio switch
between the various modes available (AM/FM/SAT/
CD/HDD/AUX/VES, etc.).
The left-hand control is a rocker-type switch with a
pushbutton in the center. The function of the left-hand
control is different depending on which mode you are in.
The following describes the left-hand control operation in
each mode.
Radio Operation
Pressing the top of the switch will “Seek” up for the next
listenable station and pressing the bottom of the switch
will “Seek” down for the next listenable station.
The button located in the center of the left-hand control
will tune to the next preset station that you have pro-
grammed in the radio preset pushbutton.
Remote Sound System Controls
(Back View Of Steering Wheel)
4
UNDERSTANDING YOUR INSTRUMENT PANEL 299
Page 537 of 558
Automatic Door Locks..................... 32
Automatic Headlights .................... 159
Automatic Oil Change Indicator ..........236,243
Automatic Temperature Control (ATC) ......... 305
Automatic Transaxle ...................... 322
Special Additives ..................... 481
Automatic Transmission .............324,480,482
Adding Fluid .................... 482,504
Fluid and Filter Changes ............480,482
Fluid Change ....................... 482
Fluid Level Check .................... 481
Fluid Type ...................... 480,504
Gear Ranges ........................ 324
Special Additives ..................... 481
Torque Converter .................... 332
Auxiliary Electrical Outlet (Power Outlet) ...... 202
Auxiliary Power Outlet ................... 202
Axle Fluid ............................. 504
Axle Lubrication (Axle Fluid) ............... 504B-Pillar Location
........................ 373
Battery ............................... 466
Keyless Transmitter Replacement (RKE) ..... 25
Belts, Seat ............................ 45,90
Body Mechanism Lubrication ............... 468
Brake Assist System ...................... 357
Brake Control System, Electronic ............. 355
Brake Fluid ............................ 504
Brake System ........................... 478
Anti-Lock (ABS) .................. 353,356
Fluid Check ..................... 479,504
Master Cylinder ..................... 479
Parking ........................... 351
Warning Light ....................... 237
Brake, Parking .......................... 351
Brake/Transmission Interlock ............... 323
Brakes ............................... 478
Break-In Recommendations, New Vehicle ........ 88
Bulb Replacement ..................... 498,499
10
INDEX 535
Page 540 of 558
DisposalAntifreeze (Engine Coolant) ............. 477
Engine Oil ......................... 464
Door Locks ............................. 30
Door Locks, Automatic .................... 32
Door Opener, Garage ..................... 184
Driving ............................ 344,345
Off-Pavement ....................... 345
Off-Road .......................... 345
On Hills ........................... 345
Through Flowing, Rising, or Shallow
Standing Water ...................... 345
When to Use Low Range ............... 345
Electric Remote Mirrors ................... 101
Electrical Outlet, Auxiliary (Power Outlet) ...... 202
Electrical Power Outlets ................... 202
Electronic Brake Control System ............. 355
Anti-Lock Brake System ................ 356 Brake Assist System
................... 357
Electronic Roll Mitigation ............... 358
Traction Control System ................ 356
Electronic Roll Mitigation (ERM) ............. 358
Electronic Speed Control (Cruise Control) ...... 173
Electronic Stability Control (ESC) ............. 363
Electronic Vehicle Information Center (EVIC) .... 239
Emergency, In Case of Hazard Warning Flasher ............... 434
Jacking ............................ 435
Jump Starting ....................... 444
Overheating ........................ 434
Emission Control System Maintenance ......... 459
Engine ............................... 457
Air Cleaner ......................... 465
Block Heater ........................ 321
Break-In Recommendations .............. 88
Checking Oil Level ................... 462
Compartment ....................... 457
538 INDEX
