JEEP PATRIOT 2008 1.G Owner's Manual

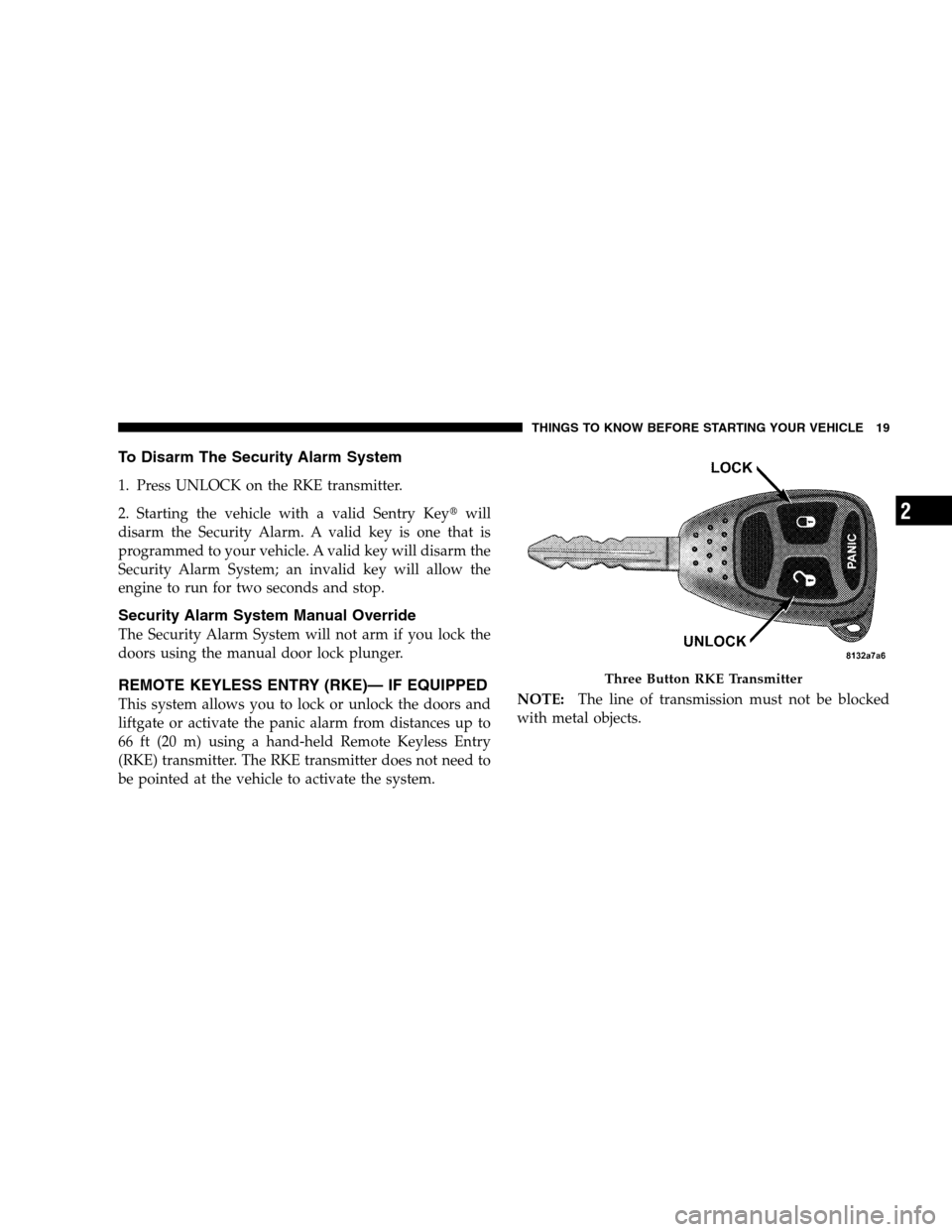

To Disarm The Security Alarm System
1. Press UNLOCK on the RKE transmitter.
2. Starting the vehicle with a valid Sentry Keywill
disarm the Security Alarm. A valid key is one that is
programmed to your vehicle. A valid key will disarm the
Security Alarm System; an invalid key will allow the
engine to run for two seconds and stop.
Security Alarm System Manual Override
The Security Alarm System will not arm if you lock the
doors using the manual door lock plunger.
REMOTE KEYLESS ENTRY (RKE)— IF EQUIPPED
This system allows you to lock or unlock the doors and
liftgate or activate the panic alarm from distances up to
66 ft (20 m) using a hand-held Remote Keyless Entry
(RKE) transmitter. The RKE transmitter does not need to
be pointed at the vehicle to activate the system.NOTE:The line of transmission must not be blocked
with metal objects.
Three Button RKE Transmitter
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
2

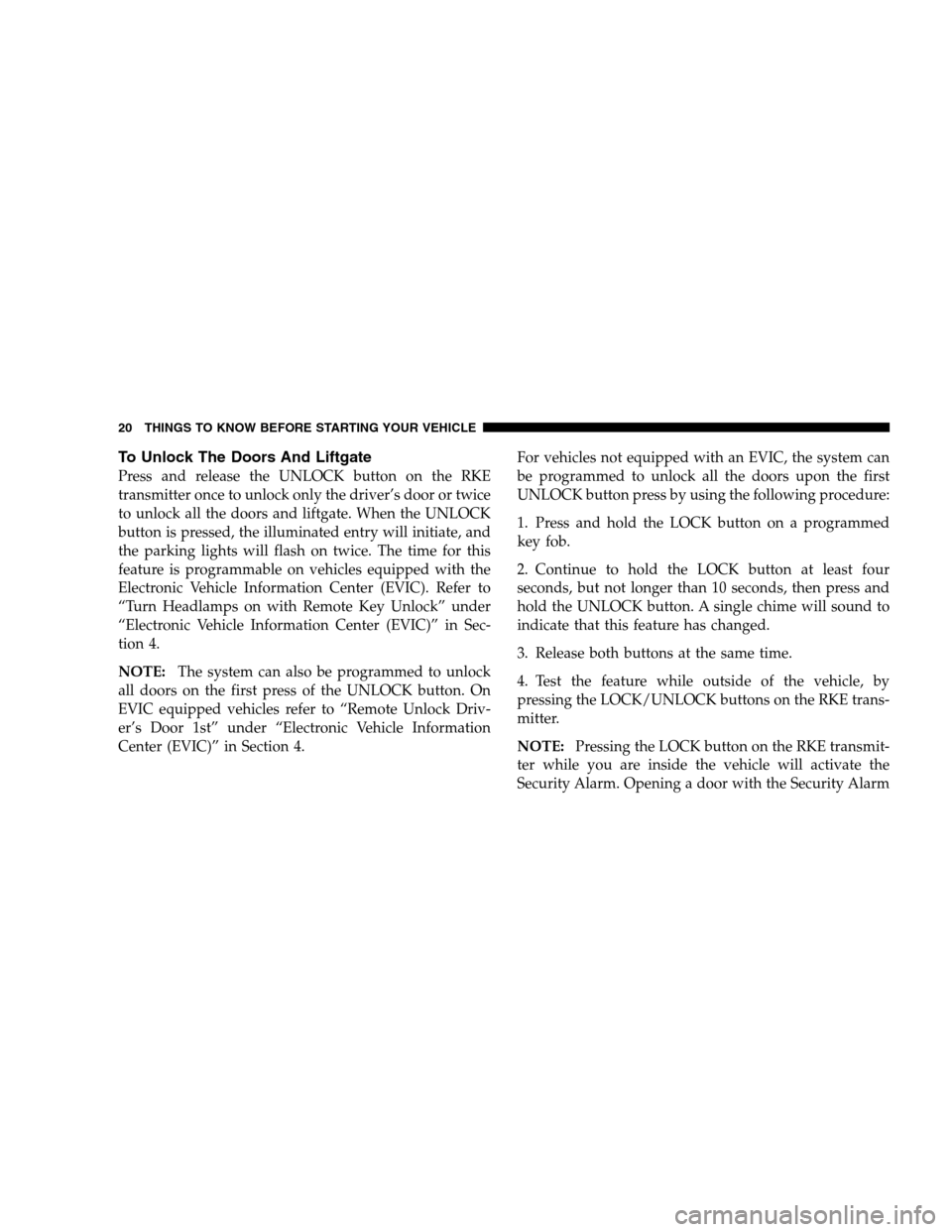

To Unlock The Doors And Liftgate
Press and release the UNLOCK button on the RKE
transmitter once to unlock only the driver’s door or twice
to unlock all the doors and liftgate. When the UNLOCK
button is pressed, the illuminated entry will initiate, and
the parking lights will flash on twice. The time for this
feature is programmable on vehicles equipped with the
Electronic Vehicle Information Center (EVIC). Refer to
“Turn Headlamps on with Remote Key Unlock” under
“Electronic Vehicle Information Center (EVIC)” in Sec-
tion 4.
NOTE:The system can also be programmed to unlock
all doors on the first press of the UNLOCK button. On
EVIC equipped vehicles refer to “Remote Unlock Driv-
er’s Door 1st” under “Electronic Vehicle Information
Center (EVIC)” in Section 4.For vehicles not equipped with an EVIC, the system can
be programmed to unlock all the doors upon the first
UNLOCK button press by using the following procedure:
1. Press and hold the LOCK button on a programmed
key fob.
2. Continue to hold the LOCK button at least four
seconds, but not longer than 10 seconds, then press and
hold the UNLOCK button. A single chime will sound to
indicate that this feature has changed.
3. Release both buttons at the same time.
4. Test the feature while outside of the vehicle, by
pressing the LOCK/UNLOCK buttons on the RKE trans-
mitter.
NOTE:Pressing the LOCK button on the RKE transmit-
ter while you are inside the vehicle will activate the
Security Alarm. Opening a door with the Security Alarm
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

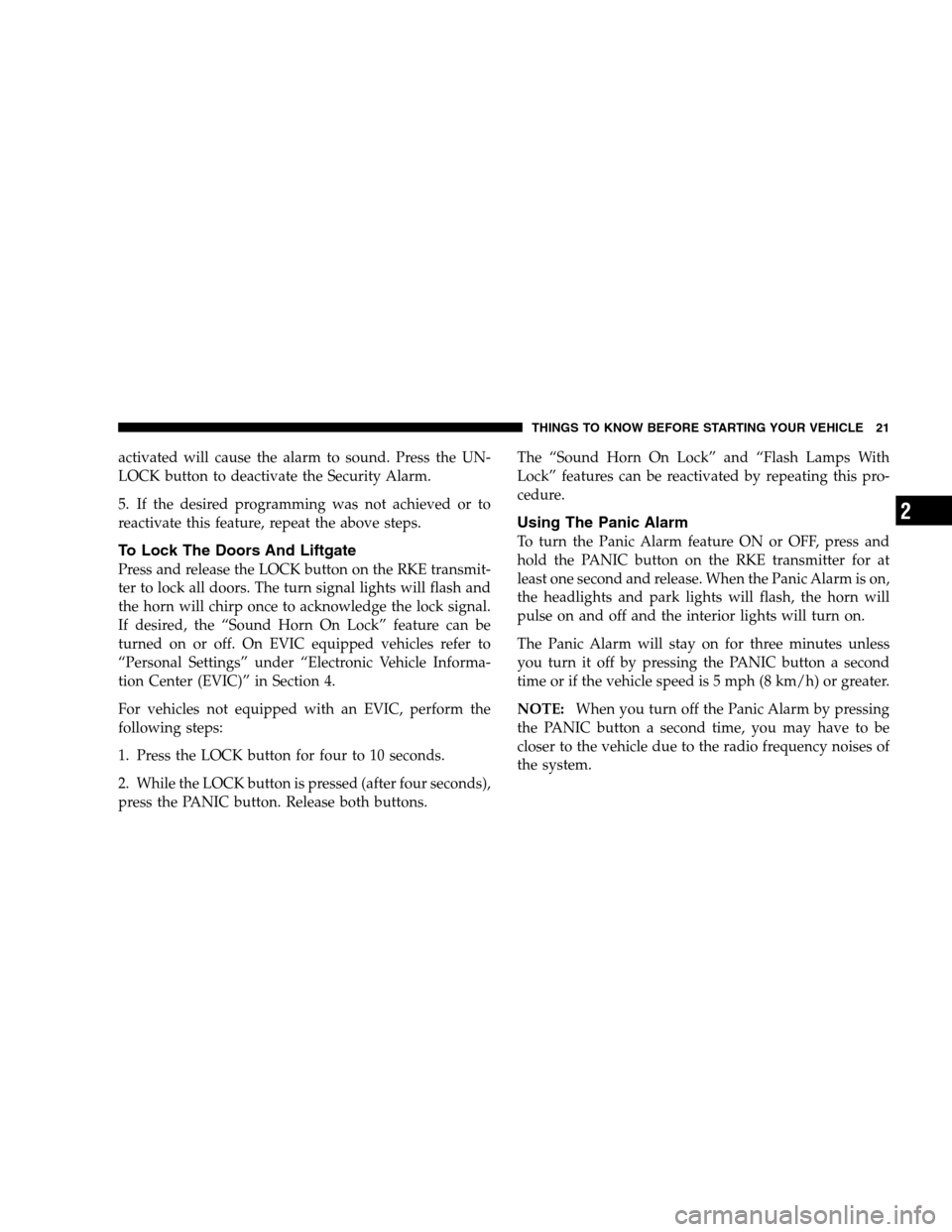

activated will cause the alarm to sound. Press the UN-
LOCK button to deactivate the Security Alarm.
5. If the desired programming was not achieved or to
reactivate this feature, repeat the above steps.
To Lock The Doors And Liftgate
Press and release the LOCK button on the RKE transmit-
ter to lock all doors. The turn signal lights will flash and
the horn will chirp once to acknowledge the lock signal.
If desired, the “Sound Horn On Lock” feature can be
turned on or off. On EVIC equipped vehicles refer to
“Personal Settings” under “Electronic Vehicle Informa-
tion Center (EVIC)” in Section 4.
For vehicles not equipped with an EVIC, perform the
following steps:
1. Press the LOCK button for four to 10 seconds.
2. While the LOCK button is pressed (after four seconds),
press the PANIC button. Release both buttons.The “Sound Horn On Lock” and “Flash Lamps With
Lock” features can be reactivated by repeating this pro-
cedure.
Using The Panic Alarm
To turn the Panic Alarm feature ON or OFF, press and
hold the PANIC button on the RKE transmitter for at
least one second and release. When the Panic Alarm is on,
the headlights and park lights will flash, the horn will
pulse on and off and the interior lights will turn on.
The Panic Alarm will stay on for three minutes unless
you turn it off by pressing the PANIC button a second
time or if the vehicle speed is 5 mph (8 km/h) or greater.
NOTE:When you turn off the Panic Alarm by pressing
the PANIC button a second time, you may have to be
closer to the vehicle due to the radio frequency noises of
the system.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21
2

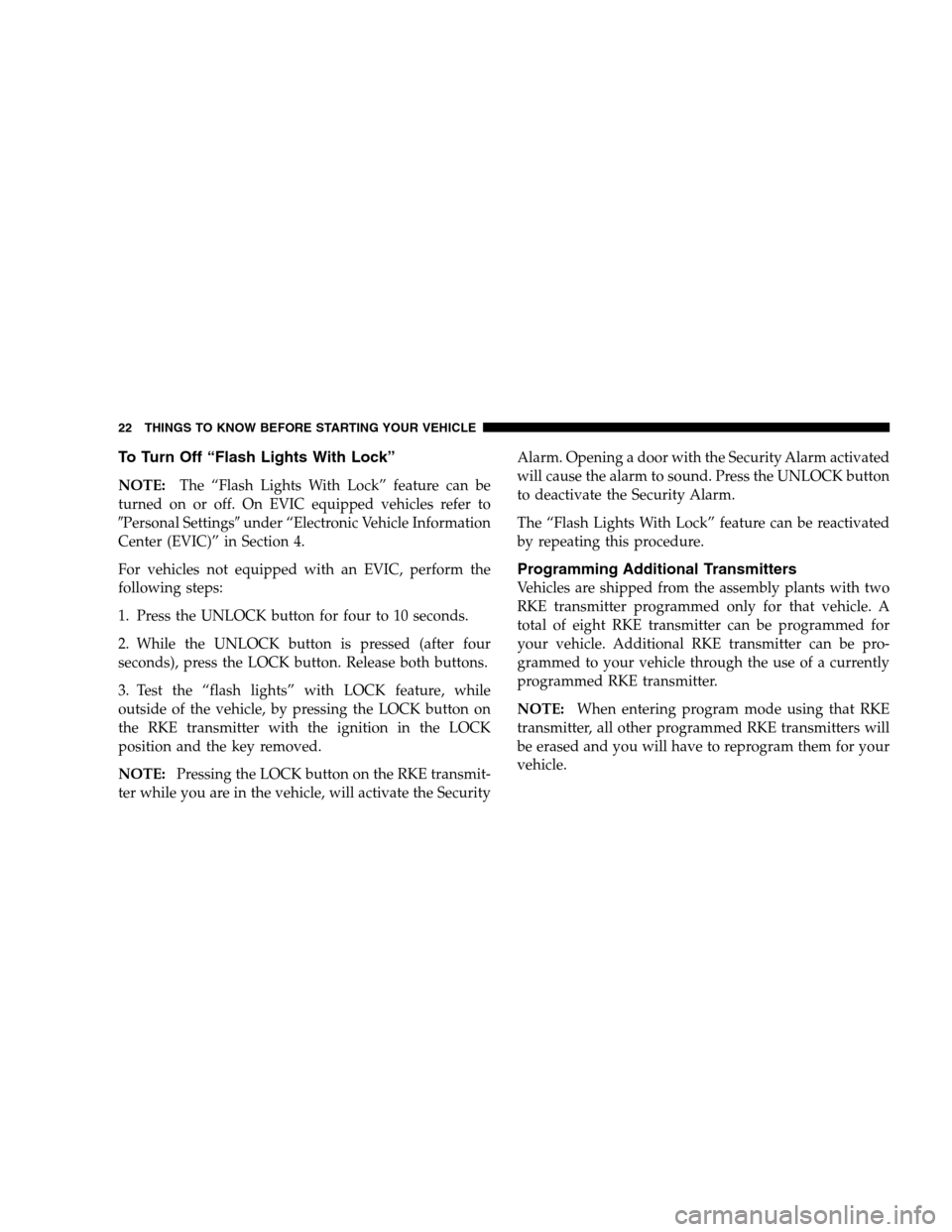

To Turn Off “Flash Lights With Lock”
NOTE:The “Flash Lights With Lock” feature can be
turned on or off. On EVIC equipped vehicles refer to
Personal Settingsunder “Electronic Vehicle Information
Center (EVIC)” in Section 4.
For vehicles not equipped with an EVIC, perform the
following steps:
1. Press the UNLOCK button for four to 10 seconds.
2. While the UNLOCK button is pressed (after four
seconds), press the LOCK button. Release both buttons.
3. Test the “flash lights” with LOCK feature, while
outside of the vehicle, by pressing the LOCK button on
the RKE transmitter with the ignition in the LOCK
position and the key removed.
NOTE:Pressing the LOCK button on the RKE transmit-
ter while you are in the vehicle, will activate the SecurityAlarm. Opening a door with the Security Alarm activated
will cause the alarm to sound. Press the UNLOCK button
to deactivate the Security Alarm.
The “Flash Lights With Lock” feature can be reactivated
by repeating this procedure.
Programming Additional Transmitters
Vehicles are shipped from the assembly plants with two
RKE transmitter programmed only for that vehicle. A
total of eight RKE transmitter can be programmed for
your vehicle. Additional RKE transmitter can be pro-
grammed to your vehicle through the use of a currently
programmed RKE transmitter.
NOTE:When entering program mode using that RKE
transmitter, all other programmed RKE transmitters will
be erased and you will have to reprogram them for your
vehicle.
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

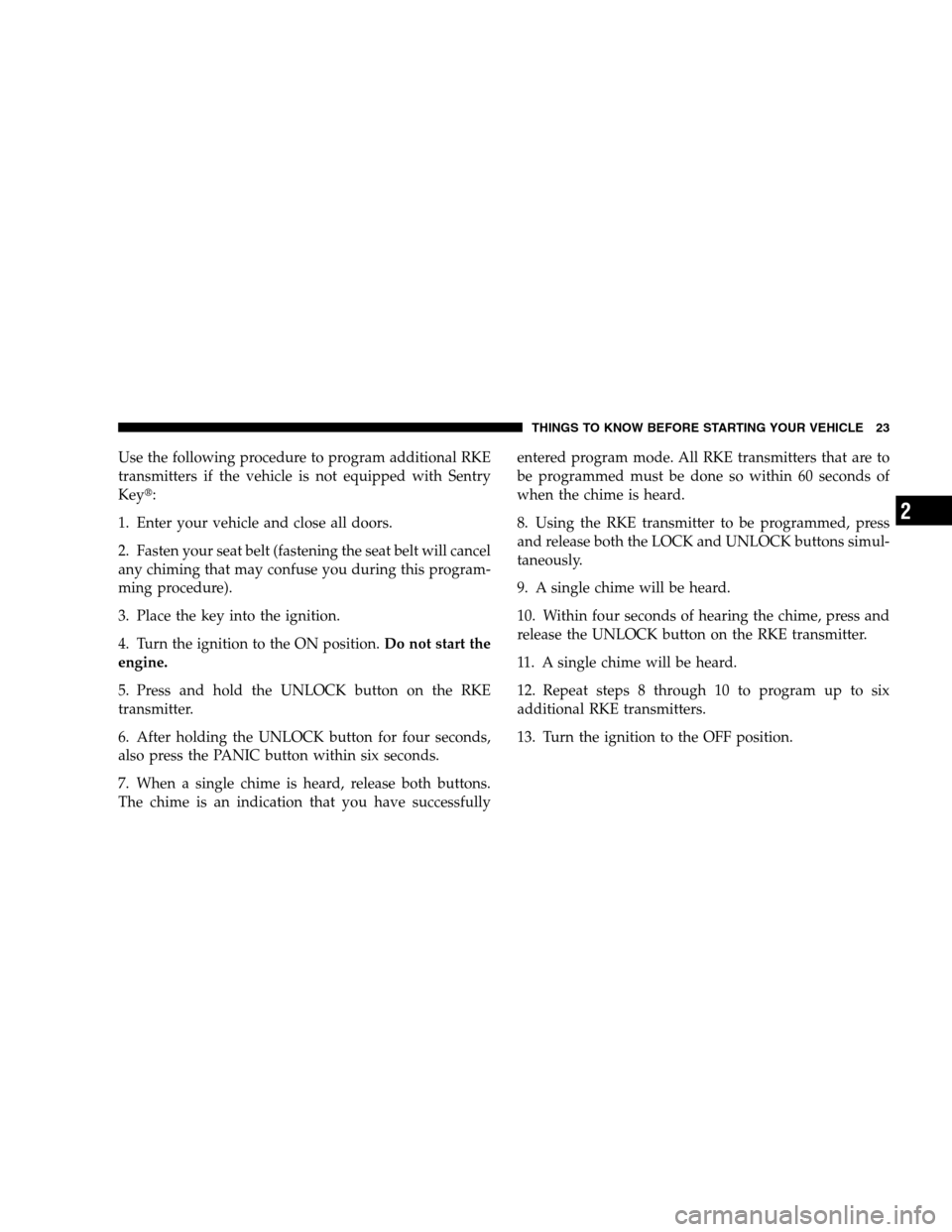

Use the following procedure to program additional RKE
transmitters if the vehicle is not equipped with Sentry
Key:
1. Enter your vehicle and close all doors.
2. Fasten your seat belt (fastening the seat belt will cancel
any chiming that may confuse you during this program-
ming procedure).
3. Place the key into the ignition.
4. Turn the ignition to the ON position.Do not start the
engine.
5. Press and hold the UNLOCK button on the RKE
transmitter.
6. After holding the UNLOCK button for four seconds,
also press the PANIC button within six seconds.
7. When a single chime is heard, release both buttons.
The chime is an indication that you have successfullyentered program mode. All RKE transmitters that are to
be programmed must be done so within 60 seconds of
when the chime is heard.
8. Using the RKE transmitter to be programmed, press
and release both the LOCK and UNLOCK buttons simul-
taneously.
9. A single chime will be heard.
10. Within four seconds of hearing the chime, press and
release the UNLOCK button on the RKE transmitter.
11. A single chime will be heard.
12. Repeat steps 8 through 10 to program up to six
additional RKE transmitters.
13. Turn the ignition to the OFF position.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23
2

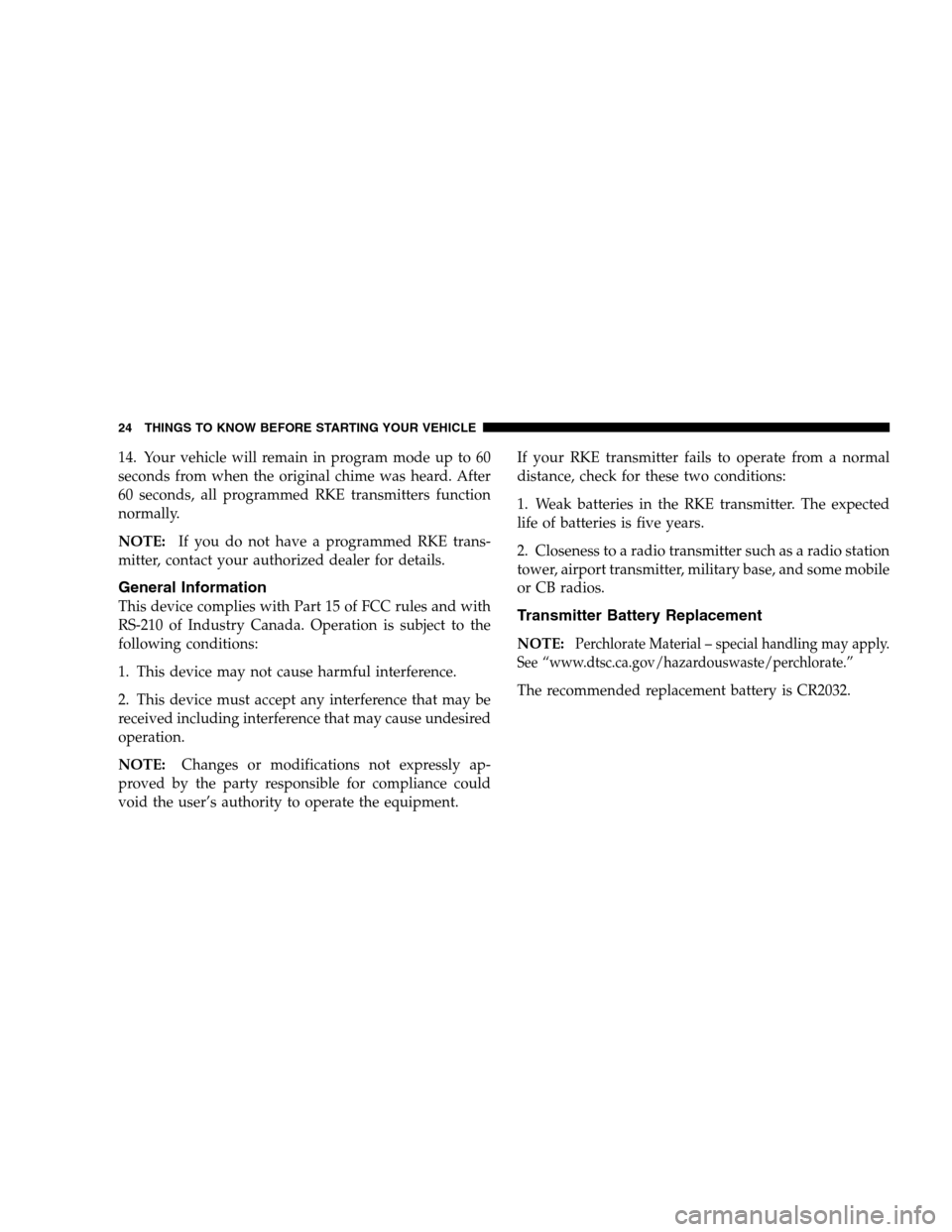

14. Your vehicle will remain in program mode up to 60
seconds from when the original chime was heard. After
60 seconds, all programmed RKE transmitters function
normally.
NOTE:If you do not have a programmed RKE trans-
mitter, contact your authorized dealer for details.
General Information
This device complies with Part 15 of FCC rules and with
RS-210 of Industry Canada. Operation is subject to the
following conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may be
received including interference that may cause undesired
operation.
NOTE:Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user’s authority to operate the equipment.If your RKE transmitter fails to operate from a normal
distance, check for these two conditions:
1. Weak batteries in the RKE transmitter. The expected
life of batteries is five years.
2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, military base, and some mobile
or CB radios.Transmitter Battery Replacement
NOTE:Perchlorate Material – special handling may apply.
See “www.dtsc.ca.gov/hazardouswaste/perchlorate.”
The recommended replacement battery is CR2032.
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

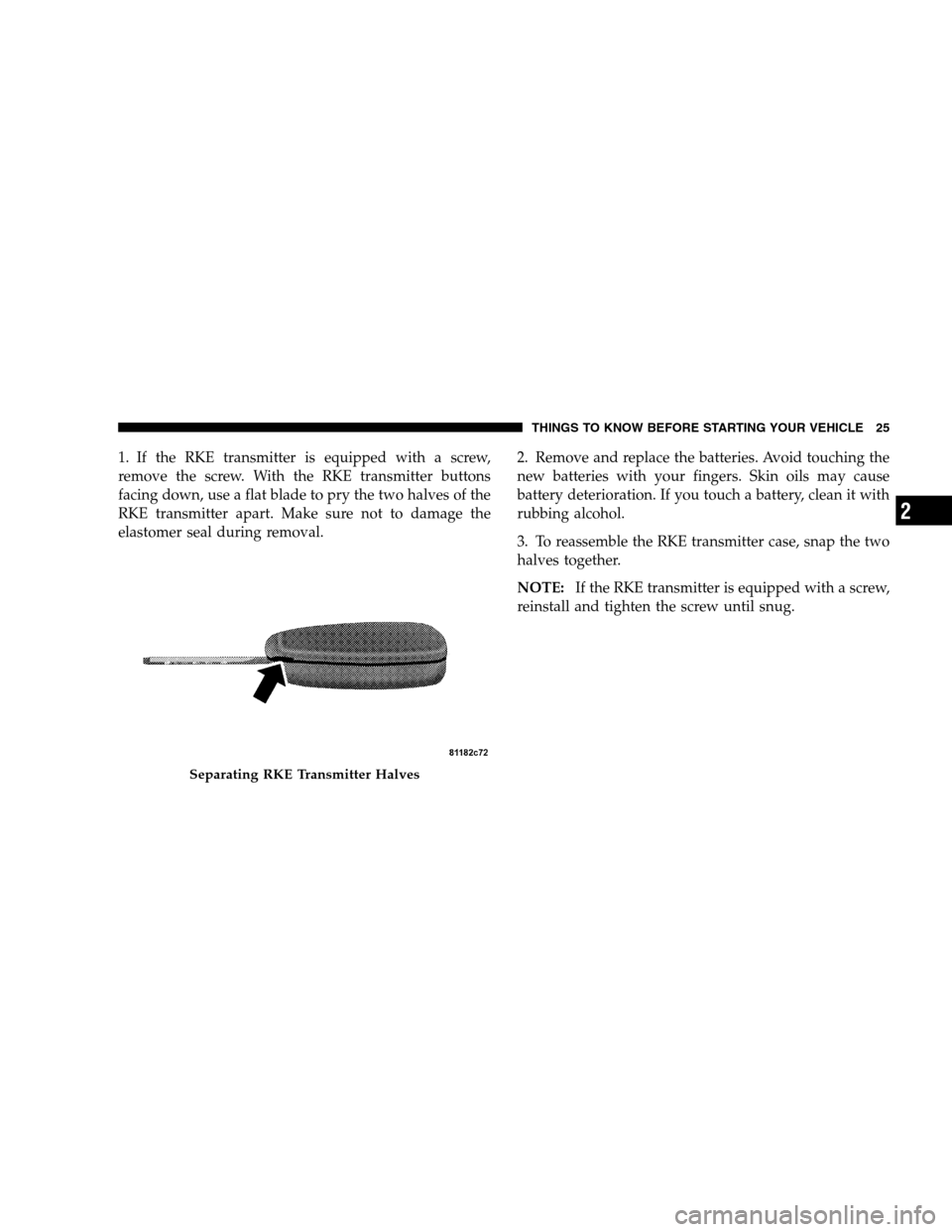

1. If the RKE transmitter is equipped with a screw,
remove the screw. With the RKE transmitter buttons
facing down, use a flat blade to pry the two halves of the
RKE transmitter apart. Make sure not to damage the
elastomer seal during removal.2. Remove and replace the batteries. Avoid touching the
new batteries with your fingers. Skin oils may cause
battery deterioration. If you touch a battery, clean it with
rubbing alcohol.
3. To reassemble the RKE transmitter case, snap the two
halves together.
NOTE:If the RKE transmitter is equipped with a screw,
reinstall and tighten the screw until snug.
Separating RKE Transmitter Halves
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25
2

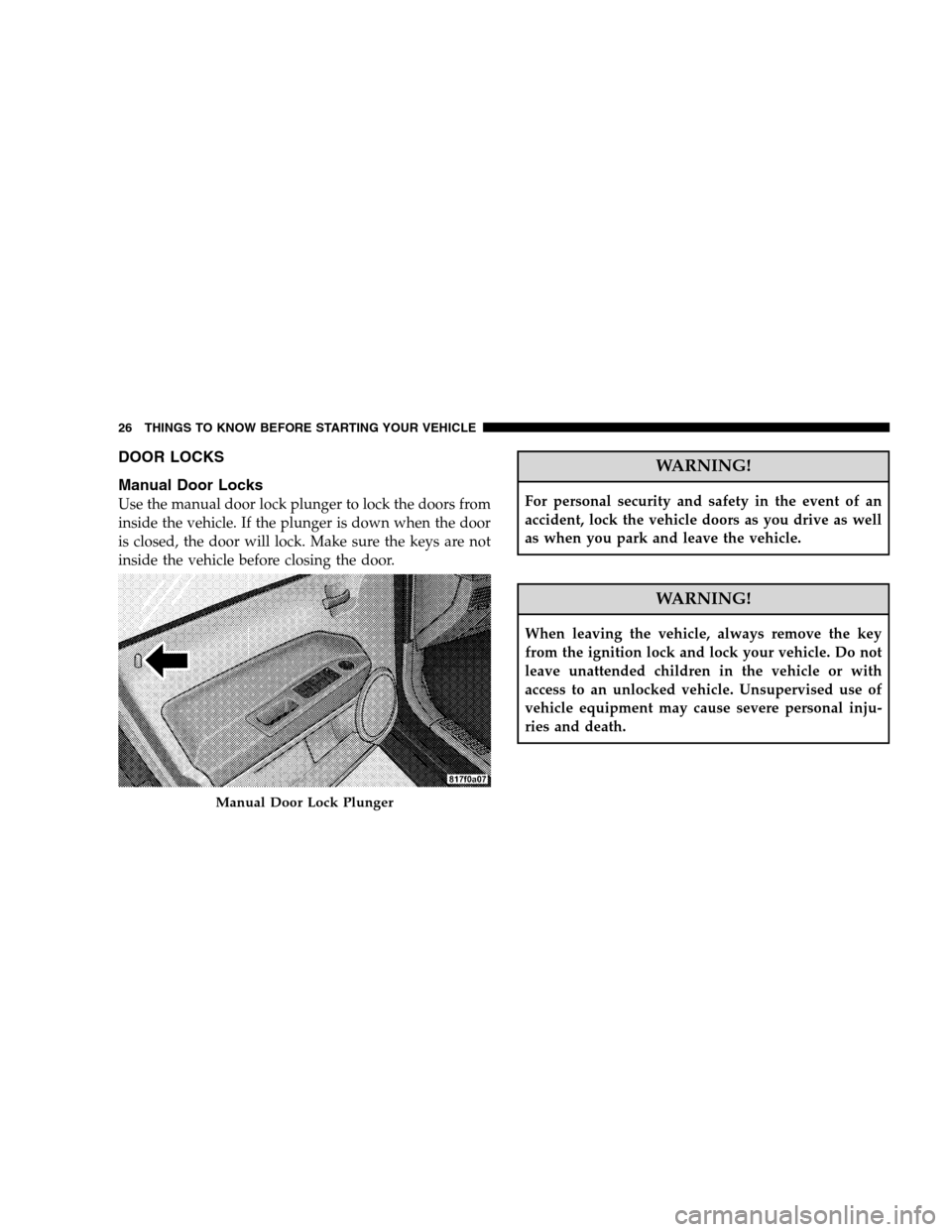

DOOR LOCKS
Manual Door Locks
Use the manual door lock plunger to lock the doors from
inside the vehicle. If the plunger is down when the door
is closed, the door will lock. Make sure the keys are not
inside the vehicle before closing the door.
WARNING!
For personal security and safety in the event of an
accident, lock the vehicle doors as you drive as well
as when you park and leave the vehicle.
WARNING!
When leaving the vehicle, always remove the key
from the ignition lock and lock your vehicle. Do not
leave unattended children in the vehicle or with
access to an unlocked vehicle. Unsupervised use of
vehicle equipment may cause severe personal inju-
ries and death.
Manual Door Lock Plunger
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

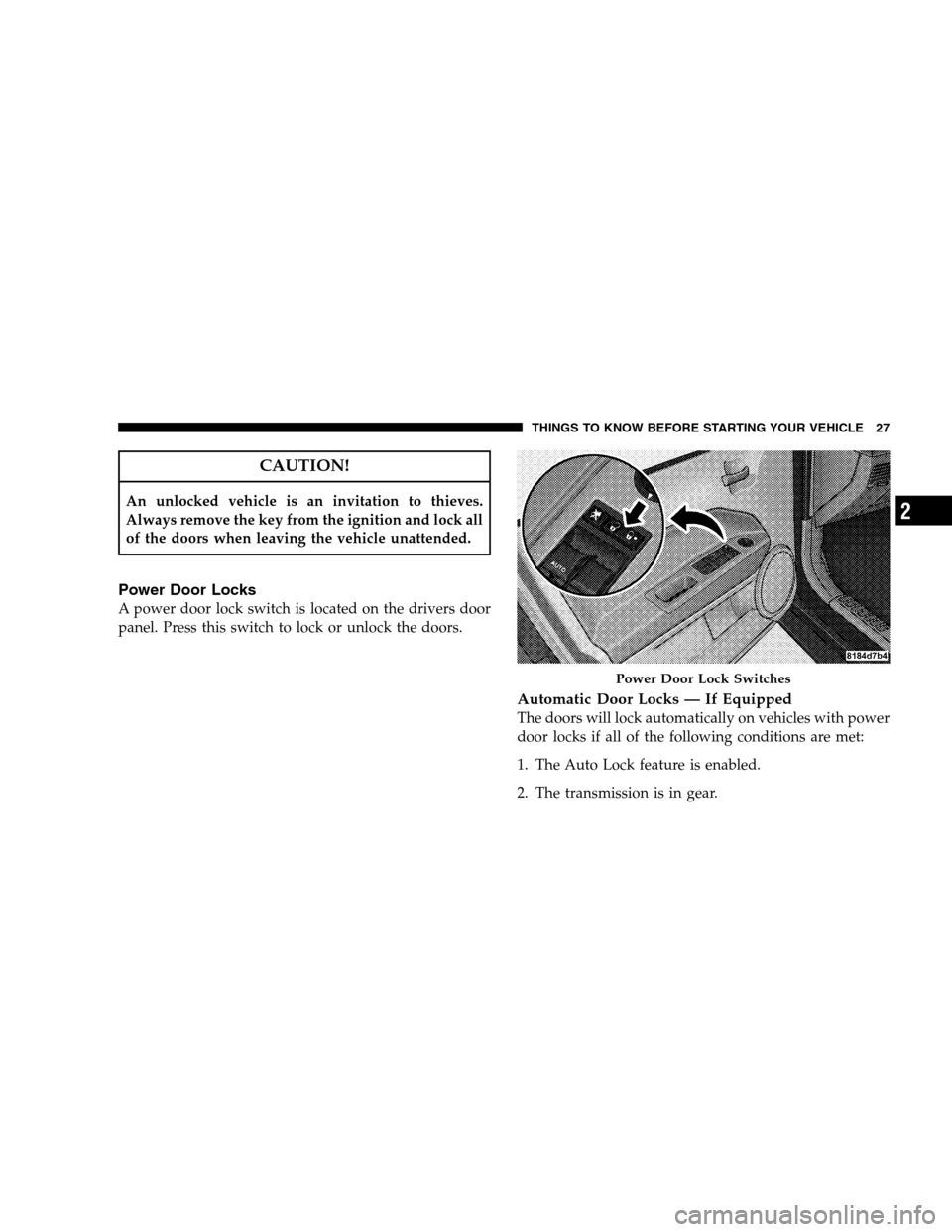

CAUTION!
An unlocked vehicle is an invitation to thieves.
Always remove the key from the ignition and lock all
of the doors when leaving the vehicle unattended.
Power Door Locks
A power door lock switch is located on the drivers door
panel. Press this switch to lock or unlock the doors.
Automatic Door Locks — If Equipped
The doors will lock automatically on vehicles with power
door locks if all of the following conditions are met:
1. The Auto Lock feature is enabled.
2. The transmission is in gear.
Power Door Lock Switches
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27
2

3. All doors are closed.
4. The throttle is pressed.
5. The vehicle speed is above 15 mph (24 km/h).
6. The doors were not previously locked using the power
door lock switch or Remote Keyless Entry (RKE) trans-
mitter.
The Automatic Door Lock feature can be enabled or
disabled. Refer to “Personal Settings” under “Electronic
Vehicle Information Center (EVIC) — (if equipped)” in
Section 4.
For vehicles not equipped with the EVIC, the Automatic
Door Locks can be enabled or disabled by performing the
following procedure:
1. Close all doors and place the key in the ignition.
2.
Cycle the ignition switch between LOCK and ON and
back to LOCK four times, ending up in the LOCK position.
3. Depress the power door LOCK switch to lock the
doors.
4. A single chime will indicate the completion of the
programming.
5. Verify reprogramming by driving the vehicle.
Ignition Key Position
