JEEP PATRIOT 2012 1.G Owners Manual

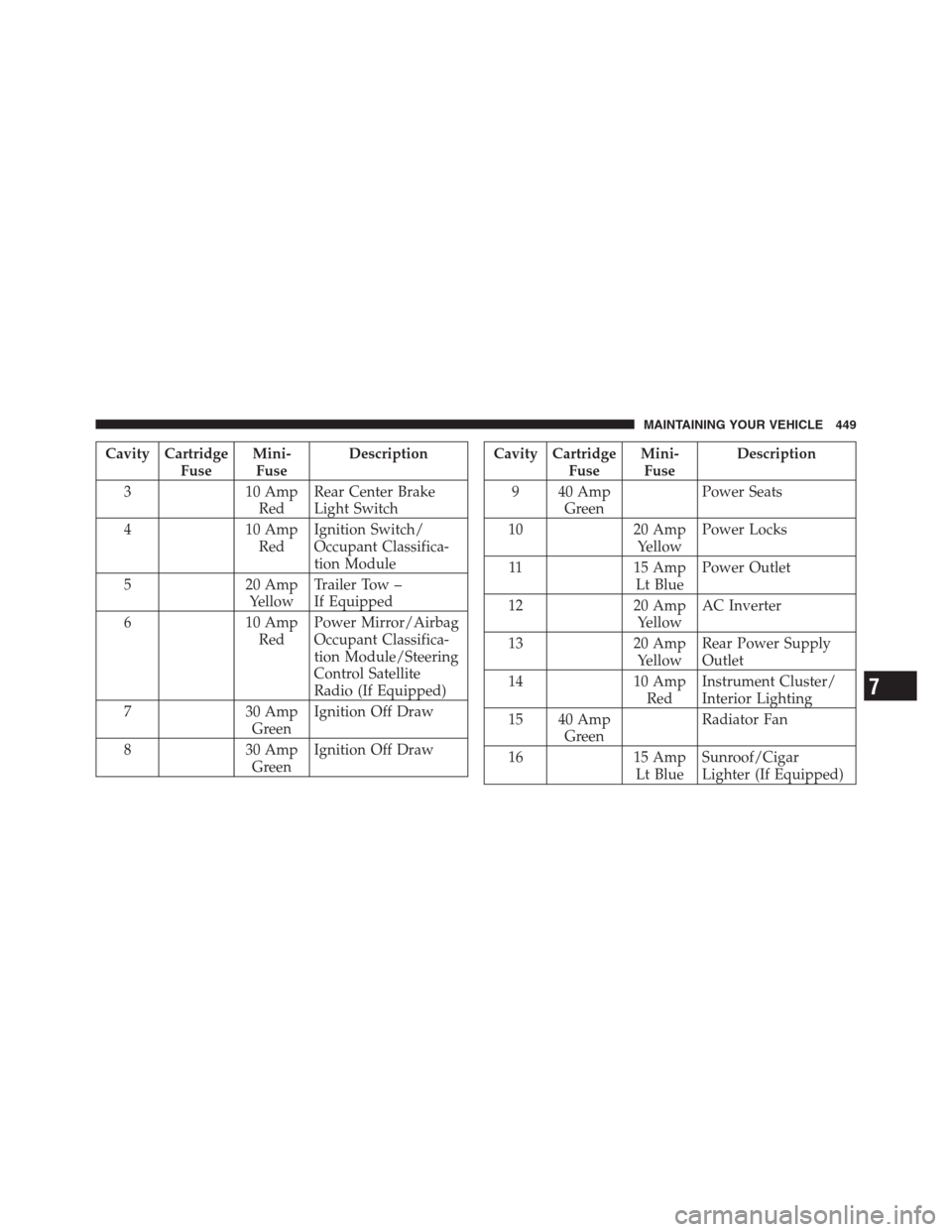

Cavity Cartridge
FuseMini-
FuseDescription
3 10 Amp
RedRear Center Brake
Light Switch
4 10 Amp
RedIgnition Switch/
Occupant Classifica-
tion Module
5 20 Amp
YellowTrailer Tow –
If Equipped
6 10 Amp
RedPower Mirror/Airbag
Occupant Classifica-
tion Module/Steering
Control Satellite
Radio (If Equipped)
7 30 Amp
GreenIgnition Off Draw
8 30 Amp
GreenIgnition Off DrawCavity Cartridge
FuseMini-
FuseDescription
9 40 Amp
GreenPower Seats
10 20 Amp
YellowPower Locks
11 15 Amp
Lt BluePower Outlet
12 20 Amp
YellowAC Inverter
13 20 Amp
YellowRear Power Supply
Outlet
14 10 Amp
RedInstrument Cluster/
Interior Lighting
15 40 Amp
GreenRadiator Fan
16 15 Amp
Lt BlueSunroof/Cigar
Lighter (If Equipped)
7
MAINTAINING YOUR VEHICLE 449

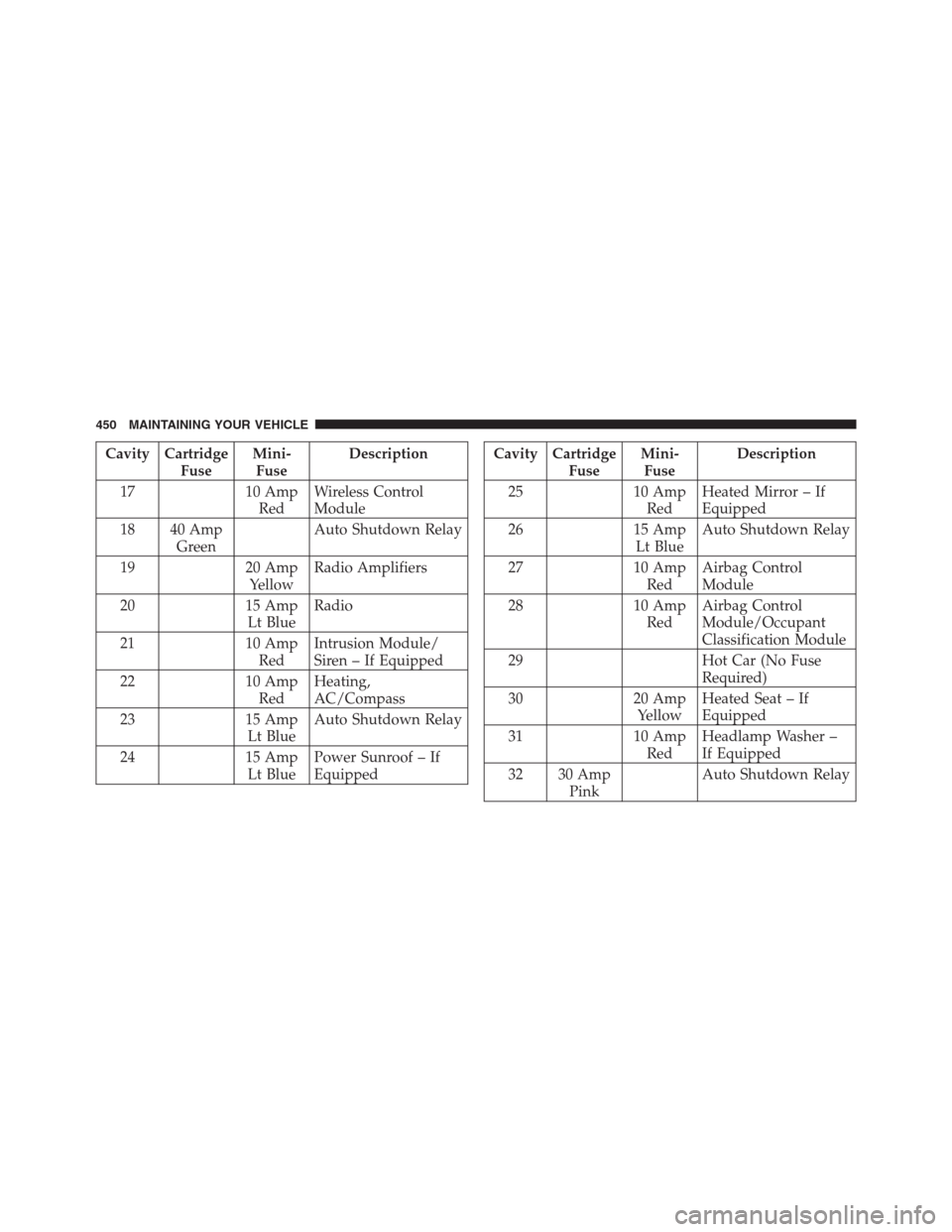

Cavity Cartridge
FuseMini-
FuseDescription
17 10 Amp
RedWireless Control
Module
18 40 Amp
GreenAuto Shutdown Relay
19 20 Amp
YellowRadio Amplifiers
20 15 Amp
Lt BlueRadio
21 10 Amp
RedIntrusion Module/
Siren – If Equipped
22 10 Amp
RedHeating,
AC/Compass
23 15 Amp
Lt BlueAuto Shutdown Relay
24 15 Amp
Lt BluePower Sunroof – If
EquippedCavity Cartridge
FuseMini-
FuseDescription
25 10 Amp
RedHeated Mirror – If
Equipped
26 15 Amp
Lt BlueAuto Shutdown Relay
27 10 Amp
RedAirbag Control
Module
28 10 Amp
RedAirbag Control
Module/Occupant
Classification Module
29 Hot Car (No Fuse
Required)
30 20 Amp
YellowHeated Seat – If
Equipped
31 10 Amp
RedHeadlamp Washer –
If Equipped
32 30 Amp
PinkAuto Shutdown Relay
450 MAINTAINING YOUR VEHICLE

Cavity Cartridge
FuseMini-
FuseDescription
33 10 Amp
RedABS Module/J1962
Diagnostic Link/
Powertrain Control
Module
34 30 Amp
PinkAntilock BrakeValve
35 40 Amp
GreenAntilock Brake Pump
36 30 Amp
PinkHeadlamp/Washer
Control/Smart Glass
– If Equipped
37 25 Amp
Natural110 Inverter – If
Equipped/Diesel Fuel
Heater – If EquippedCAUTION!
•When installing the IPM cover, it is important to
ensure the cover is properly positioned and fully
latched. Failure to do so may allow water to get
into the IPM, and possibly result in an electrical
system failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
7
MAINTAINING YOUR VEHICLE 451

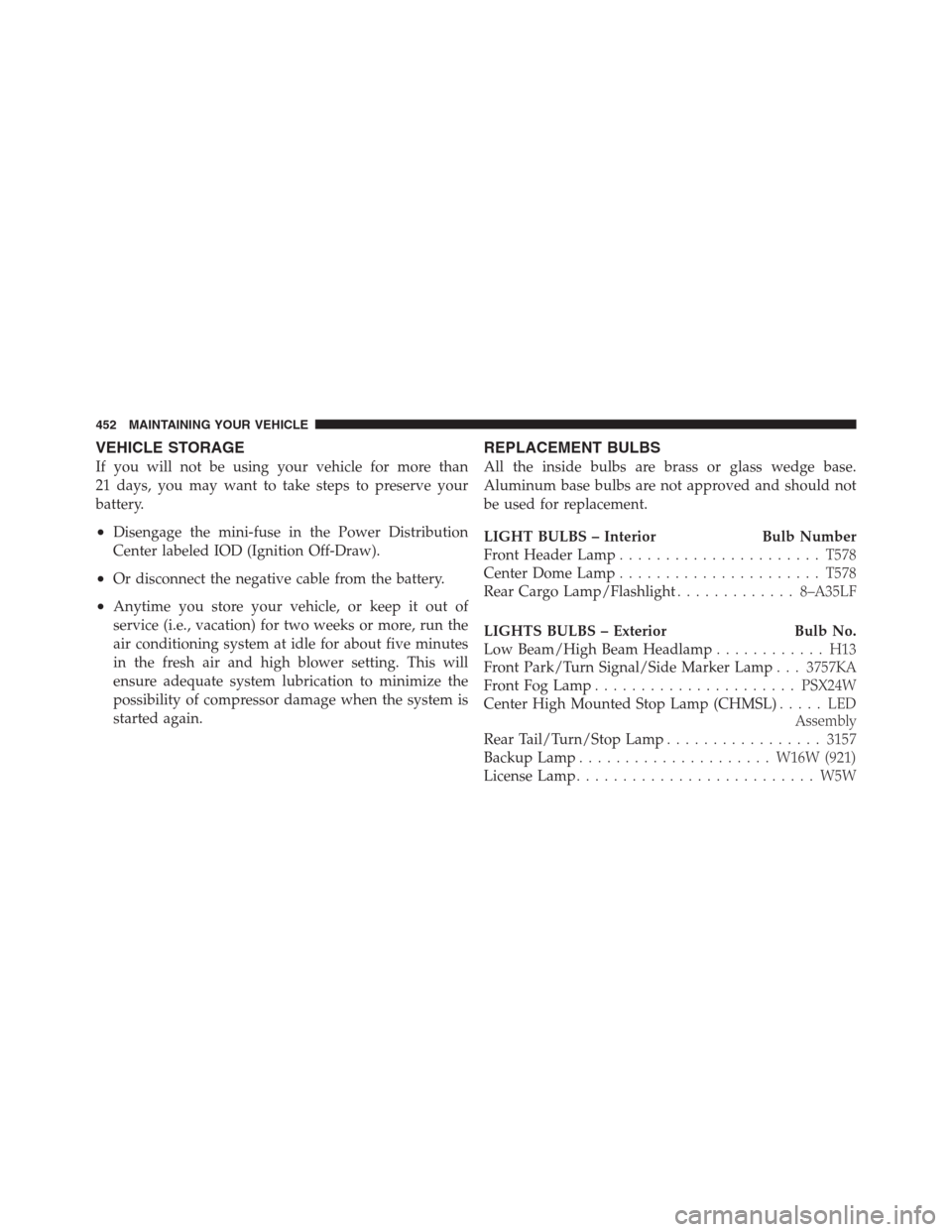

VEHICLE STORAGE
If you will not be using your vehicle for more than
21 days, you may want to take steps to preserve your
battery.
•Disengage the mini-fuse in the Power Distribution
Center labeled IOD (Ignition Off-Draw).
•Or disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.
LIGHT BULBS – Interior Bulb Number
Front Header Lamp......................T578
Center Dome Lamp......................T578
Rear Cargo Lamp/Flashlight.............8–A35LF
LIGHTS BULBS – Exterior Bulb No.
Low Beam/High Beam Headlamp............ H13
Front Park/Turn Signal/Side Marker Lamp. . . 3757KA
Front Fog Lamp......................PSX24W
Center High Mounted Stop Lamp (CHMSL)..... LED
Assembly
Rear Tail/Turn/Stop Lamp.................3157
Backup Lamp.....................W16W (921)
License Lamp.......................... W5W
452 MAINTAINING YOUR VEHICLE

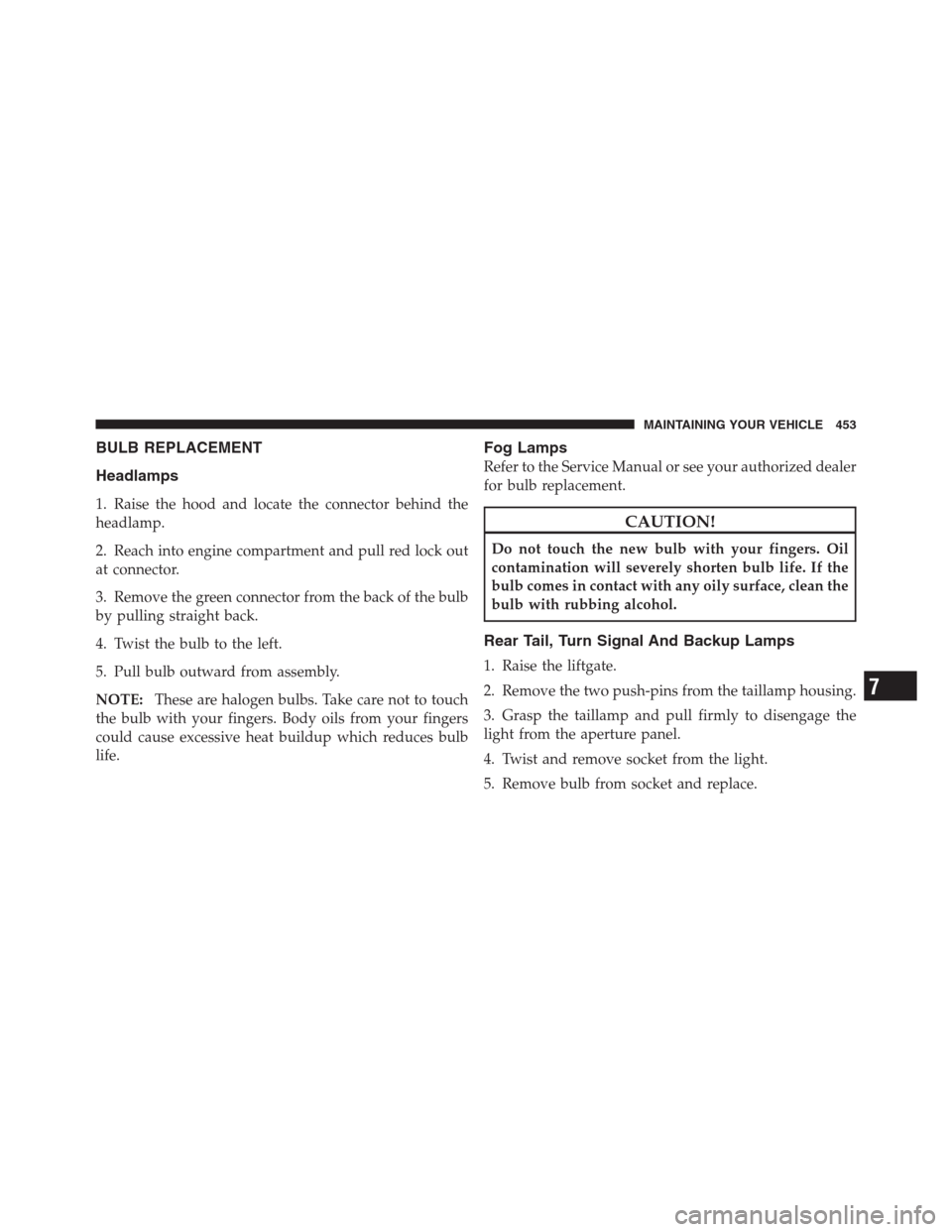

BULB REPLACEMENT
Headlamps
1. Raise the hood and locate the connector behind the
headlamp.
2. Reach into engine compartment and pull red lock out
at connector.
3. Remove the green connector from the back of the bulb
by pulling straight back.
4. Twist the bulb to the left.
5. Pull bulb outward from assembly.
NOTE:These are halogen bulbs. Take care not to touch
the bulb with your fingers. Body oils from your fingers
could cause excessive heat buildup which reduces bulb
life.
Fog Lamps
Refer to the Service Manual or see your authorized dealer
for bulb replacement.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
Rear Tail, Turn Signal And Backup Lamps
1. Raise the liftgate.
2. Remove the two push-pins from the taillamp housing.
3. Grasp the taillamp and pull firmly to disengage the
light from the aperture panel.
4. Twist and remove socket from the light.
5. Remove bulb from socket and replace.
7
MAINTAINING YOUR VEHICLE 453

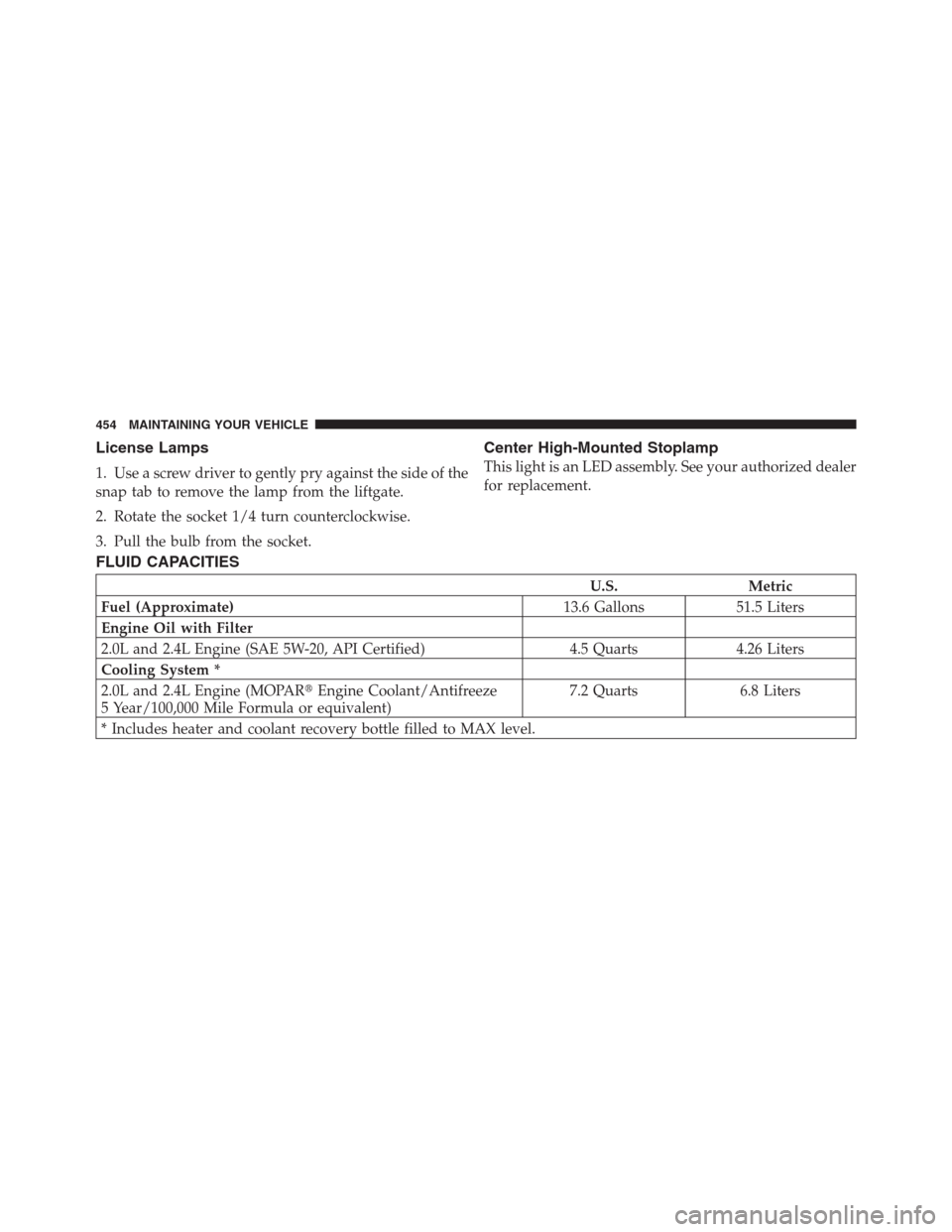

License Lamps
1. Use a screw driver to gently pry against the side of the
snap tab to remove the lamp from the liftgate.
2. Rotate the socket 1/4 turn counterclockwise.
3. Pull the bulb from the socket.
Center High-Mounted Stoplamp
This light is an LED assembly. See your authorized dealer
for replacement.
FLUID CAPACITIES
U.S. Metric
Fuel (Approximate)13.6 Gallons 51.5 Liters
Engine Oil with Filter
2.0L and 2.4L Engine (SAE 5W-20, API Certified) 4.5 Quarts 4.26 Liters
Cooling System *
2.0L and 2.4L Engine (MOPAREngine Coolant/Antifreeze
5 Year/100,000 Mile Formula or equivalent)7.2 Quarts 6.8 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
454 MAINTAINING YOUR VEHICLE

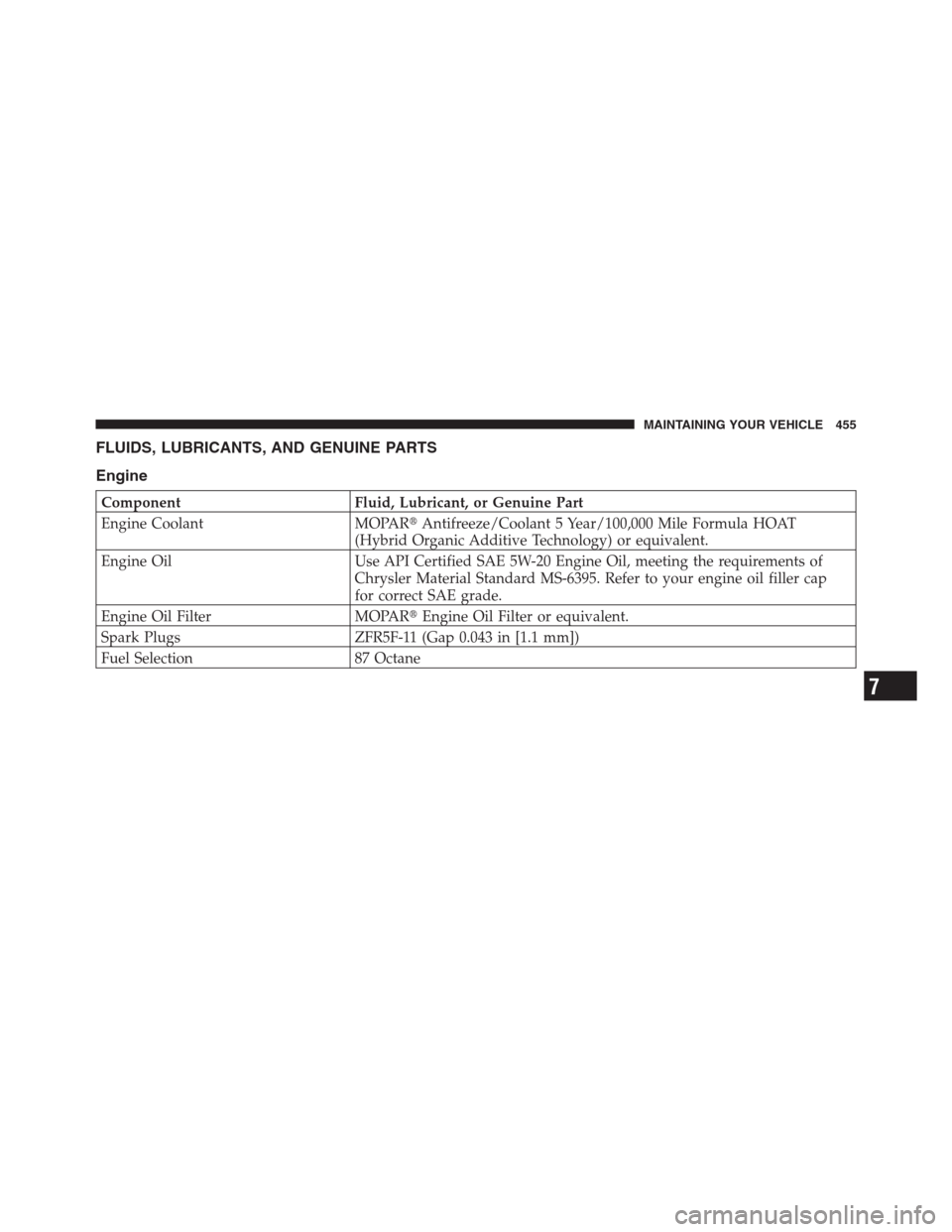

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
Component Fluid, Lubricant, or Genuine Part
Engine Coolant MOPARAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT
(Hybrid Organic Additive Technology) or equivalent.
Engine Oil Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to your engine oil filler cap
for correct SAE grade.
Engine Oil Filter MOPAREngine Oil Filter or equivalent.
Spark Plugs ZFR5F-11 (Gap 0.043 in [1.1 mm])
Fuel Selection 87 Octane
7
MAINTAINING YOUR VEHICLE 455

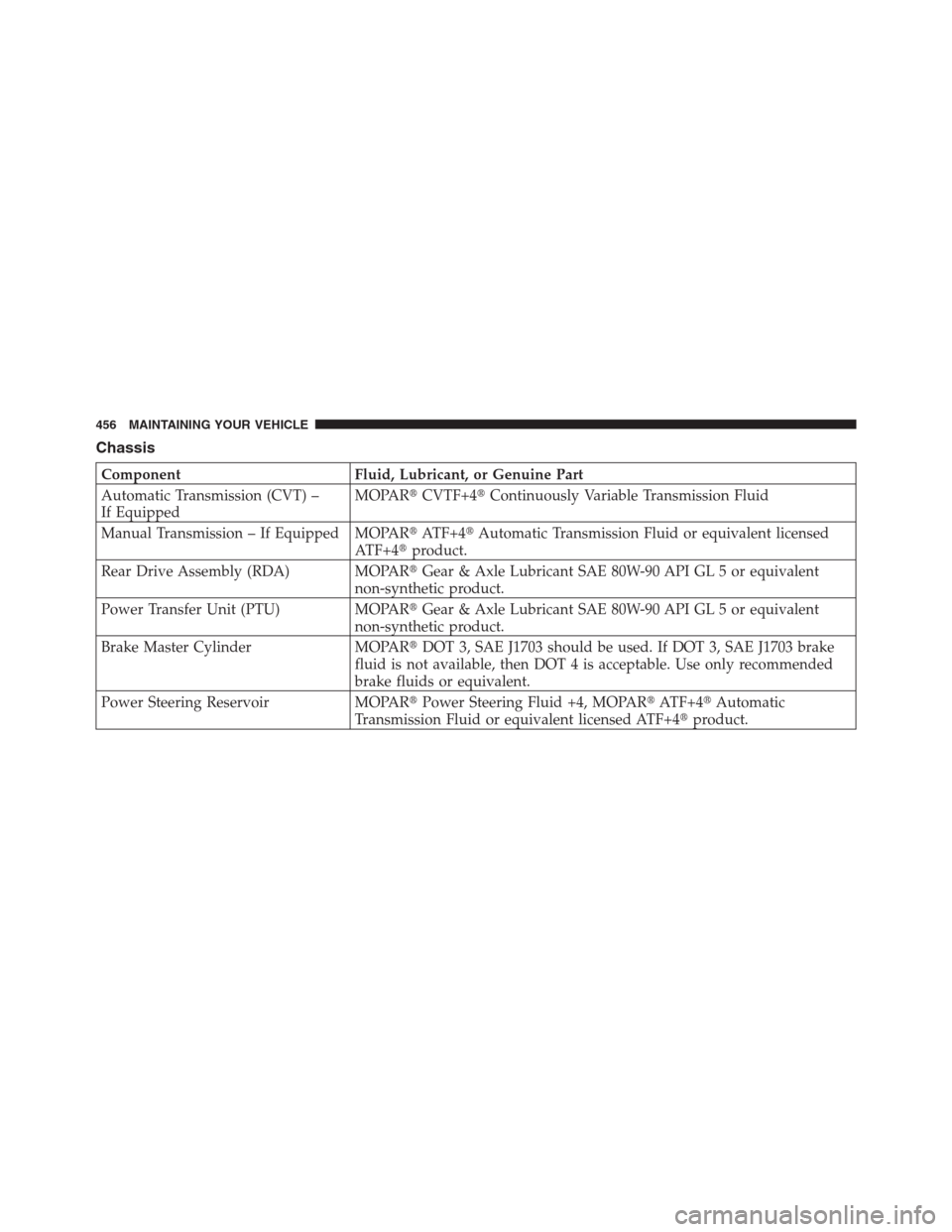

Chassis
Component Fluid, Lubricant, or Genuine Part
Automatic Transmission (CVT) –
If EquippedMOPARCVTF+4Continuously Variable Transmission Fluid
Manual Transmission – If Equipped MOPARATF+4Automatic Transmission Fluid or equivalent licensed
ATF+4product.
Rear Drive Assembly (RDA) MOPARGear & Axle Lubricant SAE 80W-90 API GL 5 or equivalent
non-synthetic product.
Power Transfer Unit (PTU) MOPARGear & Axle Lubricant SAE 80W-90 API GL 5 or equivalent
non-synthetic product.
Brake Master Cylinder MOPARDOT 3, SAE J1703 should be used. If DOT 3, SAE J1703 brake
fluid is not available, then DOT 4 is acceptable. Use only recommended
brake fluids or equivalent.
Power Steering Reservoir MOPARPower Steering Fluid +4, MOPARATF+4Automatic
Transmission Fluid or equivalent licensed ATF+4product.
456 MAINTAINING YOUR VEHICLE

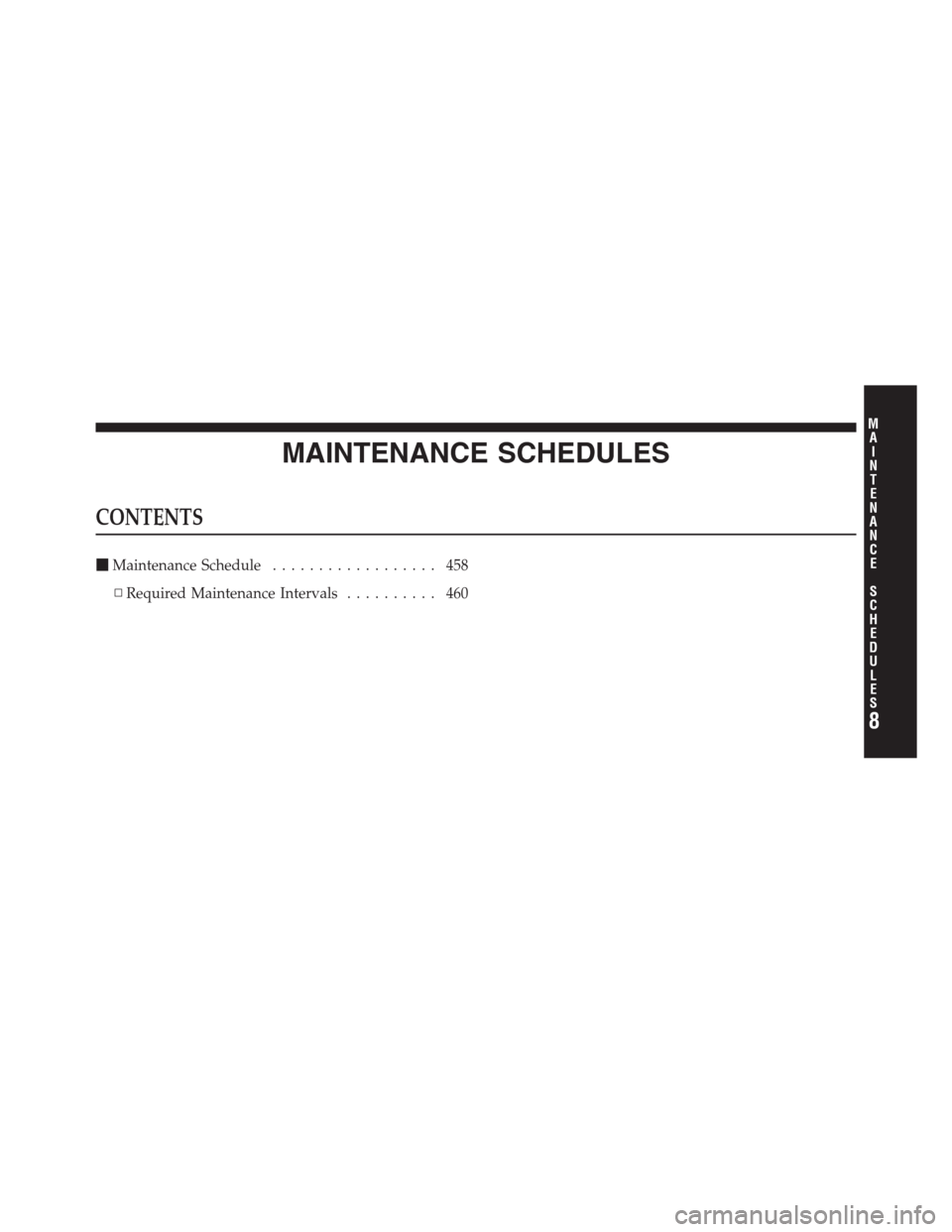

MAINTENANCE SCHEDULES
CONTENTS
Maintenance Schedule.................. 458
▫Required Maintenance Intervals.......... 460
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

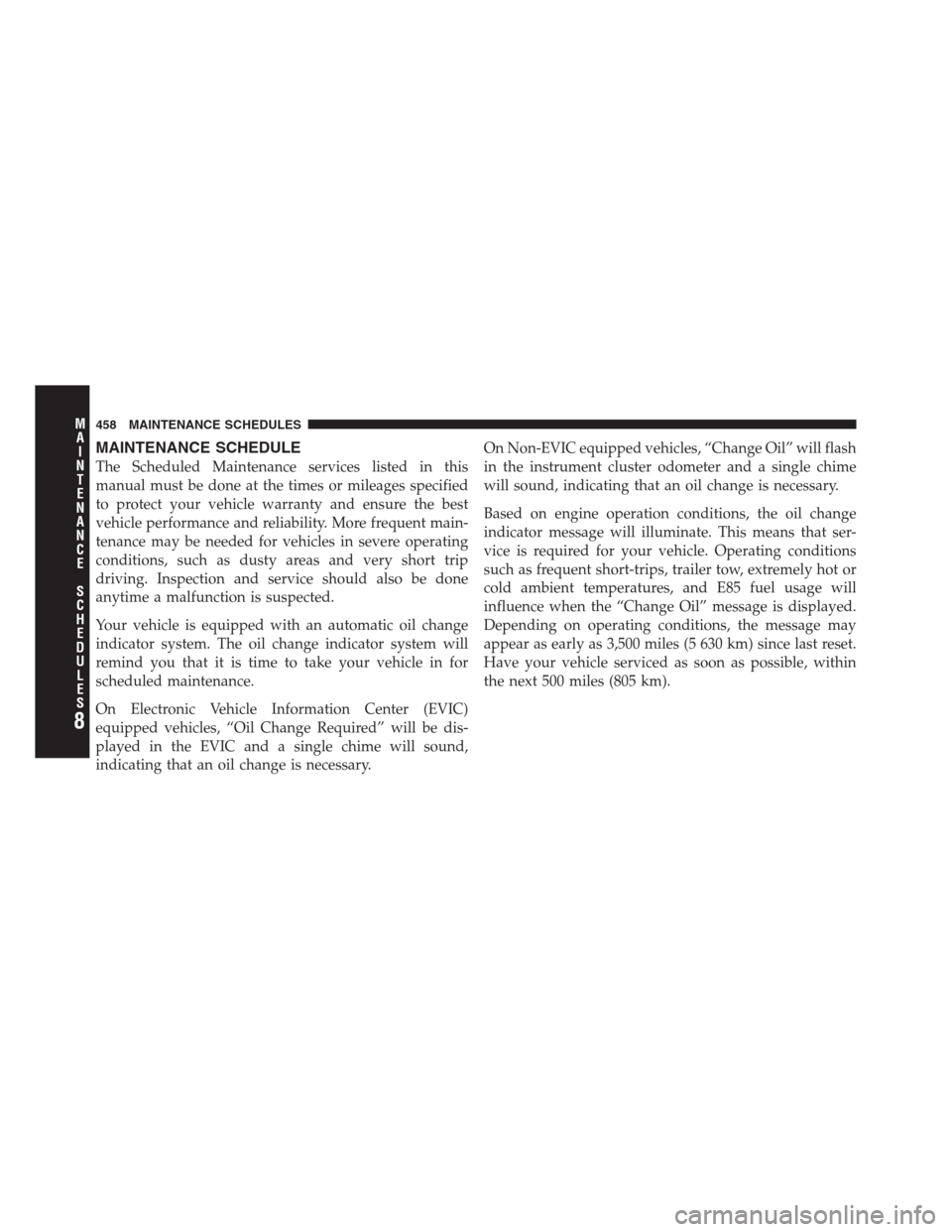

MAINTENANCE SCHEDULE
The Scheduled Maintenance services listed in this
manual must be done at the times or mileages specified
to protect your vehicle warranty and ensure the best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving. Inspection and service should also be done
anytime a malfunction is suspected.
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
On Electronic Vehicle Information Center (EVIC)
equipped vehicles, “Oil Change Required” will be dis-
played in the EVIC and a single chime will sound,
indicating that an oil change is necessary.On Non-EVIC equipped vehicles, “Change Oil” will flash
in the instrument cluster odometer and a single chime
will sound, indicating that an oil change is necessary.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow, extremely hot or
cold ambient temperatures, and E85 fuel usage will
influence when the “Change Oil” message is displayed.
Depending on operating conditions, the message may
appear as early as 3,500 miles (5 630 km) since last reset.
Have your vehicle serviced as soon as possible, within
the next 500 miles (805 km).
