clock setting JEEP PATRIOT 2012 1.G User Guide

Media Center 130 (Sales Code RES)
NOTE:
• Your radio has many features that add to the comfort and convenience of
you and your passengers. Some of these radio features should not be used
when driving because they take your eyes from the road or your attention
from driving.
Clock Setting
• Press and hold the “TIME” button until the hours blink; turn the
“TUNE/SCROLL” control knob to set the hours.
• Press the “TUNE/SCROLL” control knob until the minutes begin to blink;
turn the “TUNE/SCROLL” control knob to set the minutes.
• Press the “TUNE/SCROLL” control knob to save the time change.
• To exit, press any button/knob or wait five seconds.
Equalizer, Balance And Fade
• Press the “TUNE/SCROLL” control knob and BASS, MID, TREBLE,
BALANCE and FADE will display. Rotate the “TUNE/SCROLL” control
knob to select the desired setting.
ELECTRONICS
28

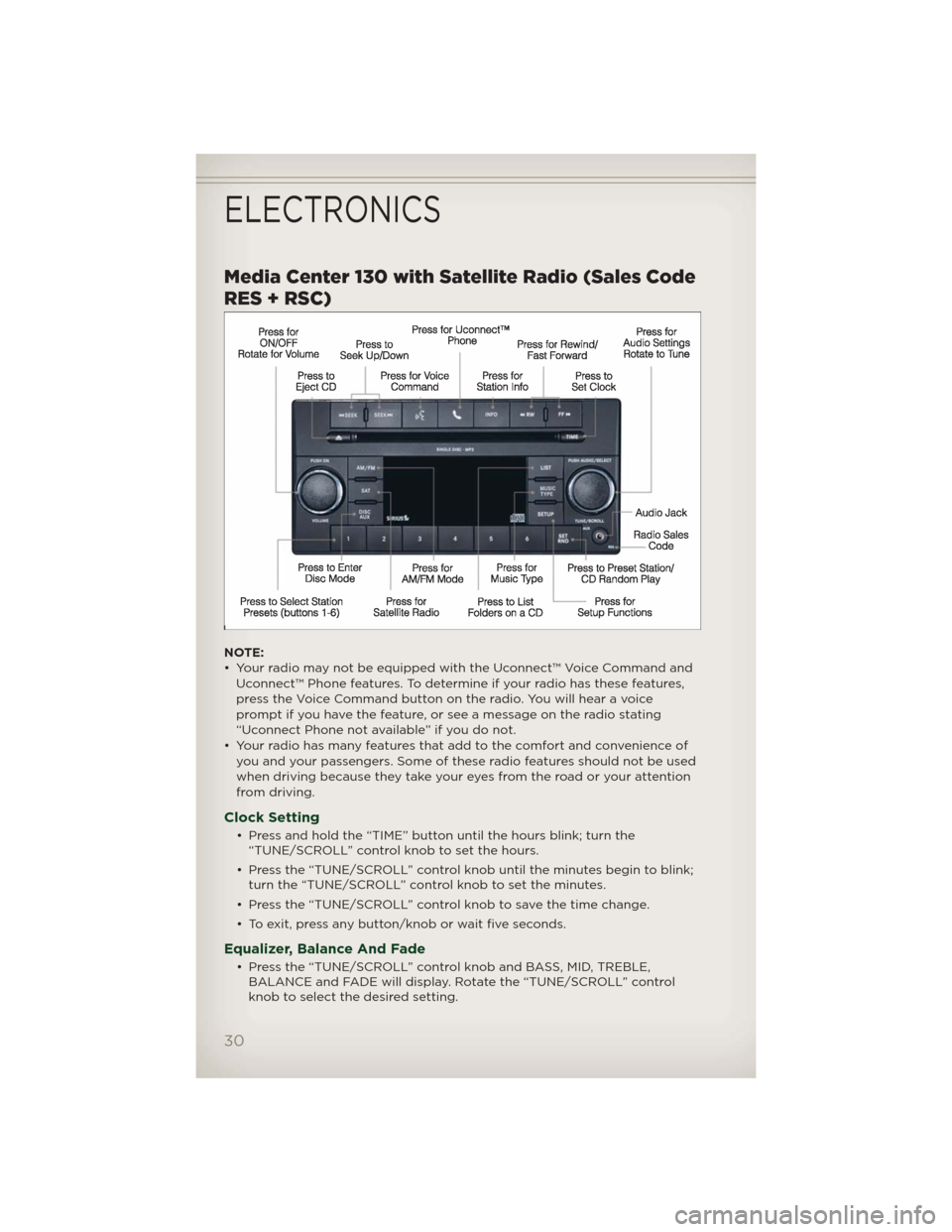

Media Center 130 with Satellite Radio (Sales Code
RES + RSC)
NOTE:
• Your radio may not be equipped with the Uconnect™ Voice Command and
Uconnect™ Phone features. To determine if your radio has these features,
press the Voice Command button on the radio. You will hear a voice
prompt if you have the feature, or see a message on the radio stating
“Uconnect Phone not available” if you do not.
• Your radio has many features that add to the comfort and convenience of
you and your passengers. Some of these radio features should not be used
when driving because they take your eyes from the road or your attention
from driving.
Clock Setting
• Press and hold the “TIME” button until the hours blink; turn the
“TUNE/SCROLL” control knob to set the hours.
• Press the “TUNE/SCROLL” control knob until the minutes begin to blink;
turn the “TUNE/SCROLL” control knob to set the minutes.
• Press the “TUNE/SCROLL” control knob to save the time change.
• To exit, press any button/knob or wait five seconds.
Equalizer, Balance And Fade
• Press the “TUNE/SCROLL” control knob and BASS, MID, TREBLE,
BALANCE and FADE will display. Rotate the “TUNE/SCROLL” control
knob to select the desired setting.
ELECTRONICS
30

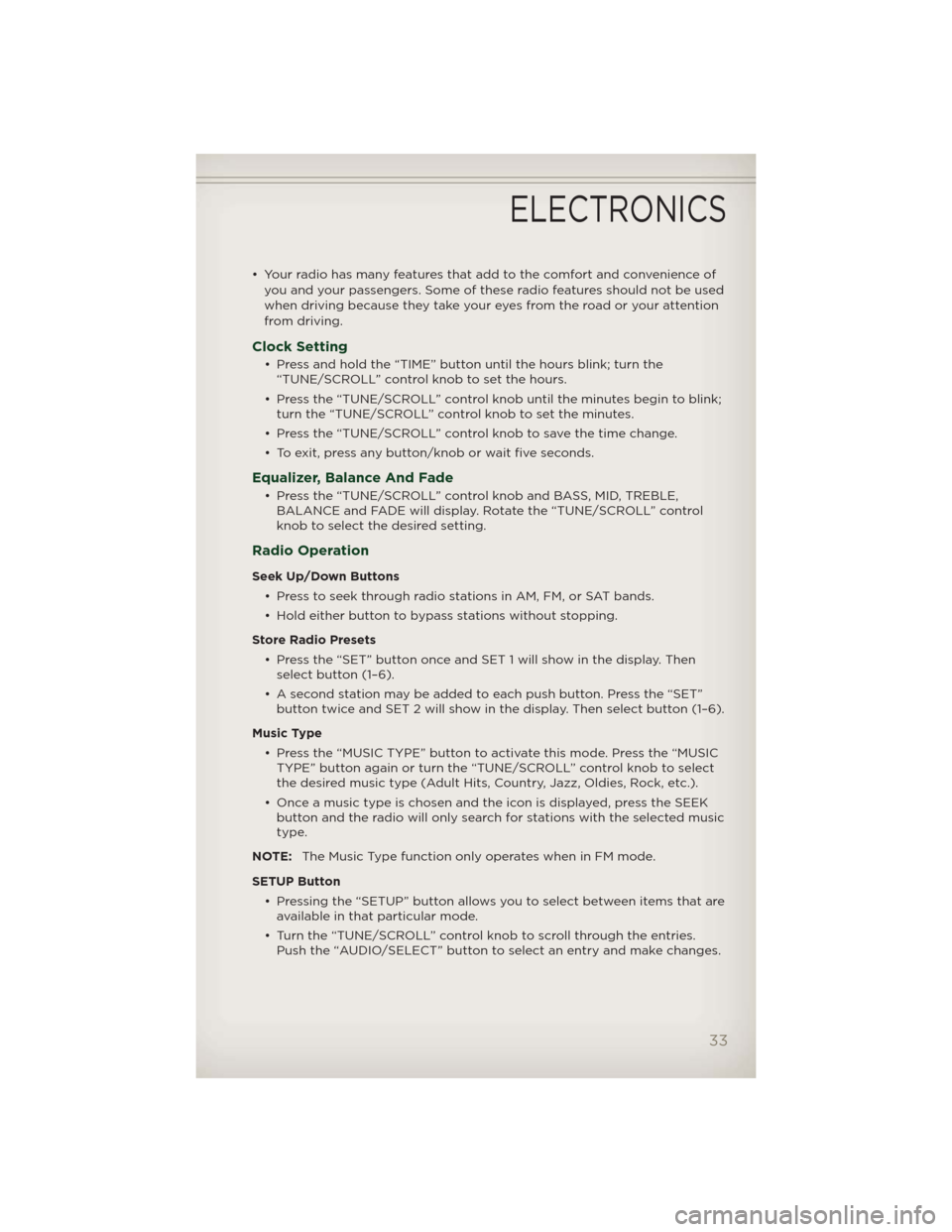

• Your radio has many features that add to the comfort and convenience of
you and your passengers. Some of these radio features should not be used
when driving because they take your eyes from the road or your attention
from driving.
Clock Setting
• Press and hold the “TIME” button until the hours blink; turn the
“TUNE/SCROLL” control knob to set the hours.
• Press the “TUNE/SCROLL” control knob until the minutes begin to blink;
turn the “TUNE/SCROLL” control knob to set the minutes.
• Press the “TUNE/SCROLL” control knob to save the time change.
• To exit, press any button/knob or wait five seconds.
Equalizer, Balance And Fade
• Press the “TUNE/SCROLL” control knob and BASS, MID, TREBLE,
BALANCE and FADE will display. Rotate the “TUNE/SCROLL” control
knob to select the desired setting.
Radio Operation
Seek Up/Down Buttons
• Press to seek through radio stations in AM, FM, or SAT bands.
• Hold either button to bypass stations without stopping.
Store Radio Presets
• Press the “SET” button once and SET 1 will show in the display. Then
select button (1–6).
• A second station may be added to each push button. Press the “SET”
button twice and SET 2 will show in the display. Then select button (1–6).
Music Type
• Press the “MUSIC TYPE” button to activate this mode. Press the “MUSIC
TYPE” button again or turn the “TUNE/SCROLL” control knob to select
the desired music type (Adult Hits, Country, Jazz, Oldies, Rock, etc.).
• Once a music type is chosen and the icon is displayed, press the SEEK
button and the radio will only search for stations with the selected music
type.
NOTE:The Music Type function only operates when in FM mode.
SETUP Button
• Pressing the “SETUP” button allows you to select between items that are
available in that particular mode.
• Turn the “TUNE/SCROLL” control knob to scroll through the entries.
Push the “AUDIO/SELECT” button to select an entry and make changes.
ELECTRONICS
33

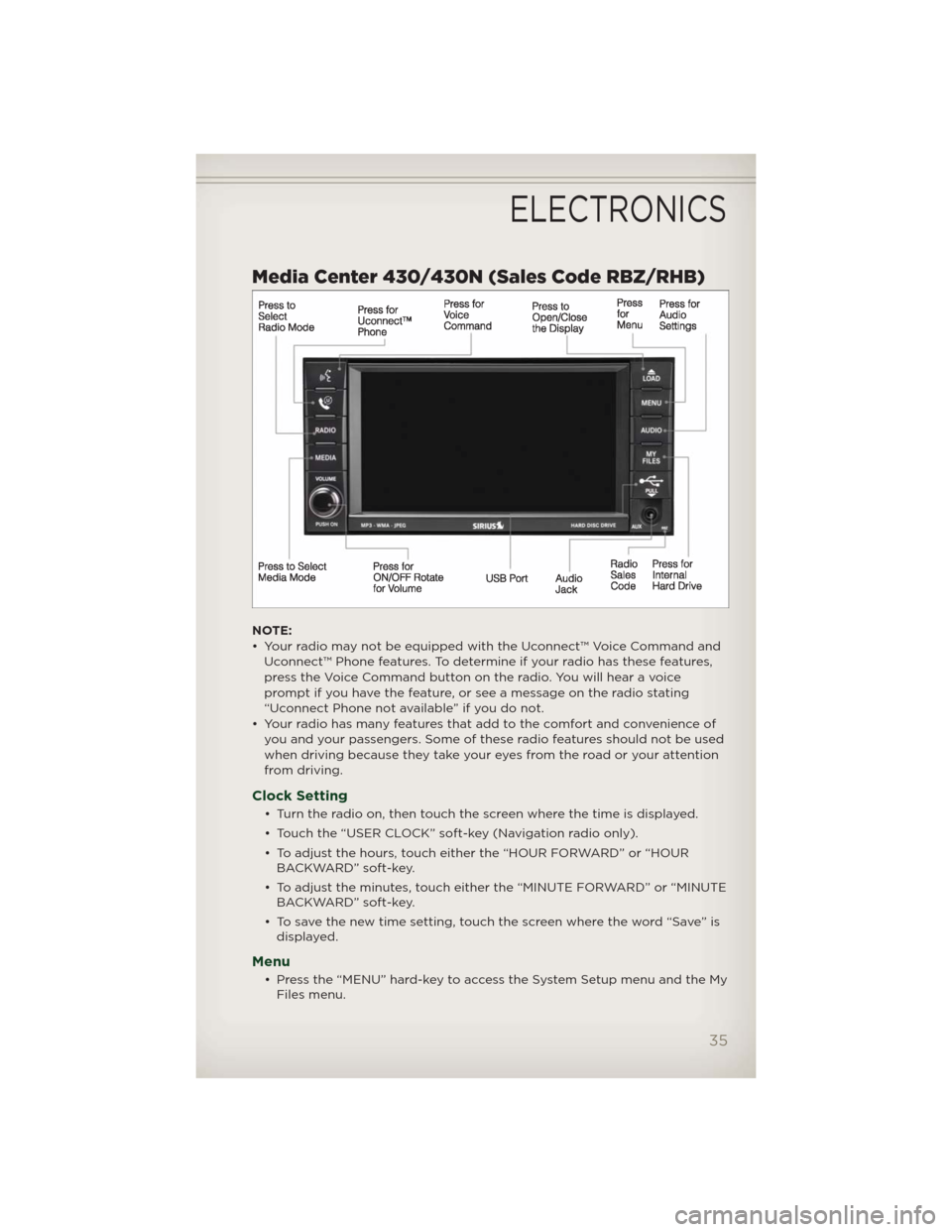

Media Center 430/430N (Sales Code RBZ/RHB)
NOTE:
• Your radio may not be equipped with the Uconnect™ Voice Command and
Uconnect™ Phone features. To determine if your radio has these features,
press the Voice Command button on the radio. You will hear a voice
prompt if you have the feature, or see a message on the radio stating
“Uconnect Phone not available” if you do not.
• Your radio has many features that add to the comfort and convenience of
you and your passengers. Some of these radio features should not be used
when driving because they take your eyes from the road or your attention
from driving.
Clock Setting
• Turn the radio on, then touch the screen where the time is displayed.
• Touch the “USER CLOCK” soft-key (Navigation radio only).
• To adjust the hours, touch either the “HOUR FORWARD” or “HOUR
BACKWARD” soft-key.
• To adjust the minutes, touch either the “MINUTE FORWARD” or “MINUTE
BACKWARD” soft-key.
• To save the new time setting, touch the screen where the word “Save” is
displayed.
Menu
• Press the “MENU” hard-key to access the System Setup menu and the My
Files menu.
ELECTRONICS
35

Airbag .................10
Alarm,Panic ..............8
Arming Theft System (Security
Alarm) ..................9
AudioSettings ..........28,29,
30,32,33,34,38
Automatic Temperature Control
(ATC) ..................23
Automatic Transmission
FluidType .............86
Overheating .............71
AxleFluid ...............86
Belts, Seat................9
BrakeFluid ..............86
Break-In Recommendations, New
Vehicle .................17
Bulb Replacement..........94
Calibration, Compass........56
Change Oil Indicator........70
Changing A Flat Tire.........71
ChildRestraint .............11
Child Restraint Tether Anchors . . 11
Clock Setting.......28,30,33,35
Compass Calibration........56
Cooling System
Coolant Capacity.........86
Cruise Control (Speed Control) . 20
CruiseLight ..............20
Customer Assistance........95
Defects, Reporting.........96
Dimmer Control............18
Dimmer Switch, Headlight.....18
Disarming, Theft System . . . . . . 9
Electronic Speed Control
(CruiseControl) ...........20
Electronic Vehicle Information
Center(EVIC)...........55,56
Electronics
Your Vehicle's Sound System..26
Emergency, In Case of
Jacking................71
Jump Starting...........76
Overheating ............70Engine
Break-In Recommendations . . . 17
Compartment . . . . . . . . . . . 84
Jump Starting . . . . . . . . . . . 76
Oil Selection . . . . . . . . . . . . 86
Overheating ............70
Event Data Recorder . . . . . . . . 82
ExteriorLights ............94
Flash-To-Pass .............18
Fluid Capacities . . .........86
Fluids ..................86
FogLights ...............18
Folding Front Passenger Seat . . 14
FoldingRearSeat ..........14
FreeingAStuckVehicle ......81
Front Heated Seats . . . . . . . . . 15
Fuel
Specifications . . . . . . . . . . . 86
Garage Door Opener
(HomeLink®) . ............57
Headlights . . . . . . . . . . . . . . . 18
Dimmer Switch . . . . . . . . . . . 18
High Beam . . . . . . . . . . . . . 18
HeatedMirrors ..........22,23
HeatedSeats .............15
High Beam/Low Beam Select
(Dimmer) Switch . . . . . . . . . . . 18
HomeLink® (Garage Door
Opener) Transmitter . . . . . . . . 57
Hood Release . . . . . . . . . . . . . 83
Instrument Cluster . . . . . . . . . . 6
Indicators ...............7
Instrument Cluster Warning
Lights ................6,66
Intermittent Wipers
(DelayWipers) ............19
Introduction . . . . . . . . ......2
Inverter Outlet (115V) . . . . . . . . 60
Inverter,Power ............60
iPod®/USB/MP3 Control . . . . . . 48
Bluetooth Streaming Audio . . 55
INDEX
98

Jack Location.............71
Jack Operation..........71,72
Jacking Instructions . . .......72
Jump Starting............76
KeyFob .................8
Key Fob Programmable
Features ................56
Lane Change Assist . . . . . . . . . 18
LATCH (Lower Anchors and Tether
forCHildren) ..............11
Lights
Headlights..............18
Park ..................18
Turn Signal.............18
Warning (Instrument Cluster
Description) .............6
Maintenance Record........90
Maintenance Schedule.......88
Media Center Radio . . . . . 28,30,32
Mirrors
Heated ..............22,23
MOPAR®Accessories ........97
Navigation ...............41
New Vehicle Break-In Period . . . 17
Oil Change Indicator . . . .....70
Oil, Engine
Capacity...............86
Outlet
Power.................61
Overheating, Engine . . . . . . . . 70
PanicAlarm ...............8
Phone (Pairing)...........50
Phone (Uconnect)..........49
Placard, Tire and Loading
Information ..............93
Power
Glass Sunroof...........24
Inverter ...............60
Outlet (Auxiliary Electrical
Outlet) ................61
Seats .................13Steering ...............86
Preparation for Jacking......72
Programmable Electronic
Features ................56
Radio Operation . . . . . ......35
Rain Sensitive Wiper System . . . 19
Rear Seat, Folding . . . . . . . . . . 14
Recreational Towing ........65
Remote Starting System ......8
Replacement Bulbs . . . . .....94
Reporting Safety Defects . . . . . 96
Restraints,Child ............11
RollOverWarning ..........3
SeatBelts ................9
Seats ..................13
Adjustment . . . . .........13
Folding Front Passenger . . . . 14
Heated ................15
Power .................13
RearFolding ............14
Seek Button . . . . . . . . 29,31,33,34
Setting the Clock . . . . 28,30,33,35
Shift Lever Override . . . . . . . . 79
Short Message Service (SMS) . . 54
Signals,Turn ..............18
SIRIUS Travel Link . . . . . . . . . . 46
Spare Tire . . . . . . . . .......71
Spark Plugs . . . . . . . . . .....86
Speed Control (Cruise
Control) ................20
Starting
Remote . . . . . . . . . . . . . . . . 8
Steering
TiltColumn .............16
Steering Wheel Audio Controls . 48
Store Radio Presets .....29,31,33
SunRoof ................24
Supplemental Restraint System -
Airbag .................10
Temperature Gauge, Engine
Coolant ................70
TextMessaging............54
Theft Alarm (Security Alarm) . . . 9
TheftSystemArming.........9
TheftSystemDisarming .......9
INDEX
99
