JEEP PATRIOT 2014 1.G Owners Manual

WARNING!
Pedals that cannot move freely can cause loss of
vehicle control and increase the risk of serious per-
sonal injury.
•Always make sure that floor mats are properly
attached to the floor mat fasteners.
• Never place or install floor mats or other floor
coverings in the vehicle that cannot be properly
secured to prevent them from moving and interfer-
ing with the pedals or the ability to control the
vehicle.
• Never put floor mats or other floor coverings on top
of already installed floor mats. Additional floor
mats and other coverings will reduce the size of the
pedal area and interfere with the pedals.
(Continued)
WARNING! (Continued)
•Check mounting of mats on a regular basis. Always
properly reinstall and secure floor mats that have
been removed for cleaning.
• Always make sure that objects cannot fall into the
driver footwell while the vehicle is moving. Ob-
jects can become trapped under the brake pedal
and accelerator pedal causing a loss of vehicle
control.
• If required, mounting posts must be properly in-
stalled, if not equipped from the factory.
Failure to properly follow floor mat installation or
mounting can cause interference with the brake
pedal and accelerator pedal operation causing loss of
control of the vehicle.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 99

Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread or sidewall. Inspect the tread for cuts
and cracks. Inspect sidewalls for cuts, cracks and bulges.
Check the wheel nuts for tightness. Check the tires
(including spare) for proper cold inflation pressure.
Lights
Have someone observe the operation of brake lights and
exterior lights while you work the controls. Check turn
signal and high beam indicator lights on the instrument
panel.
Door Latches
Check for positive closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, power steering fluid (if
equipped), or brake fluid leaks are suspected, the cause
should be located and corrected immediately.
100 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

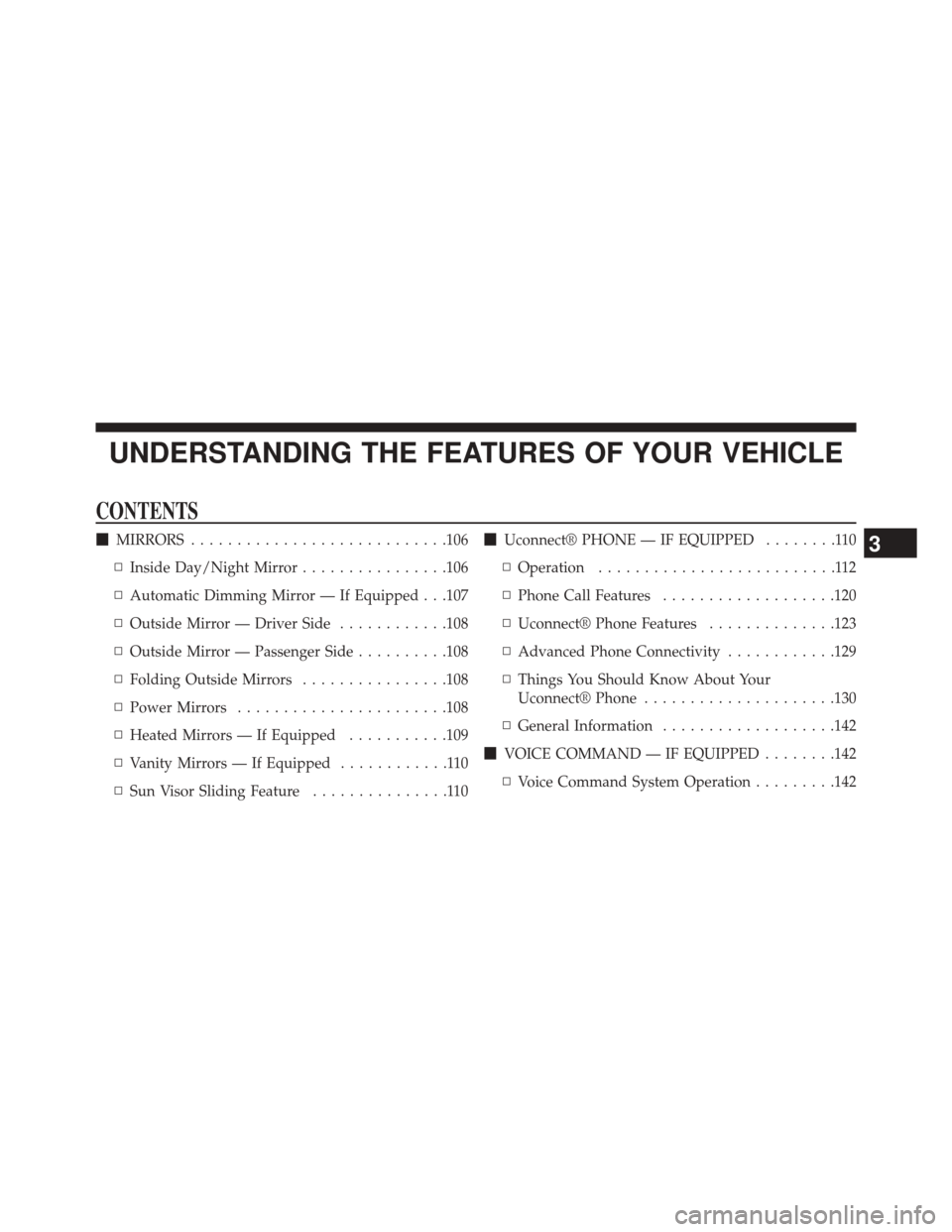

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
MIRRORS ........................... .106
â–« Inside Day/Night Mirror ................106
▫ Automatic Dimming Mirror — If Equipped . . .107
▫ Outside Mirror — Driver Side ............108
▫ Outside Mirror — Passenger Side ..........108
â–« Folding Outside Mirrors ................108
â–« Power Mirrors ...................... .108
▫ Heated Mirrors — If Equipped ...........109
▫ Vanity Mirrors — If Equipped ............110
â–« Sun Visor Sliding Feature ...............110
Uconnect® PHONE — IF EQUIPPED ........110
â–« Operation ..........................112
â–« Phone Call Features ...................120
▫ Uconnect® Phone Features ..............123
â–« Advanced Phone Connectivity ............129
â–« Things You Should Know About Your
Uconnect® Phone .....................130
â–« General Information ...................142
 VOICE COMMAND — IF EQUIPPED ........142
â–« Voice Command System Operation .........1423

â–«Commands ........................ .144
â–« Voice Training ...................... .148
 SEATS ............................. .148
▫ Power Seats — If Equipped ..............149
▫ Heated Seats — If Equipped .............151
â–« Manual Front Seat Adjustment ............152
▫ Manual Seat Height Adjustment — If
Equipped .......................... .153
▫ Manual Lumbar — If Equipped ...........154
▫ Driver’s Seatback Recline ................154
â–«
Fold-Flat Front Passenger Seat — If Equipped . .155
â–« Head Restraints ..................... .156
â–« Folding Rear Seat .....................160 â–«
Reclining Rear Seat — If Equipped .........161
 TO OPEN AND CLOSE THE HOOD .........162
 LIGHTS ............................ .164
â–« Multifunction Lever ...................164
â–« Headlights And Parking Lights ...........165
▫ Daytime Running Lights — If Equipped .....165
â–« Lights-On Reminder ...................165
▫ Fog Lights — If Equipped ...............165
â–« Turn Signals ........................ .166
â–« High/Low Beam Switch ................167
â–« Flash-To-Pass ....................... .167
â–« Instrument Panel Dimming ...............167
â–« Map/Reading Lights ...................168
102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WINDSHIELD WIPERS AND WASHERS ......169
â–« Windshield Wiper Operation .............170
â–« Intermittent Wiper System ...............171
â–« Windshield Washers ...................171
â–« Mist Feature ........................ .172
 TILT STEERING COLUMN ...............172
 ELECTRONIC SPEED CONTROL —
IF EQUIPPED ........................ .173
â–« To Activate ......................... .174
â–« To Set A Desired Speed .................175
â–« To Deactivate ....................... .175
â–« To Resume Speed .....................175
â–« To Vary The Speed Setting ...............175 â–«
To Accelerate For Passing ................177
 GARAGE DOOR OPENER — IF EQUIPPED . . .177
▫ Before You Begin Programming HomeLink® . .179
â–« Programming A Rolling Code .............179
â–« Programming A Non-Rolling Code .........182
â–« Canadian/Gate Operator Programming ......183
▫ Using HomeLink® ....................184
â–« Security ........................... .184
â–« Troubleshooting Tips ...................185
â–« General Information ....................186
 POWER SUNROOF — IF EQUIPPED ........187
▫ Opening Sunroof — Express ..............188
▫ Opening Sunroof — Manual Mode .........188
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 103

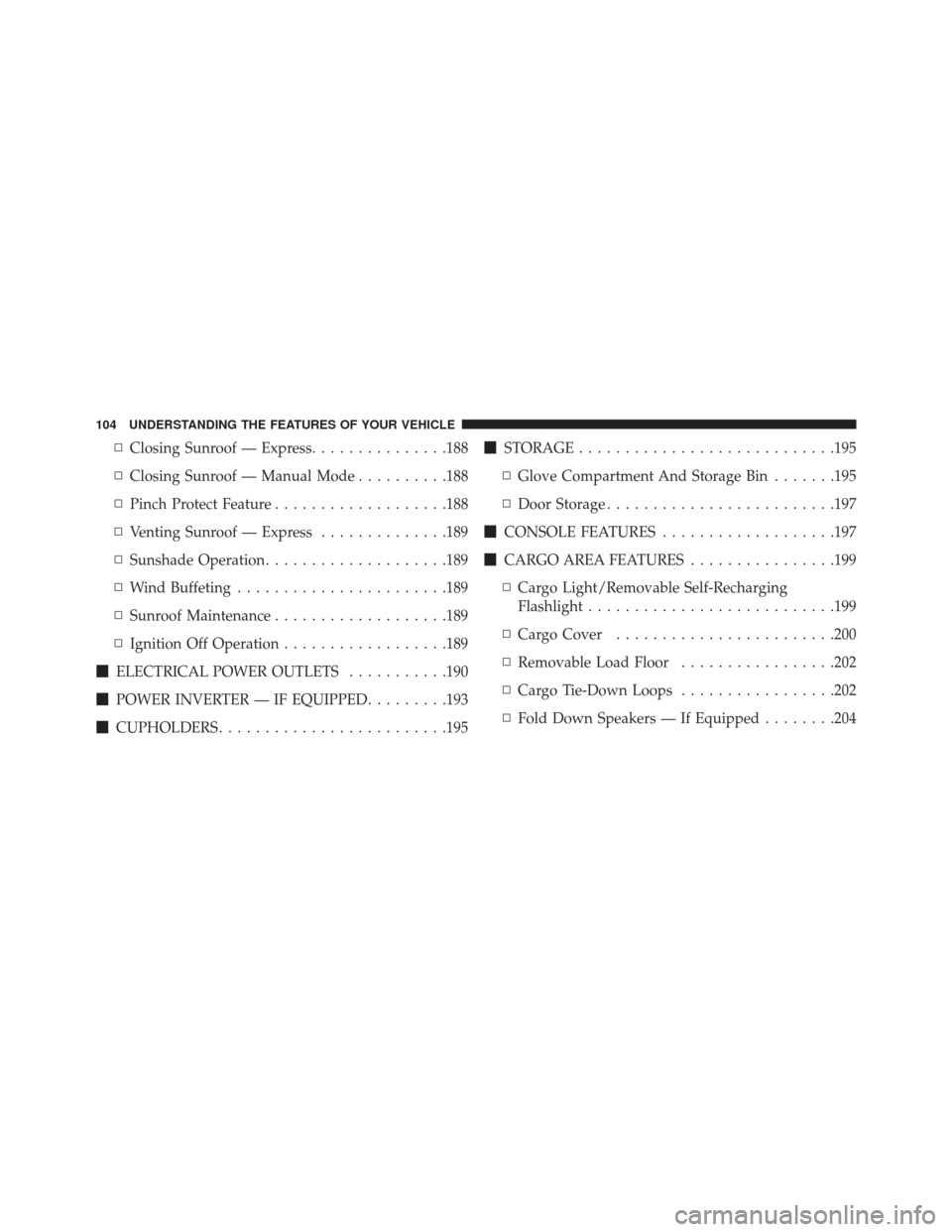

▫Closing Sunroof — Express ...............188
▫ Closing Sunroof — Manual Mode ..........188
â–« Pinch Protect Feature ...................188
▫ Venting Sunroof — Express ..............189
â–« Sunshade Operation ....................189
â–« Wind Buffeting ...................... .189
â–« Sunroof Maintenance ...................189
â–« Ignition Off Operation ..................189
 ELECTRICAL POWER OUTLETS ...........190
 POWER INVERTER — IF EQUIPPED .........193
 CUPHOLDERS ........................ .195
STORAGE ........................... .195
â–« Glove Compartment And Storage Bin .......195
â–« Door Storage ........................ .197
 CONSOLE FEATURES ...................197
 CARGO AREA FEATURES ................199
â–« Cargo Light/Removable Self-Recharging
Flashlight .......................... .199
â–« Cargo Cover ....................... .200
â–« Removable Load Floor .................202
â–« Cargo Tie-Down Loops .................202
▫ Fold Down Speakers — If Equipped ........204
104 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

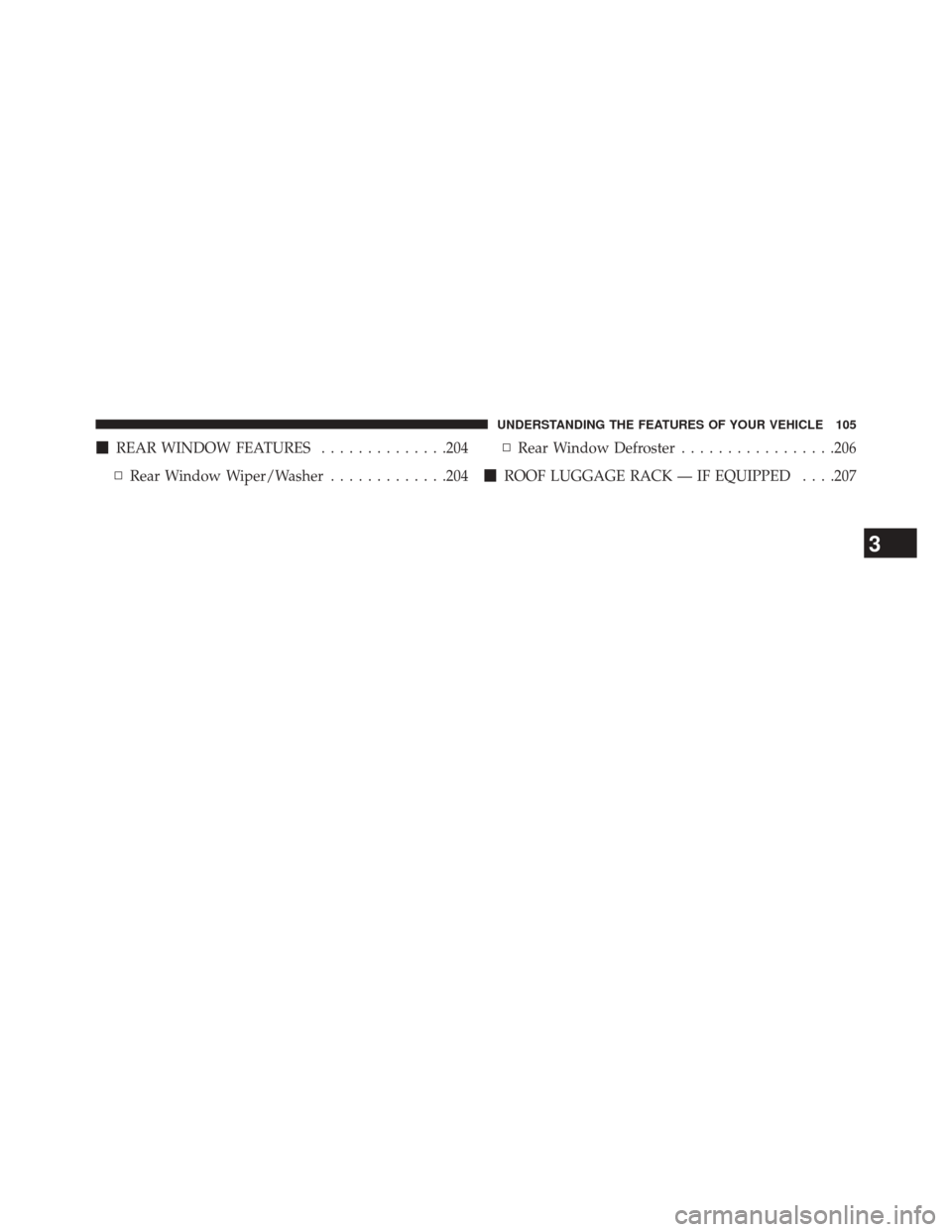

REAR WINDOW FEATURES ..............204
â–« Rear Window Wiper/Washer .............204â–«
Rear Window Defroster .................206
 ROOF LUGGAGE RACK — IF EQUIPPED . . . .207
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105

MIRRORS
Inside Day/Night Mirror
A two-point pivot system allows for horizontal and
vertical mirror adjustment. Adjust the mirror to center on
the view through the rear window.
Headlight glare can be reduced by moving the small
control under the mirror to the night position (toward the
rear of vehicle). The mirror should be adjusted while set
in the day position (toward the windshield).
Inside Day/Night Mirror
106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Automatic Dimming Mirror — If Equipped
This mirror automatically adjusts for headlight glare
from vehicles behind you. You can turn the feature on or
off by pressing the button at the base of the mirror. A light
to the left of the button will illuminate to indicate when
the dimming feature is activated. The sensor to the right
of the button does not illuminate.
NOTE:This feature is disabled when the vehicle is
moving in reverse.
CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Automatic Dimming Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107

Outside Mirror — Driver Side
Adjust the flat outside mirror so you can just see the side
of your vehicle in the part of the mirror closest to the
vehicle with your head close to the door glass.
Outside Mirror — Passenger Side
Adjust the convex outside mirror so you can just see the
side of your vehicle in the part of the mirror closest to the
vehicle with your head close to the center of the vehicle.
WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side mirror could cause you to collide with
another vehicle or other object. Use your inside
mirror when judging the size or distance of a vehicle
seen in this convex mirror.
Folding Outside Mirrors
The outside mirrors are hinged and may be moved,
manually, either forward or rearward to resist damage.
The hinges have three detent positions; full forward, full
rearward and normal.
Power Mirrors
The power mirror control is located on the driver ’s door
trim panel.
108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
