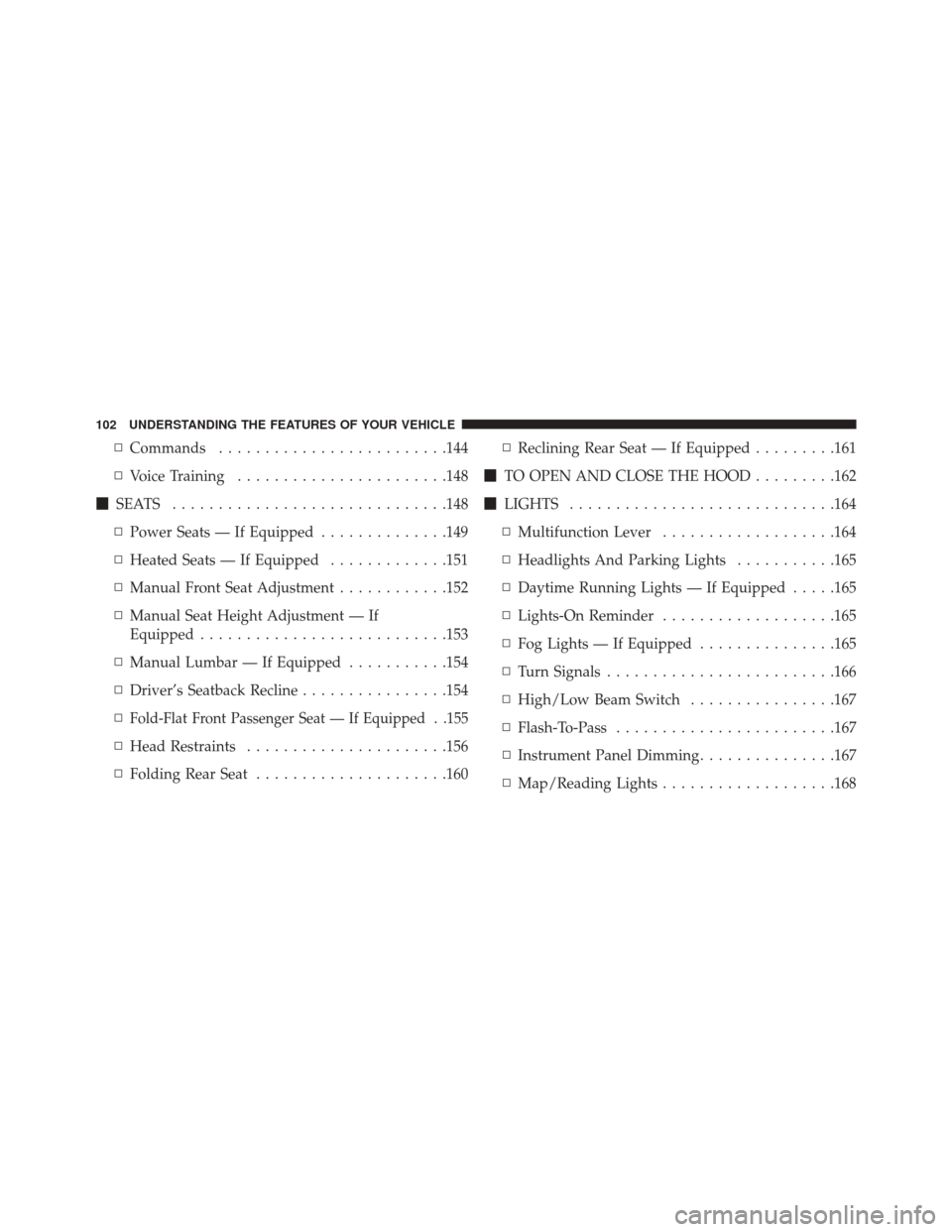

▫Commands ........................ .144
▫ Voice Training ...................... .148
 SEATS ............................. .148
▫ Power Seats — If Equipped ..............149
▫ Heated Seats — If Equipped .............151
▫ Manual Front Seat Adjustment ............152
▫ Manual Seat Height Adjustment — If
Equipped .......................... .153
▫ Manual Lumbar — If Equipped ...........154
▫ Driver’s Seatback Recline ................154
▫
Fold-Flat Front Passenger Seat — If Equipped . .155
▫ Head Restraints ..................... .156
▫ Folding Rear Seat .....................160 ▫
Reclining Rear Seat — If Equipped .........161
 TO OPEN AND CLOSE THE HOOD .........162
 LIGHTS ............................ .164
▫ Multifunction Lever ...................164
▫ Headlights And Parking Lights ...........165
▫ Daytime Running Lights — If Equipped .....165
▫ Lights-On Reminder ...................165
▫ Fog Lights — If Equipped ...............165
▫ Turn Signals ........................ .166
▫ High/Low Beam Switch ................167
▫ Flash-To-Pass ....................... .167
▫ Instrument Panel Dimming ...............167
▫ Map/Reading Lights ...................168
102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

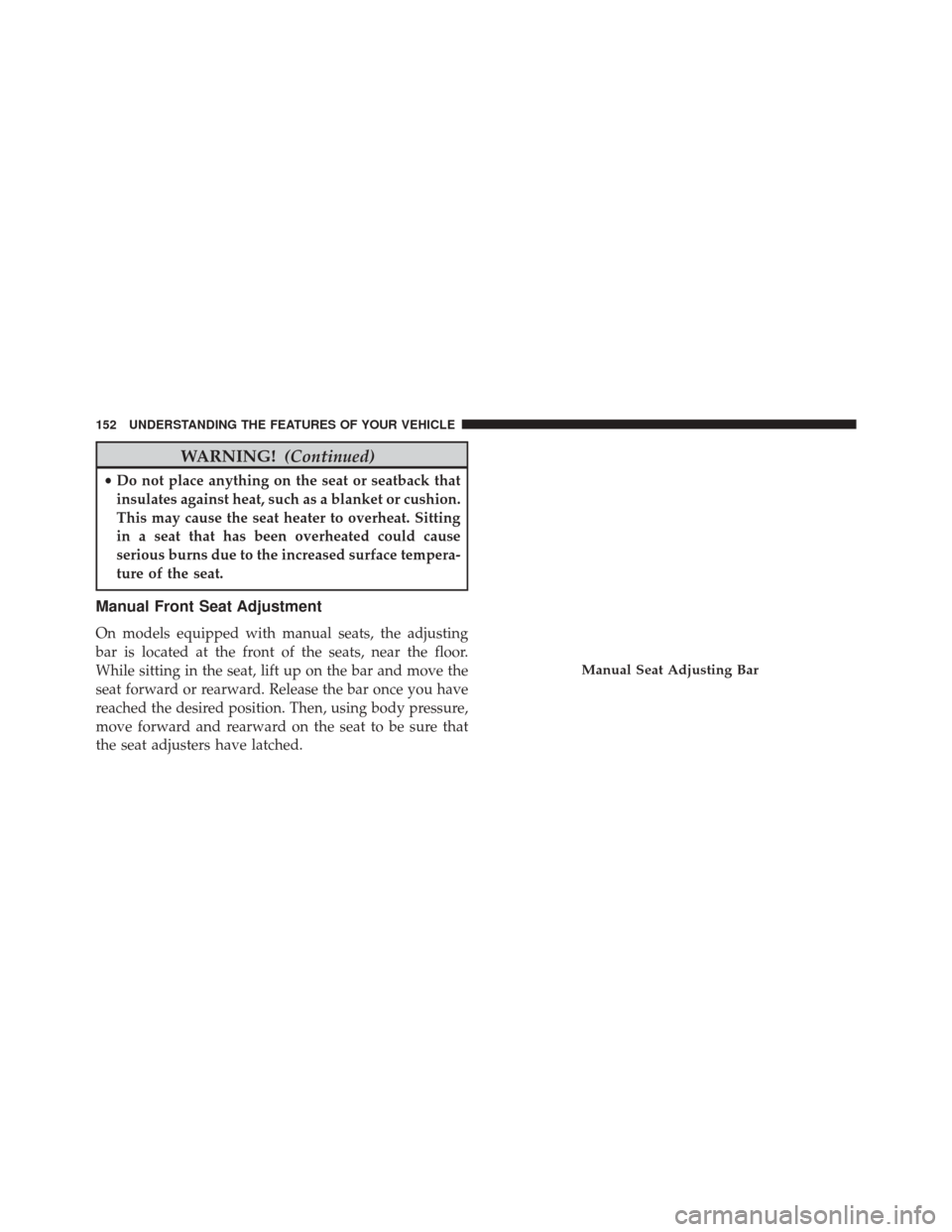

WARNING!(Continued)
•Do not place anything on the seat or seatback that
insulates against heat, such as a blanket or cushion.
This may cause the seat heater to overheat. Sitting
in a seat that has been overheated could cause
serious burns due to the increased surface tempera-
ture of the seat.
Manual Front Seat Adjustment
On models equipped with manual seats, the adjusting
bar is located at the front of the seats, near the floor.
While sitting in the seat, lift up on the bar and move the
seat forward or rearward. Release the bar once you have
reached the desired position. Then, using body pressure,
move forward and rearward on the seat to be sure that
the seat adjusters have latched.
Manual Seat Adjusting Bar
152 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

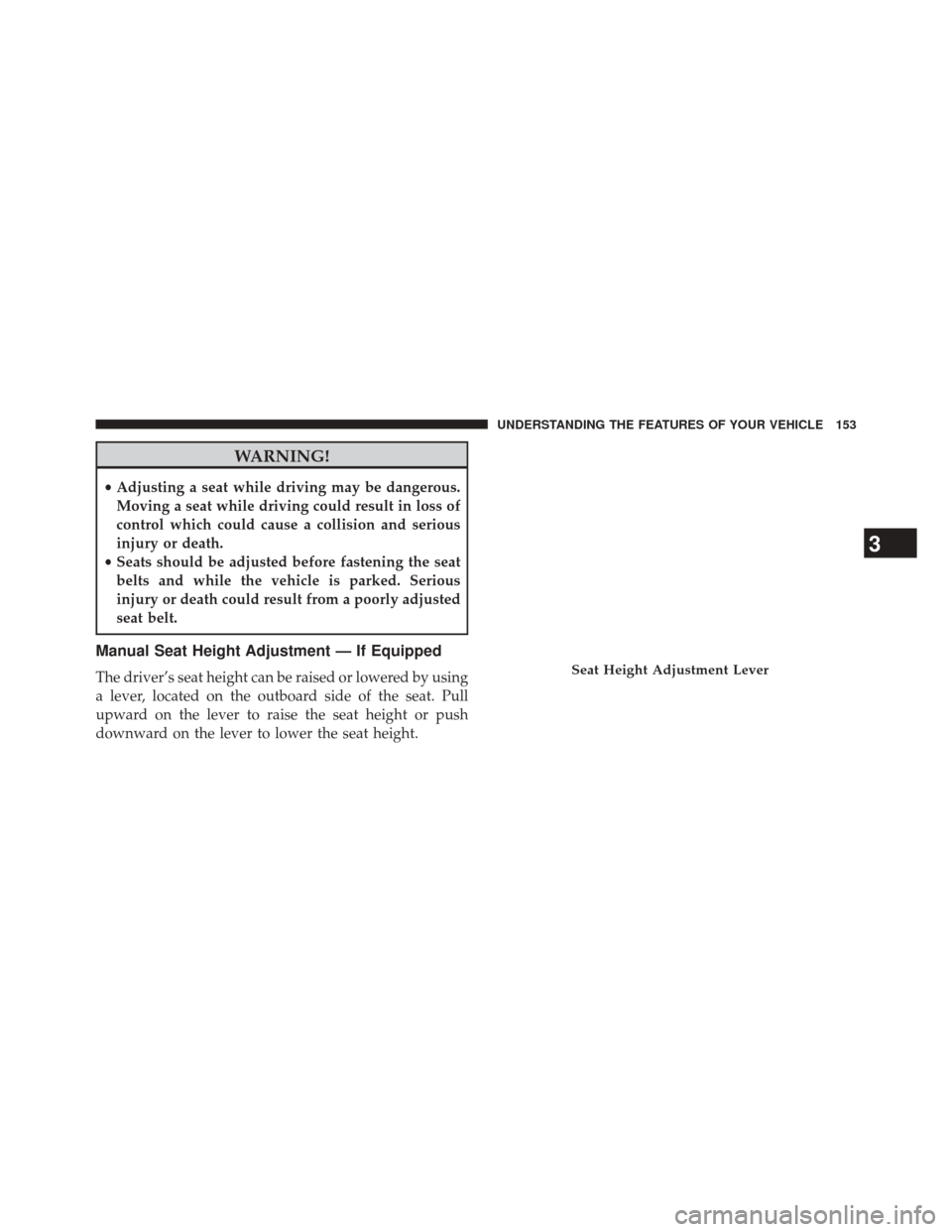

WARNING!
•Adjusting a seat while driving may be dangerous.
Moving a seat while driving could result in loss of
control which could cause a collision and serious
injury or death.
• Seats should be adjusted before fastening the seat
belts and while the vehicle is parked. Serious
injury or death could result from a poorly adjusted
seat belt.
Manual Seat Height Adjustment — If Equipped
The driver’s seat height can be raised or lowered by using
a lever, located on the outboard side of the seat. Pull
upward on the lever to raise the seat height or push
downward on the lever to lower the seat height.Seat Height Adjustment Lever
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 153

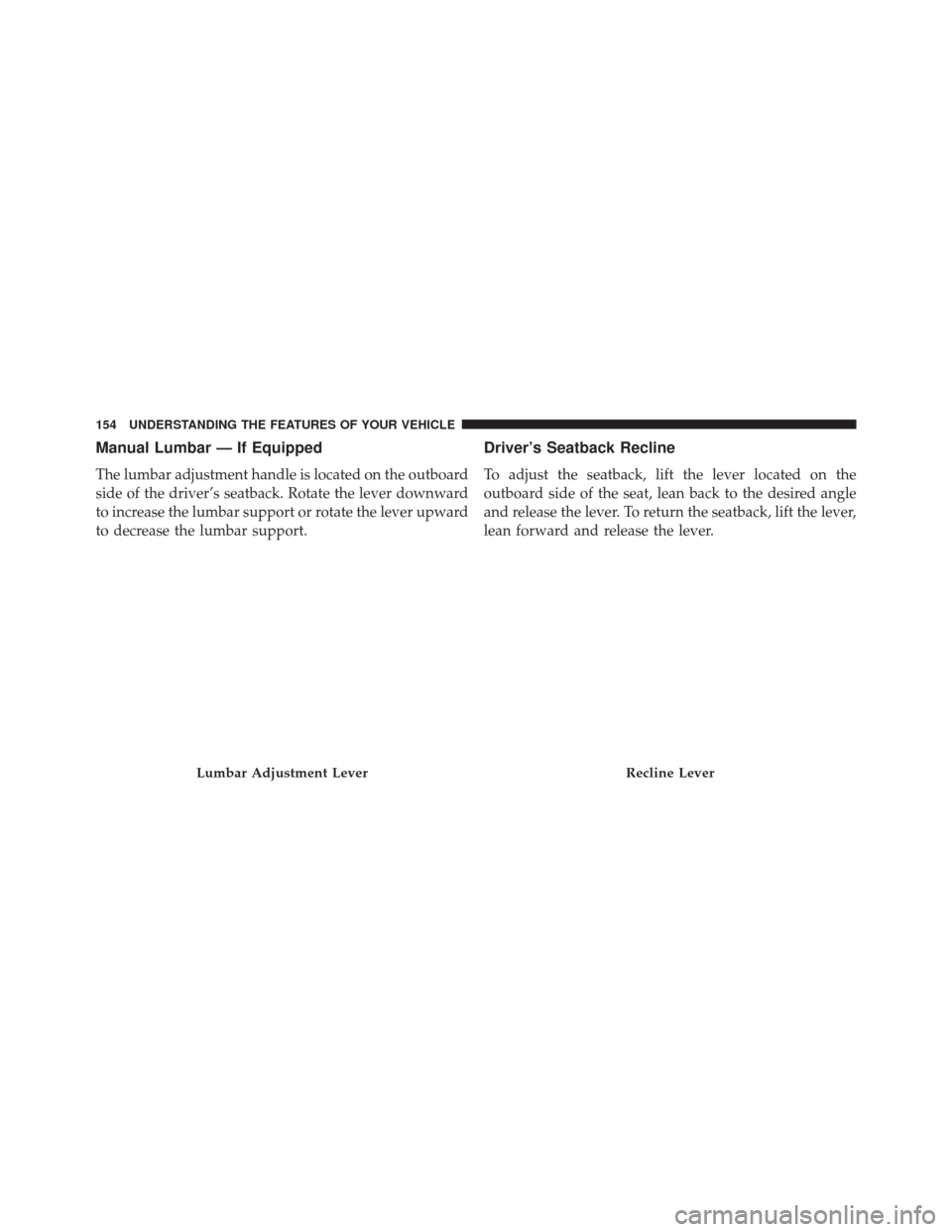

Manual Lumbar — If Equipped
The lumbar adjustment handle is located on the outboard
side of the driver’s seatback. Rotate the lever downward
to increase the lumbar support or rotate the lever upward
to decrease the lumbar support.
Driver’s Seatback Recline
To adjust the seatback, lift the lever located on the
outboard side of the seat, lean back to the desired angle
and release the lever. To return the seatback, lift the lever,
lean forward and release the lever.
Lumbar Adjustment LeverRecline Lever
154 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

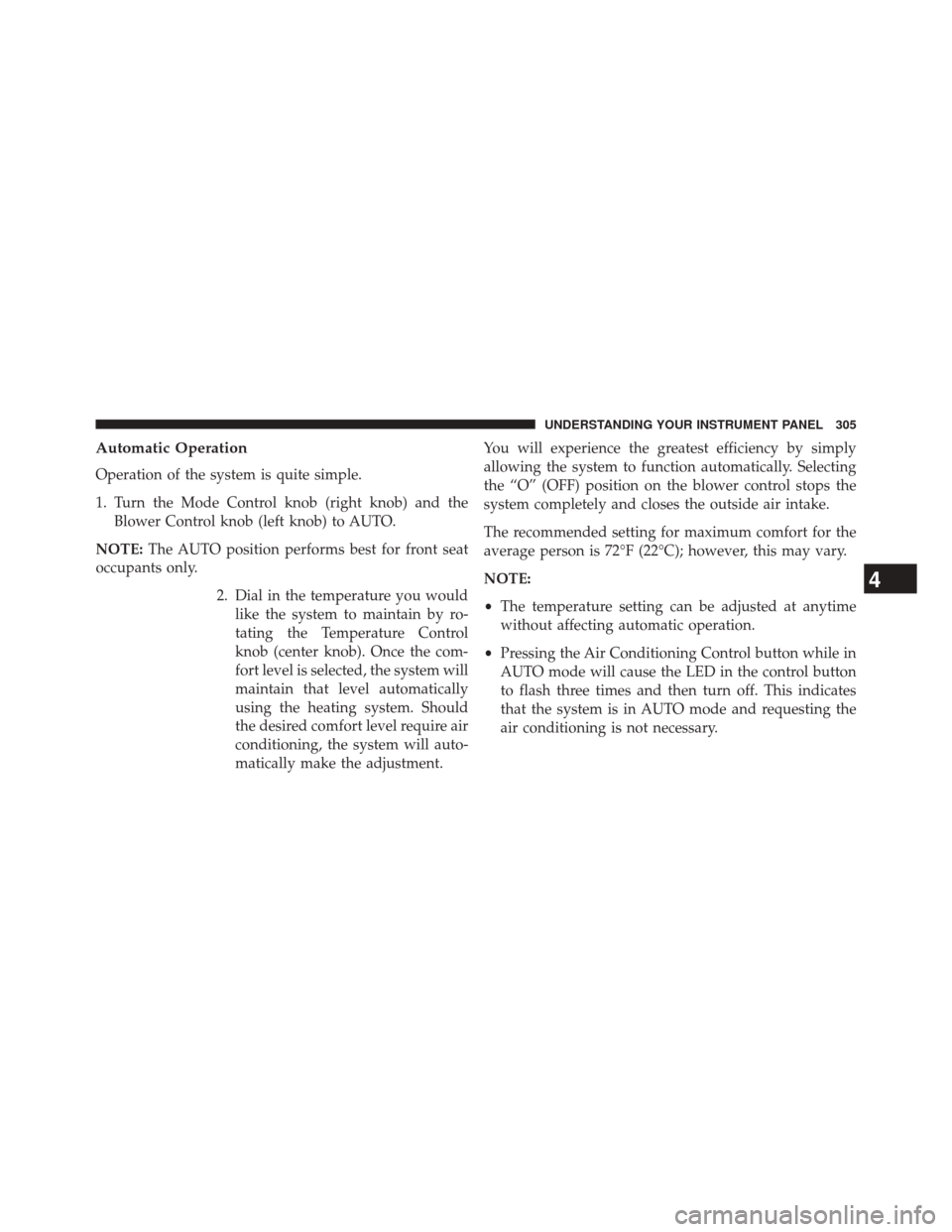

Automatic Operation
Operation of the system is quite simple.
1. Turn the Mode Control knob (right knob) and theBlower Control knob (left knob) to AUTO.
NOTE: The AUTO position performs best for front seat
occupants only.
2. Dial in the temperature you wouldlike the system to maintain by ro-
tating the Temperature Control
knob (center knob). Once the com-
fort level is selected, the system will
maintain that level automatically
using the heating system. Should
the desired comfort level require air
conditioning, the system will auto-
matically make the adjustment. You will experience the greatest efficiency by simply
allowing the system to function automatically. Selecting
the “O” (OFF) position on the blower control stops the
system completely and closes the outside air intake.
The recommended setting for maximum comfort for the
average person is 72°F (22°C); however, this may vary.
NOTE:
•
The temperature setting can be adjusted at anytime
without affecting automatic operation.
• Pressing the Air Conditioning Control button while in
AUTO mode will cause the LED in the control button
to flash three times and then turn off. This indicates
that the system is in AUTO mode and requesting the
air conditioning is not necessary.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 305

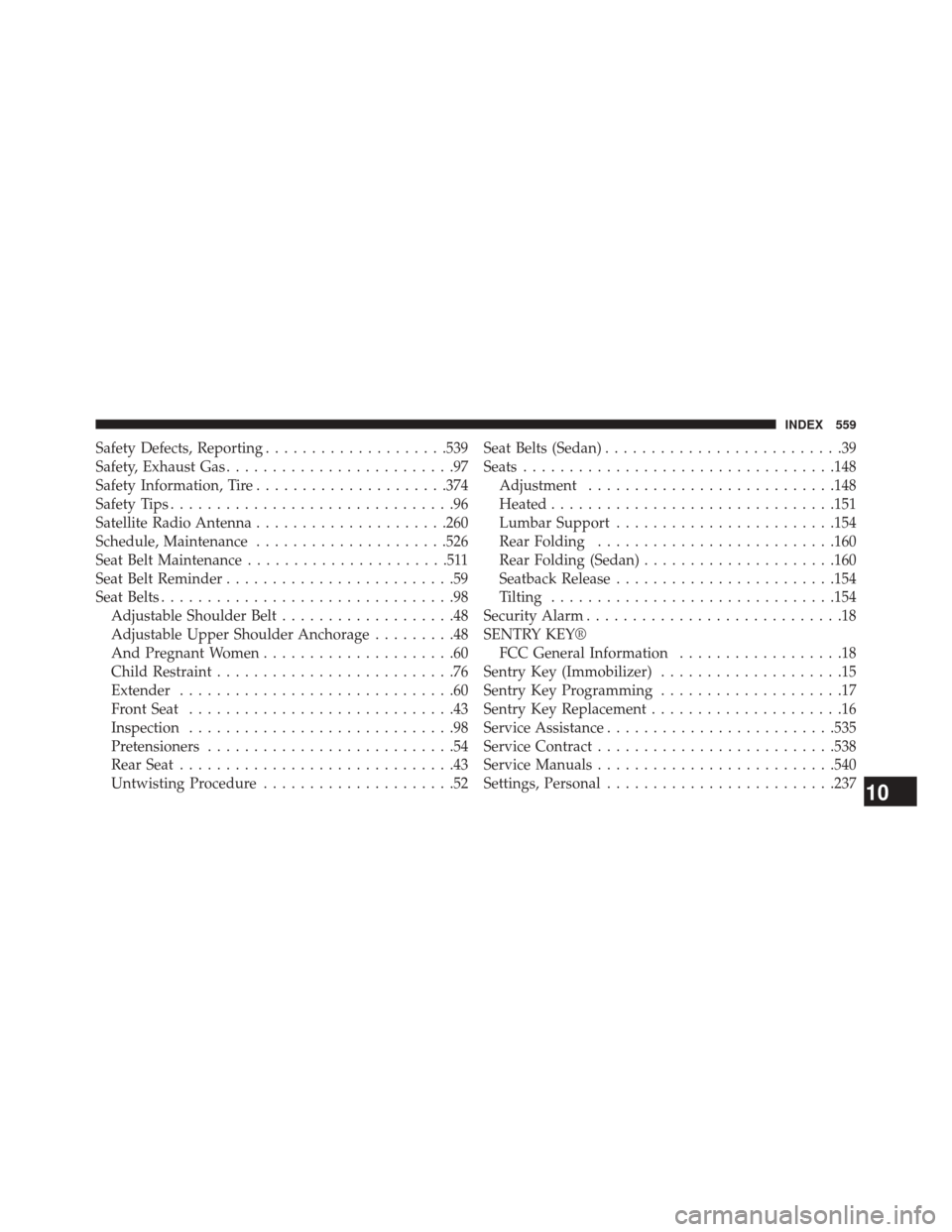

Safety Defects, Reporting....................539
Safety, Exhaust Gas .........................97
Safety Information, Tire .....................374
Safety Tips ...............................96
Satellite Radio Antenna .....................260
Schedule, Maintenance .....................526
Seat Belt Maintenance ......................511
Seat Belt Reminder .........................59
Seat Belts ................................98
Adjustable Shoulder Belt ...................48
Adjustable Upper Shoulder Anchorage .........48
And Pregnant Women .....................60
Child Restraint ..........................76
Extender ..............................60
Front Seat .............................43
Inspection .............................98
Pretensioners ...........................54
Rear Seat ..............................43
Untwisting Procedure .....................52 Seat Belts (Sedan)
..........................39
Seats ................................. .148
Adjustment .......................... .148
Heated .............................. .151
Lumbar Support ....................... .154
Rear Folding ......................... .160
Rear Folding (Sedan) .....................160
Seatback Release ....................... .154
Tilting .............................. .154
Security Alarm ............................18
SENTRY KEY® FCC General Information ..................18
Sentry Key (Immobilizer) ....................15
Sentry Key Programming ....................17
Sentry Key Replacement .....................16
Service Assistance ........................ .535
Service Contract ......................... .538
Service Manuals ......................... .540
Settings, Personal ........................ .237
10
INDEX 559
