JEEP PATRIOT 2016 1.G User Guide

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

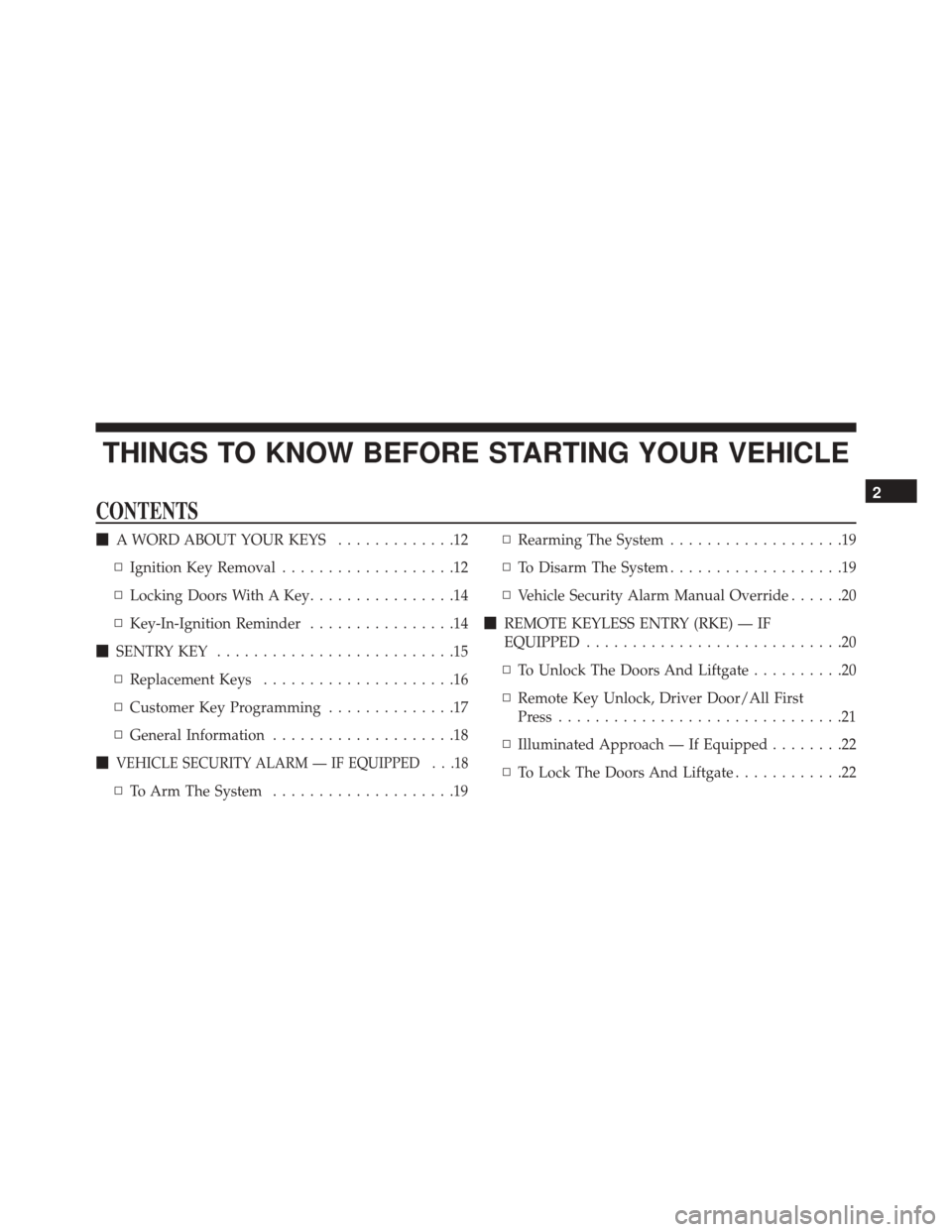

CONTENTS
A WORD ABOUT YOUR KEYS .............12
▫ Ignition Key Removal ...................12
▫ Locking Doors With A Key ................14
▫ Key-In-Ignition Reminder ................14
 SENTRY KEY ..........................15
▫ Replacement Keys .....................16
▫ Customer Key Programming ..............17
▫ General Information ....................18

VEHICLE SECURITY ALARM — IF EQUIPPED . . .18
▫ To Arm The System ....................19 ▫
Rearming The System ...................19
▫ To Disarm The System ...................19
▫ Vehicle Security Alarm Manual Override ......20
 REMOTE KEYLESS ENTRY (RKE) — IF
EQUIPPED ............................20
▫ To Unlock The Doors And Liftgate ..........20
▫ Remote Key Unlock, Driver Door/All First
Press ...............................21
▫ Illuminated Approach — If Equipped ........22
▫ To Lock The Doors And Liftgate ............22
2

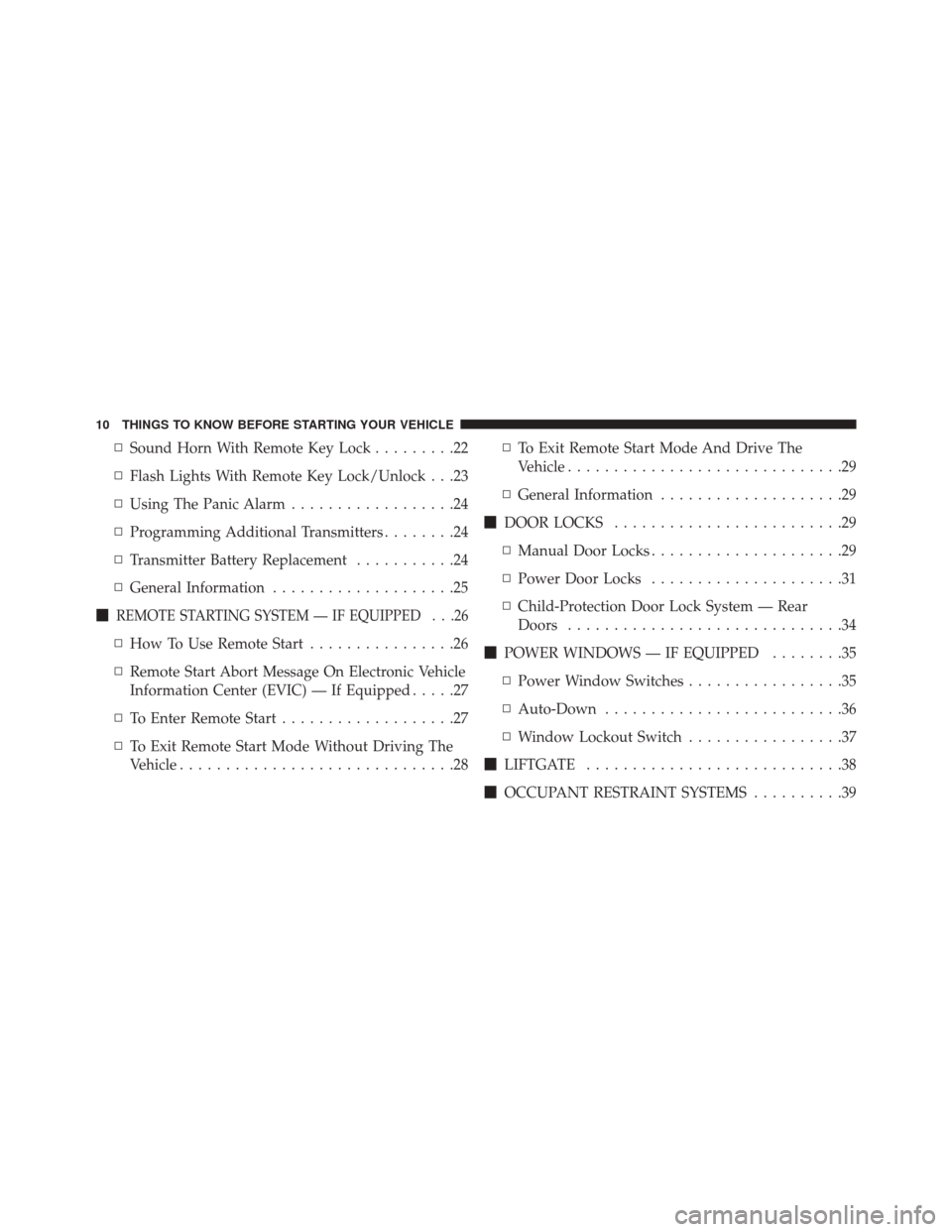

▫Sound Horn With Remote Key Lock .........22
▫ Flash Lights With Remote Key Lock/Unlock . . .23
▫ Using The Panic Alarm ..................24
▫ Programming Additional Transmitters ........24
▫ Transmitter Battery Replacement ...........24
▫ General Information ....................25

REMOTE STARTING SYSTEM — IF EQUIPPED . . .26
▫ How To Use Remote Start ................26
▫ Remote Start Abort Message On Electronic Vehicle
Information Center (EVIC) — If Equipped .....27
▫ To Enter Remote Start ...................27
▫ To Exit Remote Start Mode Without Driving The
Vehicle ..............................28 ▫
To Exit Remote Start Mode And Drive The
Vehicle ..............................29
▫ General Information ....................29
 DOOR LOCKS .........................29
▫ Manual Door Locks .....................29
▫ Power Door Locks .....................31
▫ Child-Protection Door Lock System — Rear
Doors ..............................34
 POWER WINDOWS — IF EQUIPPED ........35
▫ Power Window Switches .................35
▫ Auto-Down ..........................36
▫ Window Lockout Switch .................37
 LIFTGATE ............................38
 OCCUPANT RESTRAINT SYSTEMS ..........39
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

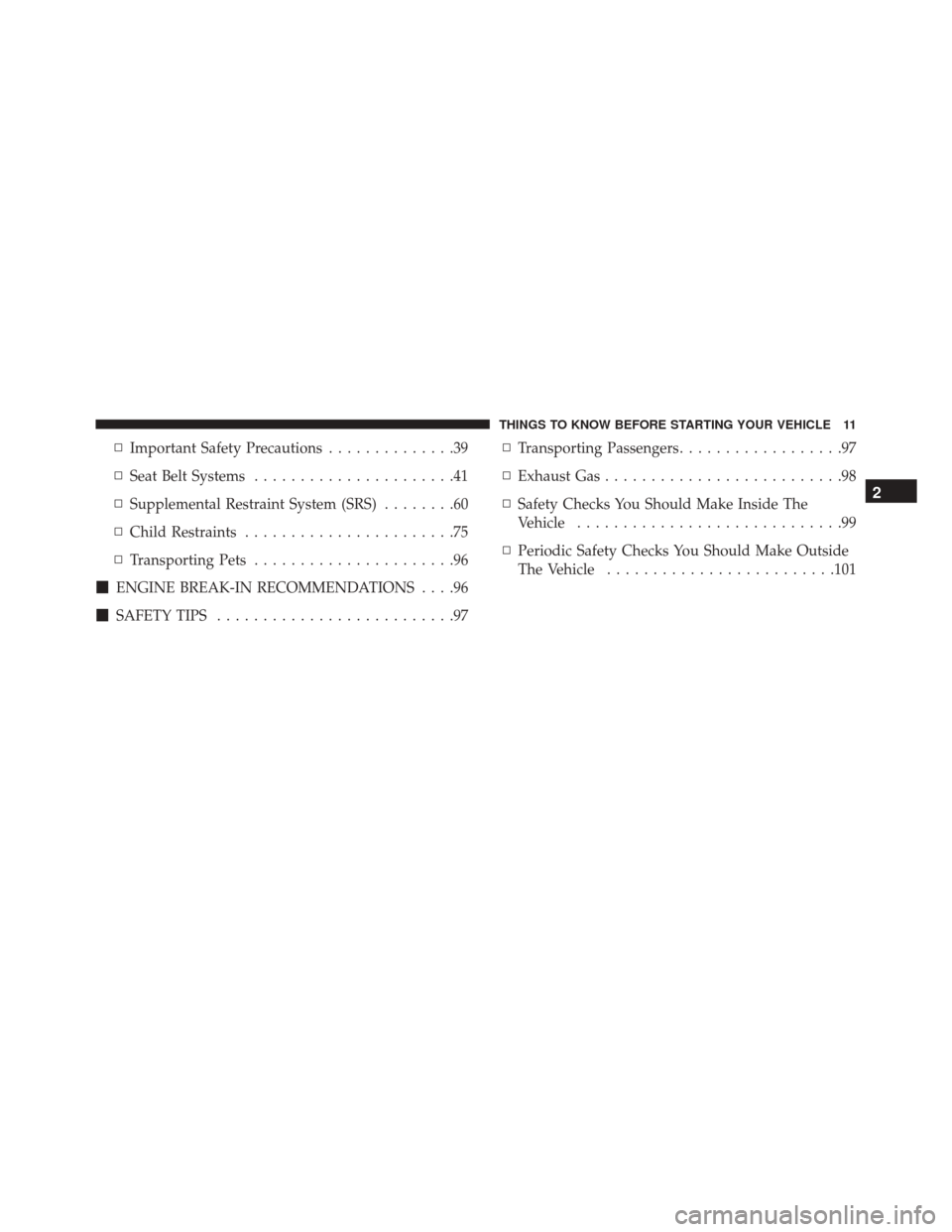

▫Important Safety Precautions ..............39
▫ Seat Belt Systems ......................41
▫ Supplemental Restraint System (SRS) ........60
▫ Child Restraints .......................75
▫ Transporting Pets ......................96
 ENGINE BREAK-IN RECOMMENDATIONS ....96
 SAFETY TIPS ..........................97 ▫
Transporting Passengers ..................97
▫ Exhaust Gas ..........................98
▫ Safety Checks You Should Make Inside The
Vehicle .............................99
▫ Periodic Safety Checks You Should Make Outside
The Vehicle ........................ .101
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11

A WORD ABOUT YOUR KEYS
The authorized dealer that sold you your new vehicle has
the key code numbers for your vehicle locks. These
numbers can be used to order duplicate keys. Ask your
authorized dealer for these numbers and keep them in a
safe place.
Ignition Key Removal
1. Place the shift lever in PARK (if equipped with anautomatic transmission).
2. Place the ignition in the ACC (Accessory) position.
3. Push the key and cylinder inward and rotate the key to the LOCK position.
4. Remove the key from the ignition switch lock cylinder.
Vehicle Key
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:If you try to remove the key before you place the
shift lever in PARK, the key may become trapped tem-
porarily in the ignition switch cylinder. If this occurs,
place the shift lever in PARK, rotate the key clockwise
slightly, and then remove the key as described above. If a
malfunction occurs, the system will trap the key in the
ignition cylinder to warn you that this safety feature is
inoperable. The engine can be started and stopped but
the key cannot be removed until you obtain service.
WARNING!
• Before exiting a vehicle, always shift the transmis-
sion into PARK, apply the parking brake, turn the
engine OFF, remove the key fob from the ignition
and lock your vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
(Continued)
Ignition Switch Positions
1 — LOCK
2 — ACC (ACCESSORY)
3 — ON/RUN
4 — START
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

WARNING!(Continued)
•Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the gear selector.
• Do not leave the Key Fob in or near the vehicle, or
in a location accessible to children. A child could
operate power windows, other controls, or move
the vehicle.
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
CAUTION!
Always remove the Key Fobs from the vehicle and
lock all doors when leaving the vehicle unattended.
Locking Doors With A Key
You can insert the key with either side up. To lock the
door, turn the key to the right. To unlock the door, turn
the key to the left. Refer to “Maintenance Procedures” in
“Maintaining Your Vehicle” for further information.
Key-In-Ignition Reminder
Opening the driver’s door when the key is in the ignition
and the ignition position is LOCK or ACC sounds a
signal to remind you to remove the key.
NOTE: With the driver’s door open and the key in the
ignition, the power door locks will not lock, and Remote
Keyless Entry (RKE) transmitter will not function.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

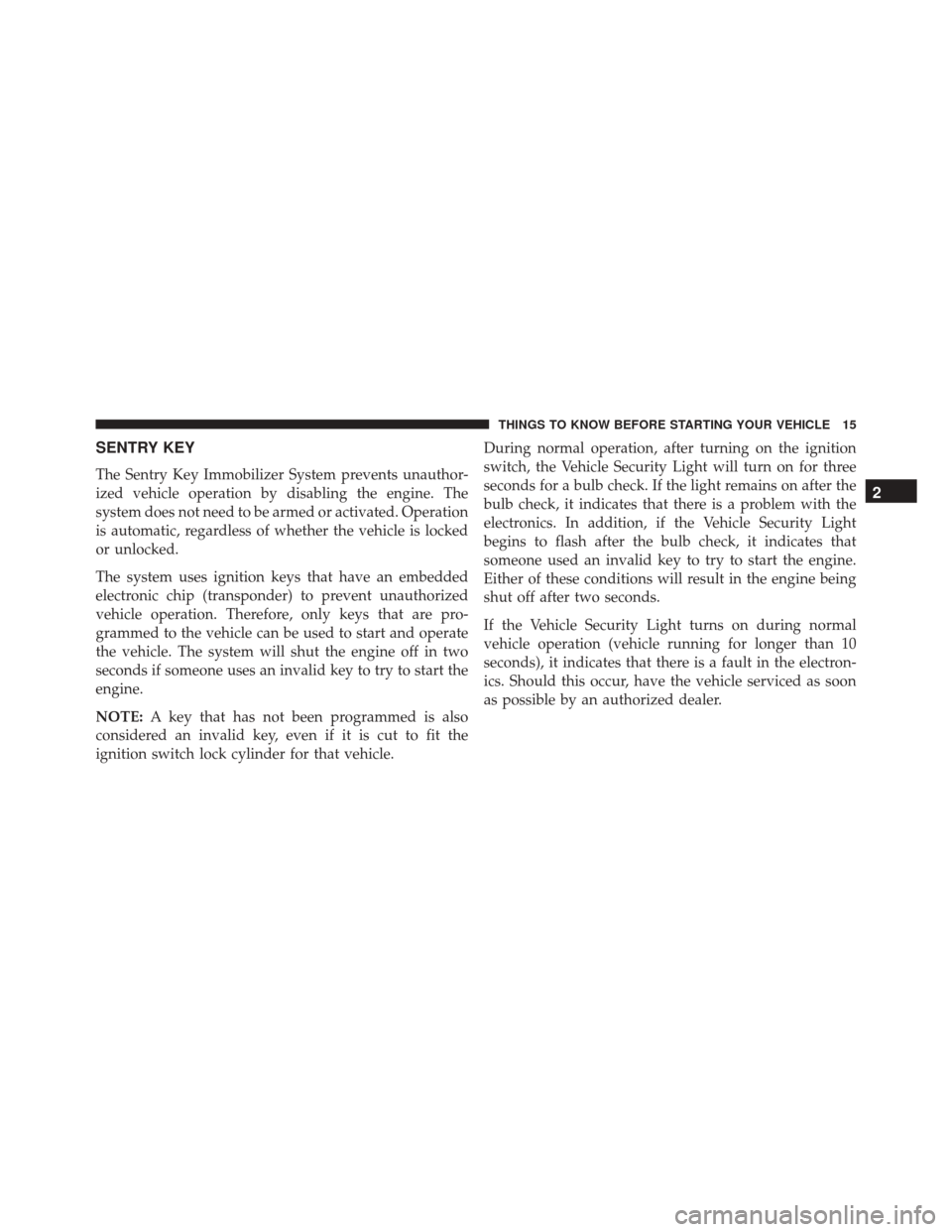

SENTRY KEY
The Sentry Key Immobilizer System prevents unauthor-
ized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses ignition keys that have an embedded
electronic chip (transponder) to prevent unauthorized
vehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will shut the engine off in two
seconds if someone uses an invalid key to try to start the
engine.
NOTE:A key that has not been programmed is also
considered an invalid key, even if it is cut to fit the
ignition switch lock cylinder for that vehicle. During normal operation, after turning on the ignition
switch, the Vehicle Security Light will turn on for three
seconds for a bulb check. If the light remains on after the
bulb check, it indicates that there is a problem with the
electronics. In addition, if the Vehicle Security Light
begins to flash after the bulb check, it indicates that
someone used an invalid key to try to start the engine.
Either of these conditions will result in the engine being
shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10
seconds), it indicates that there is a fault in the electron-
ics. Should this occur, have the vehicle serviced as soon
as possible by an authorized dealer.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

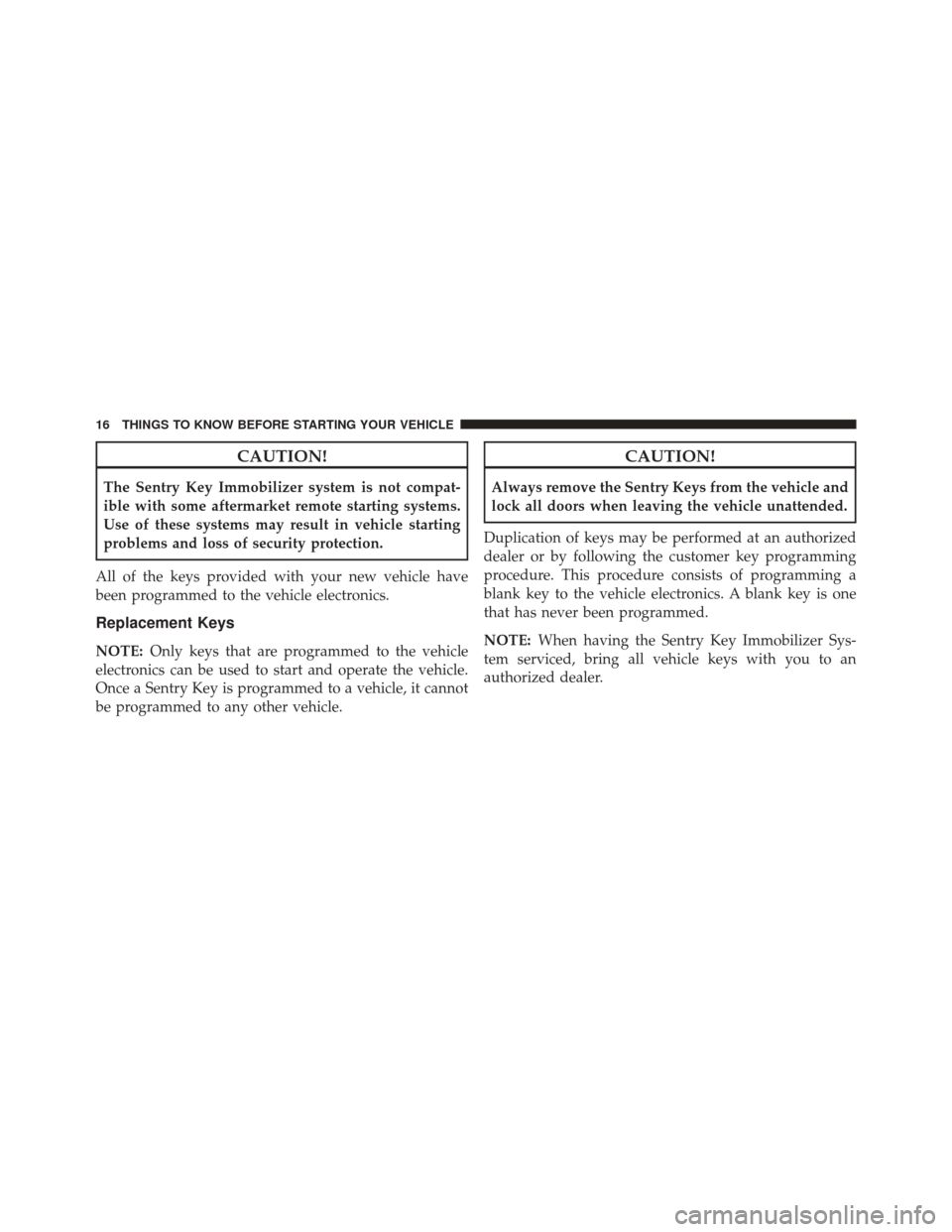

CAUTION!
The Sentry Key Immobilizer system is not compat-
ible with some aftermarket remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only keys that are programmed to the vehicle
electronics can be used to start and operate the vehicle.
Once a Sentry Key is programmed to a vehicle, it cannot
be programmed to any other vehicle.
CAUTION!
Always remove the Sentry Keys from the vehicle and
lock all doors when leaving the vehicle unattended.
Duplication of keys may be performed at an authorized
dealer or by following the customer key programming
procedure. This procedure consists of programming a
blank key to the vehicle electronics. A blank key is one
that has never been programmed.
NOTE: When having the Sentry Key Immobilizer Sys-
tem serviced, bring all vehicle keys with you to an
authorized dealer.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

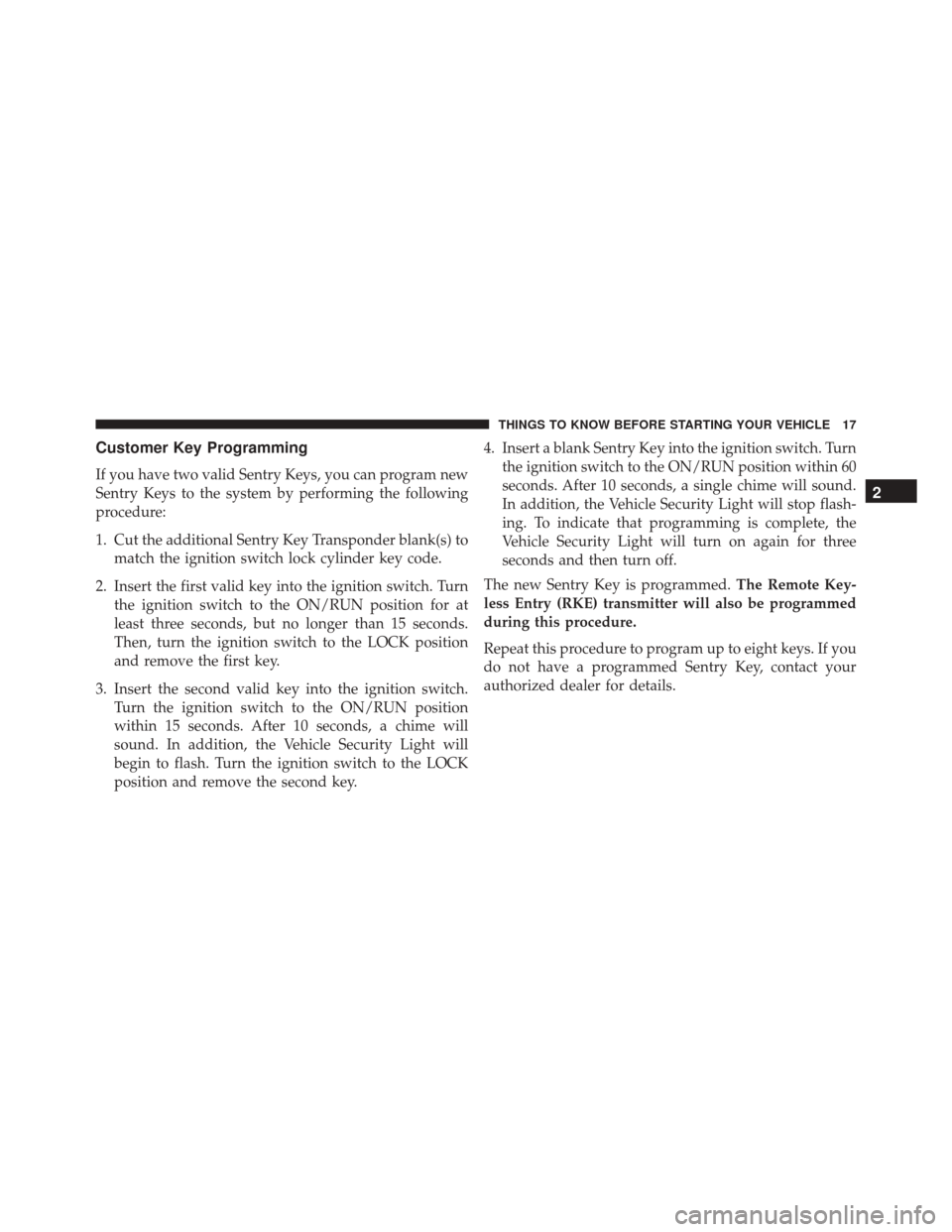

Customer Key Programming
If you have two valid Sentry Keys, you can program new
Sentry Keys to the system by performing the following
procedure:
1. Cut the additional Sentry Key Transponder blank(s) tomatch the ignition switch lock cylinder key code.
2. Insert the first valid key into the ignition switch. Turn the ignition switch to the ON/RUN position for at
least three seconds, but no longer than 15 seconds.
Then, turn the ignition switch to the LOCK position
and remove the first key.
3. Insert the second valid key into the ignition switch. Turn the ignition switch to the ON/RUN position
within 15 seconds. After 10 seconds, a chime will
sound. In addition, the Vehicle Security Light will
begin to flash. Turn the ignition switch to the LOCK
position and remove the second key. 4. Insert a blank Sentry Key into the ignition switch. Turn
the ignition switch to the ON/RUN position within 60
seconds. After 10 seconds, a single chime will sound.
In addition, the Vehicle Security Light will stop flash-
ing. To indicate that programming is complete, the
Vehicle Security Light will turn on again for three
seconds and then turn off.
The new Sentry Key is programmed. The Remote Key-
less Entry (RKE) transmitter will also be programmed
during this procedure.
Repeat this procedure to program up to eight keys. If you
do not have a programmed Sentry Key, contact your
authorized dealer for details.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

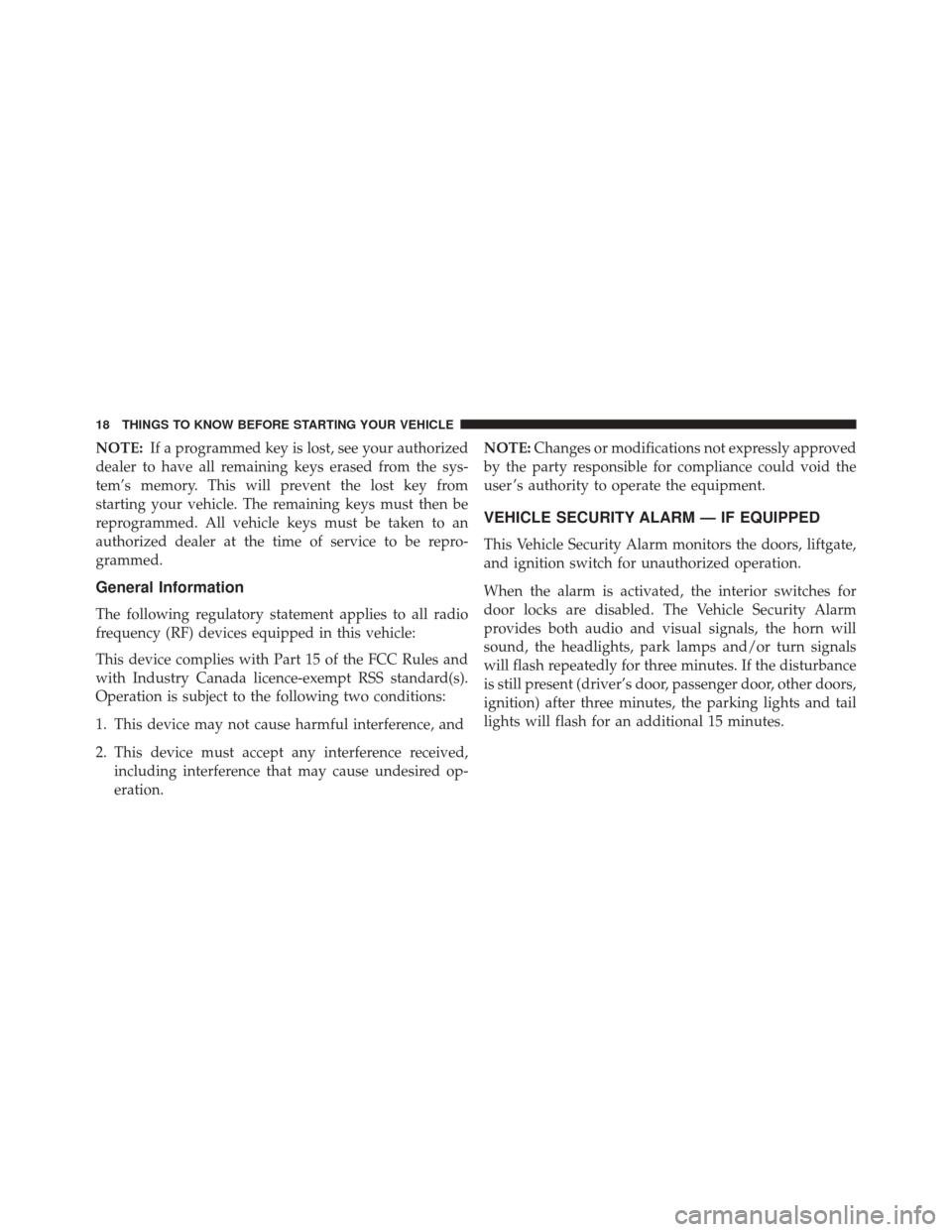

NOTE:If a programmed key is lost, see your authorized
dealer to have all remaining keys erased from the sys-
tem’s memory. This will prevent the lost key from
starting your vehicle. The remaining keys must then be
reprogrammed. All vehicle keys must be taken to an
authorized dealer at the time of service to be repro-
grammed.
General Information
The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired op-
eration. NOTE:
Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment.
VEHICLE SECURITY ALARM — IF EQUIPPED
This Vehicle Security Alarm monitors the doors, liftgate,
and ignition switch for unauthorized operation.
When the alarm is activated, the interior switches for
door locks are disabled. The Vehicle Security Alarm
provides both audio and visual signals, the horn will
sound, the headlights, park lamps and/or turn signals
will flash repeatedly for three minutes. If the disturbance
is still present (driver’s door, passenger door, other doors,
ignition) after three minutes, the parking lights and tail
lights will flash for an additional 15 minutes.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
