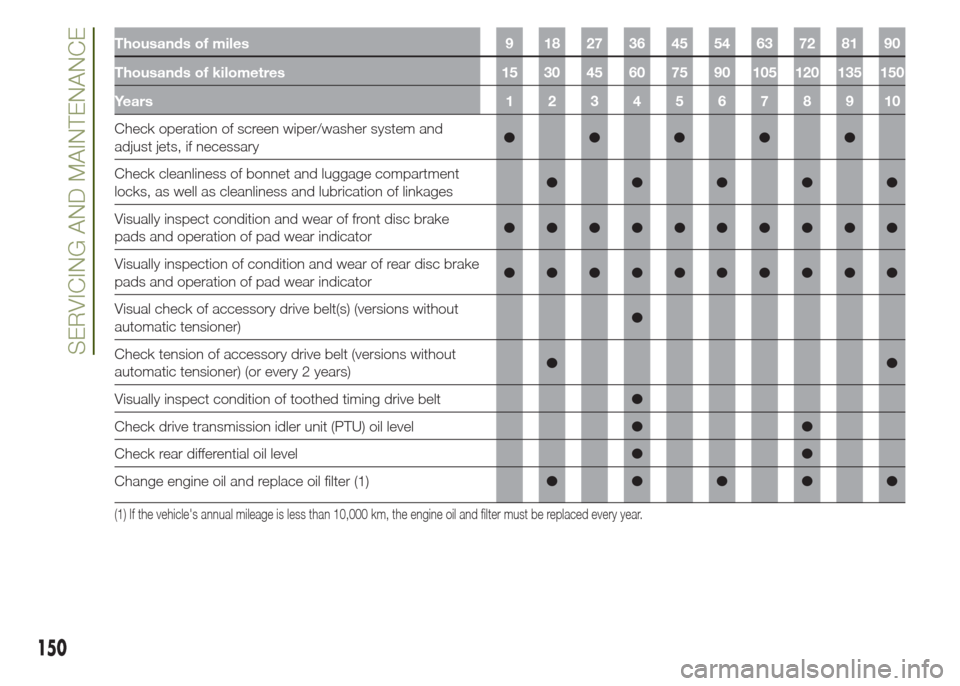

Thousands of miles 9 18 27 36 45 54 63 72 81 90
Thousands of kilometres 15 30 45 60 75 90 105 120 135 150
Years12345678910
Check operation of screen wiper/washer system and
adjust jets, if necessary●●●●●
Check cleanliness of bonnet and luggage compartment
locks, as well as cleanliness and lubrication of linkages●●●●●
Visually inspect condition and wear of front disc brake
pads and operation of pad wear indicator●●●●●●●●●●
Visually inspection of condition and wear of rear disc brake
pads and operation of pad wear indicator●●●●●●●●●●
Visual check of accessory drive belt(s) (versions without
automatic tensioner)●
Check tension of accessory drive belt (versions without
automatic tensioner) (or every 2 years)●●
Visually inspect condition of toothed timing drive belt●
Check drive transmission idler unit (PTU) oil level●●
Check rear differential oil level●●
Change engine oil and replace oil filter (1)●●●●●
(1) If the vehicle's annual mileage is less than 10,000 km, the engine oil and filter must be replaced every year.
150
SERVICING AND MAINTENANCE

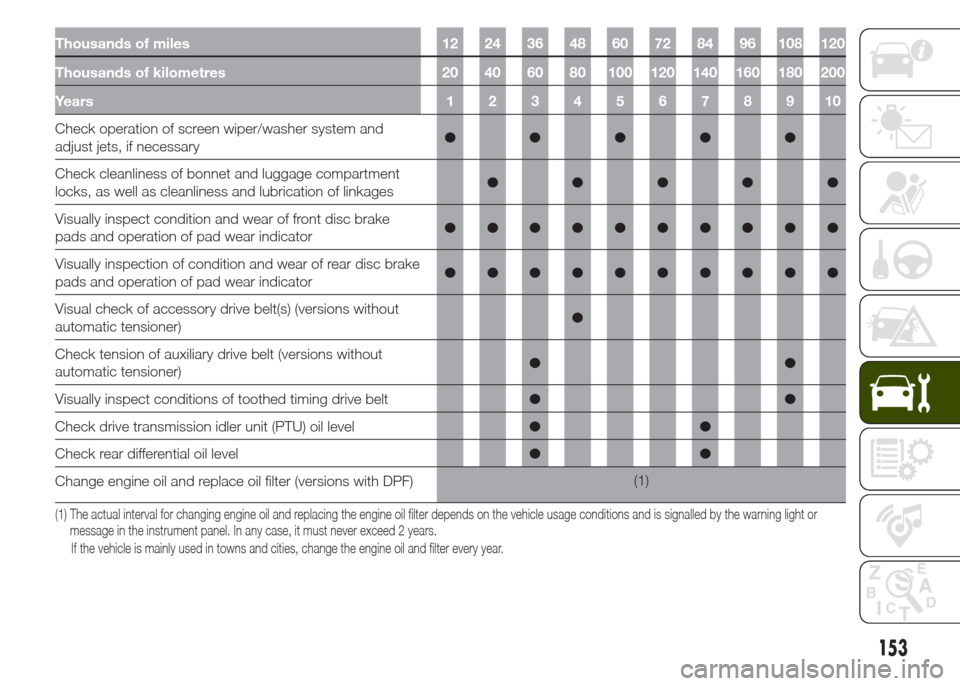

Thousands of miles 12 24 36 48 60 72 84 96 108 120
Thousands of kilometres 20 40 60 80 100 120 140 160 180 200
Years12345678910
Check operation of screen wiper/washer system and
adjust jets, if necessary●●●●●
Check cleanliness of bonnet and luggage compartment
locks, as well as cleanliness and lubrication of linkages●●●●●
Visually inspect condition and wear of front disc brake
pads and operation of pad wear indicator●●●●●●●●●●
Visually inspection of condition and wear of rear disc brake
pads and operation of pad wear indicator●●●●●●●●●●
Visual check of accessory drive belt(s) (versions without
automatic tensioner)●
Check tension of auxiliary drive belt (versions without
automatic tensioner)●●
Visually inspect conditions of toothed timing drive belt●●
Check drive transmission idler unit (PTU) oil level●●
Check rear differential oil level●●
Change engine oil and replace oil filter (versions with DPF)(1)
(1) The actual interval for changing engine oil and replacing the engine oil filter depends on the vehicle usage conditions and is signalled by the warning light or
message in the instrument panel. In any case, it must never exceed 2 years.
If the vehicle is mainly used in towns and cities, change the engine oil and filter every year.
153

MINIMUM GROUND CLEARANCE/TYPICAL ANGLES

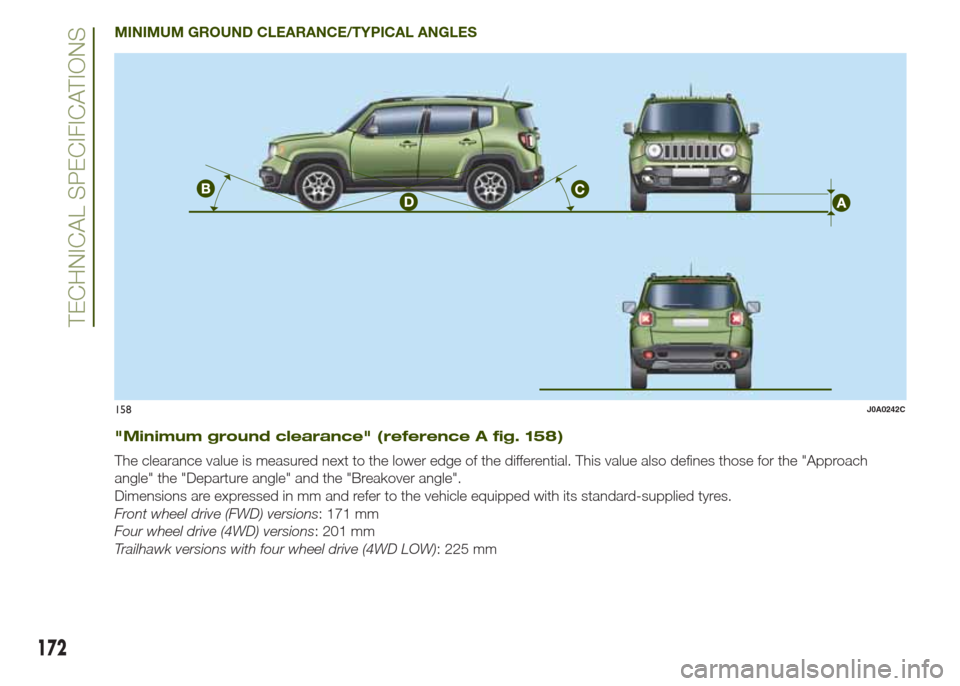

"Minimum ground clearance" (reference A fig. 158)
The clearance value is measured next to the lower edge of the differential. This value also defines those for the "Approach
angle" the "Departure angle" and the "Breakover angle".
Dimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres.
Front wheel drive (FWD) versions: 171 mm
Four wheel drive (4WD) versions: 201 mm
Trailhawk versions with four wheel drive (4WD LOW): 225 mm
158J0A0242C
172
TECHNICAL SPECIFICATIONS

SUPPLIES

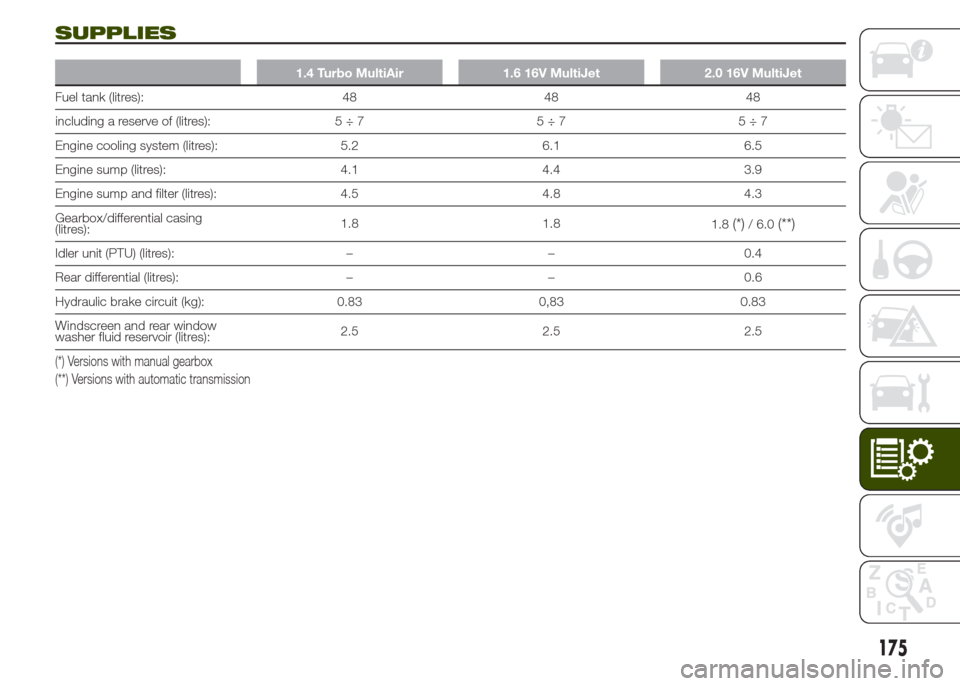

1.4 Turbo MultiAir 1.6 16V MultiJet 2.0 16V MultiJet
Fuel tank (litres): 48 48 48
including a reserve of (litres): 5 ÷ 7 5 ÷ 7 5 ÷ 7
Engine cooling system (litres): 5.2 6.1 6.5
Engine sump (litres): 4.1 4.4 3.9
Engine sump and filter (litres): 4.5 4.8 4.3
Gearbox/differential casing
(litres):1.8 1.8
1.8
(*)/ 6.0(**)
Idler unit (PTU) (litres): – – 0.4
Rear differential (litres): – – 0.6
Hydraulic brake circuit (kg): 0.83 0,83 0.83
Windscreen and rear window
washer fluid reservoir (litres):2.5 2.5 2.5
(*) Versions with manual gearbox
(**) Versions with automatic transmission
175

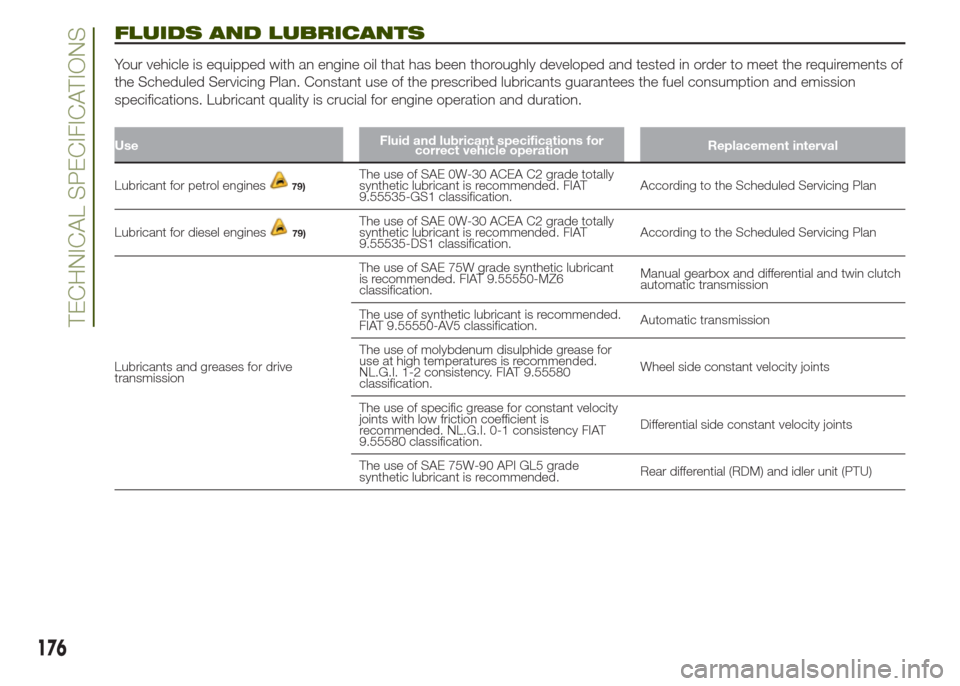

FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of
the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission
specifications. Lubricant quality is crucial for engine operation and duration.
UseFluid and lubricant specifications for
correct vehicle operationReplacement interval
Lubricant for petrol engines79)The use of SAE 0W-30 ACEA C2 grade totally
synthetic lubricant is recommended. FIAT
9.55535-GS1 classification.According to the Scheduled Servicing Plan
Lubricant for diesel engines
79)The use of SAE 0W-30 ACEA C2 grade totally
synthetic lubricant is recommended. FIAT
9.55535-DS1 classification.According to the Scheduled Servicing Plan
Lubricants and greases for drive
transmissionThe use of SAE 75W grade synthetic lubricant
is recommended. FIAT 9.55550-MZ6
classification.Manual gearbox and differential and twin clutch
automatic transmission
The use of synthetic lubricant is recommended.
FIAT 9.55550-AV5 classification.Automatic transmission
The use of molybdenum disulphide grease for
use at high temperatures is recommended.
NL.G.I. 1-2 consistency. FIAT 9.55580
classification.Wheel side constant velocity joints
The use of specific grease for constant velocity
joints with low friction coefficient is
recommended. NL.G.I. 0-1 consistency FIAT
9.55580 classification.Differential side constant velocity joints
The use of SAE 75W-90 API GL5 grade
synthetic lubricant is recommended.Rear differential (RDM) and idler unit (PTU)
176
