After 25 miles (40 km) check the lug nut/bolt torque to be
sure that all the lug nuts/bolts are properly seated
against the wheel.
WARNING!
To avoid the risk of forcing the vehicle off the jack,
do not tighten the lug nuts fully until the vehicle has
been lowered. Failure to follow this warning may
result in personal injury.
10
TECHNICAL DATA 599

FLUID CAPACITIES
U.S Metric
Fuel (Approximate)
1.4L Turbo/2.4L Engine 12.7 Gallons 48 Liters
Engine Oil With Filter
1.4L Turbo Engine (SAE 5W-40 Synthetic, API Certified) 4.0 Quarts 3.8 Liters
2.4L Engine (SAE 0W-20, API Certified) 5.5 Quarts 5.2 Liters
Cooling System *
1.4L Turbo Engine (MOPAR Antifreeze/Engine Coolant
10 Year/150,000 Mile Formula)5.5 Quarts 5.2 Liters
2.4L Engine (MOPAR Antifreeze/Engine Coolant 10 Year/
150,000 Mile Formula)6.8 Quarts 6.5 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
600 TECHNICAL DATA

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
Component Fluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use MOPAR Antifreeze/Coolant 10 Year/150,000 Mile Formula
OAT (Organic Additive Technology) or equivalent meeting the requirements of
FCA Material Standard MS.90032.
Engine Oil – 1.4L Turbo
EngineWe recommend you use SAE 5W-40 API Certified Synthetic Engine Oil, meeting the
requirements of FCA Material Standard MS-12991 such as MOPAR, Pennzoil, and
Shell Helix. Refer to your engine oil filler cap for correct SAE grade.
Engine Oil –
2.4L EngineWe recommend you use SAE 0W-20 API Certified Engine Oil, meeting the require-
ments of FCA Material Standard MS-6395 such as MOPAR, Pennzoil, and Shell Helix.
Refer to your engine oil filler cap for correct SAE grade.
Engine Oil Filter We recommend you use a MOPAR Engine Oil Filter.
Spark Plugs We recommend you use MOPAR Spark Plugs.
Fuel Selection –
1.4L Turbo Engine91 Octane Recommended, 87 Octane Acceptable, 0-15% Ethanol
Fuel Selection – 2.4L Engine87 Octane, 0-15% Ethanol
10
TECHNICAL DATA 601

Chassis
Component Fluid, Lubricant, or Genuine Part
Manual Transmission – If Equipped We recommend you use MOPAR C Series Manual &
Dual Dry Clutch Transmission Fluid.
Automatic Transmission – If Equipped Use only MOPAR ZF 8&9 Speed ATF Automatic Trans-
mission Fluid, or equivalent. Failure to use the correct
fluid may affect the function or performance of your
transmission.
Power Transfer Unit (PTU) – If Equipped We recommended you use of synthetic lubricant SAE
75W-90 API GL5
Rear Differential (RDM) – If Equipped We recommended you use of synthetic lubricant SAE
75W-90 API GL5
Brake Master Cylinder We recommend you use MOPAR DOT 4. If DOT 4 brake
fluid is not available, then DOT 3 is acceptable.
602 TECHNICAL DATA

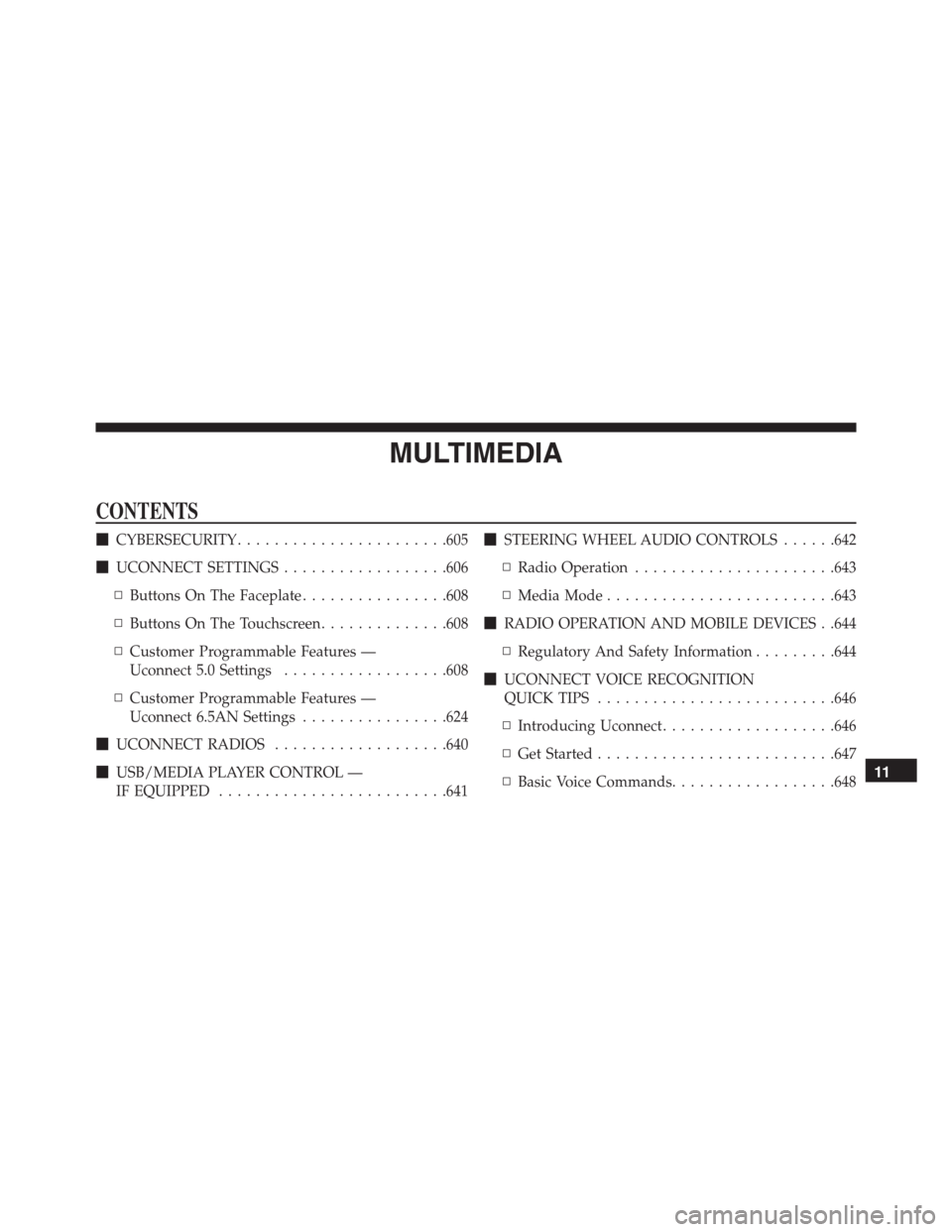

MULTIMEDIA
CONTENTS
CYBERSECURITY.......................605
UCONNECT SETTINGS..................606
▫Buttons On The Faceplate................608
▫Buttons On The Touchscreen..............608
▫Customer Programmable Features —
Uconnect 5.0 Settings..................608
▫Customer Programmable Features —
Uconnect 6.5AN Settings................624
UCONNECT RADIOS...................640
USB/MEDIA PLAYER CONTROL —
IF EQUIPPED.........................641STEERING WHEEL AUDIO CONTROLS......642
▫Radio Operation......................643
▫Media Mode.........................643
RADIO OPERATION AND MOBILE DEVICES . .644
▫Regulatory And Safety Information.........644
UCONNECT VOICE RECOGNITION
QUICK TIPS..........................646
▫Introducing Uconnect...................646
▫Get Started..........................647
▫Basic Voice Commands..................648
11

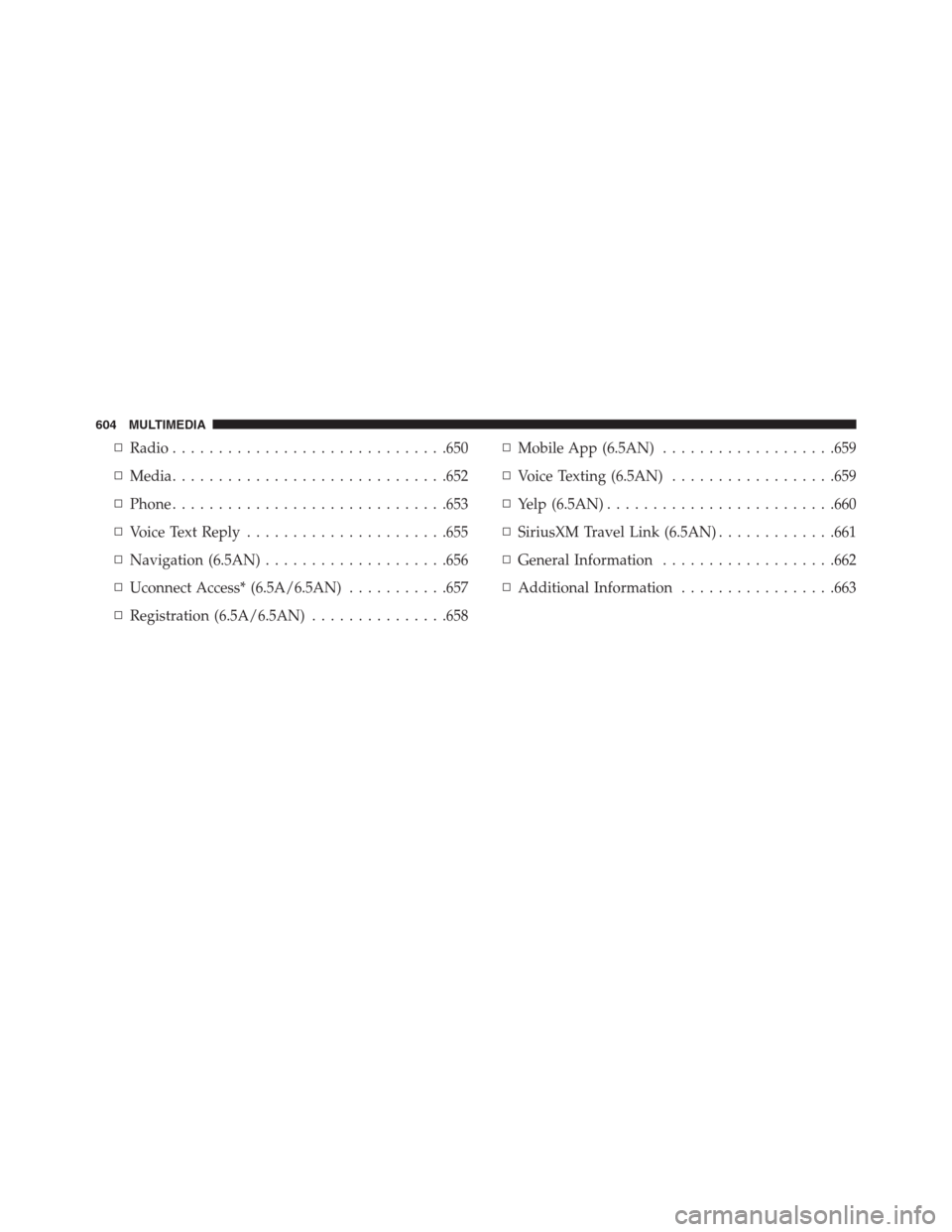

▫Radio..............................650
▫Media..............................652
▫Phone..............................653
▫Voice Text Reply......................655
▫Navigation (6.5AN)....................656
▫Uconnect Access* (6.5A/6.5AN)...........657
▫Registration (6.5A/6.5AN)...............658▫Mobile App (6.5AN)...................659
▫Voice Texting (6.5AN)..................659
▫Yelp (6.5AN).........................660
▫SiriusXM Travel Link (6.5AN).............661
▫General Information...................662
▫Additional Information.................663
604 MULTIMEDIA

CYBERSECURITY
Your vehicle may be a connected vehicle and may be
equipped with both wired and wireless networks. These
networks allow your vehicle to send and receive infor-
mation. This information allows systems and features in
your vehicle to function properly.
Your vehicle may be equipped with certain security
features to reduce the risk of unauthorized and unlawful
access to vehicle systems and wireless communications.
Vehicle software technology continues to evolve over
time and FCA US LLC, working with its suppliers,
evaluates and takes appropriate steps as needed. Similar
to a computer or other devices, your vehicle may require
software updates to improve the usability and perfor-
mance of your systems or to reduce the potential risk of
unauthorized and unlawful access to your vehicle sys-
tems.The risk of unauthorized and unlawful access to your
vehicle systems may still exist, even if the most recent
version of vehicle software (such as Uconnect software) is
installed.
WARNING!
•It is not possible to know or to predict all of the
possible outcomes if your vehicle’s systems are
breached. It may be possible that vehicle systems,
including safety related systems, could be im-
paired or a loss of vehicle control could occur that
may result in an accident involving serious injury
or death.
(Continued)
11
MULTIMEDIA 605

WARNING!(Continued)
•ONLY insert media (e.g., USB, SD card, or CD) into
your vehicle if it came from a trusted source. Media
of unknown origin could possibly contain mali-
cious software, and if installed in your vehicle, it
may increase the possibility for vehicle systems to
be breached.
•As always, if you experience unusual vehicle be-
havior, take your vehicle to your nearest authorized
dealer immediately.
NOTE:
•FCA or your dealer may contact you directly regarding
software updates.
•To help further improve vehicle security and minimize
the potential risk of a security breach, vehicle owners
should:•Routinely check www.driveuconnect.com/software-
update to learn about available Uconnect software
updates.
•Only connect and use trusted media devices (e.g.
personal mobile phones, USBs, CDs).
Privacy of any wireless and wired communications can-
not be assured. Third parties may unlawfully intercept
information and private communications without your
consent. For further information, refer to “Onboard Di-
agnostic System (OBD II) Cybersecurity” in “Getting To
Know Your Instrument Panel” in your Owner ’s Manual
on the DVD.
UCONNECT SETTINGS
The Uconnect system uses a combination of buttons on
the touchscreen and buttons on the faceplate located on
the center of the instrument panel that allow you to
access and change the customer programmable features.
Many features can vary by vehicle.
606 MULTIMEDIA

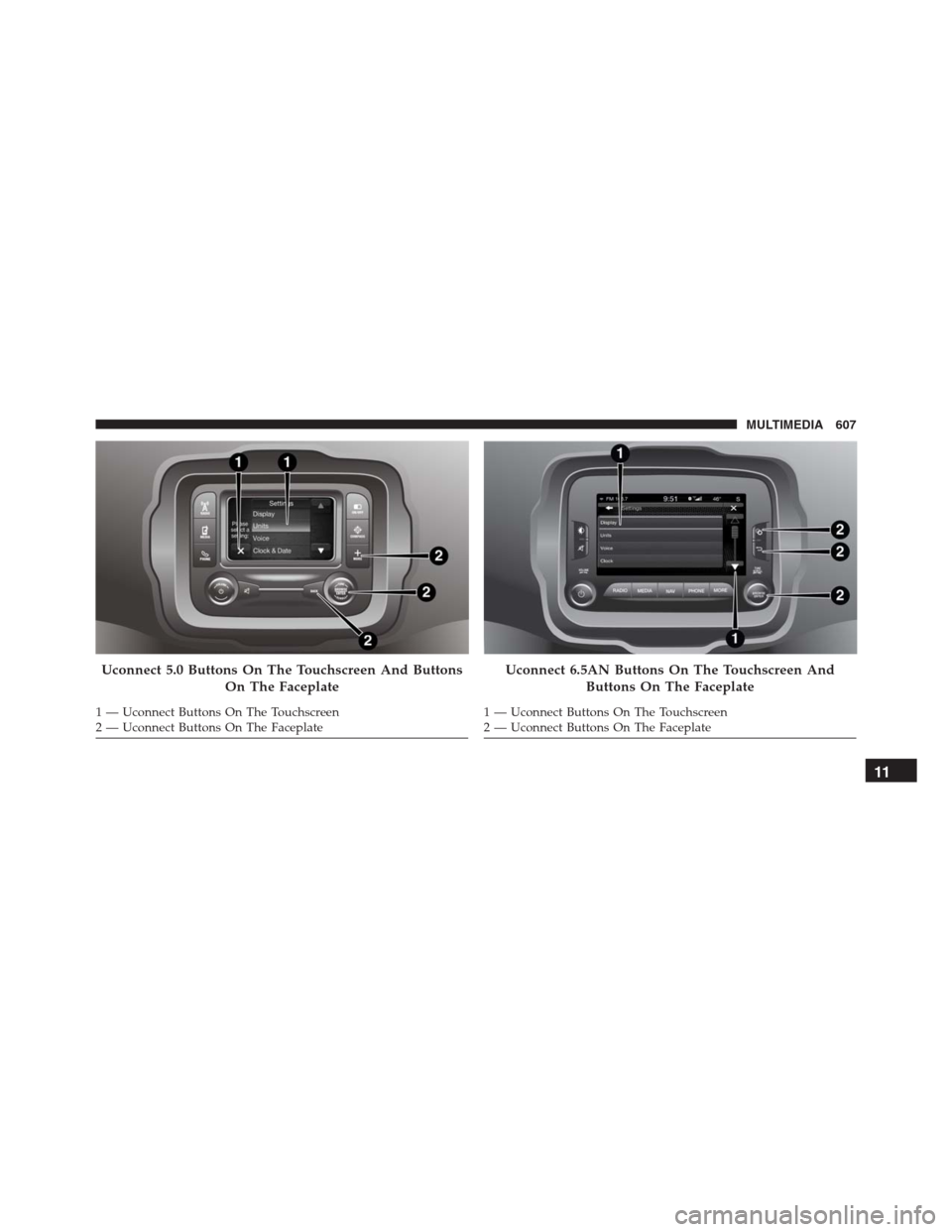

Uconnect 5.0 Buttons On The Touchscreen And Buttons
On The Faceplate
1 — Uconnect Buttons On The Touchscreen
2 — Uconnect Buttons On The Faceplate
Uconnect 6.5AN Buttons On The Touchscreen And
Buttons On The Faceplate
1 — Uconnect Buttons On The Touchscreen
2 — Uconnect Buttons On The Faceplate
11
MULTIMEDIA 607

Buttons On The Faceplate
Buttons on the faceplate are located below, and beside the
Uconnect system in the center of the instrument panel. In
addition, there is a Scroll/Enter control knob located on
the right side. Turn the control knob to scroll through
menus and change settings (i.e., 30, 60, 90), push the
center of the control knob one or more times to select or
change a setting (i.e., ON, OFF).
Your Uconnect system may also have Display Off and
back arrow buttons on the faceplate.
Push the Display Off button on the faceplate to turn off
the Uconnect screen. Push the Display Off button on the
faceplate a second time to turn the screen on.
Push the Back Arrow button on the faceplate to exit out
of a Menu or certain option on the Uconnect system.
Buttons On The Touchscreen
Buttons on the touchscreen are accessible on the
Uconnect touchscreen.
Customer Programmable Features — Uconnect
5.0 Settings
Push the + MORE button on the faceplate, then press the
“Settings” button on the touchscreen to display the
settings menu screen. In this mode the Uconnect system
allows you to access programmable features that may be
equipped such as Display, Clock, Safety/Assistance,
Lights, Doors & Locks, Engine Off Options, Compass
Settings, Audio, Phone/Bluetooth, Radio Setup, Restore
Settings and Clear Personal Data.
NOTE:Only one touchscreen area may be selected at a
time.
When making a selection, press the button on the touch-
screen to enter the desired mode. Once in the desired
mode, press and release the preferred setting and make
608 MULTIMEDIA
