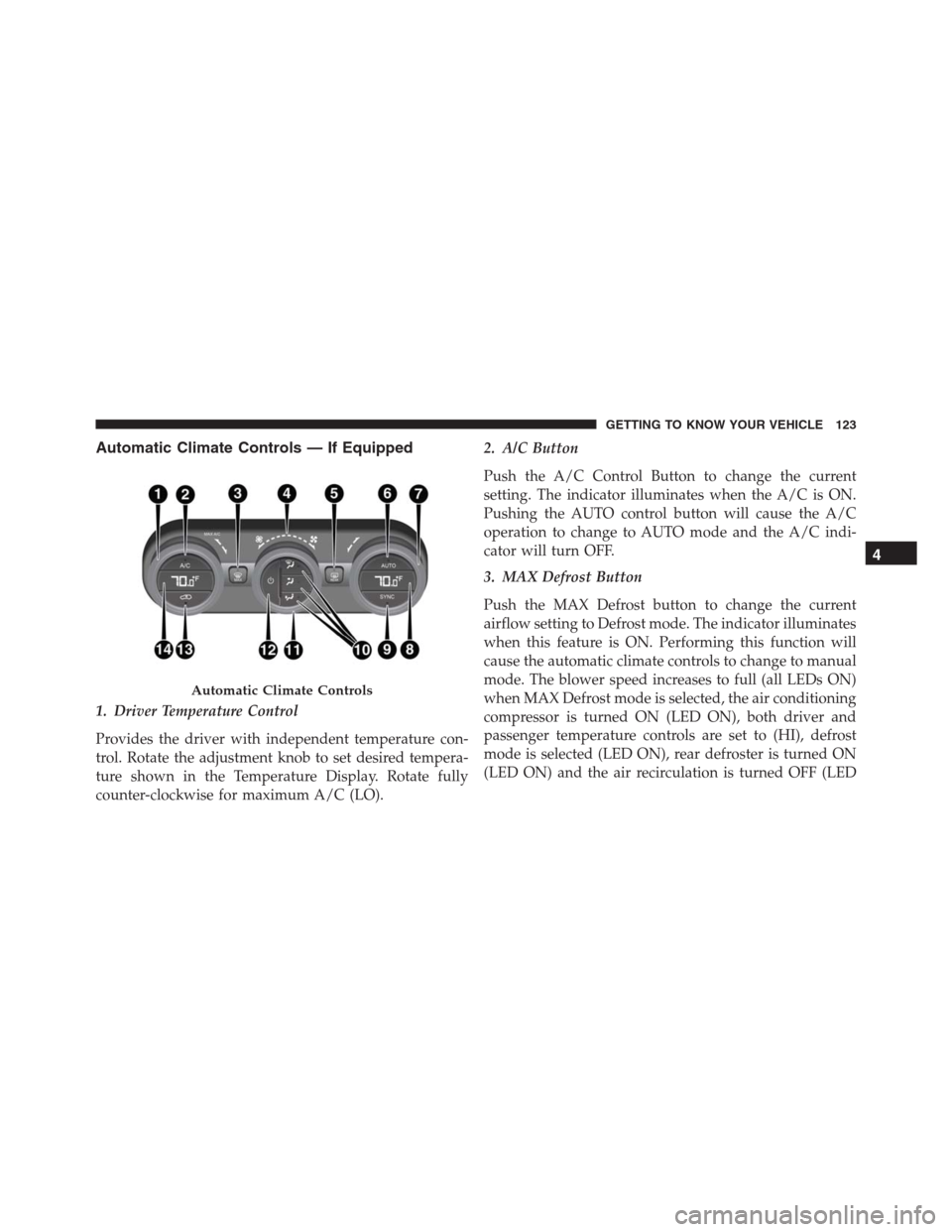

Automatic Climate Controls — If Equipped
1. Driver Temperature Control
Provides the driver with independent temperature con-
trol. Rotate the adjustment knob to set desired tempera-
ture shown in the Temperature Display. Rotate fully
counter-clockwise for maximum A/C (LO).2. A/C Button
Push the A/C Control Button to change the current
setting. The indicator illuminates when the A/C is ON.
Pushing the AUTO control button will cause the A/C
operation to change to AUTO mode and the A/C indi-
cator will turn OFF.
3. MAX Defrost Button
Push the MAX Defrost button to change the current
airflow setting to Defrost mode. The indicator illuminates
when this feature is ON. Performing this function will
cause the automatic climate controls to change to manual
mode. The blower speed increases to full (all LEDs ON)
when MAX Defrost mode is selected, the air conditioning
compressor is turned ON (LED ON), both driver and
passenger temperature controls are set to (HI), defrost
mode is selected (LED ON), rear defroster is turned ON
(LED ON) and the air recirculation is turned OFF (LED
Automatic Climate Controls
4
GETTING TO KNOW YOUR VEHICLE 123

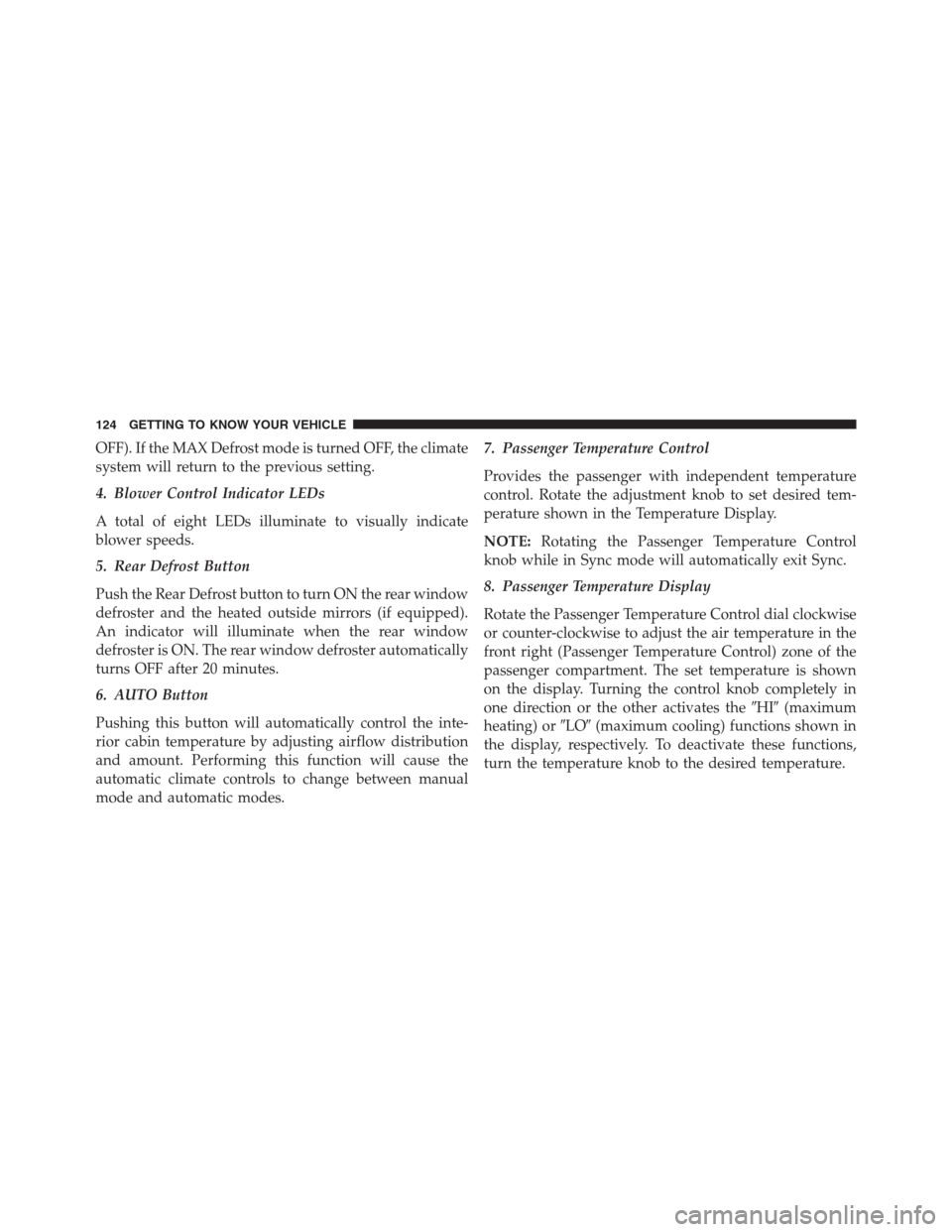

OFF). If the MAX Defrost mode is turned OFF, the climate
system will return to the previous setting.
4. Blower Control Indicator LEDs
A total of eight LEDs illuminate to visually indicate
blower speeds.
5. Rear Defrost Button
Push the Rear Defrost button to turn ON the rear window
defroster and the heated outside mirrors (if equipped).
An indicator will illuminate when the rear window
defroster is ON. The rear window defroster automatically
turns OFF after 20 minutes.
6. AUTO Button
Pushing this button will automatically control the inte-
rior cabin temperature by adjusting airflow distribution
and amount. Performing this function will cause the
automatic climate controls to change between manual
mode and automatic modes.7. Passenger Temperature Control
Provides the passenger with independent temperature
control. Rotate the adjustment knob to set desired tem-
perature shown in the Temperature Display.
NOTE:Rotating the Passenger Temperature Control
knob while in Sync mode will automatically exit Sync.
8. Passenger Temperature Display
Rotate the Passenger Temperature Control dial clockwise
or counter-clockwise to adjust the air temperature in the
front right (Passenger Temperature Control) zone of the
passenger compartment. The set temperature is shown
on the display. Turning the control knob completely in
one direction or the other activates theHI(maximum
heating) orLO(maximum cooling) functions shown in
the display, respectively. To deactivate these functions,
turn the temperature knob to the desired temperature.
124 GETTING TO KNOW YOUR VEHICLE

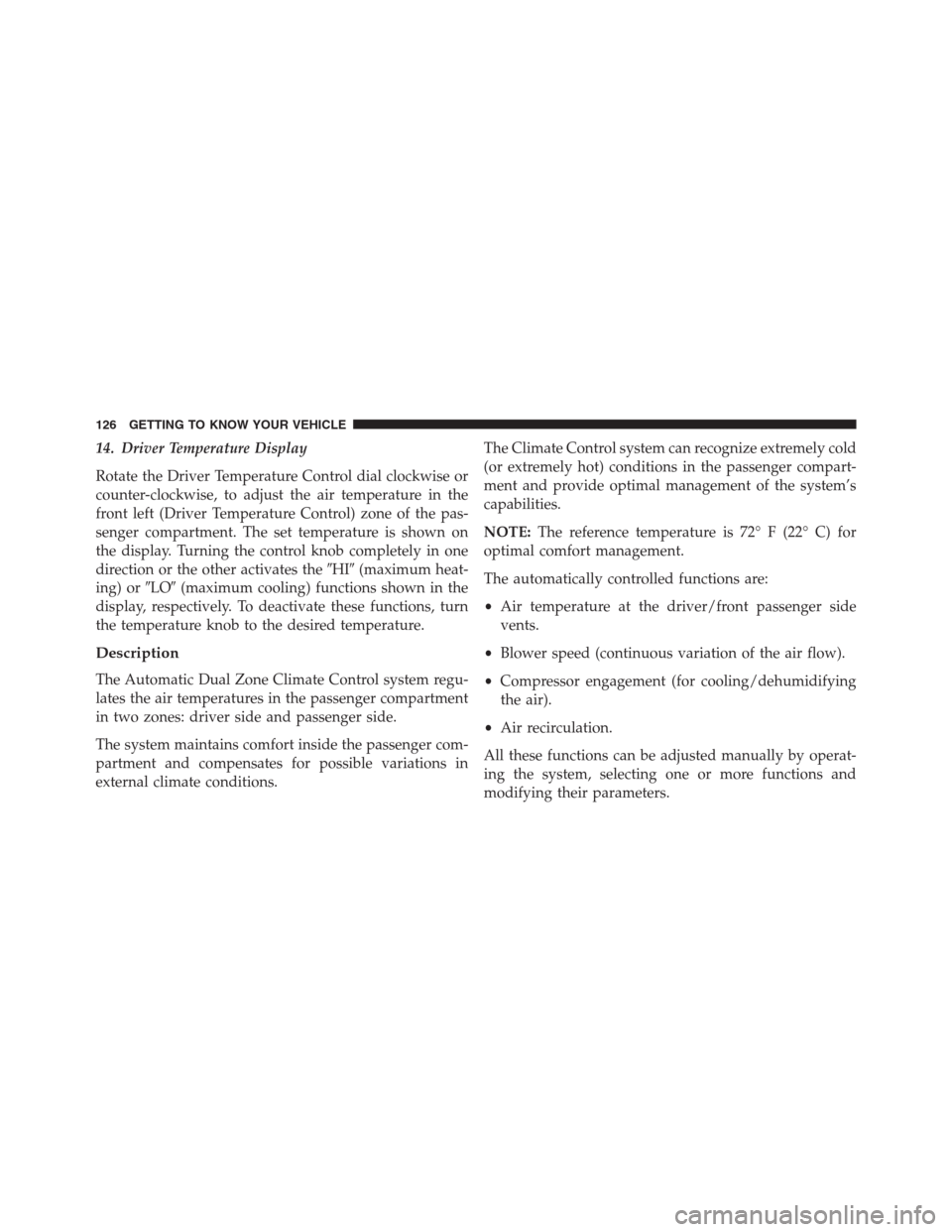

14. Driver Temperature Display
Rotate the Driver Temperature Control dial clockwise or
counter-clockwise, to adjust the air temperature in the
front left (Driver Temperature Control) zone of the pas-
senger compartment. The set temperature is shown on
the display. Turning the control knob completely in one
direction or the other activates theHI(maximum heat-
ing) orLO(maximum cooling) functions shown in the
display, respectively. To deactivate these functions, turn
the temperature knob to the desired temperature.
Description
The Automatic Dual Zone Climate Control system regu-
lates the air temperatures in the passenger compartment
in two zones: driver side and passenger side.
The system maintains comfort inside the passenger com-
partment and compensates for possible variations in
external climate conditions.The Climate Control system can recognize extremely cold
(or extremely hot) conditions in the passenger compart-
ment and provide optimal management of the system’s
capabilities.
NOTE:The reference temperature is 72° F (22° C) for
optimal comfort management.
The automatically controlled functions are:
•Air temperature at the driver/front passenger side
vents.
•Blower speed (continuous variation of the air flow).
•Compressor engagement (for cooling/dehumidifying
the air).
•Air recirculation.
All these functions can be adjusted manually by operat-
ing the system, selecting one or more functions and
modifying their parameters.
126 GETTING TO KNOW YOUR VEHICLE

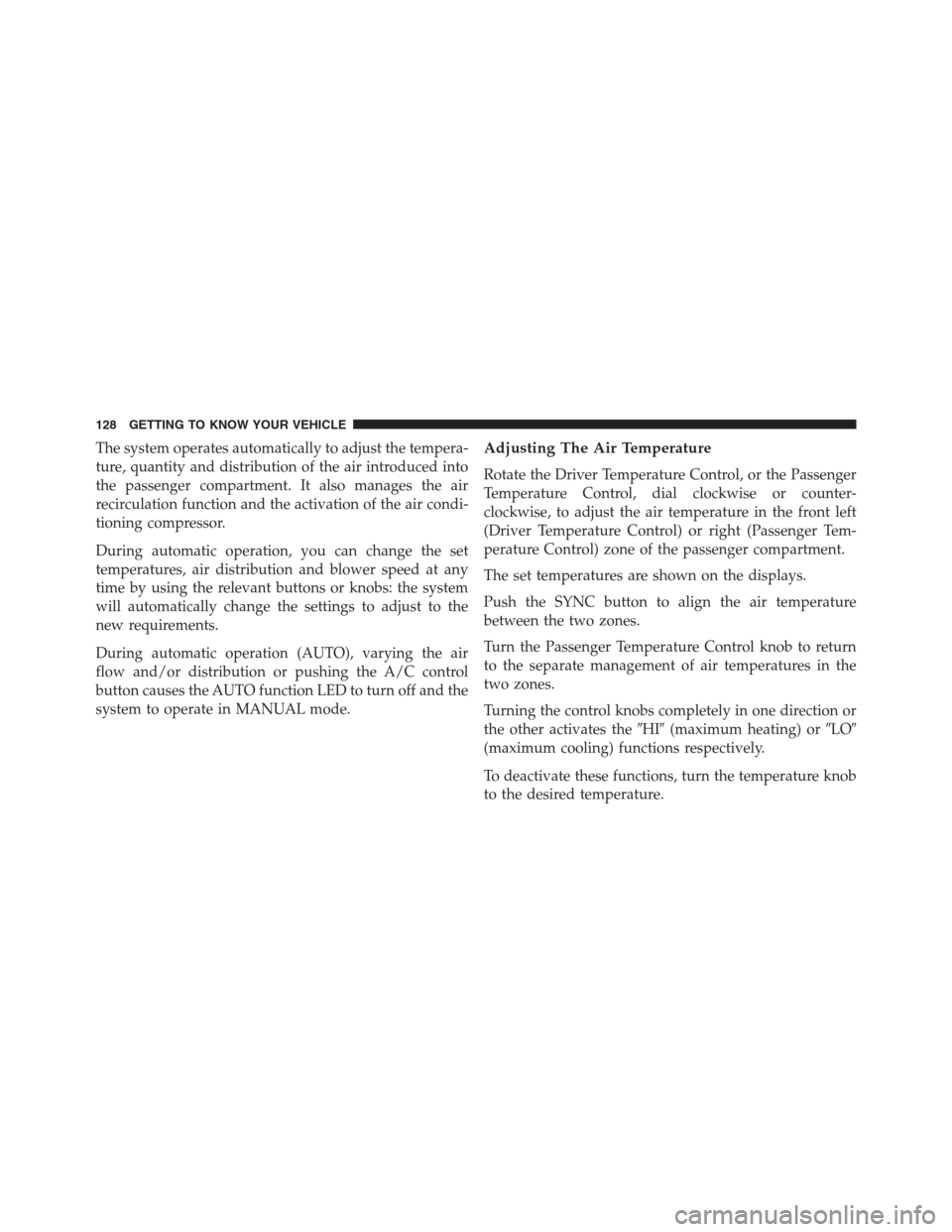

The system operates automatically to adjust the tempera-
ture, quantity and distribution of the air introduced into
the passenger compartment. It also manages the air
recirculation function and the activation of the air condi-
tioning compressor.
During automatic operation, you can change the set
temperatures, air distribution and blower speed at any
time by using the relevant buttons or knobs: the system
will automatically change the settings to adjust to the
new requirements.
During automatic operation (AUTO), varying the air
flow and/or distribution or pushing the A/C control
button causes the AUTO function LED to turn off and the
system to operate in MANUAL mode.Adjusting The Air Temperature
Rotate the Driver Temperature Control, or the Passenger
Temperature Control, dial clockwise or counter-
clockwise, to adjust the air temperature in the front left
(Driver Temperature Control) or right (Passenger Tem-
perature Control) zone of the passenger compartment.
The set temperatures are shown on the displays.
Push the SYNC button to align the air temperature
between the two zones.
Turn the Passenger Temperature Control knob to return
to the separate management of air temperatures in the
two zones.
Turning the control knobs completely in one direction or
the other activates theHI(maximum heating) orLO
(maximum cooling) functions respectively.
To deactivate these functions, turn the temperature knob
to the desired temperature.
128 GETTING TO KNOW YOUR VEHICLE

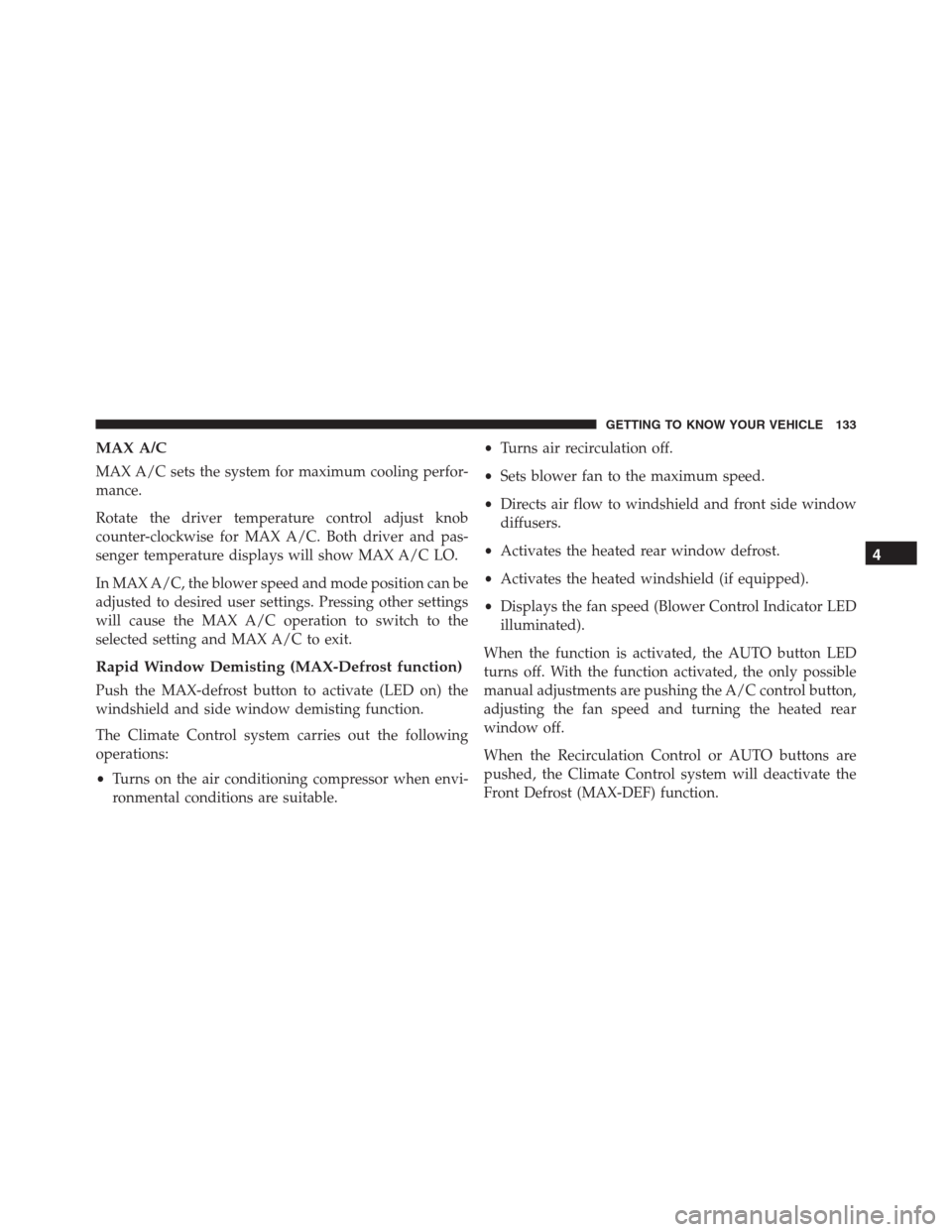

MAX A/C
MAX A/C sets the system for maximum cooling perfor-
mance.
Rotate the driver temperature control adjust knob
counter-clockwise for MAX A/C. Both driver and pas-
senger temperature displays will show MAX A/C LO.
In MAX A/C, the blower speed and mode position can be
adjusted to desired user settings. Pressing other settings
will cause the MAX A/C operation to switch to the
selected setting and MAX A/C to exit.
Rapid Window Demisting (MAX-Defrost function)
Push the MAX-defrost button to activate (LED on) the
windshield and side window demisting function.
The Climate Control system carries out the following
operations:
•Turns on the air conditioning compressor when envi-
ronmental conditions are suitable.•Turns air recirculation off.
•Sets blower fan to the maximum speed.
•Directs air flow to windshield and front side window
diffusers.
•Activates the heated rear window defrost.
•Activates the heated windshield (if equipped).
•Displays the fan speed (Blower Control Indicator LED
illuminated).
When the function is activated, the AUTO button LED
turns off. With the function activated, the only possible
manual adjustments are pushing the A/C control button,
adjusting the fan speed and turning the heated rear
window off.
When the Recirculation Control or AUTO buttons are
pushed, the Climate Control system will deactivate the
Front Defrost (MAX-DEF) function.
4
GETTING TO KNOW YOUR VEHICLE 133

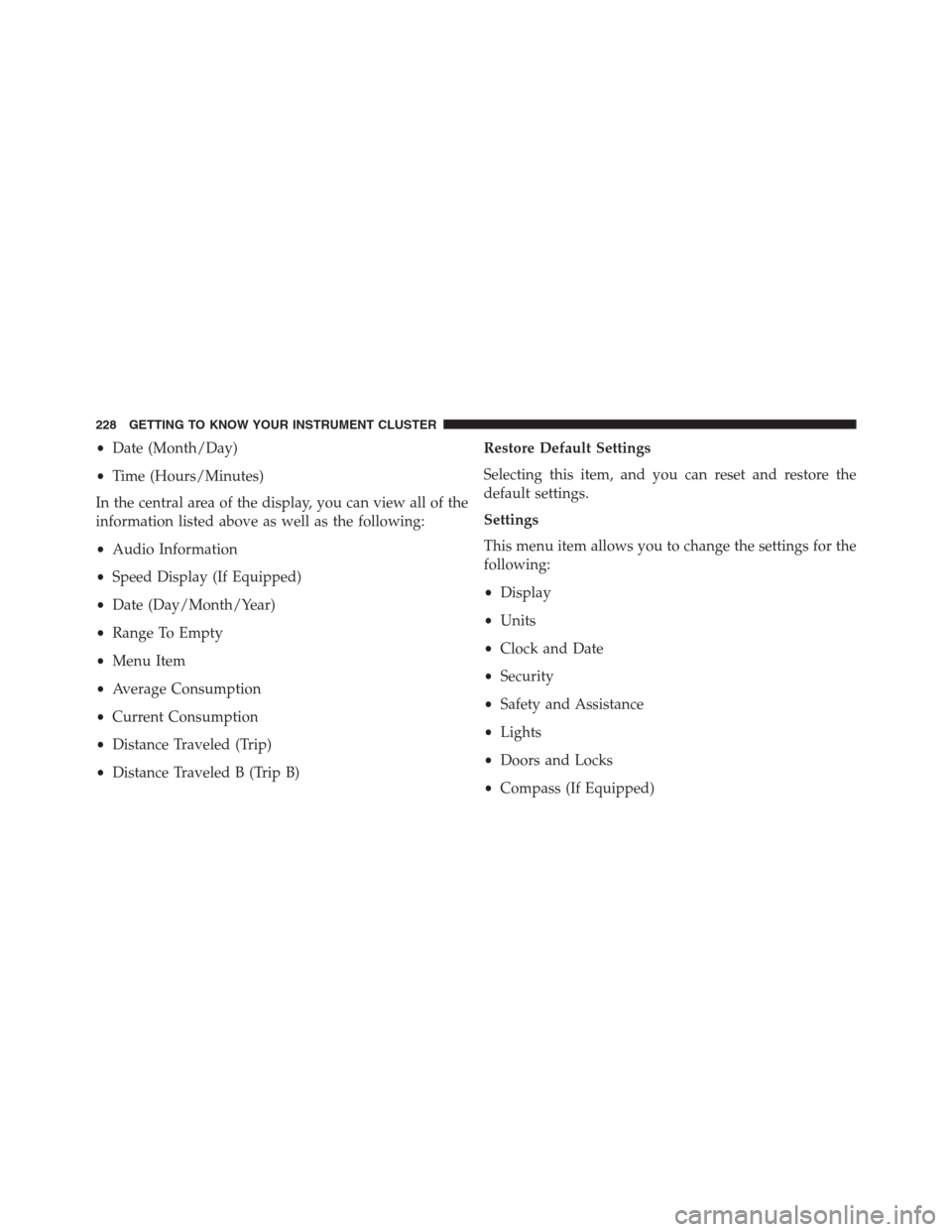

•Date (Month/Day)
•Time (Hours/Minutes)
In the central area of the display, you can view all of the
information listed above as well as the following:
•Audio Information
•Speed Display (If Equipped)
•Date (Day/Month/Year)
•Range To Empty
•Menu Item
•Average Consumption
•Current Consumption
•Distance Traveled (Trip)
•Distance Traveled B (Trip B)Restore Default Settings
Selecting this item, and you can reset and restore the
default settings.
Settings
This menu item allows you to change the settings for the
following:
•Display
•Units
•Clock and Date
•Security
•Safety and Assistance
•Lights
•Doors and Locks
•Compass (If Equipped)
228 GETTING TO KNOW YOUR INSTRUMENT CLUSTER

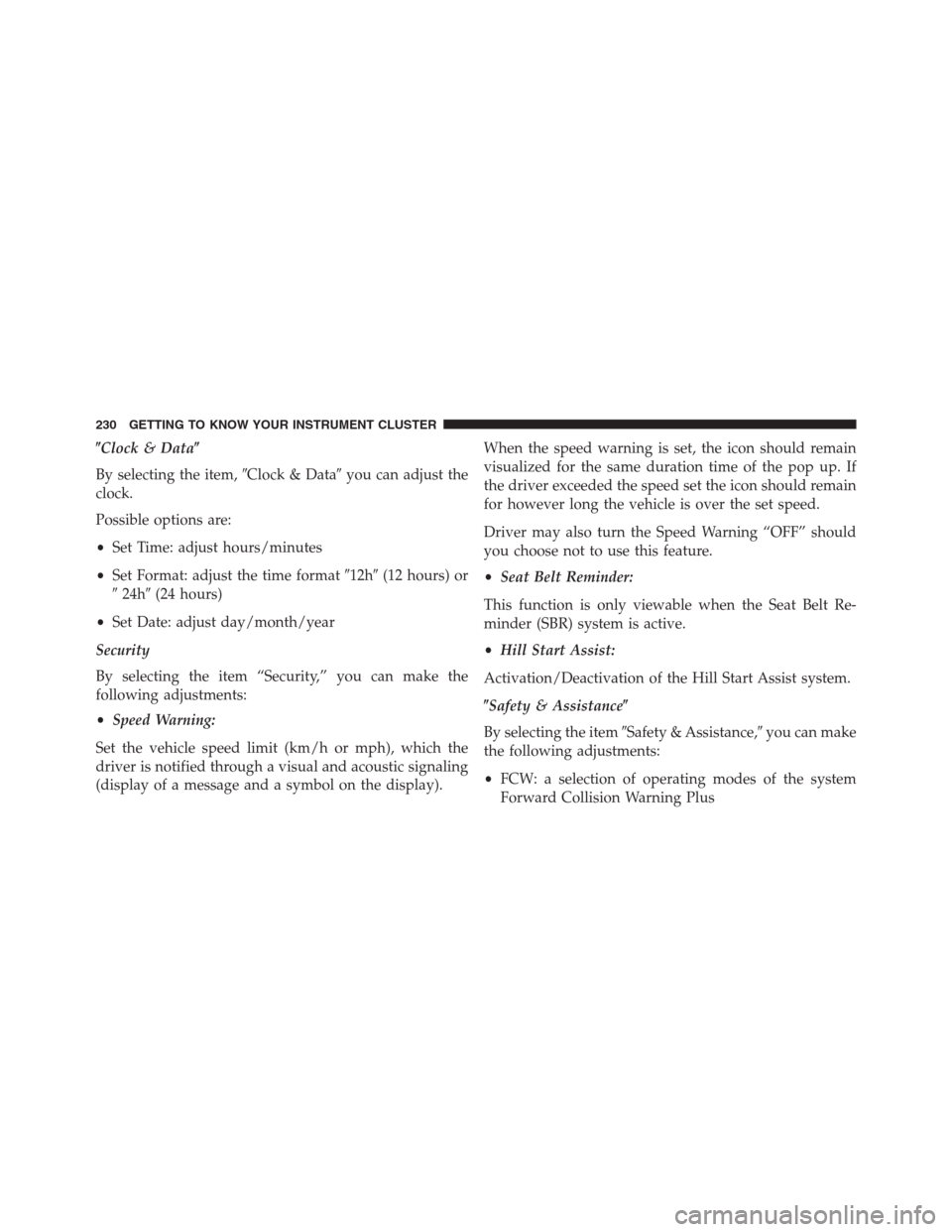

Clock & Data
By selecting the item,Clock & Datayou can adjust the
clock.
Possible options are:
•Set Time: adjust hours/minutes
•Set Format: adjust the time format12h(12 hours) or
24h(24 hours)
•Set Date: adjust day/month/year
Security
By selecting the item “Security,” you can make the
following adjustments:
•Speed Warning:
Set the vehicle speed limit (km/h or mph), which the
driver is notified through a visual and acoustic signaling
(display of a message and a symbol on the display).When the speed warning is set, the icon should remain
visualized for the same duration time of the pop up. If
the driver exceeded the speed set the icon should remain
for however long the vehicle is over the set speed.
Driver may also turn the Speed Warning “OFF” should
you choose not to use this feature.
•Seat Belt Reminder:
This function is only viewable when the Seat Belt Re-
minder (SBR) system is active.
•Hill Start Assist:
Activation/Deactivation of the Hill Start Assist system.
Safety & Assistance
By selecting the itemSafety & Assistance,you can make
the following adjustments:
•FCW: a selection of operating modes of the system
Forward Collision Warning Plus
230 GETTING TO KNOW YOUR INSTRUMENT CLUSTER

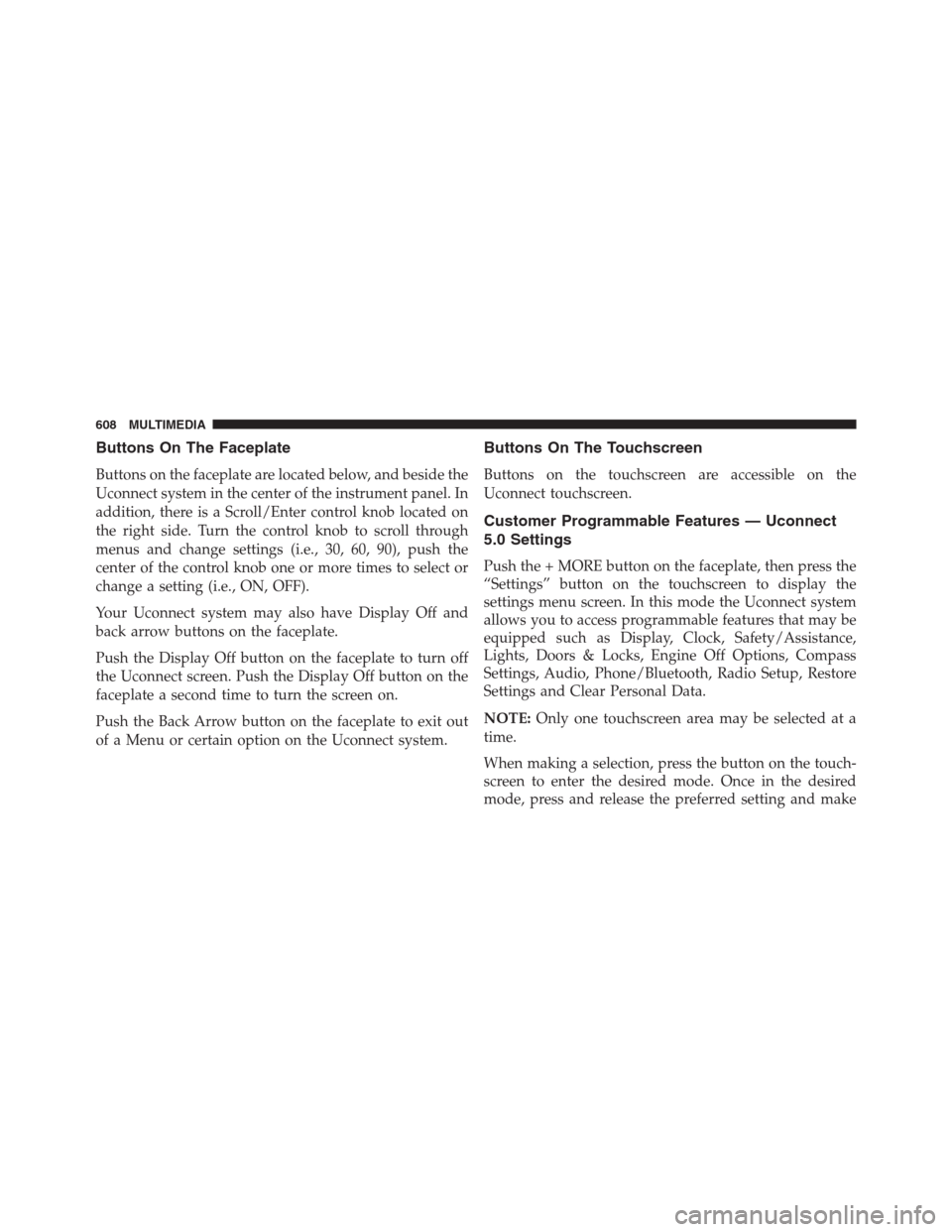

Buttons On The Faceplate
Buttons on the faceplate are located below, and beside the
Uconnect system in the center of the instrument panel. In
addition, there is a Scroll/Enter control knob located on
the right side. Turn the control knob to scroll through
menus and change settings (i.e., 30, 60, 90), push the
center of the control knob one or more times to select or
change a setting (i.e., ON, OFF).
Your Uconnect system may also have Display Off and
back arrow buttons on the faceplate.
Push the Display Off button on the faceplate to turn off
the Uconnect screen. Push the Display Off button on the
faceplate a second time to turn the screen on.
Push the Back Arrow button on the faceplate to exit out
of a Menu or certain option on the Uconnect system.
Buttons On The Touchscreen
Buttons on the touchscreen are accessible on the
Uconnect touchscreen.
Customer Programmable Features — Uconnect
5.0 Settings
Push the + MORE button on the faceplate, then press the
“Settings” button on the touchscreen to display the
settings menu screen. In this mode the Uconnect system
allows you to access programmable features that may be
equipped such as Display, Clock, Safety/Assistance,
Lights, Doors & Locks, Engine Off Options, Compass
Settings, Audio, Phone/Bluetooth, Radio Setup, Restore
Settings and Clear Personal Data.
NOTE:Only one touchscreen area may be selected at a
time.
When making a selection, press the button on the touch-
screen to enter the desired mode. Once in the desired
mode, press and release the preferred setting and make
608 MULTIMEDIA

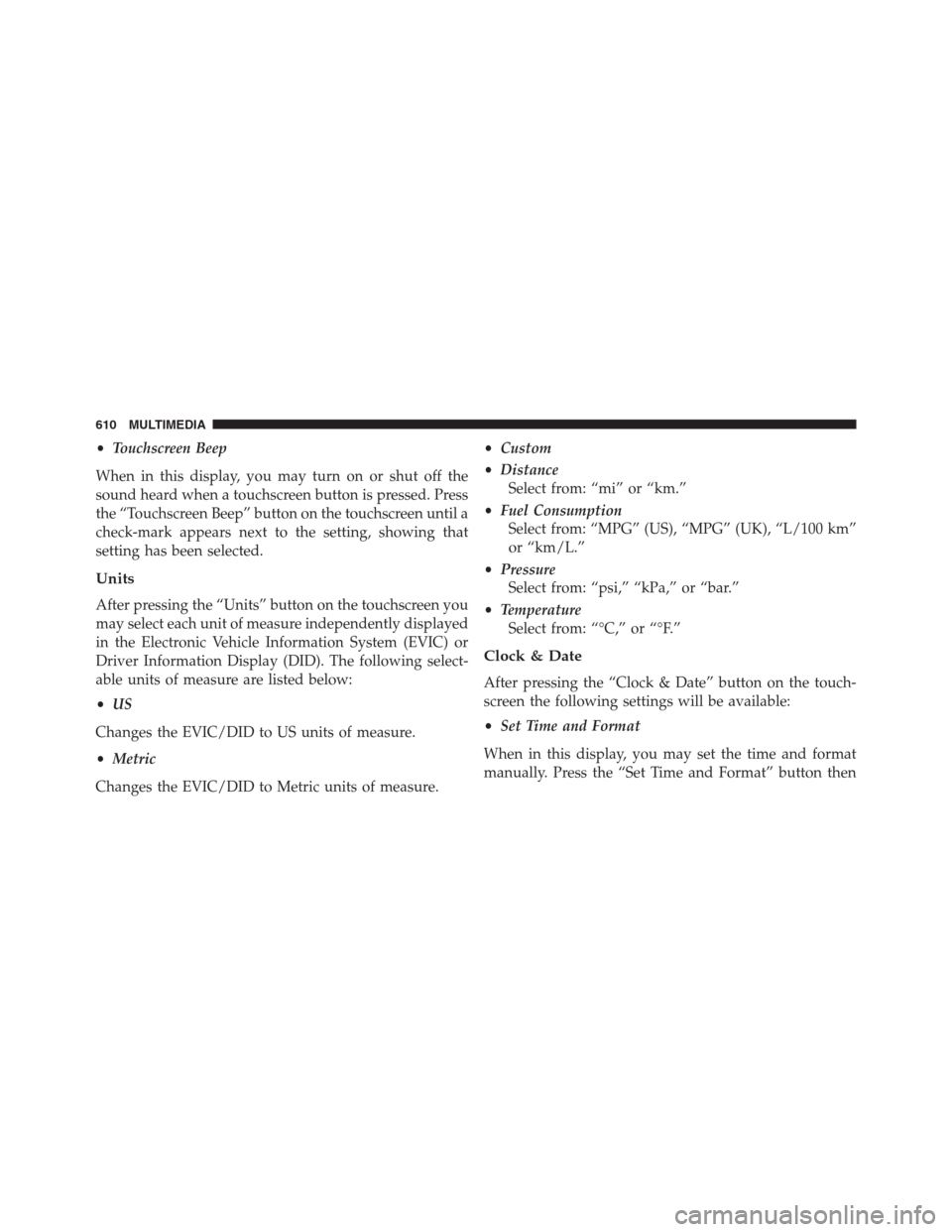

•Touchscreen Beep
When in this display, you may turn on or shut off the
sound heard when a touchscreen button is pressed. Press
the “Touchscreen Beep” button on the touchscreen until a
check-mark appears next to the setting, showing that
setting has been selected.
Units
After pressing the “Units” button on the touchscreen you
may select each unit of measure independently displayed
in the Electronic Vehicle Information System (EVIC) or
Driver Information Display (DID). The following select-
able units of measure are listed below:
•US
Changes the EVIC/DID to US units of measure.
•Metric
Changes the EVIC/DID to Metric units of measure.•Custom
•Distance
Select from: “mi” or “km.”
•Fuel Consumption
Select from: “MPG” (US), “MPG” (UK), “L/100 km”
or “km/L.”
•Pressure
Select from: “psi,” “kPa,” or “bar.”
•Temperature
Select from: “°C,” or “°F.”
Clock & Date
After pressing the “Clock & Date” button on the touch-
screen the following settings will be available:
•Set Time and Format
When in this display, you may set the time and format
manually. Press the “Set Time and Format” button then
610 MULTIMEDIA

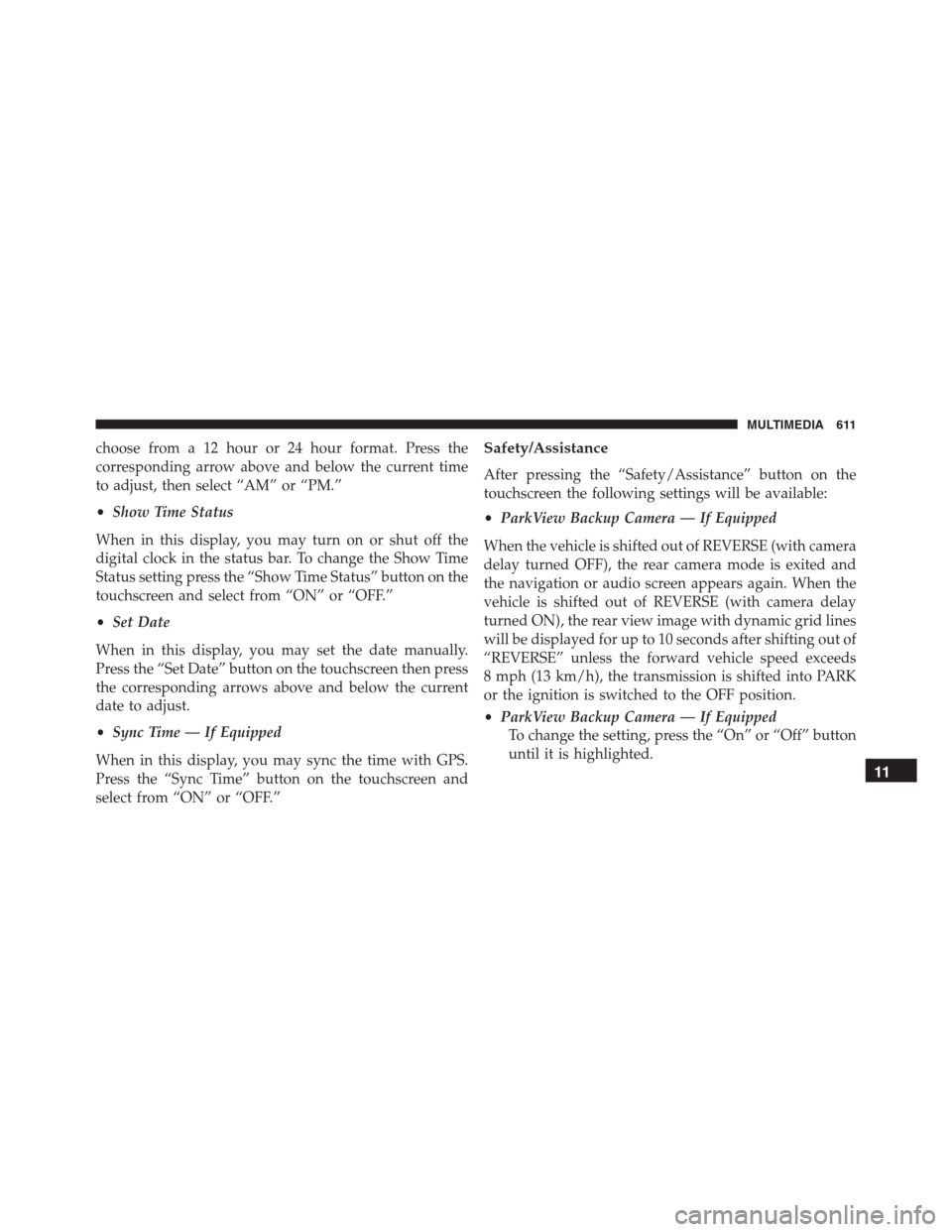

choose from a 12 hour or 24 hour format. Press the
corresponding arrow above and below the current time
to adjust, then select “AM” or “PM.”
•Show Time Status
When in this display, you may turn on or shut off the
digital clock in the status bar. To change the Show Time
Status setting press the “Show Time Status” button on the
touchscreen and select from “ON” or “OFF.”
•Set Date
When in this display, you may set the date manually.
Press the “Set Date” button on the touchscreen then press
the corresponding arrows above and below the current
date to adjust.
•Sync Time — If Equipped
When in this display, you may sync the time with GPS.
Press the “Sync Time” button on the touchscreen and
select from “ON” or “OFF.”Safety/Assistance
After pressing the “Safety/Assistance” button on the
touchscreen the following settings will be available:
•ParkView Backup Camera — If Equipped
When the vehicle is shifted out of REVERSE (with camera
delay turned OFF), the rear camera mode is exited and
the navigation or audio screen appears again. When the
vehicle is shifted out of REVERSE (with camera delay
turned ON), the rear view image with dynamic grid lines
will be displayed for up to 10 seconds after shifting out of
“REVERSE” unless the forward vehicle speed exceeds
8 mph (13 km/h), the transmission is shifted into PARK
or the ignition is switched to the OFF position.
•ParkView Backup Camera — If Equipped
To change the setting, press the “On” or “Off” button
until it is highlighted.
11
MULTIMEDIA 611
