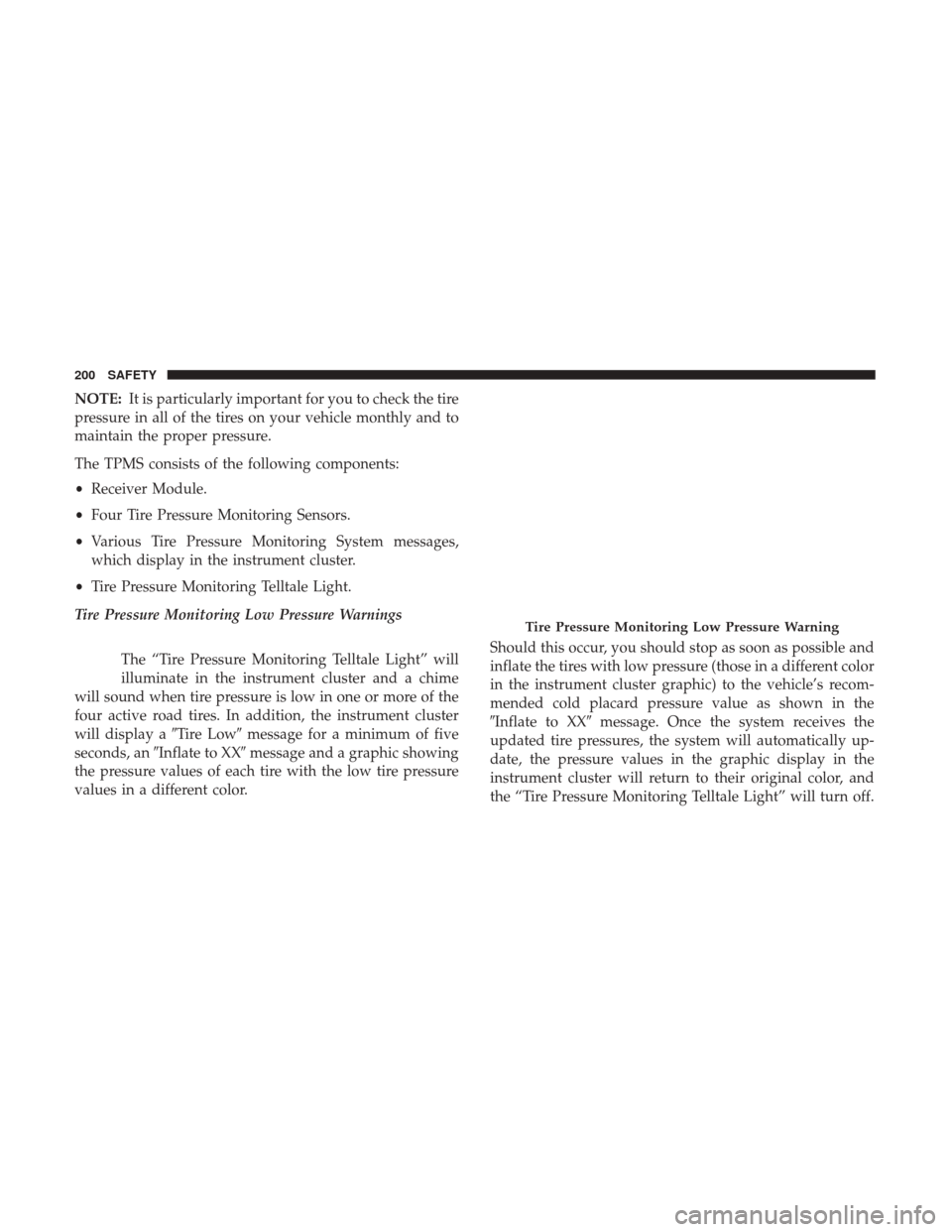

TPMS JEEP RENEGADE 2017 1.G User Guide

NOTE:It is particularly important for you to check the tire
pressure in all of the tires on your vehicle monthly and to
maintain the proper pressure.
The TPMS consists of the following components:
• Receiver Module.
• Four Tire Pressure Monitoring Sensors.
• Various Tire Pressure Monitoring System messages,
which display in the instrument cluster.
• Tire Pressure Monitoring Telltale Light.
Tire Pressure Monitoring Low Pressure Warnings
The “Tire Pressure Monitoring Telltale Light” will
illuminate in the instrument cluster and a chime
will sound when tire pressure is low in one or more of the
four active road tires. In addition, the instrument cluster
will display a Tire Lowmessage for a minimum of five
seconds, an Inflate to XX message and a graphic showing
the pressure values of each tire with the low tire pressure
values in a different color. Should this occur, you should stop as soon as possible and
inflate the tires with low pressure (those in a different color
in the instrument cluster graphic) to the vehicle’s recom-
mended cold placard pressure value as shown in the
Inflate to XX
message. Once the system receives the
updated tire pressures, the system will automatically up-
date, the pressure values in the graphic display in the
instrument cluster will return to their original color, and
the “Tire Pressure Monitoring Telltale Light” will turn off.
Tire Pressure Monitoring Low Pressure Warning
200 SAFETY

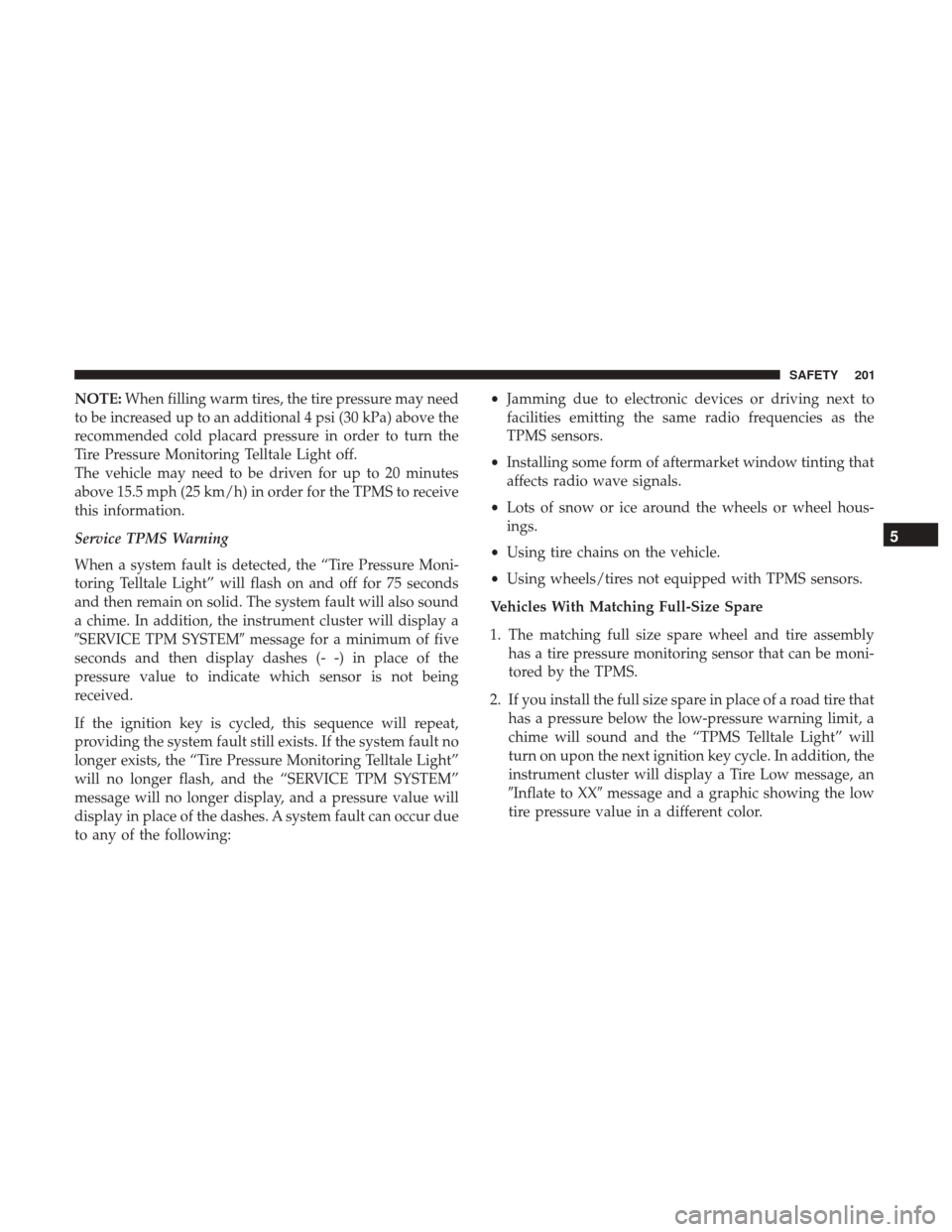

NOTE:When filling warm tires, the tire pressure may need
to be increased up to an additional 4 psi (30 kPa) above the
recommended cold placard pressure in order to turn the
Tire Pressure Monitoring Telltale Light off.
The vehicle may need to be driven for up to 20 minutes
above 15.5 mph (25 km/h) in order for the TPMS to receive
this information.
Service TPMS Warning
When a system fault is detected, the “Tire Pressure Moni-
toring Telltale Light” will flash on and off for 75 seconds
and then remain on solid. The system fault will also sound
a chime. In addition, the instrument cluster will display a
SERVICE TPM SYSTEM message for a minimum of five
seconds and then display dashes (- -) in place of the
pressure value to indicate which sensor is not being
received.
If the ignition key is cycled, this sequence will repeat,
providing the system fault still exists. If the system fault no
longer exists, the “Tire Pressure Monitoring Telltale Light”
will no longer flash, and the “SERVICE TPM SYSTEM”
message will no longer display, and a pressure value will
display in place of the dashes. A system fault can occur due
to any of the following: •
Jamming due to electronic devices or driving next to
facilities emitting the same radio frequencies as the
TPMS sensors.
• Installing some form of aftermarket window tinting that
affects radio wave signals.
• Lots of snow or ice around the wheels or wheel hous-
ings.
• Using tire chains on the vehicle.
• Using wheels/tires not equipped with TPMS sensors.
Vehicles With Matching Full-Size Spare
1. The matching full size spare wheel and tire assembly has a tire pressure monitoring sensor that can be moni-
tored by the TPMS.
2. If you install the full size spare in place of a road tire that has a pressure below the low-pressure warning limit, a
chime will sound and the “TPMS Telltale Light” will
turn on upon the next ignition key cycle. In addition, the
instrument cluster will display a Tire Low message, an
Inflate to XX message and a graphic showing the low
tire pressure value in a different color.
5
SAFETY 201

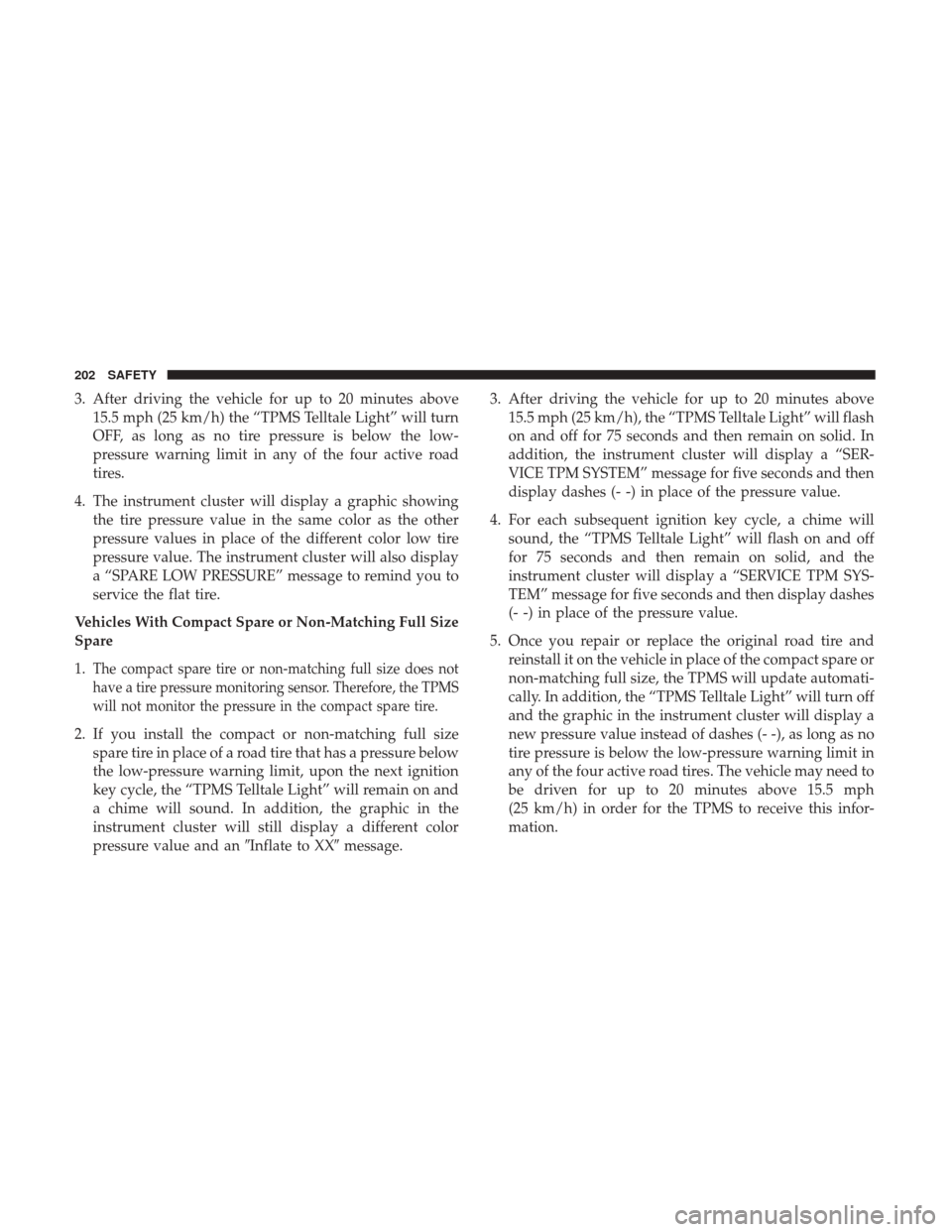

3. After driving the vehicle for up to 20 minutes above15.5 mph (25 km/h) the “TPMS Telltale Light” will turn
OFF, as long as no tire pressure is below the low-
pressure warning limit in any of the four active road
tires.
4. The instrument cluster will display a graphic showing the tire pressure value in the same color as the other
pressure values in place of the different color low tire
pressure value. The instrument cluster will also display
a “SPARE LOW PRESSURE” message to remind you to
service the flat tire.
Vehicles With Compact Spare or Non-Matching Full Size
Spare
1.
The compact spare tire or non-matching full size does not
have a tire pressure monitoring sensor. Therefore, the TPMS
will not monitor the pressure in the compact spare tire.
2. If you install the compact or non-matching full size spare tire in place of a road tire that has a pressure below
the low-pressure warning limit, upon the next ignition
key cycle, the “TPMS Telltale Light” will remain on and
a chime will sound. In addition, the graphic in the
instrument cluster will still display a different color
pressure value and an Inflate to XXmessage. 3. After driving the vehicle for up to 20 minutes above
15.5 mph (25 km/h), the “TPMS Telltale Light” will flash
on and off for 75 seconds and then remain on solid. In
addition, the instrument cluster will display a “SER-
VICE TPM SYSTEM” message for five seconds and then
display dashes (- -) in place of the pressure value.
4. For each subsequent ignition key cycle, a chime will sound, the “TPMS Telltale Light” will flash on and off
for 75 seconds and then remain on solid, and the
instrument cluster will display a “SERVICE TPM SYS-
TEM” message for five seconds and then display dashes
(- -) in place of the pressure value.
5. Once you repair or replace the original road tire and reinstall it on the vehicle in place of the compact spare or
non-matching full size, the TPMS will update automati-
cally. In addition, the “TPMS Telltale Light” will turn off
and the graphic in the instrument cluster will display a
new pressure value instead of dashes (- -), as long as no
tire pressure is below the low-pressure warning limit in
any of the four active road tires. The vehicle may need to
be driven for up to 20 minutes above 15.5 mph
(25 km/h) in order for the TPMS to receive this infor-
mation.
202 SAFETY

Key, Replacement........................ .21, 27
Keys ....................................19
Lane Change And Turn Signals .................55
LaneSense ............................... .279
Lap/Shoulder Belts ........................ .206
Latches ................................. .247
Lead Free Gasoline ........................ .434
Leaks, Fluid ............................. .247
Life Of Tires ............................. .415
Liftgate .............................. .99, 101
Liftgate Window Wiper/Washer .................64
Light Bulbs .............................. .247
Lights .................................. .247
AirBag ............................135, 245
Automatic Headlights ......................53
Brake Assist Warning ..................... .176
Brake Warning ......................... .136
Cruise ......................... .159, 162, 163
Daytime Running .........................52
Dimmer Switch, Headlight ...................52
Engine Temperature Warning ................140
Exterior .............................. .247
Fog ...................................55
Hazard Warning Flasher ...................313 Headlights
..............................52
Headlights On Reminder ....................54
Headlight Switch .........................52
High Beam ..............................52
High Beam/Low Beam Select .................52
Hill Descent Control Indicator ...............178
Instrument Cluster ........................52
Intensity Control ..........................56
Interior ................................56
Lights On Reminder .......................54
Low Fuel ............................. .149
Malfunction Indicator (Check Engine) ..........151
Park ............................. .160, 161
Passing ................................53
Seat Belt Reminder ...................... .134
Security Alarm ......................... .138
Tire Pressure Monitoring (TPMS) ..........153,
195
Traction Control ........................ .176
Turn Signal ...................... .55, 160, 247
Vanity Mirror ............................60
Warning (Instrument Cluster Description) . . . .140, 160
Loading Vehicle ........................... .294
Tires................................. .407
Locks Child Protection ..........................37
506 INDEX

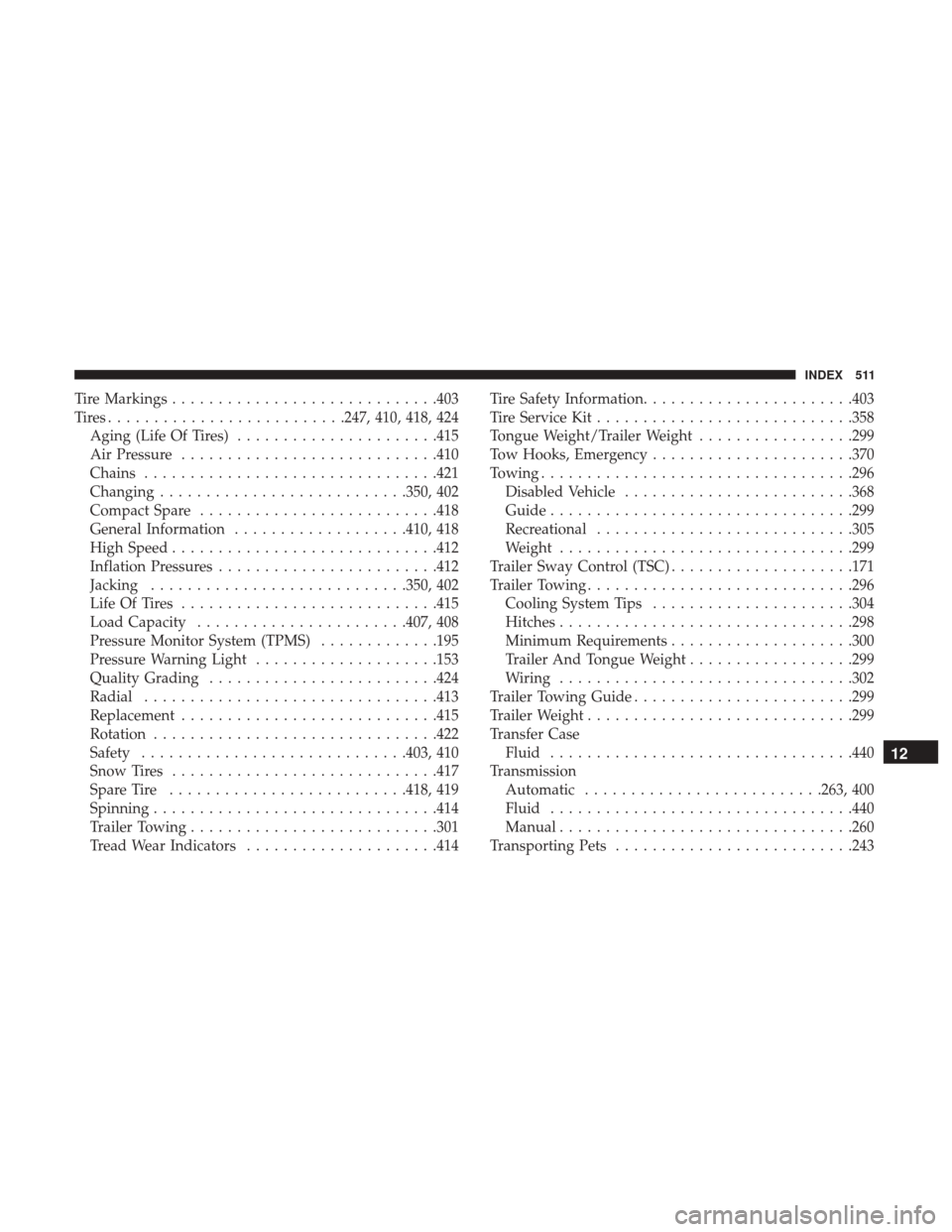

Tire Markings............................ .403
