The doors can also be locked and unlocked with the
Keyless Enter-N-Go — Passive Entry system if equipped.
refer to “Keyless Enter-N-Go — Passive Entry” located in
“Doors” of “Getting To Know Your Vehicle” for further
information.
Keyless Enter-N-Go — Passive Entry — If
Equipped
The Passive Entry system is an enhancement to the vehi-
cle’s Remote Keyless Entry system and a feature of Keyless
Enter-N-Go. This feature allows you to lock and unlock the
vehicle’s door(s) without having to push the key fob lock
or unlock buttons.
NOTE:
•Passive Entry can be enabled or disabled. Refer to
“Uconnect Settings” in “Multimedia” for further infor-
mation.
• If wearing gloves on your hands, or if it has been
raining/snowing on the Passive Entry door handle, the
unlock sensitivity can be affected, resulting in a slower
response time. •
If the vehicle is unlocked by the Passive Entry Door
Handle, and no door is opened within 60 seconds, the
vehicle will re-lock and if equipped, the security alarm
will arm.
• The key fob may not be able to be detected by the vehicle
keyless-go system if it is located next to a mobile phone,
laptop or other electronic device; these devices may
block the key fob’s wireless signal and prevent the
keyless-go system from starting the vehicle.
To Unlock From The Driver’s Side
With a valid Passive Entry key fob within 5 ft (1.5 m) of the
driver’s door handle, grab the front driver door handle to
unlock the driver’s door automatically.
32 GETTING TO KNOW YOUR VEHICLE

•Turns air recirculation off.
• Sets blower fan to the maximum speed.
• Directs air flow to windshield and front side window
diffusers.
• Activates the heated rear window defrost.
• Activates the heated windshield (if equipped).
• Displays the fan speed (Blower Control Indicator LED
illuminated).
When the function is activated, the AUTO button LED
turns off. With the function activated, the only possible
manual adjustments are pushing the A/C control button,
adjusting the fan speed and turning the heated rear win-
dow off.
When the Recirculation Control or AUTO buttons are
pushed, the Climate Control system will deactivate the
Front Defrost (MAX-DEF) function.
Selecting the footwell/windshield or only windshield dis-
tribution activates the Climate Control system compressor
and the air recirculation is set to outside air intake.
This logic guarantees optimum visibility at the windows.
Max-defrost is also available in manual mode. Rear Window Defrosting
Push and release the rear window defrost button to turn
the function on/off.
Activation of this function is indicated by the rear defrost
indicator light on the instrument panel turning on. The
function is automatically deactivated after 20 minutes. If
equipped, push the rear defrost button to activate the
defrosting of door mirrors and heated rear window.
CAUTION!
To avoid causing damage to the rear window defroster
heating filaments do not affix stickers or other objects
to the inside of the rear glass.
Turning Off The Climate Control System
Push the ON/OFF button.
With the Climate Control system off:
• Air recirculation is on, isolating the passenger compart-
ment from the outside.
• The A/C compressor is off.
• The blower is off.
• The heated rear window can be activated/deactivated.
78 GETTING TO KNOW YOUR VEHICLE

NOTE:The Climate Control unit stores the temperatures
set before the system was turned off and restores them
when one of the following knobs/buttons is pushed:
• A/C
• Recirculation
• Max Defrost
• Blower Increase
• AUTO
To restart the Climate Control system in fully automatic
mode, push the AUTO button.
System Maintenance
In Winter, the Climate Control system must be turned on at
least once a month for approximately 10 minutes.
Have the system inspected at an authorized dealership
before the summer.
NOTE: The system uses R-1234yf (refrigerant) which does
not pollute the environment in the event of accidental
leakage. Under no circumstances is the use of R-134a
(refrigerant) allowed.Automatic Temperature Control (ATC) — If
Equipped
Automatic Operation
1. Push the AUTO button on the front ATC panel and the word “AUTO” will illuminate in the front ATC display,
along with two temperatures for the driver and front
passenger. The system will then automatically regulate
the amount of airflow.
2. Adjust the temperature you would like the system to maintain, by adjusting the driver, and passenger tem-
peratures. Once the desired temperature is displayed,
the system will achieve and automatically maintain that
comfort level.
3. When the system is set up for your comfort level, it is not necessary to change the settings. You will experience
the greatest efficiency by simply allowing the system to
function automatically.
3
GETTING TO KNOW YOUR VEHICLE 79

Setting the system allows the driver to select information
by pushing the following buttons mounted on the steering
wheel:•
UP Arrow Button
Push and release the uparrow button to scroll
upward through the main menu and submenus.
• DOWN Arrow Button
Push and release the downarrow button to scroll
downward through the main menu and
submenus.
• RIGHT Arrow Button
Push and release the rightarrow button to access
the information screens or submenu screens of a
main menu item.
• BACK/LEFT Arrow Button
Push and release the leftarrow button to access
the information screens or submenu screens of a
main menu item.
• OK Button
The OKbutton may be used for the following:
• Select
• Reset (hold)
Instrument Cluster Display Control Buttons
1 — Arrow Up/Down Scroll Through Menus And Submenus
2 — Arrow Right/Left Access Information/Submenu Screens
3 — OK Button For Selecting And Resetting Information
126 GETTING TO KNOW YOUR INSTRUMENT PANEL

WARNING!
Continued operation with reduced assist could pose a
safety risk to yourself and others. Service should be
obtained as soon as possible.If the “SERVICE POWER STEERING OR
POWER STEERING ASSIST OFF - SERVICE
SYSTEM” message and a steering wheel icon are
displayed on the instrument cluster screen, it
indicates that the vehicle needs to be taken to the dealer for
service. It is likely the vehicle has lost power steering
assistance. Refer to “Instrument Cluster Display” in “Get-
ting To Know Your Instrument Panel” for further informa-
tion.
NOTE:
• Even if the power steering assistance is no longer
operational, it is still possible to steer the vehicle. Under
these conditions there will be a substantial increase in
steering effort, especially at low speeds and during
parking maneuvers.
• If the condition persists, see your authorized dealer for
service.
SPEED CONTROL — IF EQUIPPED
When engaged, the Speed Control takes over accelerator
operations at speeds greater than 25 mph (40 km/h).
The Speed Control buttons are located on the right side of
the steering wheel.
Speed Control Buttons
1 — On/Off 4 — SET-/Decel
2 — SET+/Accel 5 — CANC/Cancel
3 — RES/Resume
272 STARTING AND OPERATING

CAUTION!
All wheels must have the same size and type tires.
Unequal tire sizes must not be used. Unequal tire size
may cause failure of the power transfer unit.
Four Wheel Drive (4x4)
The four wheel drive (4WD) is fully automatic in normal
driving mode.
NOTE:It is not possible to carry out the change of mode
when the vehicle exceeds the speed of 75 mph (120 km/h).
Enabling Four Wheel Drive (4x4)
The buttons for the activation of four wheel drive are
located on the device Selec-Terrain and allow you to select
the following:
• 4WD LOCK
• 4WD LOW — (Trailhawk models only) Active Drive Control — If Equipped
The Power Transfer Unit (PTU) is locked to ensure imme-
diate availability of torque to the rear drive axles. This
feature is selectable in AUTO mode and automatic in the
other driving mode. 4WD LOCK can be enabled by the
following ways:
•
When the 4WD LOCK button is pushed.
• When the Selec-Terrain switch is rotated from AUTO to
any other off-road modes.
Selec-Terrain Switch
288 STARTING AND OPERATING

HAZARD WARNING FLASHERS
The Hazard Warning flasher switch is located on the switch
bank below the radio.Push the switch to turn on the Hazard Warning
Flasher. When the switch is activated, all directional
turn signals will flash on and off to warn oncoming traffic
of an emergency. Push the switch a second time to turn off
the Hazard Warning flashers.
This is an emergency warning system and it should not be
used when the vehicle is in motion. Use it when your
vehicle is disabled and it is creating a safety hazard for
other motorists.
When you must leave the vehicle to seek assistance, the
Hazard Warning flashers will continue to operate even
though the ignition is placed in OFF mode.
NOTE: With extended use the Hazard Warning flashers
may wear down your battery.
ASSIST AND 9-1-1 — IF EQUIPPED
If equipped, the overhead console contains an ASSIST and
a 9-1-1 button.
WARNING!
ALWAYS obey traffic laws and pay attention to the
road. Some Uconnect Access services, including 9-1-1
and Assist, will NOT work without an operable
1X(voice/data) or 3G(data) network connection.
Driver Assistance Call Buttons
1 — 9-1-1 Button
2 — Assist Button
7
IN CASE OF EMERGENCY 313

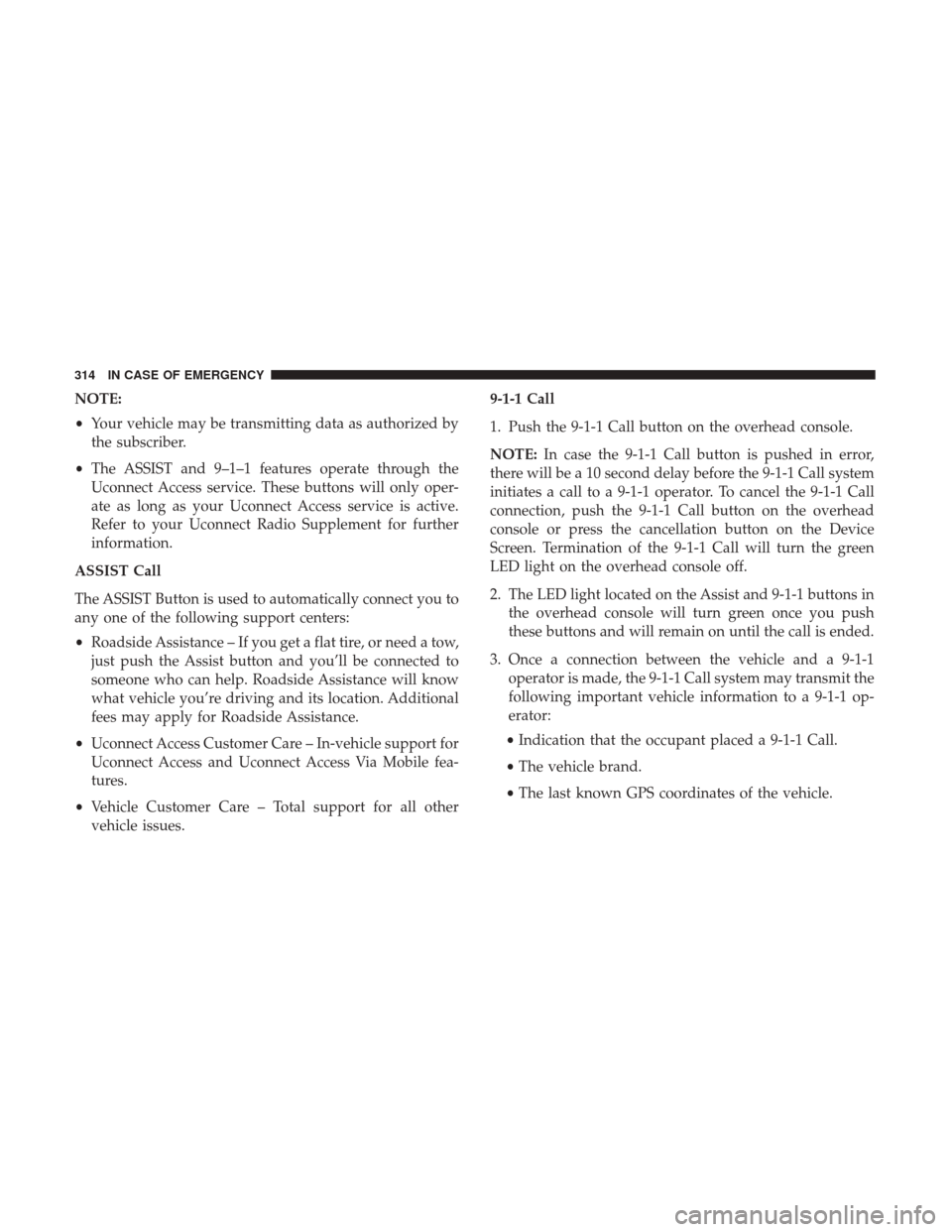

NOTE:
•Your vehicle may be transmitting data as authorized by
the subscriber.
• The ASSIST and 9–1–1 features operate through the
Uconnect Access service. These buttons will only oper-
ate as long as your Uconnect Access service is active.
Refer to your Uconnect Radio Supplement for further
information.
ASSIST Call
The ASSIST Button is used to automatically connect you to
any one of the following support centers:
• Roadside Assistance – If you get a flat tire, or need a tow,
just push the Assist button and you’ll be connected to
someone who can help. Roadside Assistance will know
what vehicle you’re driving and its location. Additional
fees may apply for Roadside Assistance.
• Uconnect Access Customer Care – In-vehicle support for
Uconnect Access and Uconnect Access Via Mobile fea-
tures.
• Vehicle Customer Care – Total support for all other
vehicle issues. 9-1-1 Call
1. Push the 9-1-1 Call button on the overhead console.
NOTE:
In case the 9-1-1 Call button is pushed in error,
there will be a 10 second delay before the 9-1-1 Call system
initiates a call to a 9-1-1 operator. To cancel the 9-1-1 Call
connection, push the 9-1-1 Call button on the overhead
console or press the cancellation button on the Device
Screen. Termination of the 9-1-1 Call will turn the green
LED light on the overhead console off.
2. The LED light located on the Assist and 9-1-1 buttons in the overhead console will turn green once you push
these buttons and will remain on until the call is ended.
3. Once a connection between the vehicle and a 9-1-1 operator is made, the 9-1-1 Call system may transmit the
following important vehicle information to a 9-1-1 op-
erator:
• Indication that the occupant placed a 9-1-1 Call.
• The vehicle brand.
• The last known GPS coordinates of the vehicle.
314 IN CASE OF EMERGENCY

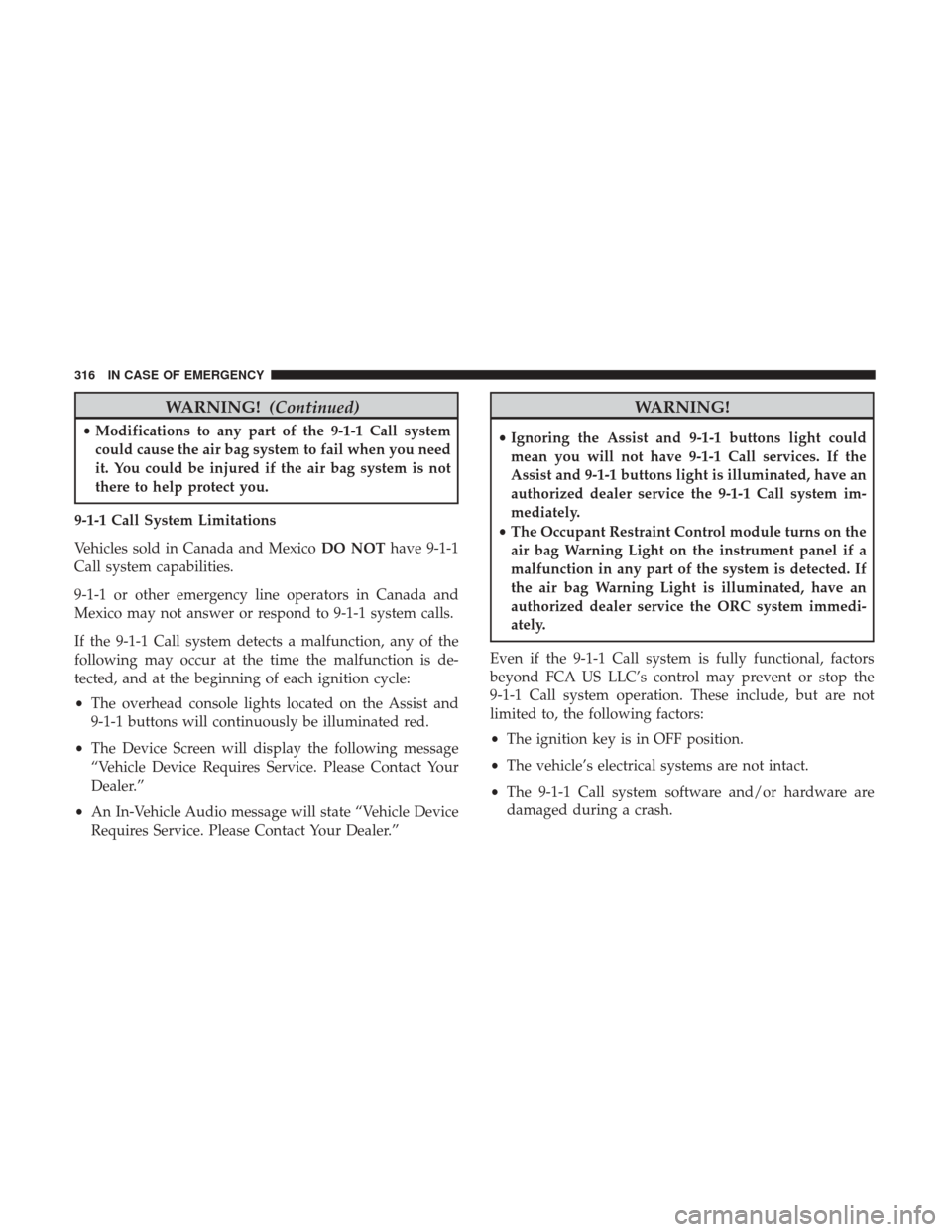

WARNING!(Continued)
•Modifications to any part of the 9-1-1 Call system
could cause the air bag system to fail when you need
it. You could be injured if the air bag system is not
there to help protect you.
9-1-1 Call System Limitations
Vehicles sold in Canada and Mexico DO NOThave 9-1-1
Call system capabilities.
9-1-1 or other emergency line operators in Canada and
Mexico may not answer or respond to 9-1-1 system calls.
If the 9-1-1 Call system detects a malfunction, any of the
following may occur at the time the malfunction is de-
tected, and at the beginning of each ignition cycle:
• The overhead console lights located on the Assist and
9-1-1 buttons will continuously be illuminated red.
• The Device Screen will display the following message
“Vehicle Device Requires Service. Please Contact Your
Dealer.”
• An In-Vehicle Audio message will state “Vehicle Device
Requires Service. Please Contact Your Dealer.”
WARNING!
• Ignoring the Assist and 9-1-1 buttons light could
mean you will not have 9-1-1 Call services. If the
Assist and 9-1-1 buttons light is illuminated, have an
authorized dealer service the 9-1-1 Call system im-
mediately.
• The Occupant Restraint Control module turns on the
air bag Warning Light on the instrument panel if a
malfunction in any part of the system is detected. If
the air bag Warning Light is illuminated, have an
authorized dealer service the ORC system immedi-
ately.
Even if the 9-1-1 Call system is fully functional, factors
beyond FCA US LLC’s control may prevent or stop the
9-1-1 Call system operation. These include, but are not
limited to, the following factors:
• The ignition key is in OFF position.
• The vehicle’s electrical systems are not intact.
• The 9-1-1 Call system software and/or hardware are
damaged during a crash.
316 IN CASE OF EMERGENCY

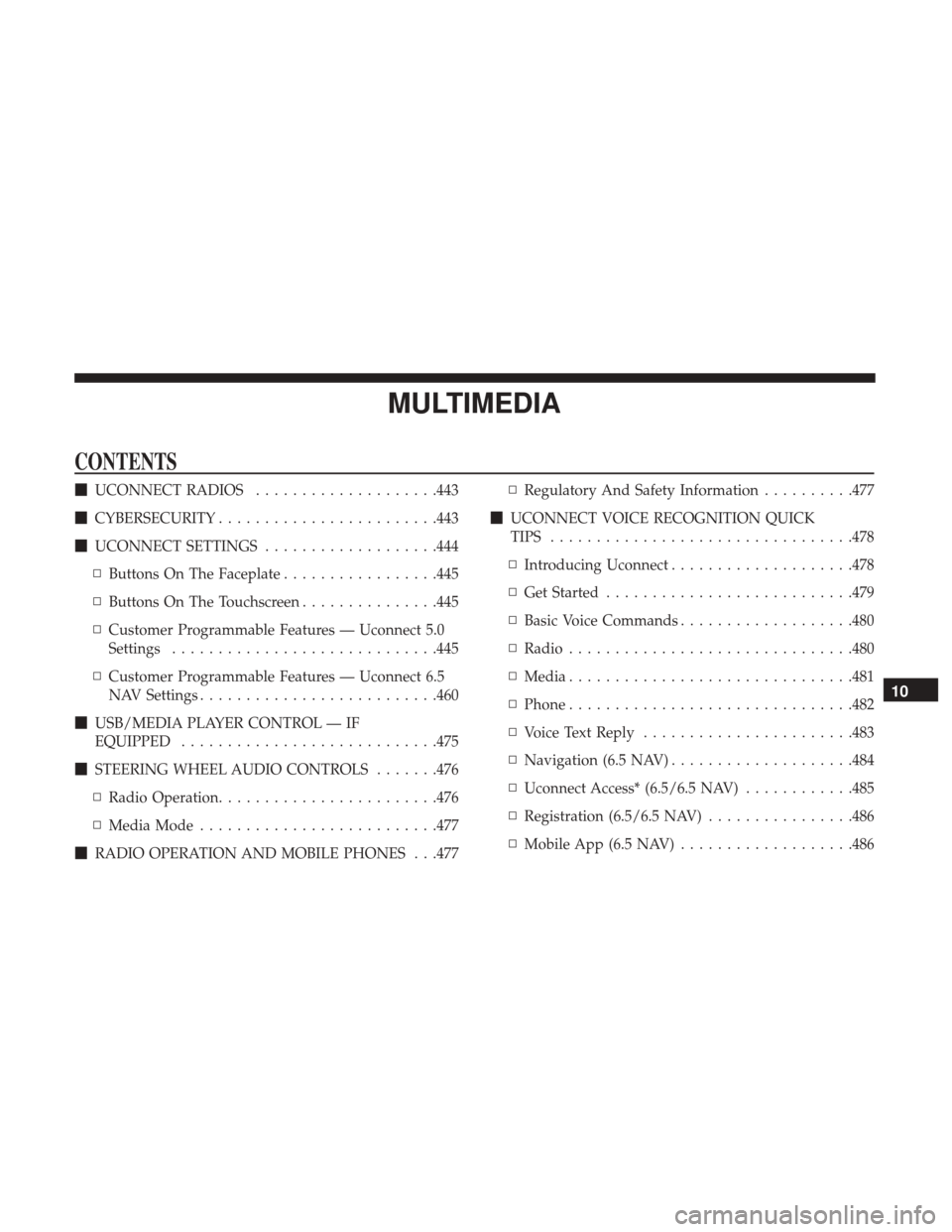

MULTIMEDIA
CONTENTS
UCONNECT RADIOS ....................443
 CYBERSECURITY ....................... .443
 UCONNECT SETTINGS ...................444
▫ Buttons On The Faceplate .................445
▫ Buttons On The Touchscreen ...............445
▫ Customer Programmable Features — Uconnect 5.0
Settings ............................ .445
▫ Customer Programmable Features — Uconnect 6.5
NAV Settings ......................... .460
 USB/MEDIA PLAYER CONTROL — IF
EQUIPPED ........................... .475
 STEERING WHEEL AUDIO CONTROLS .......476
▫ Radio Operation ....................... .476
▫ Media Mode ......................... .477
 RADIO OPERATION AND MOBILE PHONES . . .477 ▫
Regulatory And Safety Information ..........477
 UCONNECT VOICE RECOGNITION QUICK
TIPS ................................ .478
▫ Introducing Uconnect ....................478
▫ Get Started .......................... .479
▫ Basic Voice Commands ...................480
▫ Radio .............................. .480
▫ Media .............................. .481
▫ Phone .............................. .482
▫ Voice Text Reply ...................... .483
▫ Navigation (6.5 NAV) ....................484
▫ Uconnect Access* (6.5/6.5 NAV) ............485
▫ Registration (6.5/6.5 NAV) ................486
▫ Mobile App (6.5 NAV) .................. .486
10
