Page 30 of 516

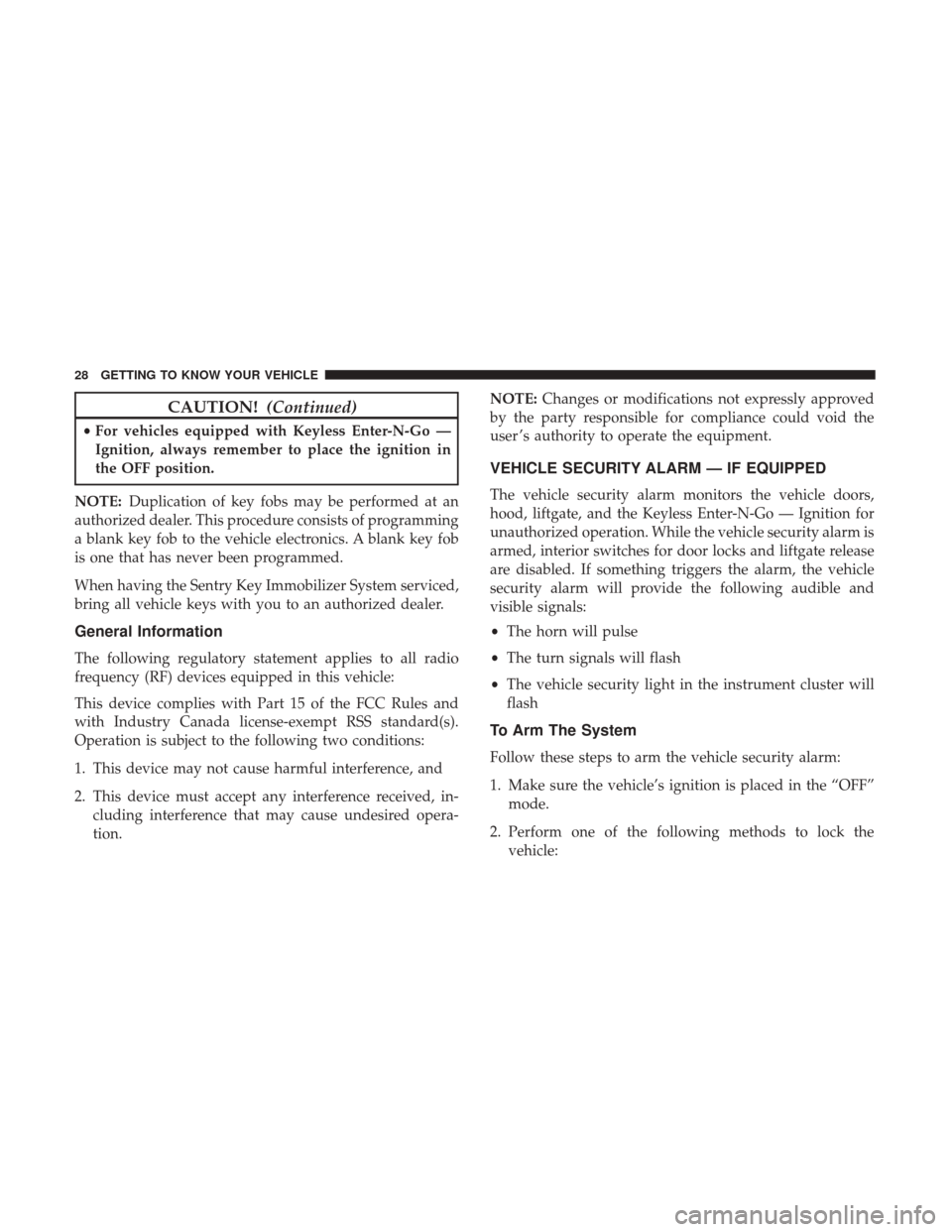

CAUTION!(Continued)
•For vehicles equipped with Keyless Enter-N-Go —
Ignition, always remember to place the ignition in
the OFF position.
NOTE: Duplication of key fobs may be performed at an
authorized dealer. This procedure consists of programming
a blank key fob to the vehicle electronics. A blank key fob
is one that has never been programmed.
When having the Sentry Key Immobilizer System serviced,
bring all vehicle keys with you to an authorized dealer.
General Information
The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, in- cluding interference that may cause undesired opera-
tion. NOTE:
Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment.
VEHICLE SECURITY ALARM — IF EQUIPPED
The vehicle security alarm monitors the vehicle doors,
hood, liftgate, and the Keyless Enter-N-Go — Ignition for
unauthorized operation. While the vehicle security alarm is
armed, interior switches for door locks and liftgate release
are disabled. If something triggers the alarm, the vehicle
security alarm will provide the following audible and
visible signals:
• The horn will pulse
• The turn signals will flash
• The vehicle security light in the instrument cluster will
flash
To Arm The System
Follow these steps to arm the vehicle security alarm:
1. Make sure the vehicle’s ignition is placed in the “OFF” mode.
2. Perform one of the following methods to lock the vehicle:
28 GETTING TO KNOW YOUR VEHICLE
Page 98 of 516
2. Remove the Allen Key or My Sky Key that is supplied inthe tool bag in the cargo area.
3. Insert the Allen Key or My Sky Key into the key hole and turn it clockwise to open the roof or counter-
clockwise to close.CAUTION!
•When refitting panels, be careful to avoid fingers,
scarves, ties and items of clothing from getting
caught under the panels themselves.
• Do not open the roof in the presence of snow or ice.
There is risk of damage.
Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the ears.
Your vehicle may exhibit wind buffeting with the windows
down, or the sunroof (if equipped) in certain open or
partially open positions. This is a normal occurrence and
can be minimized. If the buffeting occurs with the rear
windows open, then open the front and rear windows
together to minimize the buffeting. If the buffeting occurs
with the sunroof open, adjust the sunroof opening to
minimize the buffeting or open any window.
HOOD
To Open The Hood
Two latches must be released to open the hood.
Emergency Key And Key Hole
1 — Key Hole
2 — Allen Key 96 GETTING TO KNOW YOUR VEHICLE
Page 99 of 516
1. Pull the hood release lever located under the driver ’sside of the instrument panel.
2. Move to the outside of the vehicle and push the safety latch release lever toward the passenger side of the
vehicle. The hood release lever is located behind the
center front edge of the hood.
Hood Release Lever
Safety Latch
1 — Safety Latch Location
3
GETTING TO KNOW YOUR VEHICLE 97
Page 101 of 516
WARNING!
Be sure the hood is fully latched before driving your
vehicle. If the hood is not fully latched, it could open
when the vehicle is in motion and block your vision.
Failure to follow this warning could result in serious
injury or death.
CAUTION!
To prevent possible damage, do not slam the hood to
close it. Lower hood to approximately 12 inches (30 cm)
and drop the hood to close. Make sure hood is fully
closed for both latches. Never drive vehicle unless
hood is fully closed, with both latches engaged.
LIFTGATE
Opening
To unlock the liftgate, use the key fob or activate the power
door lock switches located on the driver door handle.
To open the liftgate, squeeze the electronic liftgate release
and pull the liftgate open with one fluid motion.
Liftgate Handle Location
1 — Liftgate Handle
3
GETTING TO KNOW YOUR VEHICLE 99
Page 392 of 516

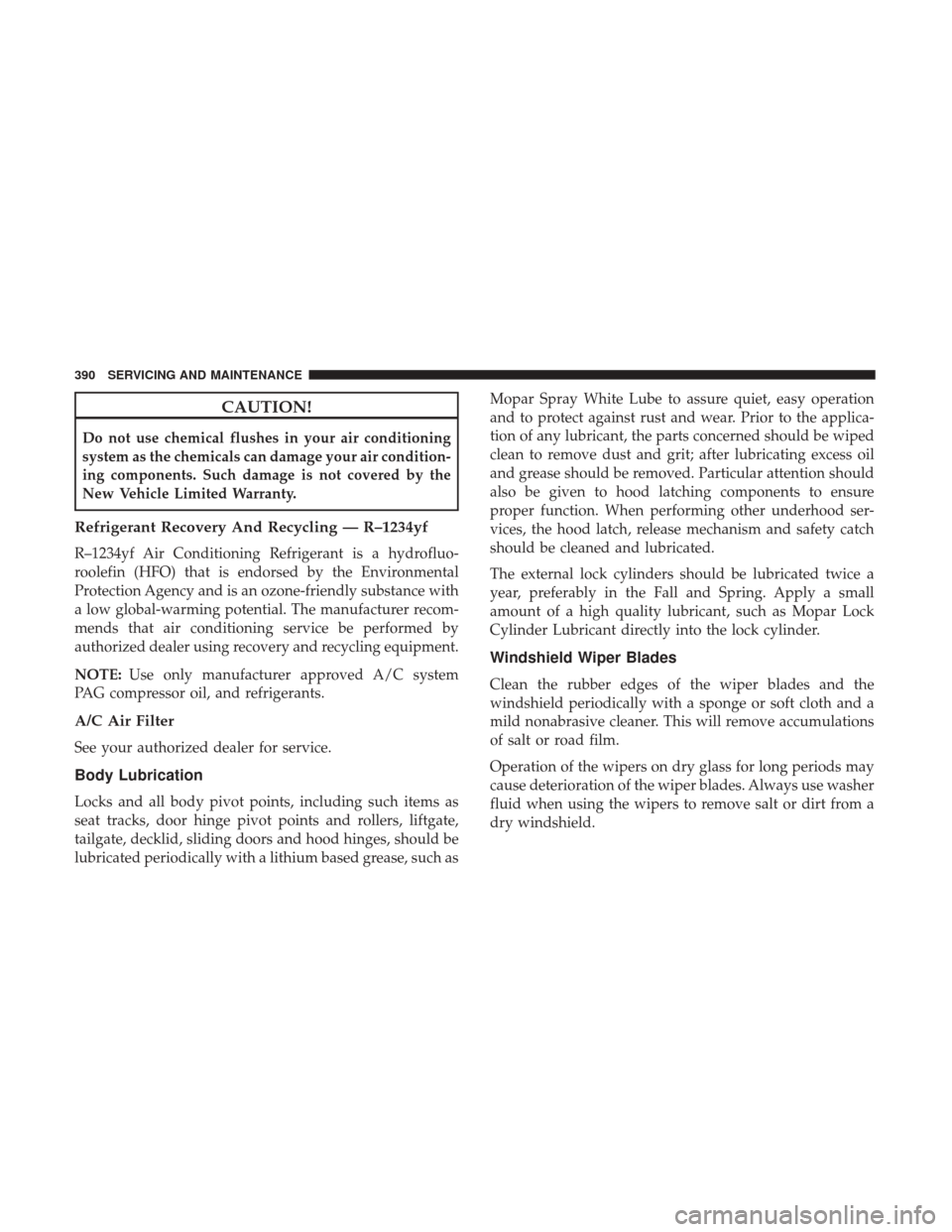

CAUTION!
Do not use chemical flushes in your air conditioning
system as the chemicals can damage your air condition-
ing components. Such damage is not covered by the
New Vehicle Limited Warranty.
Refrigerant Recovery And Recycling — R–1234yf
R–1234yf Air Conditioning Refrigerant is a hydrofluo-
roolefin (HFO) that is endorsed by the Environmental
Protection Agency and is an ozone-friendly substance with
a low global-warming potential. The manufacturer recom-
mends that air conditioning service be performed by
authorized dealer using recovery and recycling equipment.
NOTE:Use only manufacturer approved A/C system
PAG compressor oil, and refrigerants.
A/C Air Filter
See your authorized dealer for service.
Body Lubrication
Locks and all body pivot points, including such items as
seat tracks, door hinge pivot points and rollers, liftgate,
tailgate, decklid, sliding doors and hood hinges, should be
lubricated periodically with a lithium based grease, such as Mopar Spray White Lube to assure quiet, easy operation
and to protect against rust and wear. Prior to the applica-
tion of any lubricant, the parts concerned should be wiped
clean to remove dust and grit; after lubricating excess oil
and grease should be removed. Particular attention should
also be given to hood latching components to ensure
proper function. When performing other underhood ser-
vices, the hood latch, release mechanism and safety catch
should be cleaned and lubricated.
The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant, such as Mopar Lock
Cylinder Lubricant directly into the lock cylinder.
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner. This will remove accumulations
of salt or road film.
Operation of the wipers on dry glass for long periods may
cause deterioration of the wiper blades. Always use washer
fluid when using the wipers to remove salt or dirt from a
dry windshield.
390 SERVICING AND MAINTENANCE
Page 507 of 516
Head Rests................................46
Heated Mirrors .............................51
High Beam/Low Beam Select (Dimmer) Switch ......52
Hill Descent Control ....................... .178
Hill Descent Control Indicator .................178
Hill Start Assist ........................... .170
Hitches Trailer Towing .......................... .298
Holder, Coin ..............................116
Holder, Cup ..............................117
Hood Prop ................................96
Hood Release ..............................96
Inside Rearview Mirror ....................49, 313
Instrument Cluster ................139, 140, 150, 160
Instrument Cluster ...................... .127
Instrument Cluster Display Information Display ...................... .127
Instrument Cluster Display ..................124
Instrument Panel Lens Cleaning ................429
Interior And Instrument Lights ..................56
Interior Appearance Care .....................428
Interior Lights ..............................56
Intermittent Wipers (Delay Wipers) ...............61
Introduction ................................4 Inverter, Power
............................113
Jacking Instructions ........................ .352
Jack Location ............................ .350
Jack Operation ..................... .350, 352, 402
Jump Starting ............................ .361
Key Fob Arm The Alarm ..........................28
Disarm The Alarm ........................29
Keyless Entry ............................32
Programming Additional Key Fobs ..........21, 27
Key Fob Programming (Remote Keyless Entry) ......21
Key Fob, Remote Keyless Entry .................19
Keyless Enter-N-Go ..........................32
Enter The Trunk ..........................32
KeyFob................................32
Lock The Vehicle’s Doors ................32, 469
Passive Entry ............................32
Passive Entry Programming ..............32, 469
Remote Control ..........................32
Unlock From The Driver’s Side ...............32
Unlock From The Passenger Side ..............
32
Unlock Liftgate ......................... .469
Keyless Entry System ........................19
12
INDEX 505
