higher center of gravity, if this vehicle is out of control it
may roll over while some other vehicles may not.
Do not attempt sharp turns, abrupt maneuvers, or other
unsafe driving actions that can cause loss of vehicle con-
trol. Failure to operate this vehicle safely may result in a
collision, rollover of the vehicle, and severe or fatal injury.
Drive carefully.Failure to use the driver and passenger seat belts provided
is a major cause of severe or fatal injury. In fact, the U.S.
government notes that the universal use of existing seat
belts could cut the highway death toll by 10,000 or more
each year and could reduce disabling injuries by two
million annually. In a rollover crash, an unbelted person is
significantly more likely to die than a person wearing a seat
belt. Always buckle up.
HOW TO USE THIS MANUAL
Essential Information
Consult the Table of Contents to determine which section
contains the information you desire.
Since the specification of your vehicle depends on the items
of equipment ordered, certain descriptions and illustra-
tions may differ from your vehicle’s equipment.
The detailed index at the back of this Owner’s Manual
contains a complete listing of all subjects.
Rollover Warning Label
1
INTRODUCTION 5

INTERIOR
Interior Features
1 — Power Window Switches
2 — Uconnect Radio
3 — Switch Panel
4 — Climate Controls5 — Selec-Terrain Mode Knob — If Equipped
6 — Transmission Gear Selector (Automatic/Manual options)
7 — Seats
2
GRAPHICAL TABLE OF CONTENTS 13

▫Keyless Enter-N-Go — Passive Entry — If
Equipped .............................32
▫ Dead Lock Device — If Equipped ............36
▫ Child Locks ...........................37
 SEATS ................................38
▫ Manual Front Seats ......................38
▫ Power Adjustment (Front) — If Equipped ......39
▫ Heated Seats — If Equipped ................41
▫ Rear Seats ............................42
 HEAD RESTRAINTS ......................46
▫ Front Head Restraints ....................46
▫ Rear Head Restraints .....................47
 STEERING WHEEL .......................48
▫ Tilt/Telescoping Steering Column ............48
▫ Heated Steering Wheel — If Equipped .........48
 MIRRORS ..............................49
▫ Inside Day/Night Mirror ..................49 ▫
Auto Dimming Mirror — If Equipped .........49
▫ Outside Mirrors ........................50
▫ Folding Mirror .........................51
▫ Heated Mirrors — If Equipped .............51
 EXTERIOR LIGHTS .......................52
▫ Headlights ............................52
▫ Daytime Running Lights (DRL) — If Equipped . .52
▫ High Beams ...........................52
▫ Flash-To-Pass ..........................53
▫ Automatic Lighting — If Equipped ..........53
▫ Automatic High Beam Headlamp Control — If
Equipped .............................54
▫ Parking Lights .........................54
▫ Headlight Delay ........................54
▫ Front Fog Lights — If Equipped .............55
▫ Turn Signals ...........................55
 INTERIOR LIGHTS .......................56
16 GETTING TO KNOW YOUR VEHICLE

WARNING!
•Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
adjusted properly and you could be injured. Adjust
the seat only while the vehicle is parked.
• Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest.
In a collision you could slide under the seat belt and
be seriously or even fatally injured. Use the recliner
only when the vehicle is parked.
Manual Front Seats Forward/Rearward Adjustment
On models equipped with manual seats, the adjusting bar
is located at the front of the seats, near the floor. While
sitting in the seat, lift up on the bar and move the seat
forward or rearward. Release the bar once you have
reached the desired position. Then, using body pressure,
move forward and rearward on the seat to be sure that the
seat adjusters have latched.
Height Adjustment
The driver ’s seat height can be raised or lowered by using
a lever, located on the outboard side of the seat. Pull
upward on the lever to raise the seat height or push
downward on the lever to lower the seat height.
Manual Recline Adjustment
To adjust the seatback, lift the lever located on the outboard
side of the seat, lean back to the desired position and
release the lever. To return the seatback, lift the lever, lean
forward and release the lever.
Power Adjustment (Front) — If Equipped
The power seat controls are located on the outboard side of
the seat, close to the floor.
3
GETTING TO KNOW YOUR VEHICLE 39

Use the switch to move the seat up/down, forward/
rearward, tilt (if equipped) and to set the angle of the
seatback.
Adjusting The Seat Forward Or Rearward
The seat can be adjusted both forward and rearward. Push
the seat switch forward or rearward. The seat will move in
the direction of the switch. Release the switch when the
desired position has been reached.
Adjusting The Seat Up Or Down
The height of the seats can be adjusted up or down. Pull
upward or push downward on the seat switch, the seat will
move in the direction of the switch. Release the switch
when the desired position has been reached.
Tilting The Seat Up Or Down
The angle of the seat cushion can be adjusted up or down.
Pull upward or push downward on the front of the seat
switch. The front of the seat cushion will move in the
direction of the switch. Release the switch when the
desired position has been reached.
Reclining The Seatback
The angle of the seatback can be adjusted forward or
rearward. Push the seatback switch forward or rearward,
the seat will move in the direction of the switch. Release the
switch when the desired position is reached.
WARNING!
•Adjusting a seat while driving may be dangerous. Mov-
ing a seat while driving could result in loss of control
which could cause a collision and serious injury or death.
(Continued)
Power Seat Switches
1 — Power Seat Switch
2 — Power Recline Switch
3 — Power Lumbar Switch 40 GETTING TO KNOW YOUR VEHICLE

WARNING!(Continued)
•Seats should be adjusted before fastening the seat
belts and while the vehicle is parked. Serious injury
or death could result from a poorly adjusted seat belt.
• Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest.
In a collision you could slide under the seat belt,
which could result in serious injury or death.
CAUTION!
Do not place any article under a power seat or impede
its ability to move as it may cause damage to the seat
controls. Seat travel may become limited if movement
is stopped by an obstruction in the seat’s path.
Power Lumbar Adjustment— If Equipped
Push the switch forward or rearward to increase or de-
crease the lumbar support. Push the switch upward or
downward to raise or lower the lumbar support. NOTE:
Power seat adjustments are only allowed when the
ignition device is turned to ON, and for about 30 minutes
after it is turned to OFF. The seats can also be moved after
opening/closing the doors for about 30 minutes, locking or
unlocking the doors, or switching on of the front courtesy
lights.
Heated Seats — If Equipped
The heated seat switches are located on the instrument
panel.
You can choose between two heating levels:
• Push the heated seat button
once to turn the HI
setting on.
• Push the heated seat buttona second time to turn
the LO setting on.
• Push the heated seat buttona third time to turn the
heating elements off.
If the HI-level setting is selected, the system will automati-
cally switch to LO-level after approximately 145 minutes of
continuous operation. At that time, the display will change
from HI to LO, indicating the change. The LO-level setting
will turn off automatically after approximately 60 minutes.
3
GETTING TO KNOW YOUR VEHICLE 41

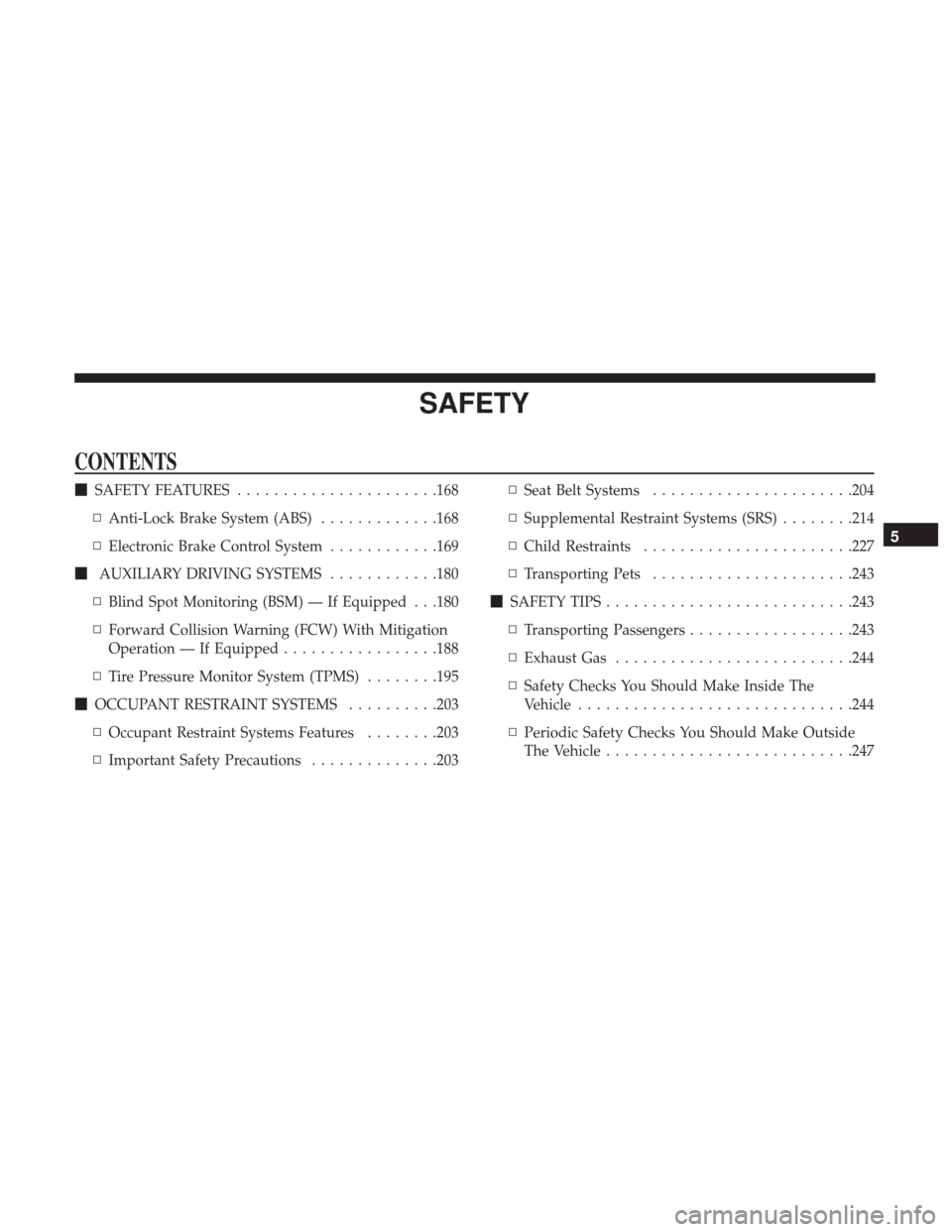

SAFETY
CONTENTS
SAFETY FEATURES ..................... .168
▫ Anti-Lock Brake System (ABS) .............168
▫ Electronic Brake Control System ............169
 AUXILIARY DRIVING SYSTEMS ............180
▫ Blind Spot Monitoring (BSM) — If Equipped . . .180
▫ Forward Collision Warning (FCW) With Mitigation
Operation — If Equipped .................188
▫ Tire Pressure Monitor System (TPMS) ........195
 OCCUPANT RESTRAINT SYSTEMS ..........203
▫ Occupant Restraint Systems Features ........203
▫ Important Safety Precautions ..............203▫
Seat Belt Systems ..................... .204
▫ Supplemental Restraint Systems (SRS) ........214
▫ Child Restraints ...................... .227
▫ Transporting Pets ..................... .243
 SAFETY TIPS .......................... .243
▫ Transporting Passengers ..................243
▫ Exhaust Gas ......................... .244
▫ Safety Checks You Should Make Inside The
Vehicle ............................. .244
▫ Periodic Safety Checks You Should Make Outside
The Vehicle .......................... .247
5

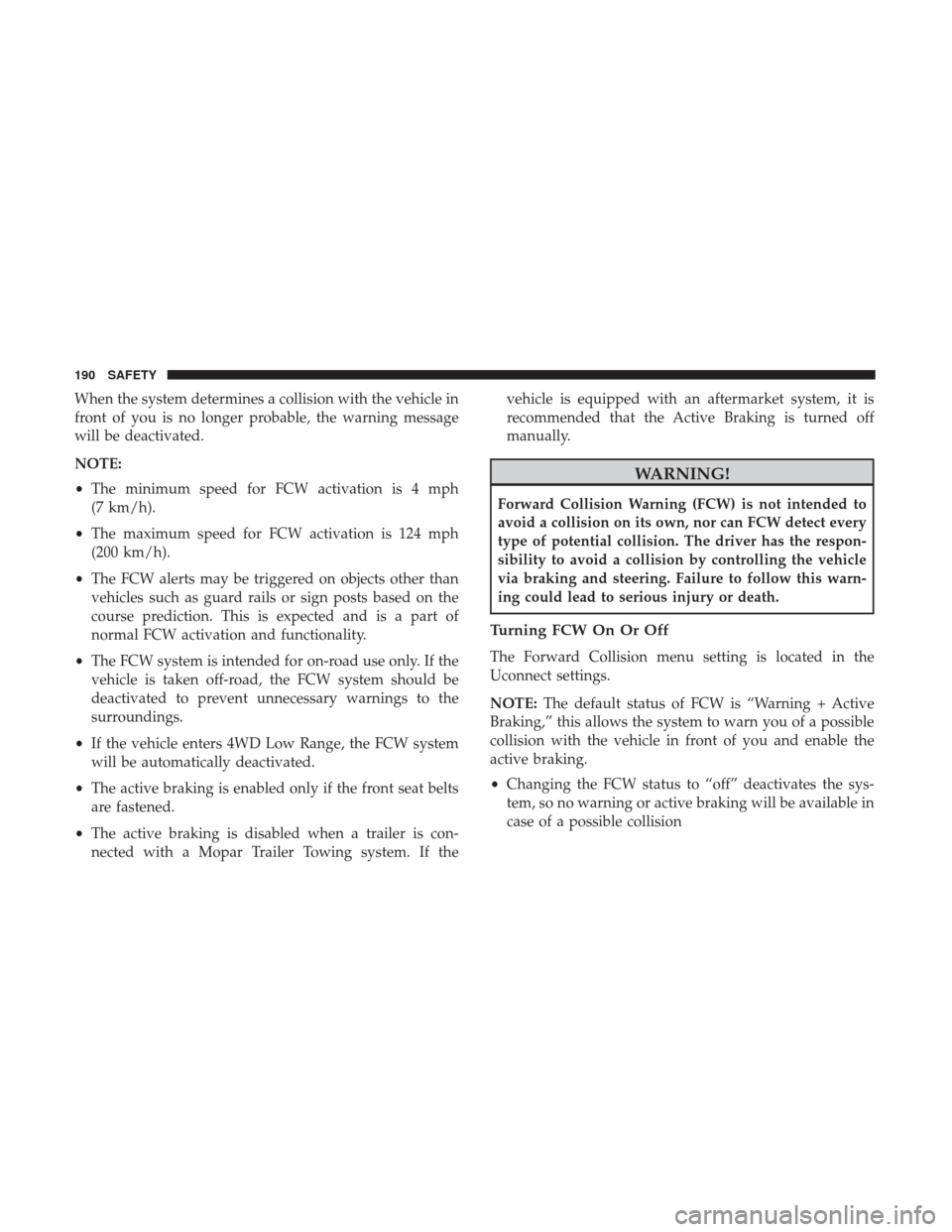

When the system determines a collision with the vehicle in
front of you is no longer probable, the warning message
will be deactivated.
NOTE:
•The minimum speed for FCW activation is 4 mph
(7 km/h).
• The maximum speed for FCW activation is 124 mph
(200 km/h).
• The FCW alerts may be triggered on objects other than
vehicles such as guard rails or sign posts based on the
course prediction. This is expected and is a part of
normal FCW activation and functionality.
• The FCW system is intended for on-road use only. If the
vehicle is taken off-road, the FCW system should be
deactivated to prevent unnecessary warnings to the
surroundings.
• If the vehicle enters 4WD Low Range, the FCW system
will be automatically deactivated.
• The active braking is enabled only if the front seat belts
are fastened.
• The active braking is disabled when a trailer is con-
nected with a Mopar Trailer Towing system. If the vehicle is equipped with an aftermarket system, it is
recommended that the Active Braking is turned off
manually.
WARNING!
Forward Collision Warning (FCW) is not intended to
avoid a collision on its own, nor can FCW detect every
type of potential collision. The driver has the respon-
sibility to avoid a collision by controlling the vehicle
via braking and steering. Failure to follow this warn-
ing could lead to serious injury or death.
Turning FCW On Or Off
The Forward Collision menu setting is located in the
Uconnect settings.
NOTE:
The default status of FCW is “Warning + Active
Braking,” this allows the system to warn you of a possible
collision with the vehicle in front of you and enable the
active braking.
• Changing the FCW status to “off” deactivates the sys-
tem, so no warning or active braking will be available in
case of a possible collision
190 SAFETY

Seat Belt Pretensioner
The front seat belt system is equipped with pretensioning
devices that are designed to remove slack from the seat belt
in the event of a collision. These devices may improve the
performance of the seat belt by removing slack from the
seat belt early in a collision. Pretensioners work for all size
occupants, including those in child restraints.
NOTE:These devices are not a substitute for proper seat
belt placement by the occupant. The seat belt still must be
worn snugly and positioned properly.
The pretensioners are triggered by the Occupant Restraint
Controller (ORC). Like the air bags, the pretensioners are
single use items. A deployed pretensioner or a deployed air
bag must be replaced immediately.
Energy Management Feature
This vehicle has a seat belt system with an Energy Man-
agement feature in the front seating positions that may
help further reduce the risk of injury in the event of a
collision. The seat belt system has a retractor assembly that
is designed to release webbing in a controlled manner.
Switchable Automatic Locking Retractors (ALR)
The seat belts in the passenger seating positions are
equipped with a Switchable Automatic Locking Retractor
(ALR) which is used to secure a child restraint system. For
additional information, refer to “Installing Child Restraints
Using The Vehicle Seat Belt” under the “Child Restraints”
section of this manual. The figure below illustrates the
locking feature for each seating position.
ALR — Switchable Automatic Locking Retractor
212 SAFETY

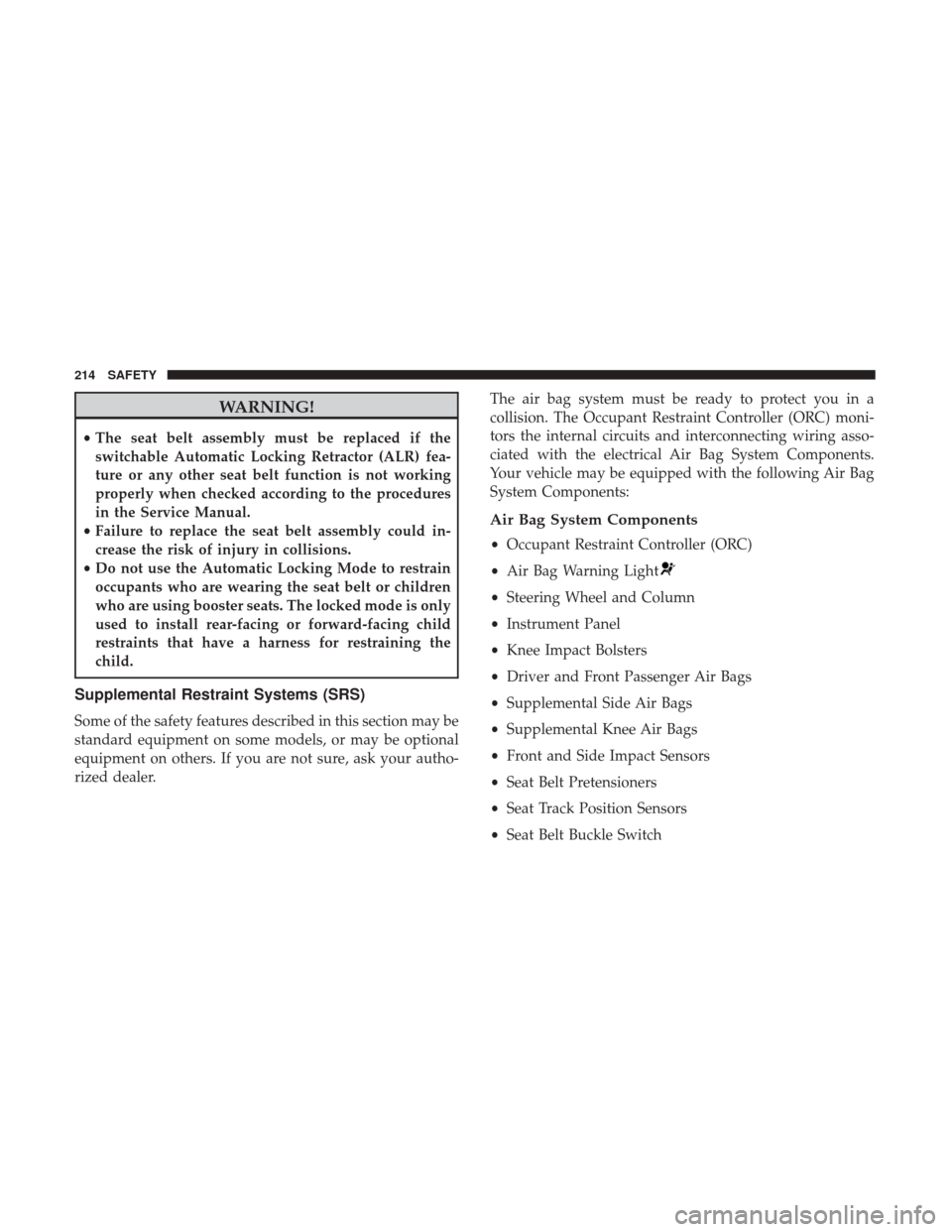

WARNING!
•The seat belt assembly must be replaced if the
switchable Automatic Locking Retractor (ALR) fea-
ture or any other seat belt function is not working
properly when checked according to the procedures
in the Service Manual.
• Failure to replace the seat belt assembly could in-
crease the risk of injury in collisions.
• Do not use the Automatic Locking Mode to restrain
occupants who are wearing the seat belt or children
who are using booster seats. The locked mode is only
used to install rear-facing or forward-facing child
restraints that have a harness for restraining the
child.
Supplemental Restraint Systems (SRS)
Some of the safety features described in this section may be
standard equipment on some models, or may be optional
equipment on others. If you are not sure, ask your autho-
rized dealer. The air bag system must be ready to protect you in a
collision. The Occupant Restraint Controller (ORC) moni-
tors the internal circuits and interconnecting wiring asso-
ciated with the electrical Air Bag System Components.
Your vehicle may be equipped with the following Air Bag
System Components:
Air Bag System Components
•
Occupant Restraint Controller (ORC)
• Air Bag Warning Light
•Steering Wheel and Column
• Instrument Panel
• Knee Impact Bolsters
• Driver and Front Passenger Air Bags
• Supplemental Side Air Bags
• Supplemental Knee Air Bags
• Front and Side Impact Sensors
• Seat Belt Pretensioners
• Seat Track Position Sensors
• Seat Belt Buckle Switch
214 SAFETY
