tow JEEP RENEGADE 2022 Owners Manual

:$5N,N*

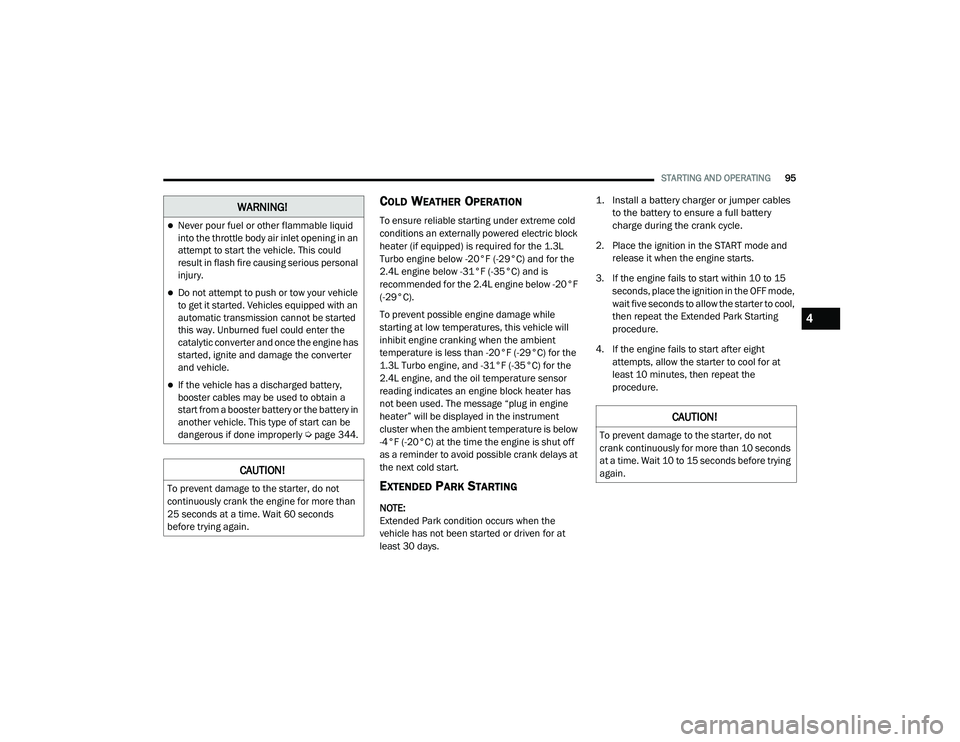

Never pour fuel or other flammable liquid
into the throttle body air inlet opening in an
attempt to start the vehicle. This could
result in flash fire causing serious personal
injury.
Do not attempt to push or tow your vehicle
to get it started. Vehicles equipped with an
automatic transmission cannot be started
this way. Unburned fuel could enter the
catalytic converter and once the engine has
started, ignite and damage the converter
and vehicle.
If the vehicle has a discharged battery,
booster cables may be used to obtain a
start from a booster battery or the battery in
another vehicle. This type of start can be
dangerous if done improperly Úpage 344.
CAUTION!
To prevent damage to the starter, do not
continuously crank the engine for more than
25 seconds at a time. Wait 60 seconds
before trying again.
CAUTION!
To prevent damage to the starter, do not
crank continuously for more than 10 seconds
at a time. Wait 10 to 15 seconds before trying
again.
4

21_BV_OM_EN_USC_t.book Page 95

:$5N,N*

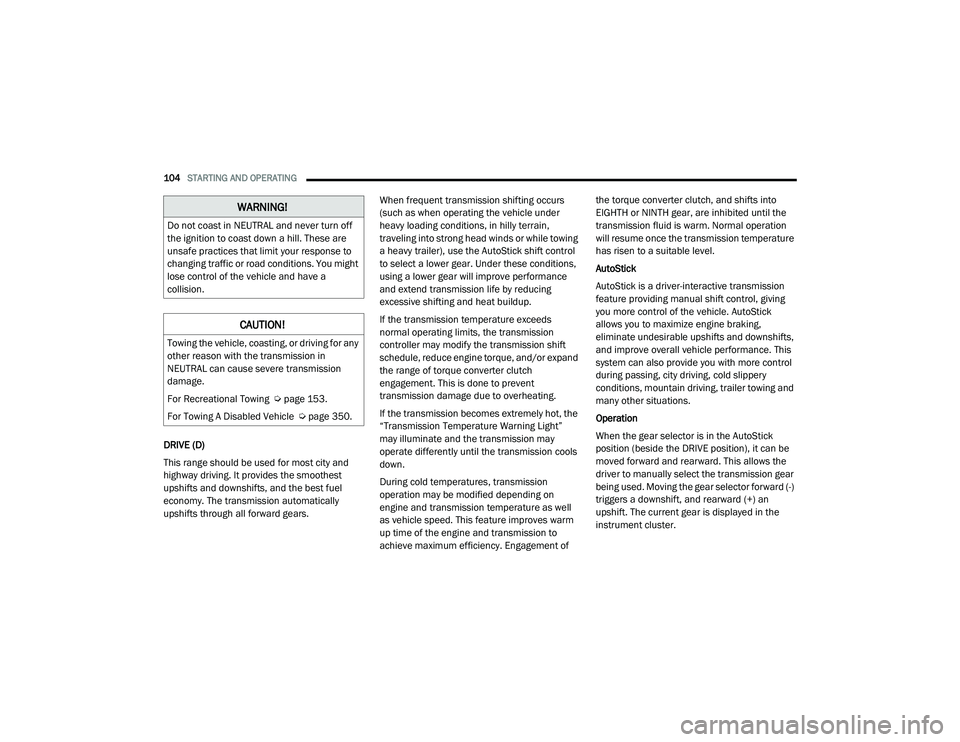

'o Qot FoaVt LQ NEU75$/ aQG QeYeU tXUQ oII
tKe LgQLtLoQ to FoaVt GoZQ a KLOO. 7KeVe aUe
XQVaIe SUaFtLFeV tKat OLPLt \oXU UeVSoQVe to
FKaQgLQg tUaIILF oU UoaG FoQGLtLoQV. OoVe FoQtUoO oI tKe YeKLFOe aQG KaYe a
FoOOLVLoQ.
C$U7,ON
7oZLQg tKe YeKLFOe FoaVtLQg oU GULYLQg IoU aQ\
otKeU UeaVoQ ZLtK tKe tUaQVPLVVLoQ LQ
NEU75$/ FaQ FaXVe VeYeUe tUaQVPLVVLoQ
GaPage.
)oU 5eFUeatLoQaO 7oZLQg Úpage 153.
For Towing A Disabled Vehicle Ú page 350.

:$5N,N*

Drivers must be careful when backing up
even when using ParkSense. Always check
carefully behind your vehicle, look behind
you, and be sure to check for pedestrians,
animals, other vehicles, obstructions, and
blind spots before backing up. You are
responsible for safety and must continue
to pay attention to your surroundings.
Failure to do so can result in serious injury
or death.

Before using ParkSense, it is strongly
recommended that the ball mount and
hitch ball assembly be disconnected from
the vehicle when the vehicle is not used for
towing. Failure to do so can result in injury
or damage to vehicles or obstacles
because the hitch ball will be much closer
to the obstacle than the rear fascia when
the vehicle sounds the continuous tone.
Also, the sensors could detect the ball
mount and hitch ball assembly, depending
on its size and shape, giving a false indica-
tion that an obstacle is behind the vehicle.
CAUTION!
ParkSense is only a parking aid and it is
unable to recognize every obstacle,
including small obstacles. Parking curbs
might be temporarily detected or not
detected at all. Obstacles located above or
below the sensors will not be detected
when they are in close proximity.
The vehicle must be driven slowly when
using ParkSense in order to be able to stop
in time when an obstacle is detected. It is
recommended that the driver looks over
his/her shoulder when using ParkSense.

WARNING!

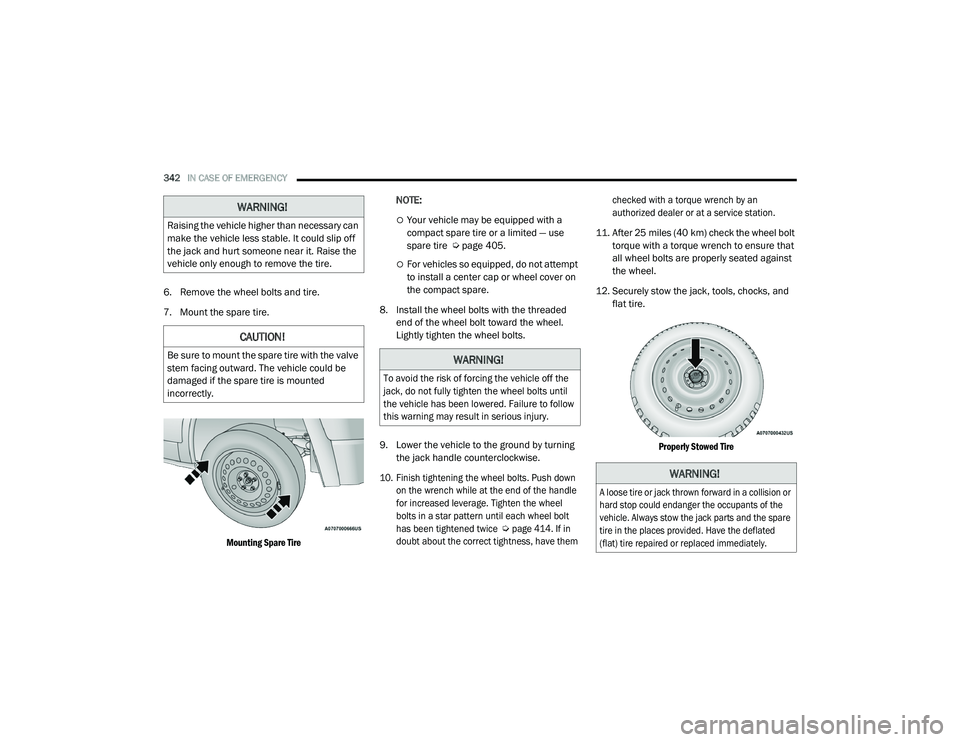

Raising the vehicle higher than necessary can
make the vehicle less stable. It could slip off
the jack and hurt someone near it. Raise the
vehicle only enough to remove the tire.
CAUTION!
Be sure to mount the spare tire with the valve
stem facing outward. The vehicle could be
damaged if the spare tire is mounted
incorrectly.WARNING!

To avoid the risk of forcing the vehicle off the
jack, do not fully tighten the wheel bolts until
the vehicle has been lowered. Failure to follow
this warning may result in serious injury.

WARNING!

A loose tire or jack thrown forward in a collision or
hard stop could endanger the occupants of the
vehicle. Always stow the jack parts and the spare
tire in the places provided. Have the deflated
(flatyfWLUHUHSDLUHGRUUHSODFHGLPPHGLDWHO\.

C$U7,ON

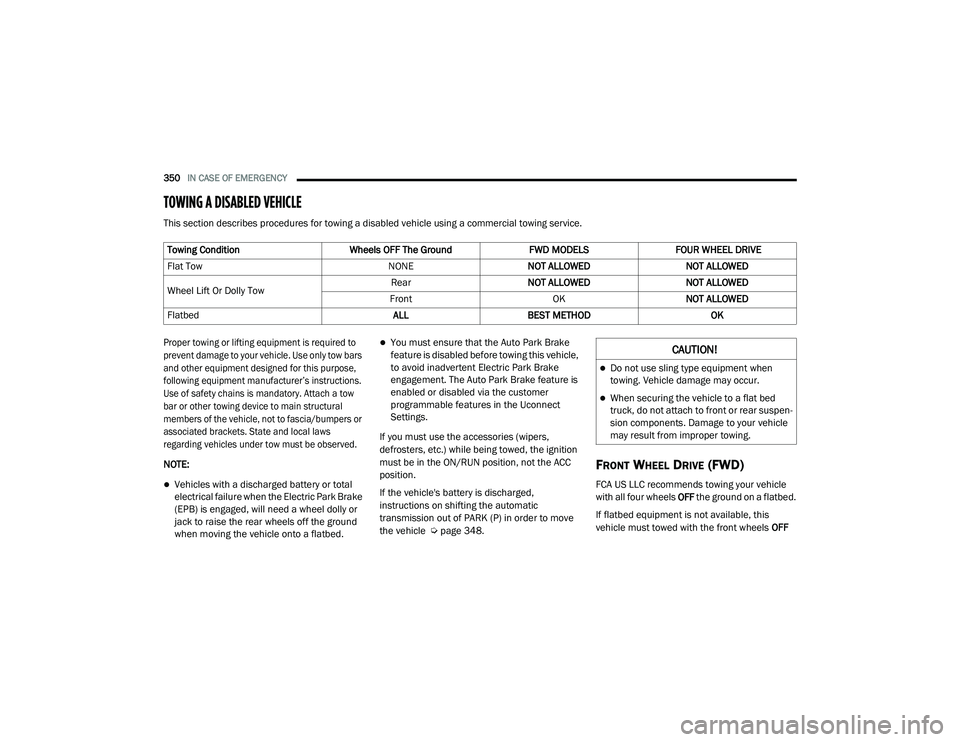

Do not use sling type equipment when
towing. Vehicle damage may occur.
When securing the vehicle to a flat bed
truck, do not attach to front or rear suspen-
sion components. Damage to your vehicle
may result from improper towing.

C$U7,ON

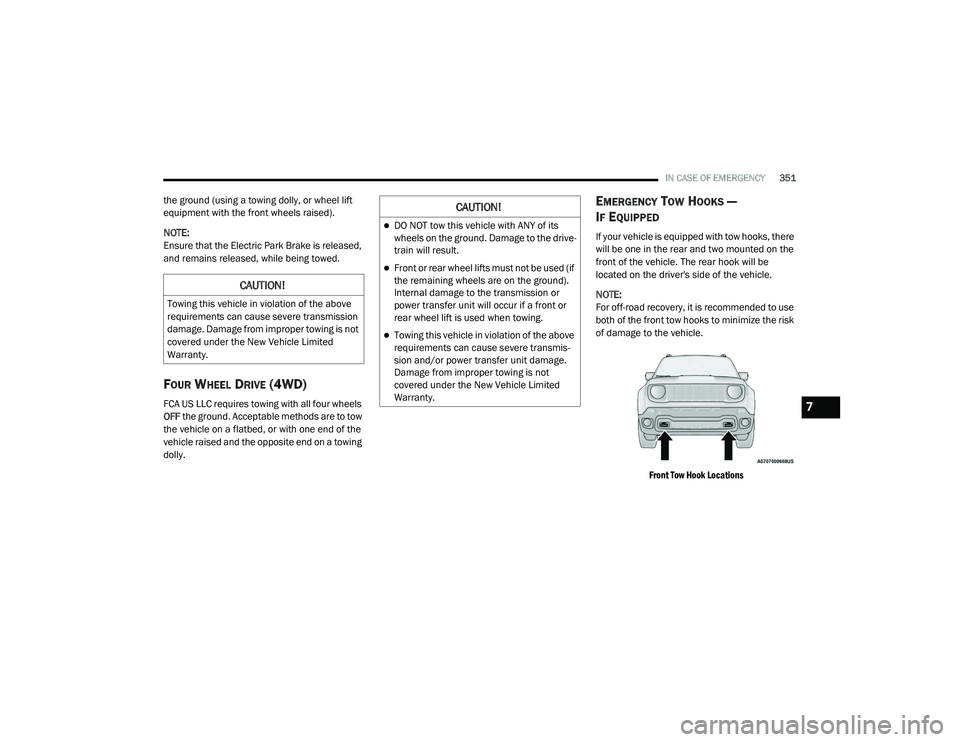

DO NOT tow this vehicle with ANY of its
wheels on the ground. Damage to the drive-
train will result.
Front or rear wheel lifts must not be used (if
the remaining wheels are on the groundyf
Internal damage to the transmission or
power transfer unit will occur if a front or
rear wheel lift is used when towing.
Towing this vehicle in violation of the above
requirements can cause severe transmis -
sion and/or power transfer unit damage.
Damage from improper towing is not
covered under the New Vehicle Limited
Warranty.
7

21_BV_OM_EN_USC_t.book Page 351

:$5N,N*

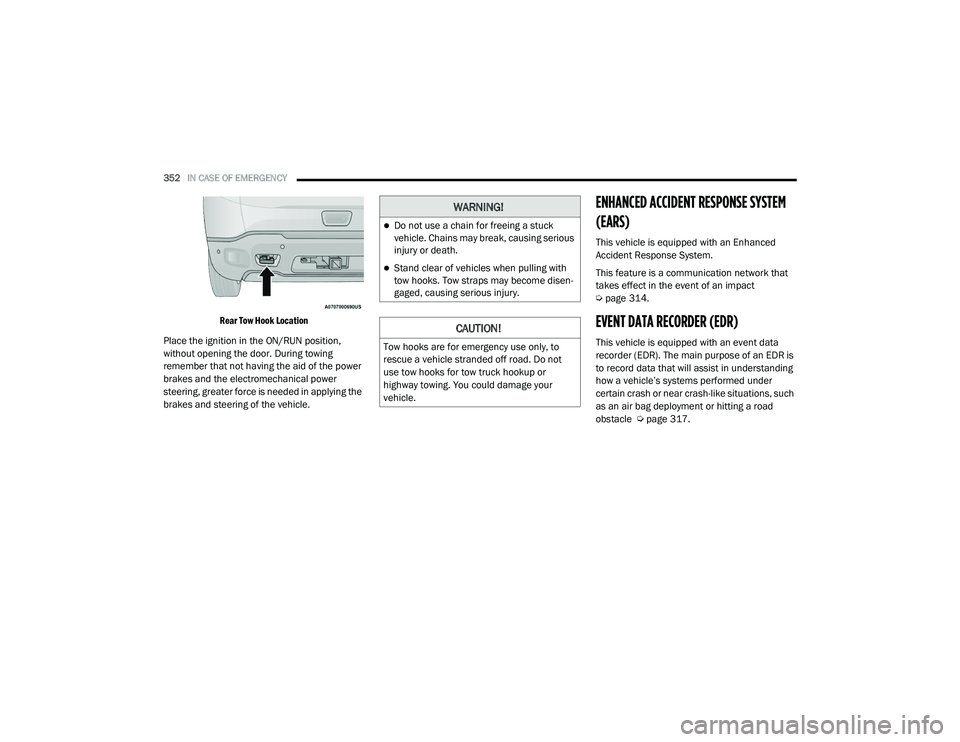

Do not use a chain for freeing a stuck
vehicle. Chains may break, causing serious
injury or death.
Stand clear of vehicles when pulling with
tow hooks. Tow straps may become disen-
gaged, causing serious injury.
CAUTION!
Tow hooks are for emergency use only, to
rescue a vehicle stranded off road. Do not
use tow hooks for tow truck hookup or
highway towing. You could damage your
vehicle.

SERVICING AND MAINTENANCE
SC\b\fED SERVICING
Your vehicle is equipped with an automatic oil
change indicator system. The oil change
indicator system will remind you that it is time to
take your vehicle in for scheduled maintenance.
Based on engine operation conditions, the oil
change indicator message will illuminate in the
instrument cluster. This means that service is
required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow and
extremely hot or cold ambient temperatures will
influence when the “Change Oil” or “Oil Change
Required” message is displayed. Have your
vehicle serviced as soon as possible, within the
next 500 miles (805 kmyf.
An authorized dealer will reset the oil change
indicator message after completing the
scheduled oil change.NOTE:

Under no circumstances should oil change
intervals exceed 10,000 miles (16,000 kmyf
1 year or 350 hours of engine run time, which
-
ever comes first. The 350 hours of engine run
or idle time is generally only a concern for fleet
customers.

NOTE:
The Oil Change Indicator will not illuminate
under these conditions.
Once A Month Or Before A Long Trip:
Check engine oil level.
Check windshield washer fluid level.
Check the tire inflation pressures and look
for unusual wear or damage.
Check the fluid levels of the coolant reservoir,
and brake master cylinder reservoir, and fill
as needed.
Check function of all interior and exterior
lights.
MAINTENANCE PLAN
NOTE:
Using white lithium grease, lubricate the door
hinge roller pivot joints twice a year to prevent
premature wear.
At Every Oil Change Interval As Indicated By Oil Change Indicator System:
Change oil and filter.
Inspect battery and clean and tighten
terminals as required.
Inspect the CV/Universal joints.
Inspect brake pads, shoes, rotors, drums, and
hoses.
Inspect engine cooling system protection and
hoses.
Rotate the tires, rotate at the first sign of
irregular wear, even if it occurs before the oil
indicator system turns on.
Inspect exhaust system.
Inspect engine air cleaner filter if using in
dusty or off-road conditions.
8
