headlights JEEP RENEGADE LATITUDE 2017 Owners Manual

Yellow TelltaleLight What It Means
Automatic Headlight Fail
This light illuminates when there is a failure of the automatic headlights. If this light illuminates,
have it inspected at an authorized dealer.
Rain Sensor Failure
Yellow Telltale
Light What It Means
Rain Sensor Failure
This light illuminates when the rain sensor fails. If this light illuminates, have an authorized
dealer inspect it.
144 GETTING TO KNOW YOUR INSTRUMENT PANEL

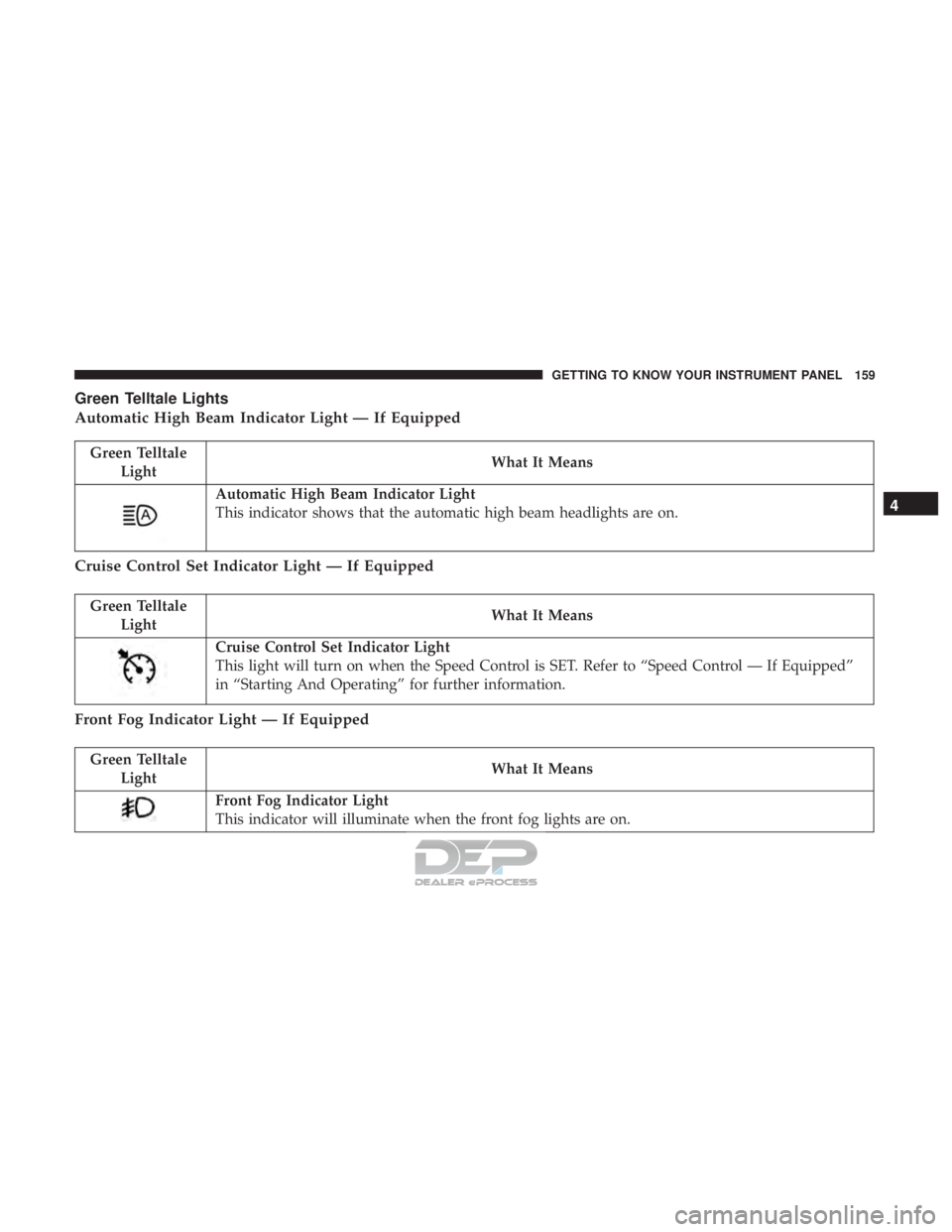

Green TelltaleLight What It Means
Automatic High Beam Indicator Light
This indicator shows that the automatic high beam headlights are on.
Cruise Control Set Indicator Light — If Equipped
Green Telltale
Light What It Means
Cruise Control Set Indicator Light
This light will turn on when the Speed Control is SET. Refer to “Speed Control — If Equipped”
in “Starting And Operating” for further information.
Front Fog Indicator Light — If Equipped
Green Telltale
Light What It Means
Front Fog Indicator Light
This indicator will illuminate when the front fog lights are on.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 159

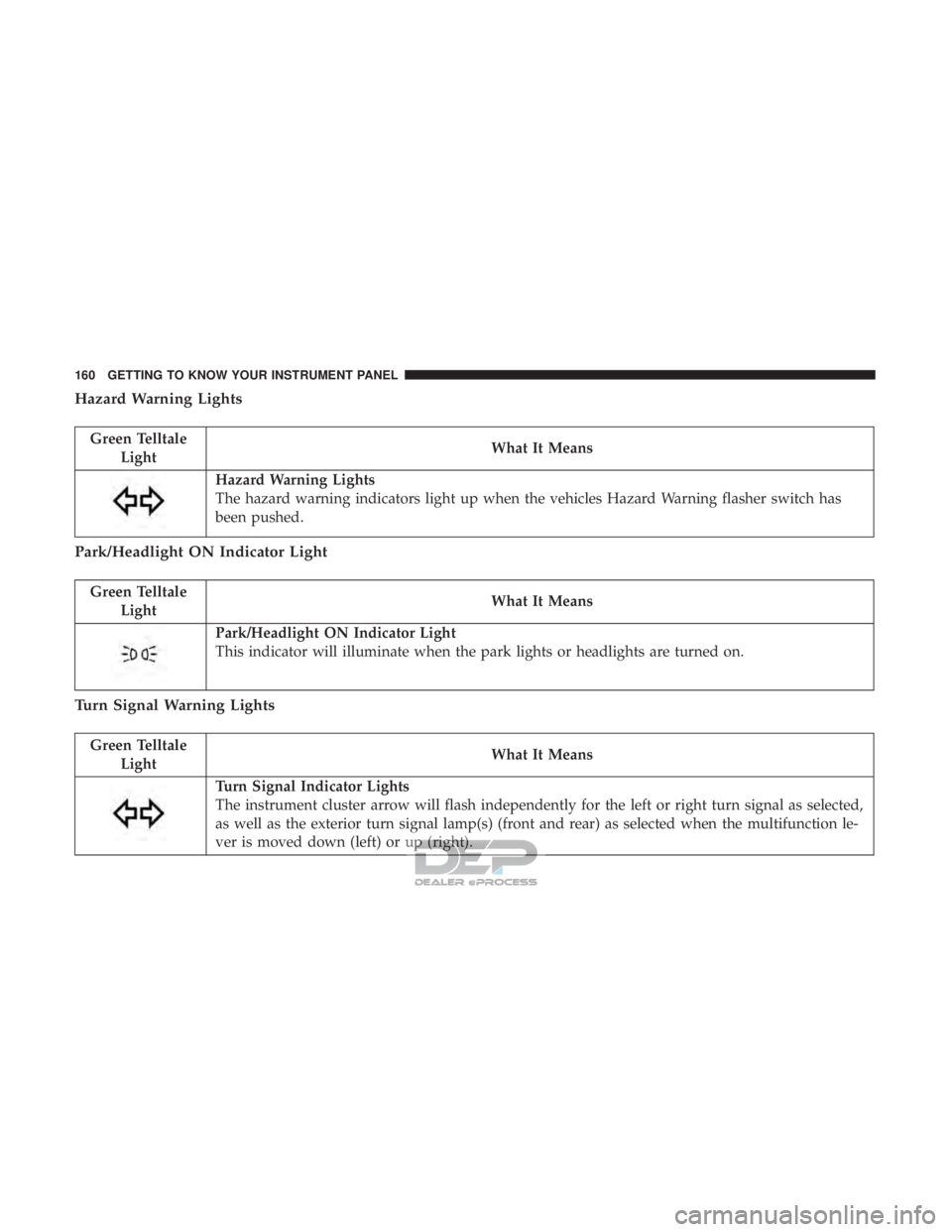

Green TelltaleLight What It Means
Hazard Warning Lights
The hazard warning indicators light up when the vehicles Hazard Warning flasher switch has
been pushed.
Park/Headlight ON Indicator Light
Green Telltale
Light What It Means
Park/Headlight ON Indicator Light
This indicator will illuminate when the park lights or headlights are turned on.
Turn Signal Warning Lights
Green Telltale
Light What It Means
Turn Signal Indicator Lights
The instrument cluster arrow will flash independently for the left or right turn signal as selected,
as well as the exterior turn signal lamp(s) (front and rear) as selected when the multifunction le-
ver is moved down (left) or up (right).
160 GETTING TO KNOW YOUR INSTRUMENT PANEL

Green TelltaleLight What It Means
Stop/Start Active Indicator Light
This telltale will illuminate when the Stop/Start function is in “Autostop” mode.
Blue Telltale Lights
High Beam Indicator Light
Blue Telltale
Light What It Means
High Beam Indicator Light
This indicator shows that the high beam headlights are on. Push the multifunction control lever
away from you to switch the headlights to high beam. Pull the lever toward you to switch the
headlights back to low beam. Pull the lever toward you for a temporary high beam on,
flash to
pass scenario.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 161
