JEEP WRANGLER 1994 Owners Manual

Fig. 11 Aligning To The Second Mark

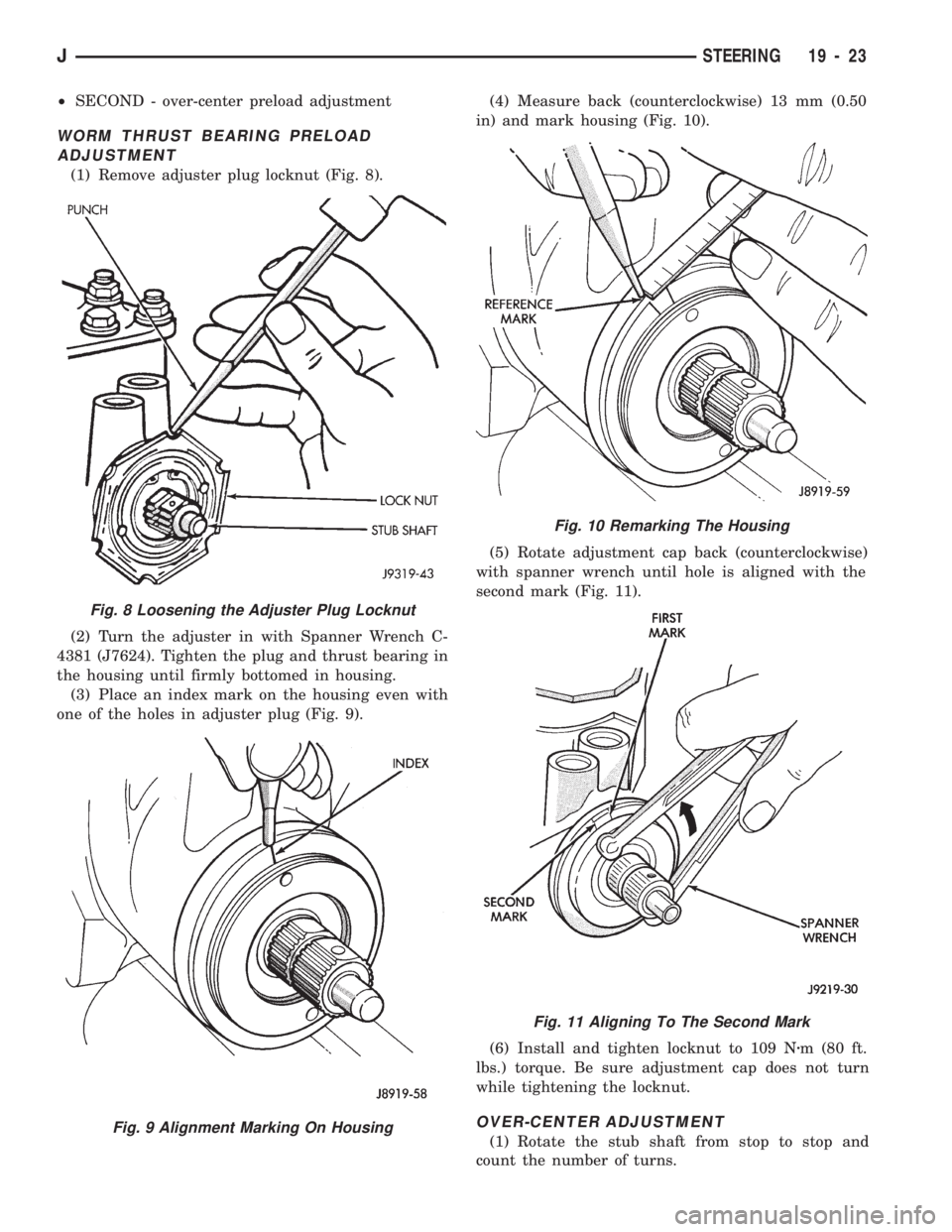

Fig. 8 Loosening the Adjuster Plug Locknut
Fig. 9 Alignment Marking On Housing
JSTEERING 19 - 23

Fig. 13 Checking Over-center Rotation Torque

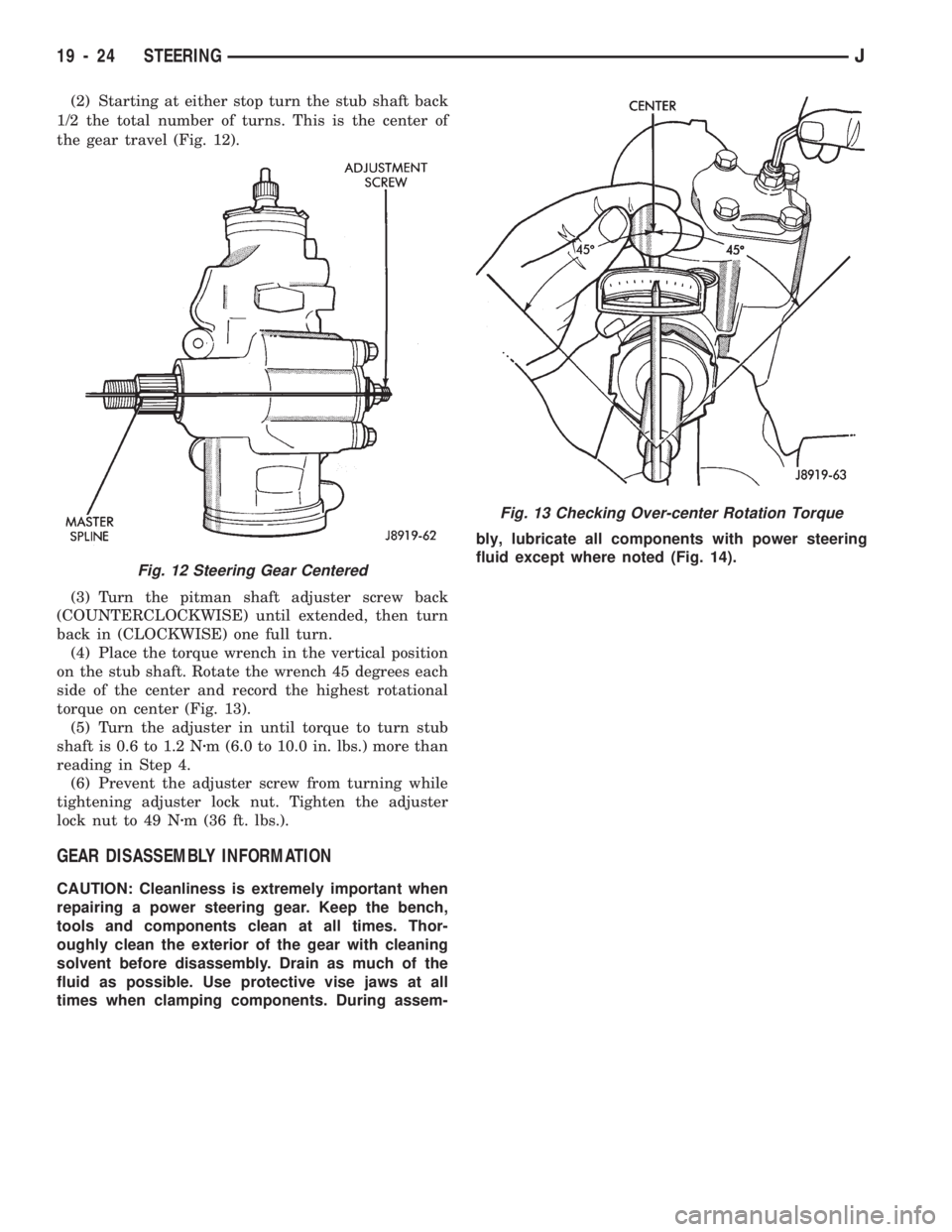

Fig. 12 Steering Gear Centered
19 - 24 STEERINGJ

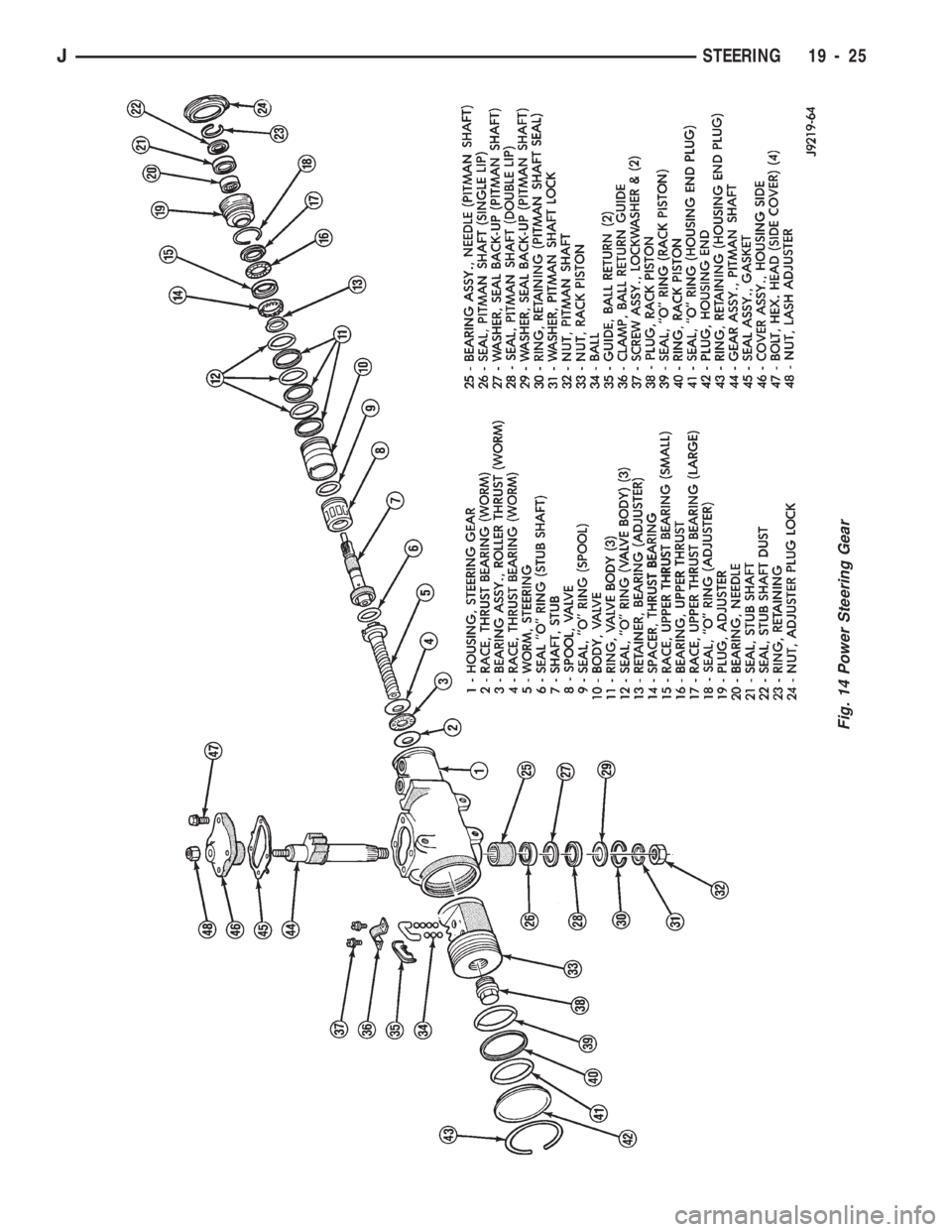

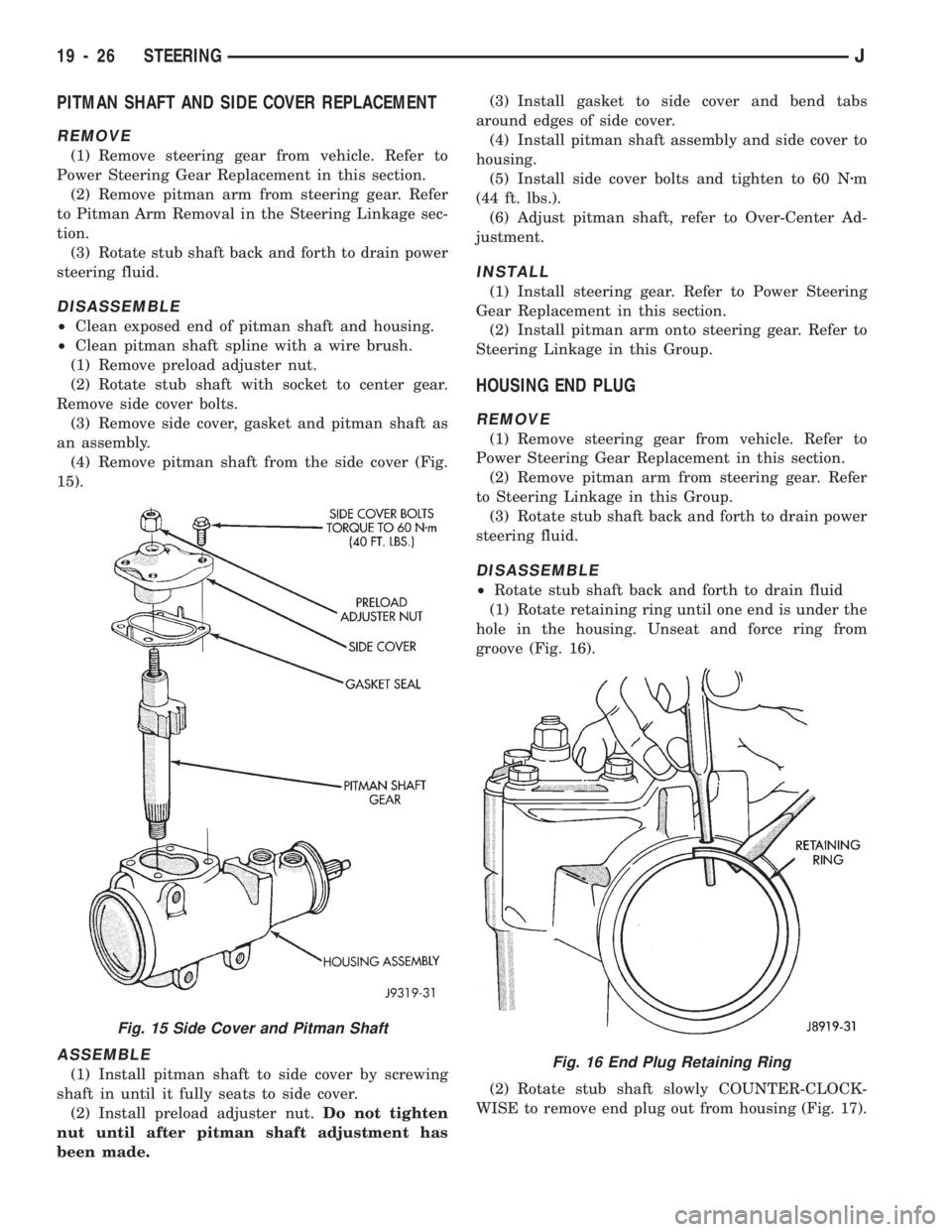

Fig. 15 Side Cover and Pitman Shaft
19 - 26 STEERINGJ

Fig. 18 Installing The Retaining Ring
Fig. 19 Remove/Install Adjustment Plug
Fig. 20 Remove Retainer
JSTEERING 19 - 27

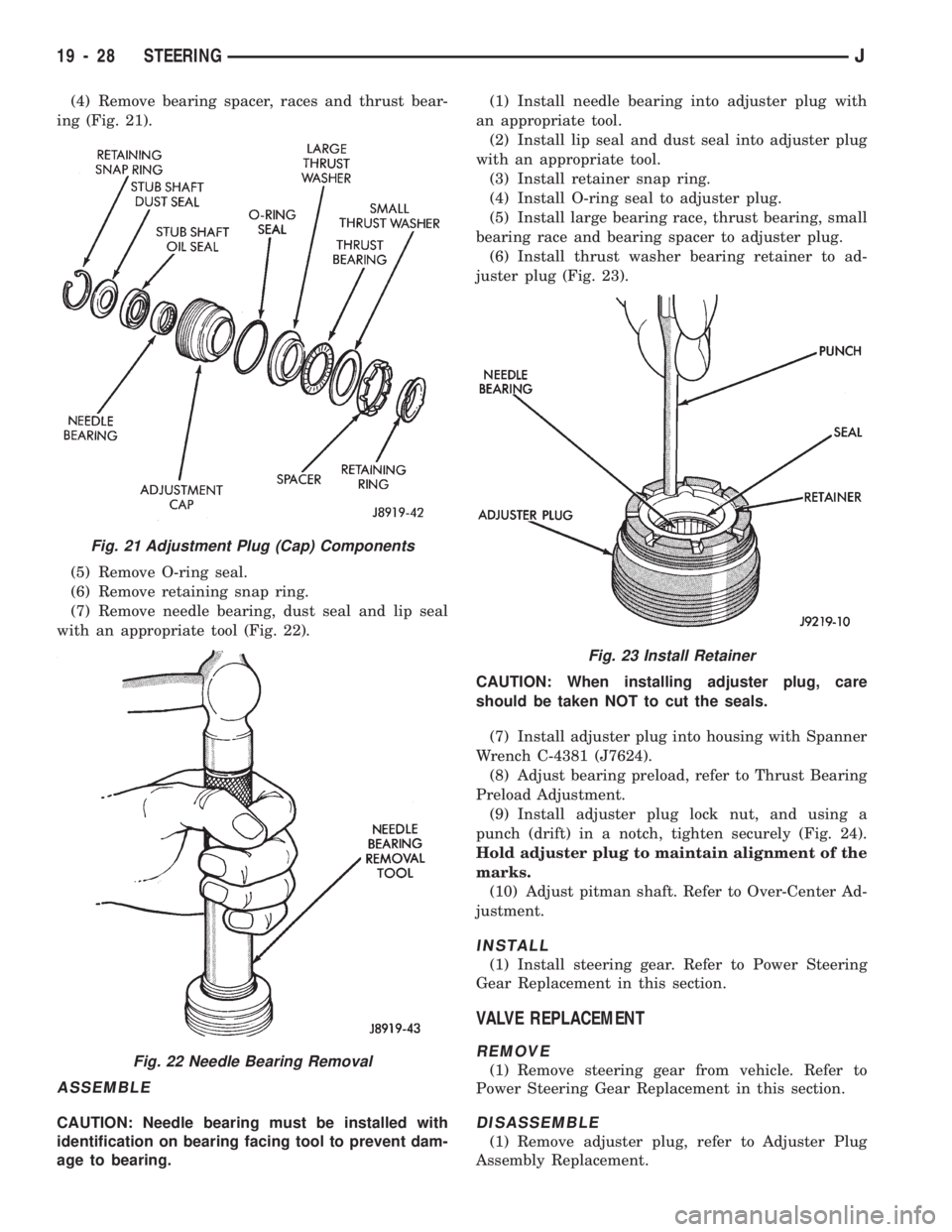

Fig. 22 Needle Bearing Removal
Fig. 23 Install Retainer
19 - 28 STEERINGJ

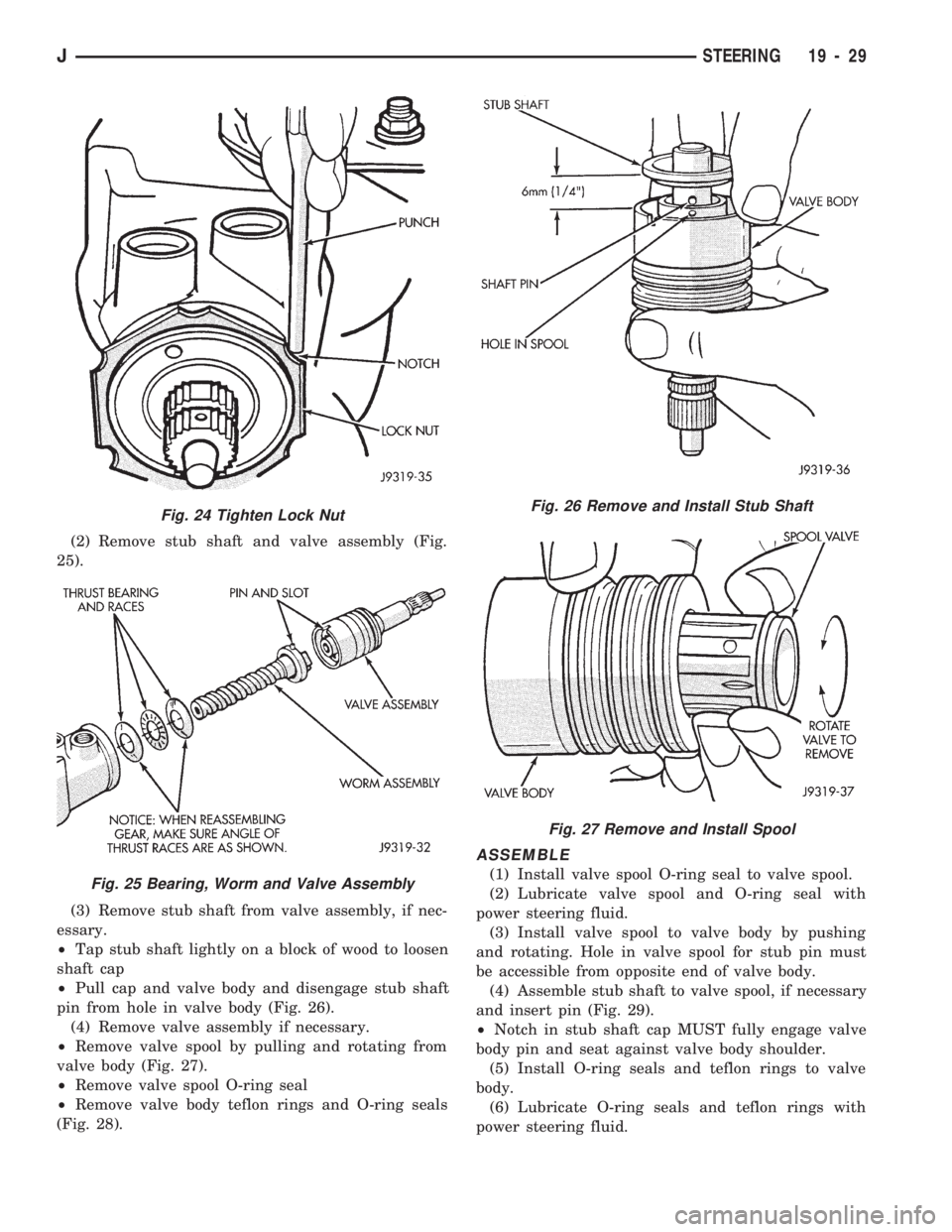

Fig. 25 Bearing, Worm and Valve Assembly
Fig. 26 Remove and Install Stub Shaft
Fig. 27 Remove and Install Spool
JSTEERING 19 - 29

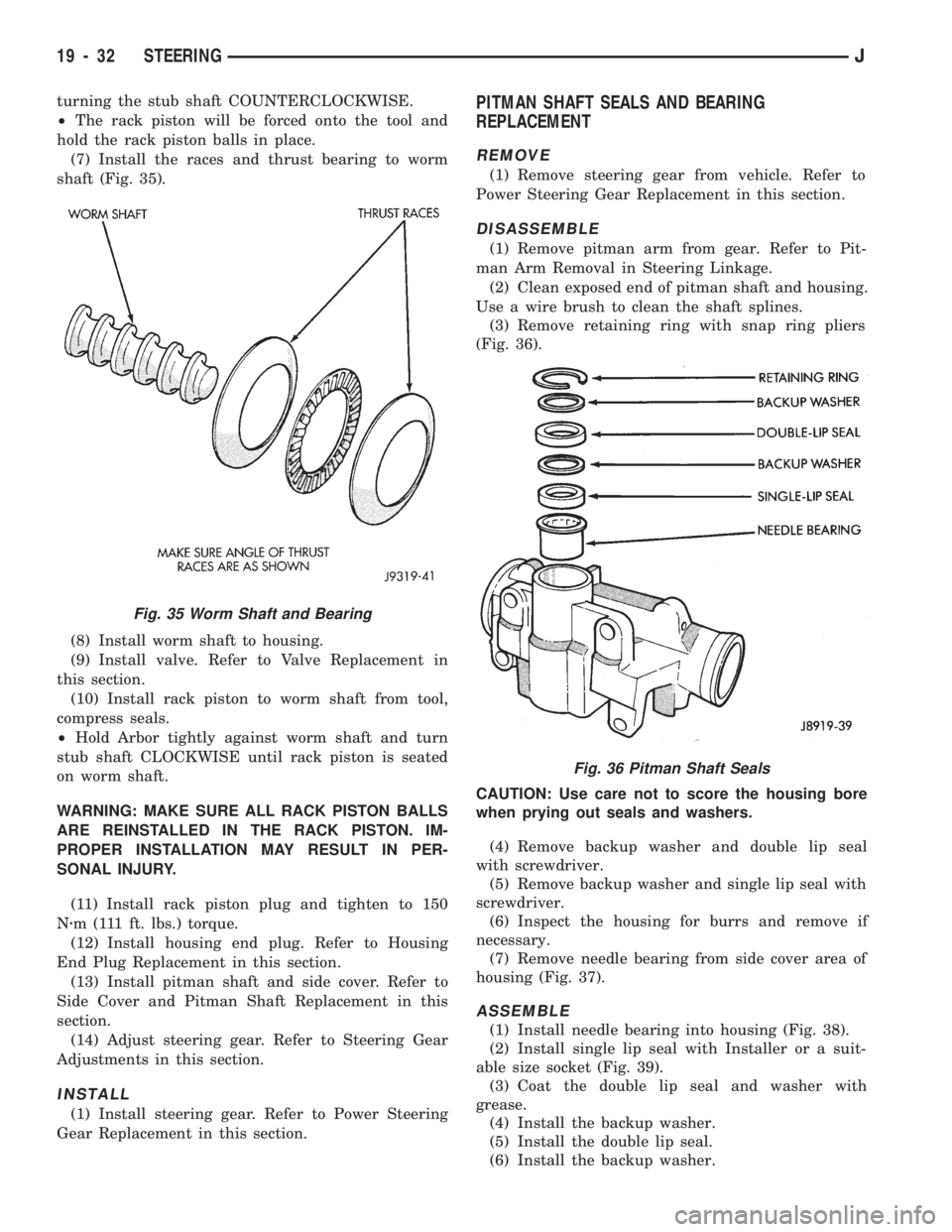

Fig. 29 Stub Shaft Installation

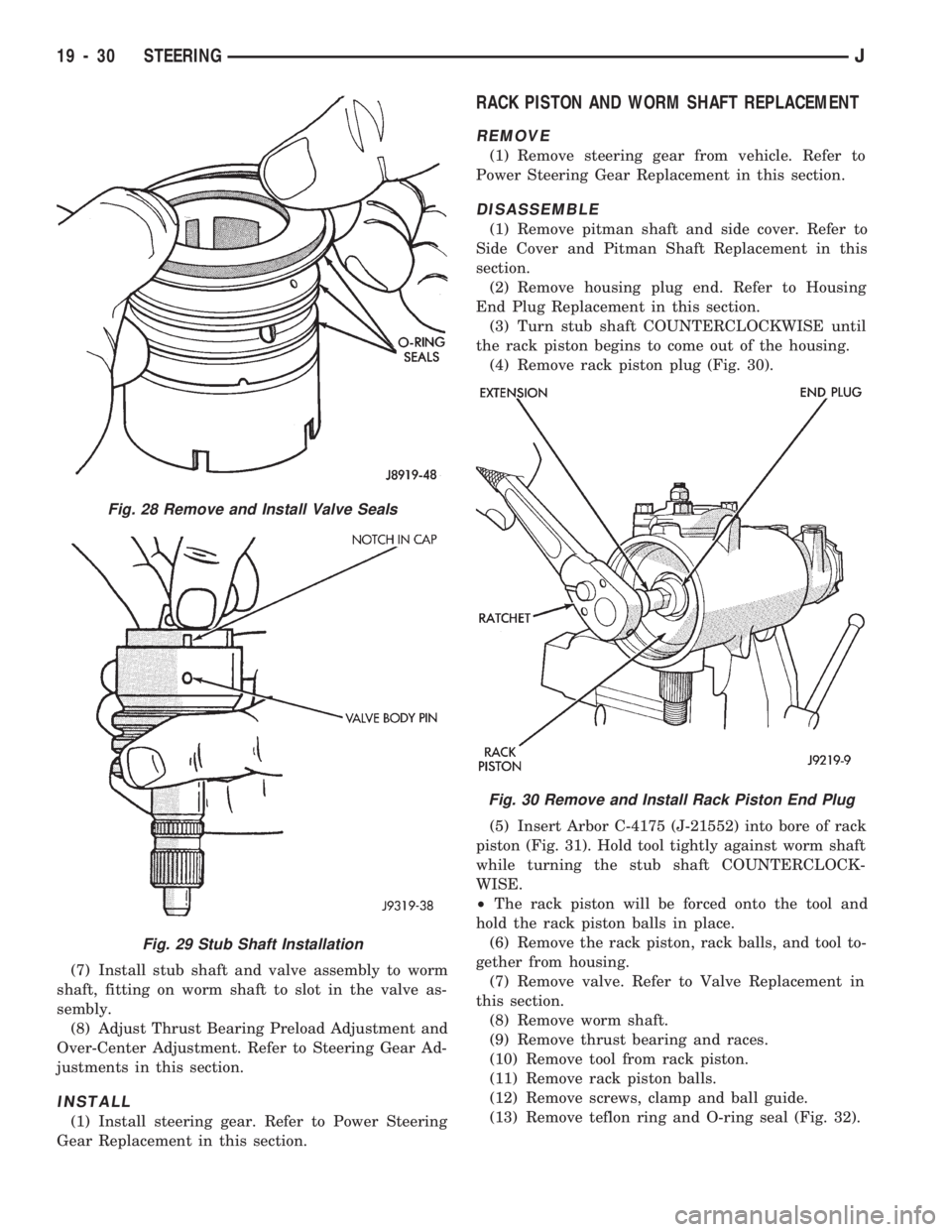

Fig. 30 Remove and Install Rack Piston End Plug
19 - 30 STEERINGJ

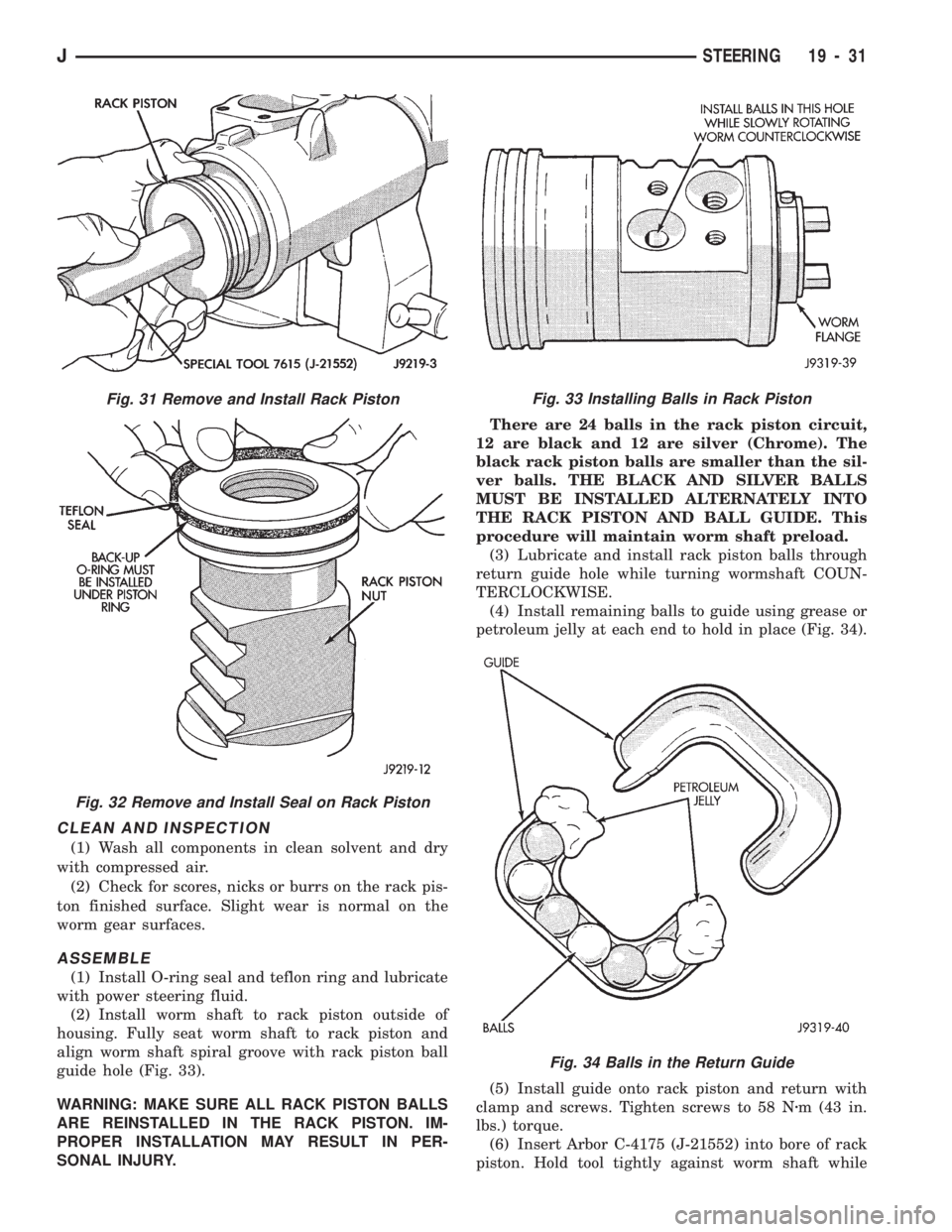

Fig. 31 Remove and Install Rack Piston
Fig. 32 Remove and Install Seal on Rack Piston
Fig. 33 Installing Balls in Rack Piston
JSTEERING 19 - 31

Fig. 35 Worm Shaft and Bearing
19 - 32 STEERINGJ
