JEEP WRANGLER 1994 Owners Manual

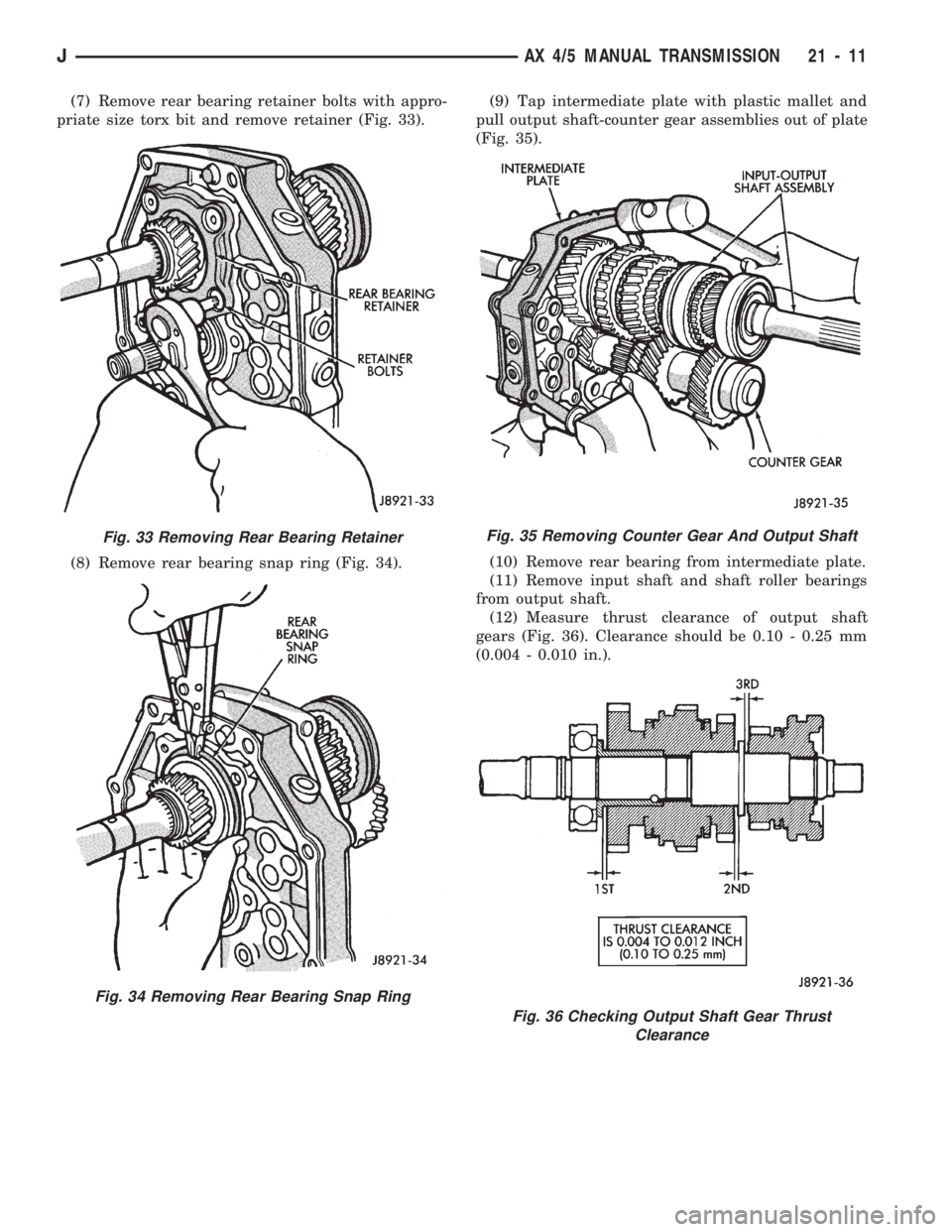

Fig. 34 Removing Rear Bearing Snap Ring
Fig. 35 Removing Counter Gear And Output Shaft
Fig. 36 Checking Output Shaft Gear Thrust
Clearance
JAX 4/5 MANUAL TRANSMISSION 21 - 11

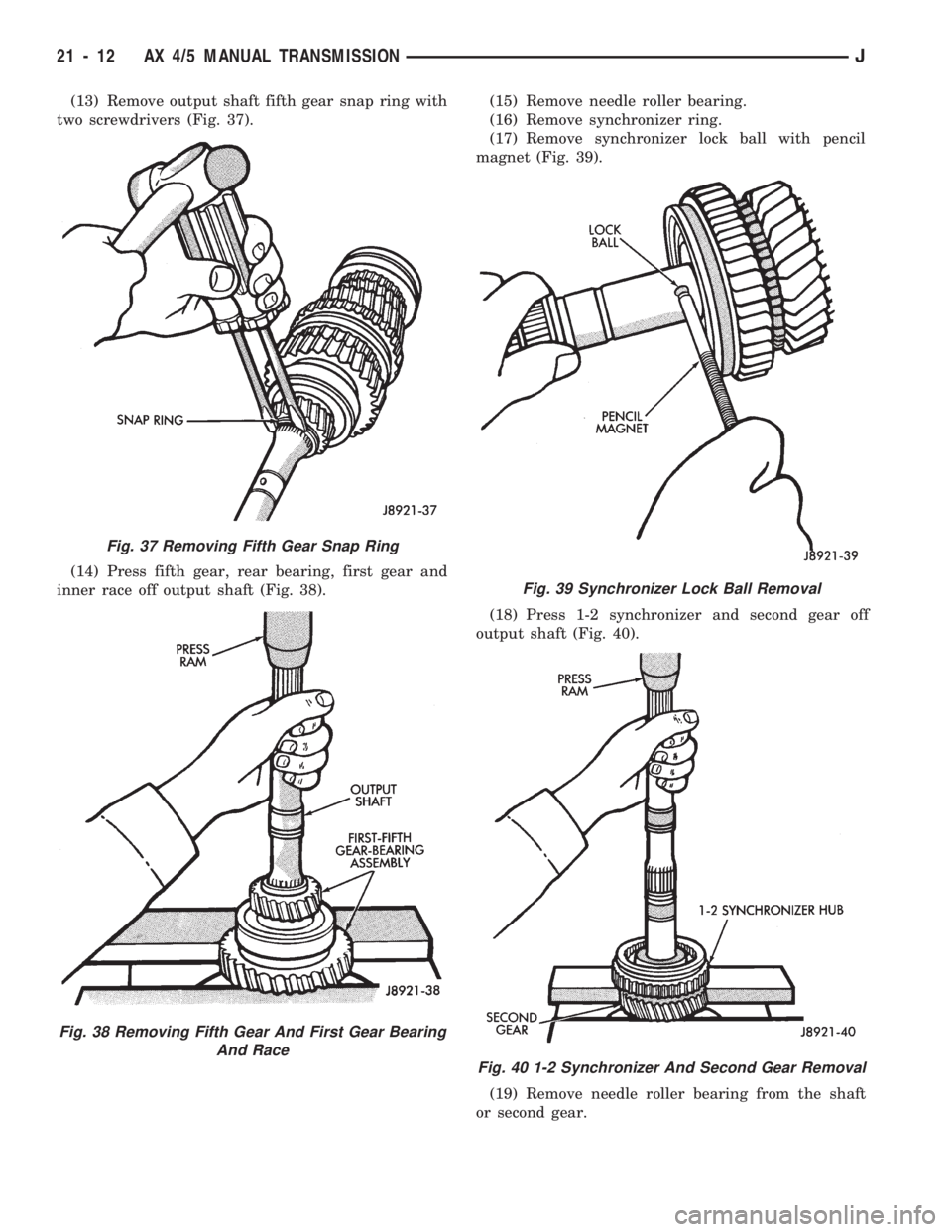

Fig. 38 Removing Fifth Gear And First Gear Bearing
And Race
Fig. 39 Synchronizer Lock Ball Removal
Fig. 40 1-2 Synchronizer And Second Gear Removal
21 - 12 AX 4/5 MANUAL TRANSMISSIONJ

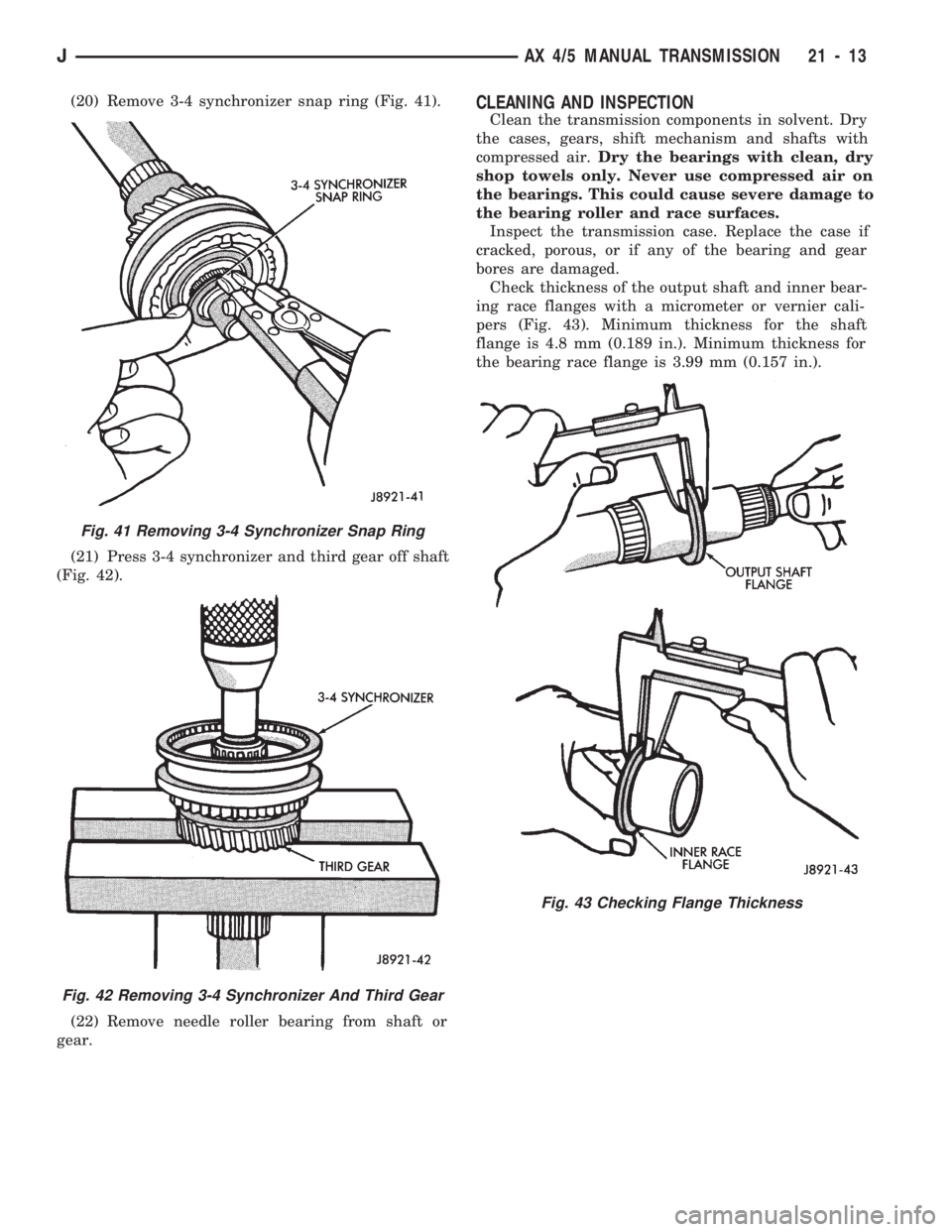

Fig. 42 Removing 3-4 Synchronizer And Third Gear
Fig. 43 Checking Flange Thickness
JAX 4/5 MANUAL TRANSMISSION 21 - 13

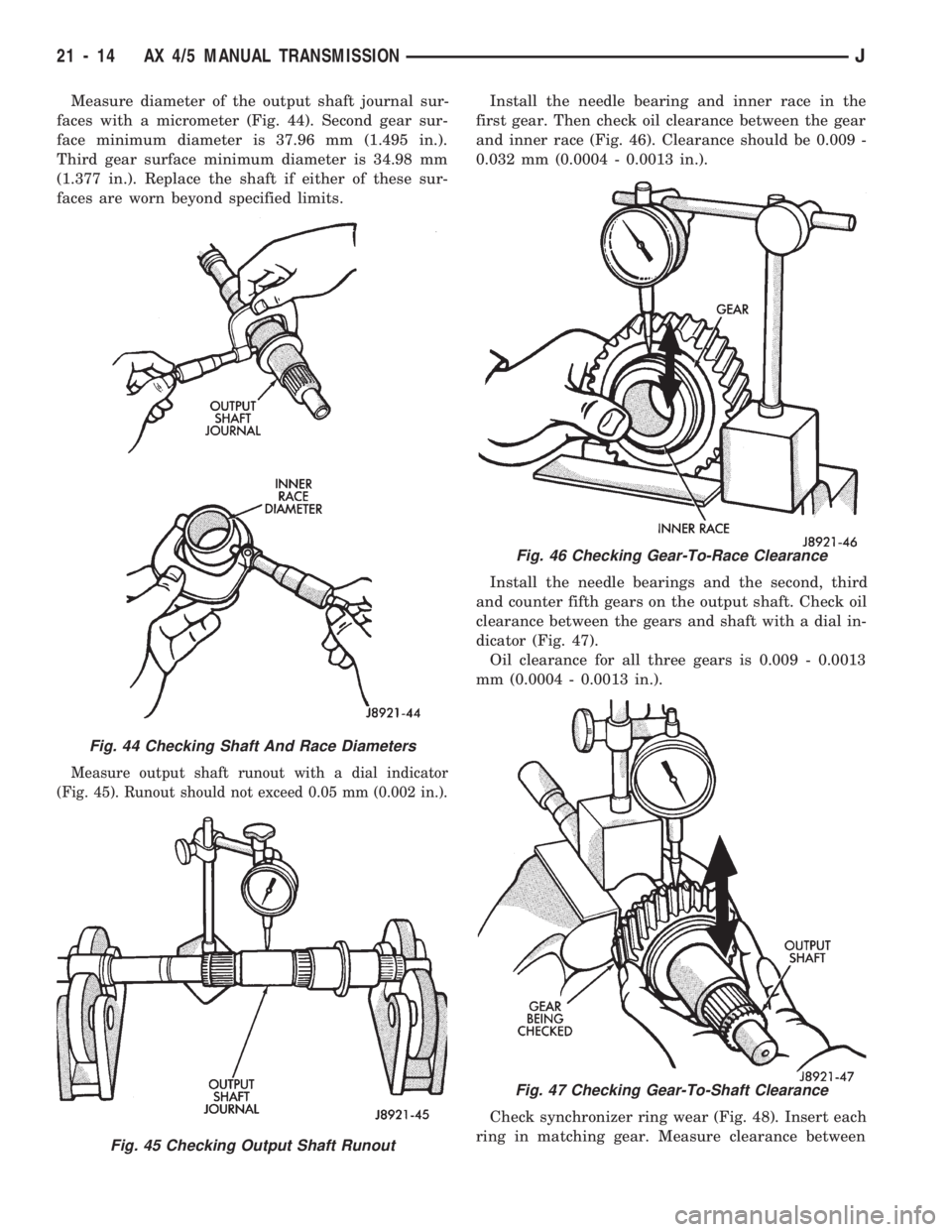

Fig. 45 Checking Output Shaft Runout
Fig. 46 Checking Gear-To-Race Clearance
Fig. 47 Checking Gear-To-Shaft Clearance
21 - 14 AX 4/5 MANUAL TRANSMISSIONJ

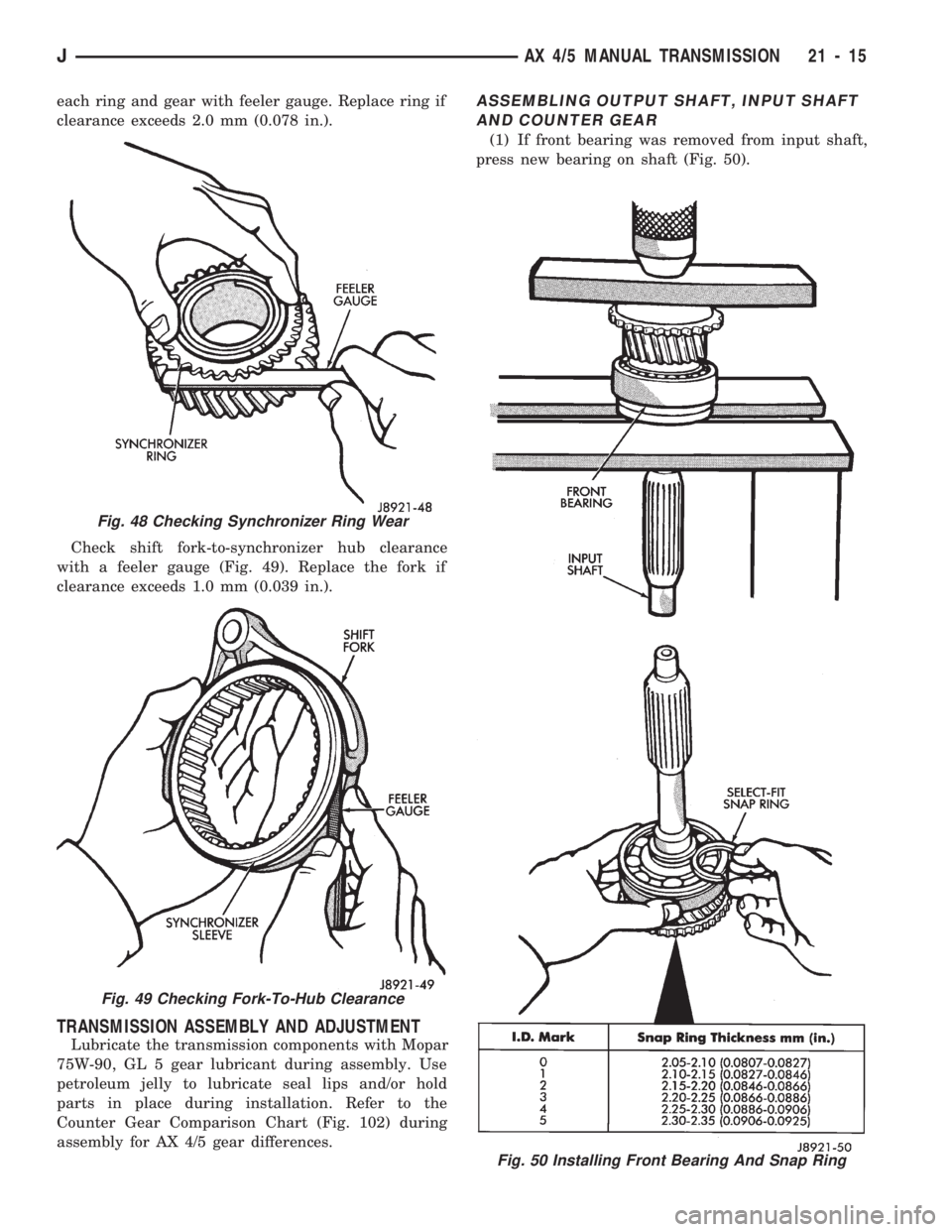

Fig. 48 Checking Synchronizer Ring Wear
Fig. 49 Checking Fork-To-Hub Clearance
JAX 4/5 MANUAL TRANSMISSION 21 - 15

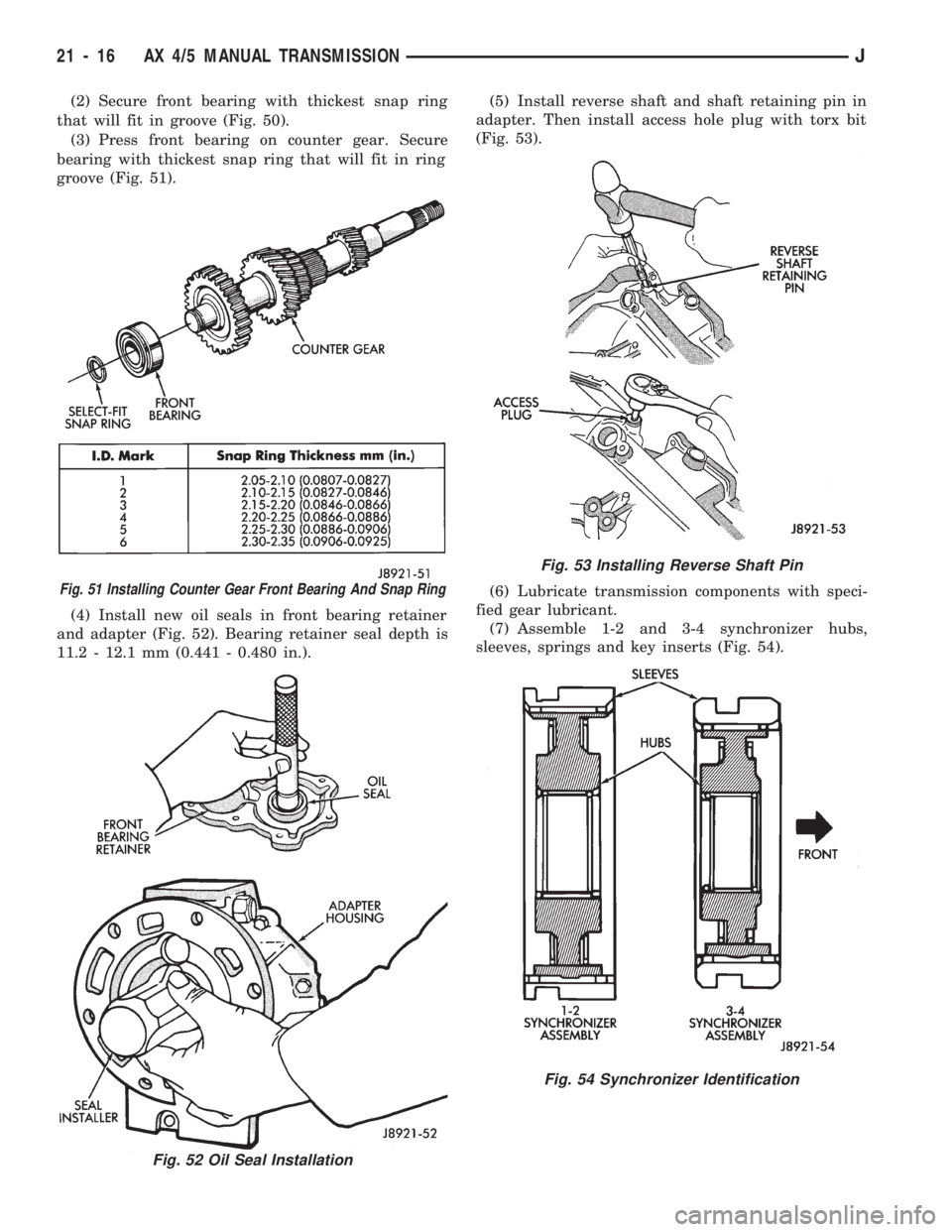

Fig. 52 Oil Seal Installation
Fig. 53 Installing Reverse Shaft Pin
Fig. 54 Synchronizer Identification
21 - 16 AX 4/5 MANUAL TRANSMISSIONJ

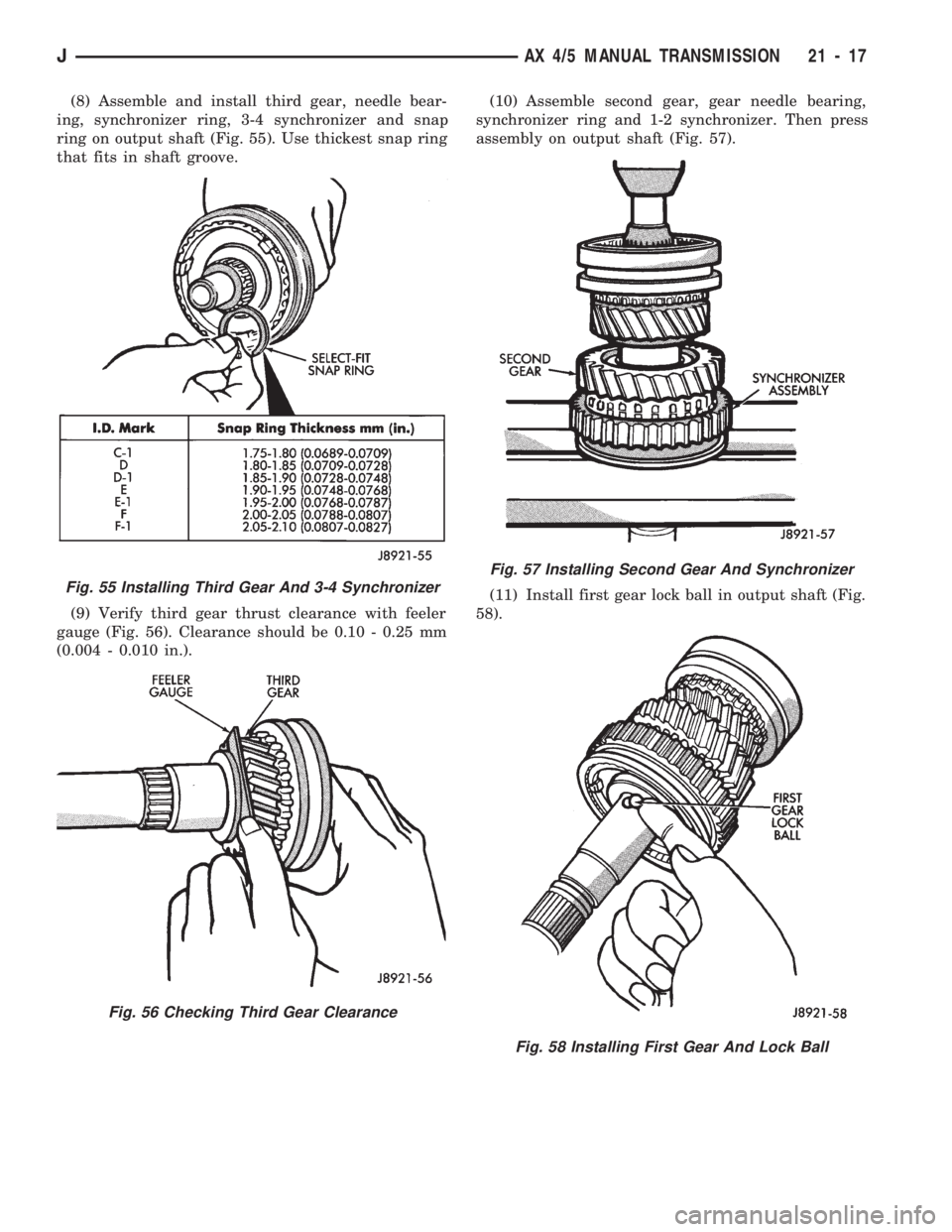

Fig. 56 Checking Third Gear Clearance
Fig. 57 Installing Second Gear And Synchronizer
Fig. 58 Installing First Gear And Lock Ball
JAX 4/5 MANUAL TRANSMISSION 21 - 17

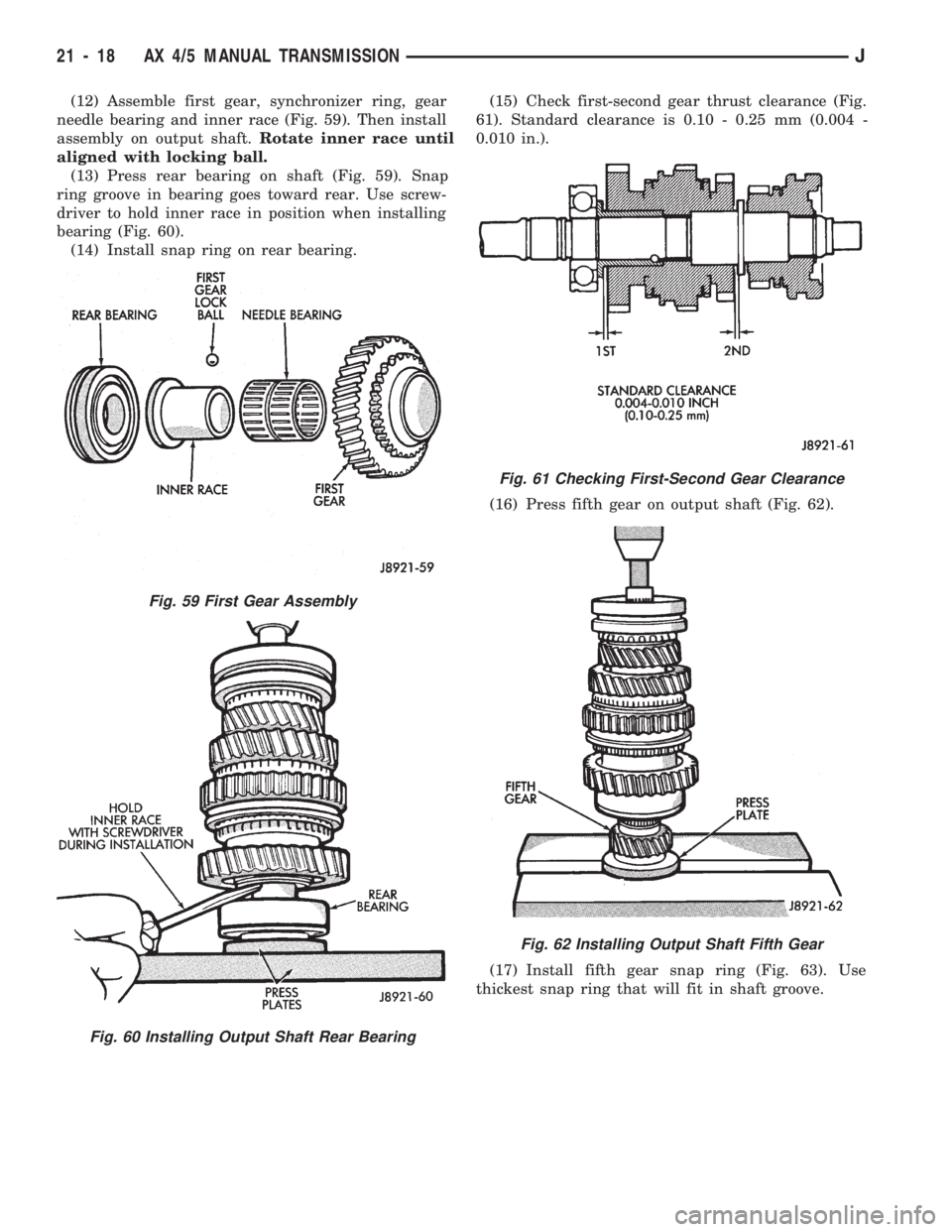

Fig. 60 Installing Output Shaft Rear Bearing
Fig. 61 Checking First-Second Gear Clearance
Fig. 62 Installing Output Shaft Fifth Gear
21 - 18 AX 4/5 MANUAL TRANSMISSIONJ

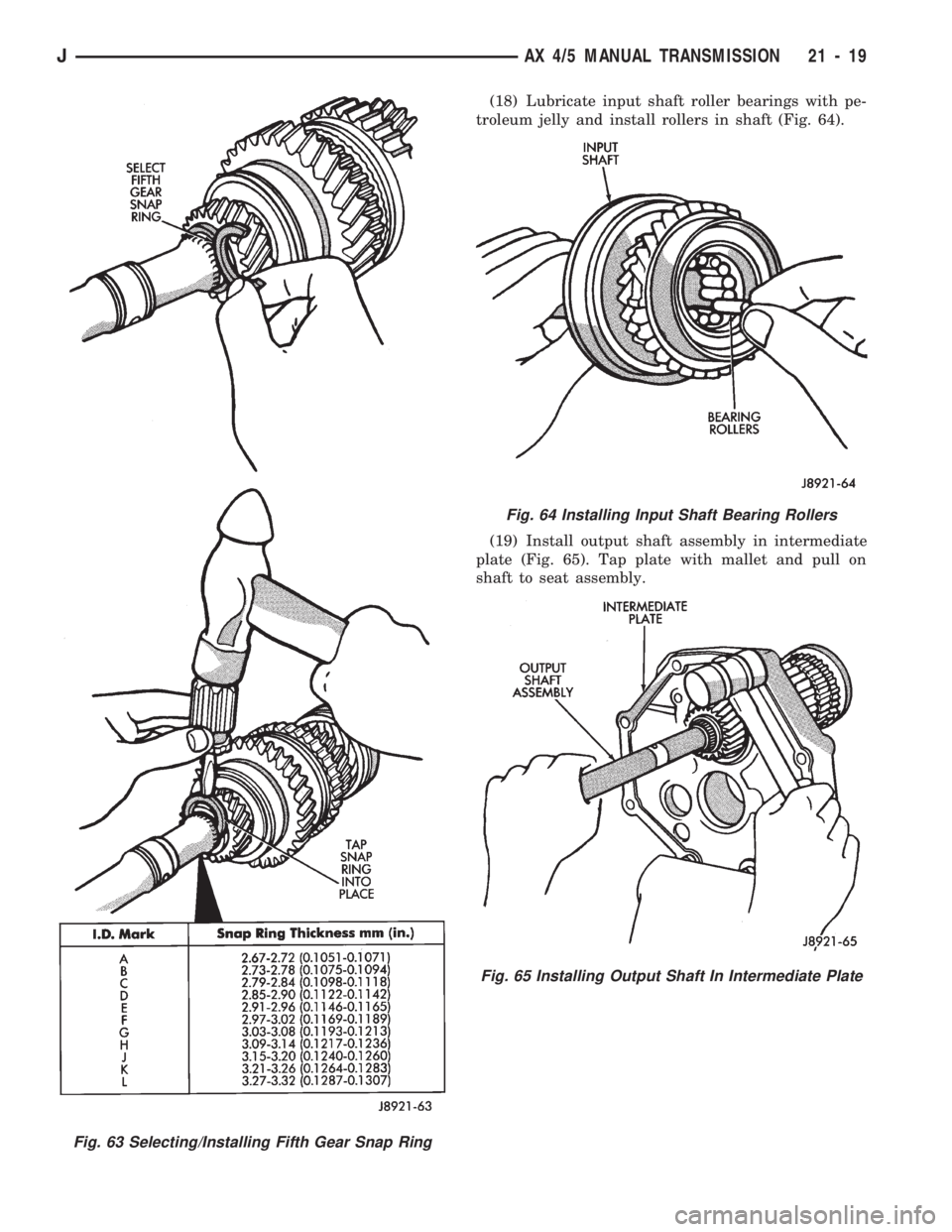

Fig. 64 Installing Input Shaft Bearing Rollers
Fig. 65 Installing Output Shaft In Intermediate Plate
JAX 4/5 MANUAL TRANSMISSION 21 - 19

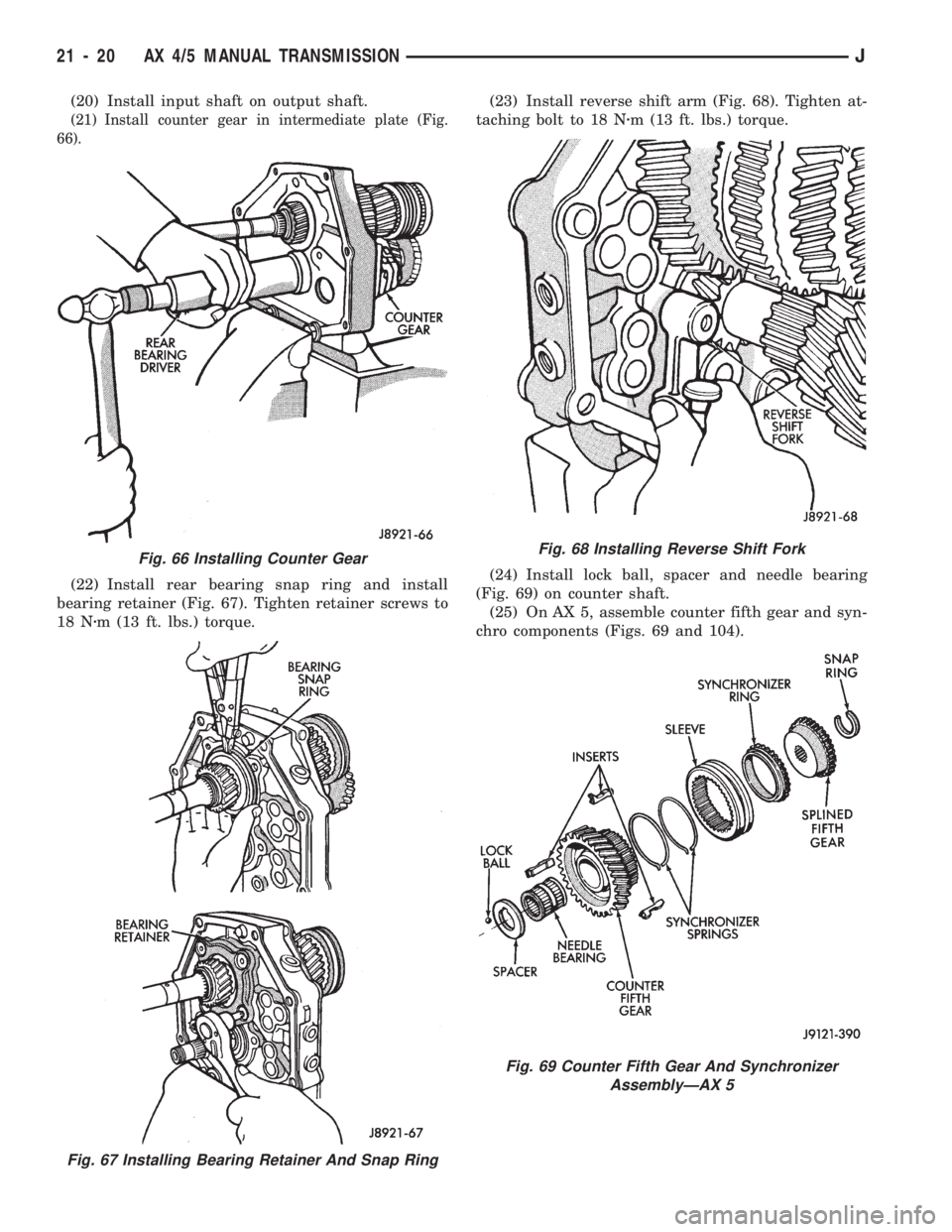

Fig. 67 Installing Bearing Retainer And Snap Ring
Fig. 68 Installing Reverse Shift Fork
Fig. 69 Counter Fifth Gear And Synchronizer
AssemblyÐAX 5
21 - 20 AX 4/5 MANUAL TRANSMISSIONJ
