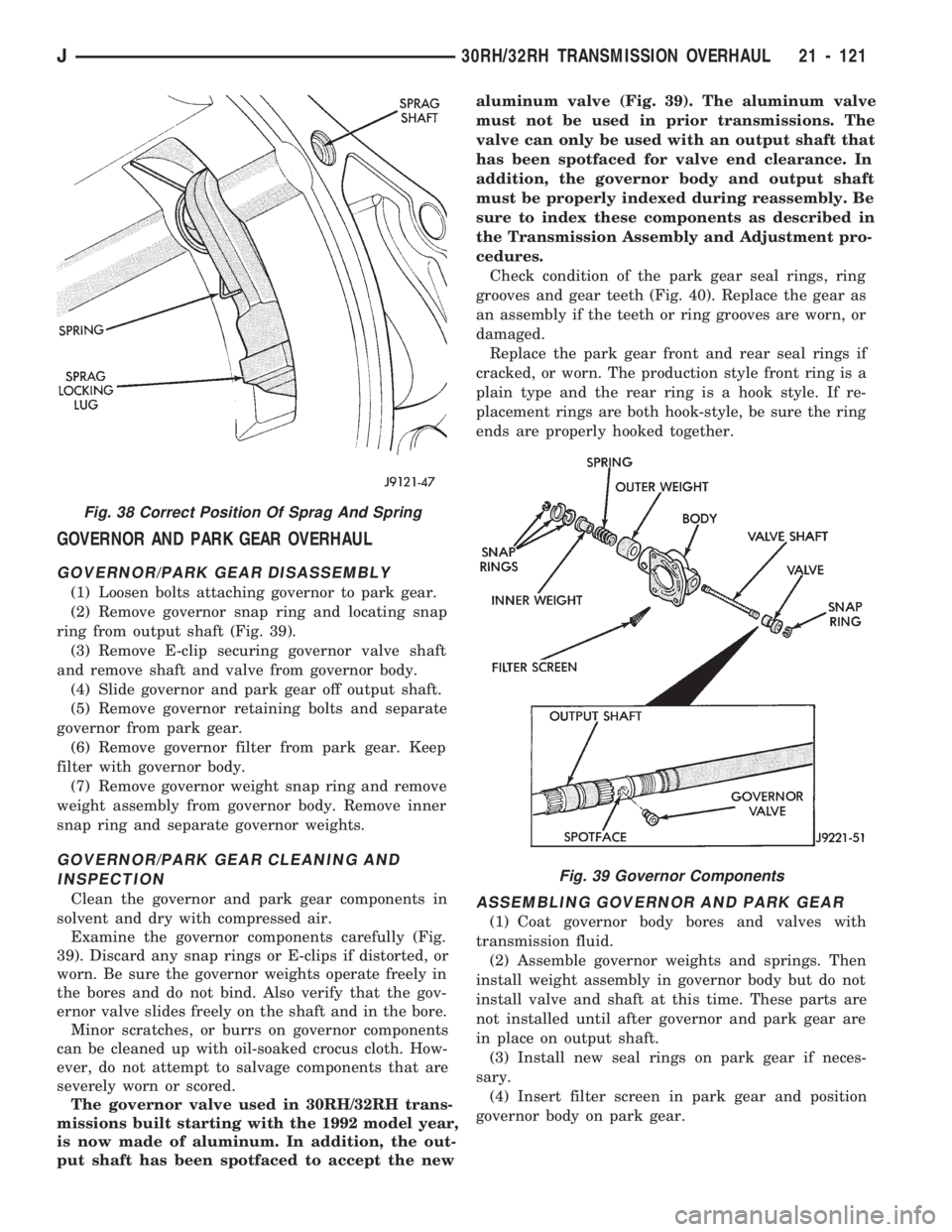

Fig. 39 Governor Components
J30RH/32RH TRANSMISSION OVERHAUL 21 - 121

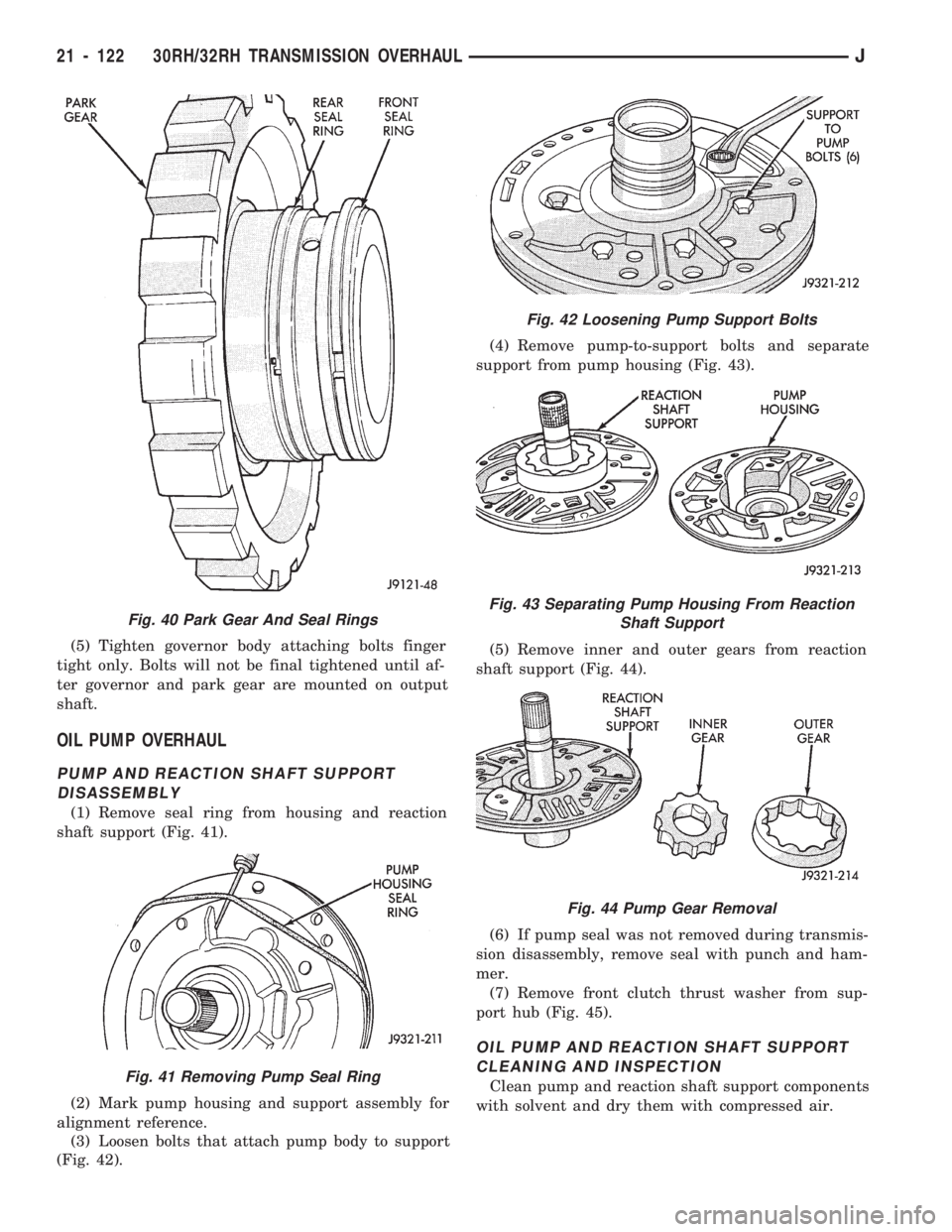

Fig. 41 Removing Pump Seal Ring
Fig. 42 Loosening Pump Support Bolts
Fig. 43 Separating Pump Housing From Reaction
Shaft Support
Fig. 44 Pump Gear Removal
21 - 122 30RH/32RH TRANSMISSION OVERHAULJ

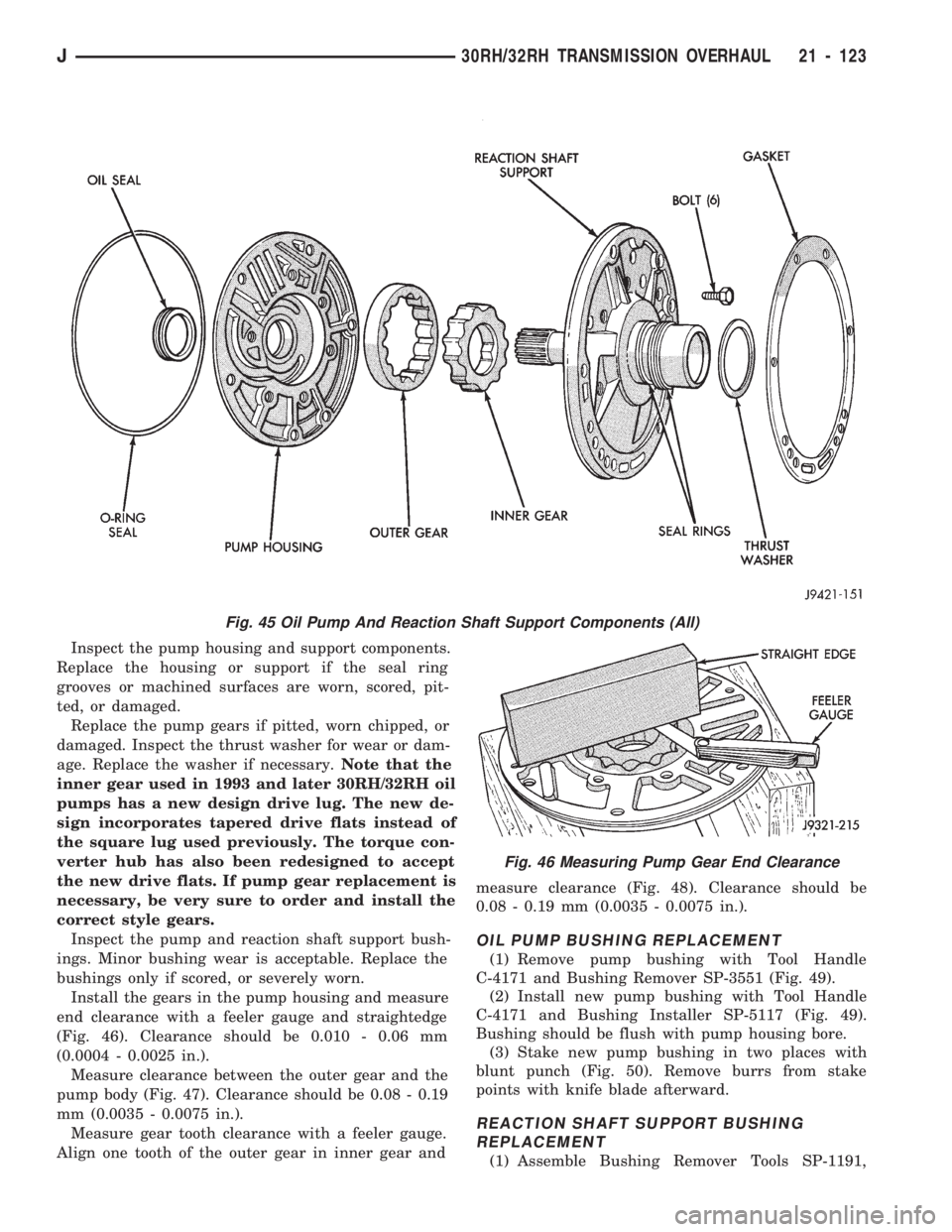

Fig. 46 Measuring Pump Gear End Clearance
J30RH/32RH TRANSMISSION OVERHAUL 21 - 123

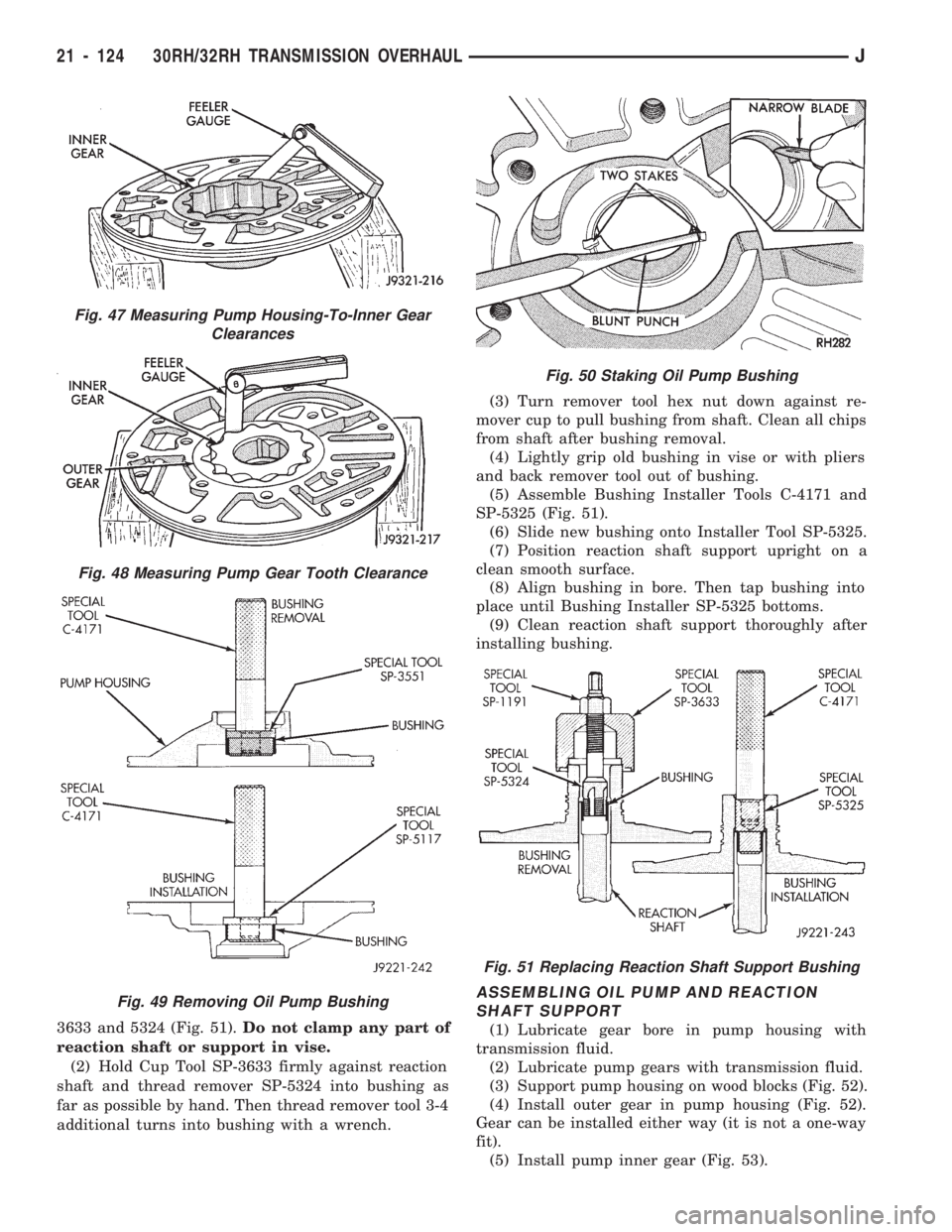

Fig. 48 Measuring Pump Gear Tooth Clearance
Fig. 49 Removing Oil Pump Bushing
Fig. 50 Staking Oil Pump Bushing
Fig. 51 Replacing Reaction Shaft Support Bushing
21 - 124 30RH/32RH TRANSMISSION OVERHAULJ

Fig. 53 Pump Inner Gear Installation
Fig. 54 Hub Seal Ring Position
Fig. 55 Assembling Reaction Shaft Support And
Pump Housing
J30RH/32RH TRANSMISSION OVERHAUL 21 - 125

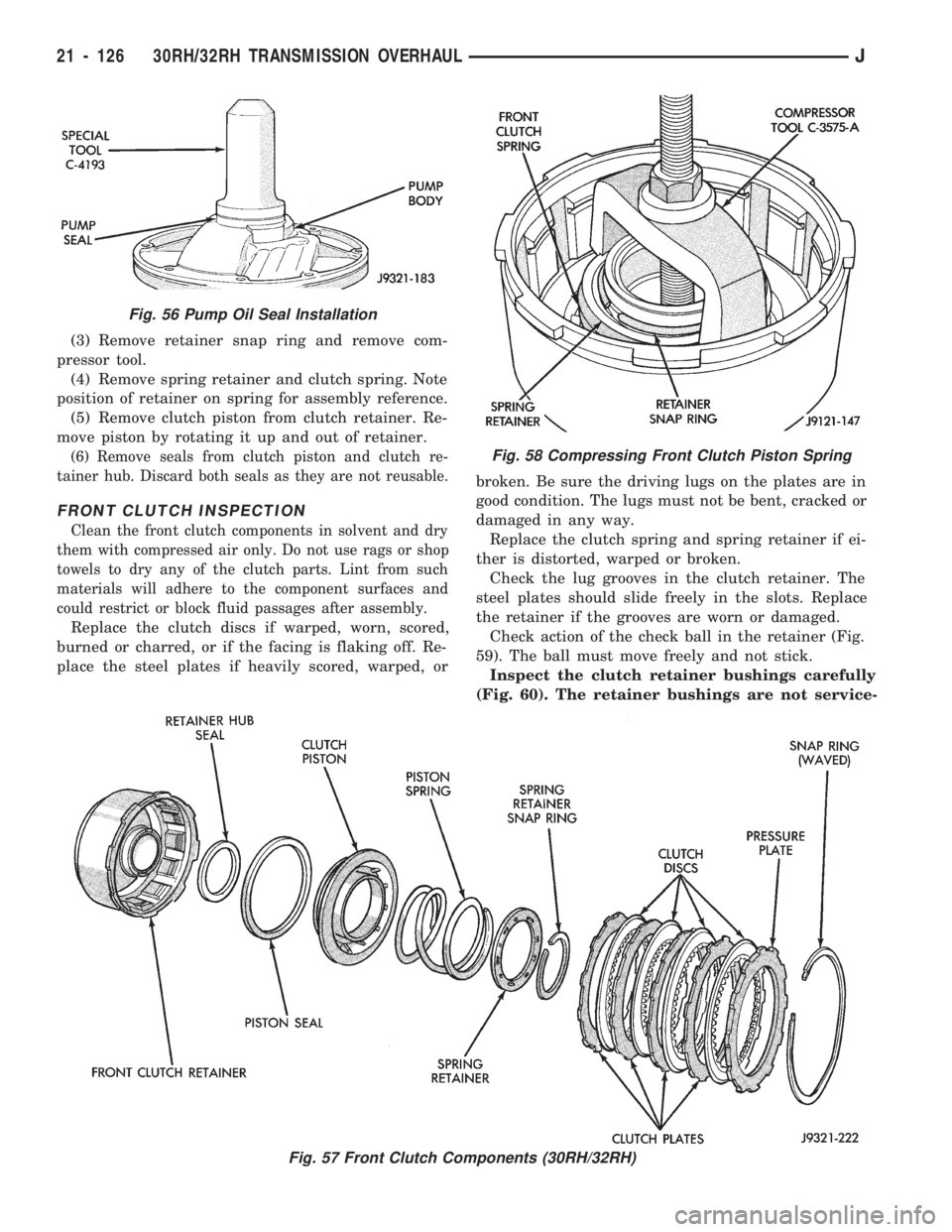

Fig. 57 Front Clutch Components (30RH/32RH)
Fig. 58 Compressing Front Clutch Piston Spring
21 - 126 30RH/32RH TRANSMISSION OVERHAULJ

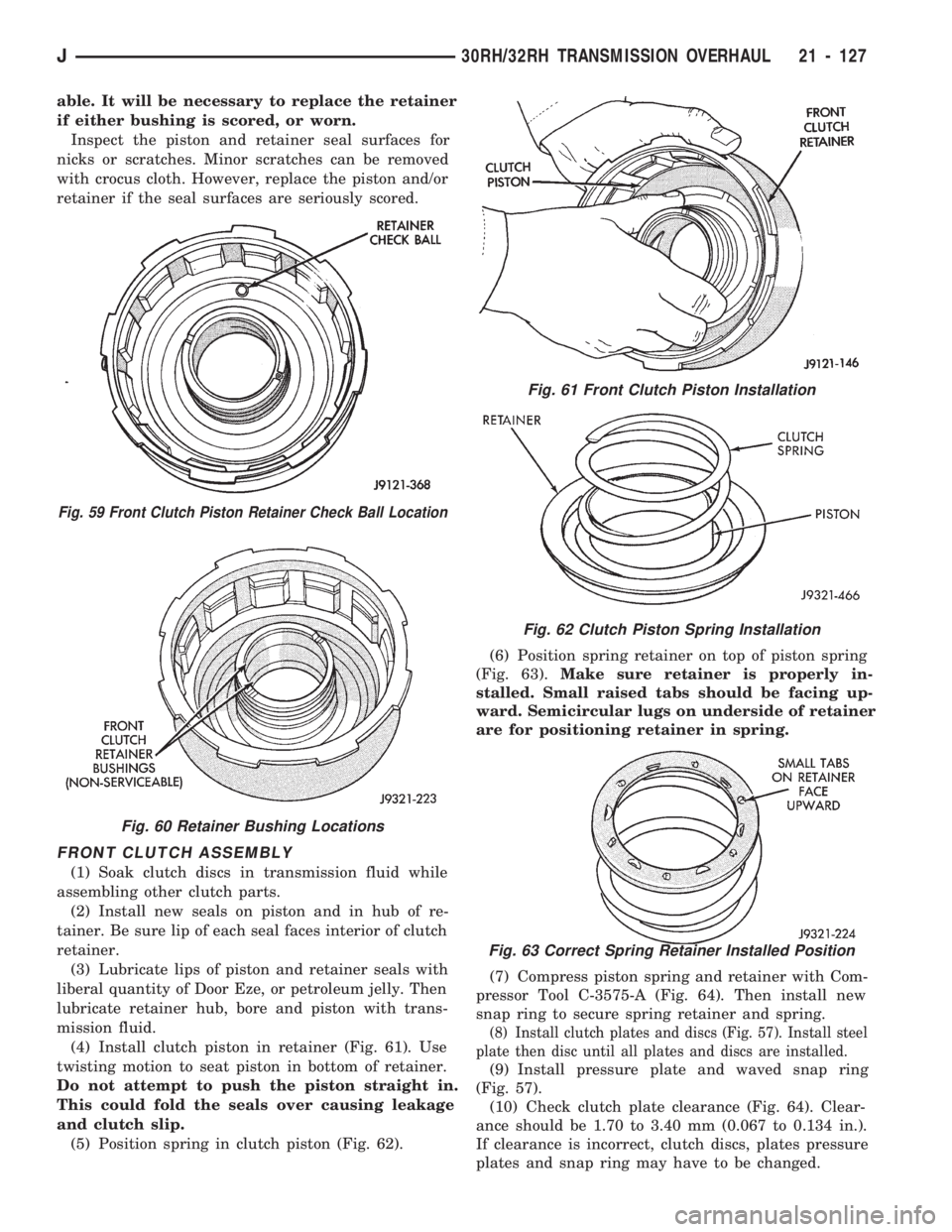

Fig. 60 Retainer Bushing Locations
Fig. 61 Front Clutch Piston Installation
Fig. 62 Clutch Piston Spring Installation
Fig. 63 Correct Spring Retainer Installed Position
J30RH/32RH TRANSMISSION OVERHAUL 21 - 127

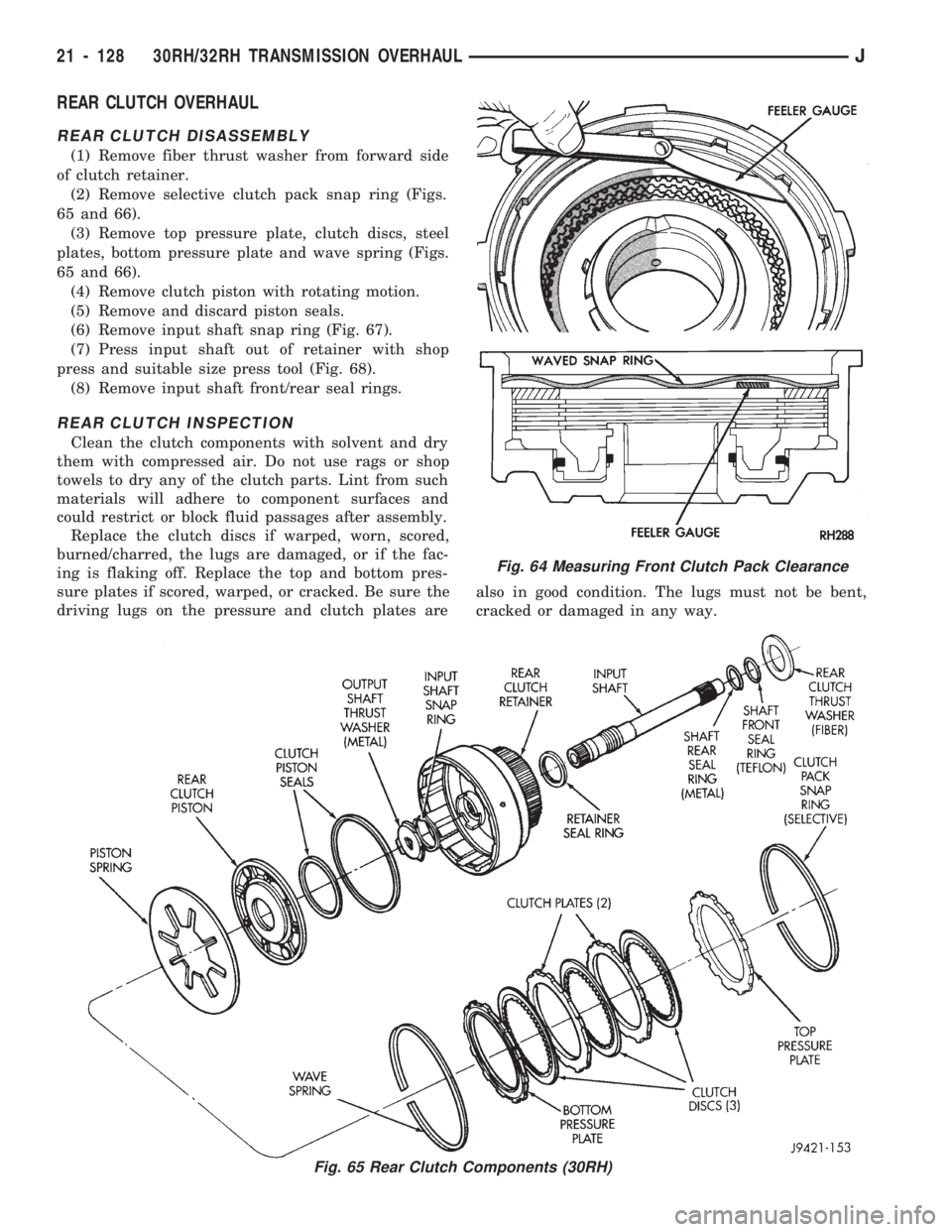

Fig. 65 Rear Clutch Components (30RH)
21 - 128 30RH/32RH TRANSMISSION OVERHAULJ

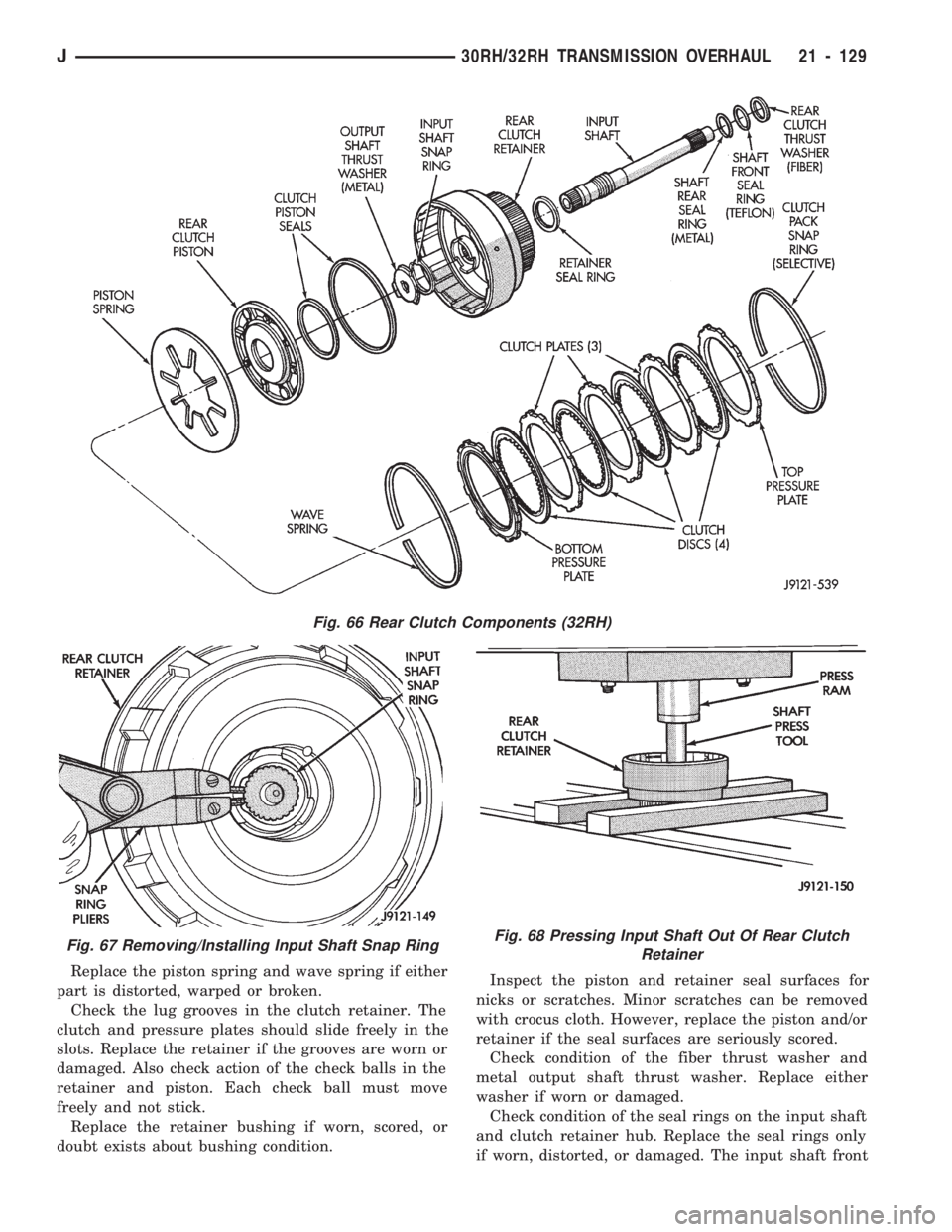

Fig. 67 Removing/Installing Input Shaft Snap RingFig. 68 Pressing Input Shaft Out Of Rear Clutch
Retainer
J30RH/32RH TRANSMISSION OVERHAUL 21 - 129

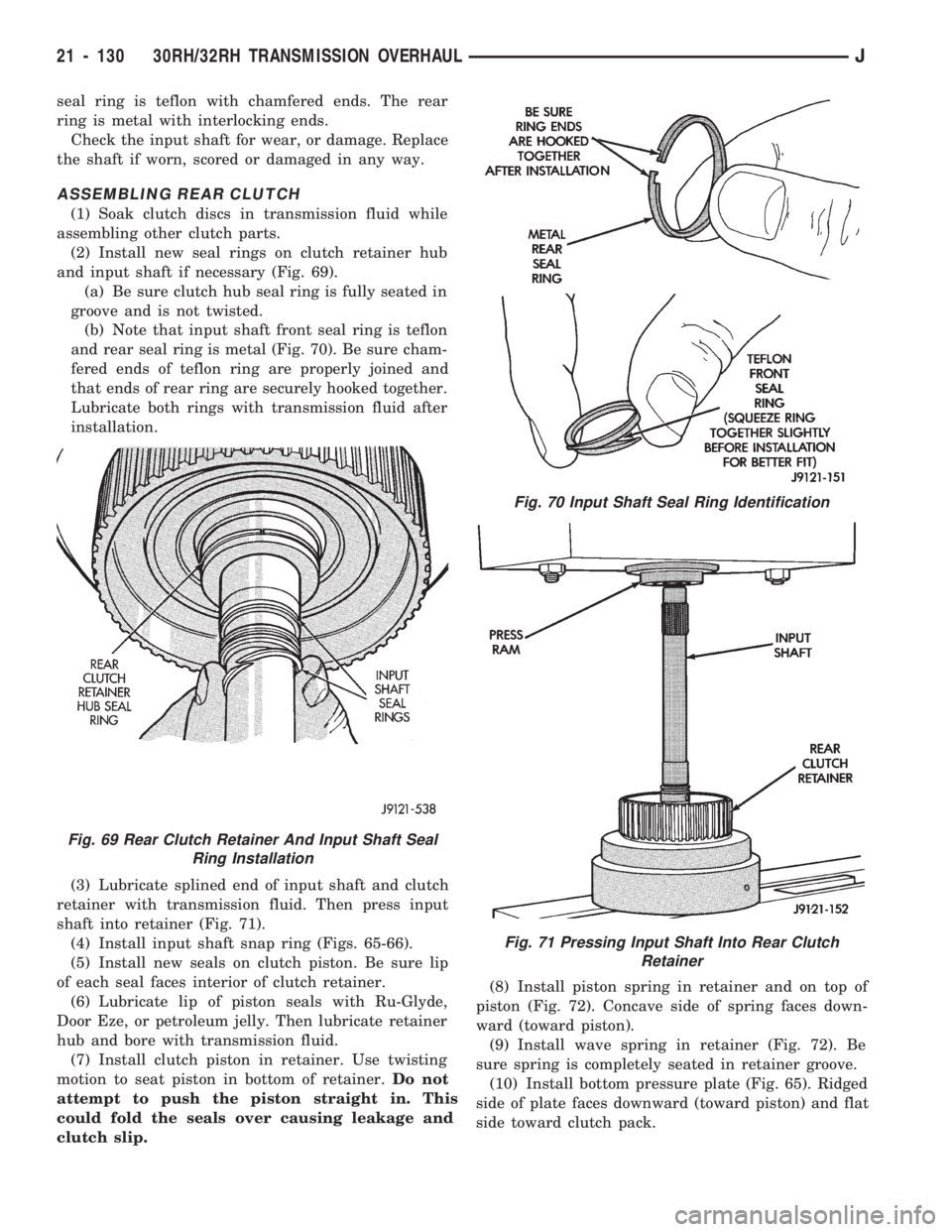

Fig. 70 Input Shaft Seal Ring Identification
Fig. 71 Pressing Input Shaft Into Rear Clutch
Retainer
21 - 130 30RH/32RH TRANSMISSION OVERHAULJ
