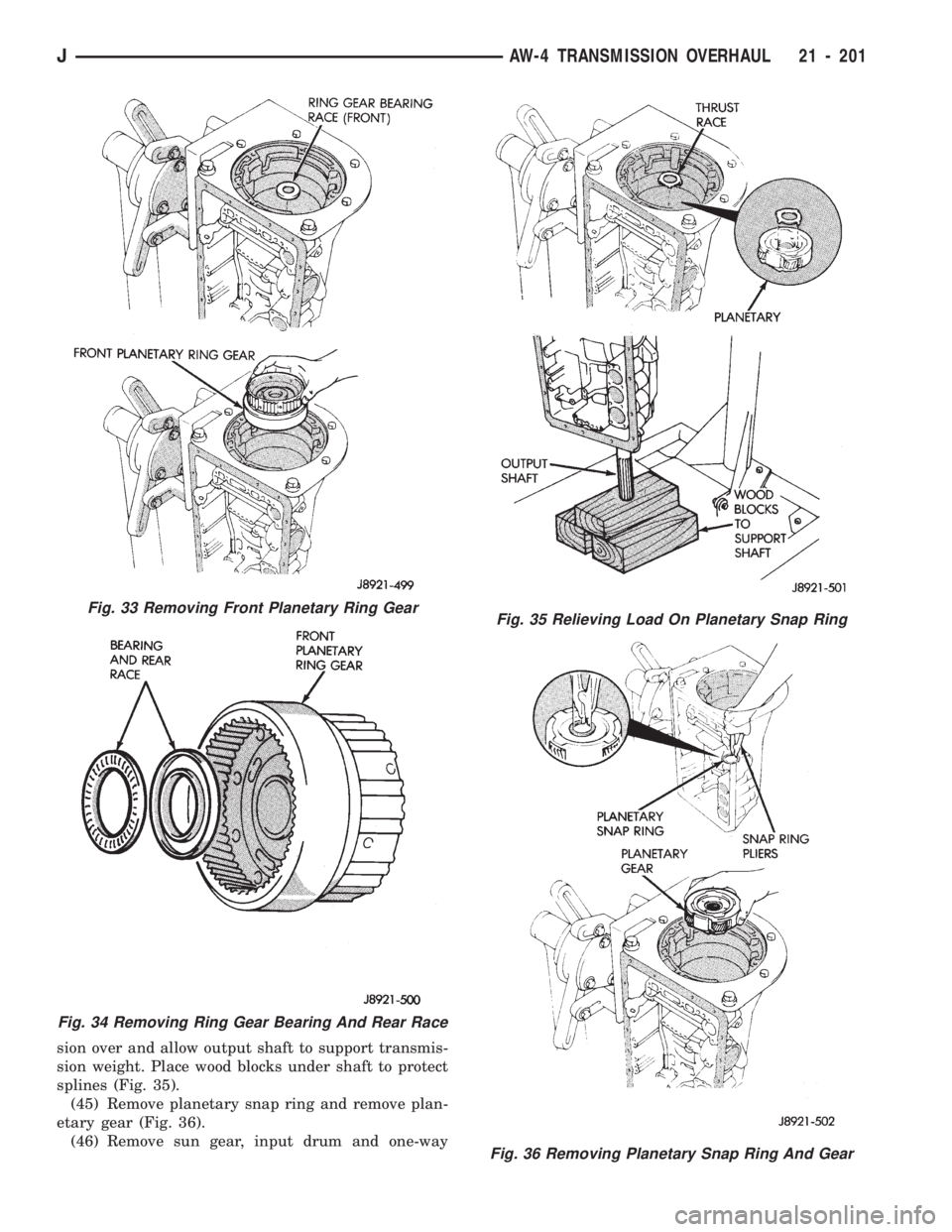

Fig. 34 Removing Ring Gear Bearing And Rear Race
Fig. 35 Relieving Load On Planetary Snap Ring
Fig. 36 Removing Planetary Snap Ring And Gear
JAW-4 TRANSMISSION OVERHAUL 21 - 201

Fig. 38 Checking Second Brake Clutch Pack
Clearance

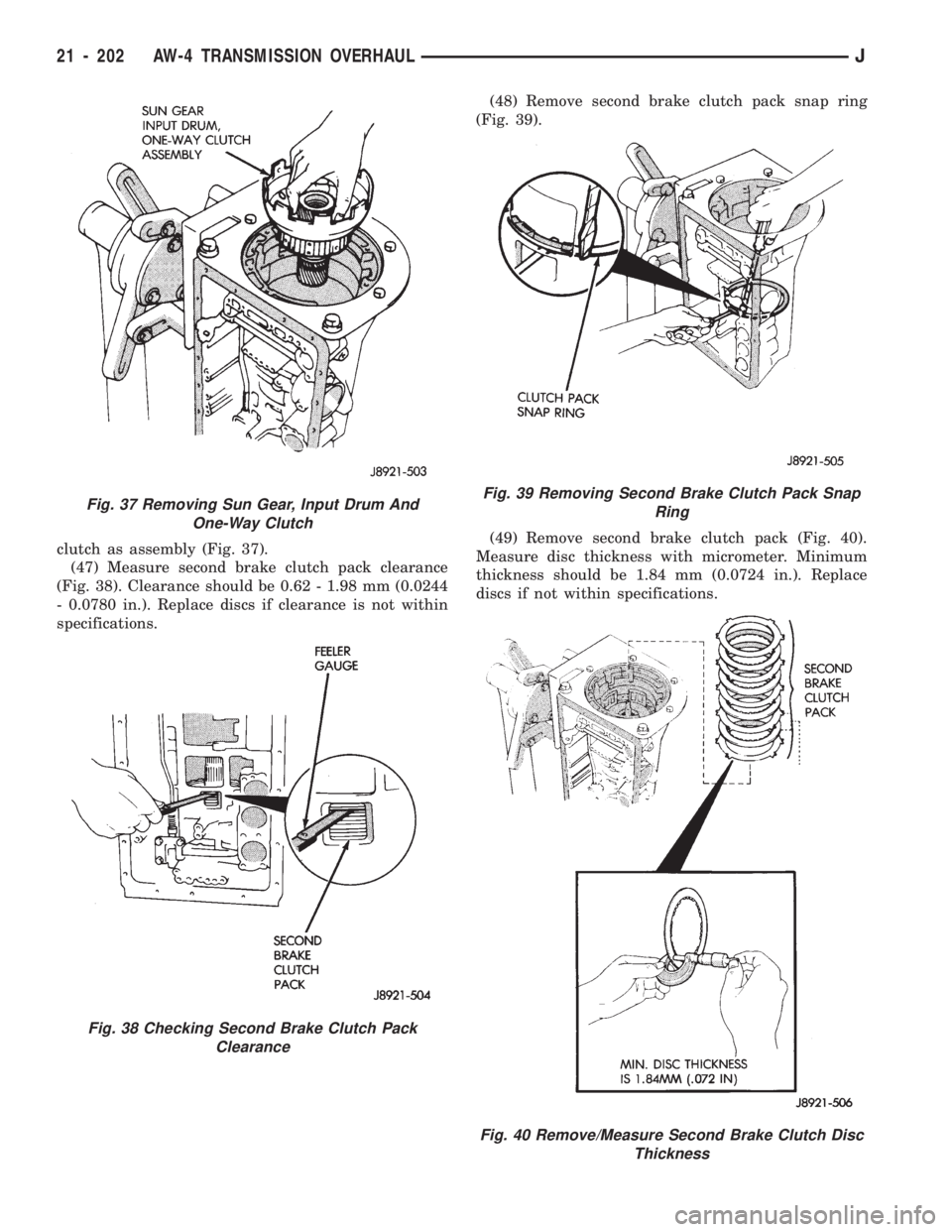

Fig. 39 Removing Second Brake Clutch Pack Snap
Ring
Fig. 40 Remove/Measure Second Brake Clutch Disc
Thickness
21 - 202 AW-4 TRANSMISSION OVERHAULJ

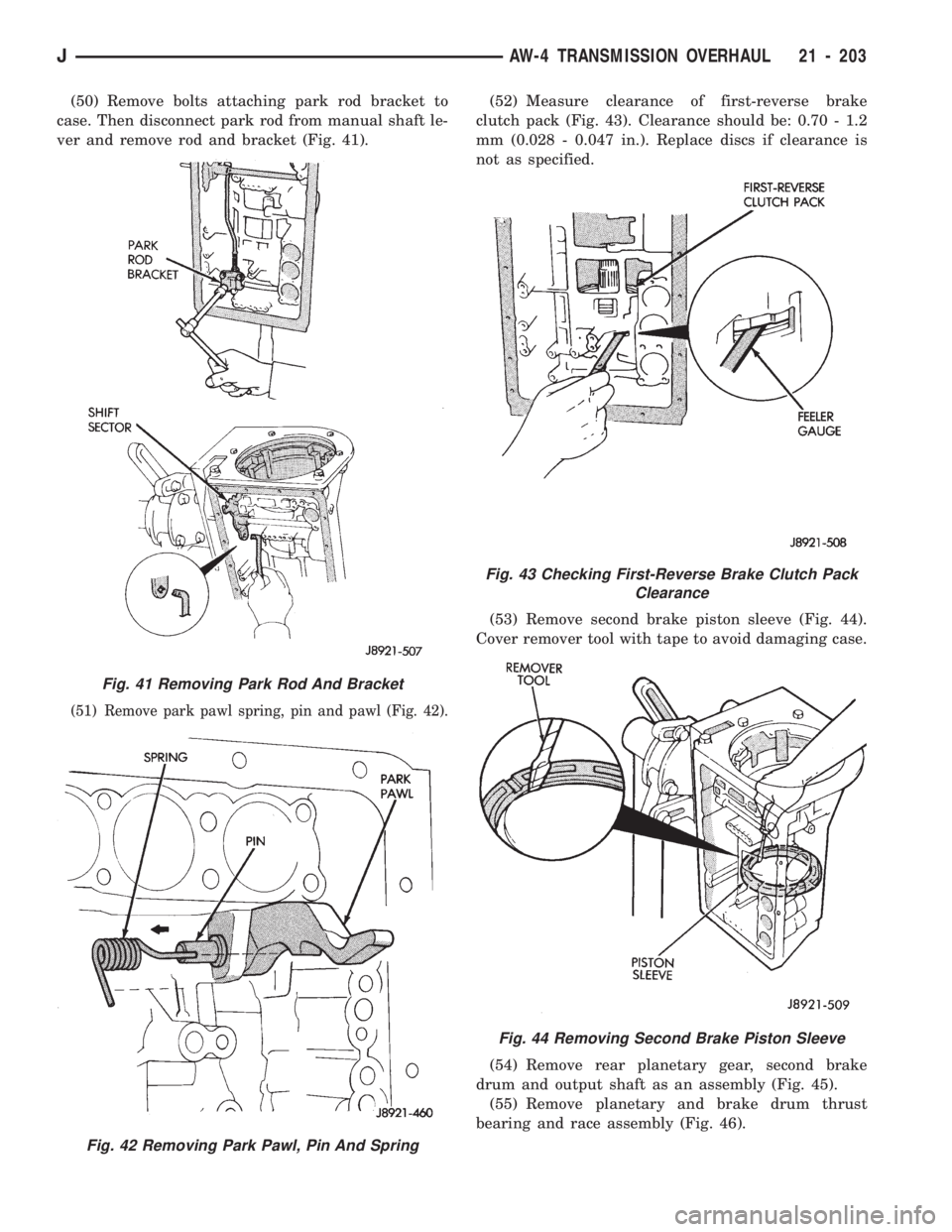

Fig. 42 Removing Park Pawl, Pin And Spring
Fig. 43 Checking First-Reverse Brake Clutch Pack
Clearance
Fig. 44 Removing Second Brake Piston Sleeve
JAW-4 TRANSMISSION OVERHAUL 21 - 203

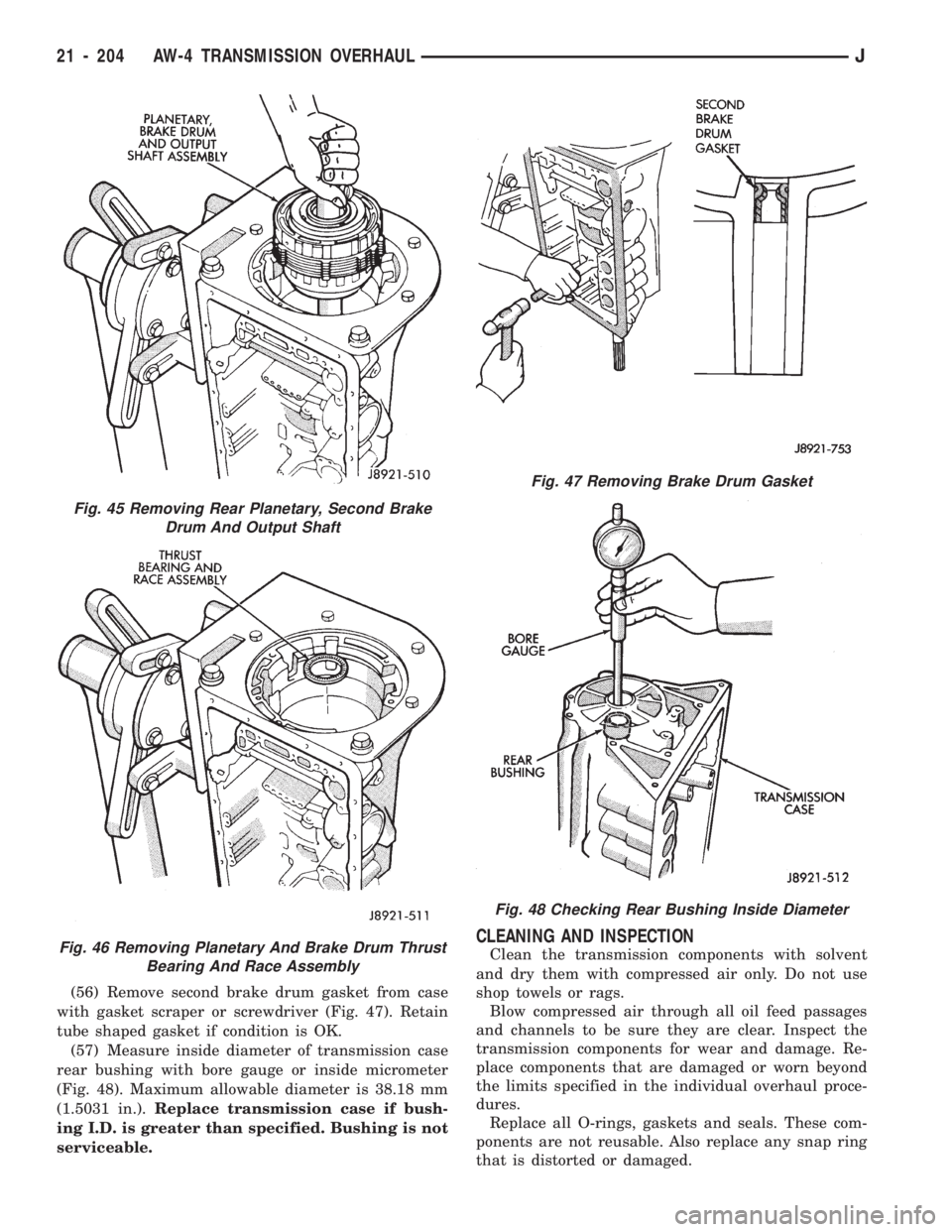

Fig. 46 Removing Planetary And Brake Drum Thrust
Bearing And Race Assembly
Fig. 47 Removing Brake Drum Gasket
Fig. 48 Checking Rear Bushing Inside Diameter
21 - 204 AW-4 TRANSMISSION OVERHAULJ

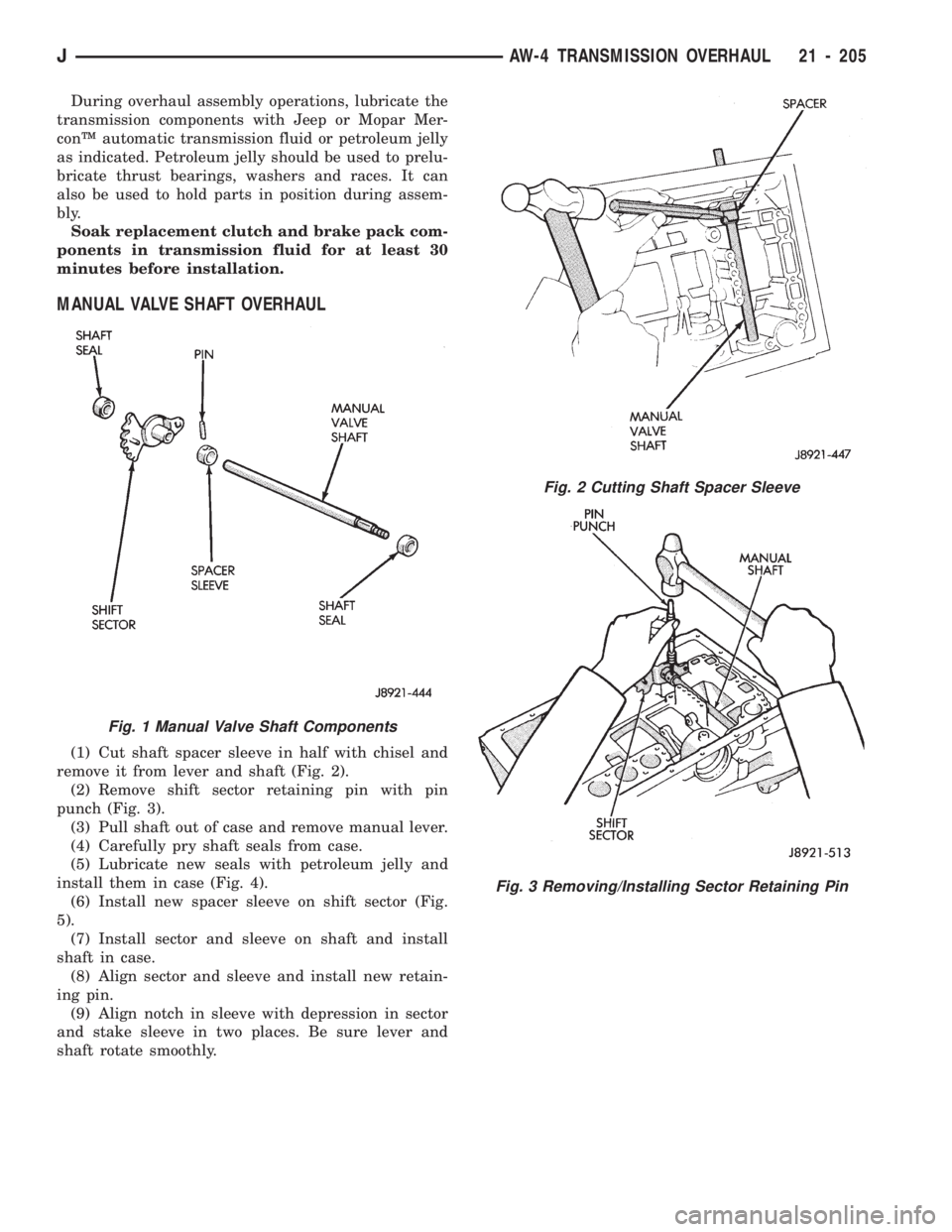

Fig. 2 Cutting Shaft Spacer Sleeve
Fig. 3 Removing/Installing Sector Retaining Pin
JAW-4 TRANSMISSION OVERHAUL 21 - 205

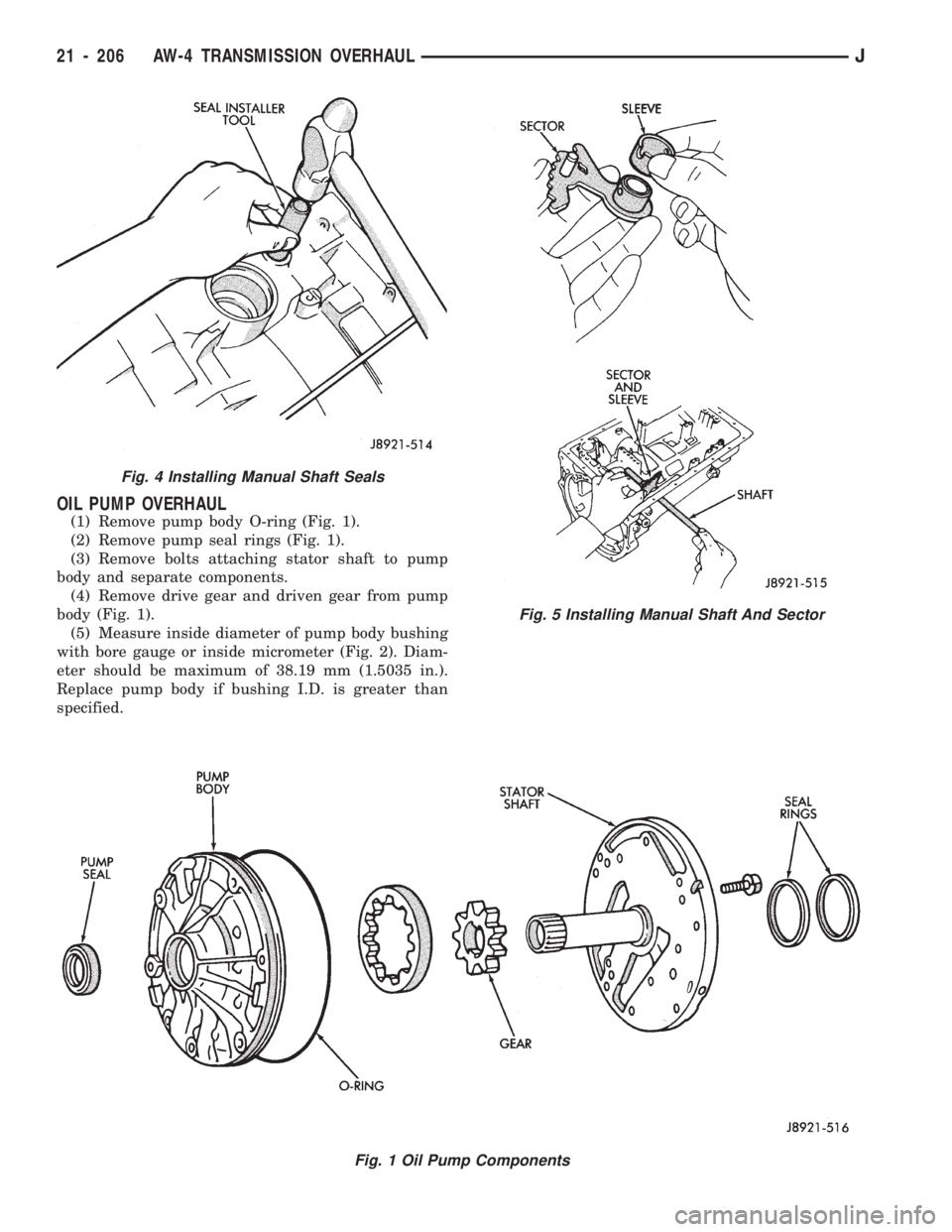

Fig. 4 Installing Manual Shaft Seals
Fig. 5 Installing Manual Shaft And Sector
21 - 206 AW-4 TRANSMISSION OVERHAULJ

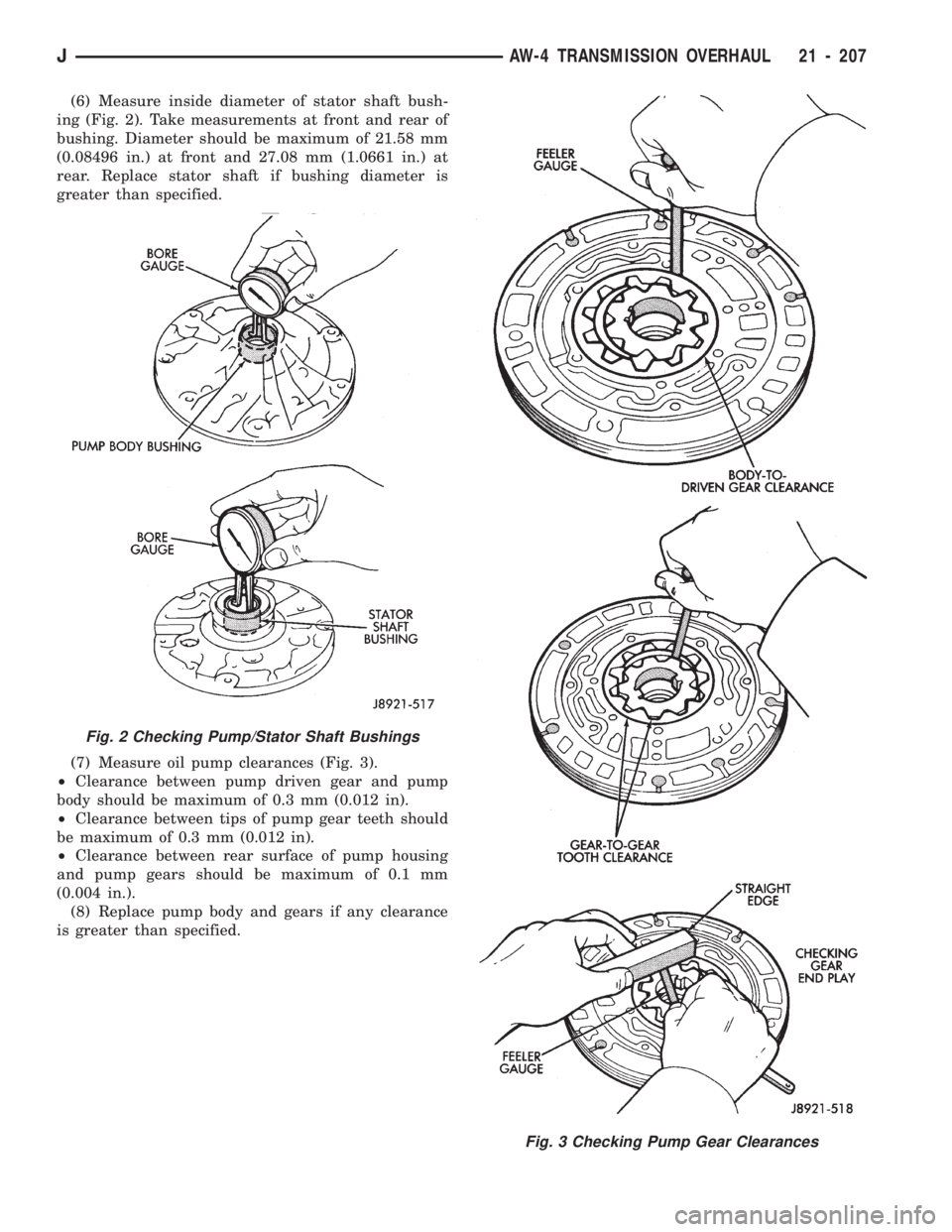

Fig. 3 Checking Pump Gear Clearances
JAW-4 TRANSMISSION OVERHAUL 21 - 207

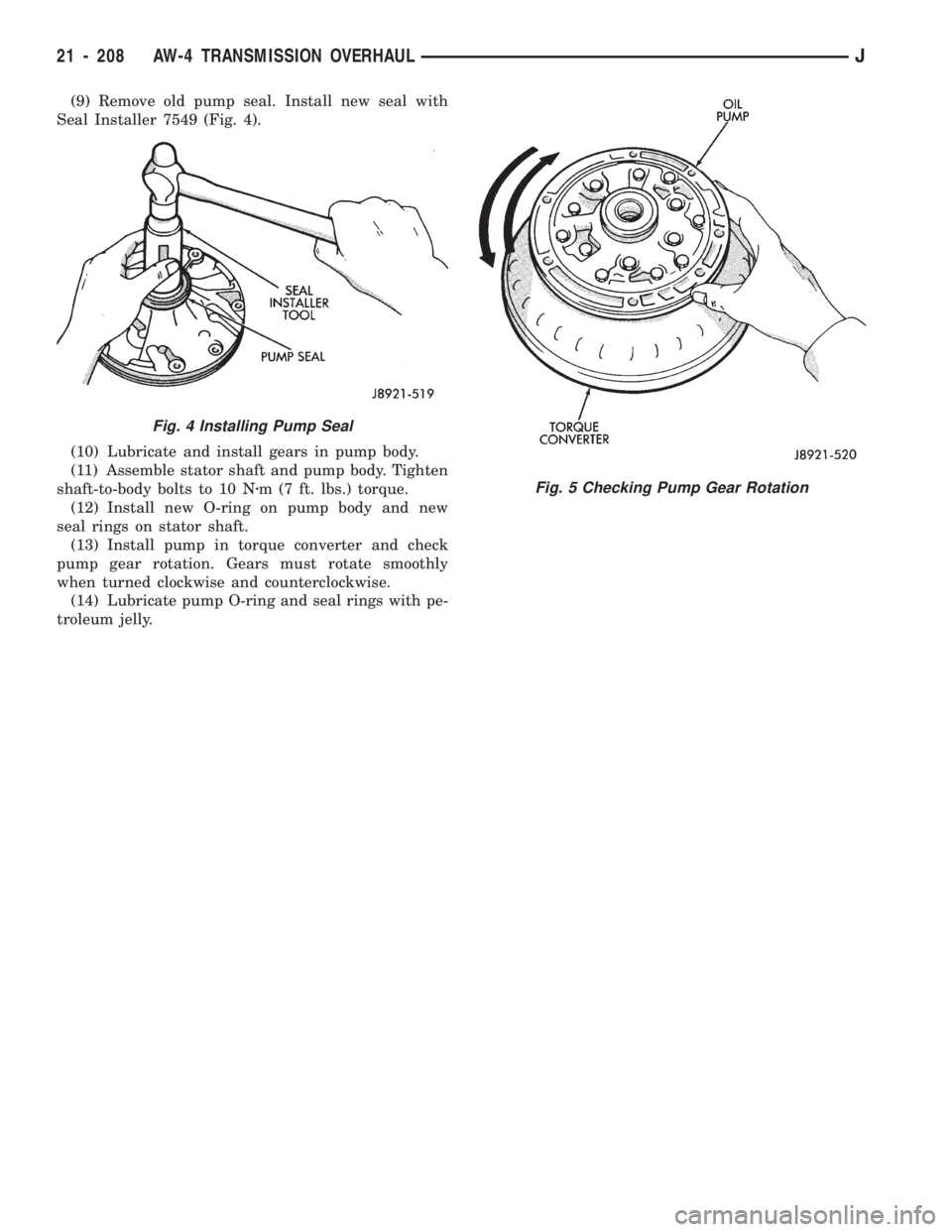

Fig. 4 Installing Pump Seal
21 - 208 AW-4 TRANSMISSION OVERHAULJ

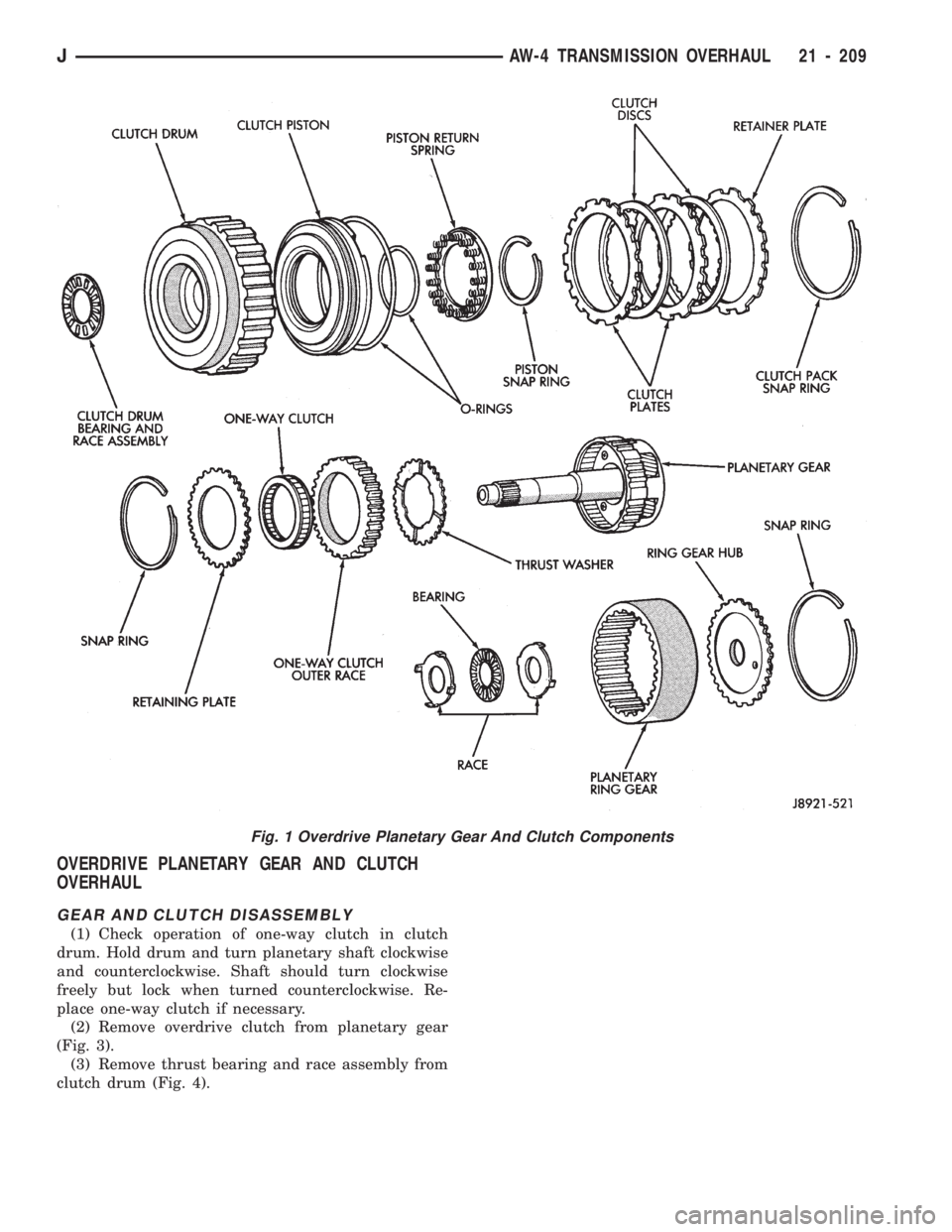

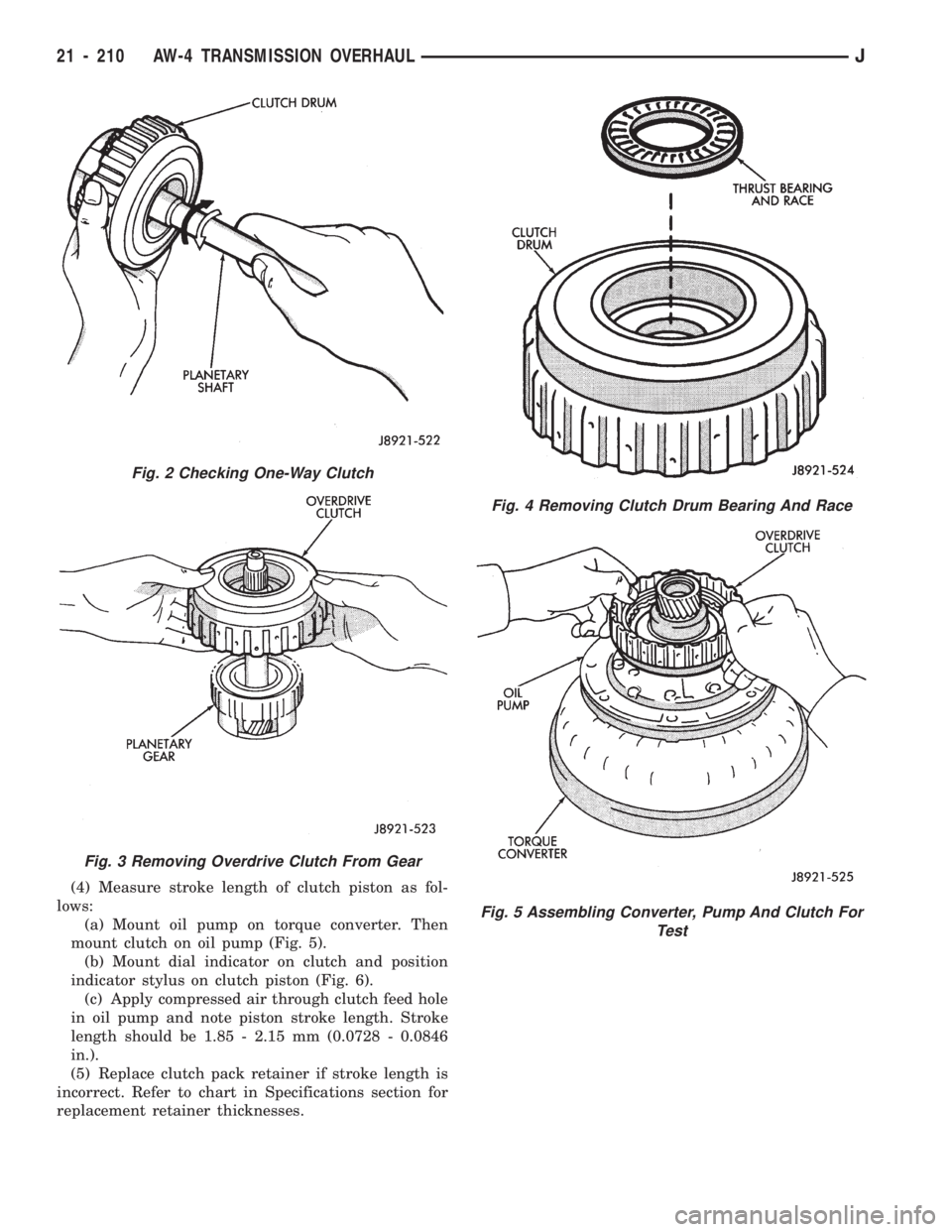

Fig. 3 Removing Overdrive Clutch From Gear
Fig. 4 Removing Clutch Drum Bearing And Race
Fig. 5 Assembling Converter, Pump And Clutch For
Test
21 - 210 AW-4 TRANSMISSION OVERHAULJ
