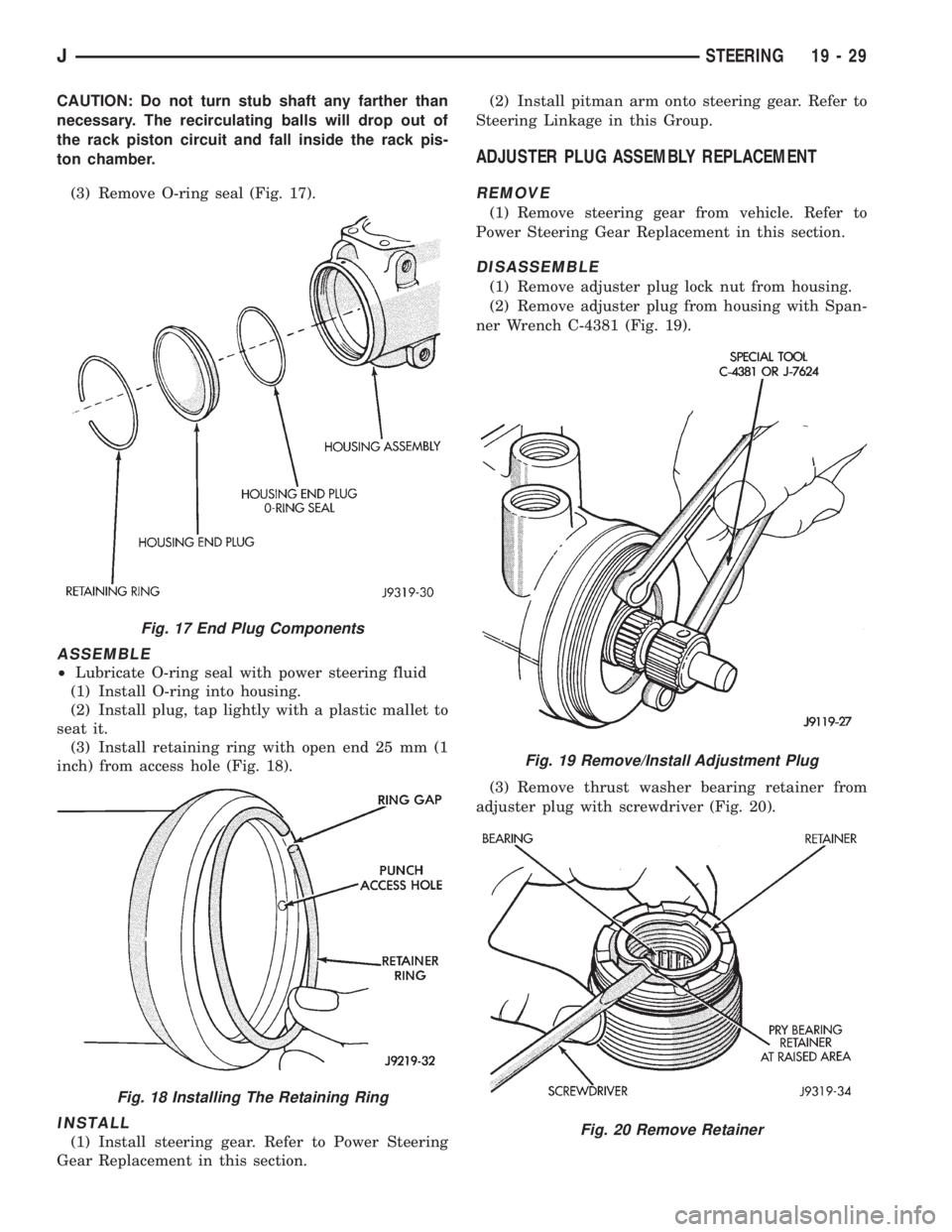

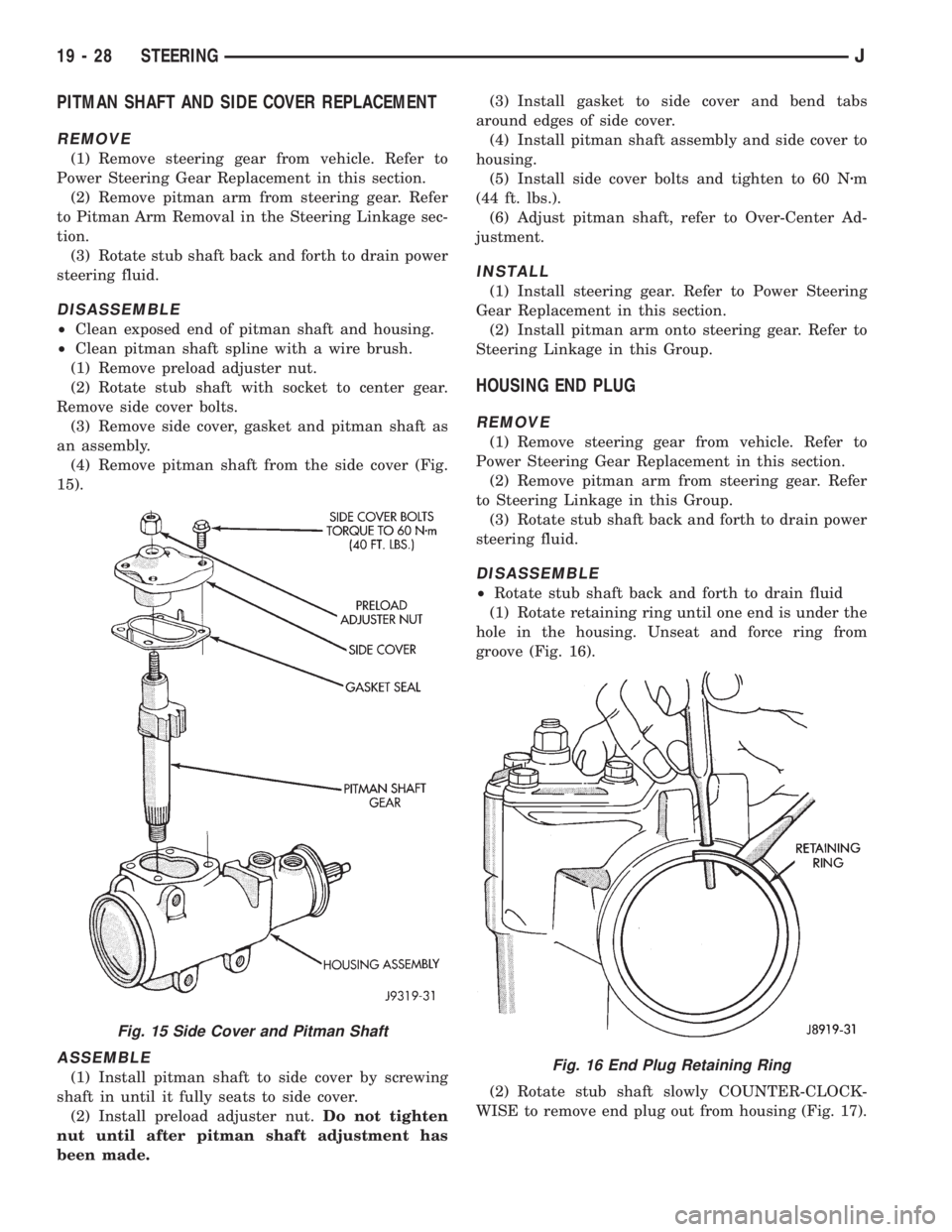

Fig. 16 End Plug Retaining Ring
19 - 28 STEERINGJ

Fig. 18 Installing The Retaining Ring
Fig. 19 Remove/Install Adjustment Plug
Fig. 20 Remove Retainer
JSTEERING 19 - 29

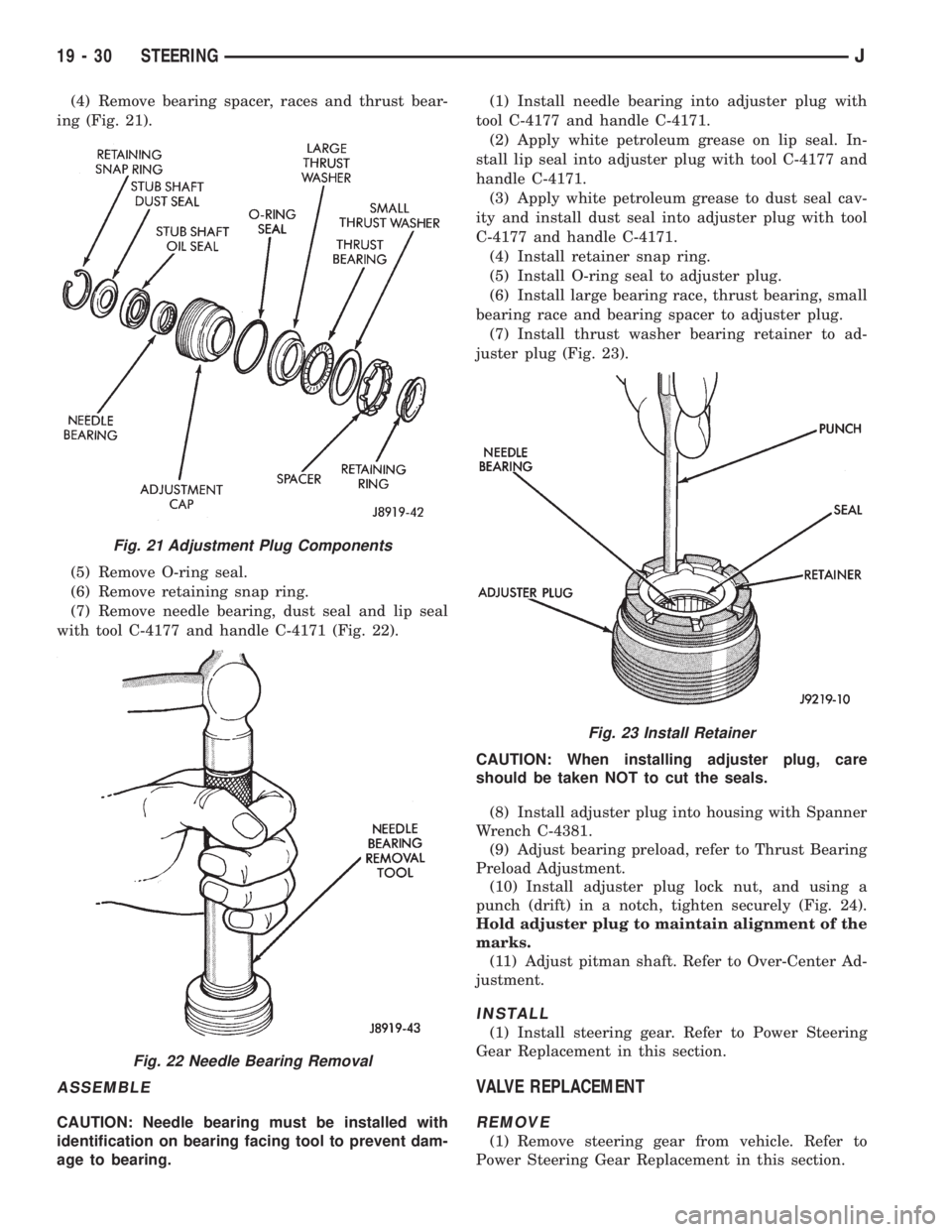

Fig. 22 Needle Bearing Removal
Fig. 23 Install Retainer
19 - 30 STEERINGJ

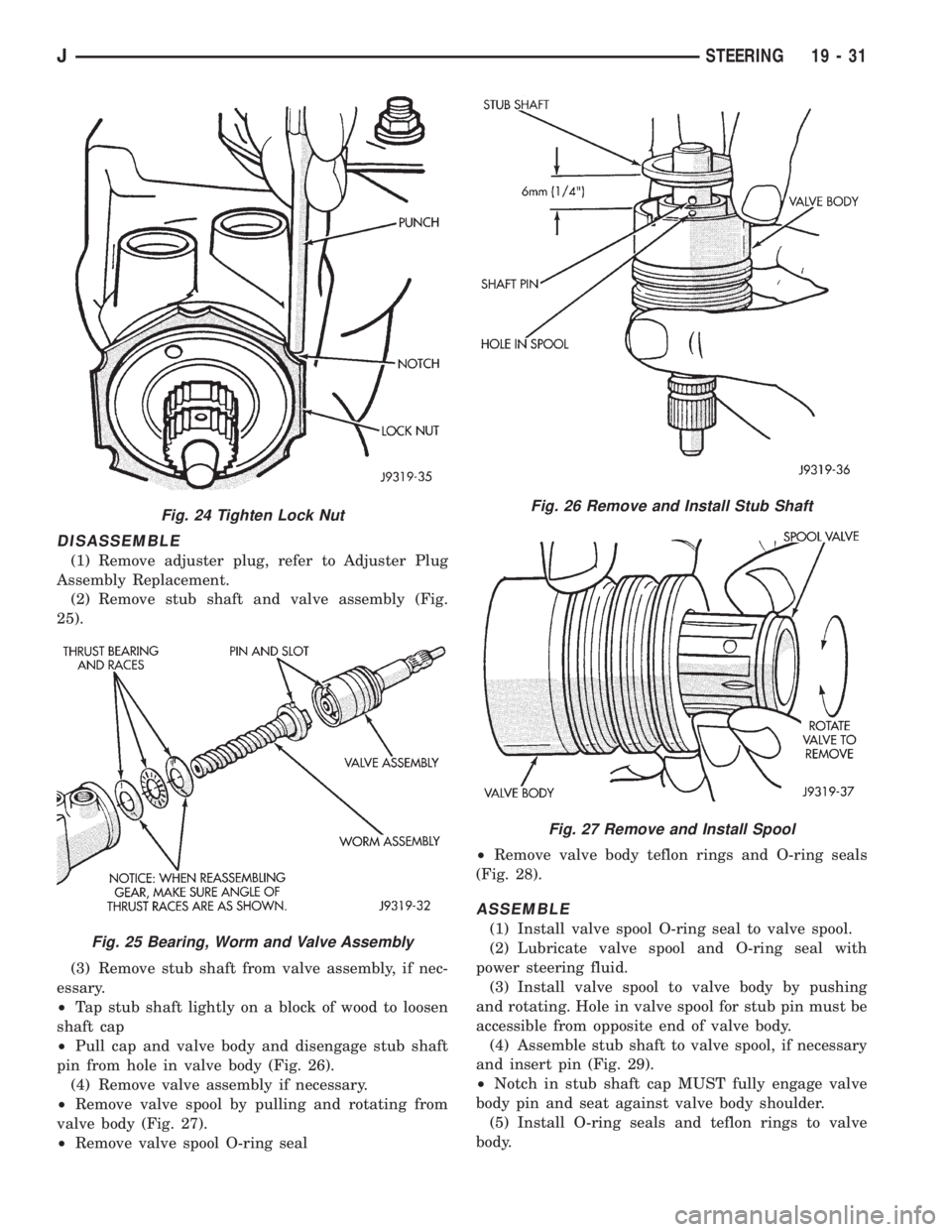

Fig. 25 Bearing, Worm and Valve Assembly
Fig. 26 Remove and Install Stub Shaft
Fig. 27 Remove and Install Spool
JSTEERING 19 - 31

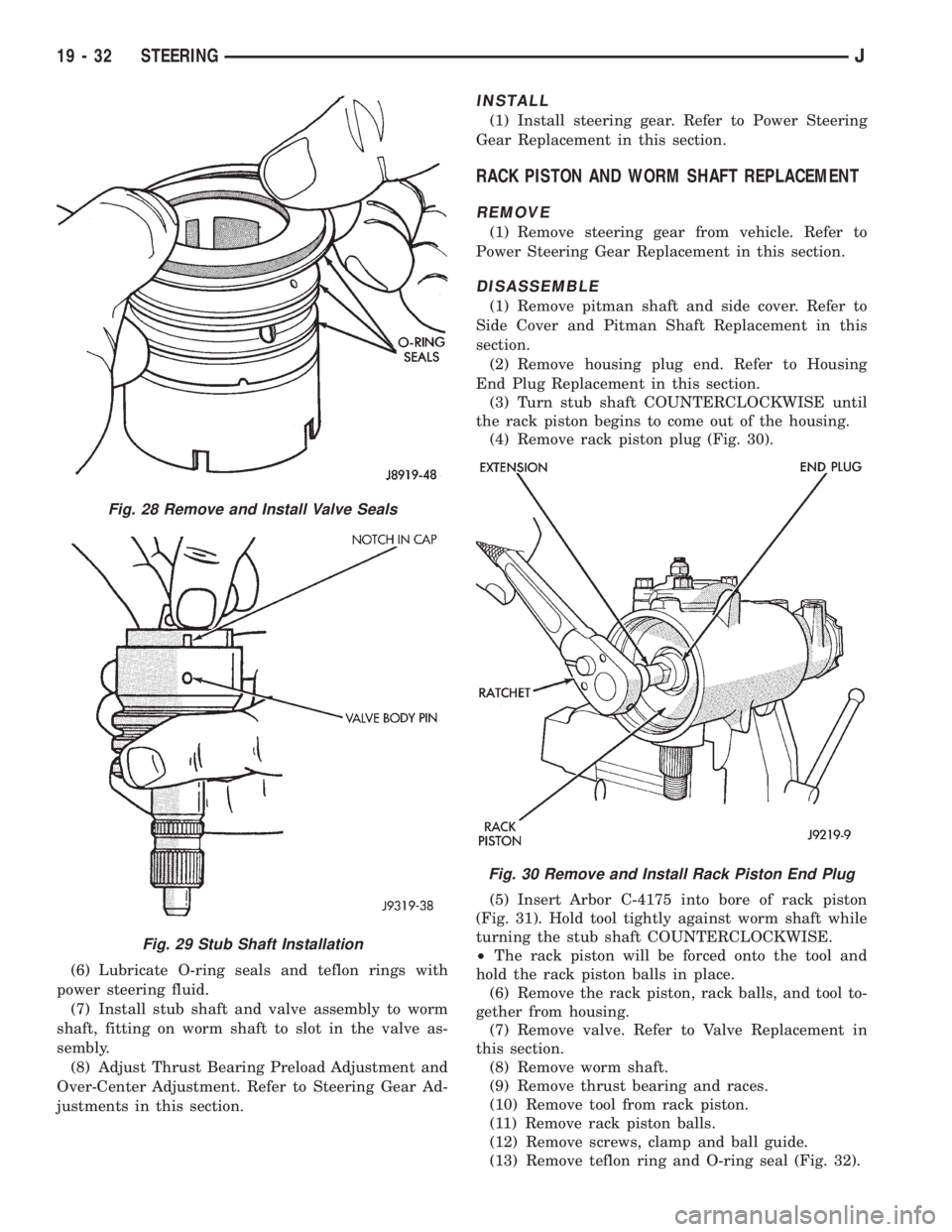

Fig. 29 Stub Shaft Installation
Fig. 30 Remove and Install Rack Piston End Plug
19 - 32 STEERINGJ

Fig. 32 Remove and Install Seal on Rack Piston

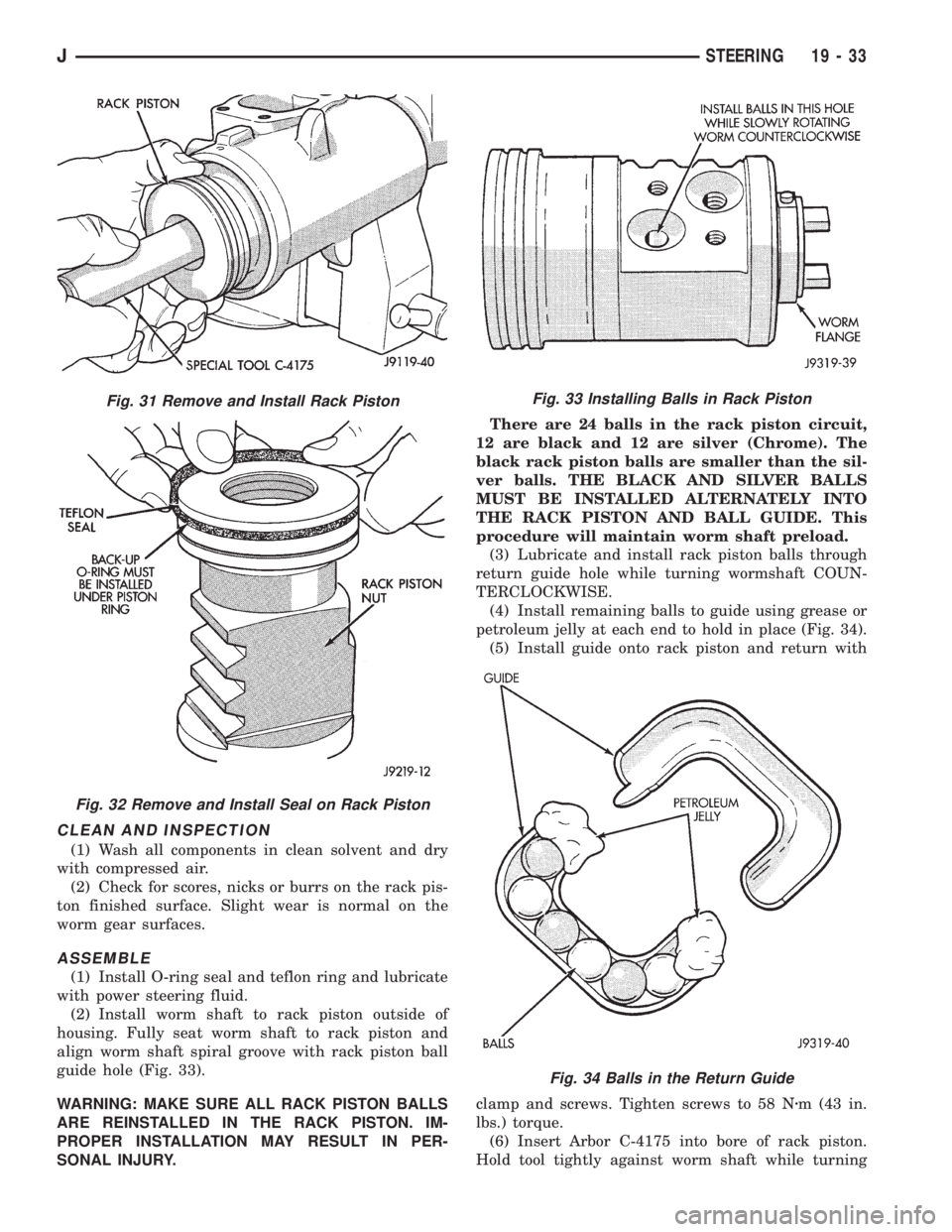

Fig. 33 Installing Balls in Rack Piston
Fig. 34 Balls in the Return Guide
JSTEERING 19 - 33

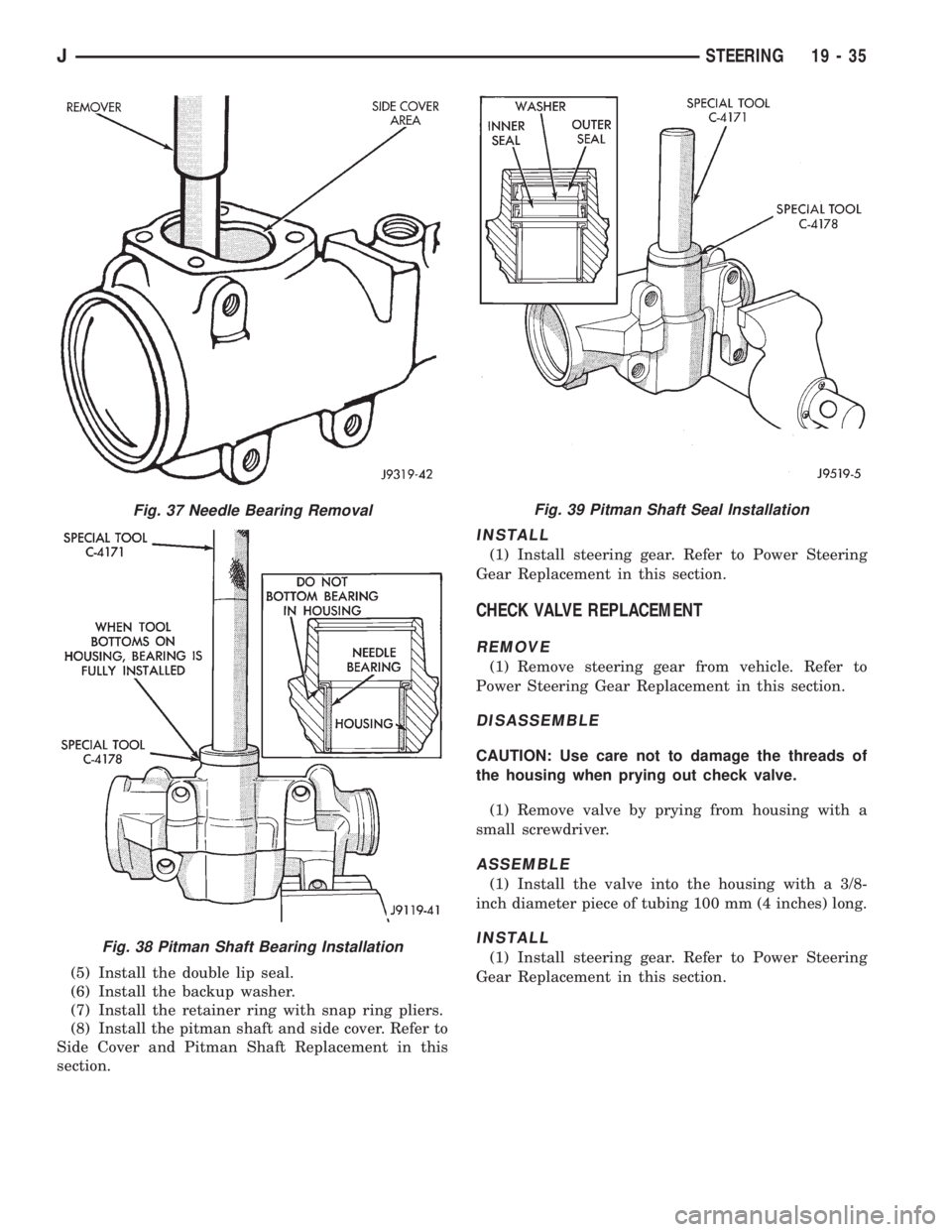

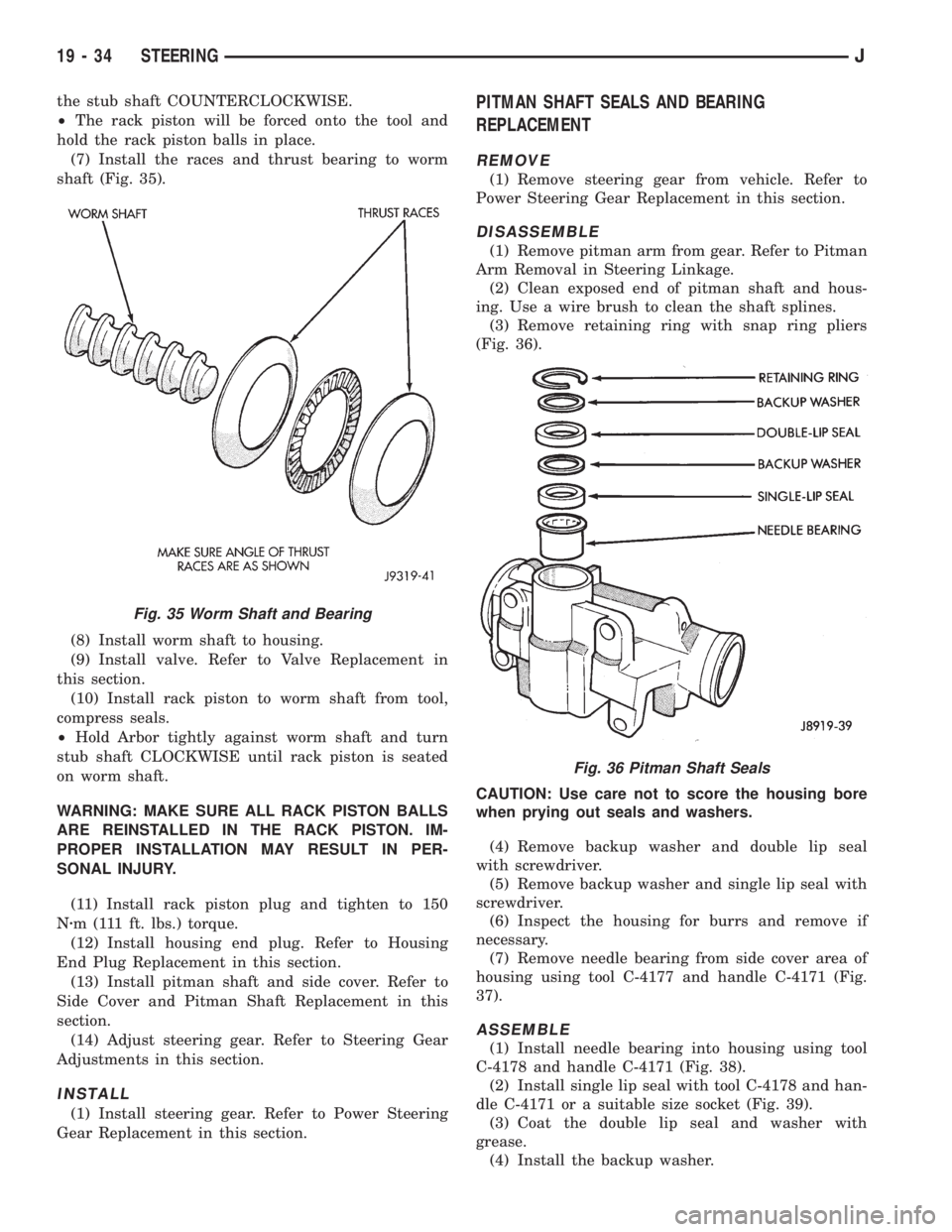

Fig. 36 Pitman Shaft Seals
19 - 34 STEERINGJ

Fig. 38 Pitman Shaft Bearing Installation
Fig. 39 Pitman Shaft Seal Installation
JSTEERING 19 - 35
