JEEP WRANGLER 2007 JK / 3.G Owners Manual

Cavity Cartridge
FuseMini
FuseDescription
J1 40 Amp
GreenPower Folding Seat
J2 30 Amp
PinkTransfer Case/Pwr
Liftgate Module
J3 40 Amp
GreenRear Door Module
(RR DOOR NODE)
J4 25 Amp
NaturalDriver Door Node
J5 25 Amp
NaturalPassenger Door Node
J6 40 Amp
GreenAnti-Lock Brake Sys-
tem (ABS) Pump/ESP
J7 30 Amp
PinkAnti-Lock Brake Sys-
tem (ABS) Valve/ESP
J8 40 Amp
GreenPower Memory Seat
(If Equipped)Cavity Cartridge
FuseMini
FuseDescription
J9 40 Amp
GreenPZEV Motor/Flex
Fuel
J10 30 Amp
PinkHeadlamp Wash
Relay/Manual Tuning
Valve
J11 30 Amp
PinkSway Bar/
THATCHAM Lock-
Unlock/Power Slid-
ing Door Module
J13 60 Amp
YellowIgnition Off Draw
(IOD) — Main
J14 40 Amp
GreenEBL (Rear Window
Defogger)
J15 30 Amp
PinkRear Blower
J17 40 Amp
GreenStarter Solenoid
MAINTAINING YOUR VEHICLE 401
7

Cavity Cartridge
FuseMini
FuseDescription
J18 20 Amp
YellowPowertrain Control
Module (PCM) Trans
Range
J19 60 Amp
YellowRadiator Fan
J20 30 Amp
PinkFront Wiper LO/HI
J21 20 Amp
YellowFront/Rear Washer
J22 25 Amp
NaturalSunroof Module
M1 15 Amp
BlueCenter High Mounted
Stop Light (CHMSL)/
Brake Switch
M2 20 Amp
YellowTrailer LightingCavity Cartridge
FuseMini
FuseDescription
M3 20 Amp
YellowFrt/Rear Axle Lockers
M4 10 Amp
RedTrailer Tow
M5 25 Amp
NaturalInverter
M6 20 Amp
YellowPower Outlet #1/Rain
Sensor
M7 20 Amp
YellowPower Outlet #2
(BATT/ACC SELECT)
M8 20 Amp
YellowFront Heated Seat
M9 20 Amp
YellowRear Heated Seat (If
Equipped)
402 MAINTAINING YOUR VEHICLE

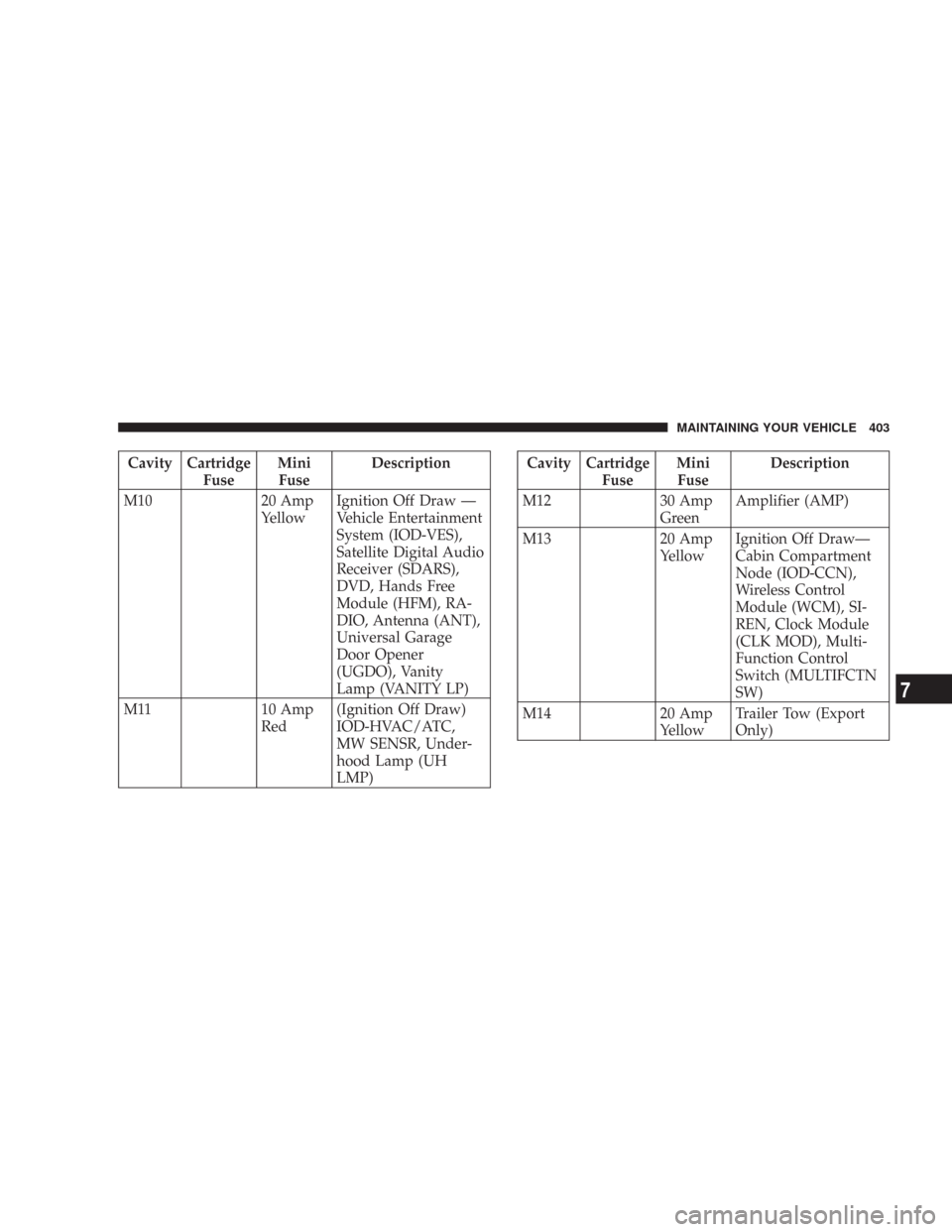

Cavity Cartridge
FuseMini
FuseDescription
M10 20 Amp
YellowIgnition Off Draw —
Vehicle Entertainment
System (IOD-VES),
Satellite Digital Audio
Receiver (SDARS),
DVD, Hands Free
Module (HFM), RA-
DIO, Antenna (ANT),
Universal Garage
Door Opener
(UGDO), Vanity
Lamp (VANITY LP)
M11 10 Amp
Red(Ignition Off Draw)
IOD-HVAC/ATC,
MW SENSR, Under-
hood Lamp (UH
LMP)Cavity Cartridge
FuseMini
FuseDescription
M12 30 Amp
GreenAmplifier (AMP)
M13 20 Amp
YellowIgnition Off Draw—
Cabin Compartment
Node (IOD-CCN),
Wireless Control
Module (WCM), SI-
REN, Clock Module
(CLK MOD), Multi-
Function Control
Switch (MULTIFCTN
SW)
M14 20 Amp
YellowTrailer Tow (Export
Only)
MAINTAINING YOUR VEHICLE 403
7

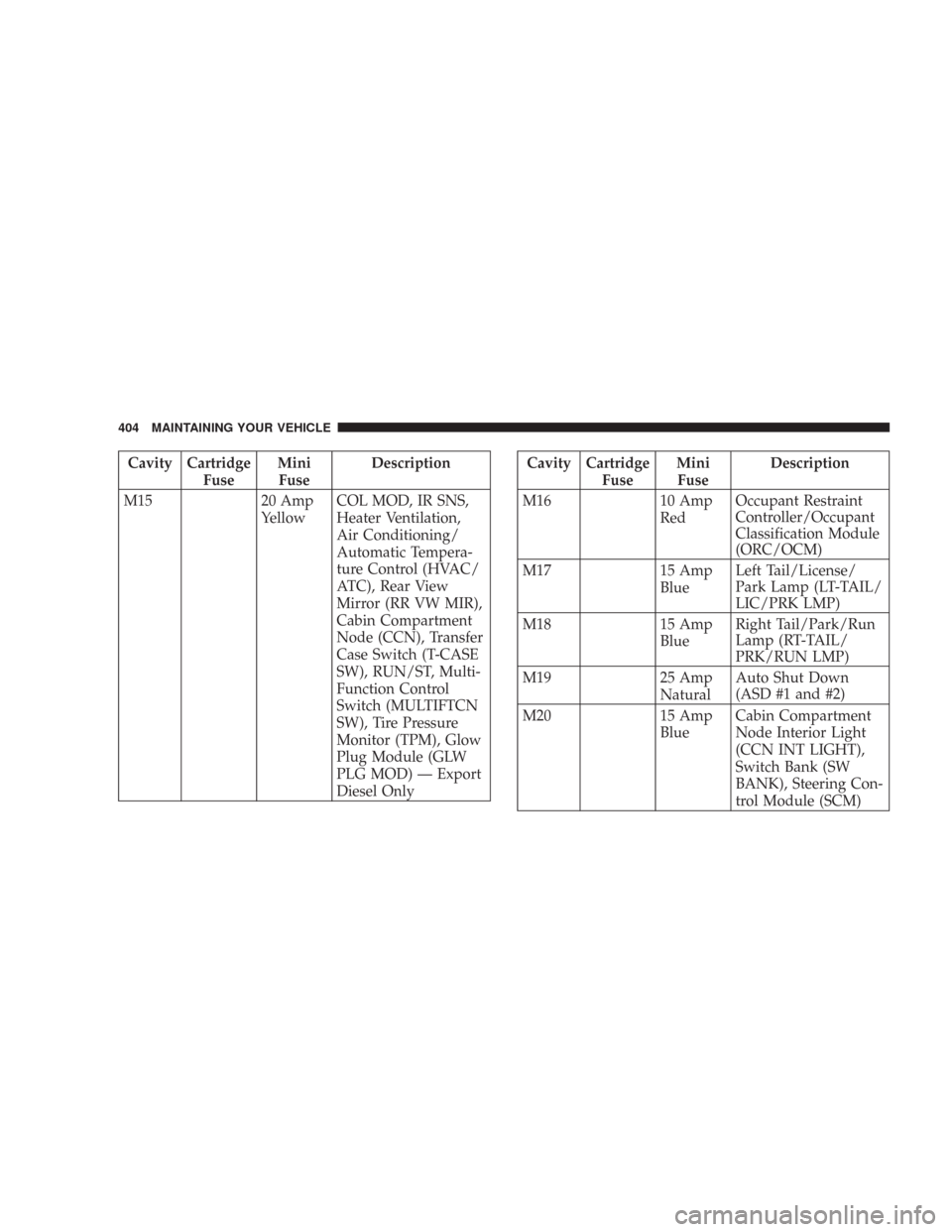

Cavity Cartridge
FuseMini
FuseDescription
M15 20 Amp
YellowCOL MOD, IR SNS,
Heater Ventilation,
Air Conditioning/
Automatic Tempera-
ture Control (HVAC/
ATC), Rear View
Mirror (RR VW MIR),
Cabin Compartment
Node (CCN), Transfer
Case Switch (T-CASE
SW), RUN/ST, Multi-
Function Control
Switch (MULTIFTCN
SW), Tire Pressure
Monitor (TPM), Glow
Plug Module (GLW
PLG MOD) — Export
Diesel OnlyCavity Cartridge
FuseMini
FuseDescription
M16 10 Amp
RedOccupant Restraint
Controller/Occupant
Classification Module
(ORC/OCM)
M17 15 Amp
BlueLeft Tail/License/
Park Lamp (LT-TAIL/
LIC/PRK LMP)
M18 15 Amp
BlueRight Tail/Park/Run
Lamp (RT-TAIL/
PRK/RUN LMP)
M19 25 Amp
NaturalAuto Shut Down
(ASD #1 and #2)
M20 15 Amp
BlueCabin Compartment
Node Interior Light
(CCN INT LIGHT),
Switch Bank (SW
BANK), Steering Con-
trol Module (SCM)
404 MAINTAINING YOUR VEHICLE

Cavity Cartridge
FuseMini
FuseDescription
M21 20 Amp
YellowAuto Shut Down
(ASD #3)
M22 10 Amp
RedRight Horn (RT
HORN (HI/LOW)
M23 10 Amp
RedLeft Horn (LT HORN
(HI/LOW)
M24 25 Amp
NaturalRear Wiper (REAR
WIPER)
M25 20 Amp
Yellow
Fuel Pump (FUEL
PUMP), Diesel Lift
Pump (DSL LIFT
PUMP) — Export Only
M26 10 Amp
RedPower Mirror Switch
(PWR MIRR SW),
Driver Window
Switch (DRVR WIND
SW)
Cavity Cartridge
FuseMini
FuseDescription
M27 10 Amp
RedIgnition Switch (IGN
SW), Window Module
(WIN MOD)
M28 10 Amp
RedNext Generation Con-
troller (NGC), Trans-
mission Feed (TRANS
FEED), J1962
M29 10 Amp
RedOccupant Classifica-
tion Module (OCM)
M30 15 Amp
BlueRear Wiper Module
(RR WIPER MOD),
Power Folding Mirror
(PWR FOLD MIR)
M31 20 Amp
YellowBack-Up Lamps (B/U
LAMPS)
MAINTAINING YOUR VEHICLE 405
7

Cavity Cartridge
FuseMini
FuseDescription
M32 10 Amp
RedOccupant Restraint
Controller (ORC), TT
EUROPE
M33 10 Amp
RedNext Generation Con-
troller (NGC), Global
Powertrain Engine
Controller (GPEC)
M34 10 Amp
RedPark Assist (PRK
ASST), Heater Venti-
lation, Air Condition-
ing Module (HVAC
MOD), Headlamp
Wash (HDLP WASH),
Compass (COMPAS)
M35 10 Amp
RedHeated MirrorsCavity Cartridge
FuseMini
FuseDescription
M36 20 Amp
YellowPower Outlet #3
(BATT)
M37 10 Amp
RedAnti-Lock Brake Sys-
tem (ABS), Electronic
Stability Program
(ESP), Stop Lamp
Switch (STP LP SW),
Fuel Pump Rly Hi
Control
M38 25 Amp
NaturalLock/Unlock Motors
(LOCK/UNLOCK
MTRS)
406 MAINTAINING YOUR VEHICLE

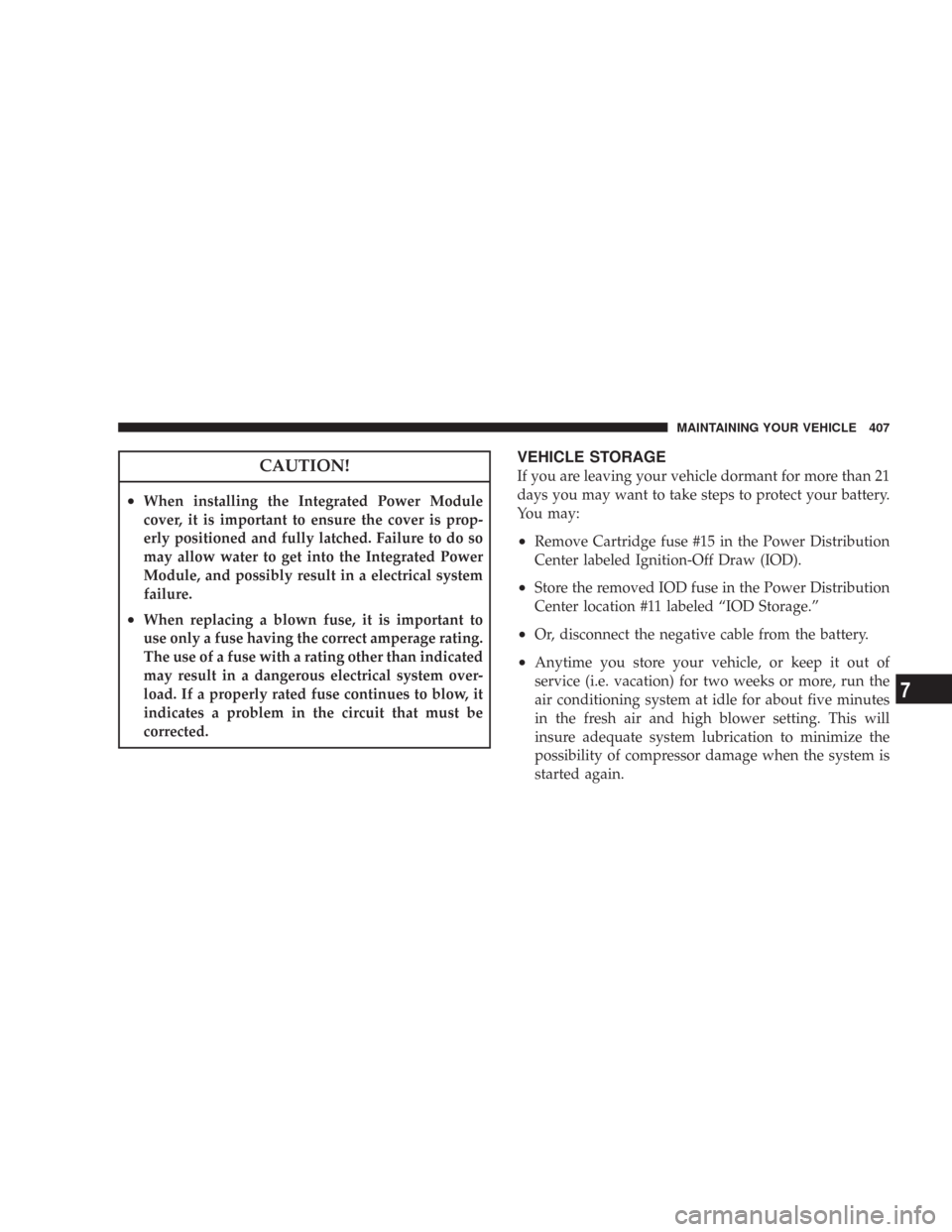

CAUTION!
•When installing the Integrated Power Module
cover, it is important to ensure the cover is prop-
erly positioned and fully latched. Failure to do so
may allow water to get into the Integrated Power
Module, and possibly result in a electrical system
failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than 21
days you may want to take steps to protect your battery.
You may:
•Remove Cartridge fuse #15 in the Power Distribution
Center labeled Ignition-Off Draw (IOD).
•Store the removed IOD fuse in the Power Distribution
Center location #11 labeled “IOD Storage.”
•Or, disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e. vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
insure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
MAINTAINING YOUR VEHICLE 407
7

REPLACEMENT BULBS — IF EQUIPPED
Interior Lights Bulb Type
Auto. Trans. Indicator Light................. 658
Courtesy Lights, Under Dash (1).............. 906
Heater Control Lights (2)................... 194
Rocker Switch Indicator Light (Rear Window
Defogger, and Rear Wash/Wipe)............... **
Soundbar Dome Light..................... 912
** Bulbs only available from authorized dealer.
Instrument Cluster Bulb Type
Telltale (High Beam)....................... 74
Illumination............................ 103Exterior Lights Bulb Type
Backup Lights (2)........................3157
Center High Mounted Stop Light (1).........L.E.D.
Fog Lights.............................9145
Front Park/Turn Lights (2).................3157
Front Side Marker Lights (2)................. 168
Headlights (2).......................... H13
Stop/Tail/Turn Lights (2)..................3157
Underhood Light......................... 561
License Light........................... 194
NOTE:Numbers refer to commercial bulb types that
can be purchased from your local authorized dealer.
If a bulb needs to be replaced, visit your authorized
dealer or refer to the applicable Service Manual.
408 MAINTAINING YOUR VEHICLE

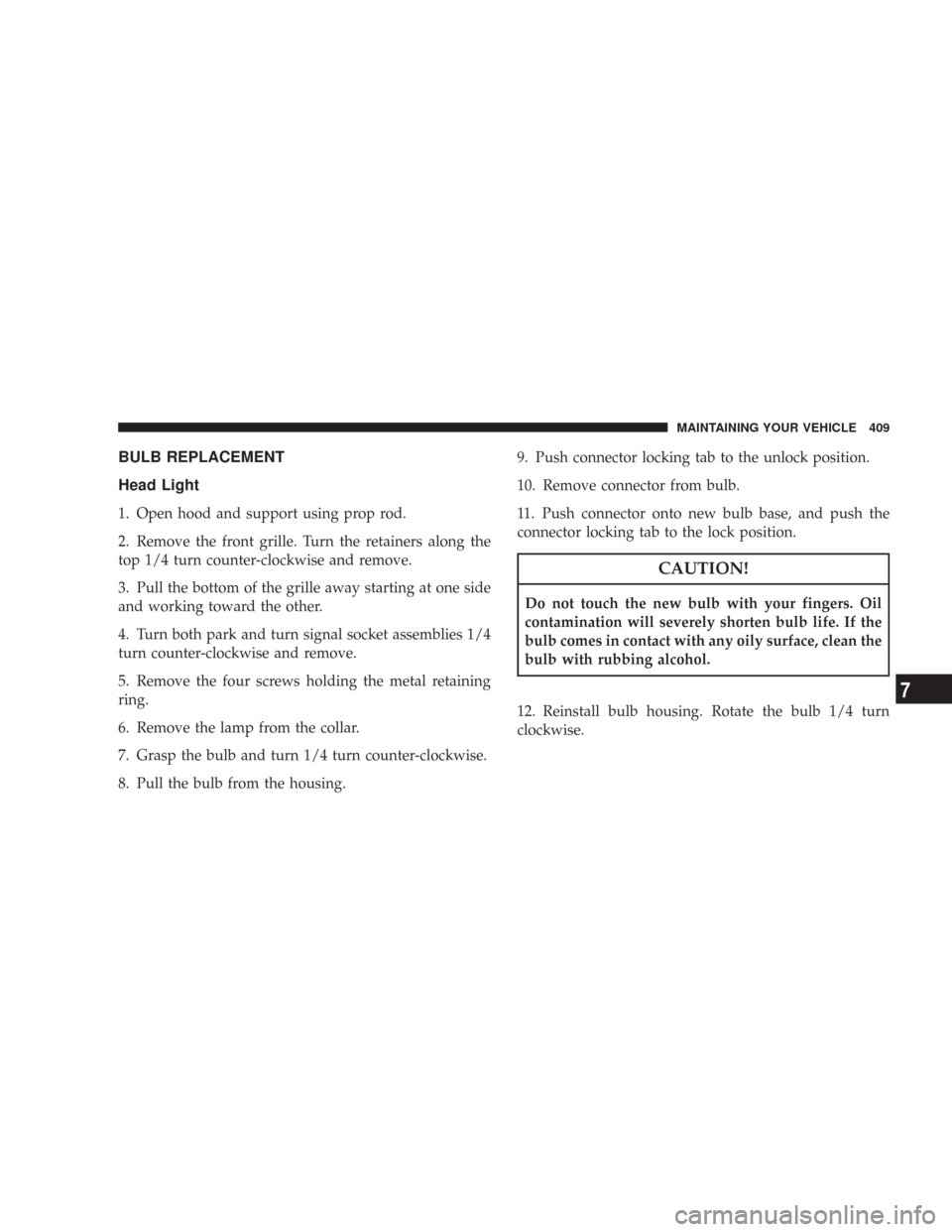

BULB REPLACEMENT
Head Light
1. Open hood and support using prop rod.
2. Remove the front grille. Turn the retainers along the
top 1/4 turn counter-clockwise and remove.
3. Pull the bottom of the grille away starting at one side
and working toward the other.
4. Turn both park and turn signal socket assemblies 1/4
turn counter-clockwise and remove.
5. Remove the four screws holding the metal retaining
ring.
6. Remove the lamp from the collar.
7. Grasp the bulb and turn 1/4 turn counter-clockwise.
8. Pull the bulb from the housing.9. Push connector locking tab to the unlock position.
10. Remove connector from bulb.
11. Push connector onto new bulb base, and push the
connector locking tab to the lock position.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
12. Reinstall bulb housing. Rotate the bulb 1/4 turn
clockwise.
MAINTAINING YOUR VEHICLE 409
7

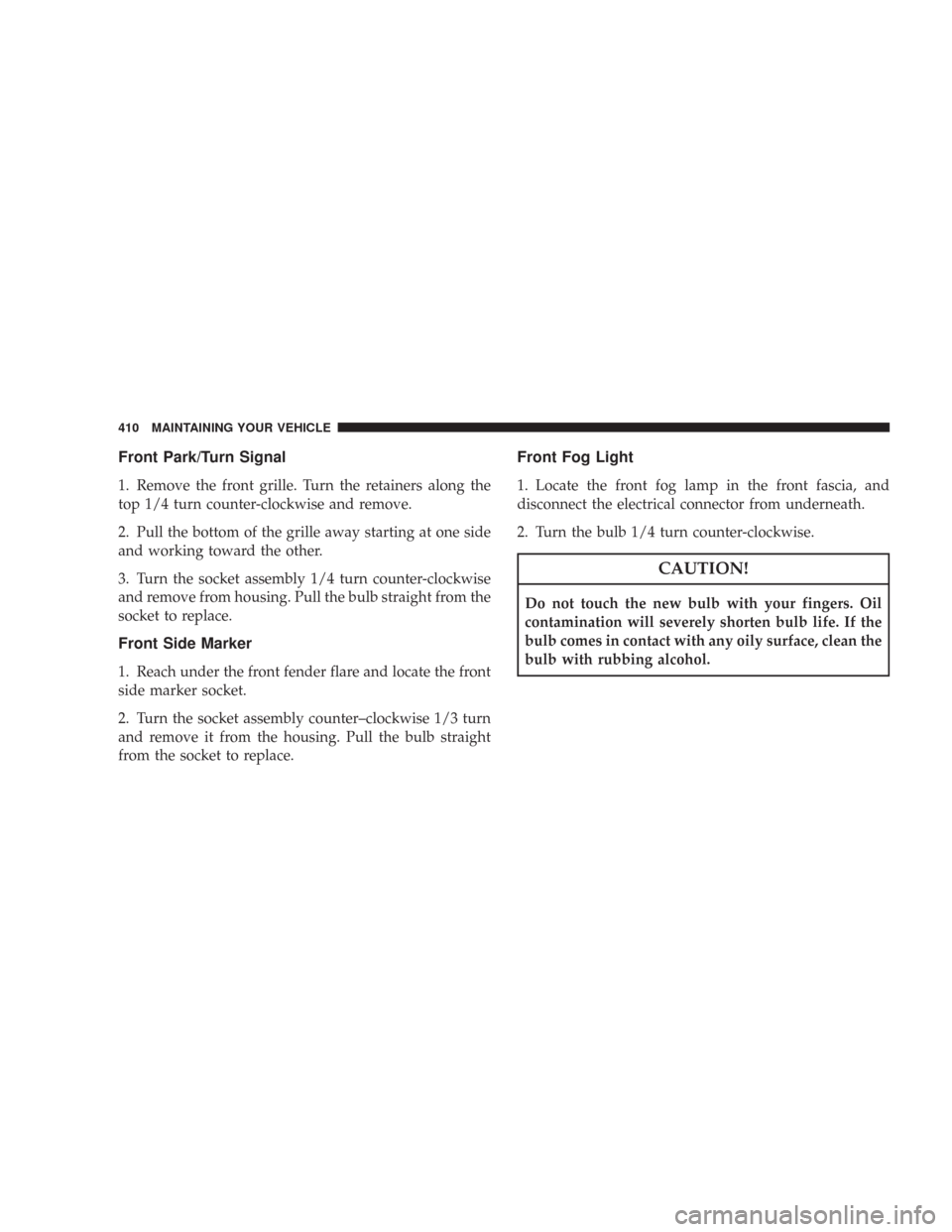

Front Park/Turn Signal
1. Remove the front grille. Turn the retainers along the
top 1/4 turn counter-clockwise and remove.
2. Pull the bottom of the grille away starting at one side
and working toward the other.
3. Turn the socket assembly 1/4 turn counter-clockwise
and remove from housing. Pull the bulb straight from the
socket to replace.
Front Side Marker
1. Reach under the front fender flare and locate the front
side marker socket.
2. Turn the socket assembly counter–clockwise 1/3 turn
and remove it from the housing. Pull the bulb straight
from the socket to replace.
Front Fog Light
1. Locate the front fog lamp in the front fascia, and
disconnect the electrical connector from underneath.
2. Turn the bulb 1/4 turn counter-clockwise.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
410 MAINTAINING YOUR VEHICLE
