Page 85 of 467

MIRRORS
Inside Day/Night Mirror
The mirror should be adjusted to center on the view
through the rear window. A two-point pivot system
allows for horizontal and vertical adjustment of the
mirror.Annoying headlight glare can be reduced by moving the
small control under the mirror to the night position
(toward rear of vehicle). The mirror should be adjusted
while set in the day position (toward windshield).
Adjusting Rearview Mirror
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 85
3
Page 86 of 467

Outside Mirrors
To receive maximum benefit, adjust the outside mirror(s)
to center on the adjacent lane of traffic with a slight
overlap of the view obtained on the inside mirror.WARNING!
•Vehicles and other objects seen in the right side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
right side mirror could cause you to collide with
another vehicle or other object.
•Use your inside mirror when judging the size or
distance of a vehicle seen in the right side mirror.
Outside Rear View Mirror
86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 188 of 467

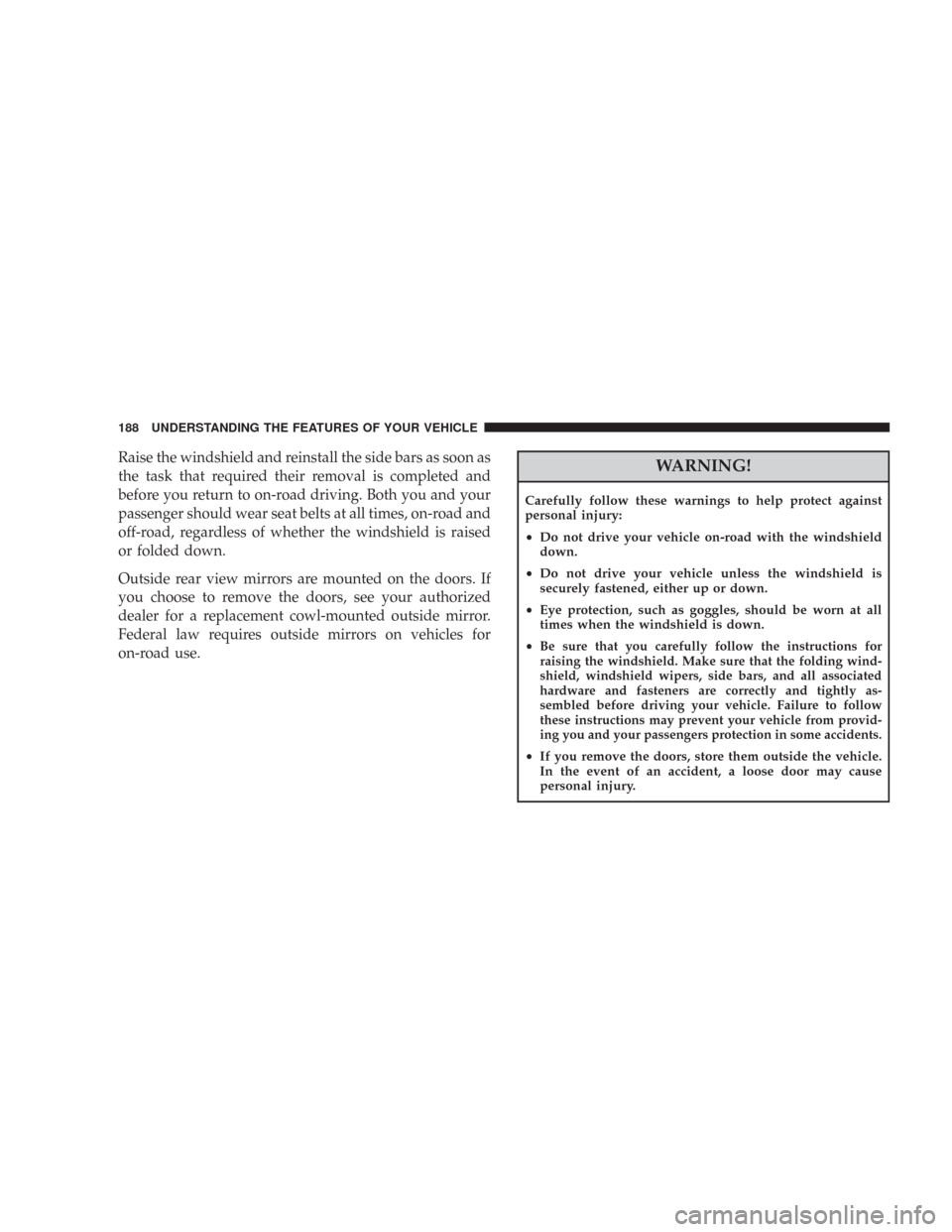

Raise the windshield and reinstall the side bars as soon as
the task that required their removal is completed and
before you return to on-road driving. Both you and your
passenger should wear seat belts at all times, on-road and
off-road, regardless of whether the windshield is raised
or folded down.
Outside rear view mirrors are mounted on the doors. If
you choose to remove the doors, see your authorized
dealer for a replacement cowl-mounted outside mirror.
Federal law requires outside mirrors on vehicles for
on-road use.WARNING!
Carefully follow these warnings to help protect against
personal injury:
•Do not drive your vehicle on-road with the windshield
down.
•Do not drive your vehicle unless the windshield is
securely fastened, either up or down.
•Eye protection, such as goggles, should be worn at all
times when the windshield is down.
•
Be sure that you carefully follow the instructions for
raising the windshield. Make sure that the folding wind-
shield, windshield wipers, side bars, and all associated
hardware and fasteners are correctly and tightly as-
sembled before driving your vehicle. Failure to follow
these instructions may prevent your vehicle from provid-
ing you and your passengers protection in some accidents.
•If you remove the doors, store them outside the vehicle.
In the event of an accident, a loose door may cause
personal injury.
188 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 397 of 467

WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas they may cause respiratory harm.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MoparGlass Cleaner or any commercial
household-type glass cleaner. Never use an abrasive type
cleaner. Use caution when cleaning inside rear windows
equipped with electric defrosters. Do not use scrapers or
other sharp instruments which may scratch the elements.
When cleaning the rear view mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft rag. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft tissue.
Seat Belt Maintenance
Do not bleach, dye or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage will also weaken the fabric.
If the belts need cleaning, use MoparTotal Clean, a mild
soap solution, or lukewarm water. Do not remove the
belts from the vehicle to wash them.
MAINTAINING YOUR VEHICLE 397
7
Page 404 of 467

Cavity Cartridge
FuseMini
FuseDescription
M15 20 Amp
YellowCOL MOD, IR SNS,
Heater Ventilation,
Air Conditioning/
Automatic Tempera-
ture Control (HVAC/
ATC), Rear View
Mirror (RR VW MIR),
Cabin Compartment
Node (CCN), Transfer
Case Switch (T-CASE
SW), RUN/ST, Multi-
Function Control
Switch (MULTIFTCN
SW), Tire Pressure
Monitor (TPM), Glow
Plug Module (GLW
PLG MOD) — Export
Diesel OnlyCavity Cartridge
FuseMini
FuseDescription
M16 10 Amp
RedOccupant Restraint
Controller/Occupant
Classification Module
(ORC/OCM)
M17 15 Amp
BlueLeft Tail/License/
Park Lamp (LT-TAIL/
LIC/PRK LMP)
M18 15 Amp
BlueRight Tail/Park/Run
Lamp (RT-TAIL/
PRK/RUN LMP)
M19 25 Amp
NaturalAuto Shut Down
(ASD #1 and #2)
M20 15 Amp
BlueCabin Compartment
Node Interior Light
(CCN INT LIGHT),
Switch Bank (SW
BANK), Steering Con-
trol Module (SCM)
404 MAINTAINING YOUR VEHICLE
Page 456 of 467

Odometer........................... 208
Speedometer......................... 202
Tachometer.......................... 205
Gear Ranges........................271,276
General Information...................... 321
Glass Cleaning.......................... 397
Gross Axle Weight Rating.................. 331
Gross Vehicle Weight Rating................ 330
GVWR............................... 328
HardTop ............................. 125
Hard Top, Modular...................... 125
Hard Top Removal....................... 129
Hazard Warning Flasher................... 350
Head Restraints.......................... 90
Head Rests............................. 90
Headlights
Bulb Replacement...................... 409
Dimmer Switch....................... 100Replacing............................ 409
Switch............................... 99
Heater............................... 252
Heater, Engine Block..................... 269
High Beam Indicator..................... 203
Hitches
Trailer Towing........................ 334
Holder, Cup........................... 117
Hood Release........................... 96
Hoses.............................385,386
Hydraulic Clutch Fluid.................... 390
Ignition............................... 14
Key ................................. 14
Ignition Key Removal..................... 14
Illuminated Entry........................ 20
Infant Restraint.......................... 65
Inflation Pressure Tires.................... 309
Inside Rearview Mirror.................... 85
456 INDEX
Page 459 of 467

Lower Anchors and Tether for CHildren
(LATCH)............................70,71
Lubrication, Body....................... 378
Maintenance Free Battery.................. 376
Maintenance Procedures................... 369
Maintenance Schedule.................... 416
Schedule “A”......................... 432
Schedule “B”......................... 419
Maintenance Schedules.................... 416
Malfunction Indicator Light (Check Engine) . . 208,366
Manual, Service......................... 444
Manual Transmission..................269,390
Fluid Level Check...................... 391
Lubricant Selection..................... 390
Shift Speeds.......................... 271
Master Cylinder (Brakes).................. 387
Mini-Trip Computer...................... 211
Mirrors................................ 85Outside.............................. 86
Rearview............................. 85
Modifications/Alterations, Vehicle............. 9
Modular Hard Top....................... 125
Monitor, Tire Pressure System............... 317
Mopar Parts.........................368,443
Multi-Function Control Lever................ 98
Navigation Radio........................ 245
Navigation System....................... 245
New Vehicle Break-In Period................ 77
Occupant Restraints....................... 36
Octane Rating, Gasoline (Fuel).............. 321
Odometer..........................208,210
Trip ..........................206,208,210
Off-Pavement Driving (Off-Road)............ 290
Off-Road Driving (Off-Pavement)............ 290
INDEX 459
10
Page 460 of 467

Oil, Engine............................ 369
Capacity............................ 412
Dipstick............................. 369
Filter............................... 372
Identification Logo..................... 371
Materials Added to..................... 371
Pressure Warning Light.................. 203
Recommendation...................371,412
Viscosity..........................371,412
Oil Pressure Light....................... 203
Onboard Diagnostic System..............365,366
Outside Rearview Mirrors.................. 86
Overheating, Engine...................... 351
Owner’s Manual (Operator Manual).......... 444
Paint Care............................. 393
Paint Damage.......................... 393
Panic Alarm............................ 22
Parking Brake.......................... 295Passing Light........................... 100
PCV Valve............................ 375
Pets.................................. 77
Placard, Tire and Loading Information......... 305
Polishing and Waxing..................... 394
Power
Distribution Center (Fuses)............... 400
Door Locks........................... 31
Steering..........................298,377
Windows............................. 32
Pregnant Women and Seat Belts.............. 46
Preparation for Jacking.................... 353
Pretensioners
Seat Belts............................. 44
Programming Transmitters
(Remote Keyless Entry).................... 23
Radial Ply Tires......................... 312
Radio Broadcast Signals................... 216
460 INDEX
Page 461 of 467

Radio, Navigation....................... 245
Radio Operation........................ 252
Radio, Satellite.......................246,247
Rear Axle (Differential).................... 392
Rear Swing Gate......................... 34
Rear Window Defroster................... 195
Rear Window Features.................... 193
Rear Wiper/Washer...................... 193
Rearview Mirrors........................ 85
Recorder, Event Data...................... 62
Recreational Towing...................... 346
Shifting into Transfer Case Neutral (N)....... 346
Shifting out of Transfer Case Neutral (N)..... 347
Reformulated Gasoline.................... 322
Refrigerant............................ 377
Release, Hood........................... 96
Reminder, Lights On..................... 100
Reminder, Seat Belt....................... 45Remote Control
Door Locks........................... 20
Remote Keyless Entry (RKE)................. 20
Replacement Bulbs....................... 408
Replacement Parts....................... 368
Replacement Tires....................... 314
Reporting Safety Defects................... 443
Restraint, Head.......................... 90
Restraints, Child.......................64,69
Restraints, Occupant...................... 36
Rotation, Tires.......................... 316
Safety Checks Inside Vehicle................. 79
Safety Checks Outside Vehicle............... 80
Safety Defects, Reporting.................. 443
Safety Information, Tire................... 300
Safety Tips............................. 78
Satellite Radio.......................246,247
INDEX 461
10
