spark plugs replace JEEP WRANGLER 2007 JK / 3.G Owners Manual

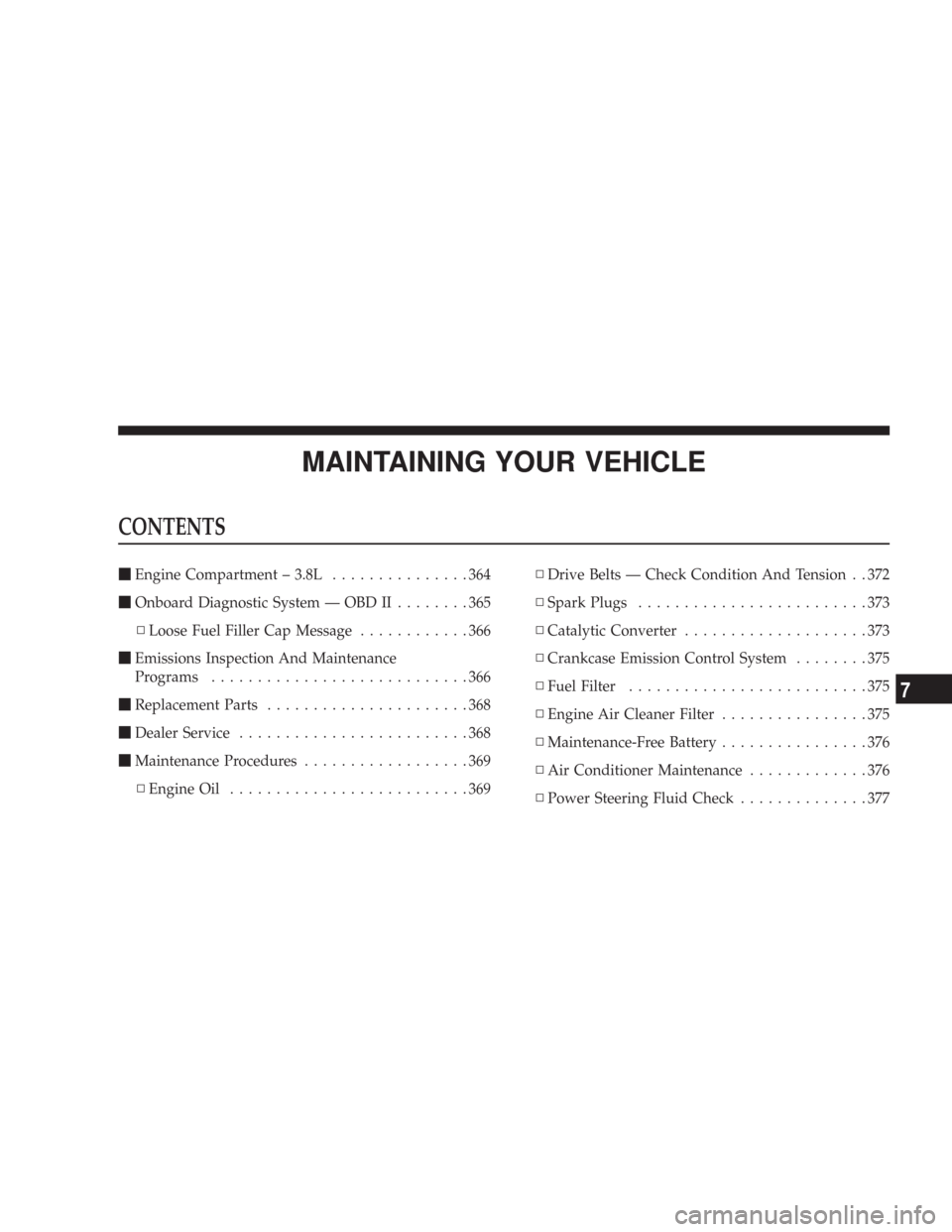

MAINTAINING YOUR VEHICLE
CONTENTS
Engine Compartment – 3.8L...............364
Onboard Diagnostic System — OBD II........365
▫Loose Fuel Filler Cap Message............366
Emissions Inspection And Maintenance
Programs............................366
Replacement Parts......................368
Dealer Service.........................368
Maintenance Procedures..................369
▫Engine Oil..........................369▫Drive Belts — Check Condition And Tension . . 372
▫Spark Plugs.........................373
▫Catalytic Converter....................373
▫Crankcase Emission Control System........375
▫Fuel Filter..........................375
▫Engine Air Cleaner Filter................375
▫Maintenance-Free Battery................376
▫Air Conditioner Maintenance.............376
▫Power Steering Fluid Check..............377
7

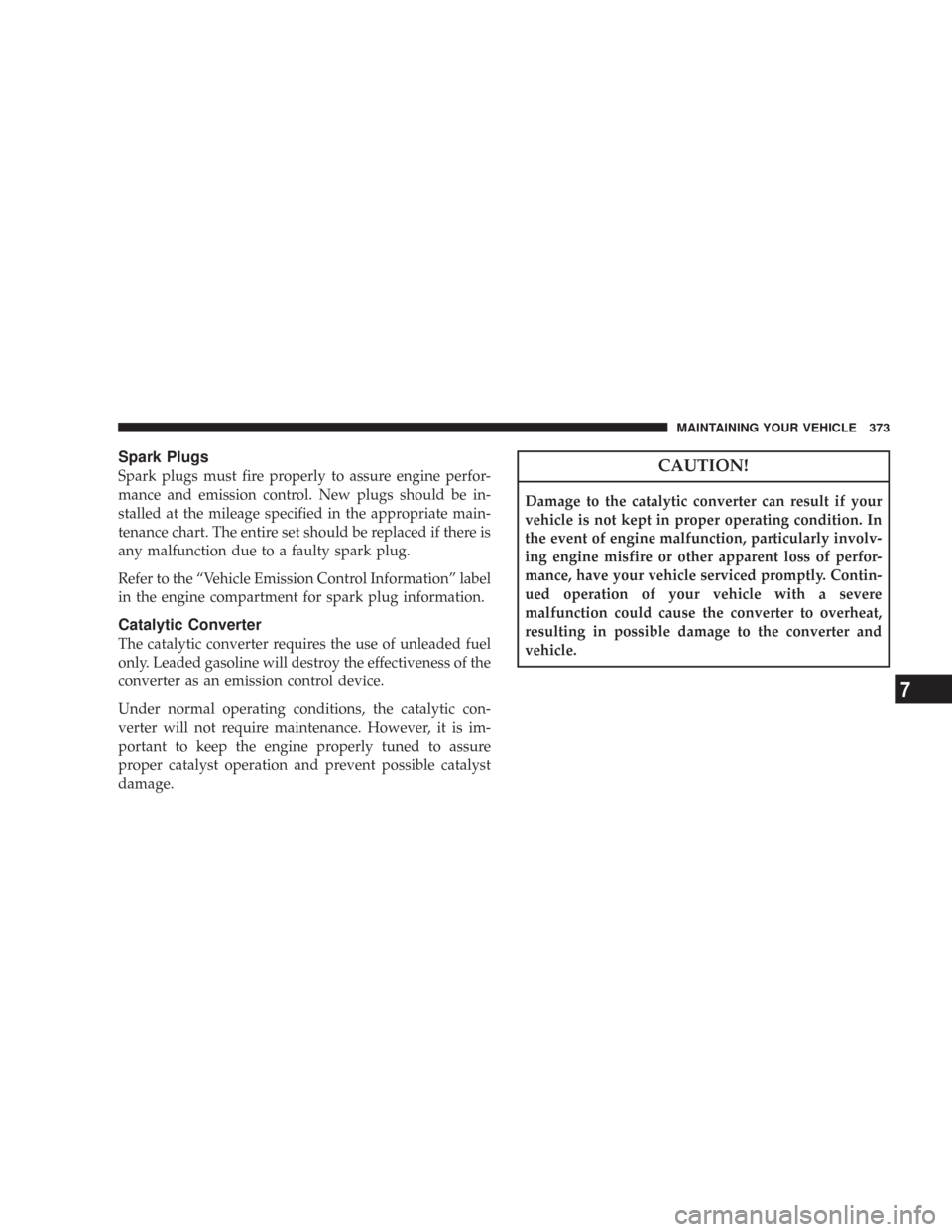

Spark Plugs
Spark plugs must fire properly to assure engine perfor-
mance and emission control. New plugs should be in-
stalled at the mileage specified in the appropriate main-
tenance chart. The entire set should be replaced if there is
any malfunction due to a faulty spark plug.
Refer to the “Vehicle Emission Control Information” label
in the engine compartment for spark plug information.
Catalytic Converter
The catalytic converter requires the use of unleaded fuel
only. Leaded gasoline will destroy the effectiveness of the
converter as an emission control device.
Under normal operating conditions, the catalytic con-
verter will not require maintenance. However, it is im-
portant to keep the engine properly tuned to assure
proper catalyst operation and prevent possible catalyst
damage.
CAUTION!
Damage to the catalytic converter can result if your
vehicle is not kept in proper operating condition. In
the event of engine malfunction, particularly involv-
ing engine misfire or other apparent loss of perfor-
mance, have your vehicle serviced promptly. Contin-
ued operation of your vehicle with a severe
malfunction could cause the converter to overheat,
resulting in possible damage to the converter and
vehicle.
MAINTAINING YOUR VEHICLE 373
7

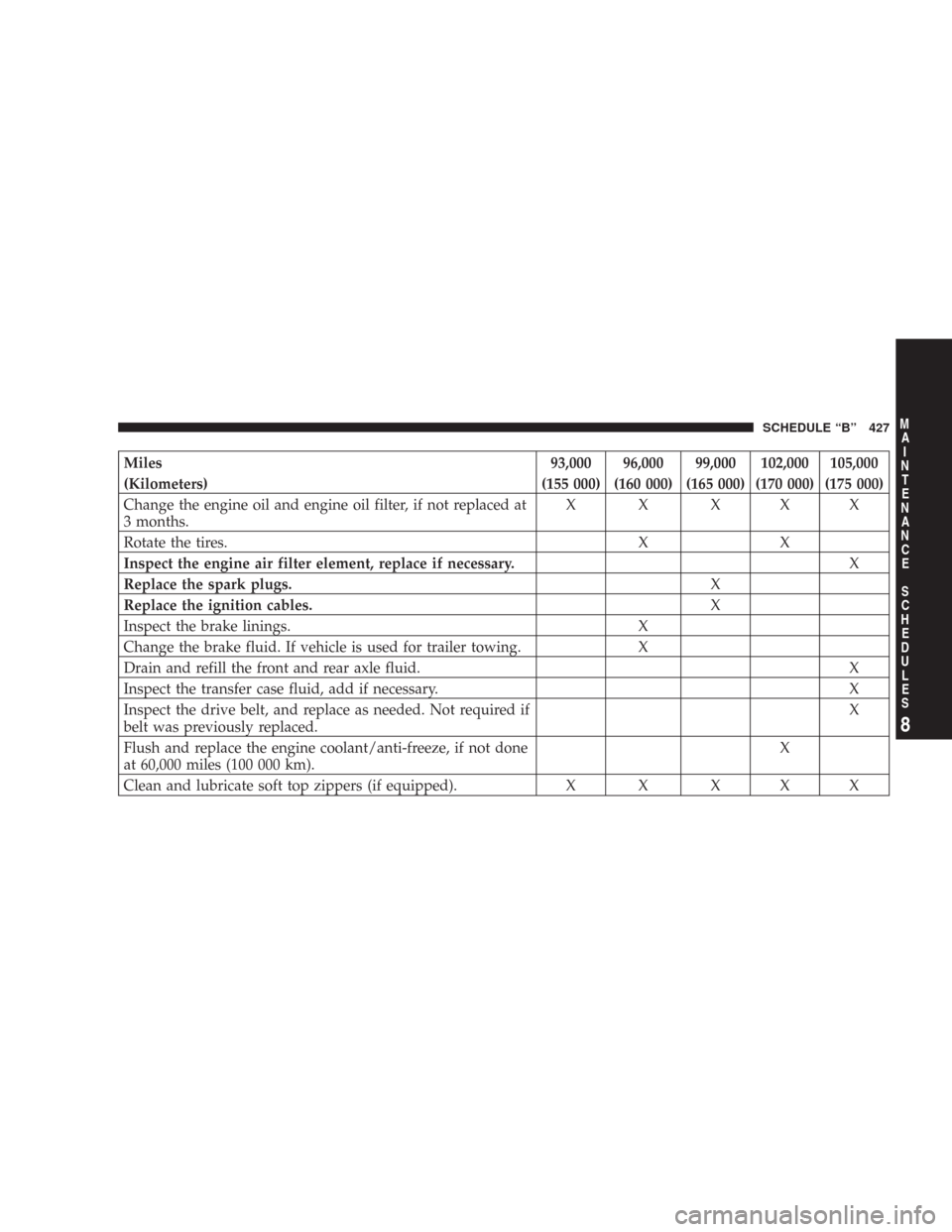

Miles 93,000 96,000 99,000 102,000 105,000
(Kilometers) (155 000) (160 000) (165 000) (170 000) (175 000)
Change the engine oil and engine oil filter, if not replaced at
3 months.XXXXX
Rotate the tires. X X
Inspect the engine air filter element, replace if necessary.X
Replace the spark plugs.X
Replace the ignition cables.X
Inspect the brake linings. X
Change the brake fluid. If vehicle is used for trailer towing. X
Drain and refill the front and rear axle fluid. X
Inspect the transfer case fluid, add if necessary. X
Inspect the drive belt, and replace as needed. Not required if
belt was previously replaced.X
Flush and replace the engine coolant/anti-freeze, if not done
at 60,000 miles (100 000 km).X
Clean and lubricate soft top zippers (if equipped). X X X X X
SCHEDULE “B” 427
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

Miles 84,000 90,000 96,000 102, 000
(Kilometers) (140 000) (150 000) (160 000) (170 000)
[Months] [84] [90] [96] [102]
Change the engine oil and engine oil filter. X X X X
Rotate the tires. X X X X
Inspect the engine air filter element, and replace if necessary.X
Inspect the PCV Valve, and replace if necessary.X
Replace the spark plugs.X
Replace the ignition cables.X
Inspect the brake linings. X
Inspect the drive belt, and replace as needed. Not required if pre-
viously replaced.XX
Flush and replace the engine coolant/anti-freeze if not done at 60
months.X
Inspect the manual transmission fluid, add as necessary. X
Inspect the transfer case fluid, add as necessary. X
Clean and lubricate soft top zippers (if equipped). X X X X
SCHEDULE “A” 435
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S
