JEEP WRANGLER 2008 JK / 3.G Owners Manual

REPLACEMENT BULBS — IF EQUIPPED
Interior LightsBulb Type
Auto. Trans. Indicator Light ................. 658
Courtesy Lights, Under Dash (1) .............. 906
Heater Control Lights (2) ................... 194
Rocker Switch Indicator Light (Rear Window
Defogger, and Rear Wash/Wipe) ............... **
Soundbar Dome Light ..................... 912
** Bulbs only available from authorized dealer.
Exterior Lights Bulb Type
Backup Lights (2) ........................ 3157
Center High-Mounted Stop Light (1) .........L.E.D.
Fog Lights ............................. 9145
Front Park/Turn Lights (2) .................3157
Front Side Marker Lights (2) ................. 168
Headlights (2) .......................... H13
Stop/Tail/Turn Lights (2) ..................3157
Underhood Light ......................... 561
License Light ........................... 194 NOTE:
Numbers refer to commercial bulb types that
can be purchased from your local authorized dealer.
If a bulb needs to be replaced, visit your authorized
dealer or refer to the applicable Service Manual.
BULB REPLACEMENT
NOTE: Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Head Light
1. Open hood and support using prop rod.
2. Remove the front grille. Turn the retainers along the
top 1/4 turn counterclockwise and remove.
3. Pull the bottom of the grille away starting at one side
and working toward the other.
420 MAINTAINING YOUR VEHICLE

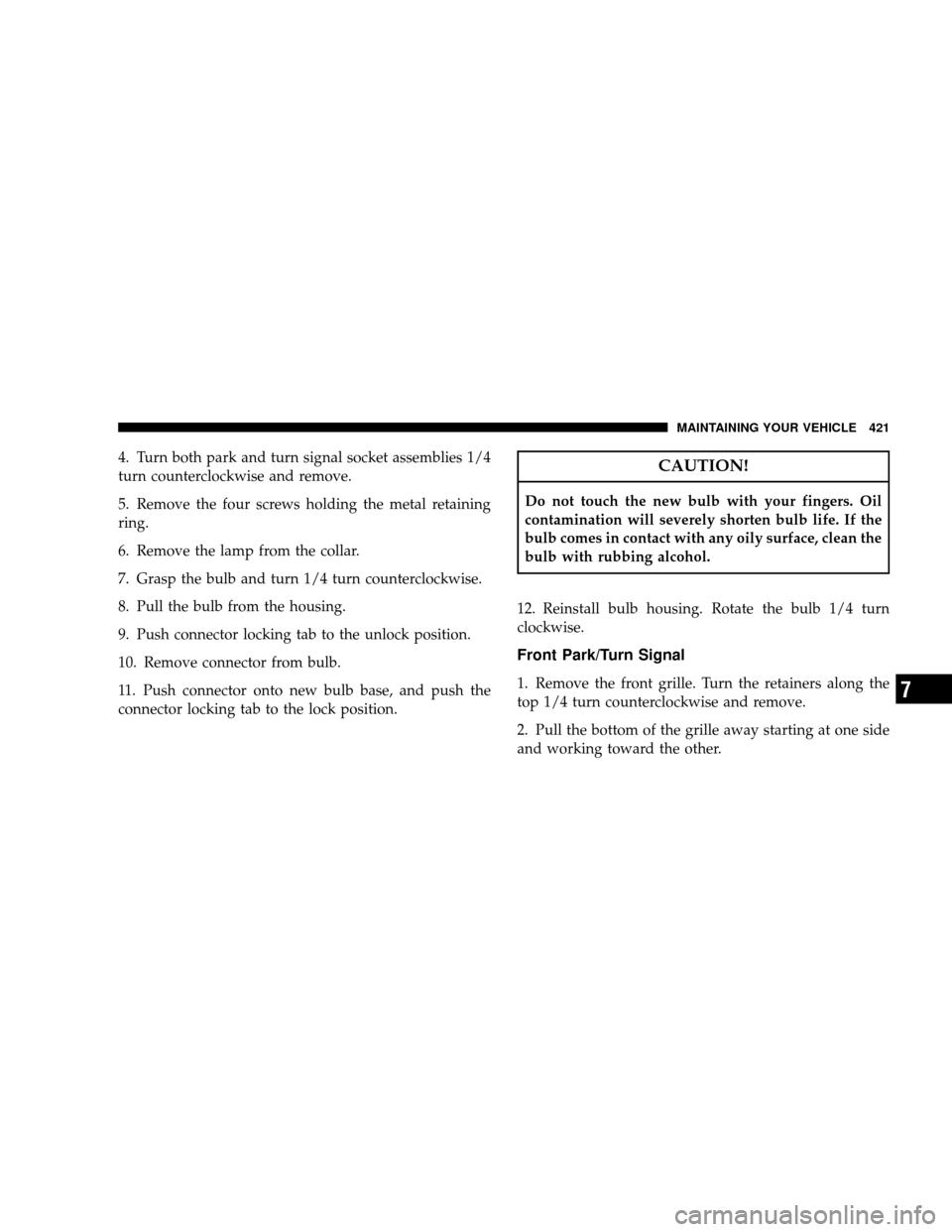

4. Turn both park and turn signal socket assemblies 1/4
turn counterclockwise and remove.
5. Remove the four screws holding the metal retaining
ring.
6. Remove the lamp from the collar.
7. Grasp the bulb and turn 1/4 turn counterclockwise.
8. Pull the bulb from the housing.
9. Push connector locking tab to the unlock position.
10. Remove connector from bulb.
11. Push connector onto new bulb base, and push the
connector locking tab to the lock position.CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
12. Reinstall bulb housing. Rotate the bulb 1/4 turn
clockwise.
Front Park/Turn Signal
1. Remove the front grille. Turn the retainers along the
top 1/4 turn counterclockwise and remove.
2. Pull the bottom of the grille away starting at one side
and working toward the other.
MAINTAINING YOUR VEHICLE 421
7

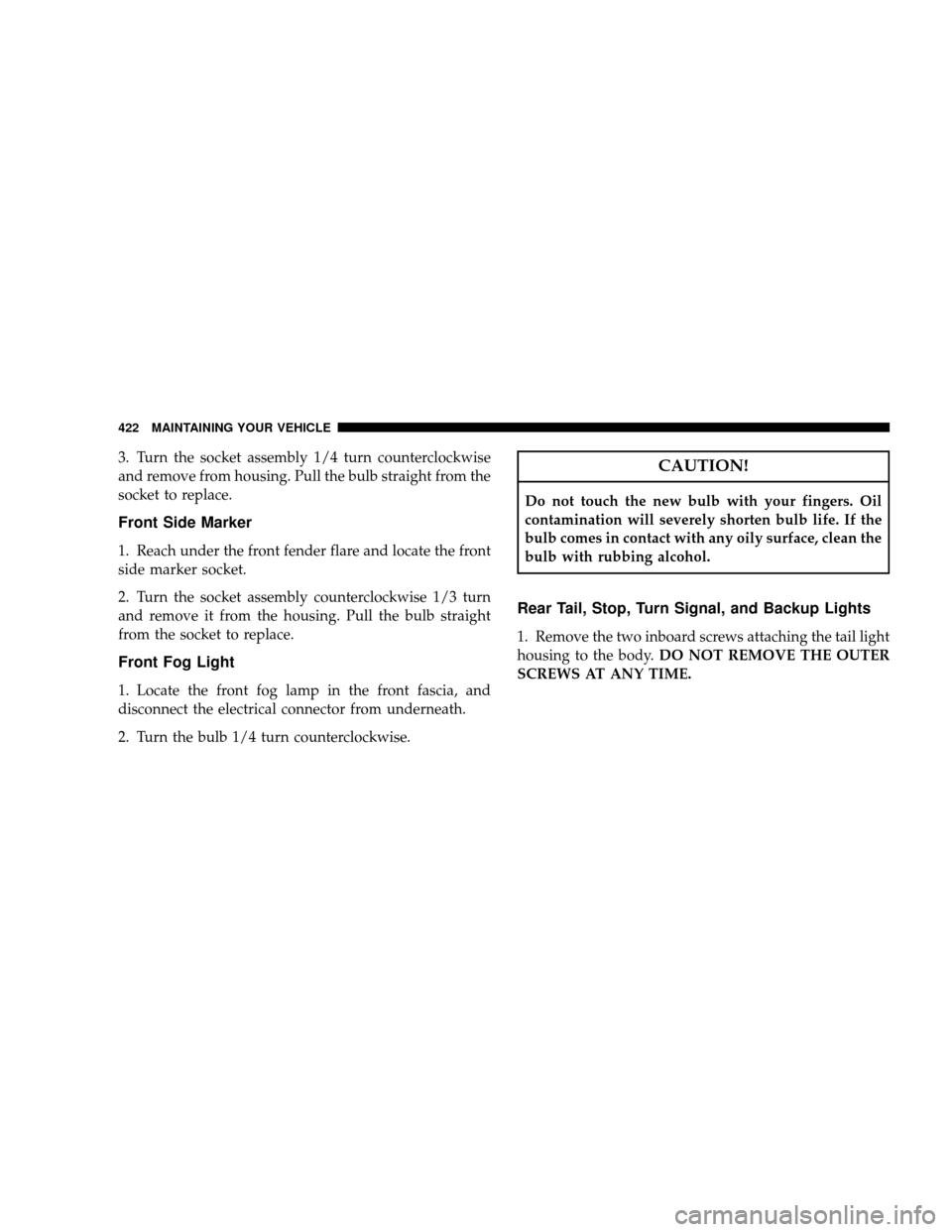

3. Turn the socket assembly 1/4 turn counterclockwise
and remove from housing. Pull the bulb straight from the
socket to replace.
Front Side Marker
1. Reach under the front fender flare and locate the front
side marker socket.
2. Turn the socket assembly counterclockwise 1/3 turn
and remove it from the housing. Pull the bulb straight
from the socket to replace.
Front Fog Light
1. Locate the front fog lamp in the front fascia, and
disconnect the electrical connector from underneath.
2. Turn the bulb 1/4 turn counterclockwise.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
Rear Tail, Stop, Turn Signal, and Backup Lights
1. Remove the two inboard screws attaching the tail light
housing to the body.DO NOT REMOVE THE OUTER
SCREWS AT ANY TIME.
422 MAINTAINING YOUR VEHICLE

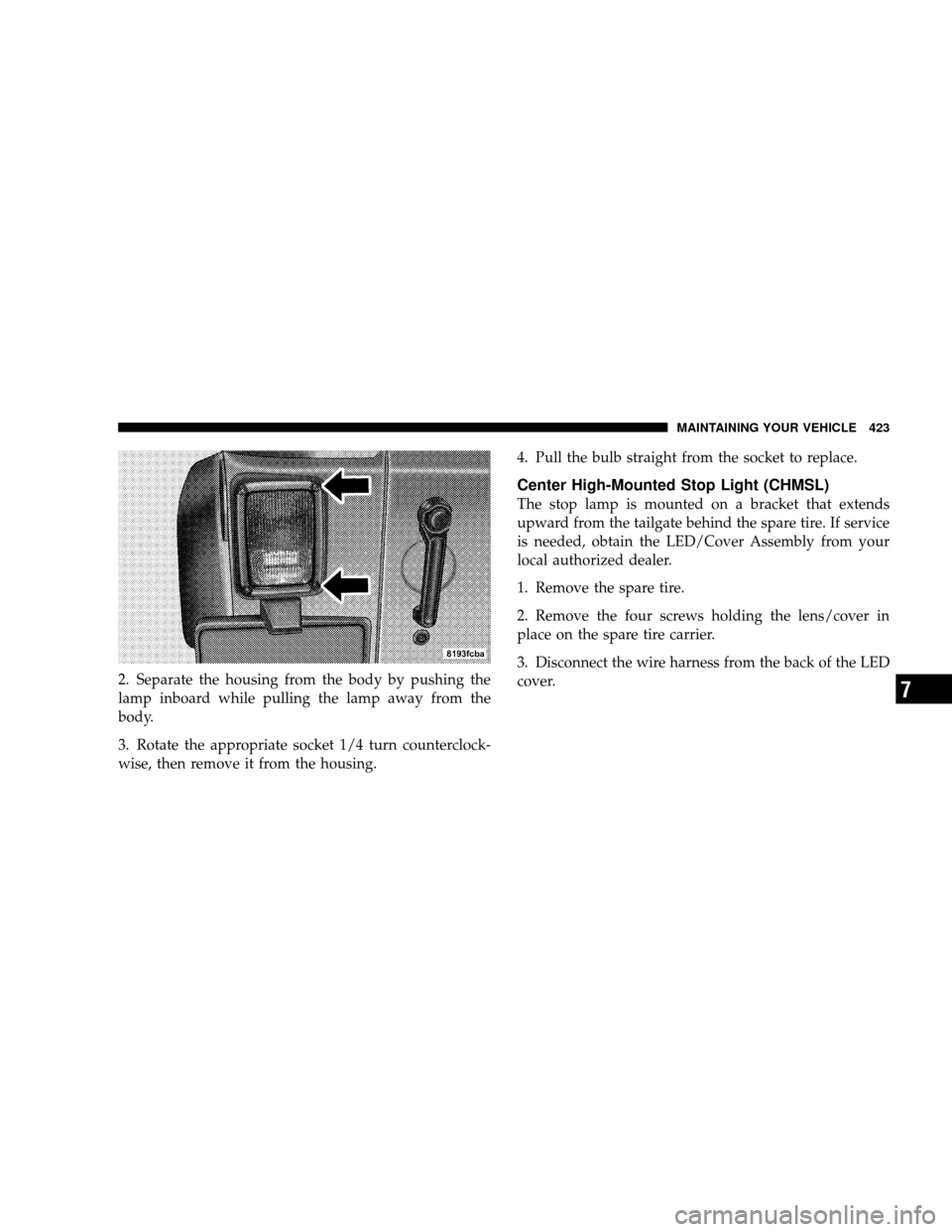

2. Separate the housing from the body by pushing the
lamp inboard while pulling the lamp away from the
body.
3. Rotate the appropriate socket 1/4 turn counterclock-
wise, then remove it from the housing.4. Pull the bulb straight from the socket to replace.
Center High-Mounted Stop Light (CHMSL)
The stop lamp is mounted on a bracket that extends
upward from the tailgate behind the spare tire. If service
is needed, obtain the LED/Cover Assembly from your
local authorized dealer.
1. Remove the spare tire.
2. Remove the four screws holding the lens/cover in
place on the spare tire carrier.
3. Disconnect the wire harness from the back of the LED
cover.
MAINTAINING YOUR VEHICLE 423
7

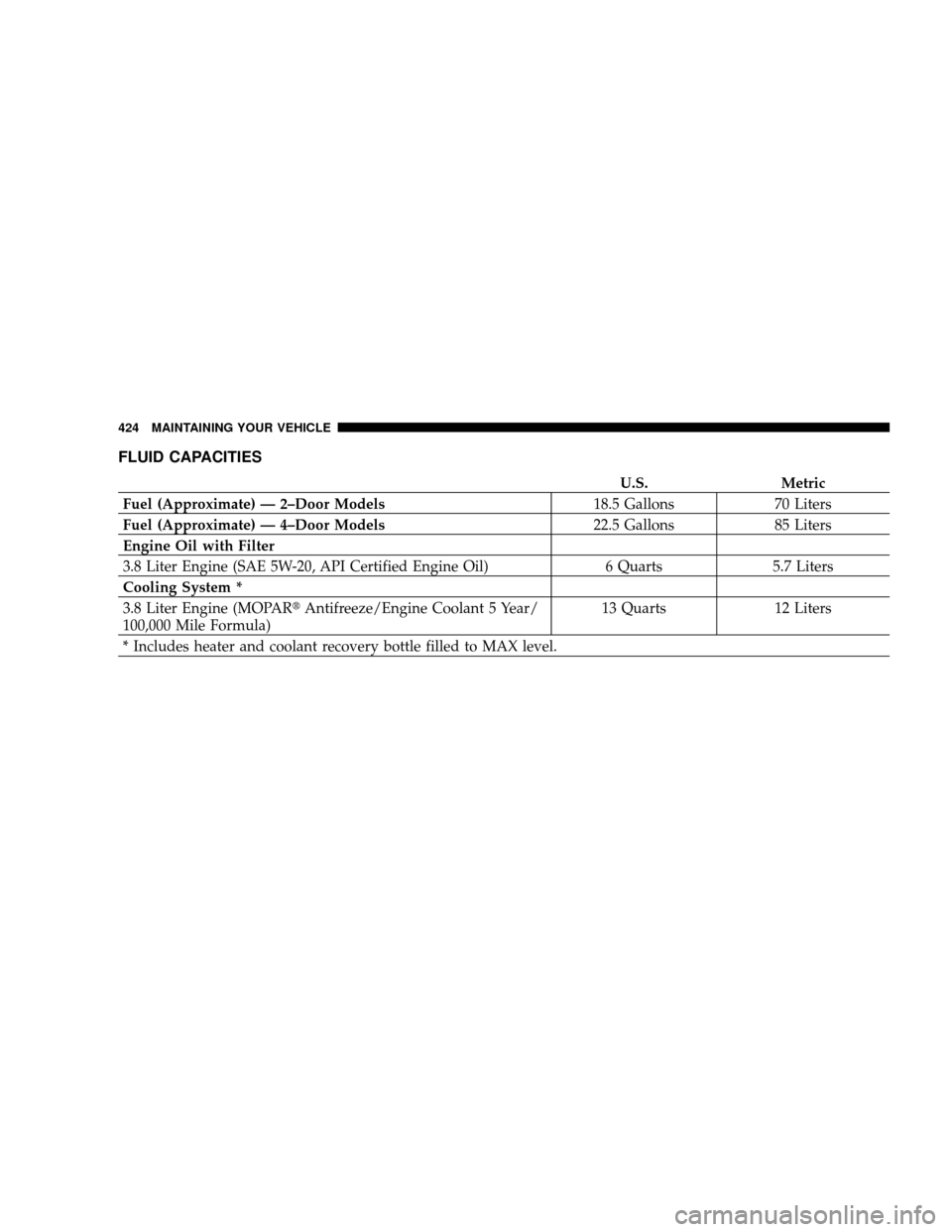

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate) — 2–Door Models 18.5 Gallons70 Liters
Fuel (Approximate) — 4–Door Models 22.5 Gallons85 Liters
Engine Oil with Filter
3.8 Liter Engine (SAE 5W-20, API Certified Engine Oil) 6 Quarts5.7 Liters
Cooling System *
3.8 Liter Engine (MOPAR Antifreeze/Engine Coolant 5 Year/
100,000 Mile Formula) 13 Quarts
12 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
424 MAINTAINING YOUR VEHICLE

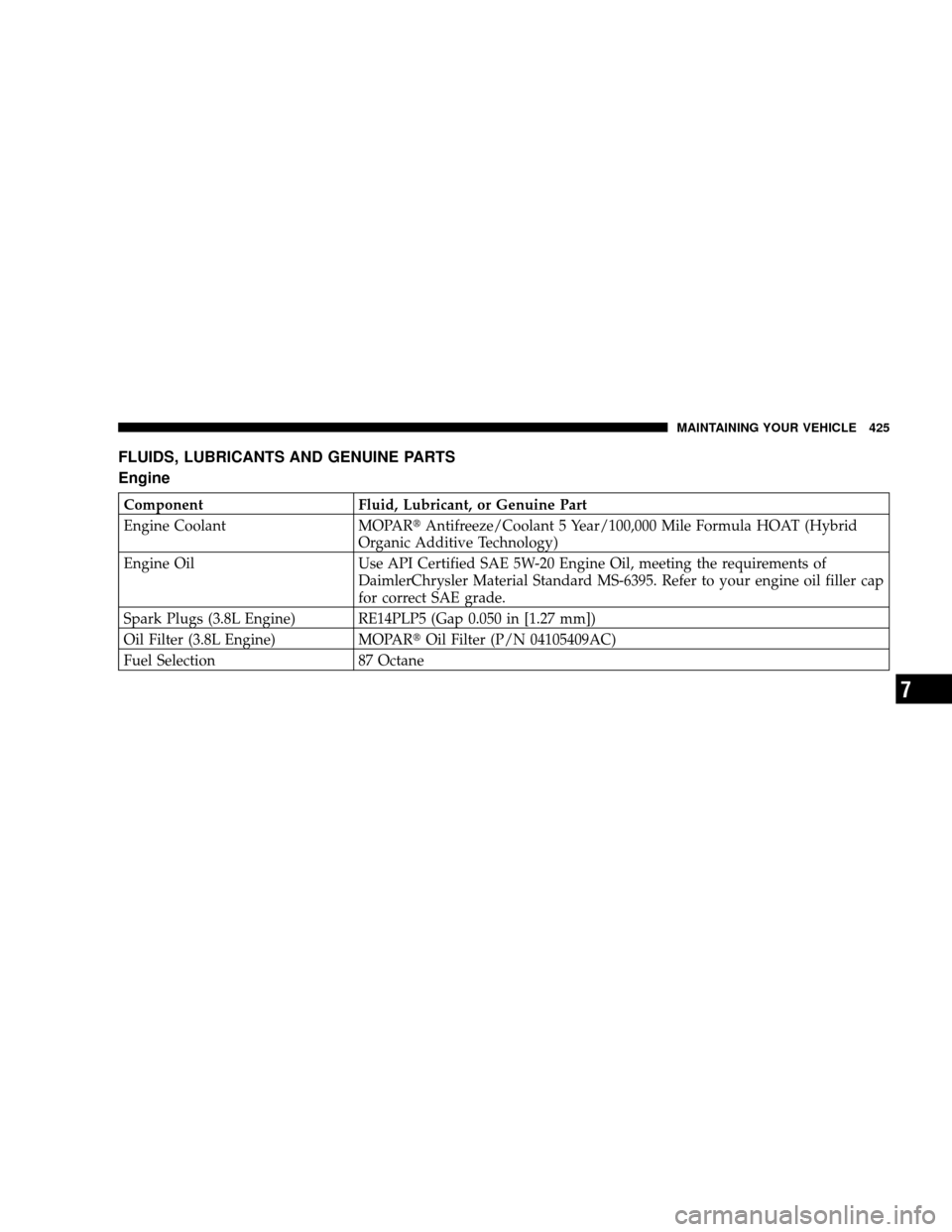

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant MOPARAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid
Organic Additive Technology)
Engine Oil Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of
DaimlerChrysler Material Standard MS-6395. Refer to your engine oil filler cap
for correct SAE grade.
Spark Plugs (3.8L Engine) RE14PLP5 (Gap 0.050 in [1.27 mm])
Oil Filter (3.8L Engine) MOPAROil Filter (P/N 04105409AC)
Fuel Selection 87 Octane
MAINTAINING YOUR VEHICLE 425
7

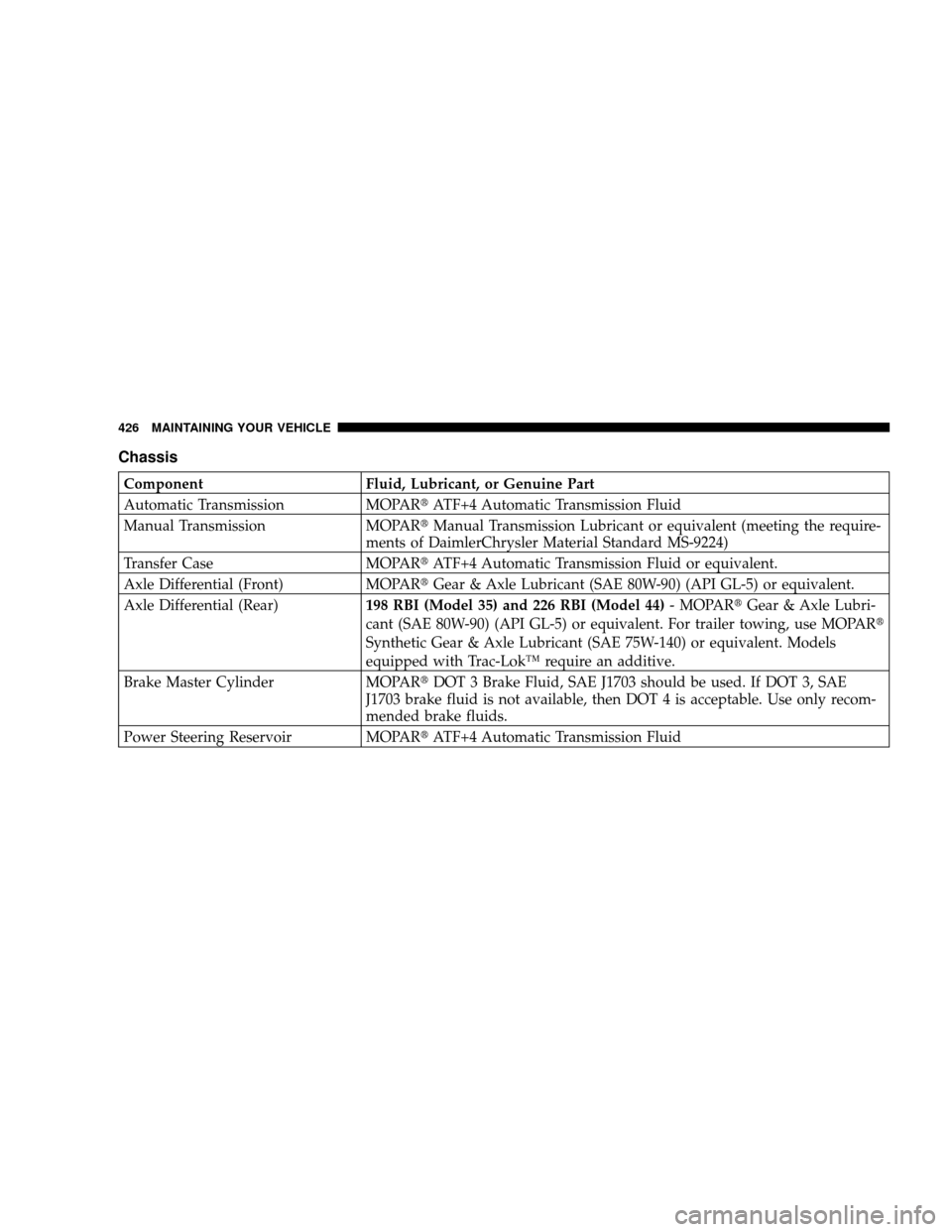

Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic Transmission MOPARATF+4 Automatic Transmission Fluid
Manual Transmission MOPARManual Transmission Lubricant or equivalent (meeting the require-
ments of DaimlerChrysler Material Standard MS-9224)
Transfer Case MOPARATF+4 Automatic Transmission Fluid or equivalent.
Axle Differential (Front) MOPARGear & Axle Lubricant (SAE 80W-90) (API GL-5) or equivalent.
Axle Differential (Rear) 198 RBI (Model 35) and 226 RBI (Model 44) - MOPARGear & Axle Lubri-
cant (SAE 80W-90) (API GL-5) or equivalent. For trailer towing, use MOPAR
Synthetic Gear & Axle Lubricant (SAE 75W-140) or equivalent. Models
equipped with Trac-Lok™ require an additive.
Brake Master Cylinder MOPARDOT 3 Brake Fluid, SAE J1703 should be used. If DOT 3, SAE
J1703 brake fluid is not available, then DOT 4 is acceptable. Use only recom-
mended brake fluids.
Power Steering Reservoir MOPARATF+4 Automatic Transmission Fluid
426 MAINTAINING YOUR VEHICLE

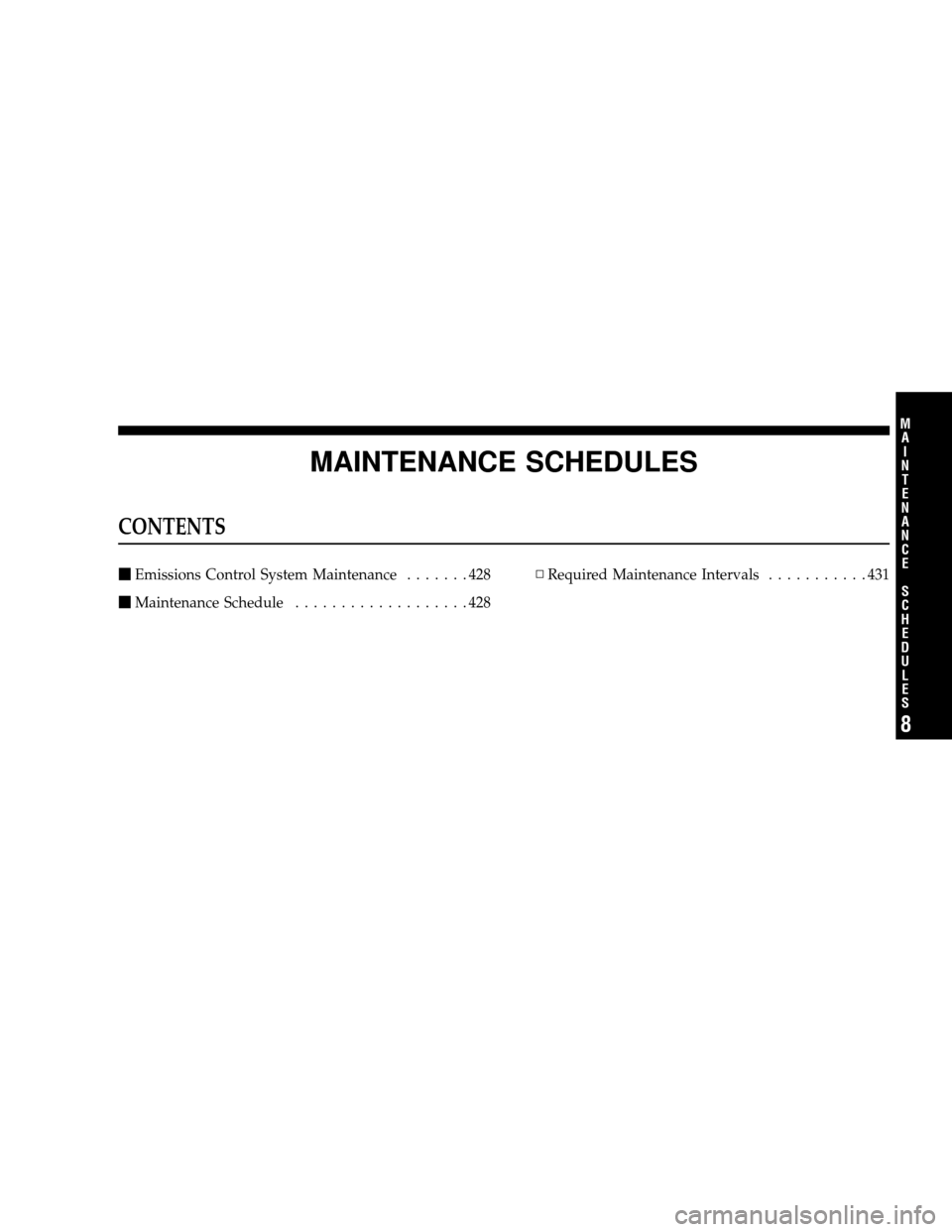

MAINTENANCE SCHEDULES
CONTENTS
Emissions Control System Maintenance .......428
 Maintenance Schedule ...................428 ▫
Required Maintenance Intervals ...........431
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

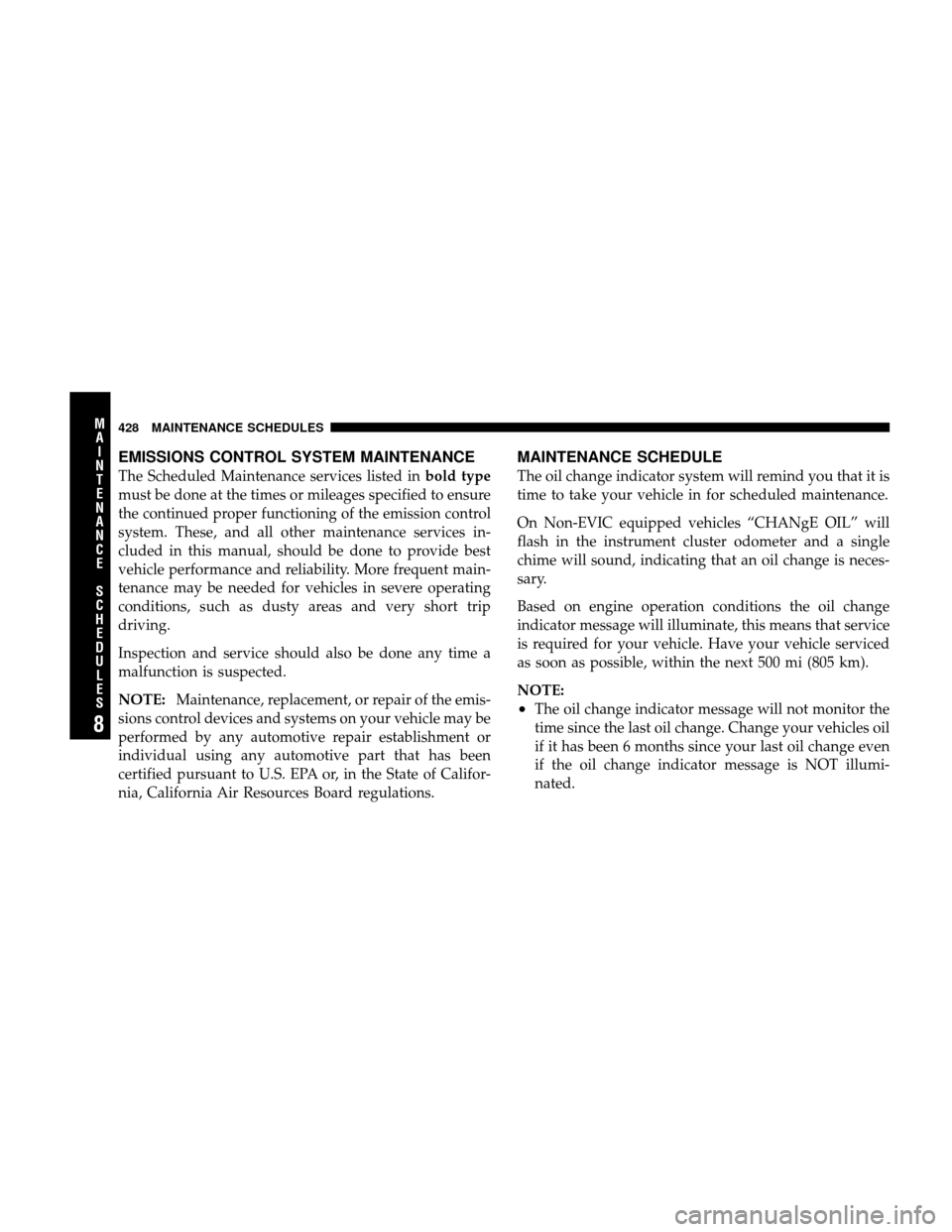

EMISSIONS CONTROL SYSTEM MAINTENANCE
The Scheduled Maintenance services listed inbold type
must be done at the times or mileages specified to ensure
the continued proper functioning of the emission control
system. These, and all other maintenance services in-
cluded in this manual, should be done to provide best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving.
Inspection and service should also be done any time a
malfunction is suspected.
NOTE: Maintenance, replacement, or repair of the emis-
sions control devices and systems on your vehicle may be
performed by any automotive repair establishment or
individual using any automotive part that has been
certified pursuant to U.S. EPA or, in the State of Califor-
nia, California Air Resources Board regulations.
MAINTENANCE SCHEDULE
The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.
On Non-EVIC equipped vehicles “CHANgE OIL” will
flash in the instrument cluster odometer and a single
chime will sound, indicating that an oil change is neces-
sary.
Based on engine operation conditions the oil change
indicator message will illuminate, this means that service
is required for your vehicle. Have your vehicle serviced
as soon as possible, within the next 500 mi (805 km).
NOTE:
•The oil change indicator message will not monitor the
time since the last oil change. Change your vehicles oil
if it has been 6 months since your last oil change even
if the oil change indicator message is NOT illumi-
nated.
428 MAINTENANCE SCHEDULES
8
M A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

•Change your engine oil more often if you drive your
vehicle off-road for an extended period of time.
•Under no circumstances should oil change intervals
exceed 6,000 mi (10,000 km) or 6 months, whichever
comes first.
Your dealer will reset the oil change indicator message
after completing the scheduled oil change. If this sched-
uled oil change is performed by someone other than your
dealer the message can be reset by referring to the steps
described under “Odometer/Trip Odometer” in the “In-
strument Cluster Description” section of this manual.
At Each Stop for Fuel
•Check the engine oil level about 5 minutes after a fully
warmed engine is shut off. Checking the oil level while
the vehicle is on level ground will improve the accu-
racy of the oil level reading. Add oil only when the
level is at or below the ADD or MIN mark.
•Check the windshield washer solvent and add if
required.
Once a Month
•Check tire pressure and look for unusual wear or
damage.
•Inspect the battery and clean and tighten the terminals
as required.
•Check the fluid levels of coolant reservoir, brake
master cylinder, power steering and transmission and
add as needed.
•Check all lights and other electrical items for correct
operation.
