spark plugs replace JEEP WRANGLER 2008 JK / 3.G Owners Manual

MAINTAINING YOUR VEHICLE
CONTENTS
Engine Compartment – 3.8L ...............378
 Onboard Diagnostic System — OBD II ........379
▫ Loose Fuel Filler Cap Message ............380
 Emissions Inspection And Maintenance
Programs ............................380
 Replacement Parts ......................382
 Authorized Dealer Service ................382
 Maintenance Procedures ..................383
▫ Engine Oil ..........................383 ▫
Drive Belts — Check Condition And Tension . . 386
▫ Spark Plugs .........................386
▫ Catalytic Converter ....................386
▫ Crankcase Emission Control System ........388
▫ Fuel Filter ..........................388
▫ Engine Air Cleaner Filter ................389
▫ Maintenance-Free Battery ................389
▫ Air Conditioner Maintenance .............390
▫ Power Steering Fluid Check ..............391
7

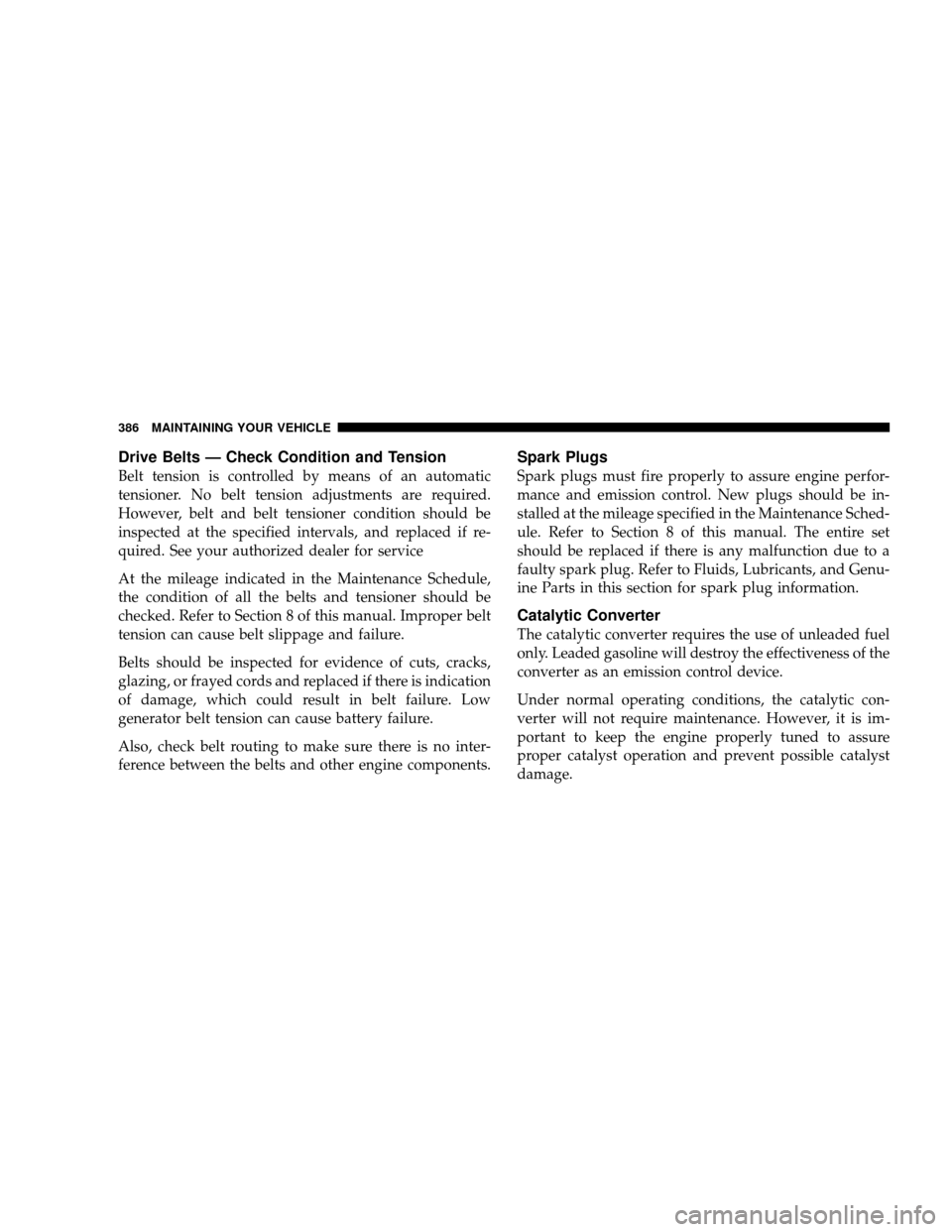

Drive Belts — Check Condition and Tension
Belt tension is controlled by means of an automatic
tensioner. No belt tension adjustments are required.
However, belt and belt tensioner condition should be
inspected at the specified intervals, and replaced if re-
quired. See your authorized dealer for service
At the mileage indicated in the Maintenance Schedule,
the condition of all the belts and tensioner should be
checked. Refer to Section 8 of this manual. Improper belt
tension can cause belt slippage and failure.
Belts should be inspected for evidence of cuts, cracks,
glazing, or frayed cords and replaced if there is indication
of damage, which could result in belt failure. Low
generator belt tension can cause battery failure.
Also, check belt routing to make sure there is no inter-
ference between the belts and other engine components.
Spark Plugs
Spark plugs must fire properly to assure engine perfor-
mance and emission control. New plugs should be in-
stalled at the mileage specified in the Maintenance Sched-
ule. Refer to Section 8 of this manual. The entire set
should be replaced if there is any malfunction due to a
faulty spark plug. Refer to Fluids, Lubricants, and Genu-
ine Parts in this section for spark plug information.
Catalytic Converter
The catalytic converter requires the use of unleaded fuel
only. Leaded gasoline will destroy the effectiveness of the
converter as an emission control device.
Under normal operating conditions, the catalytic con-
verter will not require maintenance. However, it is im-
portant to keep the engine properly tuned to assure
proper catalyst operation and prevent possible catalyst
damage.
386 MAINTAINING YOUR VEHICLE

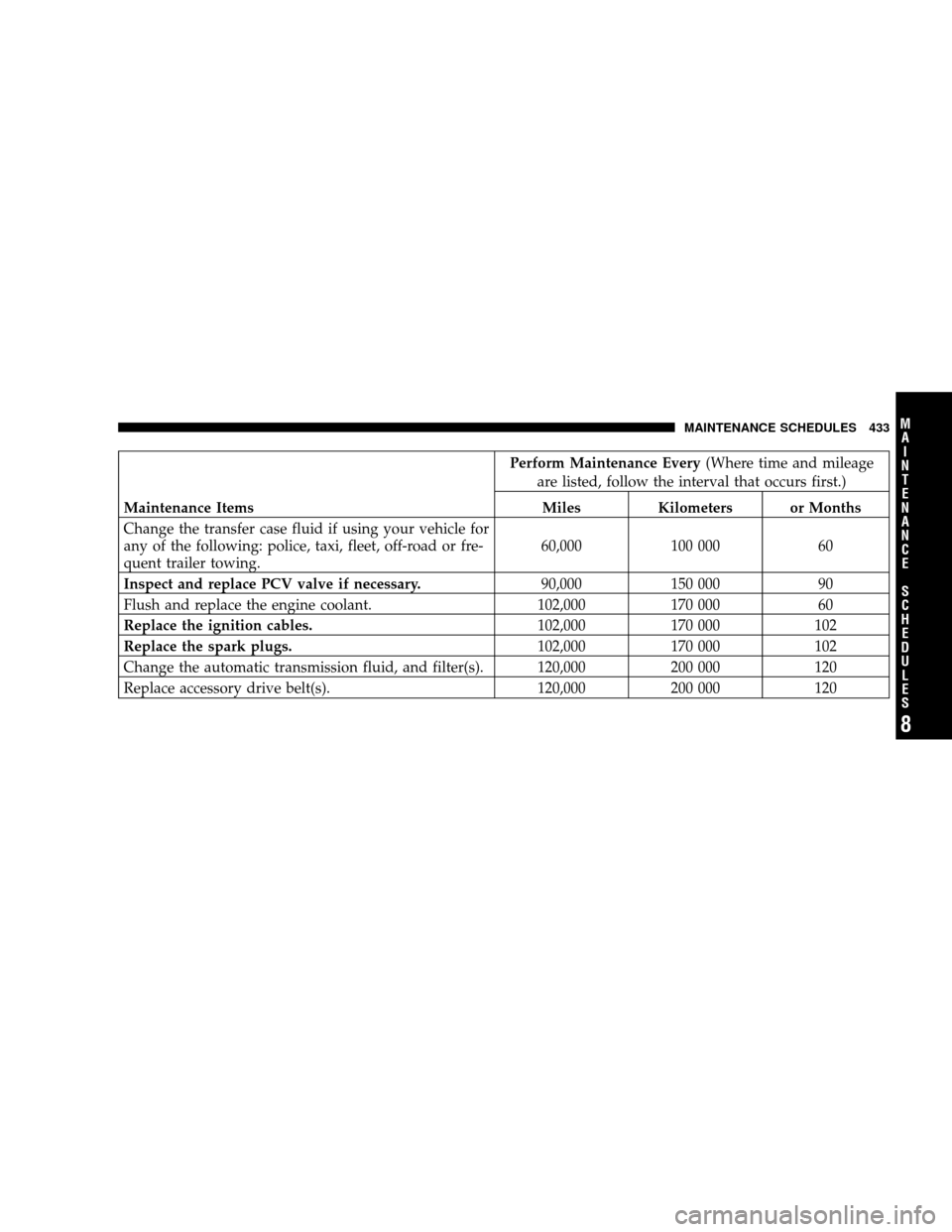

Perform Maintenance Every(Where time and mileage
are listed, follow the interval that occurs first.)
Maintenance Items MilesKilometers or Months
Change the transfer case fluid if using your vehicle for
any of the following: police, taxi, fleet, off-road or fre-
quent trailer towing. 60,000
100 000 60
Inspect and replace PCV valve if necessary. 90,000150 000 90
Flush and replace the engine coolant. 102,000170 000 60
Replace the ignition cables. 102,000170 000 102
Replace the spark plugs. 102,000170 000 102
Change the automatic transmission fluid, and filter(s). 120,000 200 000120
Replace accessory drive belt(s). 120,000200 000 120
MAINTENANCE SCHEDULES 433
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

Sentry Key Programming................... 16
Sentry Key Replacement ................... 16
Service Assistance ....................... 437
Service Contract ......................... 439
Service Manuals ........................ 441
Setting the Clock .................. 224,236,251
Shift Lock Manual Override ................ 280
Shifting ............................... 279
Automatic Transmission ................. 281
Manual Transmission ................... 275
Shoulder Belt Upper Anchorage .............. 47
Shoulder Belts ........................... 41
Side Airbag ............................. 57
Signals, Turn ................... 99,207,421,422
Snow Chains (Tire Chains) ................. 329
Soft Top ........................... 141,168
Sound Systems (Radio) .................... 250
Spare Tire ............................. 367
Spark Plugs ............................ 386 Specifications
Fuel (Gasoline) ........................ 336
Oil ................................ 384
Speed Control (Cruise Control) .............. 102
Speedometer ........................... 206
Starting ............................... 271
Automatic Transmission ................. 271
Cold Weather ......................... 272
Engine Block Heater .................... 275
Engine Fails to Start .................... 273
Manual Transmission ................... 271
Remote .............................. 25
Steering Power ........................... 31 1,391
Tilt Column .......................... 101
Wheel Lock ........................... 14
Wheel, Tilt ........................... 101
Storage ............................ 1 18,419
Storage, Behind the Seat ................... 119
INDEX 459
