JEEP WRANGLER 2008 Owners Manual

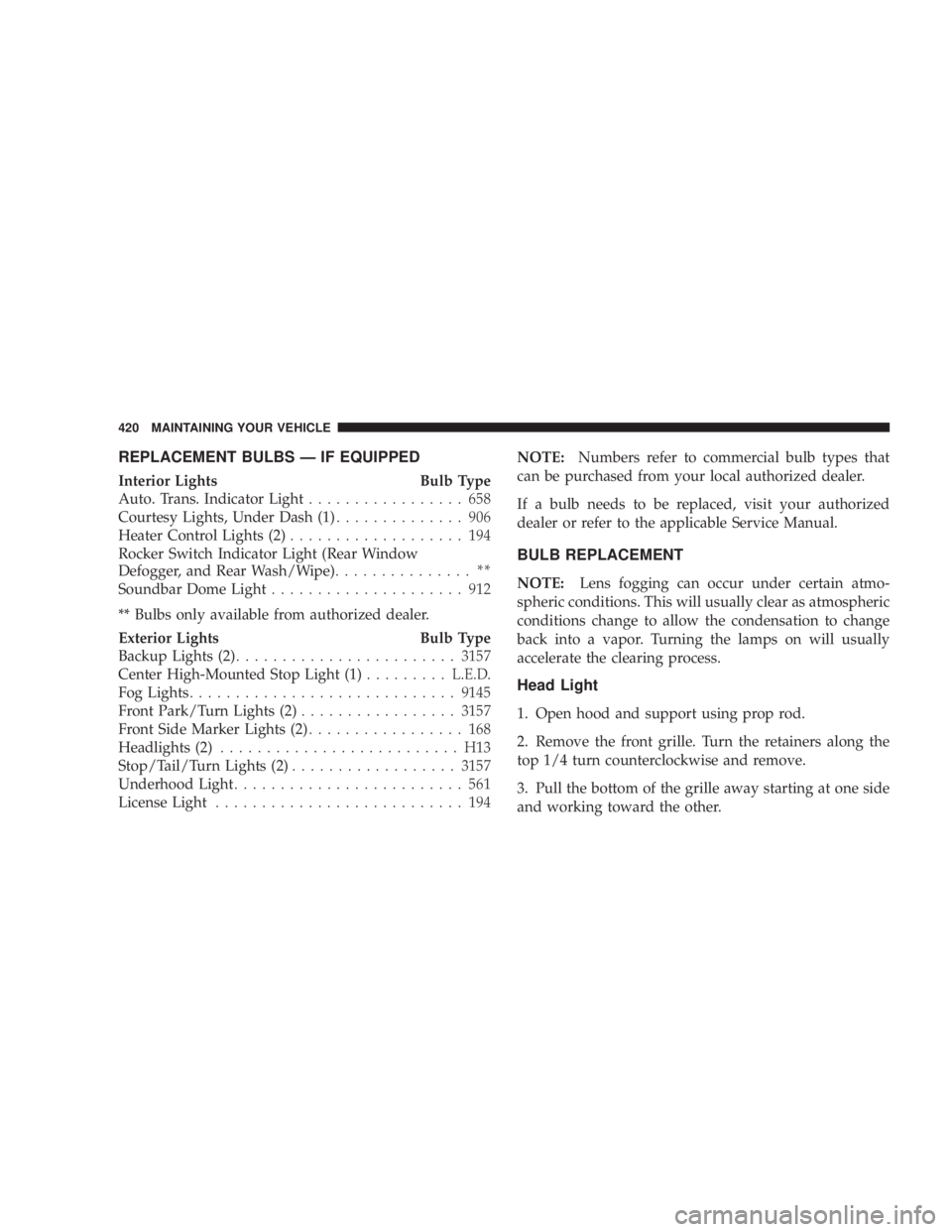

REPLACEMENT BULBS — IF EQUIPPED
Interior LightsBulb Type
Auto. Trans. Indicator Light ................. 658
Courtesy Lights, Under Dash (1) .............. 906
Heater Control Lights (2) ................... 194
Rocker Switch Indicator Light (Rear Window
Defogger, and Rear Wash/Wipe) ............... **
Soundbar Dome Light ..................... 912
** Bulbs only available from authorized dealer.
Exterior Lights Bulb Type
Backup Lights (2) ........................ 3157
Center High-Mounted Stop Light (1) .........L.E.D.
Fog Lights ............................. 9145
Front Park/Turn Lights (2) .................3157
Front Side Marker Lights (2) ................. 168
Headlights (2) .......................... H13
Stop/Tail/Turn Lights (2) ..................3157
Underhood Light ......................... 561
License Light ........................... 194 NOTE:
Numbers refer to commercial bulb types that
can be purchased from your local authorized dealer.
If a bulb needs to be replaced, visit your authorized
dealer or refer to the applicable Service Manual.
BULB REPLACEMENT
NOTE: Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Head Light
1. Open hood and support using prop rod.
2. Remove the front grille. Turn the retainers along the
top 1/4 turn counterclockwise and remove.
3. Pull the bottom of the grille away starting at one side
and working toward the other.
420 MAINTAINING YOUR VEHICLE

7

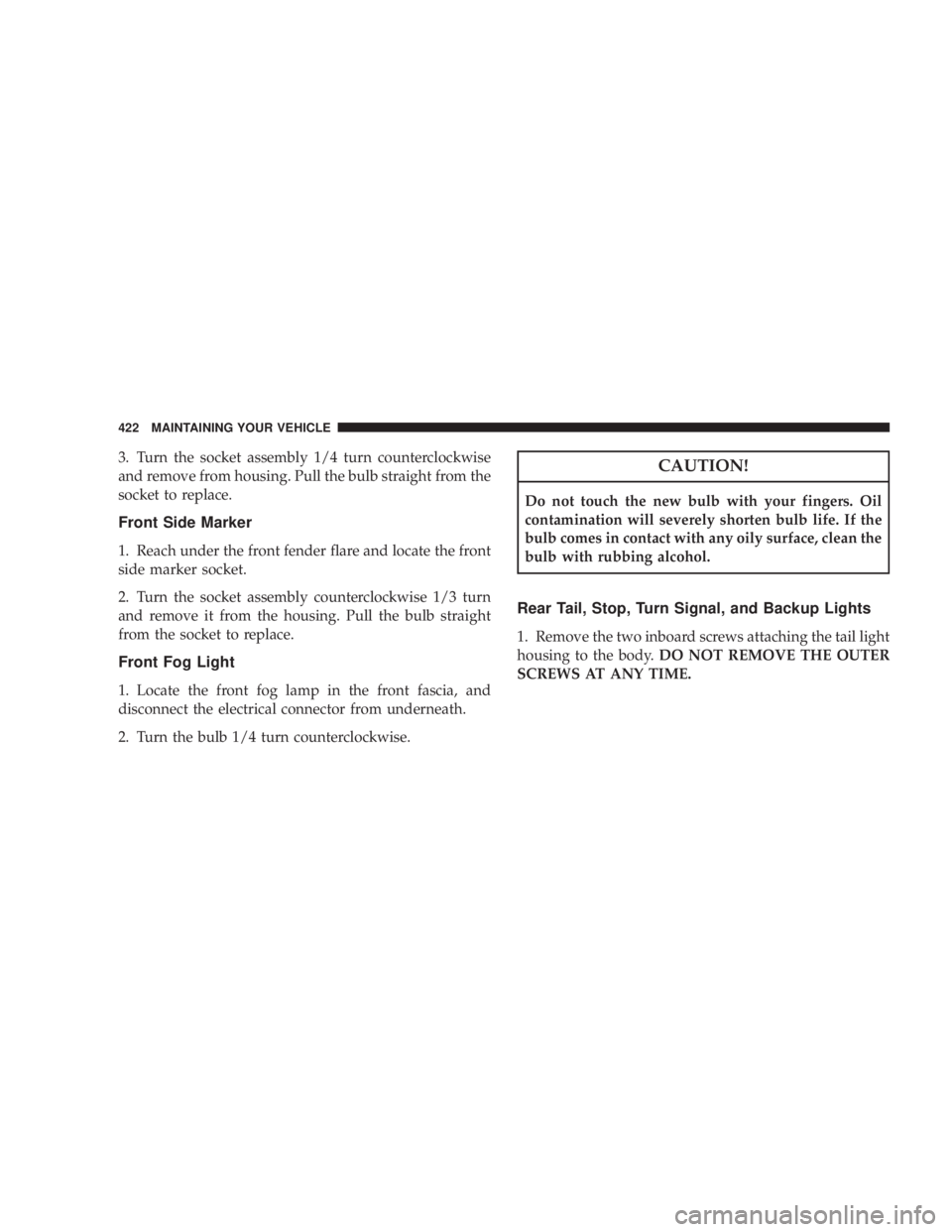

3. Turn the socket assembly 1/4 turn counterclockwise
and remove from housing. Pull the bulb straight from the
socket to replace.
Front Side Marker
1. Reach under the front fender flare and locate the front
side marker socket.
2. Turn the socket assembly counterclockwise 1/3 turn
and remove it from the housing. Pull the bulb straight
from the socket to replace.
Front Fog Light
1. Locate the front fog lamp in the front fascia, and
disconnect the electrical connector from underneath.
2. Turn the bulb 1/4 turn counterclockwise.

7

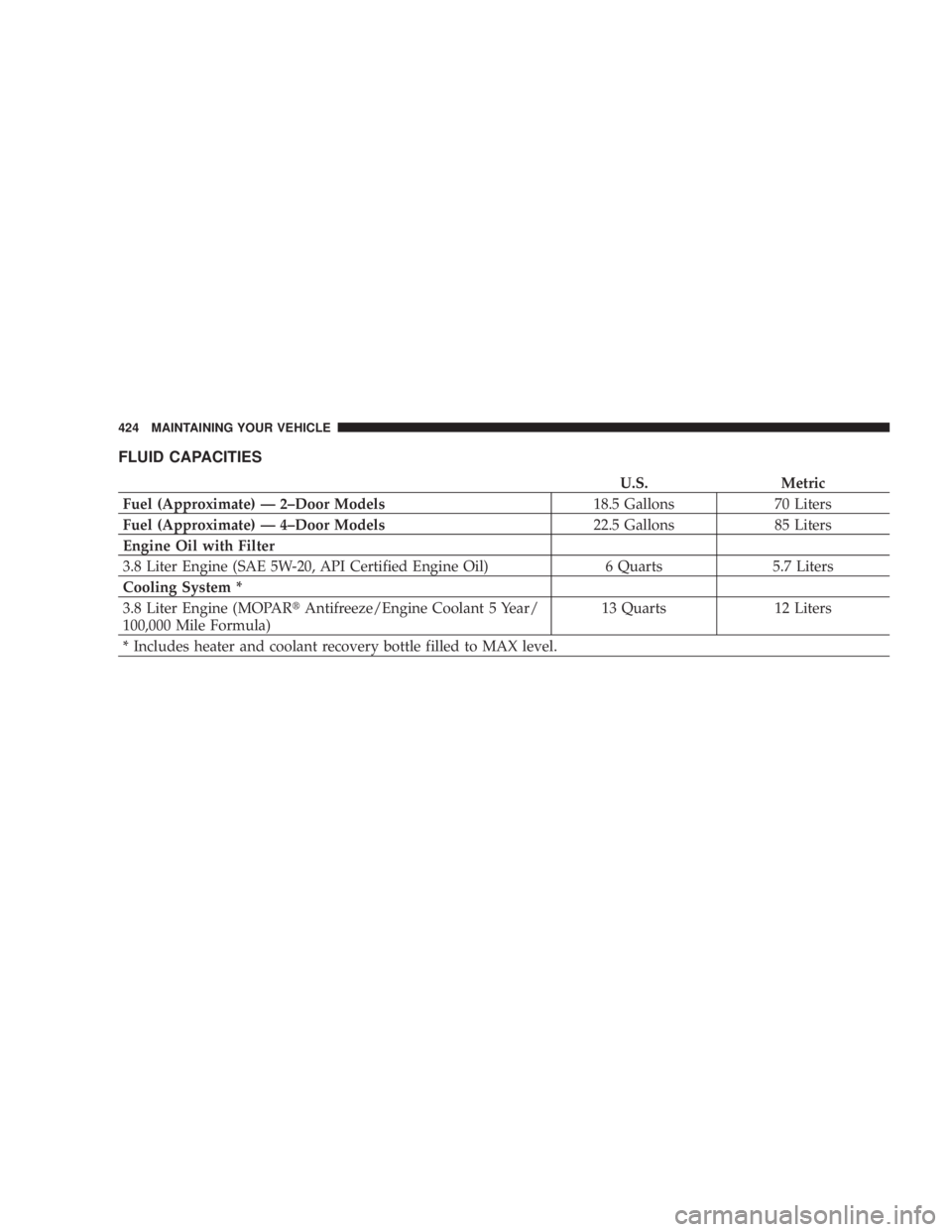

FLUID CAPACITIES

7

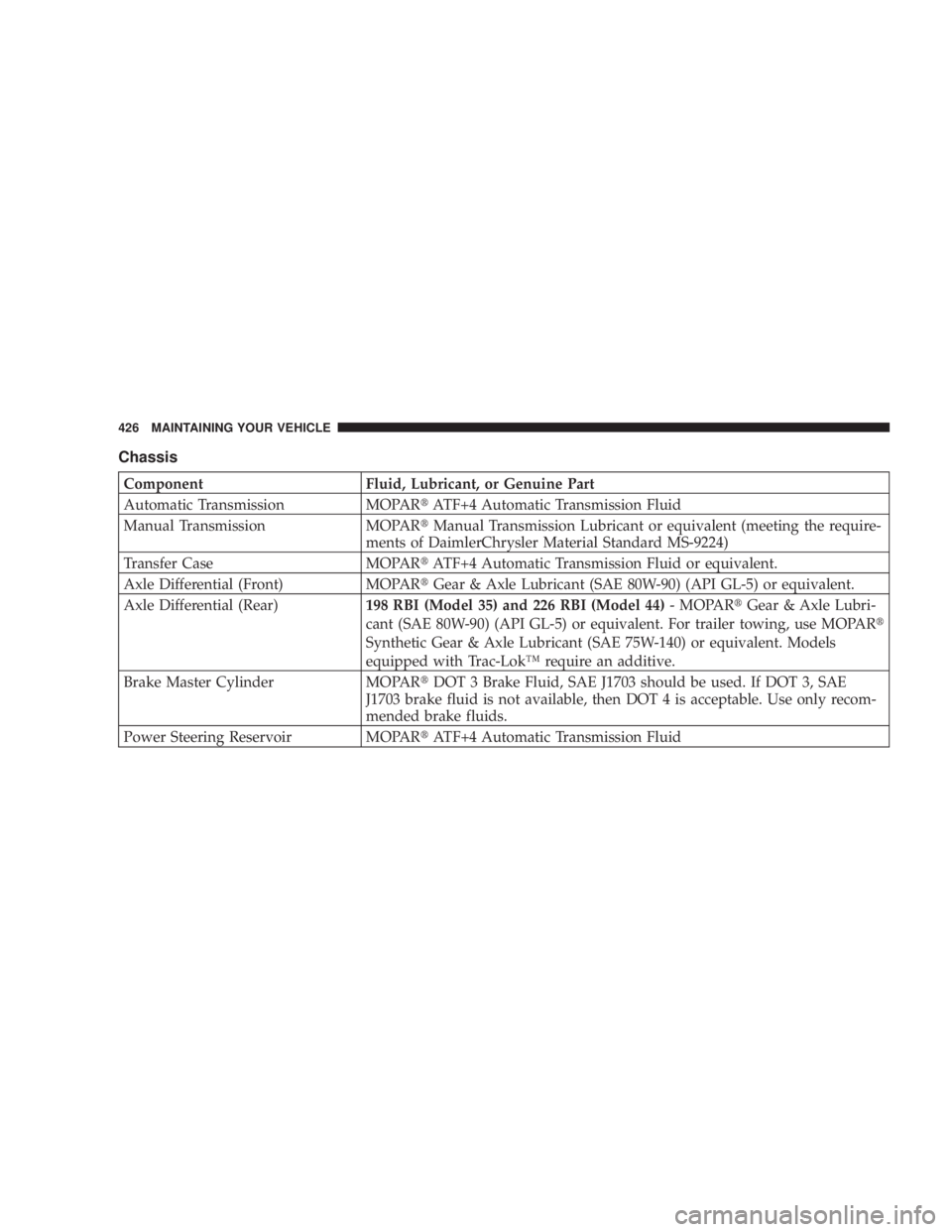

Chassis
