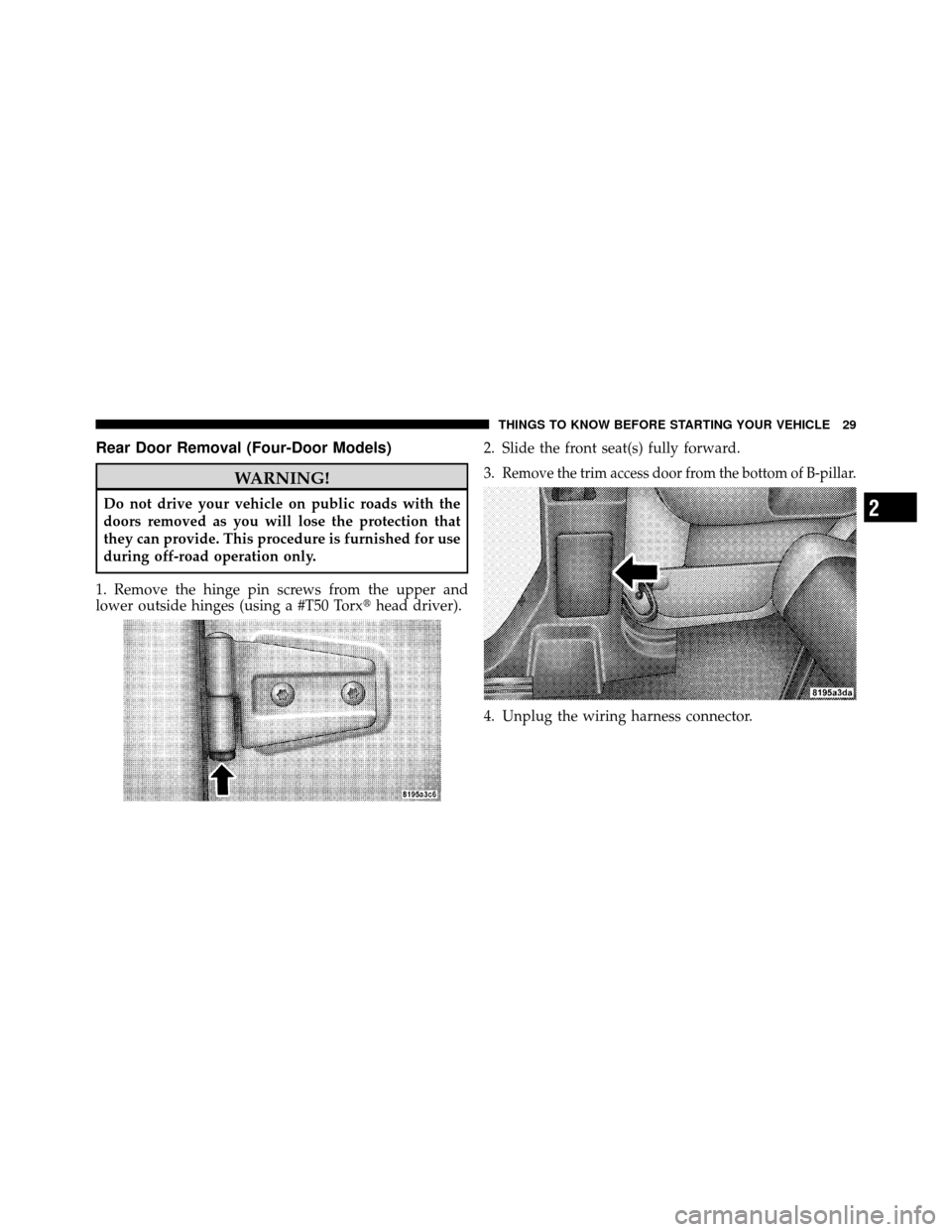

Rear Door Removal (Four-Door Models)
WARNING!
Do not drive your vehicle on public roads with the
doors removed as you will lose the protection that
they can provide. This procedure is furnished for use
during off-road operation only.
1. Remove the hinge pin screws from the upper and
lower outside hinges (using a #T50 Torx head driver).2. Slide the front seat(s) fully forward.
3.
Remove the trim access door from the bottom of B-pillar.
4. Unplug the wiring harness connector.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29

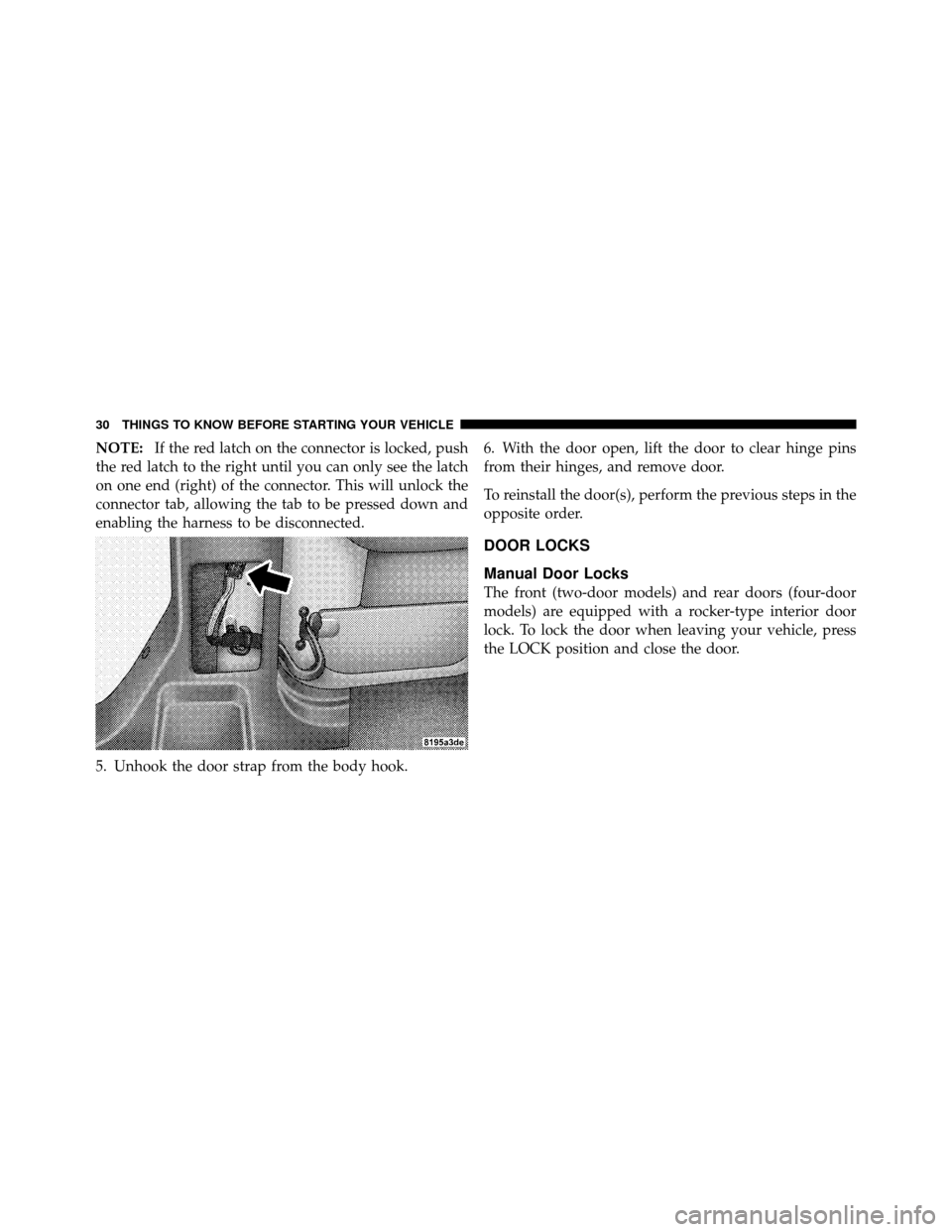

NOTE:If the red latch on the connector is locked, push
the red latch to the right until you can only see the latch
on one end (right) of the connector. This will unlock the
connector tab, allowing the tab to be pressed down and
enabling the harness to be disconnected.
5. Unhook the door strap from the body hook. 6. With the door open, lift the door to clear hinge pins
from their hinges, and remove door.
To reinstall the door(s), perform the previous steps in the
opposite order.
DOOR LOCKS
Manual Door Locks
The front (two-door models) and rear doors (four-door
models) are equipped with a rocker-type interior door
lock. To lock the door when leaving your vehicle, press
the LOCK position and close the door.
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

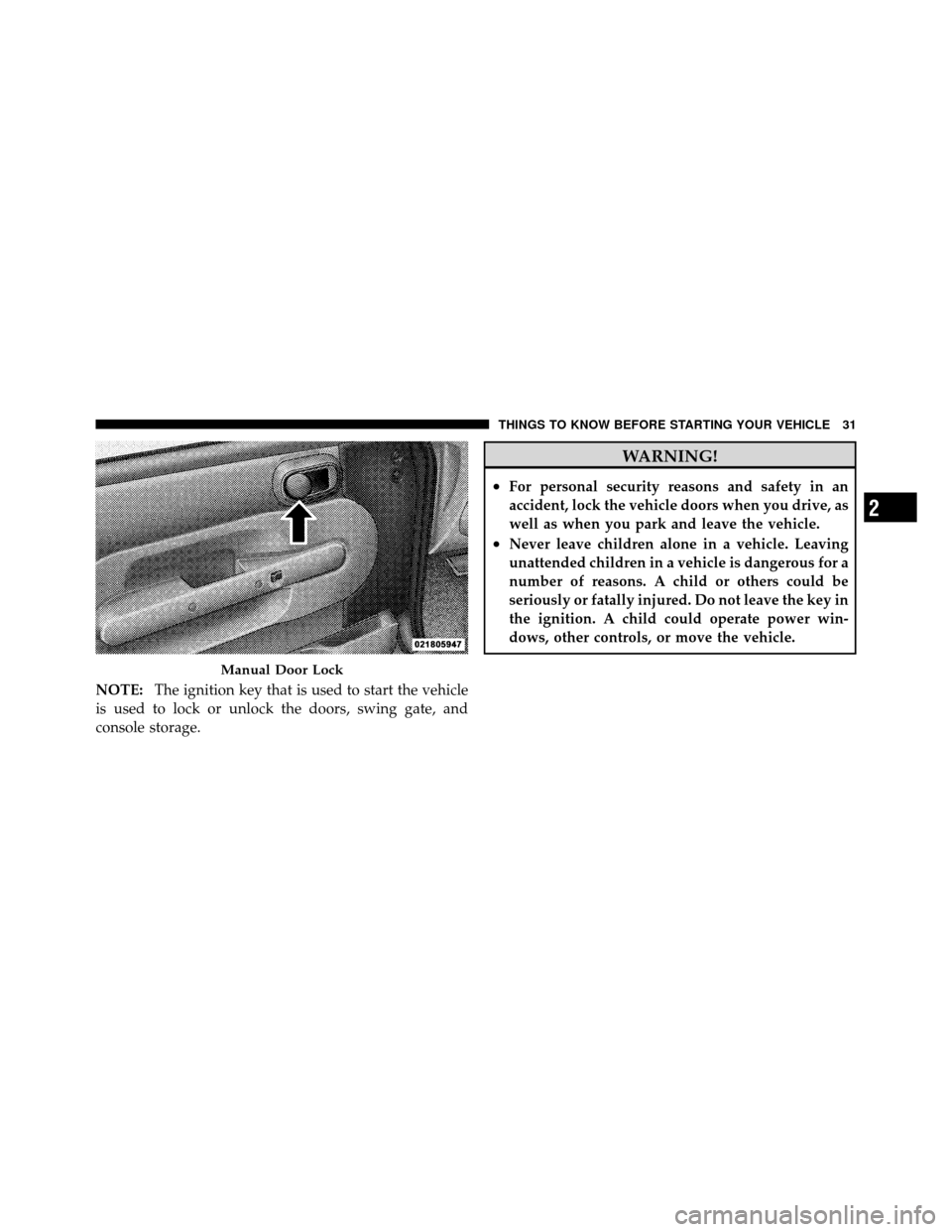

NOTE:The ignition key that is used to start the vehicle
is used to lock or unlock the doors, swing gate, and
console storage.
WARNING!
•For personal security reasons and safety in an
accident, lock the vehicle doors when you drive, as
well as when you park and leave the vehicle.
•Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Do not leave the key in
the ignition. A child could operate power win-
dows, other controls, or move the vehicle.
Manual Door Lock
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31

Power Door Locks — If Equipped
The door lock switch is located on each front door panel.
Press the switch downward to lock the doors, and
upward to unlock the doors.WARNING!
•For personal security reasons and safety in an
accident, lock the vehicle doors when you drive, as
well as when you park and leave the vehicle.
•Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Do not leave the key in
the ignition. A child could operate power win-
dows, other controls, or move the vehicle.
Power Door Lock Switch
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

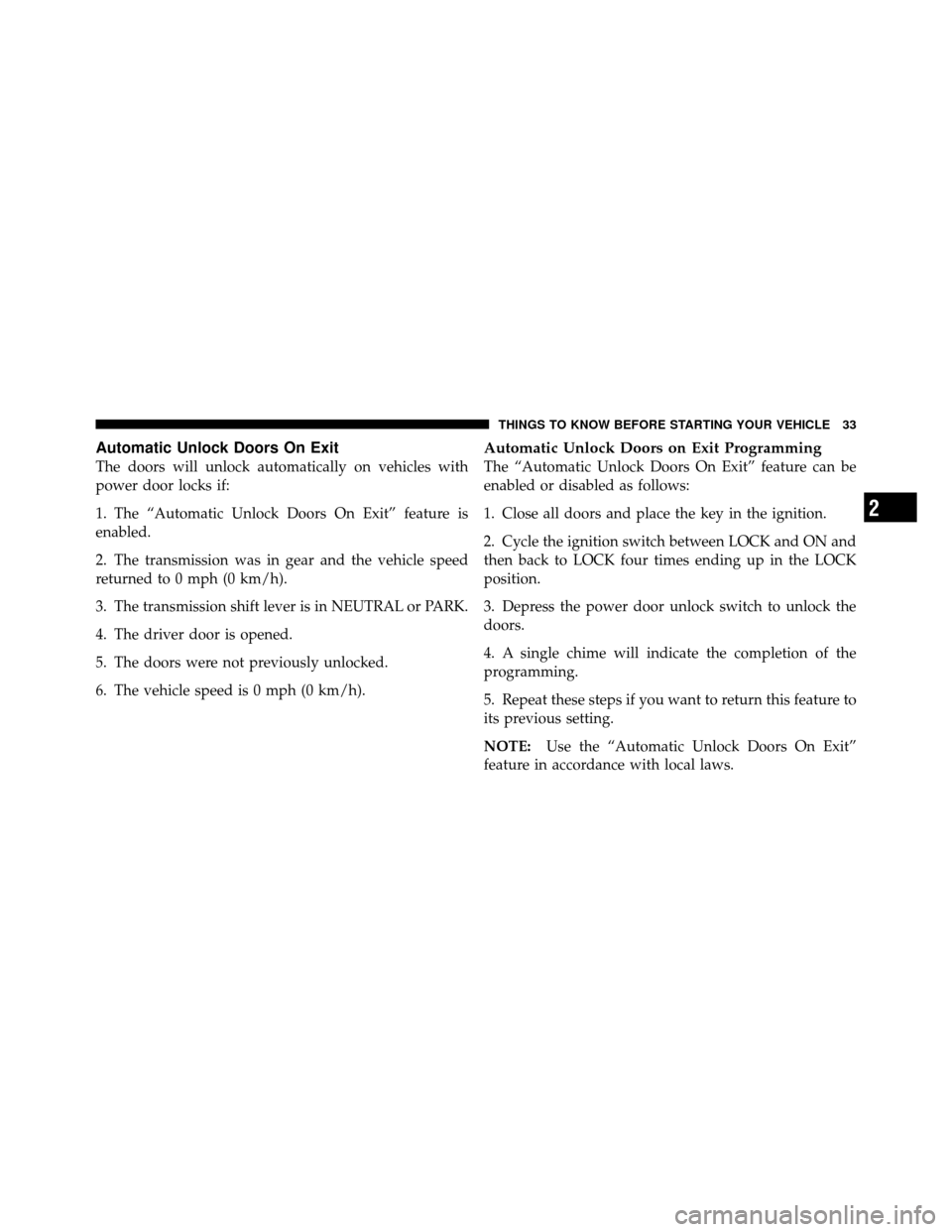

Automatic Unlock Doors On Exit
The doors will unlock automatically on vehicles with
power door locks if:
1. The “Automatic Unlock Doors On Exit” feature is
enabled.
2. The transmission was in gear and the vehicle speed
returned to 0 mph (0 km/h).
3. The transmission shift lever is in NEUTRAL or PARK.
4. The driver door is opened.
5. The doors were not previously unlocked.
6. The vehicle speed is 0 mph (0 km/h).
Automatic Unlock Doors on Exit Programming
The “Automatic Unlock Doors On Exit” feature can be
enabled or disabled as follows:
1. Close all doors and place the key in the ignition.
2. Cycle the ignition switch between LOCK and ON and
then back to LOCK four times ending up in the LOCK
position.
3. Depress the power door unlock switch to unlock the
doors.
4. A single chime will indicate the completion of the
programming.
5. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:Use the “Automatic Unlock Doors On Exit”
feature in accordance with local laws.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33

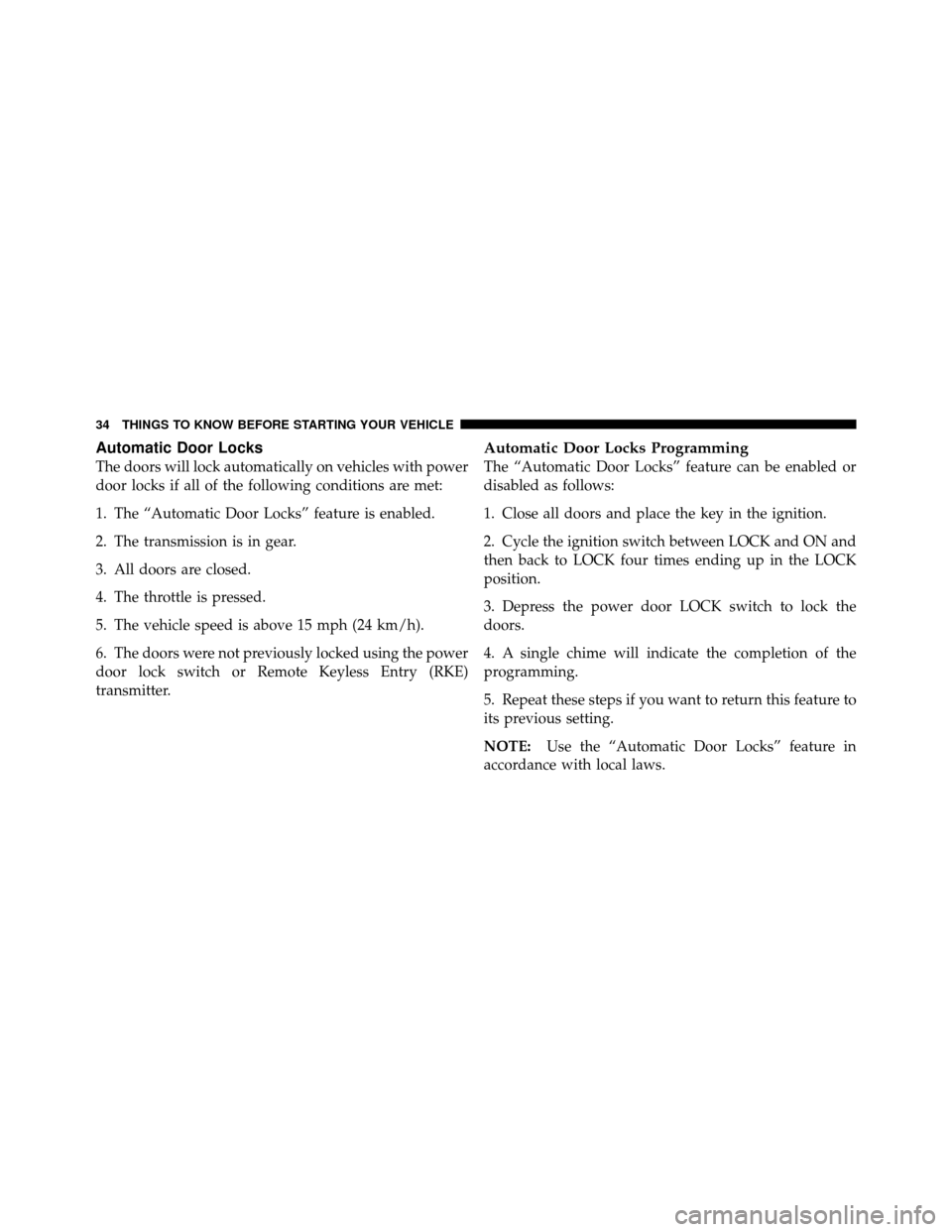

Automatic Door Locks
The doors will lock automatically on vehicles with power
door locks if all of the following conditions are met:
1. The “Automatic Door Locks” feature is enabled.
2. The transmission is in gear.
3. All doors are closed.
4. The throttle is pressed.
5. The vehicle speed is above 15 mph (24 km/h).
6. The doors were not previously locked using the power
door lock switch or Remote Keyless Entry (RKE)
transmitter.
Automatic Door Locks Programming
The “Automatic Door Locks” feature can be enabled or
disabled as follows:
1. Close all doors and place the key in the ignition.
2. Cycle the ignition switch between LOCK and ON and
then back to LOCK four times ending up in the LOCK
position.
3. Depress the power door LOCK switch to lock the
doors.
4. A single chime will indicate the completion of the
programming.
5. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:Use the “Automatic Door Locks” feature in
accordance with local laws.
34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WINDOWS
Power Windows — If Equipped
The power window switches are located on the instru-
ment panel center stack (below the radio). The top left
switch controls the left front window and the top right
switch controls the right front window. The lower left
switch controls the left rear passenger window (four-
door models), and the lower right switch controls the
right rear passenger window (four-door models). The
switches will continue to function for up to two minutes
after the ignition key has been removed, or until a front
door is opened.
Window Lockout Switch (Four-Door Models Only)
The window lockout switch (located between the win-
dow switches) allows you to disable the rear window
switches that are located on the back of the center floor
console. To disable the window controls, press the win-
dow lockout button downward. To enable the window
controls, press the window lockout button upward.
Power Window Switches
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35

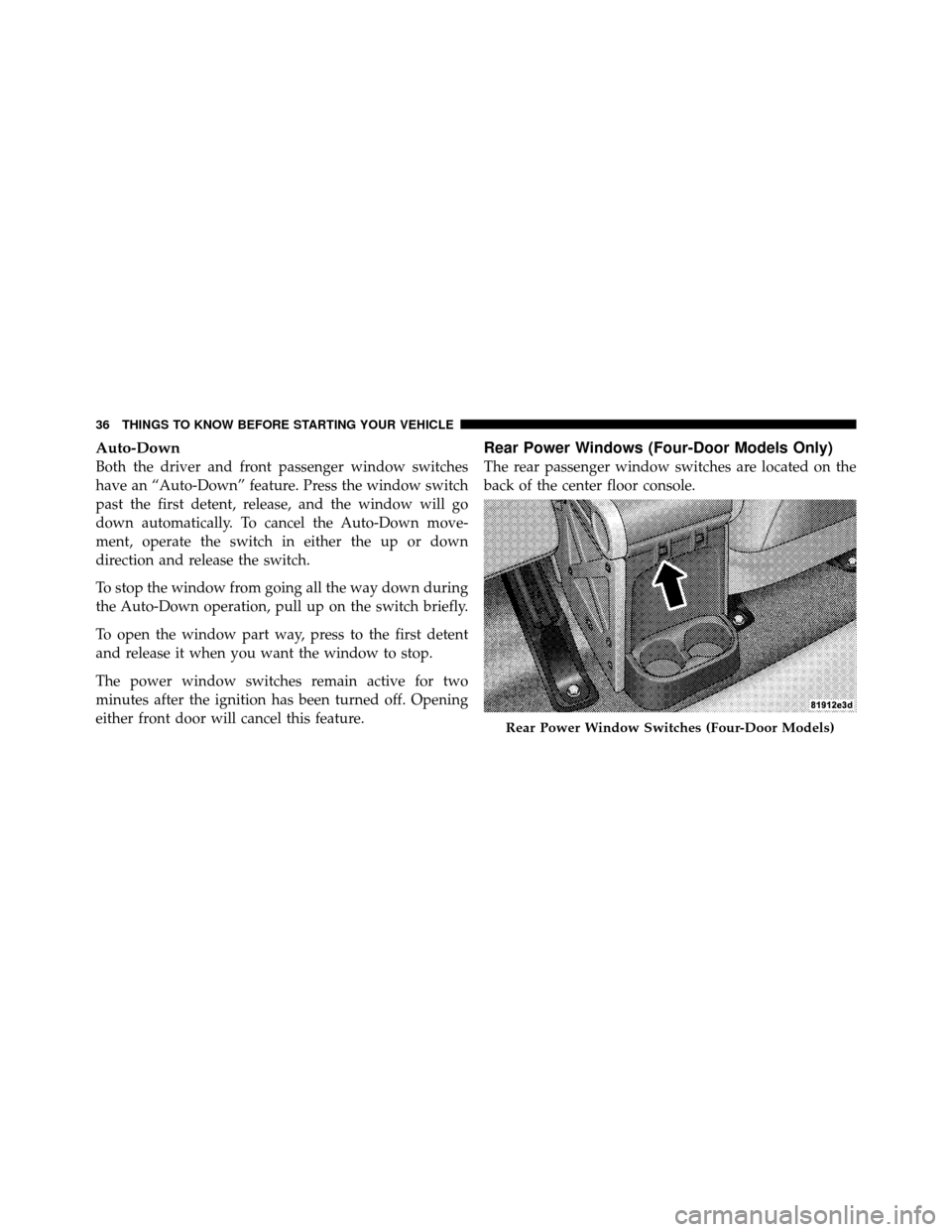

Auto-Down
Both the driver and front passenger window switches
have an “Auto-Down” feature. Press the window switch
past the first detent, release, and the window will go
down automatically. To cancel the Auto-Down move-
ment, operate the switch in either the up or down
direction and release the switch.
To stop the window from going all the way down during
the Auto-Down operation, pull up on the switch briefly.
To open the window part way, press to the first detent
and release it when you want the window to stop.
The power window switches remain active for two
minutes after the ignition has been turned off. Opening
either front door will cancel this feature.
Rear Power Windows (Four-Door Models Only)
The rear passenger window switches are located on the
back of the center floor console.
Rear Power Window Switches (Four-Door Models)
36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

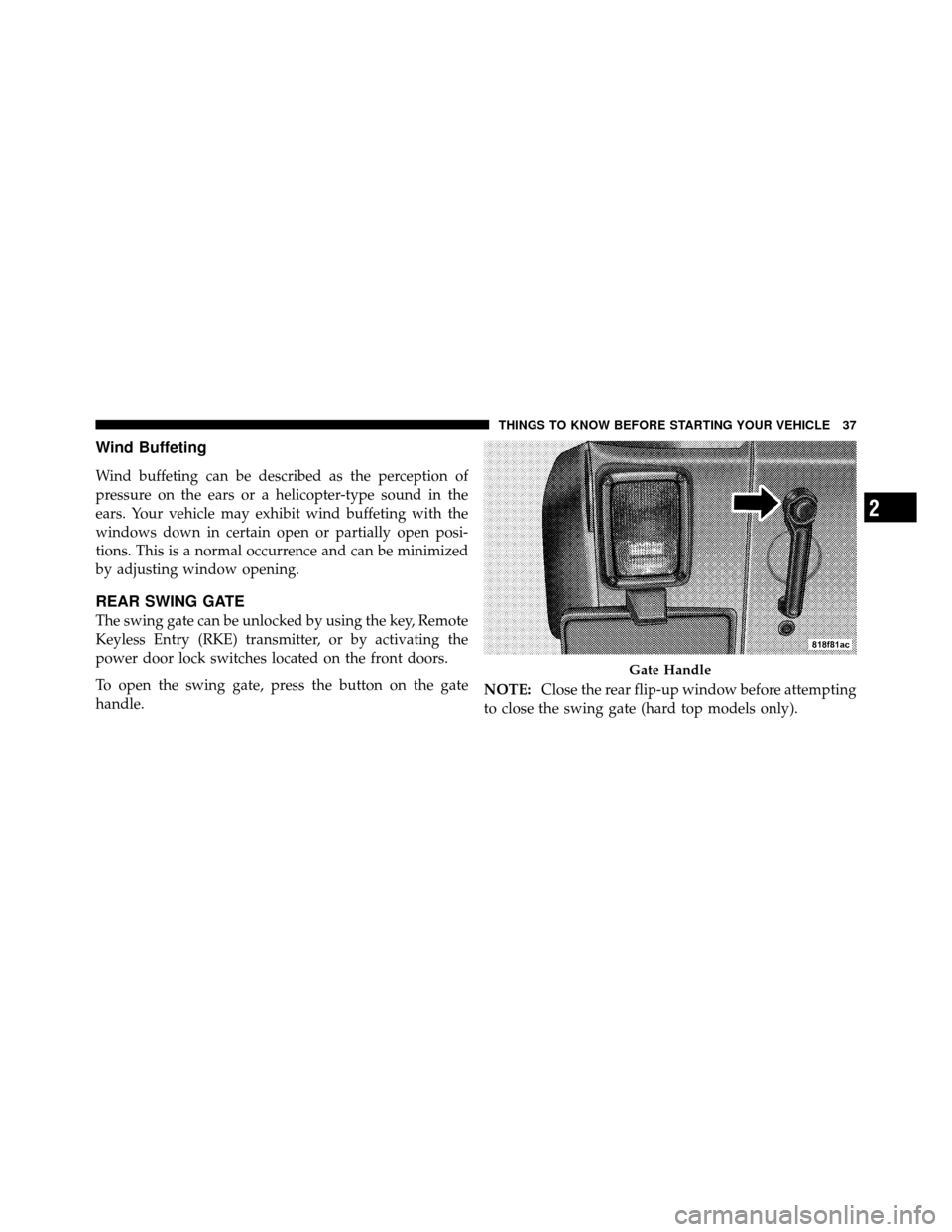

Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down in certain open or partially open posi-
tions. This is a normal occurrence and can be minimized
by adjusting window opening.
REAR SWING GATE
The swing gate can be unlocked by using the key, Remote
Keyless Entry (RKE) transmitter, or by activating the
power door lock switches located on the front doors.
To open the swing gate, press the button on the gate
handle.NOTE:
Close the rear flip-up window before attempting
to close the swing gate (hard top models only).
Gate Handle
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37

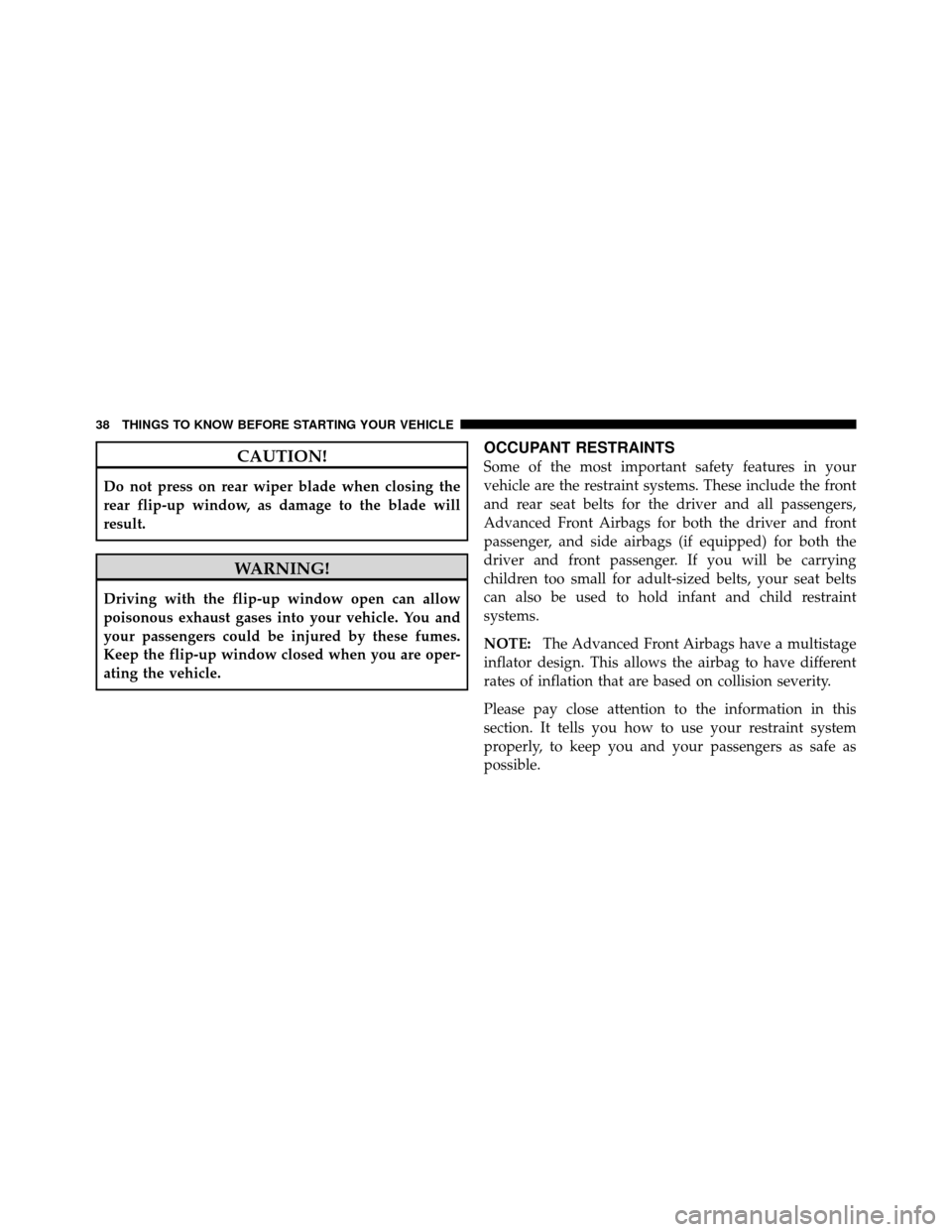

CAUTION!
Do not press on rear wiper blade when closing the
rear flip-up window, as damage to the blade will
result.
WARNING!
Driving with the flip-up window open can allow
poisonous exhaust gases into your vehicle. You and
your passengers could be injured by these fumes.
Keep the flip-up window closed when you are oper-
ating the vehicle.
OCCUPANT RESTRAINTS
Some of the most important safety features in your
vehicle are the restraint systems. These include the front
and rear seat belts for the driver and all passengers,
Advanced Front Airbags for both the driver and front
passenger, and side airbags (if equipped) for both the
driver and front passenger. If you will be carrying
children too small for adult-sized belts, your seat belts
can also be used to hold infant and child restraint
systems.
NOTE:The Advanced Front Airbags have a multistage
inflator design. This allows the airbag to have different
rates of inflation that are based on collision severity.
Please pay close attention to the information in this
section. It tells you how to use your restraint system
properly, to keep you and your passengers as safe as
possible.
