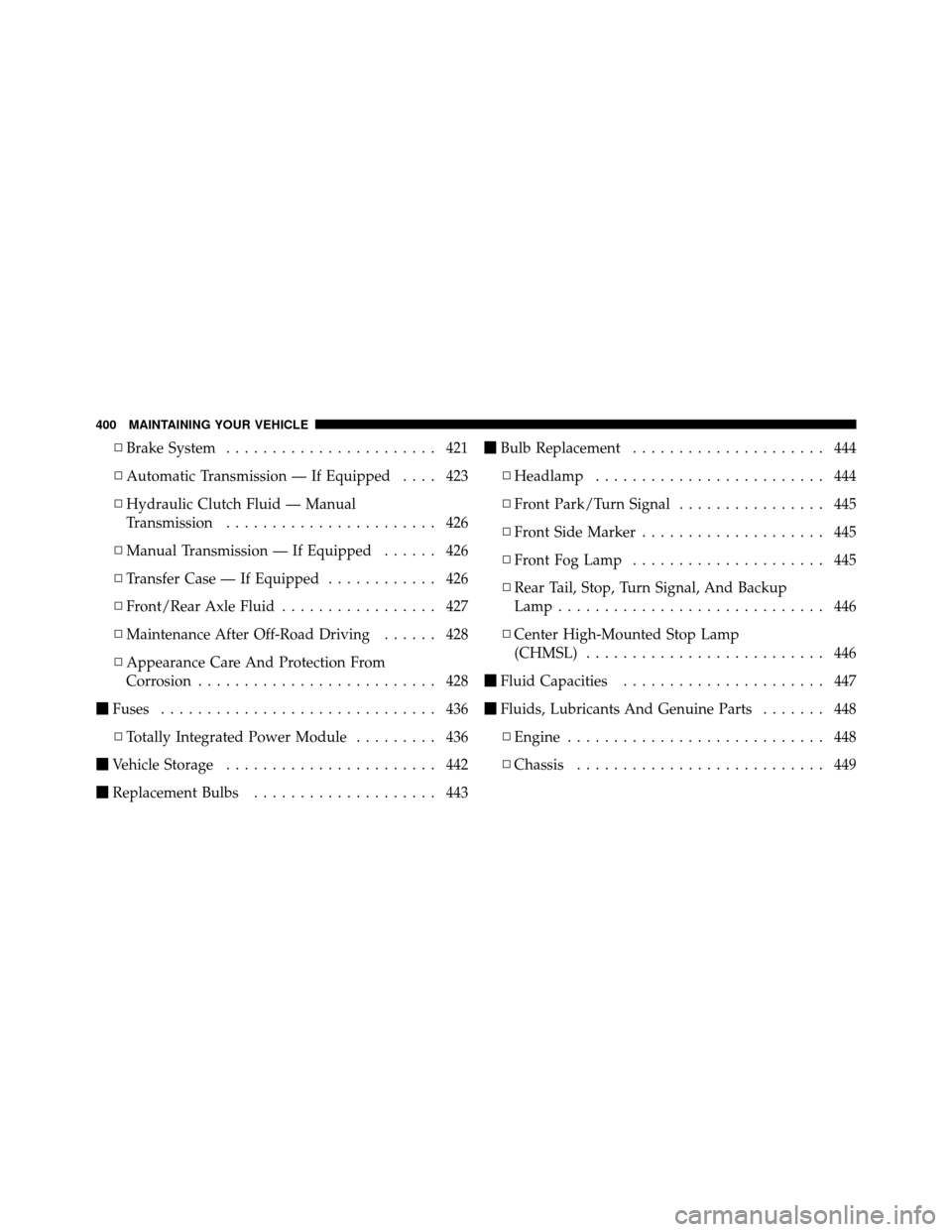

â–«Brake System ....................... 421
▫ Automatic Transmission — If Equipped .... 423
▫ Hydraulic Clutch Fluid — Manual
Transmission ....................... 426
▫ Manual Transmission — If Equipped ...... 426
▫ Transfer Case — If Equipped ............ 426
â–« Front/Rear Axle Fluid ................. 427
â–« Maintenance After Off-Road Driving ...... 428
â–« Appearance Care And Protection From
Corrosion .......................... 428
 Fuses .............................. 436
â–« Totally Integrated Power Module ......... 436
 Vehicle Storage ....................... 442
 Replacement Bulbs .................... 443
Bulb Replacement ..................... 444
â–« Headlamp ......................... 444
â–« Front Park/Turn Signal ................ 445
â–« Front Side Marker .................... 445
â–« Front Fog Lamp ..................... 445
â–« Rear Tail, Stop, Turn Signal, And Backup
Lamp ............................. 446
â–« Center High-Mounted Stop Lamp
(CHMSL) .......................... 446
 Fluid Capacities ...................... 447
 Fluids, Lubricants And Genuine Parts ....... 448
â–« Engine ............................ 448
â–« Chassis ........................... 449
400 MAINTAINING YOUR VEHICLE

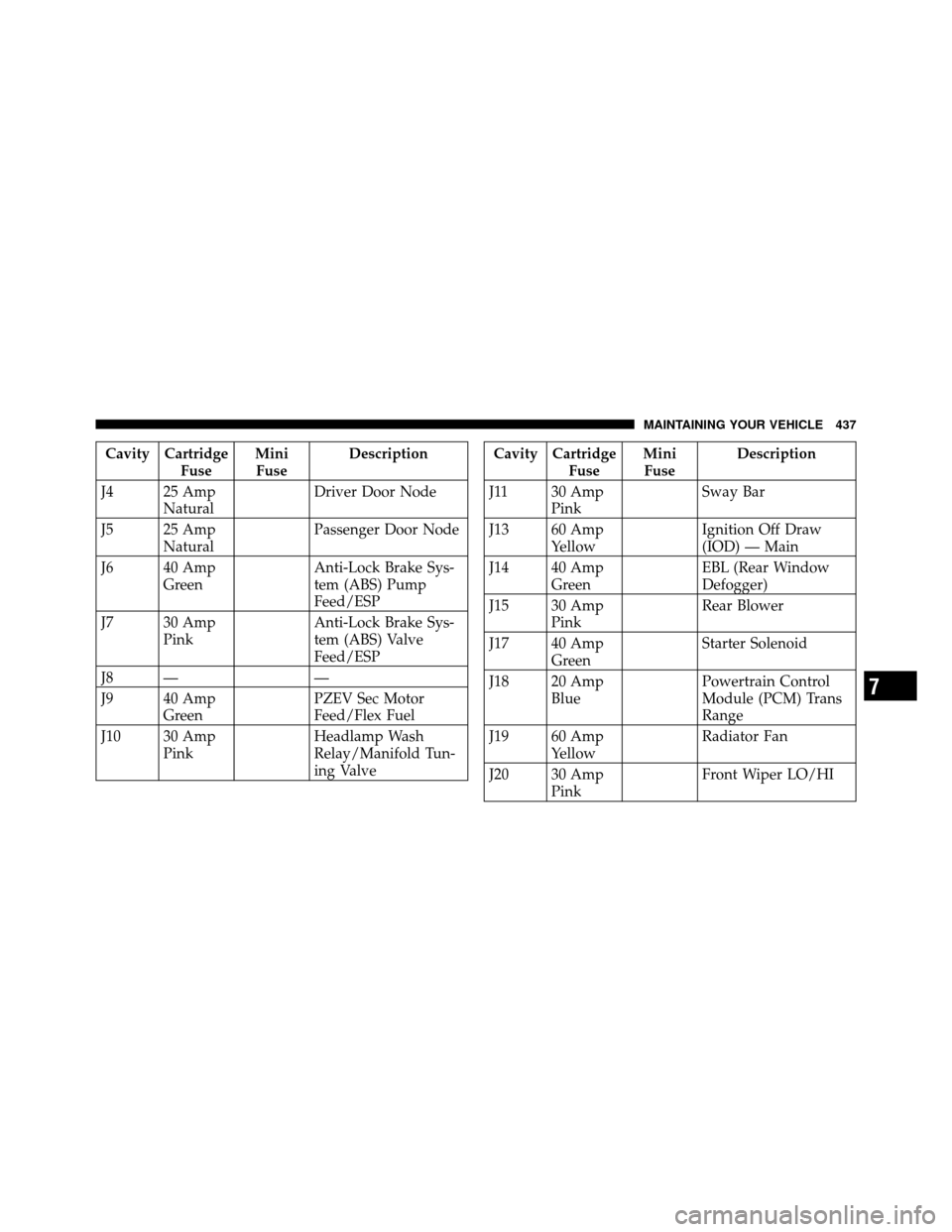

Cavity CartridgeFuseMini
Fuse Description
J4 25 Amp Natural Driver Door Node
J5 25 Amp Natural Passenger Door Node
J6 40 Amp Green Anti-Lock Brake Sys-
tem (ABS) Pump
Feed/ESP
J7 30 Amp Pink Anti-Lock Brake Sys-
tem (ABS) Valve
Feed/ESP
J8 — —
J9 40 Amp Green PZEV Sec Motor
Feed/Flex Fuel
J10 30 Amp Pink Headlamp Wash
Relay/Manifold Tun-
ing ValveCavity Cartridge
FuseMini
Fuse Description
J11 30 Amp Pink Sway Bar
J13 60 Amp Yellow Ignition Off Draw
(IOD) — Main
J14 40 Amp Green EBL (Rear Window
Defogger)
J15 30 Amp Pink Rear Blower
J17 40 Amp Green Starter Solenoid
J18 20 Amp Blue Powertrain Control
Module (PCM) Trans
Range
J19 60 Amp Yellow Radiator Fan
J20 30 Amp Pink Front Wiper LO/HI
7
MAINTAINING YOUR VEHICLE 437

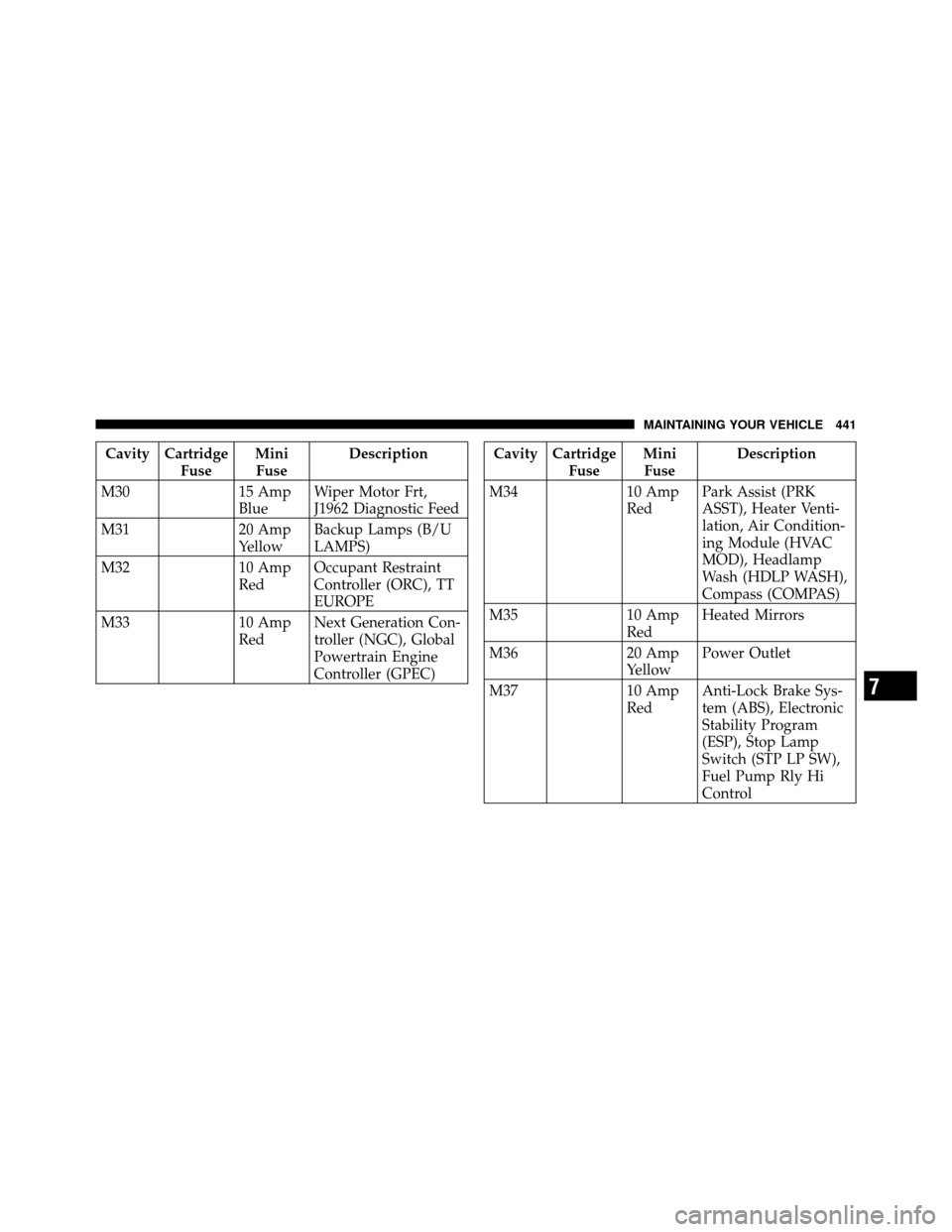

Cavity CartridgeFuseMini
Fuse Description
M30 15 Amp
Blue Wiper Motor Frt,
J1962 Diagnostic Feed
M31 20 Amp
Yellow Backup Lamps (B/U
LAMPS)
M32 10 Amp
Red Occupant Restraint
Controller (ORC), TT
EUROPE
M33 10 Amp
Red Next Generation Con-
troller (NGC), Global
Powertrain Engine
Controller (GPEC)Cavity Cartridge
FuseMini
Fuse Description
M34 10 Amp RedPark Assist (PRK
ASST), Heater Venti-
lation, Air Condition-
ing Module (HVAC
MOD), Headlamp
Wash (HDLP WASH),
Compass (COMPAS)
M35 10 Amp
Red Heated Mirrors
M36 20 Amp
Yellow Power Outlet
M37 10 Amp
Red Anti-Lock Brake Sys-
tem (ABS), Electronic
Stability Program
(ESP), Stop Lamp
Switch (STP LP SW),
Fuel Pump Rly Hi
Control
7
MAINTAINING YOUR VEHICLE 441

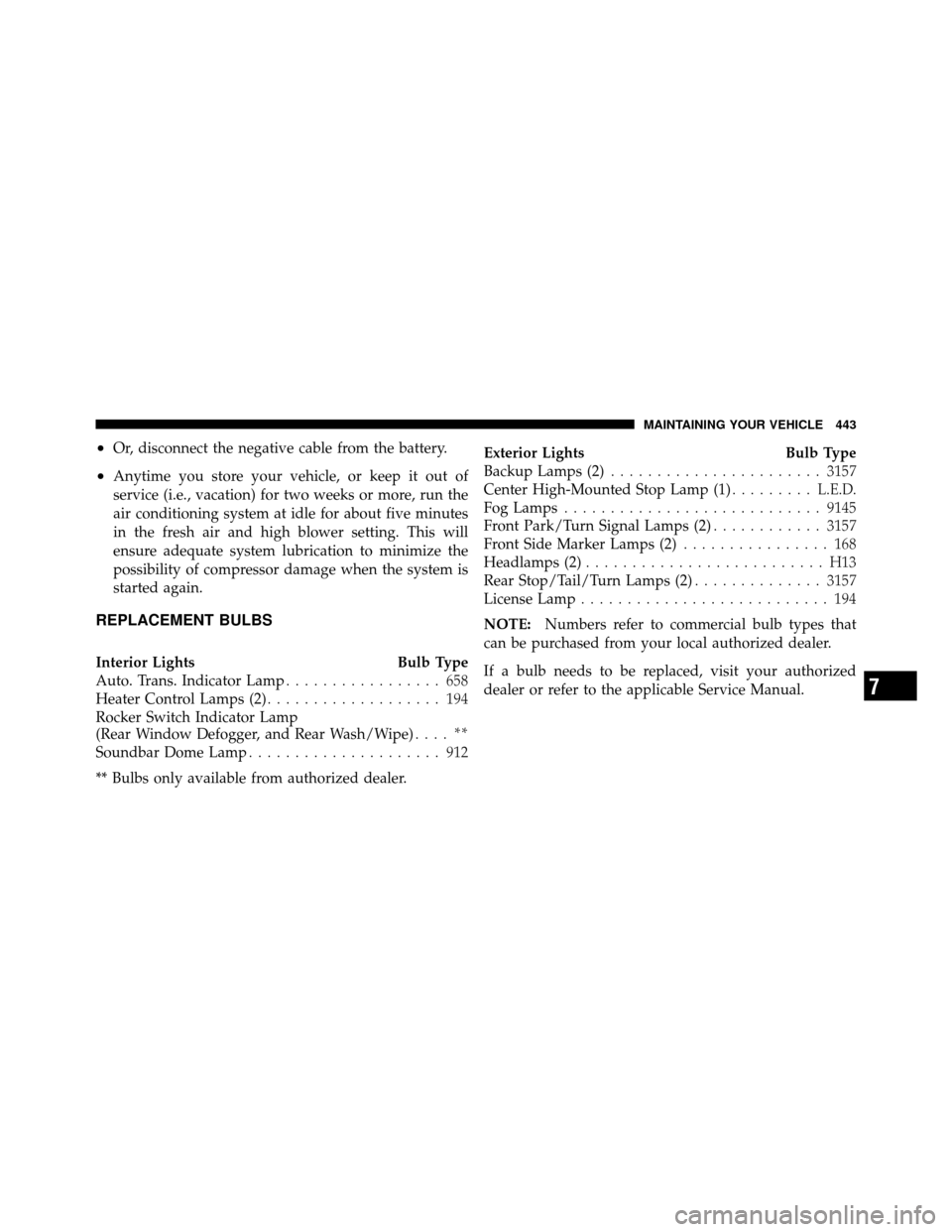

•Or, disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
Interior LightsBulb Type
Auto. Trans. Indicator Lamp ................. 658
Heater Control Lamps (2) ................... 194
Rocker Switch Indicator Lamp
(Rear Window Defogger, and Rear Wash/Wipe) .... **
Soundbar Dome Lamp ..................... 912
** Bulbs only available from authorized dealer. Exterior Lights
Bulb Type
Backup Lamps (2) ....................... 3157
Center High-Mounted Stop Lamp (1) .........L.E.D.
Fog Lamps ............................ 9145
Front Park/Turn Signal Lamps (2) ............3157
Front Side Marker Lamps (2) ................ 168
Headlamps (2) .......................... H13
Rear Stop/Tail/Turn Lamps (2) ..............3157
License Lamp ........................... 194
NOTE: Numbers refer to commercial bulb types that
can be purchased from your local authorized dealer.
If a bulb needs to be replaced, visit your authorized
dealer or refer to the applicable Service Manual.
7
MAINTAINING YOUR VEHICLE 443

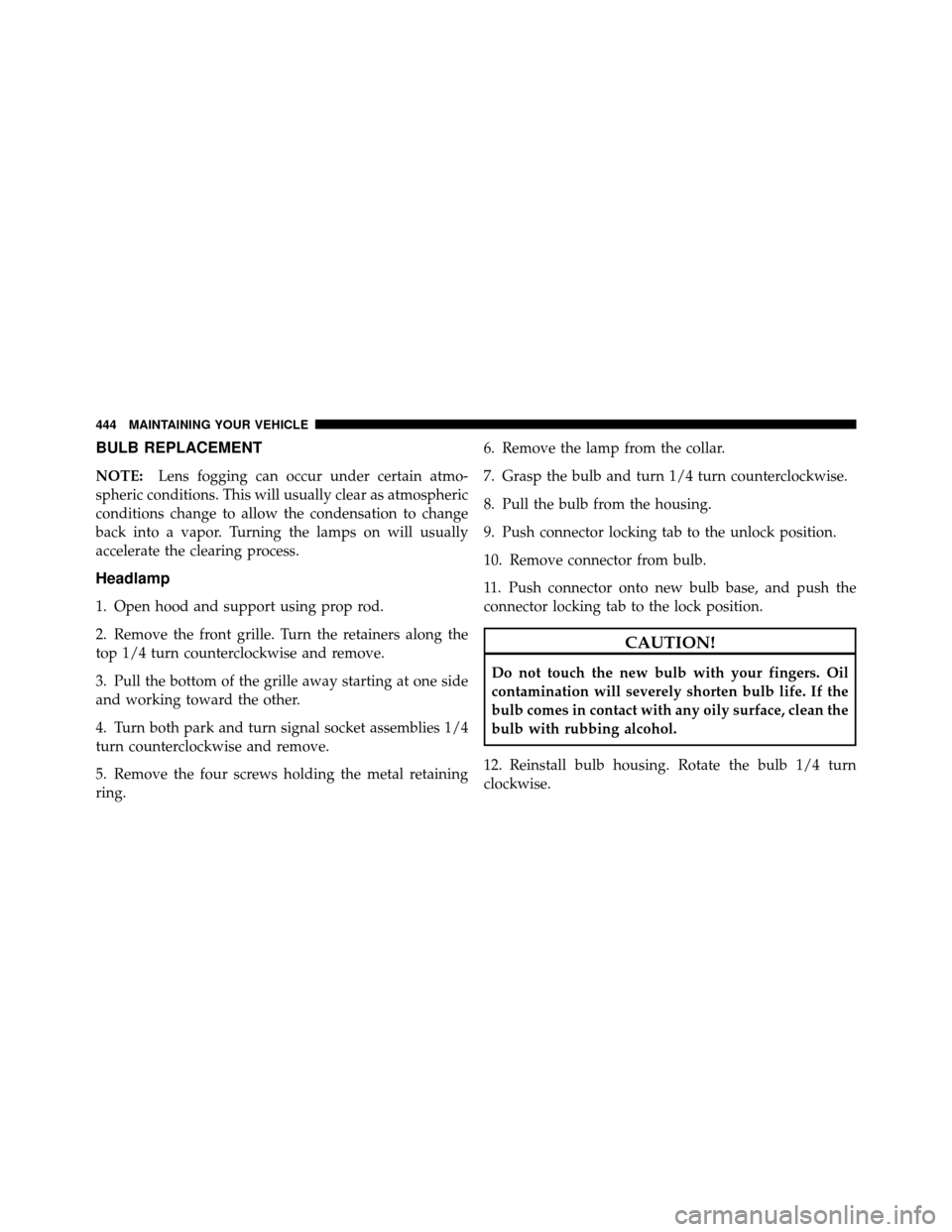

BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Headlamp
1. Open hood and support using prop rod.
2. Remove the front grille. Turn the retainers along the
top 1/4 turn counterclockwise and remove.
3. Pull the bottom of the grille away starting at one side
and working toward the other.
4. Turn both park and turn signal socket assemblies 1/4
turn counterclockwise and remove.
5. Remove the four screws holding the metal retaining
ring. 6. Remove the lamp from the collar.
7. Grasp the bulb and turn 1/4 turn counterclockwise.
8. Pull the bulb from the housing.
9. Push connector locking tab to the unlock position.
10. Remove connector from bulb.
11. Push connector onto new bulb base, and push the
connector locking tab to the lock position.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
12. Reinstall bulb housing. Rotate the bulb 1/4 turn
clockwise.
444 MAINTAINING YOUR VEHICLE
