If a stuck zipper slide is experienced, work the MOPAR
Soft Top Zipper Cleaner and Lubricant or equivalent into
the zipper slide. Several applications may be required
before the zipper comes free.
6. Never paste stickers, gummed labels or any tape to the
windows. Adhesives are hard to remove and may dam-
age the windows.
FUSES
Totally Integrated Power Module
The Totally Integrated Power Module (TIPM) is located
in the engine compartment near the battery. This center
contains cartridge fuses, mini fuses and relays. A label
that identifies each component is printed on the inside of
the cover.
Cavity CartridgeFuseMini
Fuse Description
J1 — —
J2 30 Amp Pink Transfer Case Module
J3 — —
Totally Integrated Power Module (TIPM)
436 MAINTAINING YOUR VEHICLE

Cavity CartridgeFuseMini
Fuse Description
J4 25 Amp Natural Driver Door Node
J5 25 Amp Natural Passenger Door Node
J6 40 Amp Green Anti-Lock Brake Sys-
tem (ABS) Pump
Feed/ESP
J7 30 Amp Pink Anti-Lock Brake Sys-
tem (ABS) Valve
Feed/ESP
J8 — —
J9 40 Amp Green PZEV Sec Motor
Feed/Flex Fuel
J10 30 Amp Pink Headlamp Wash
Relay/Manifold Tun-
ing ValveCavity Cartridge
FuseMini
Fuse Description
J11 30 Amp Pink Sway Bar
J13 60 Amp Yellow Ignition Off Draw
(IOD) — Main
J14 40 Amp Green EBL (Rear Window
Defogger)
J15 30 Amp Pink Rear Blower
J17 40 Amp Green Starter Solenoid
J18 20 Amp Blue Powertrain Control
Module (PCM) Trans
Range
J19 60 Amp Yellow Radiator Fan
J20 30 Amp Pink Front Wiper LO/HI
7
MAINTAINING YOUR VEHICLE 437

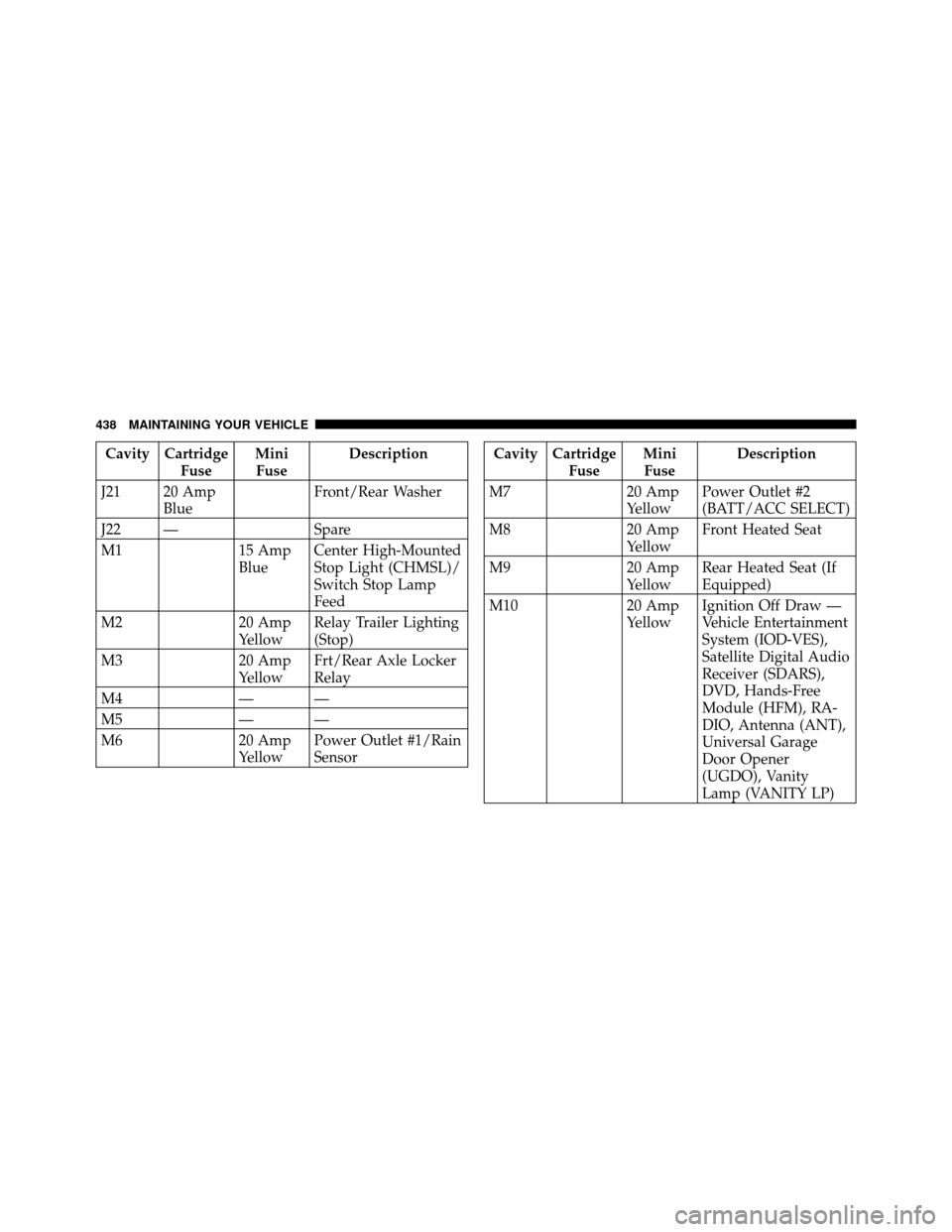

Cavity CartridgeFuseMini
Fuse Description
J21 20 Amp Blue Front/Rear Washer
J22 — Spare
M1 15 Amp
Blue Center High-Mounted
Stop Light (CHMSL)/
Switch Stop Lamp
Feed
M2 20 Amp
Yellow Relay Trailer Lighting
(Stop)
M3 20 Amp
Yellow Frt/Rear Axle Locker
Relay
M4 — —
M5 — —
M6 20 Amp
Yellow Power Outlet #1/Rain
SensorCavity Cartridge
FuseMini
Fuse Description
M7 20 Amp YellowPower Outlet #2
(BATT/ACC SELECT)
M8 20 Amp
Yellow Front Heated Seat
M9 20 Amp
Yellow Rear Heated Seat (If
Equipped)
M10 20 Amp
Yellow Ignition Off Draw —
Vehicle Entertainment
System (IOD-VES),
Satellite Digital Audio
Receiver (SDARS),
DVD, Hands-Free
Module (HFM), RA-
DIO, Antenna (ANT),
Universal Garage
Door Opener
(UGDO), Vanity
Lamp (VANITY LP)
438 MAINTAINING YOUR VEHICLE

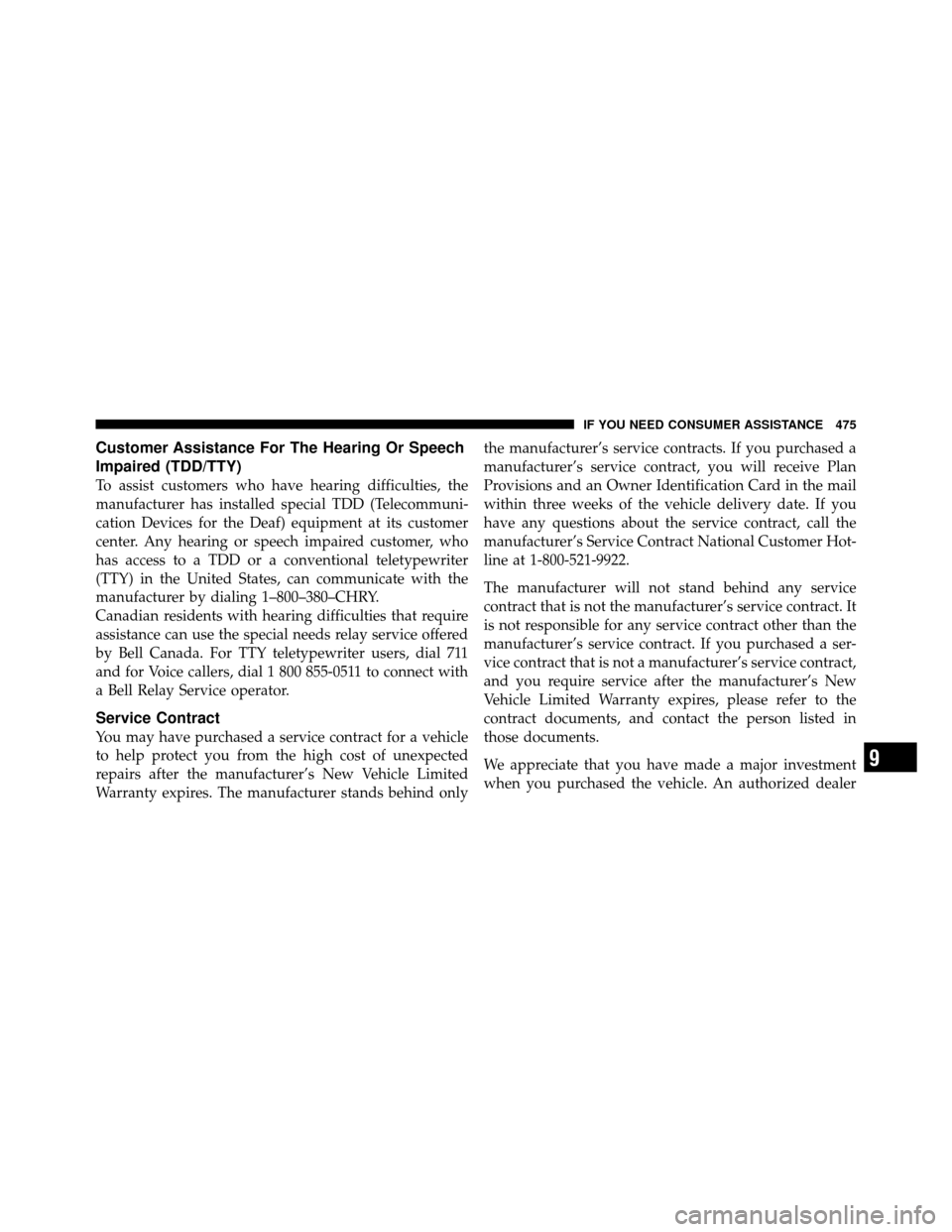

Customer Assistance For The Hearing Or Speech
