JEEP WRANGLER 2009 Owners Manual

3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129

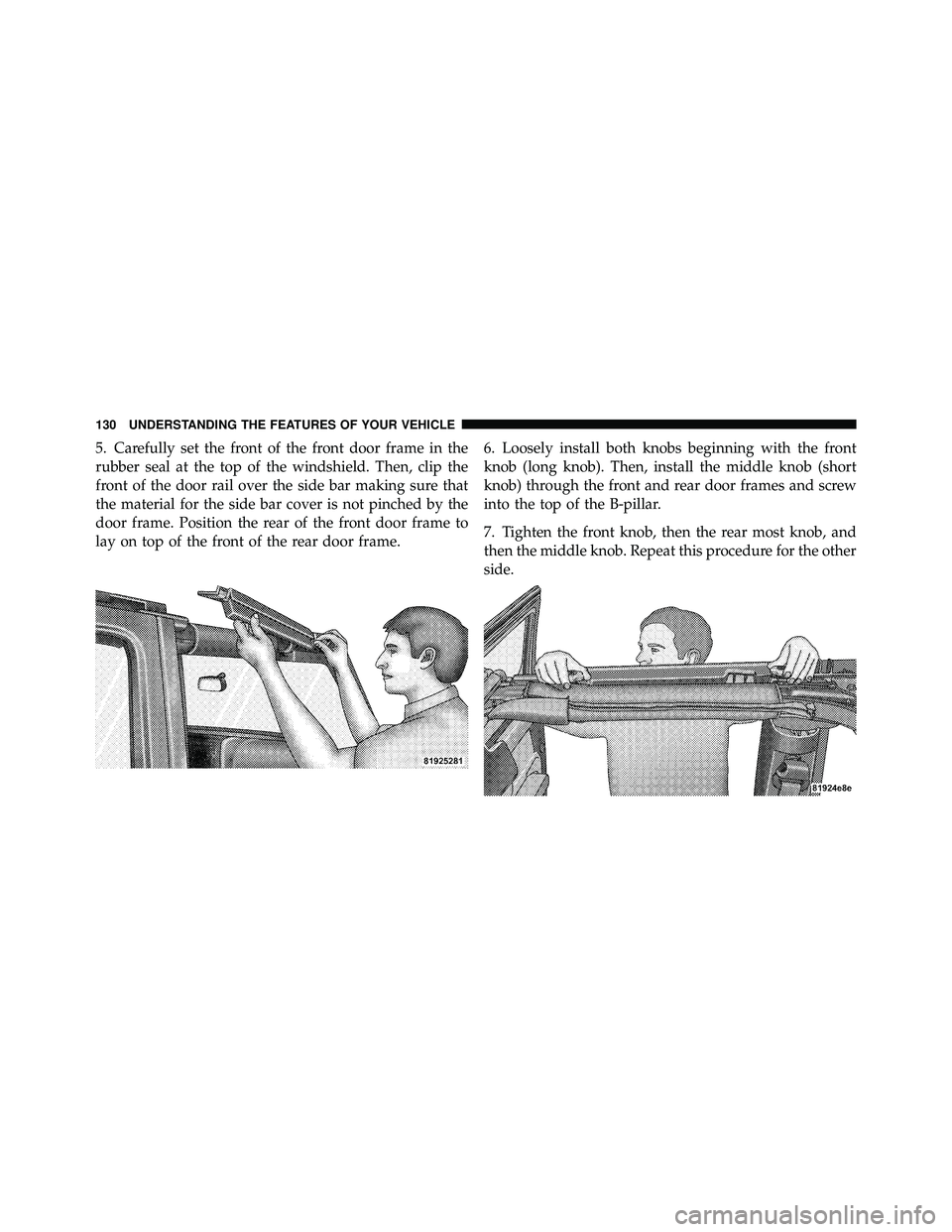

5. Carefully set the front of the front door frame in the
rubber seal at the top of the windshield. Then, clip the
front of the door rail over the side bar making sure that
the material for the side bar cover is not pinched by the
door frame. Position the rear of the front door frame to
lay on top of the front of the rear door frame.6. Loosely install both knobs beginning with the front
knob (long knob). Then, install the middle knob (short
knob) through the front and rear door frames and screw
into the top of the B-pillar.
7. Tighten the front knob, then the rear most knob, and
then the middle knob. Repeat this procedure for the other
side.

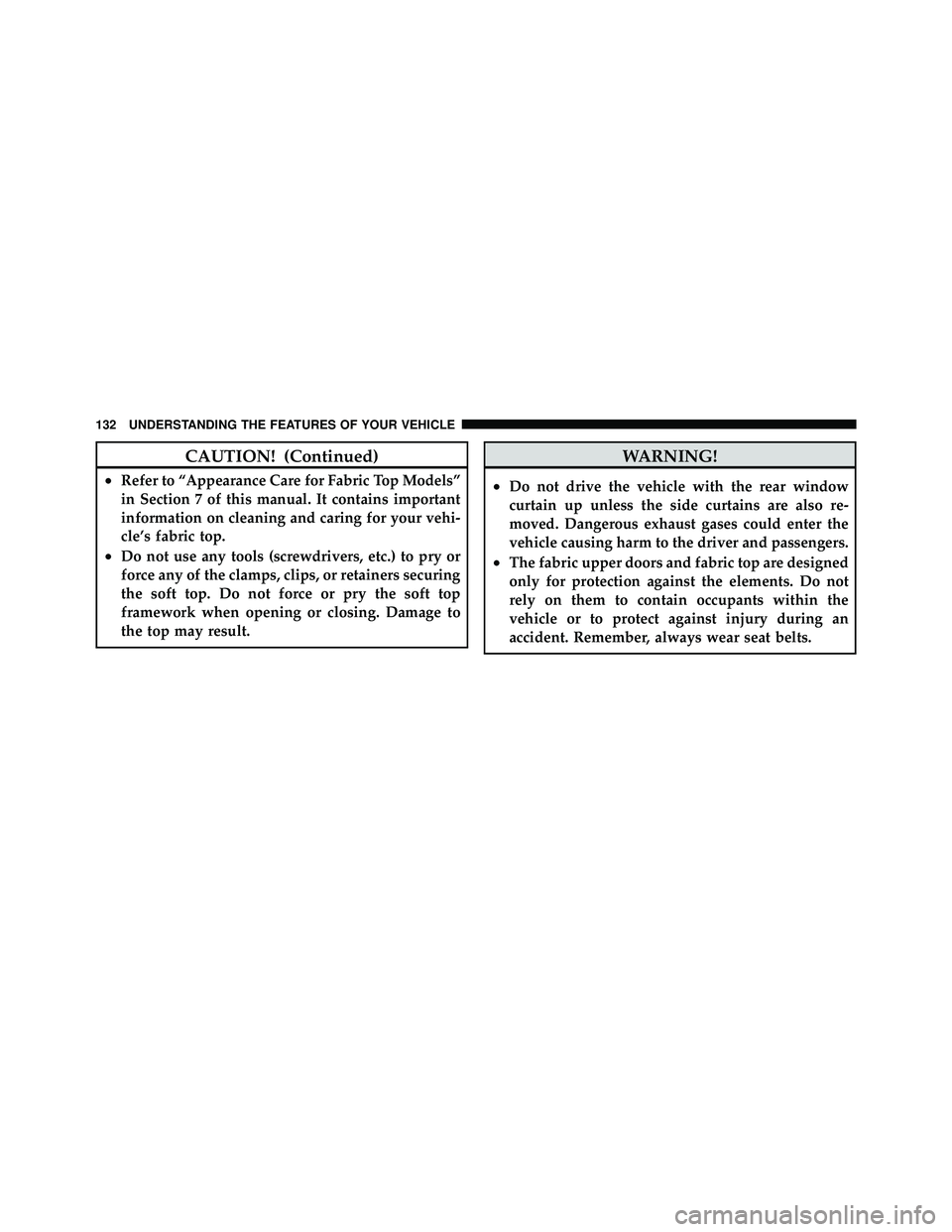

CAUTION! (Continued)
•Refer to “Appearance Care for Fabric Top Models”
in Section 7 of this manual. It contains important
information on cleaning and caring for your vehi-
cle’s fabric top.
•Do not use any tools (screwdrivers, etc.) to pry or
force any of the clamps, clips, or retainers securing
the soft top. Do not force or pry the soft top
framework when opening or closing. Damage to
the top may result.

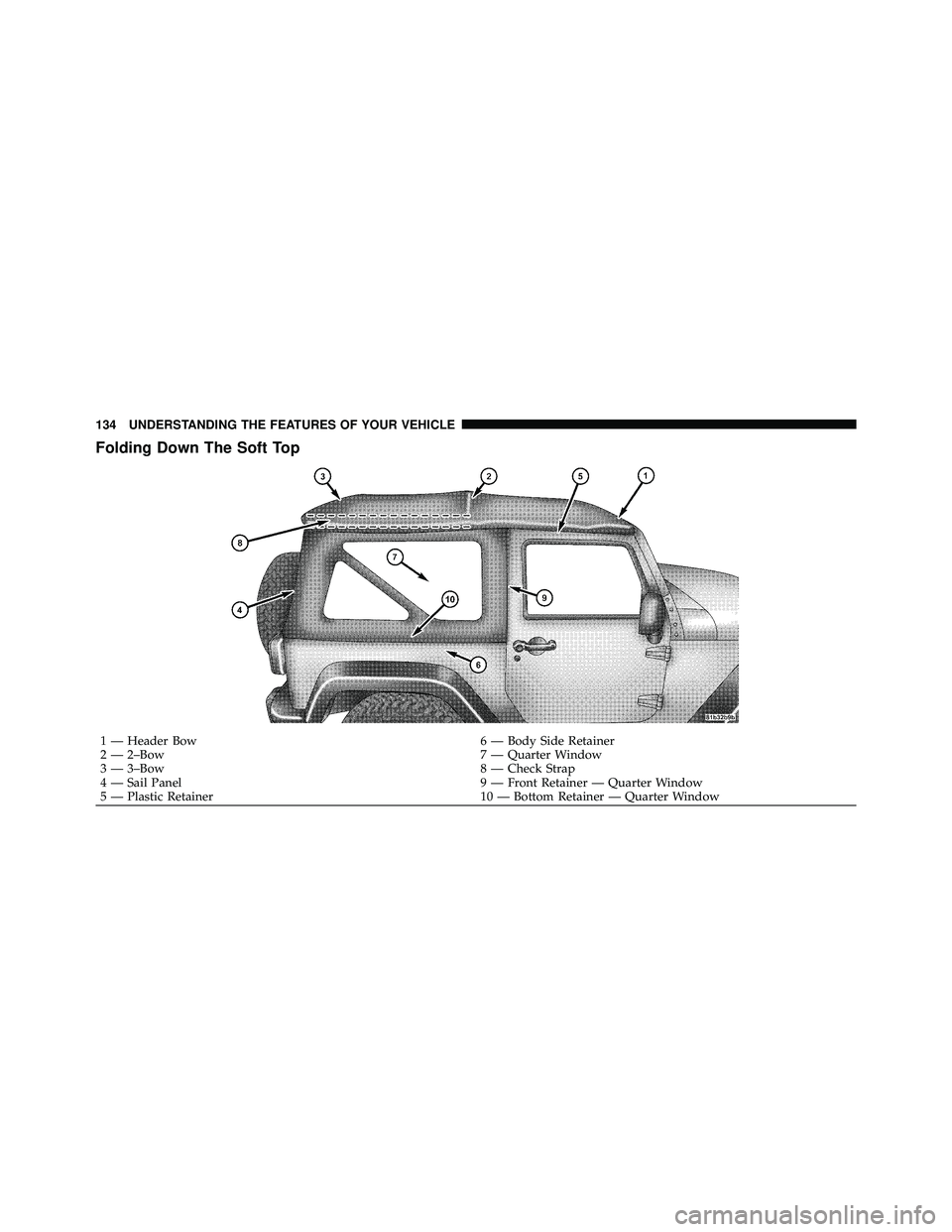

Folding Down The Soft Top

NOTE:Clean side and rear windows before removal to
assist in preventing scratching during removal of the soft
top. If zippers are difficult to operate due to road dust,
etc., clean them with a mild soap solution and a small
brush. Cleaning products are available through your
authorized dealer.
1. If your vehicle has half doors, remove each half-door
window by opening the door and lifting the half-door
window out.
NOTE: Stow the half-door windows carefully outside of
the vehicle, never inside, to avoid scratches.
2. Insert your finger behind the plastic retainer. Pull
down and roll the retainer out of the channel. Repeat this
on the opposite side. 3. Unclip and move the sun visors to the side.

3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 137

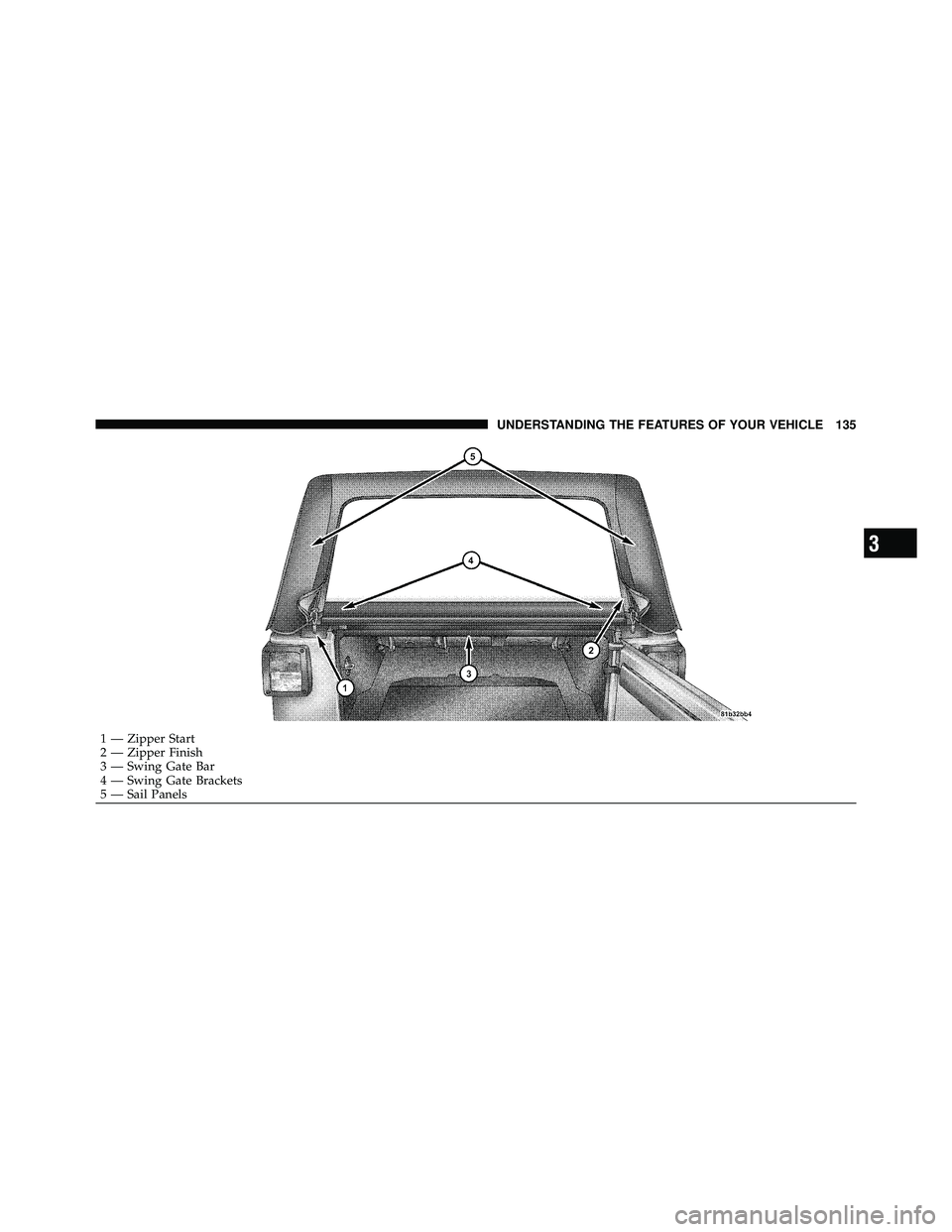

•Unzip the rear window starting at the right lower
corner of the window. Pull the zipper up, across the
top and down to the left lower corner.Zipper pulls
will stay on the rear window. Pull down on the rear
window to disengage it from the zipper on the top
cover. Stow the windows carefully to avoid scratch-
ing. 7. Undo the Velcro
that runs along the top and rear
edge of the side window.
8. Beginning from the rear lower corner, completely
unzip the window.
9. Once unzipped, remove the side window retainers
from the door channel and body side channel. Repeat this
step on the opposite side.
