CAUTION!
Using a transmission fluid other than the manufac-
turer’s recommended fluid may cause deterioration
in transmission shift quality and/or torque converter
shudder. Using a transmission fluid other than the
manufacturer’s recommended fluid will result in
more frequent fluid and filter changes. Refer to
“Fluids, Lubricants, and Genuine Parts” in this sec-
tion for the correct fluid type.
Fluid Level Check — 42RLE
Check the fluid level while the transmission is at normal
operating temperature 180° F (82° C). This occurs after at
least 15 miles (25 km) of driving. At normal operating
temperature, the fluid cannot be held comfortably be-
tween the fingertips.
If the transmission overheats, a “HOTOIL” message will
be displayed in the odometer and a chime will sound.To properly check the automatic transmission fluid level,
the following procedure must be used:
1. Operate the engine at idle speed and normal operating
temperature.
2. The vehicle must be on level ground.
3. Fully apply the parking brake.
4. Place the shift lever momentarily into each gear posi-
tion ending with the shift lever in PARK.
5. Remove the dipstick, wipe it clean and reinsert it until
seated.
6. Remove the dipstick again and note the fluid level on
both sides. The fluid level should be between the HOT
(upper) reference holes on the dipstick at normal operat-
ing temperature. Verify that a solid coating of oil is seen
on both sides of the dipstick. If the fluid is low, add as
required into the dipstick tube.
Do not overfill.After
424 MAINTAINING YOUR VEHICLE

Selection of Lubricant
Use only manufacturer’s recommended fluid. Refer to
“Fluids, Lubricants, and Genuine Parts” in this section
for the correct fluid type.
Maintenance After Off-Road Driving
After extended operation in mud, sand or water, or
similar dirty conditions, have your brake drums, brake
linings, and axle joints inspected and cleaned as soon as
possible. This will prevent any abrasive material from
causing excessive wear or unpredictable braking action.
Following off-road usage, completely inspect the under-
body of your vehicle. Check the tires, body structure,
steering, suspension and exhaust system for damage.
Check the threaded fasteners for looseness, particularly
on the chassis, drivetrain components, steering and sus-
pension. Retighten, if required, to torque values specified
in the Service Manual. Also check for accumulations of
vegetation or brush that could become a fire hazard, orconceal damage to fuel lines, brake hoses, axle pinion
seals, and propeller shafts. Check the air conditioning
drain tube on the lower dash wall in the engine compart-
ment for mud or debris, and clean as required. A plugged
tube will adversely affect air conditioning performance.

If a stuck zipper slide is experienced, work the MOPAR
Soft Top Zipper Cleaner and Lubricant or equivalent into
the zipper slide. Several applications may be required
before the zipper comes free.
6. Never paste stickers, gummed labels or any tape to the
windows. Adhesives are hard to remove and may dam-
age the windows.
FUSES
Totally Integrated Power Module
The Totally Integrated Power Module (TIPM) is located
in the engine compartment near the battery. This center
contains cartridge fuses, mini fuses and relays. A label
that identifies each component is printed on the inside of
the cover.

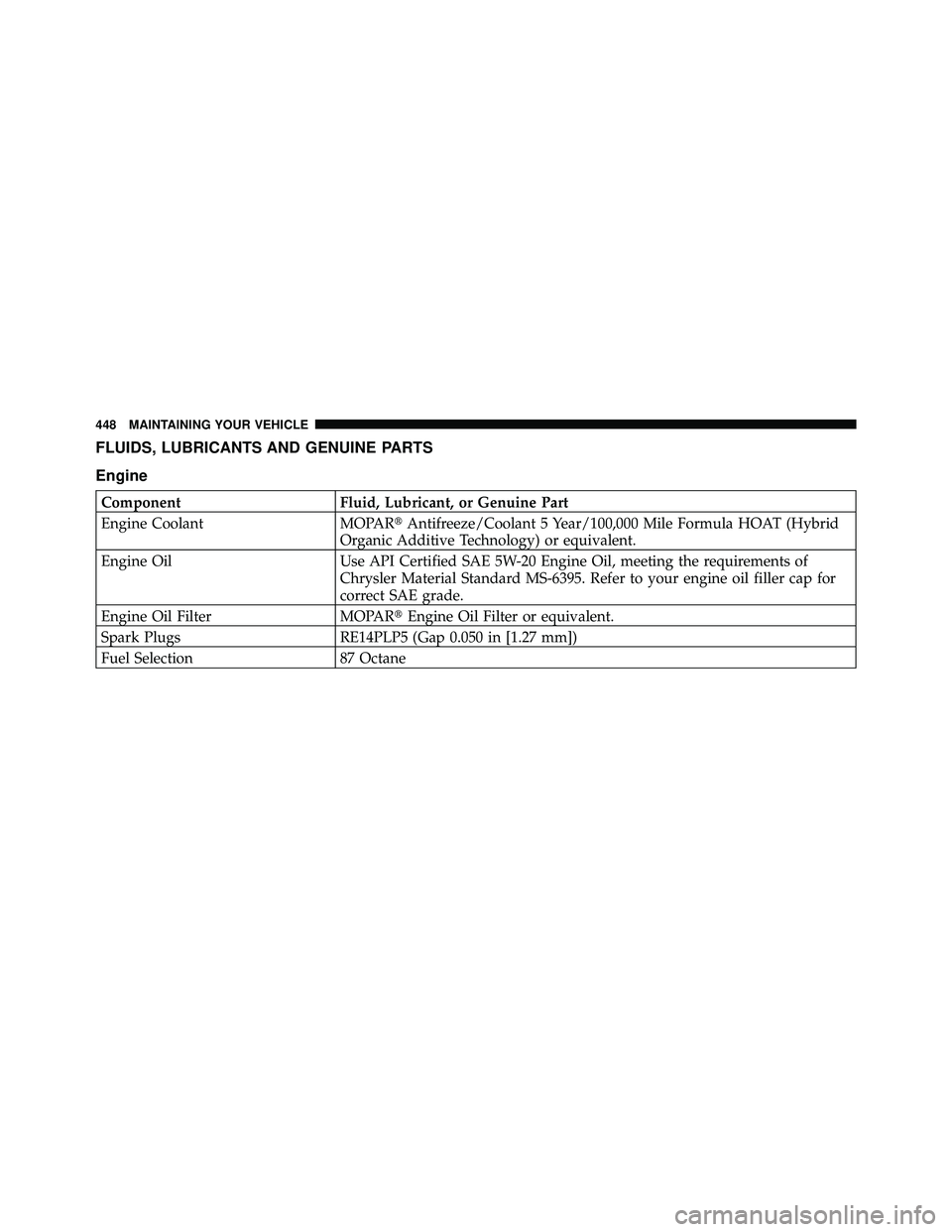

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine

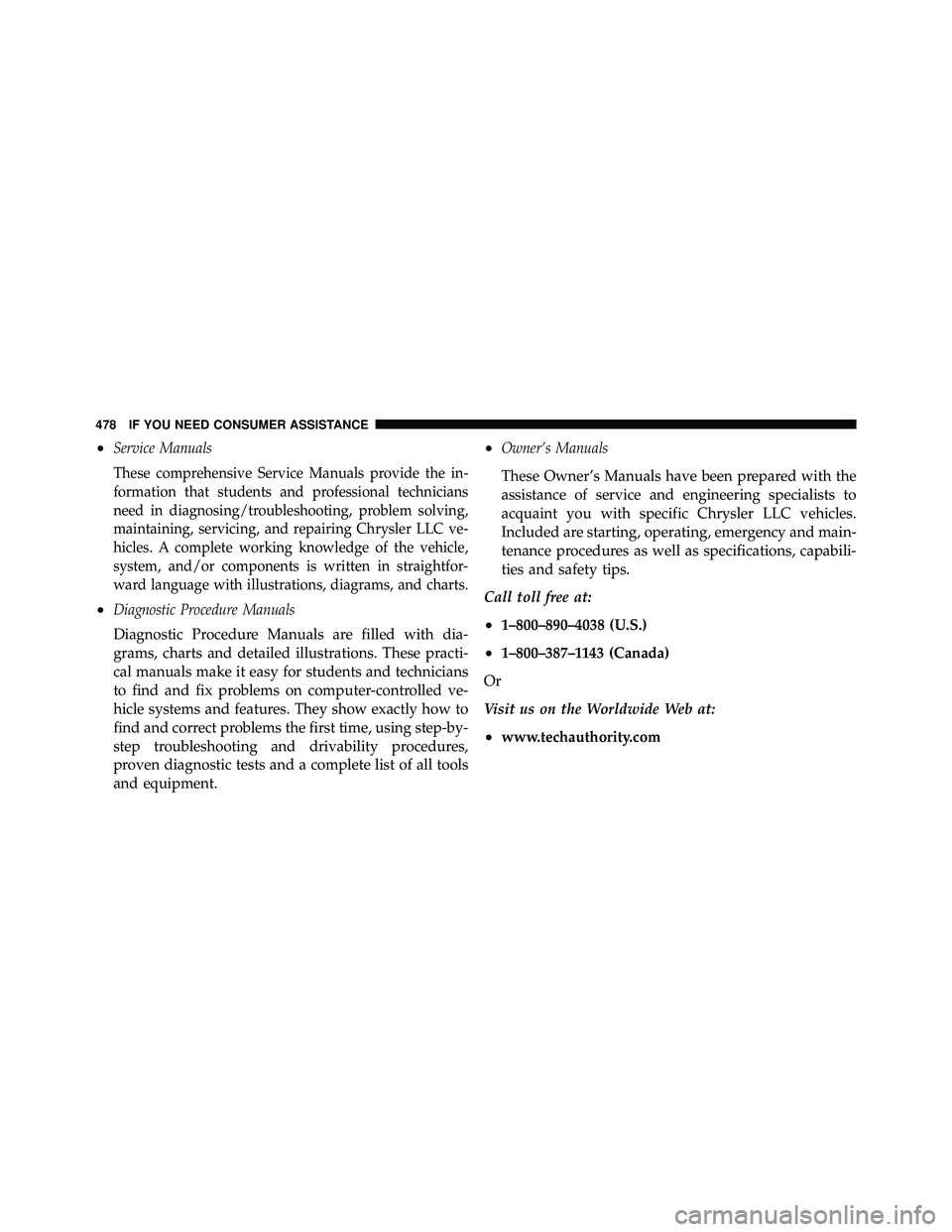

•Service Manuals
These comprehensive Service Manuals provide the in-
formation that students and professional technicians
need in diagnosing/troubleshooting, problem solving,
maintaining, servicing, and repairing Chrysler LLC ve-
hicles. A complete working knowledge of the vehicle,
system, and/or components is written in straightfor-
ward language with illustrations, diagrams, and charts.
•Diagnostic Procedure Manuals
Diagnostic Procedure Manuals are filled with dia-
grams, charts and detailed illustrations. These practi-
cal manuals make it easy for students and technicians
to find and fix problems on computer-controlled ve-
hicle systems and features. They show exactly how to
find and correct problems the first time, using step-by-
step troubleshooting and drivability procedures,
proven diagnostic tests and a complete list of all tools
and equipment.
•Owner’s Manuals
These Owner’s Manuals have been prepared with the
assistance of service and engineering specialists to
acquaint you with specific Chrysler LLC vehicles.
Included are starting, operating, emergency and main-
tenance procedures as well as specifications, capabili-
ties and safety tips.
Call toll free at:
•1–800–890–4038 (U.S.)
•1–800–387–1143 (Canada)
Or
Visit us on the Worldwide Web at:
•www.techauthority.com
478 IF YOU NEED CONSUMER ASSISTANCE

ABS (Anti-Lock Brake System)............203,316
Adding Fuel ........................... 361
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 409
Air Conditioner Maintenance ............... 410
Air Conditioning ..................... 266,269
Air Conditioning Controls ................. 269
Air Conditioning, Operating Tips ............ 270
Air Conditioning Refrigerant ................ 411
Air Conditioning System .................. 269
Air Filter .............................. 409
Air Pressure, Tires ....................... 343
Airbag ................................ 48
Airbag Deployment ....................... 56
Airbag Light ....................... 58,76,204
Airbag Maintenance ....................... 58
Airbag, Side ............................ 55
Alarm Light ........................... 204
Alarm (Security Alarm) .................... 17
Alterations/Modifications, Vehicle ............. 8Antenna, Satellite Radio
................... 259
Antifreeze (Engine Coolant) ................ 447
Anti-Lock Brake System (ABS) ............316,319
Anti-Lock Warning Light .................. 203
Appearance Care ........................ 428
Arming Theft System (Security Alarm) ......... 18
Auto Down Power Windows ................ 36
Automatic Transmission ................... 423
Fluid and Filter Changes ................. 423
Fluid Level Check ..................... 424
Fluid Type ........................... 423
Gear Ranges ......................... 288
Shifting ............................. 287
Special Additives ...................... 425
Torque Converter ...................... 291
Auxiliary Electrical Outlet (Power Outlet) ...... 106
Auxiliary Power Outlet ................... 106
Axle Lock .......................... 296,297
482 INDEX

Child Seat.............................. 65
Climate Control ......................... 264
Clock ........................ 220,234,238,247
Compact Disc (CD) Maintenance ............. 263
Compass .............................. 213
Compass Calibration ..................... 215
Computer, Trip/Travel .................212,213
Console .............................. 109
Console, Floor .......................... 109
Contract, Service ........................ 475
Cooling System ......................... 416
Adding Coolant (Antifreeze) .............. 418
Coolant Capacity ...................... 447
Coolant Level ......................... 420
Disposal of Used Coolant ................ 419
Drain, Flush, and Refill .................. 417
Inspection ........................... 416
Points to Remember .................... 420
Pressure Cap ......................... 419 Selection of Coolant (Antifreeze)
.........417,447
Corrosion Protection ..................... 428
Cruise Light ........................... 205
Cupholders ............................ 108
Customer Assistance ..................... 473
Data Recorder, Event ...................... 59
Daytime Running Lights ................... 97
Dealer Service .......................... 405
Defroster, Rear Window ................... 193
Defroster, Windshield ................76,265,267
Delay (Intermittent) Wipers ................. 100
Diagnostic System, Onboard ................ 402
Dimmer Switch, Headlight .................. 96
Dipsticks Oil (Engine) .......................... 406
Power Steering ........................ 314
Disabled Vehicle Towing ................... 397
Disarming, Theft System ................... 18
484 INDEX

Fuel Requirements.................. 356,447
Jump Starting ......................... 394
Oil .............................. 406,447
Oil Disposal .......................... 408
Oil Filter ............................ 408
Oil Selection .......................... 447
Overheating .......................... 388
Starting ............................. 277
Temperature Gauge .................... 204
Engine Oil Viscosity ...................... 408
Engine Oil Viscosity Chart ................. 408
Enhanced Accident Response Feature .......... 57
Entry System, Illuminated .................. 19
Event Data Recorder ...................... 59
Exhaust Gas Caution ................... 74,360
Exhaust System ....................... 74,413
Extender, Seat Belt ........................ 48
Exterior Finish Care ...................... 429
Exterior Lights .......................... 76 Fabric Care
......................... 432,433
Fabric Top ............................. 433
Filters Air Cleaner .......................... 409
Engine Oil ........................... 408
Finish Care ............................ 429
Flashers Hazard Warning ....................... 388
Turn Signal ................... 76,201,445,446
Flooded Engine Starting ................... 278
Fluid Capacities ......................... 447
Fluid Leaks ............................. 76
Fluid Level Checks ...................... 427
Automatic Transmission ................. 423
Engine Oil ........................... 406
Manual Transmission ................... 426
Power Steering ........................ 314
Fluids, Lubricants and Genuine Parts .......... 448
Fog Light Service ........................ 445
486 INDEX

Hard Top, Modular...................... 115
Hard Top Removal ....................... 119
Hazard Warning Flasher ................... 388
Head Restraints .......................... 87
Head Rests ............................. 87
Headlights Bulb Replacement ...................... 444
Dimmer Switch ........................ 96
Replacing ........................... 444
Switch ............................... 95
Heater ............................... 264
Heater, Engine Block ..................... 281
High Beam Indicator ..................... 201
Hill Start Assist ......................... 321
Hitches Trailer Towing ........................ 368
Holder, Cup ........................... 108
Hood Release ........................... 93
Hydraulic Clutch Fluid .................... 426 Ignition
............................... 12
Key ................................ 12
Ignition Key Removal ..................... 12
Illuminated Entry ........................ 19
Immobilizer (Sentry Key) ................... 14
Infant Restraint .......................... 61
Inflation Pressure Tires .................... 343
Inside Rearview Mirror .................... 81
Instrument Cluster ....................... 199
Instrument Panel and Controls .............. 198
Instrument Panel Lens Cleaning ............. 433
Integrated Power Module (Fuses) ............ 436
Interior Appearance Care .................. 432
Interior Lights ........................... 97
Intermittent Wipers (Delay Wipers) ........... 100
Introduction ............................. 4
Jack Location ........................... 390
Jack Operation .................... 389,391,392
488 INDEX

Oil Pressure Light....................... 201
Onboard Diagnostic System ..............402,403
Operator Manual (Owner’s Manual) ............ 6
Outside Rearview Mirrors .................. 82
Overheating, Engine ................... 205,388
Owner’s Manual (Operator Manual) .........6,477
Paint Care ............................. 428
Paint Damage .......................... 428
Panic Alarm ............................ 21
Parking Brake .......................... 315
Passing Light ........................... 96
Pets .................................. 73
Phone, Cellular .......................... 82
Phone, Hands-Free (uconnect) ............... 82
Placard, Tire and Loading Information ......... 339
Polishing and Waxing ..................... 429
Power Door Locks ........................... 32 Steering
.......................... 313,314
Windows ............................. 35
Pregnant Women and Seat Belts .............. 48
Preparation for Jacking .................... 390
Pretensioners Seat Belts ............................ 46
Radial Ply Tires ......................... 346
Radio Operation ........................ 263
Radio, Satellite (uconnect studios)........... 258
Rear Axle (Differential) .................... 427
Rear Swing Gate ......................... 37
Rear Window Defroster ................... 193
Rear Window Features .................... 192
Rear Wiper/Washer ...................... 192
Rearview Mirrors ........................ 81
Recorder, Event Data ...................... 59
Recreational Towing ...................... 382
Shifting into Transfer Case Neutral (N) ....... 383
492 INDEX
