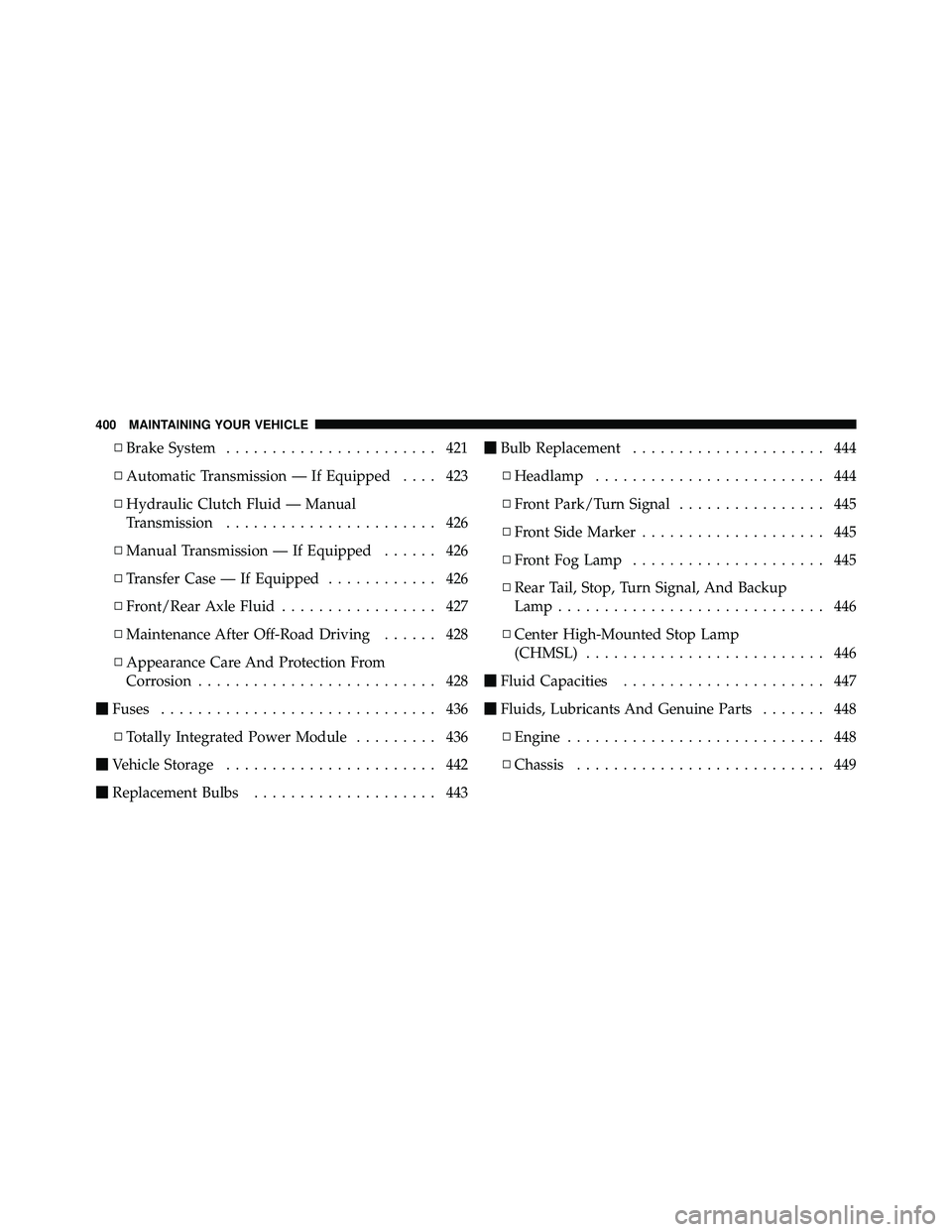

â–«Brake System ....................... 421
▫ Automatic Transmission — If Equipped .... 423
▫ Hydraulic Clutch Fluid — Manual
Transmission ....................... 426
▫ Manual Transmission — If Equipped ...... 426
▫ Transfer Case — If Equipped ............ 426
â–« Front/Rear Axle Fluid ................. 427
â–« Maintenance After Off-Road Driving ...... 428
â–« Appearance Care And Protection From
Corrosion .......................... 428
 Fuses .............................. 436
â–« Totally Integrated Power Module ......... 436
 Vehicle Storage ....................... 442
 Replacement Bulbs .................... 443
Bulb Replacement ..................... 444
â–« Headlamp ......................... 444
â–« Front Park/Turn Signal ................ 445
â–« Front Side Marker .................... 445
â–« Front Fog Lamp ..................... 445
â–« Rear Tail, Stop, Turn Signal, And Backup
Lamp ............................. 446
â–« Center High-Mounted Stop Lamp
(CHMSL) .......................... 446
 Fluid Capacities ...................... 447
 Fluids, Lubricants And Genuine Parts ....... 448
â–« Engine ............................ 448
â–« Chassis ........................... 449
400 MAINTAINING YOUR VEHICLE

BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Headlamp
1. Open hood and support using prop rod.
2. Remove the front grille. Turn the retainers along the
top 1/4 turn counterclockwise and remove.
3. Pull the bottom of the grille away starting at one side
and working toward the other.
4. Turn both park and turn signal socket assemblies 1/4
turn counterclockwise and remove.
5. Remove the four screws holding the metal retaining
ring. 6. Remove the lamp from the collar.
7. Grasp the bulb and turn 1/4 turn counterclockwise.
8. Pull the bulb from the housing.
9. Push connector locking tab to the unlock position.
10. Remove connector from bulb.
11. Push connector onto new bulb base, and push the
connector locking tab to the lock position.
