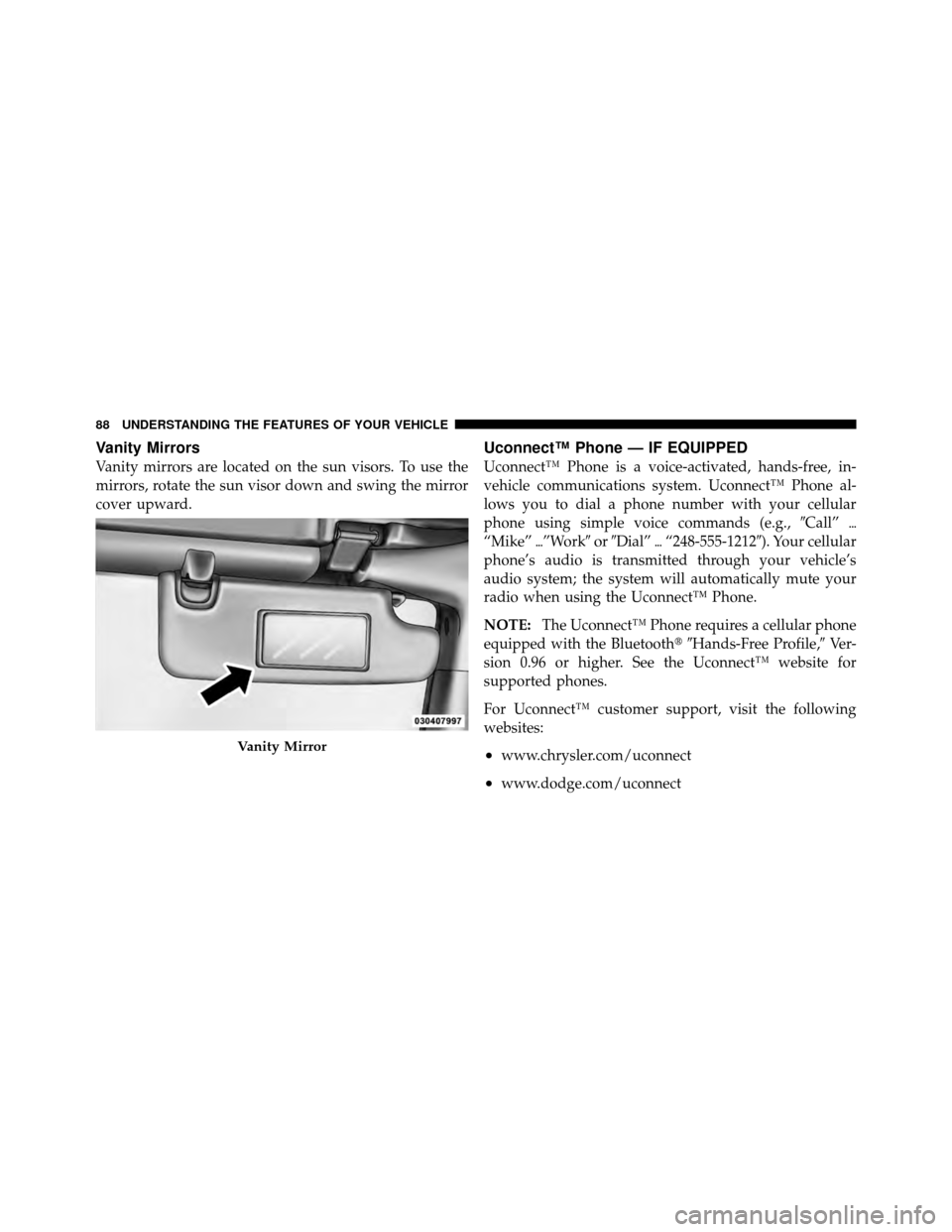

Vanity Mirrors
Vanity mirrors are located on the sun visors. To use the
mirrors, rotate the sun visor down and swing the mirror
cover upward.
Uconnect™ Phone — IF EQUIPPED
Uconnect™ Phone is a voice-activated, hands-free, in-
vehicle communications system. Uconnect™ Phone al-
lows you to dial a phone number with your cellular
phone using simple voice commands (e.g.,Call”
“Mike” ”Work orDial” “248-555-1212). Your cellular
phone’s audio is transmitted through your vehicle’s
audio system; the system will automatically mute your
radio when using the Uconnect™ Phone.
NOTE: The Uconnect™ Phone requires a cellular phone
equipped with the Bluetooth Hands-Free Profile,Ve r -
sion 0.96 or higher. See the Uconnect™ website for
supported phones.
For Uconnect™ customer support, visit the following
websites:
•www.chrysler.com/uconnect
•www.dodge.com/uconnect
Vanity Mirror
88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

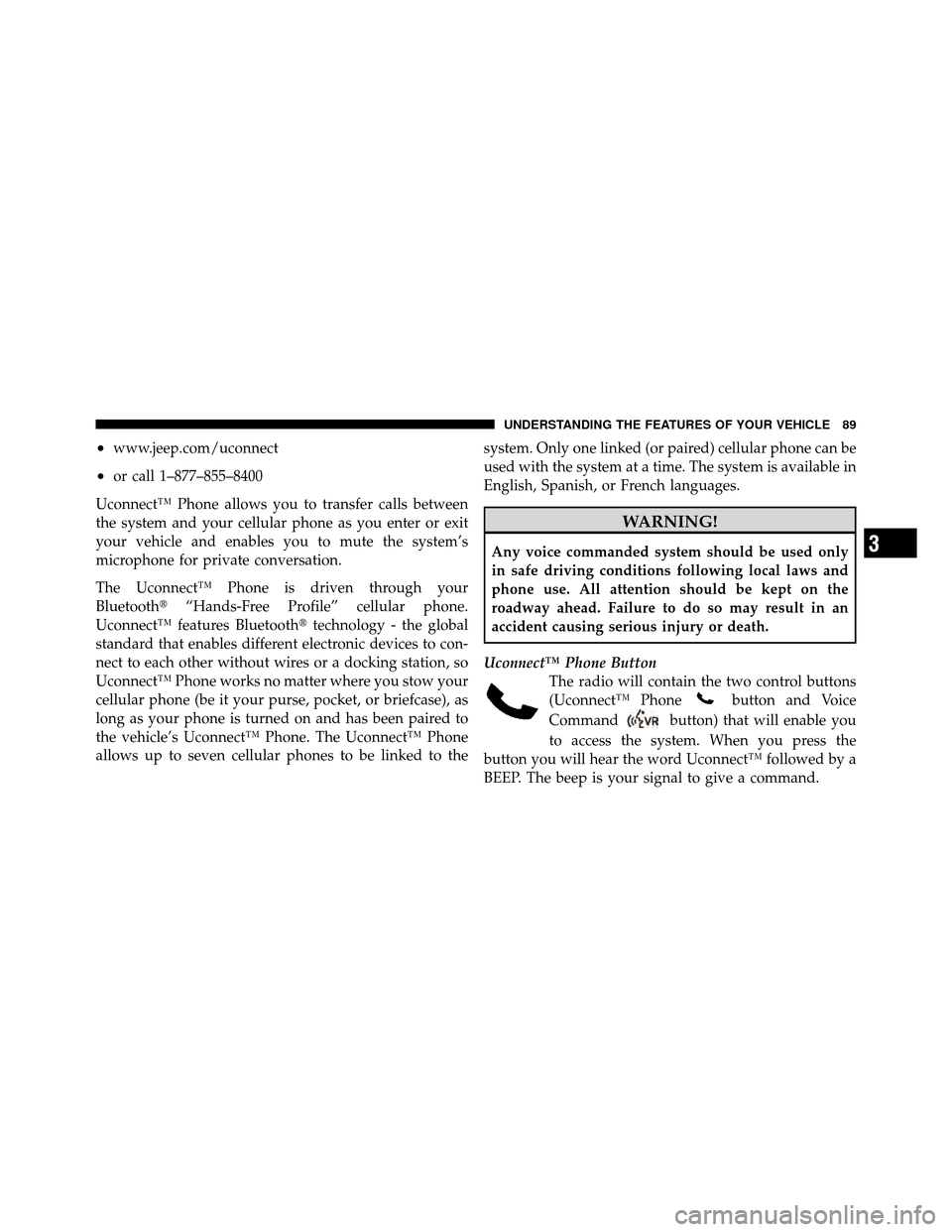

•www.jeep.com/uconnect
•or call 1–877–855–8400
Uconnect™ Phone allows you to transfer calls between
the system and your cellular phone as you enter or exit
your vehicle and enables you to mute the system’s
microphone for private conversation.
The Uconnect™ Phone is driven through your
Bluetooth “Hands-Free Profile” cellular phone.
Uconnect™ features Bluetooth technology - the global
standard that enables different electronic devices to con-
nect to each other without wires or a docking station, so
Uconnect™ Phone works no matter where you stow your
cellular phone (be it your purse, pocket, or briefcase), as
long as your phone is turned on and has been paired to
the vehicle’s Uconnect™ Phone. The Uconnect™ Phone
allows up to seven cellular phones to be linked to the system. Only one linked (or paired) cellular phone can be
used with the system at a time. The system is available in
English, Spanish, or French languages.
WARNING!
Any voice commanded system should be used only
in safe driving conditions following local laws and
phone use. All attention should be kept on the
roadway ahead. Failure to do so may result in an
accident causing serious injury or death.
Uconnect™ Phone Button The radio will contain the two control buttons
(Uconnect™ Phone
button and Voice
Command
button) that will enable you
to access the system. When you press the
button you will hear the word Uconnect™ followed by a
BEEP. The beep is your signal to give a command.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89

NOTE:The driver side upper windshield trim contains
the microphone for the Uconnect™ Phone.
Voice Command Button Actual button location may vary with the ra-
dio. The individual buttons are described in the
“Operation” section.
The Uconnect™ Phone can be used with any Hands-Free
Profile certified Bluetooth cellular phone. See the
Uconnect™ website for supported phones. Refer to your
cellular service provider or the phone manufacturer for
details.
The Uconnect™ Phone is fully integrated with the vehi-
cle’s audio system. The volume of the Uconnect™ Phone
can be adjusted either from the radio volume control
knob or from the steering wheel radio control (right
switch), if so equipped. The radio display will be used for visual prompts from
the Uconnect™ Phone such as
CELLor caller ID on
certain radios.
Operation
Voice commands can be used to operate the Uconnect™
Phone and to navigate through the Uconnect™ Phone
menu structure. Voice commands are required after most
Uconnect™ Phone prompts. You will be prompted for a
specific command and then guided through the available
options.
•Prior to giving a voice command, one must wait for
the beep, which follows the Readyprompt or another
prompt.
•For certain operations, compound commands can be
used. For example, instead of saying Setupand then
Phone Pairing, the following compound command
can be said: Setup Phone Pairing.
90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

•For each feature explanation in this section, only the
compound form of the voice command is given. You
can also break the commands into parts and say each
part of the command when you are asked for it. For
example, you can use the compound form voice
commandPhonebook New Entry, or you can break
the compound form command into two voice com-
mands: Phonebook andNew Entry. Please remem-
ber, the Uconnect™ Phone works best when you talk
in a normal conversational tone, as if speaking to
someone sitting a few feet/meters away from you.
Voice Command Tree
Refer to “Voice Tree” in this section.
Help Command
If you need assistance at any prompt, or if you want to
know your options at any prompt, say Helpfollowing
the beep. The Uconnect™ Phone will play all the options
at any prompt if you ask for help. To activate the Uconnect™ Phone from idle, simply press
the
button and follow the audible prompts for
directions. All Uconnect™ Phone sessions begin with a
press of the
button on the radio control head.
Cancel Command
At any prompt, after the beep, you can say Canceland
you will be returned to the main menu. However, in a
few instances the system will take you back to the
previous menu.
Pair (Link) Uconnect™ Phone to a Cellular Phone
To begin using your Uconnect™ Phone, you must pair
your compatible Bluetooth enabled cellular phone.
To complete the pairing process, you will need to refer-
ence your cellular phone Owner’s Manual. The
Uconnect™ website may also provide detailed instruc-
tions for pairing.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91

•When prompted, enter the number designation (e.g.,
Home,Work,Mobile, orPager). This will allow
you to store multiple numbers for each phonebook
entry, if desired.
•When prompted, recite the phone number for the
phonebook entry that you are adding.
After you are finished adding an entry into the phone-
book, you will be given the opportunity to add more
phone numbers to the current entry or to return to the
main menu.
The Uconnect™ Phone will allow you to enter up to 32
names in the phonebook with each name having up to
four associated phone numbers and designations. Each
language has a separate 32-name phonebook accessible
only in that language. In addition, if equipped and
supported by your phone, Uconnect™ Phone automati-
cally downloads your cellular phone’s phonebook.
Phonebook Download – Automatic Phonebook
Transfer From Cellular Phone
If equipped and specifically supported by your phone,
Uconnect™ Phone automatically downloads names (text
names) and number entries from the cellular phone’s
phonebook. Specific Bluetooth Phones with Phone Book
Access Profile may support this feature. See Uconnect™
website for supported phones.
•To call a name from downloaded (or Uconnect™)
Phonebook, follow the procedure in “Call by Saying a
Name” section.
•Automatic download and update, if supported, begins
as soon as the Bluetooth wireless phone connection is
made to the Uconnect™ Phone, for example, after you
start the vehicle.
•A maximum of 1000 entries per phone will be down-
loaded and updated every time a phone is connected
to the Uconnect™ Phone.
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

•Depending on the maximum number of entries down-
loaded, there may be a short delay before the latest
downloaded names can be used. Until then, if avail-
able, the previous downloaded phonebook is available
for use.
•Only the phonebook of the currently connected cellu-
lar phone is accessible.
•Only the cellular phone’s phonebook is downloaded.
SIM card phonebook is not part of the Mobile phone-
book.
•This downloaded phonebook cannot be edited or
deleted on the Uconnect™ Phone. These can only be
edited on the cellular phone. The changes are trans-
ferred and updated to Uconnect™ Phone on the next
phone connection.
Phonebook Download — Single Entry
If equipped and supported by your phone, Uconnect™
Phone allows the user to download entries from their
phone via Bluetooth. To use this feature, press the
button and say “Phonebook Download.” The system
prompts, “Ready to accept “V” card entry via
Bluetooth…” The system is now ready to accept phone-
book entries from your phone using the Bluetooth
Object Exchange Profile (OBEX). Please see your phone
Owner’s Manual for specific instructions on how to send
these entries from your phone.
NOTE:
•The phone handset must support BluetoothOBEX
transfers of phonebook entries to use this feature.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95

•Some phones cannot send phonebook entries if they
are already connected to any system via Bluetooth,
and you may see a message on the phone display that
the Bluetoothlink is busy. In this case, the user must
first disconnect or drop the Bluetooth connection to
the Uconnect™ phone, and then send the address
book entry via Bluetooth. Please see your phone
Owner ’s Manual for specific instructions on how to
drop the Bluetooth connection.
•If the phonebook entry is longer than 24 characters, it
will only use the first 24 characters.
Edit Uconnect™ Phonebook Entries
NOTE:
•Editing names in the phonebook is recommended
when the vehicle is not in motion.
•Automatic downloaded phonebook entries cannot be
deleted or edited.
•Press thebutton to begin.
•After theReadyprompt and the following beep, say
Phonebook Edit.
•You will then be asked for the name of the phonebook
entry that you wish to edit.
•Next, choose the number designation (home, work,
cellular, or pager) that you wish to edit.
•When prompted, recite the new phone number for the
phonebook entry that you are editing.
After you are finished editing an entry in the phonebook,
you will be given the opportunity to edit another entry in
the phonebook, call the number you just edited, or return
to the main menu.
Phonebook Edit can be used to add another phone
number to a name entry that already exists in the
phonebook. For example, the entry John Doe may have a
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Turning Confirmation Prompts ON/OFF
Turning confirmation prompts off will stop the system
from confirming your choices (e.g., the Uconnect™
Phone will not repeat a phone number before you dial it).
•Press thebutton to begin.
•After theReadyprompt and the following beep, say
Setup Confirmations. The Uconnect™ Phone will
play the current confirmation prompt status and you
will be given the choice to change it.
Phone and Network Status Indicators
If available on the radio and/or on a premium display
such as the instrument panel cluster, and supported by
your cellular phone, the Uconnect™ Phone will provide
notification to inform you of your phone and network
status when you are attempting to make a phone call
using Uconnect™ Phone. The status is given for roaming,
network signal strength, phone battery strength, etc.
Dialing Using the Cellular Phone Keypad
You can dial a phone number with your cellular phone
keypad and still use the Uconnect™ Phone (while dialing
via the cellular phone keypad, the user must exercise
caution and take precautionary safety measures). By
dialing a number with your paired Bluetooth cellular
phone, the audio will be played through your vehicle’s
audio system. The Uconnect™ Phone will work the same
as if you dial the number using Voice Command.
NOTE: Certain brands of cellular phones do not send
the dial ring to the Uconnect™ Phone to play it on the
vehicle audio system, so you will not hear it. Under this
situation, after successfully dialing a number the user
may feel that the call did not go through even though the
call is in progress. Once your call is answered, you will
hear the audio.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105

Mute/Un-Mute (Mute OFF)
When you mute the Uconnect™ Phone, you will still be
able to hear the conversation coming from the other
party, but the other party will not be able to hear you. In
order to mute the Uconnect™ Phone:
•Press thebutton.
•Following the beep, sayMute.
In order to un-mute the Uconnect™ Phone:
•Press thebutton.
•Following the beep, say Mute off.
Advanced Phone Connectivity
Transfer Call to and from Cellular Phone
The Uconnect™ Phone allows ongoing calls to be trans-
ferred from your cellular phone to the Uconnect™ Phone
without terminating the call. To transfer an ongoing call from your Uconnect™ Phone paired cellular phone to the
Uconnect™ Phone or vice versa, press the
button
and say Transfer Call.
Connect or Disconnect Link Between the
Uconnect™ Phone and Cellular Phone
Your cellular phone can be paired with many different
electronic devices, but can only be actively connected
with one electronic device at a time.
If you would like to connect or disconnect the Bluetooth
connection between a Uconnect™ Phone paired cellular
phone and the Uconnect™ Phone, follow the instructions
described in your cellular phone User’s Manual.
List Paired Cellular Phone Names
•
Press thebutton to begin.
•After the “Ready” prompt and the following beep, say
“Setup Phone Pairing.”
106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Turn SMS Incoming Announcement ON/OFF
Turning the SMS Incoming Announcement OFF will stop
the system from announcing the new incoming mes-
sages.
•Press thebutton.
•After the “Ready” prompt and the following beep, say
“Setup, Incoming Message Announcement,” you will
then be given a choice to change it.
BluetoothCommunication Link
Cellular phones have been found to lose connection to
the Uconnect™ Phone. When this happens, the connec-
tion can generally be reestablished by switching the
phone off/on. Your cellular phone is recommended to
remain in Bluetooth ON mode.
Power-Up
After switching the ignition key from OFF to either the
ON or ACC position, or after a language change, you
must wait at least five seconds prior to using the system.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 113
