Page 139 of 554
NOTE:
•If either light remains on and does not flash, or there is
a very fast flash rate, check for a defective outside light
bulb. If an indicator fails to light when the lever is
moved, it would suggest that the indicator bulb is
defective.
•A tone will chime if the turn signals are left on for
more than 1 mile (2 km).
Lane Change Assist
Tap the lever up or down once, without moving beyond
the detent, and the turn signal (right or left) will flash
three times then automatically turn off.
Lights-On Reminder
If the headlights or parking lights are on after the ignition
is turned OFF, a chime will sound when the driver’s door
is opened.
High/Low Beam Switch
Push the multifunction lever away from you to switch
the headlights to high beam. Pull the lever toward you to
switch the headlights back to low beam.
Flash-To-Pass
You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward the steer-
ing wheel. This will turn on the high beam headlights
until the lever is released.
Front Fog Lights — If Equipped
The front fog light switch is located on the multi-
function lever. To activate the front fog lights, turn
on the parking or low beam headlights and pull
out the end of the lever.
NOTE: The fog lights will only operate with the parking
lights or the headlights on low beam. Selecting high
beam headlights will turn off the fog lights.
138 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 248 of 554
7. Seat Belt Reminder LightA warning chime and an indicator light will alert
you to buckle the seat belts. When the belt is
buckled, the chime will stop, but the light will stay
on for about six seconds, until it times out. Refer to
“Occupant Restraints” in “Things To Know Before Start-
ing Your Vehicle” for further information.
8. Turn Signal Indicators The arrows will flash with the exterior turn signals
when the turn signal lever is operated. A tone will
chime if the turn signals are left on for more than 1 mile
(1.6 km).
9. Oil Pressure Warning Light This light indicates low engine oil pressure. The
light should turn on momentarily when the engine
is started, if the bulb does not come on, have the system
checked by an authorized dealer. If the light turns on while driving, stop the vehicle and shut off the engine as
soon as possible. A chime will sound when this light
turns on.
Do not operate the vehicle until the cause is corrected.
This light does not indicate how much oil is in the engine.
The engine oil level must be checked under the hood.
10. High Beam Indicator
This indicator shows that the high beam head-
lights are on. Push the multifunction control lever
away from you to switch the headlights to high beam.
Pull the lever towards you to switch the headlights back
to low beam. If the driver’s door is open, and the
headlights or park lights are left on, the high beam
indicator light will remain illuminated and a chime will
sound.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 247

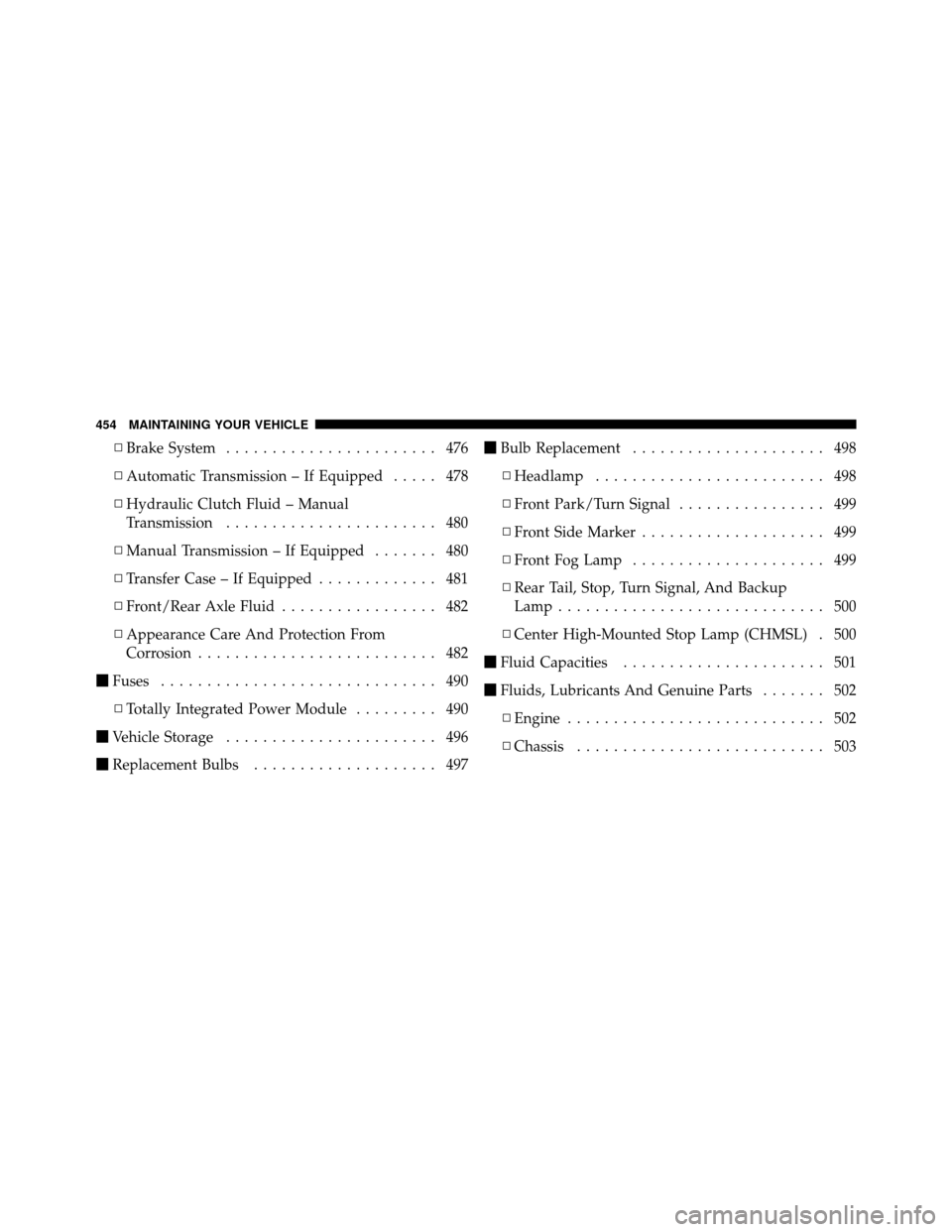

Page 455 of 554
▫Brake System ....................... 476
▫ Automatic Transmission – If Equipped ..... 478
▫ Hydraulic Clutch Fluid – Manual
Transmission ....................... 480
▫ Manual Transmission – If Equipped ....... 480
▫ Transfer Case – If Equipped ............. 481
▫ Front/Rear Axle Fluid ................. 482
▫ Appearance Care And Protection From
Corrosion .......................... 482
Fuses .............................. 490
▫ Totally Integrated Power Module ......... 490
Vehicle Storage ....................... 496
Replacement Bulbs .................... 497
Bulb Replacement ..................... 498
▫ Headlamp ......................... 498
▫ Front Park/Turn Signal ................ 499
▫ Front Side Marker .................... 499
▫ Front Fog Lamp ..................... 499
▫ Rear Tail, Stop, Turn Signal, And Backup
Lamp ............................. 500
▫ Center High-Mounted Stop Lamp (CHMSL) . 500
Fluid Capacities ...................... 501
Fluids, Lubricants And Genuine Parts ....... 502
▫ Engine ............................ 502
▫ Chassis ........................... 503
454 MAINTAINING YOUR VEHICLE
Page 498 of 554
•Or, disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
Interior LightsBulb Type
Auto. Trans. Indicator Lamp ................. 658
Heater Control Lamps (2) ................... 194
Rocker Switch Indicator Lamp (Rear Window
Defogger, and Rear Wash/Wipe) ............... **
Soundbar Dome Lamp ..................... 912
** Bulbs only available from authorized dealer. Exterior Lights
Bulb Type
Backup Lamps (2) ....................... 3157
Center High-Mounted Stop Lamp (1) .........L.E.D.
Fog Lamps ......................... PSX24W
Front Park/Turn Signal Lamps (2) ............3157
Front Side Marker Lamps (2) ................ 168
Headlamps (2) .......................... H13
Rear Stop/Tail/Turn Lamps (2) ..............3157
License Lamp ........................... 194
NOTE: Numbers refer to commercial bulb types that
can be purchased from your local authorized dealer.
If a bulb needs to be replaced, visit your authorized
dealer or refer to the applicable Service Manual.
7
MAINTAINING YOUR VEHICLE 497
Page 499 of 554
BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Headlamp
1. Open hood and support using prop rod.
2. Remove the front grille. Turn the retainers along the
top 1/4 turn counterclockwise and remove.
3. Pull the bottom of the grille away starting at one side
and working toward the other.
4. Turn both park and turn signal socket assemblies 1/4
turn counterclockwise and remove.
5. Remove the four screws holding the metal retaining
ring. 6. Remove the lamp from the collar.
7. Grasp the bulb and turn 1/4 turn counterclockwise.
8. Pull the bulb from the housing.
9. Push connector locking tab to the unlock position.
10. Remove connector from bulb.
11. Push connector onto new bulb base, and push the
connector locking tab to the lock position.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
12. Reinstall bulb housing. Rotate the bulb 1/4 turn
clockwise.
498 MAINTAINING YOUR VEHICLE
Page 500 of 554
Front Park/Turn Signal
1. Remove the front grille. Turn the retainers along the
top 1/4 turn counterclockwise and remove.
2. Pull the bottom of the grille away starting at one side
and working toward the other.
3. Turn the socket assembly 1/4 turn counterclockwise
and remove from housing. Pull the bulb straight from the
socket to replace.
Front Side Marker
1. Reach under the front fender flare and locate the front
side marker socket.
2. Turn the socket assembly counterclockwise 1/3 turn
and remove it from the housing. Pull the bulb straight
from the socket to replace.
Front Fog Lamp
1. Locate the front fog lamp in the front fascia, and
disconnect the electrical connector from underneath.
2. Squeeze locking tabs on bulb inward toward center of
the bulb. Pull bulb straight out of housing.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
7
MAINTAINING YOUR VEHICLE 499
Page 501 of 554
Rear Tail, Stop, Turn Signal, and Backup Lamp
1. Remove the two inboard screws attaching the tail light
housing to the body.DO NOT REMOVE THE OUTER
SCREWS AT ANY TIME.
2. Separate the housing from the body by pushing the
lamp inboard while pulling the lamp away from the
body. 3. Rotate the appropriate socket 1/4 turn counterclock-
wise, then remove it from the housing.
4. Pull the bulb straight from the socket to replace.
Center High-Mounted Stop Lamp (CHMSL)
The stop lamp is mounted on a bracket that extends
upward from the tailgate behind the spare tire. If service
is needed, obtain the LED/Cover Assembly from your
local authorized dealer.
1. Remove the spare tire.
2. Remove the four screws holding the lens/cover in
place on the spare tire carrier.
3. Disconnect the wire harness from the back of the LED
cover.
500 MAINTAINING YOUR VEHICLE
Page 544 of 554
Jack Location........................... 442
Jack Operation .................... 442,444,445
Jacking Instructions ...................... 444
Jump Starting .......................... 446
Key, Programming ........................ 16
Key, Replacement ........................ 15
Key, Sentry (Immobilizer) ................... 14
Key-In Reminder ......................... 13
Keyless Entry System ...................... 19
Keys ................................. 12
Lane Change and Turn Signals .............. 247
Lane Change Assist ...................... 138
Lap Belts .............................. 39
Lap/Shoulder Belts ....................... 39
LATCH (Lower Anchors and Tether for
CHildren) ............................ 67,69
Latches ................................ 79 Lead Free Gasoline
....................... 411
Leaks, Fluid ............................ 79
Light Bulbs ............................. 79
Lights .............................. 79,136
Airbag .......................... 60,77,250
Alarm .............................. 250
Anti-Lock ........................... 249
Anti-Lock Warning ..................... 249
Back-Up ............................ 500
Brake Assist Warning ................259,385
Brake Warning ........................ 248
Bulb Replacement ...................... 498
Cargo .............................. 140
Center Mounted Stop ................... 500
Check Engine (Malfunction Indicator) ........ 257
Cruise .............................. 251
Daytime Running ...................... 139
Dimmer Switch, Headlight ............... 138
Electronic Stability Program (ESP) Indicator . 259,385
10
INDEX 543
