key JEEP WRANGLER 2010 Owner's Manual

previous vehicles getting stuck. As a good practice before
entering any mud hole, get out and determine how deep
it is, if there are any hidden obstacles and if the vehicle
can be safely recovered if stuck.

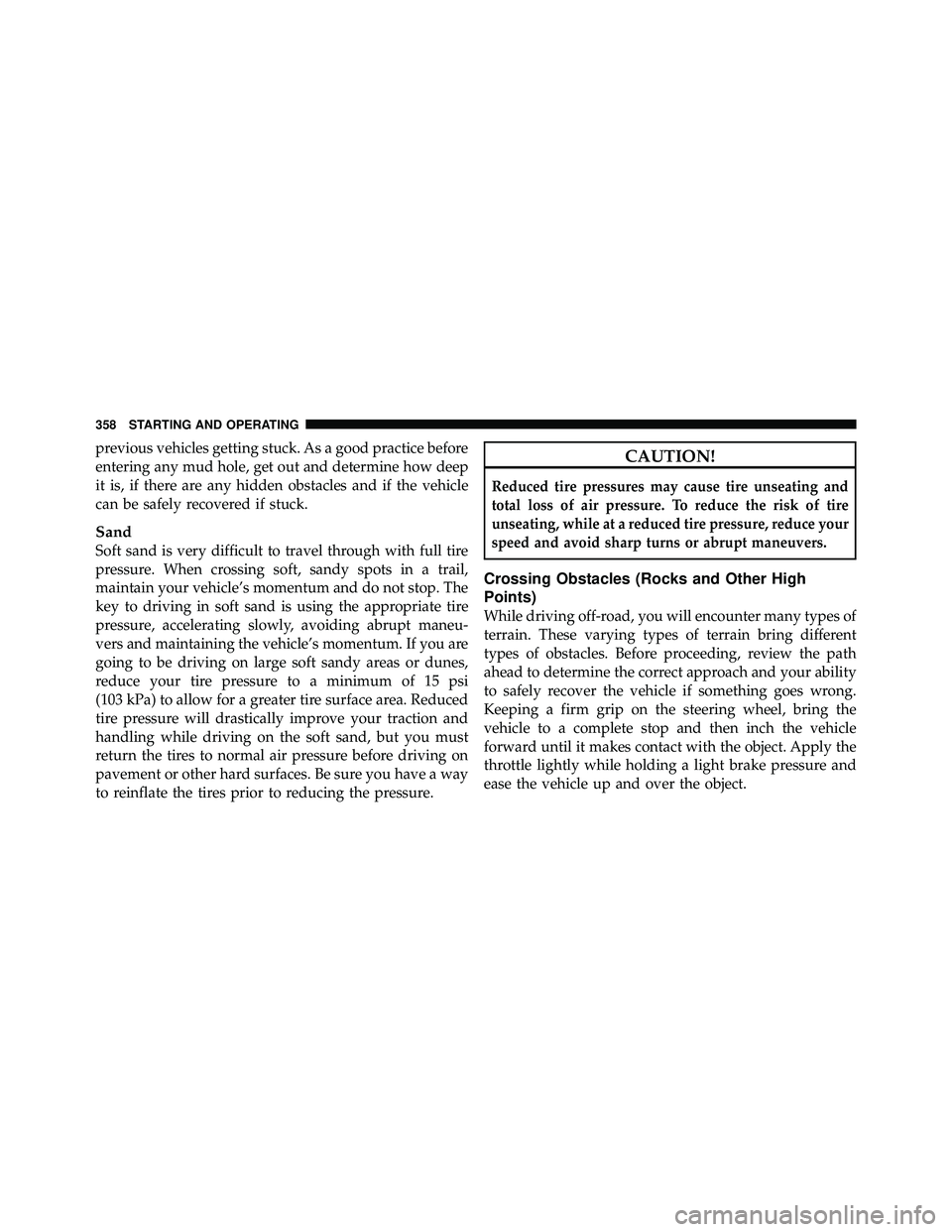

Sand
Soft sand is very difficult to travel through with full tire
pressure. When crossing soft, sandy spots in a trail,
maintain your vehicle’s momentum and do not stop. The
key to driving in soft sand is using the appropriate tire
pressure, accelerating slowly, avoiding abrupt maneu-
vers and maintaining the vehicle’s momentum. If you are
going to be driving on large soft sandy areas or dunes,
reduce your tire pressure to a minimum of 15 psi
(103 kPa) to allow for a greater tire surface area. Reduced
tire pressure will drastically improve your traction and
handling while driving on the soft sand, but you must
return the tires to normal air pressure before driving on
pavement or other hard surfaces. Be sure you have a way
to reinflate the tires prior to reducing the pressure.

your vehicle’s abilities and be able to recover it if
something goes wrong. You should never stop or shut a
vehicle off when crossing deep water unless you ingested
water into the engine air intake. If the engine stalls, do
not attempt to restart it. Determine if it has ingested
water first. The key to any crossing is low and slow. Shift
into first gear (manual transmission), or DRIVE (auto-
matic transmission), with the transfer case in the 4L
(Low) position and proceed very slowly with a constant
slow speed {3 to 5 mph (5 to 8 km/h) maximum} and
light throttle. Keep the vehicle moving; do not try to
accelerate through the crossing. After crossing any water
higher than the bottom of the axle differentials, you
should inspect all of the vehicle fluids for signs of water
ingestion.

5. Using wheels/tires not equipped with TPM sensors.
NOTE:
•If your vehicle is equipped with a matching full-size
spare wheel and tire assembly, it has a tire pressure
monitoring sensor, and can be monitored by the Tire
Pressure Monitoring System (TPMS). In the event that
the matching full-size spare tire is swapped with a low
pressure road tire, the next ignition key cycle will still
show the “Tire Pressure Monitoring Telltale Light” to
be ON, and a chime to sound. Driving the vehicle for
up to 20 minutes above 15 mph (25 km/h) will turn
OFF the “Tire Pressure Monitoring Telltale Light” as
long as none of the road tires are below the low
pressure warning threshold.
•If your vehicle is not equipped with a matching
full-size spare wheel and tire assembly, it does not
have a tire pressure monitoring sensor in the spare tire.
The TPMS will not be able to monitor the tire pressure.If you install the spare tire in place of a road tire that
has a pressure below the low-pressure warning limit,
upon the next ignition key cycle, a chime will sound
and the “Tire Pressure Monitoring Telltale Light” will
turn ON. After driving the vehicle for up to 20 minutes
above 15 mph (25 km/h), the “Tire Pressure Monitor-
ing Telltale Light” will flash on and off for 75 seconds
and then remain on solid. For each subsequent ignition
key cycle, a chime will sound and the “Tire Pressure
Monitoring Telltale Light” will flash on and off for
75 seconds and then remain on solid. Once you repair
or replace the original road tire, and reinstall it on the
vehicle in place of the spare tire, the TPMS will update
automatically and the “Tire Pressure Monitoring Tell-
tale Light” will turn OFF, as long as no tire pressure is
below the low-pressure warning limit in any of the
four active road tires. The vehicle may need to be
driven for up to 20 minutes above 15 mph (25 km/h)
in order for the TPMS to receive this information.
410 STARTING AND OPERATING

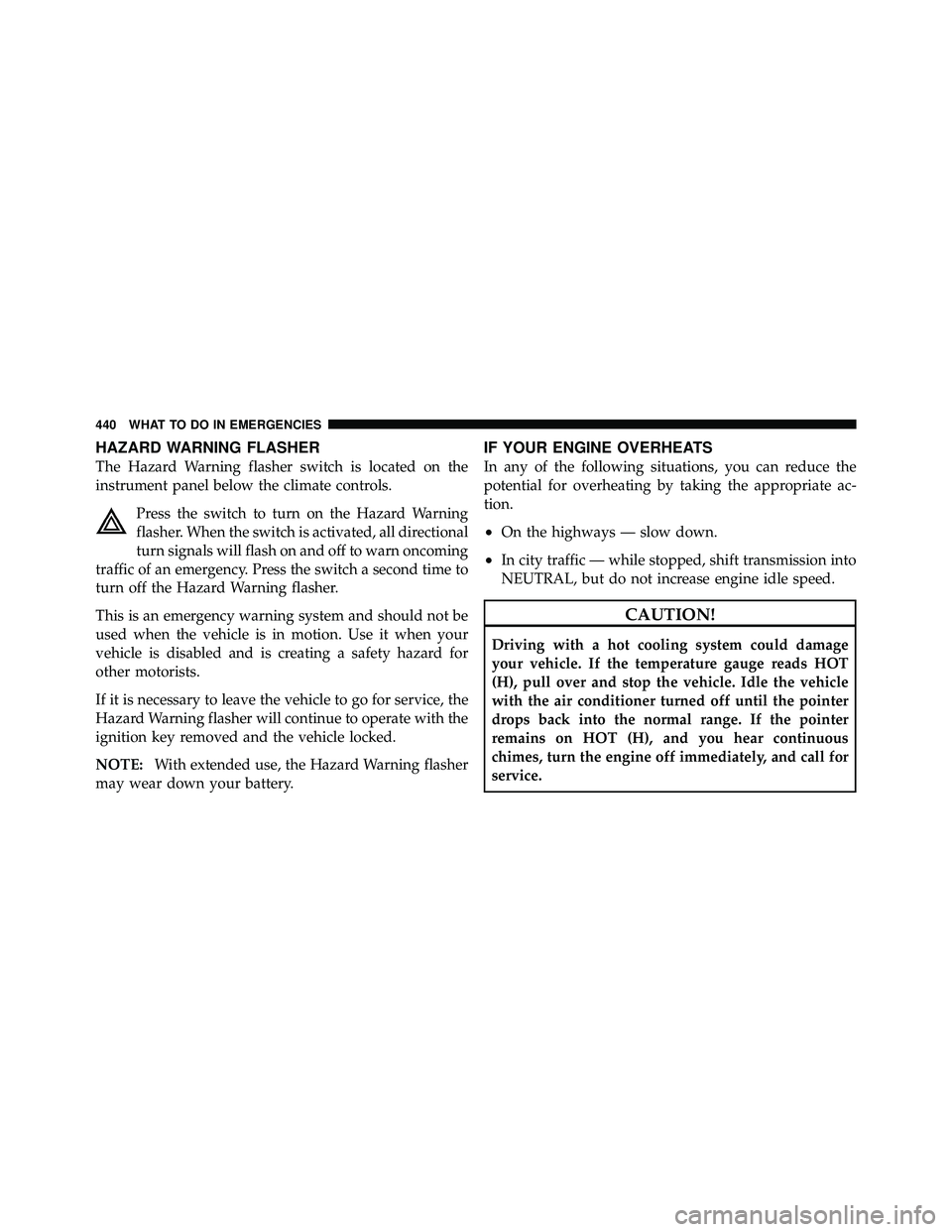

HAZARD WARNING FLASHER
The Hazard Warning flasher switch is located on the
instrument panel below the climate controls.Press the switch to turn on the Hazard Warning
flasher. When the switch is activated, all directional
turn signals will flash on and off to warn oncoming
traffic of an emergency. Press the switch a second time to
turn off the Hazard Warning flasher.
This is an emergency warning system and should not be
used when the vehicle is in motion. Use it when your
vehicle is disabled and is creating a safety hazard for
other motorists.
If it is necessary to leave the vehicle to go for service, the
Hazard Warning flasher will continue to operate with the
ignition key removed and the vehicle locked.
NOTE: With extended use, the Hazard Warning flasher
may wear down your battery.
IF YOUR ENGINE OVERHEATS
In any of the following situations, you can reduce the
potential for overheating by taking the appropriate ac-
tion.
•On the highways — slow down.
•In city traffic — while stopped, shift transmission into
NEUTRAL, but do not increase engine idle speed.

Hands-Free Phone (Uconnect™).............. 88
HardTop ............................. 160
Hard Top, Modular ...................... 160
Hard Top Removal ....................... 168
Hazard Warning Flasher ................... 440
Head Restraints ......................... 128
Head Rests ............................ 128
Headlights Bulb Replacement ...................... 498
Dimmer Switch ....................... 138
Replacing ........................... 498
Switch .............................. 136
Heater ............................... 317
Heater, Engine Block ..................... 335
High Beam Indicator ..................... 247
Hill Start Assist ......................... 375
Hitches Trailer Towing ........................ 424
Holder, Cup ........................... 152 Hood Release
.......................... 135
Hydraulic Clutch Fluid .................... 480
Ignition ............................... 12
Key ................................ 12
Ignition Key Removal ..................... 12
Illuminated Entry ........................ 19
Immobilizer (Sentry Key) ................... 14
Infant Restraint .......................... 62
Inflation Pressure Tires .................... 398
Inside Rearview Mirror .................... 86
Instrument Cluster ....................... 245
Instrument Panel and Controls .............. 244
Instrument Panel Lens Cleaning ............. 486
Integrated Power Module (Fuses) ............ 490
Interior Appearance Care .................. 485
Interior Lights .......................... 140
Intermittent Wipers (Delay Wipers) ........... 143
Introduction ............................. 4
542 INDEX

Reminder............................ 247
Seats ................................. 124
Adjustment .......................... 125
Easy Entry ........................... 127
Fold and Tumble Rear ................... 130
Head Restraints ....................... 128
Height Adjustment ..................... 126
Rear Folding ......................... 133
Removal ......................... 132,133
Seatback Release ....................... 126
Tilting .............................. 126
Security Against Theft ..................... 17
Security Alarm (Theft Alarm) ................ 17
Selection of Oil ......................... 461
Sentry Key (Immobilizer) ................... 14
Sentry Key Programming ................... 16
Sentry Key Replacement ................... 15
Service Assistance ....................... 527
Service Contract ......................... 529 Service Manuals
........................ 531
Setting the Clock .............269,283,285,288,297
Shift Lock Manual Override ................ 340
Shifting ............................... 339
Automatic Transmission ................. 341
Manual Transmission ................... 335
Shoulder Belt Upper Anchorage .............. 44
Shoulder Belts ........................... 39
Side Airbag ............................. 57
Signals, Turn ................. 79,137,247,499,500
Soft Top ........................... 180,203
Spare Tire ............................. 443
Specifications Fuel (Gasoline) ........................ 411
Oil ................................ 461
Speed Control (Cruise Control) .............. 146
Speedometer ........................... 246
Starting ............................... 331
Automatic Transmission ................. 331
548 INDEX
