child lock JEEP WRANGLER 2011 JK / 3.G Owners Manual

▫General Information ................... 24
▫ Transmitter Battery Replacement .......... 25
 Remote Starting System — If Equipped ....... 26
▫ How To Use Remote Start ............... 26
 Doors ............................... 29
▫ Upper Half Door Window Removal —
If Equipped ......................... 29
▫ Upper Half Door Window Installation —
If Equipped ......................... 29
▫ Front Door Removal ................... 30
▫ Rear Door Removal (Four-Door Models) ..... 31
 Door Locks ........................... 34
▫ Manual Door Locks ................... 34
▫ Power Door Locks — If Equipped ......... 34▫
Child-Protection Door Lock System —
Rear Doors .......................... 38
 Windows ............................ 40
▫ Power Windows — If Equipped ........... 40
▫ Wind Buffeting ....................... 42
 Rear Swing Gate ....................... 42
 Occupant Restraints ..................... 43
▫ Lap/Shoulder Belts .................... 47
▫ Rear Center Lap/Shoulder Belt Retractor
Lockout — Four-Door Models Only ........ 52
▫ Lap/Shoulder Belt Untwisting Procedure .... 52
▫ Adjustable Upper Shoulder Belt Anchorage . . . 53
▫ Seat Belts In Passenger Seating Positions ..... 54
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

▫Automatic Locking Retractor Mode (ALR) —
If Equipped ......................... 55
▫ Energy Management Feature ............. 56
▫ Seat Belt Pretensioners ................. 56
▫ Enhanced Seat Belt Use Reminder System
(BeltAlert) ......................... 57
▫ Seat Belts And Pregnant Women .......... 58
▫ Seat Belt Extender ..................... 58
▫ Supplemental Restraint System (SRS) — Air
Bags .............................. 59
▫ Air Bag Deployment Sensors And Controls . . . 63 ▫
Event Data Recorder (EDR) .............. 70
▫ Child Restraints ...................... 71
 Engine Break-In Recommendations .......... 85
 Safety Tips ........................... 85
▫ Transporting Passengers ................ 85
▫ Exhaust Gas ......................... 86
▫ Safety Checks You Should Make Inside The
Vehicle ............................. 87
▫ Periodic Safety Checks You Should Make
Outside The Vehicle ................... 89
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

WARNING!
Leaving unattended children in a vehicle is danger-
ous for a number of reasons. A child or others could
be injured. Children should be warned not to touch
the parking brake, brake pedal, or the shift lever. Do
not leave the key in the ignition. A child could
operate power windows, other controls, or move the
vehicle.
CAUTION!
An unlocked vehicle is an invitation to thieves.
Always remove the key from the ignition, and lock
all doors when leaving the vehicle unattended.
Key-In-Ignition Reminder
Opening the driver’s door when the key is in the ignition
sounds a signal to remind you to remove the key.
NOTE:
The Key-In-Ignition reminder only sounds when
the ignition key is placed in the LOCK or ACC position.
SENTRY KEY
The Sentry Key Immobilizer System prevents unauthor-
ized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses ignition keys that have an embedded
electronic chip (transponder) to prevent unauthorized
vehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will shut the engine off in two
seconds if someone uses an invalid key to try to start the
engine.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

WARNING!
•Do not start or run an engine in a closed garage or
confined area. Exhaust gas contains Carbon Mon-
oxide (CO) which is odorless and colorless. Car-
bon Monoxide is poisonous and can cause serious
injury or death when inhaled.
•Keep Remote Keyless Entry (RKE) transmitters
away from children. Operation of the Remote Start
System, windows, door locks or other controls
could cause serious injury or death.
Remote Start Abort Message On Electronic Vehicle
Information Center (EVIC) — If Equipped
The following messages will display in the EVIC if the
vehicle fails to remote start or exits remote start prema-
turely:
•Remote Start Aborted - Door Ajar
•Remote Start Aborted - Hood Ajar
•Remote Start Aborted - Fuel Low
The EVIC message stays active until the ignition is turned
to the ON/RUN position.
To Enter Remote Start
Press and release the REMOTE START button
on the RKE transmitter twice within five sec-
onds. The parking lights will flash and the horn
will chirp twice (if programmed). Then, the
engine will start and the vehicle will remain in the
Remote Start mode for a 15-minute cycle.
NOTE:
•The park lamps will turn on and remain on during
Remote Start mode.
•For security, power window operation is disabled
when the vehicle is in the Remote Start mode.
•The engine can be started two consecutive times (two
15-minute cycles) with the RKE transmitter. However,
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27

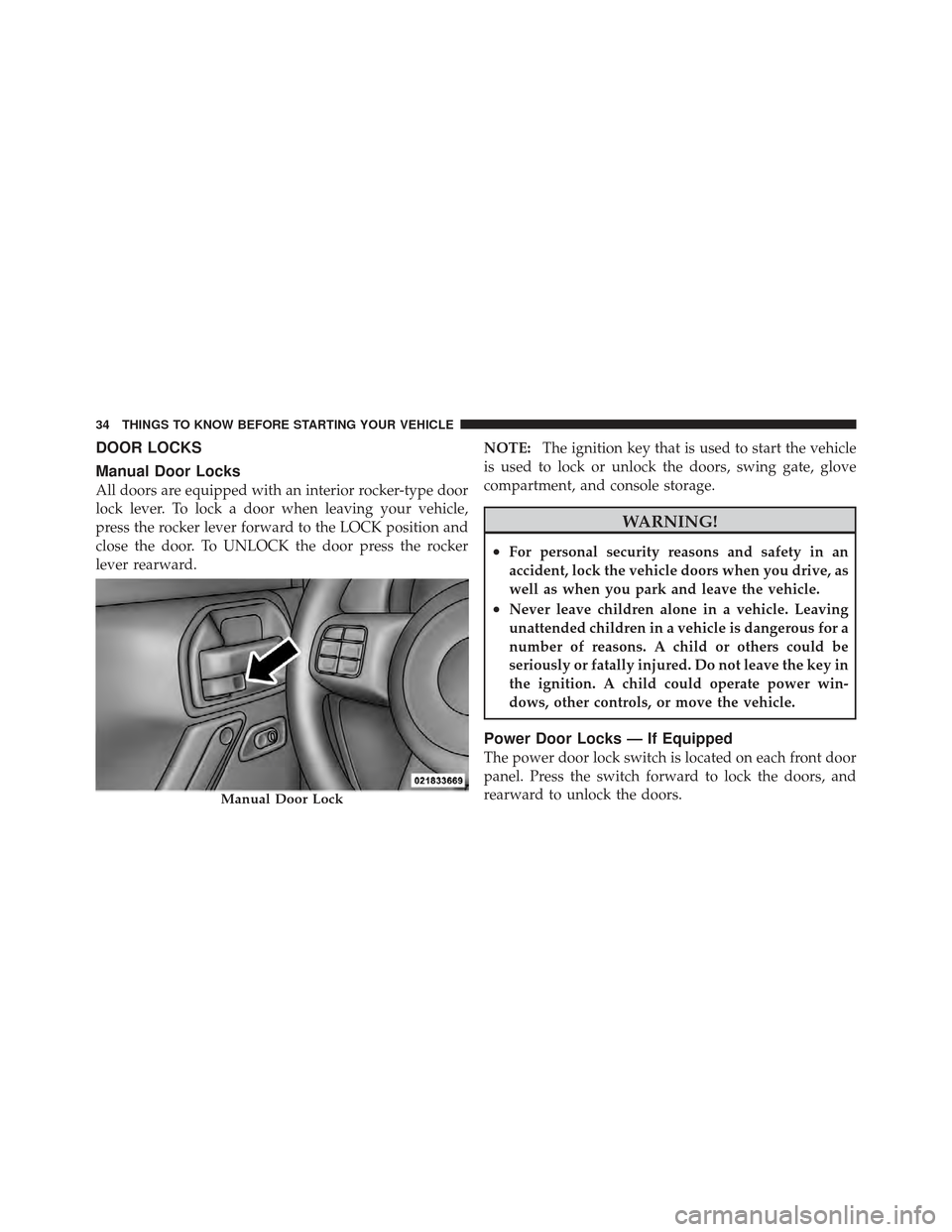

DOOR LOCKS
Manual Door Locks
All doors are equipped with an interior rocker-type door
lock lever. To lock a door when leaving your vehicle,
press the rocker lever forward to the LOCK position and
close the door. To UNLOCK the door press the rocker
lever rearward.NOTE:
The ignition key that is used to start the vehicle
is used to lock or unlock the doors, swing gate, glove
compartment, and console storage.
WARNING!
•For personal security reasons and safety in an
accident, lock the vehicle doors when you drive, as
well as when you park and leave the vehicle.
•Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Do not leave the key in
the ignition. A child could operate power win-
dows, other controls, or move the vehicle.
Power Door Locks — If Equipped
The power door lock switch is located on each front door
panel. Press the switch forward to lock the doors, and
rearward to unlock the doors.
Manual Door Lock
34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!
•For personal security reasons and safety in an
accident, lock the vehicle doors when you drive, as
well as when you park and leave the vehicle.(Continued)
WARNING! (Continued)
•Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Do not leave the key in
the ignition. A child could operate power win-
dows, other controls, or move the vehicle.
Automatic Door Locks — If Equipped
The doors will lock automatically if all of the following
conditions are met:
1. The Automatic Door Locks feature is enabled
2. The transmission is in gear
3. All doors are closed
4. The throttle is pressed
5. The vehicle speed is above 15 mph (24 km/h)
Power Door Lock Switch
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35

5. The vehicle speed is above 15 mph (24 km/h).
6. The doors were not previously locked using the power
door lock switch or Remote Keyless Entry (RKE)
transmitter.
Automatic Door Locks Programming
The “Automatic Door Locks” feature can be enabled or
disabled as follows:
1. Close all doors and place the key in the ignition.
2. Cycle the ignition switch between LOCK and ON/
RUN and then back to LOCK four times ending up in the
LOCK position.
3. Press the power door LOCK switch to lock the doors.
4. A single chime will indicate the completion of the
programming.5. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:
Use the “Automatic Door Locks” feature in
accordance with local laws.
Child-Protection Door Lock System —
Rear Doors
To provide a safer environment for small children riding
in the rear seats, the rear doors are equipped with
Child-Protection Door Lock system.
To Engage Or Disengage The Child-Protection
Door Lock System
1. Open the rear door.
38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

2. Insert the tip of the ignition key into the lock and
rotate to the LOCK or UNLOCK position.
3. Repeat steps 1 and 2 for the opposite rear door.WARNING!
Avoid trapping anyone in a vehicle in a collision.
Remember that the rear doors can only be opened
from the outside when the Child-Protection locks are
engaged.
NOTE: For emergency exit with the system engaged,
move the rocker lever rearward (unlocked position), roll
down the window and open the door with the outside
door handle.
Child-Protection Door Lock Function
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 39

•Advanced Front Air Bags for driver and front passen-
ger
•Supplemental Seat-Mounted Side Air Bags (SAB) — if
equipped
•An energy-absorbing steering column and steering
wheel
•Knee bolsters/blockers for front seat occupants
•Front seat belts incorporate pretensioners that may
enhance occupant protection by managing occupant
energy during an impact event
•All seat belt systems (except the driver’s) include
Automatic Locking Retractors (ALRs), which lock the
seat belt webbing into position by extending the belt
all the way out and then adjusting the belt to the
desired length to restrain a child seat or secure a large
item in a seat — if equipped
Please pay close attention to the information in this section.
It tells you how to use your restraint system properly, to
keep you and your passengers as safe as possible.
If you will be carrying children too small for adult-sized
seat belts, the seat belts or the Lower Anchors and Tether
for CHildren (LATCH) feature also can be used to hold
infant and child restraint systems. For more information
on LATCH, refer to Lower Anchors and Tether for
CHildren (LATCH).
NOTE:The Advanced Front Air Bags have a multistage
inflator design. This allows the air bag to have different
rates of inflation based on the severity and type of
collision.
Here are some simple steps you can take to minimize the
risk of harm from a deploying air bag:
1. Children 12 years old and under should always ride
buckled up in a rear seat.
44 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!
Position the shoulder belt height adjusters so that the
belt rests across the middle of your shoulder. Failure
to adjust the safety belt properly could reduce the
effectiveness of the seat belt and increase the risk of
injury in an accident.
As a guide, if you are shorter than average, you will
prefer a lower position, and if you are taller than average,
you will prefer a higher position. When you release the
anchorage, try to move it up or down to make sure that
it is locked in position.
Seat Belts In Passenger Seating Positions
The seat belts in the passenger seating positions are
equipped with Automatic Locking Retractors (ALR)
which are used to secure a child restraint system. For additional information, refer to “Installing Child Re-
straints Using The Vehicle Seat Belt” under the “Child
Restraints” section. The chart below defines the type of
feature for each seating position.
Driver Center Passenger
First Row N/A N/A ALR
Second Row ALR ALR ALR
•N/A — Not Applicable
•ALR — Automatic Locking Retractor
If the passenger seating position is equipped with an
ALR and is being used for normal usage:
Only pull the belt webbing out far enough to comfortably
wrap around the occupant’s mid-section so as to not
activate the ALR. If the ALR is activated, you will hear a
ratcheting sound as the belt retracts. Allow the webbing
to retract completely in this case and then carefully pull
54 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
