headlamp JEEP WRANGLER 2011 JK / 3.G Owners Manual

▫Brake System ....................... 525
▫ Automatic Transmission – If Equipped ..... 527
▫ Hydraulic Clutch Fluid – Manual
Transmission ....................... 530
▫ Manual Transmission – If Equipped ....... 530
▫ Transfer Case ....................... 531
▫ Front/Rear Axle Fluid ................. 531
▫ Appearance Care And Protection From
Corrosion .......................... 532
 Fuses .............................. 539
▫ Totally Integrated Power Module ......... 539
 Vehicle Storage ....................... 545
 Replacement Bulbs .................... 545
Bulb Replacement ..................... 546
▫ Headlamp ......................... 546
▫ Front Park/Turn Signal ................ 547
▫ Front Side Marker .................... 547
▫ Front Fog Lamp ..................... 547
▫ Rear Tail, Stop, Turn Signal, And Backup
Lamp ............................. 548
▫ Center High-Mounted Stop Lamp
(CHMSL) .......................... 549
 Fluid Capacities ...................... 549
 Fluids, Lubricants And Genuine Parts ....... 550
▫ Engine ............................ 550
▫ Chassis ........................... 551
504 MAINTAINING YOUR VEHICLE

Cavity CartridgeFuseMini
Fuse Description
J4 25 Amp Natural Driver Door Node
J5 25 Amp Natural Passenger Door Node
J6 40 Amp Green Anti-Lock Brake Sys-
tem (ABS) Pump/
Stability Control Sys-
tem
J7 30 Amp Pink Anti-Lock Brake Sys-
tem (ABS) Valve/
Stability Control Sys-
tem
J8 — —
J9 40 Amp Green PZEV Sec Motor/Flex
FuelCavity Cartridge
FuseMini
Fuse Description
J10 30 Amp Pink Headlamp Wash
Relay/Manifold Tun-
ing Valve
J11 30 Amp Pink Sway Bar
J13 60 Amp Yellow Ignition Off Draw
(IOD) – Main
J14 40 Amp Green Rear Defroster
J15 40 Amp Green Front Blower
J17 40 Amp Green Starter Solenoid
J18 20 Amp Blue Powertrain Control
Module (PCM) Trans
Range
540 MAINTAINING YOUR VEHICLE

Cavity CartridgeFuseMini
Fuse Description
M31 20 Amp
Yellow Backup Lamps
M32 10 Amp
Red Airbag Controller, TT
EUROPE
M33 10 Amp
Red Powertrain Controller
M34 10 Amp
Red Park Assist, Climate
Control System,
Headlamp Wash,
Compass
M35 10 Amp
Red Heated Mirrors
M36 20 Amp
Yellow Power OutletCavity Cartridge
FuseMini
Fuse Description
M37 10 Amp
Red Anti-Lock Brake Sys-
tem, Electronic Stabil-
ity Control, Stop
Lamp Switch, Fuel
Pump Relay
M38 25 Amp
Natural Lock/Unlock Motors
CAUTION!
•When installing the Integrated Power Module
cover, it is important to ensure the cover is prop-
erly positioned and fully latched. Failure to do so
may allow water to get into the Integrated Power
Module, and possibly result in an electrical system
failure.
(Continued)
544 MAINTAINING YOUR VEHICLE

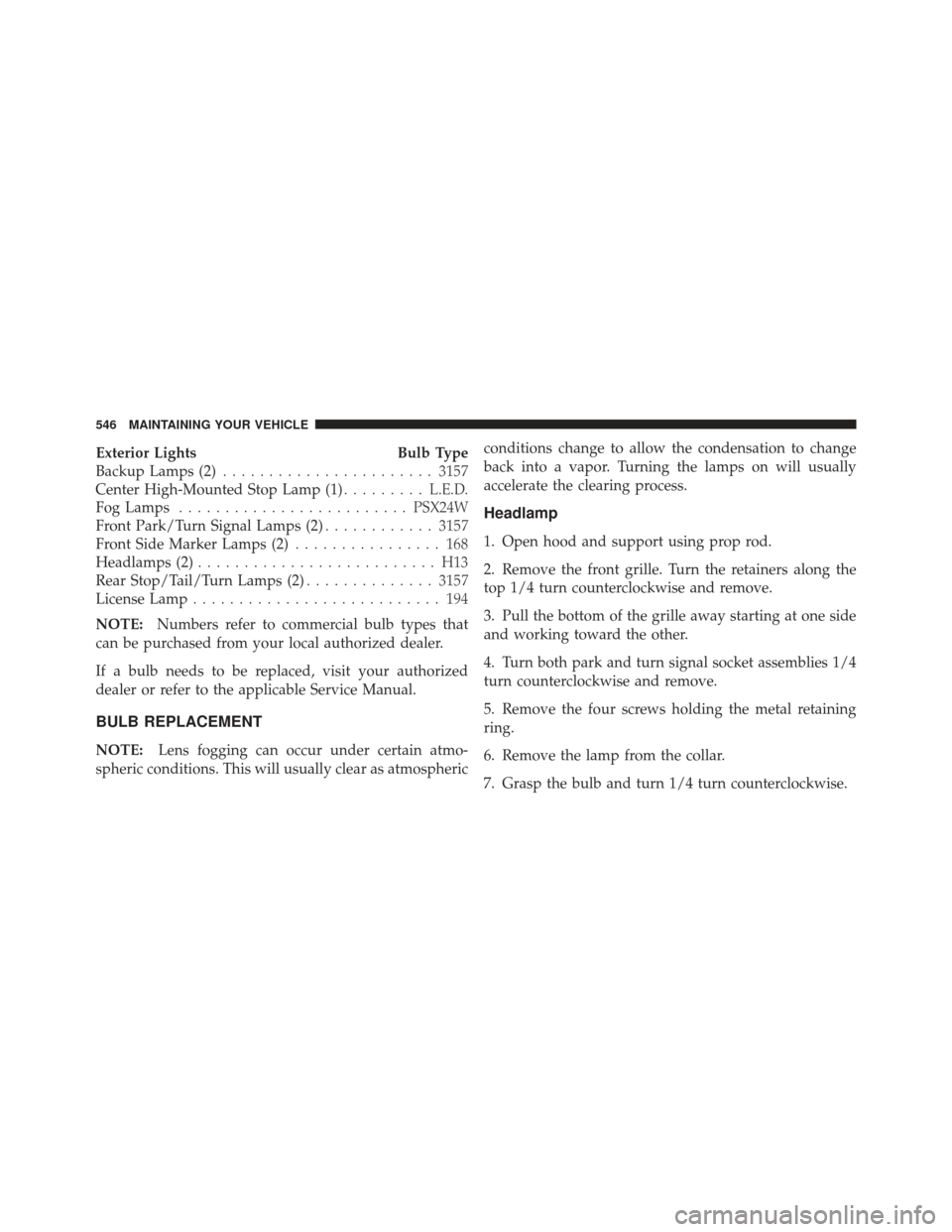

Exterior LightsBulb Type
Backup Lamps (2) ....................... 3157
Center High-Mounted Stop Lamp (1) .........L.E.D.
Fog Lamps ......................... PSX24W
Front Park/Turn Signal Lamps (2) ............3157
Front Side Marker Lamps (2) ................ 168
Headlamps (2) .......................... H13
Rear Stop/Tail/Turn Lamps (2) ..............3157
License Lamp ........................... 194
NOTE: Numbers refer to commercial bulb types that
can be purchased from your local authorized dealer.
If a bulb needs to be replaced, visit your authorized
dealer or refer to the applicable Service Manual.
BULB REPLACEMENT
NOTE: Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Headlamp
1. Open hood and support using prop rod.
2. Remove the front grille. Turn the retainers along the
top 1/4 turn counterclockwise and remove.
3. Pull the bottom of the grille away starting at one side
and working toward the other.
4. Turn both park and turn signal socket assemblies 1/4
turn counterclockwise and remove.
5. Remove the four screws holding the metal retaining
ring.
6. Remove the lamp from the collar.
7. Grasp the bulb and turn 1/4 turn counterclockwise.
546 MAINTAINING YOUR VEHICLE
