hood release JEEP WRANGLER 2011 JK / 3.G Owners Manual

WARNING!
•Do not start or run an engine in a closed garage or
confined area. Exhaust gas contains Carbon Mon-
oxide (CO) which is odorless and colorless. Car-
bon Monoxide is poisonous and can cause serious
injury or death when inhaled.
•Keep Remote Keyless Entry (RKE) transmitters
away from children. Operation of the Remote Start
System, windows, door locks or other controls
could cause serious injury or death.
Remote Start Abort Message On Electronic Vehicle
Information Center (EVIC) — If Equipped
The following messages will display in the EVIC if the
vehicle fails to remote start or exits remote start prema-
turely:
•Remote Start Aborted - Door Ajar
•Remote Start Aborted - Hood Ajar
•Remote Start Aborted - Fuel Low
The EVIC message stays active until the ignition is turned
to the ON/RUN position.
To Enter Remote Start
Press and release the REMOTE START button
on the RKE transmitter twice within five sec-
onds. The parking lights will flash and the horn
will chirp twice (if programmed). Then, the
engine will start and the vehicle will remain in the
Remote Start mode for a 15-minute cycle.
NOTE:
•The park lamps will turn on and remain on during
Remote Start mode.
•For security, power window operation is disabled
when the vehicle is in the Remote Start mode.
•The engine can be started two consecutive times (two
15-minute cycles) with the RKE transmitter. However,
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27

the ignition switch must be cycled to the ON/RUN
position before you can repeat the start sequence for a
third cycle.
Remote start will also cancel if any of the following occur:
•The engine stalls or RPM exceeds 2500
•Any engine warning lamps come on
•The hood is opened
•The hazard switch is pressed
•The transmission is moved out of PARK
•The brake pedal is pressed
To Exit Remote Start Mode Without Driving The
Vehicle
Press and release the REMOTE START button one time,
or allow the engine to run for the entire 15-minute cycle.
NOTE: To avoid unintentional shut downs, the system
will disable the one time press of the REMOTE START
button for two seconds after receiving a valid Remote
Start request.
To Exit Remote Start Mode And Drive The Vehicle
Before the end of the 15-minute cycle, press and release
the UNLOCK button on the RKE transmitter to unlock
the doors and disarm the Vehicle Security Alarm (if
equipped). Then, insert the key into the ignition switch
and turn the switch to the ON/RUN position.
NOTE: The ignition switch must be in the ON/RUN
position in order to drive the vehicle.
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

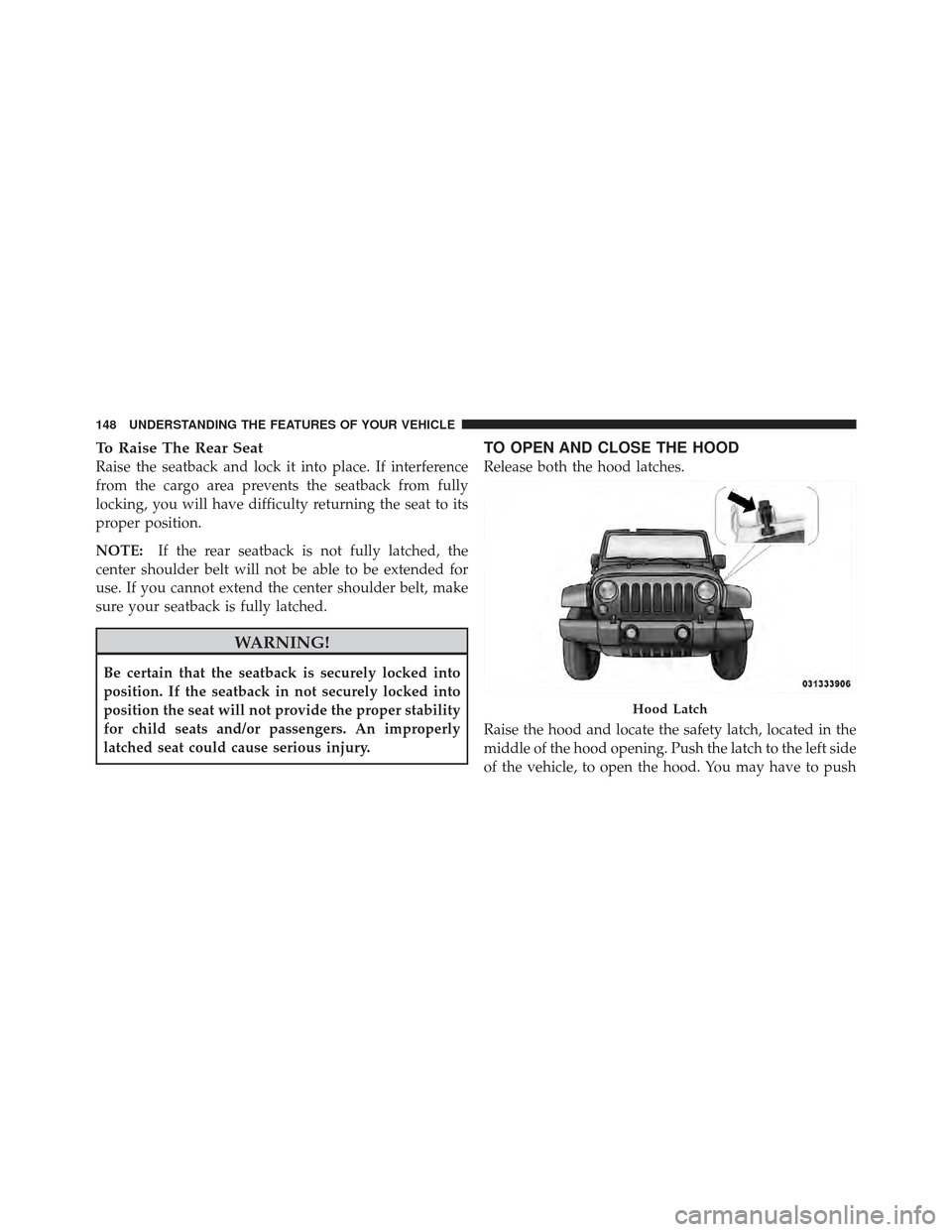

To Raise The Rear Seat
Raise the seatback and lock it into place. If interference
from the cargo area prevents the seatback from fully
locking, you will have difficulty returning the seat to its
proper position.
NOTE:If the rear seatback is not fully latched, the
center shoulder belt will not be able to be extended for
use. If you cannot extend the center shoulder belt, make
sure your seatback is fully latched.
WARNING!
Be certain that the seatback is securely locked into
position. If the seatback in not securely locked into
position the seat will not provide the proper stability
for child seats and/or passengers. An improperly
latched seat could cause serious injury.
TO OPEN AND CLOSE THE HOOD
Release both the hood latches.
Raise the hood and locate the safety latch, located in the
middle of the hood opening. Push the latch to the left side
of the vehicle, to open the hood. You may have to push
Hood Latch
148 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

hood latching components to ensure proper function.
When performing other underhood services, the hood
latch, release mechanism and safety catch should be
cleaned and lubricated.
The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant, such as MOPAR
Lock Cylinder Lubricant or equivalent, directly into the
lock cylinder.
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild non-abrasive cleaner. This will remove accumula-
tions of salt or road film.
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield. Avoid using the wiper blades toremove frost or ice from the windshield. Keep the blade
rubber out of contact with petroleum products such as
engine oil, gasoline, etc.
NOTE:
Life expectancy of wiper blades varies depend-
ing on geographical area and frequency of use. Poor
performance of blades may be present with chattering,
marks, water lines or wet spots. If any condition is
present please proceed to clean wiper blades with humid
cloth removing any debris that may be affecting its
function.Adding Washer Fluid
The fluid reservoir for the windshield washers and the
rear window washer (if equipped) is shared. The fluid
reservoir is located in the engine compartment. Be sure to
check the fluid level at regular intervals. Fill the reservoir
with windshield washer solvent only (not radiator anti-
freeze). When refilling the washer fluid reservoir, take
516 MAINTAINING YOUR VEHICLE

Hill Descent Control..................... 424
Hill Descent Control Indicator ............... 424
Hill Start Assist ......................... 412
Hitches Trailer Towing ....................... 464
Holder, Cup ........................... 168
Hood Release .......................... 148
Hydraulic Clutch Fluid .................... 530
Ignition ............................... 14
Key ............................... 14
Ignition Key Removal ..................... 14
Illuminated Entry ........................ 20
Immobilizer (Sentry Key) ................... 15
Infant Restraint .......................... 72
Inflation Pressure Tires .................... 437
Information Center, Vehicle ................. 286
Inside Rearview Mirror .................... 96
Instrument Cluster ....................... 265 Instrument Panel and Controls
.............. 264
Instrument Panel Lens Cleaning ............. 536
Integrated Power Module (Fuses) ............ 539
Interior Appearance Care .................. 535
Interior Lights .......................... 154
Intermittent Wipers (Delay Wipers) ........... 156
Introduction ............................. 4
Inverter, Power ......................... 166
Jack Location ........................... 486
Jack Operation .................... 485,488,489
Jacking Instructions ...................... 488
Jump Starting .......................... 491
Key-In Reminder ......................... 15
Key, Programming ........................ 17
Key, Replacement ........................ 16
Key, Sentry (Immobilizer) ................... 15
Keyless Entry System ...................... 21
10
INDEX 589

Rearview Mirrors........................ 96
Recorder, Event Data ...................... 70
Recreational Towing ...................... 478
Shifting into Transfer Case Neutral (N) ..... 480
Shifting out of Transfer Case Neutral (N) .... 481
Reformulated Gasoline .................... 453
Refrigerant ............................ 515
Release, Hood .......................... 148
Reminder, Lights On ..................... 152
Reminder, Seat Belt ....................... 57
Remote Control Door Locks ......................... 21
Remote Keyless Entry (RKE) ................. 21
Remote Sound System (Radio) Controls ........ 348
Remote Starting System .................... 26
Replacement Bulbs ....................... 545
Replacement Keys ........................ 16
Replacement Parts ....................... 508
Replacement Tires ....................... 443 Reporting Safety Defects
................... 576
Resetting Oil Change Indicator .............. 289
Restraint, Head ......................... 142
Restraints, Child ....................... 71,75
Restraints, Occupant ...................... 43
Rotation, Tires .......................... 446
Safety Checks Inside Vehicle ................. 87
Safety Checks Outside Vehicle ............... 89
Safety Defects, Reporting .................. 576
Safety Information, Tire ................... 426
Safety Tips ............................. 85
Safety, Exhaust Gas ....................... 86
Satellite Radio Antenna .................314,339
Schedule, Maintenance .................... 554
Seat Belt Reminder ....................... 57
Seat Belts ............................ 47,87
Adjustable Upper Shoulder Anchorage ...... 53
And Pregnant Women .................. 58
594 INDEX
