To Exit Remote Start Mode Without Driving The
Vehicle
Press and release the REMOTE START button one time,
or allow the engine to run for the entire 15-minute cycle.
NOTE:To avoid unintentional shut downs, the system
will disable the one time press of the REMOTE START
button for two seconds after receiving a valid Remote
Start request.
To Exit Remote Start Mode And Drive The Vehicle
Before the end of the 15-minute cycle, press and release
the UNLOCK button on the RKE transmitter to unlock
the doors and disarm the Vehicle Security Alarm (if equipped). Then, insert the key into the ignition switch
and turn the switch to the ON/RUN position.
NOTE:
The ignition switch must be in the ON/RUN
position in order to drive the vehicle.
DOORS
CAUTION!
Careless handling and storage of the removable door
panels may damage the seals, causing water to leak
into the vehicle’s interior.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29

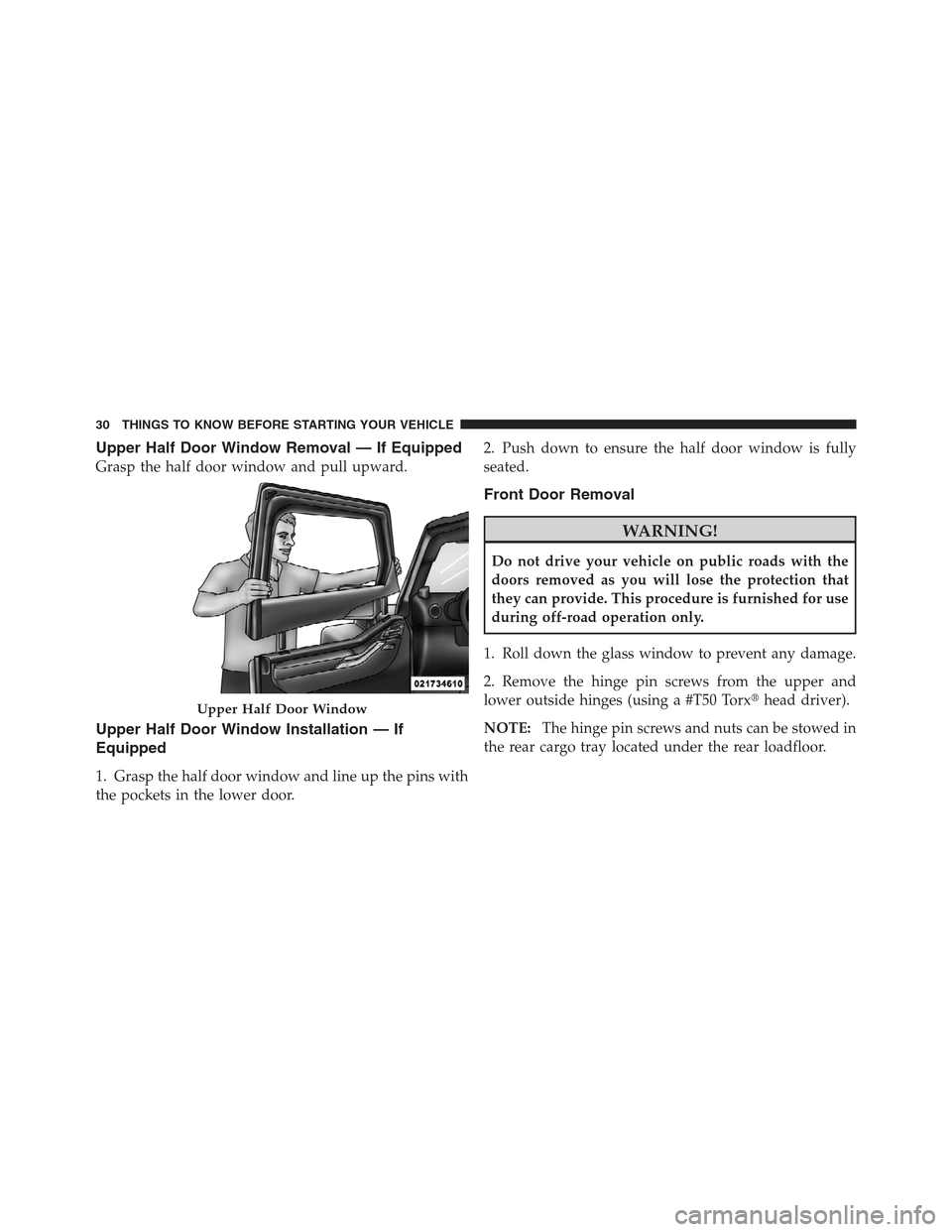

Upper Half Door Window Removal — If Equipped
Grasp the half door window and pull upward.
Upper Half Door Window Installation — If
Equipped
1. Grasp the half door window and line up the pins with
the pockets in the lower door.2. Push down to ensure the half door window is fully
seated.
Front Door Removal
WARNING!
Do not drive your vehicle on public roads with the
doors removed as you will lose the protection that
they can provide. This procedure is furnished for use
during off-road operation only.
1. Roll down the glass window to prevent any damage.
2. Remove the hinge pin screws from the upper and
lower outside hinges (using a #T50 Torx head driver).
NOTE: The hinge pin screws and nuts can be stowed in
the rear cargo tray located under the rear loadfloor.
Upper Half Door Window
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

3. Unplug the wiring harness connector under the instru-
ment panel by pressing the tab at the top of the connector
and pulling to disconnect.
NOTE:If the red latch on the connector is locked, push
the red latch down until you can only see the latch on one end (top) of the connector. This will unlock the connector
tab, allowing the tab to be pressed down and enabling the
harness to be disconnected.
Hinge Pin Screw
Door Strap/Harness Location
1 — Harness Connector
2 — Body Hook
3 — Door/Harness Strap
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31

4. Unhook the door strap from the body hook. Be careful
not to allow the door to swing fully open as the mirror
may damage the paint.
5. With the door open, lift the door to clear the hinge pins
from their hinges and remove the door.
NOTE:Doors are heavy; use caution when removing
them.
To reinstall the door(s), perform the previous steps in the
opposite order.

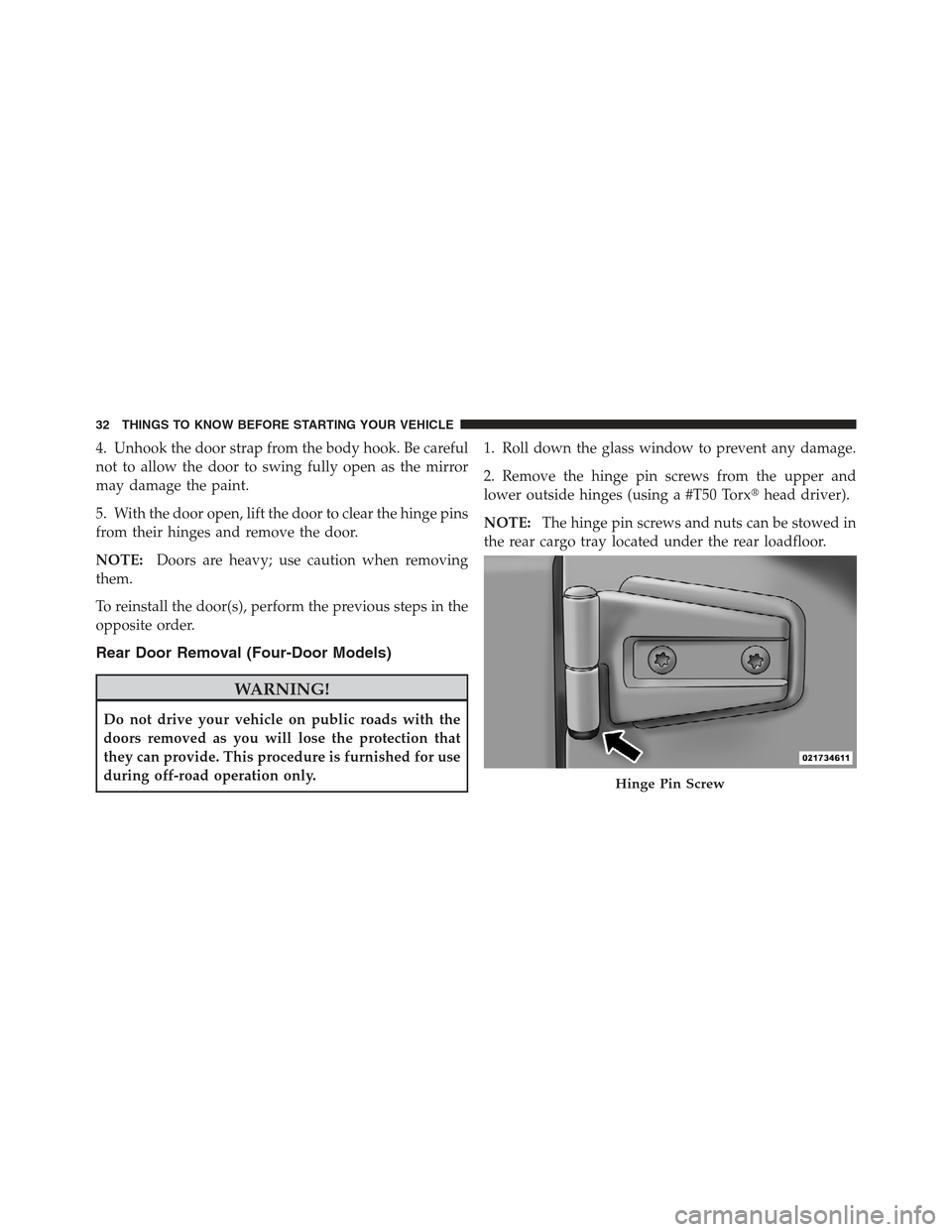

Rear Door Removal (Four-Door Models)
WARNING!
Do not drive your vehicle on public roads with the
doors removed as you will lose the protection that
they can provide. This procedure is furnished for use
during off-road operation only. 1. Roll down the glass window to prevent any damage.
2. Remove the hinge pin screws from the upper and
lower outside hinges (using a #T50 Torx
head driver).
NOTE: The hinge pin screws and nuts can be stowed in
the rear cargo tray located under the rear loadfloor.
Hinge Pin Screw
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

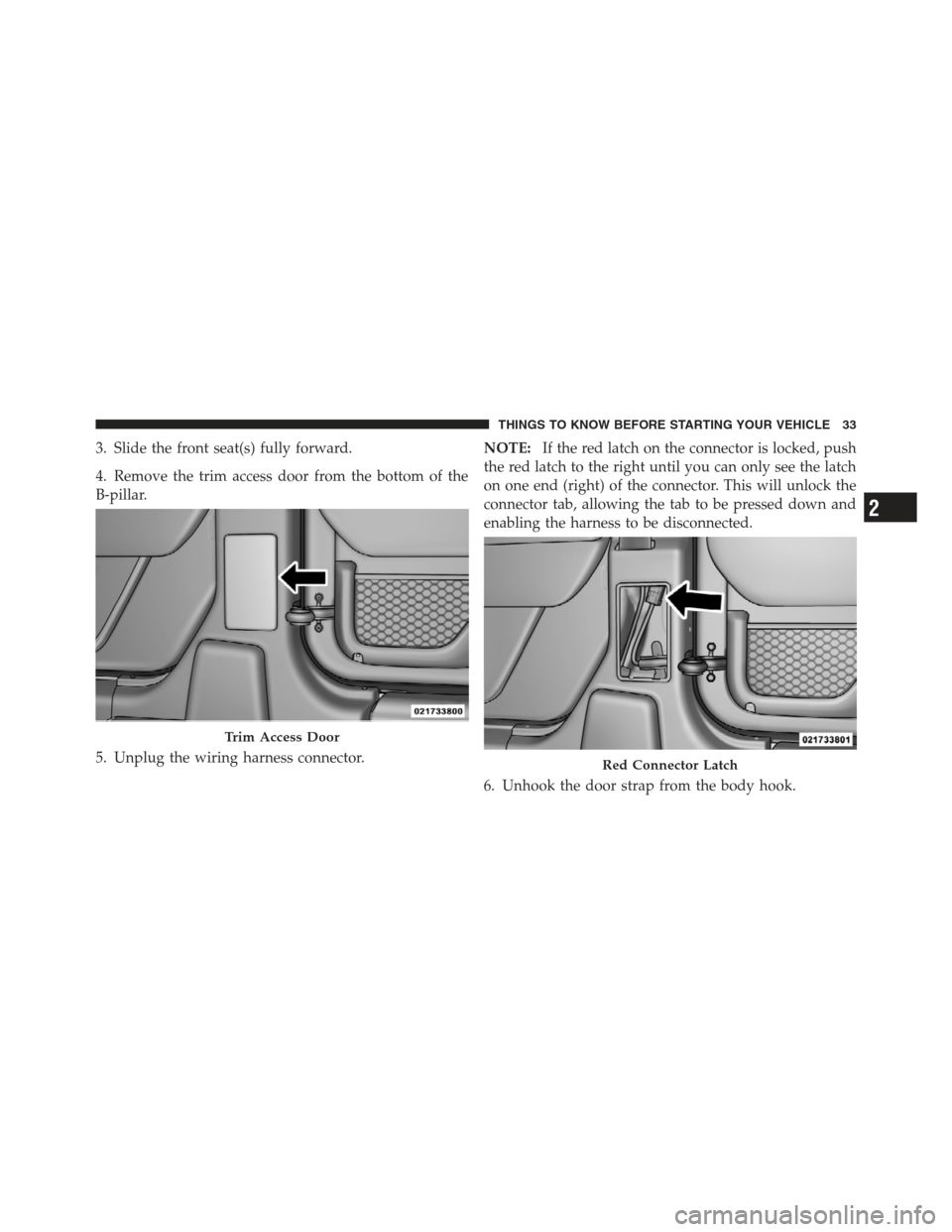

3. Slide the front seat(s) fully forward.
4. Remove the trim access door from the bottom of the
B-pillar.
5. Unplug the wiring harness connector.NOTE:
If the red latch on the connector is locked, push
the red latch to the right until you can only see the latch
on one end (right) of the connector. This will unlock the
connector tab, allowing the tab to be pressed down and
enabling the harness to be disconnected.
6. Unhook the door strap from the body hook.
Trim Access Door
Red Connector Latch
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33

7. With the door open, lift the door to clear the hinge pins
from their hinges and remove the door.
NOTE:Doors are heavy; use caution when removing
them.
To reinstall the door(s), perform the previous steps in the
opposite order.

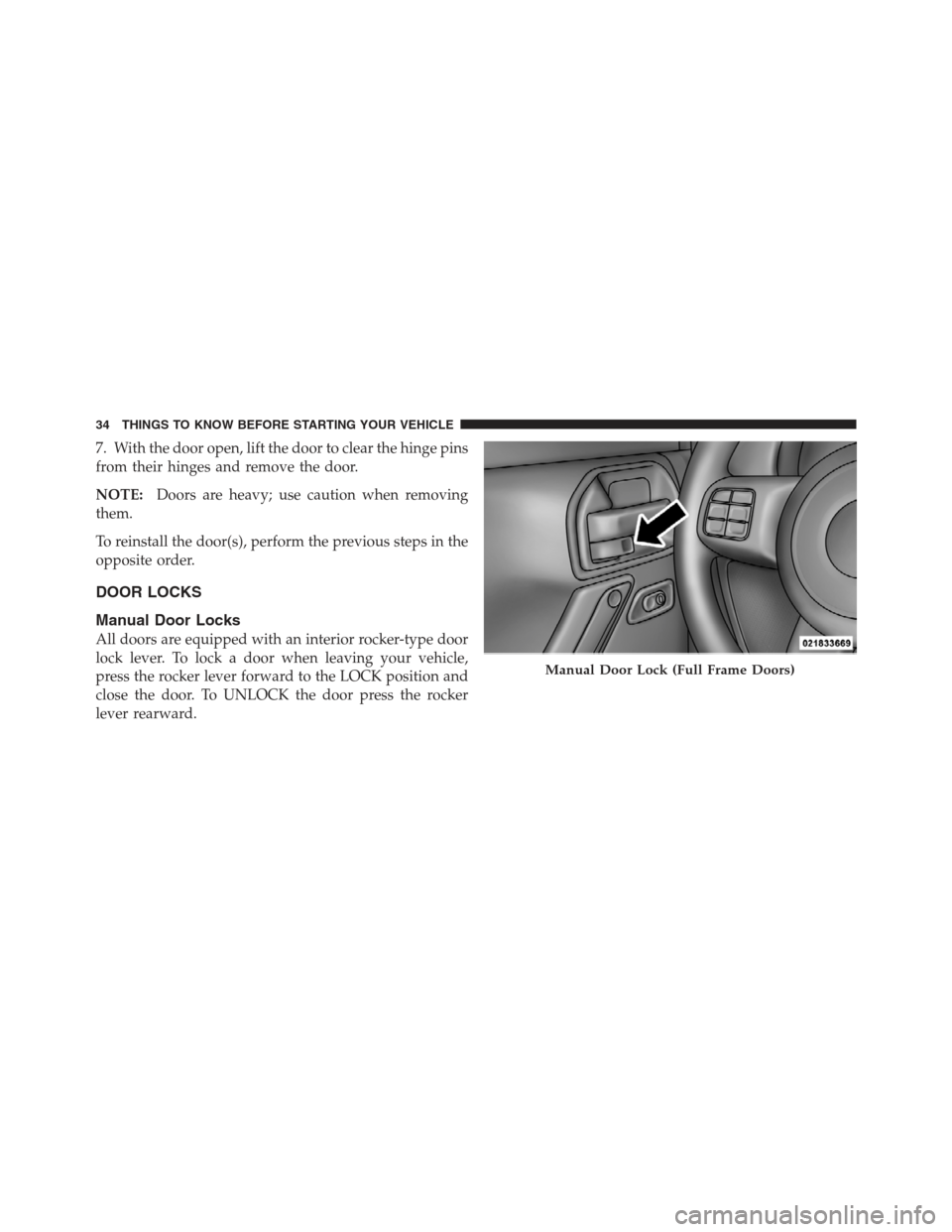

DOOR LOCKS
Manual Door Locks
All doors are equipped with an interior rocker-type door
lock lever. To lock a door when leaving your vehicle,
press the rocker lever forward to the LOCK position and
close the door. To UNLOCK the door press the rocker
lever rearward.
Manual Door Lock (Full Frame Doors)
34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:The ignition key that is used to start the vehicle
is used to lock or unlock the doors, swing gate, glove
compartment, and console storage.
WARNING!
•For personal security reasons and safety in an
accident, lock the vehicle doors when you drive, as
well as when you p ark and leave the vehicle.
•When leaving the vehicle, always remove the key
fob from the ignition and lock your vehicle.
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
•Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the shift lever.
•Do not leave the key in or near the vehicle. A child
could operate power windows, other controls, or
move the vehicle.
Manual Door Lock (Half Doors)
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35

Power Door Locks — If Equipped
The power door lock switch is located on each front door
panel. Press the switch forward to lock the doors, and
rearward to unlock the doors.WARNING!
•For personal security reasons and safety in an
accident, lock the vehicle doors when you drive, as
well as when you park and leave the vehicle.
•When leaving the vehicle, always remove the key
fob from the ignition and lock your vehicle.
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
•Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the shift lever.
•Do not leave the key in or near the vehicle. A child
could operate power windows, other controls, or
move the vehicle.
Power Door Lock Switch
36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Automatic Door Locks — If Equipped
When enabled, the door locks will lock automatically
when the vehicle’s speed exceeds 15 mph (24 km/h). The
auto door lock feature can be enabled or disabled by your
authorized dealer per written request of the customer.
Please see your authorized dealer for service.
Automatic Unlock Doors On Exit
The doors will unlock automatically on vehicles with
power door locks if:
1. The “Automatic Unlock Doors On Exit” feature is
enabled.
2. The vehicle speed returned to 0 mph (0 km/h) and the
transmission shift lever is in NEUTRAL or PARK.
3. The driver door is opened.
4. The doors were not previously unlocked.
Automatic Unlock Doors On Exit Programming
The “Automatic Unlock Doors On Exit” feature can be
enabled or disabled as follows:
1. Close all doors and place the key in the ignition.
2. Cycle the ignition switch between LOCK and ON/
RUN and then back to LOCK four times ending up in the
LOCK position.
3. Press the power door unlock switch to unlock the
doors.
4. A single chime will indicate the completion of the
programming.
5. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:Use the “Automatic Unlock Doors On Exit”
feature in accordance with local laws.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37

Child-Protection Door Lock System — Rear
Doors
To provide a safer environment for small children riding
in the rear seats, the rear doors are equipped with
Child-Protection Door Lock system.
To Engage Or Disengage The Child-Protection
Door Lock System
1. Open the rear door.
2. Insert the tip of the ignition key into the lock and
rotate to the LOCK or UNLOCK position.
3. Repeat steps 1 and 2 for the opposite rear door.
WARNING!
Avoid trapping anyone in a vehicle in a collision.
Remember that the rear doors can only be opened
from the outside when the Child-Protection locks are
engaged.
Child-Protection Door Lock Function
