mirror controls JEEP WRANGLER 2012 JK / 3.G Owners Manual

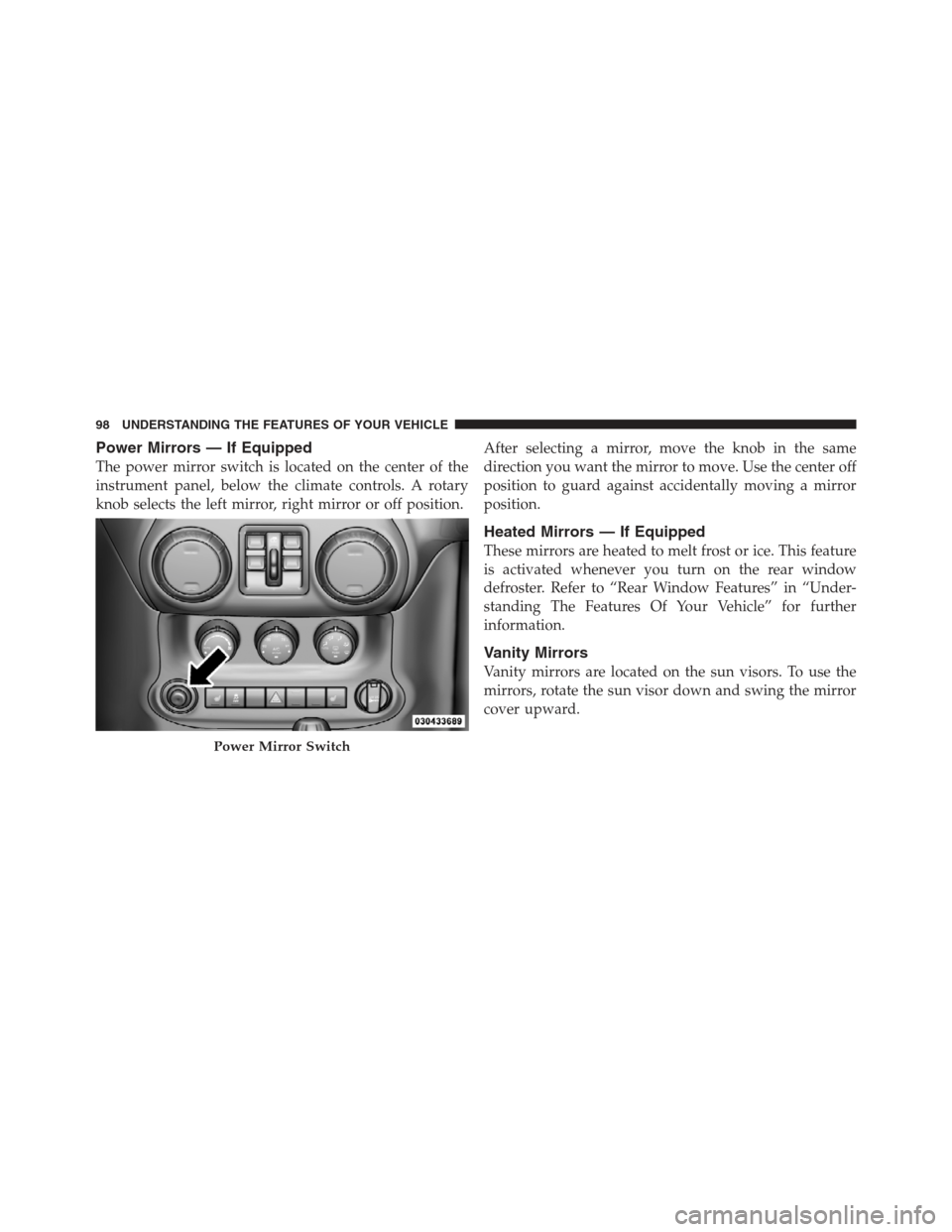

Power Mirrors — If Equipped
The power mirror switch is located on the center of the
instrument panel, below the climate controls. A rotary
knob selects the left mirror, right mirror or off position.After selecting a mirror, move the knob in the same
direction you want the mirror to move. Use the center off
position to guard against accidentally moving a mirror
position.
Heated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This feature
is activated whenever you turn on the rear window
defroster. Refer to “Rear Window Features” in “Under-
standing The Features Of Your Vehicle” for further
information.
Vanity Mirrors
Vanity mirrors are located on the sun visors. To use the
mirrors, rotate the sun visor down and swing the mirror
cover upward.
Power Mirror Switch
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

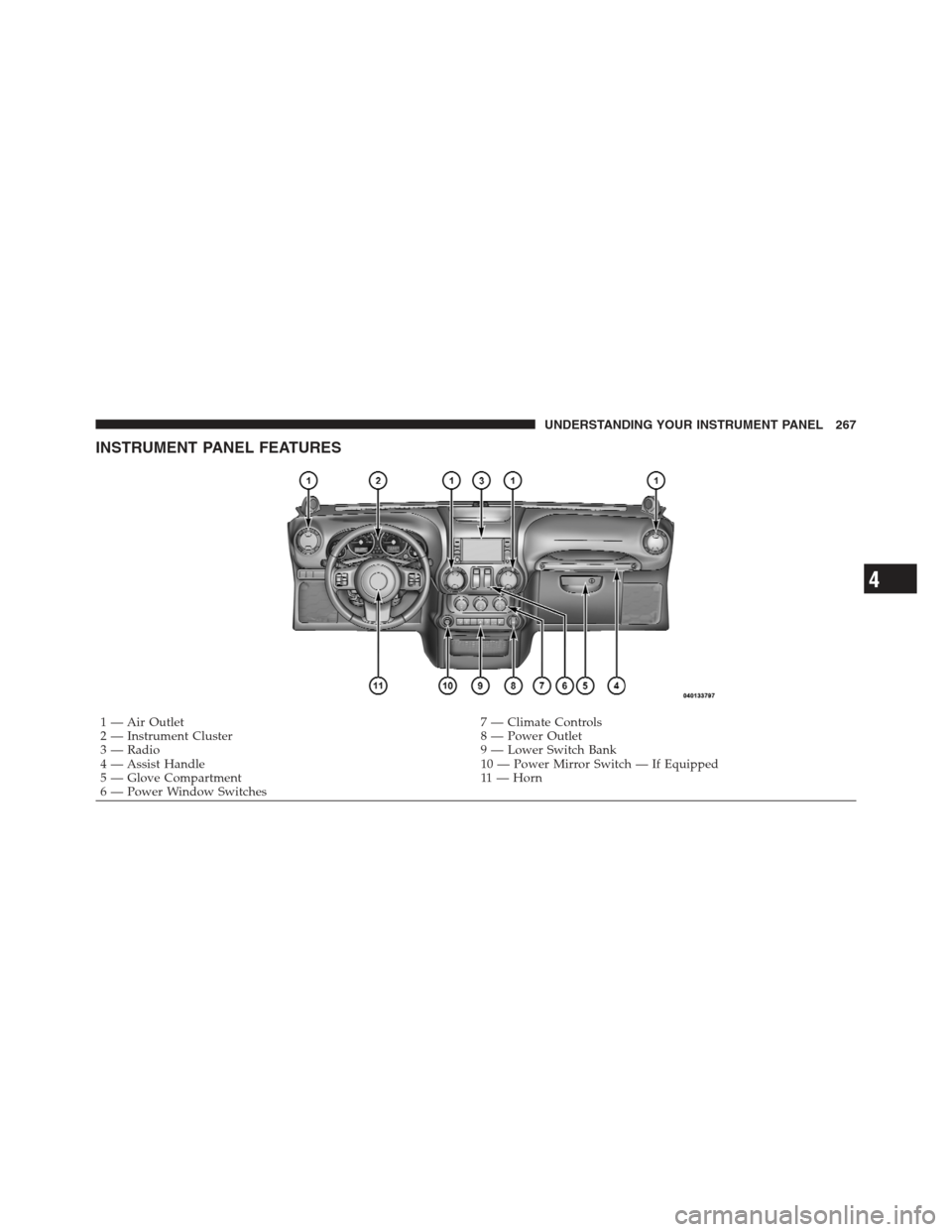

INSTRUMENT PANEL FEATURES
1 — Air Outlet7 — Climate Controls
2 — Instrument Cluster 8 — Power Outlet
3 — Radio 9 — Lower Switch Bank
4 — Assist Handle 10 — Power Mirror Switch — If Equipped
5 — Glove Compartment 11 — Horn
6 — Power Window Switches
4
UNDERSTANDING YOUR INSTRUMENT PANEL 267

HitchesTrailer Towing ....................... 472
Holder, Cup ........................... 168
Hood Release .......................... 148
Hydraulic Clutch Fluid .................... 539
Ignition ............................... 14
Key ............................... 14
Ignition Key Removal ..................... 14
Illuminated Entry ........................ 20
Immobilizer (Sentry Key) ................... 16
Infant Restraint .......................... 71
Inflation Pressure Tires .................... 444
Information Center, Vehicle ................. 289
Inside Rearview Mirror .................... 96
Instrument Cluster ....................... 268
Instrument Panel and Controls .............. 267
Instrument Panel Lens Cleaning ............. 545Integrated Power Module (Fuses)
............ 549
Interior Appearance Care .................. 544
Interior Lights .......................... 154
Intermittent Wipers (Delay Wipers) ........... 156
Introduction ............................. 4
Inverter, Power ......................... 166
Jack Location ........................... 494
Jack Operation .................... 493,496,497
Jacking Instructions ...................... 496
Jump Starting .......................... 501
Key-In Reminder ......................... 15
Key, Programming ........................ 17
Key, Replacement ........................ 17
Key, Sentry (Immobilizer) ................... 16
Keyless Entry System ...................... 21
Keys ................................. 14
10
INDEX 599

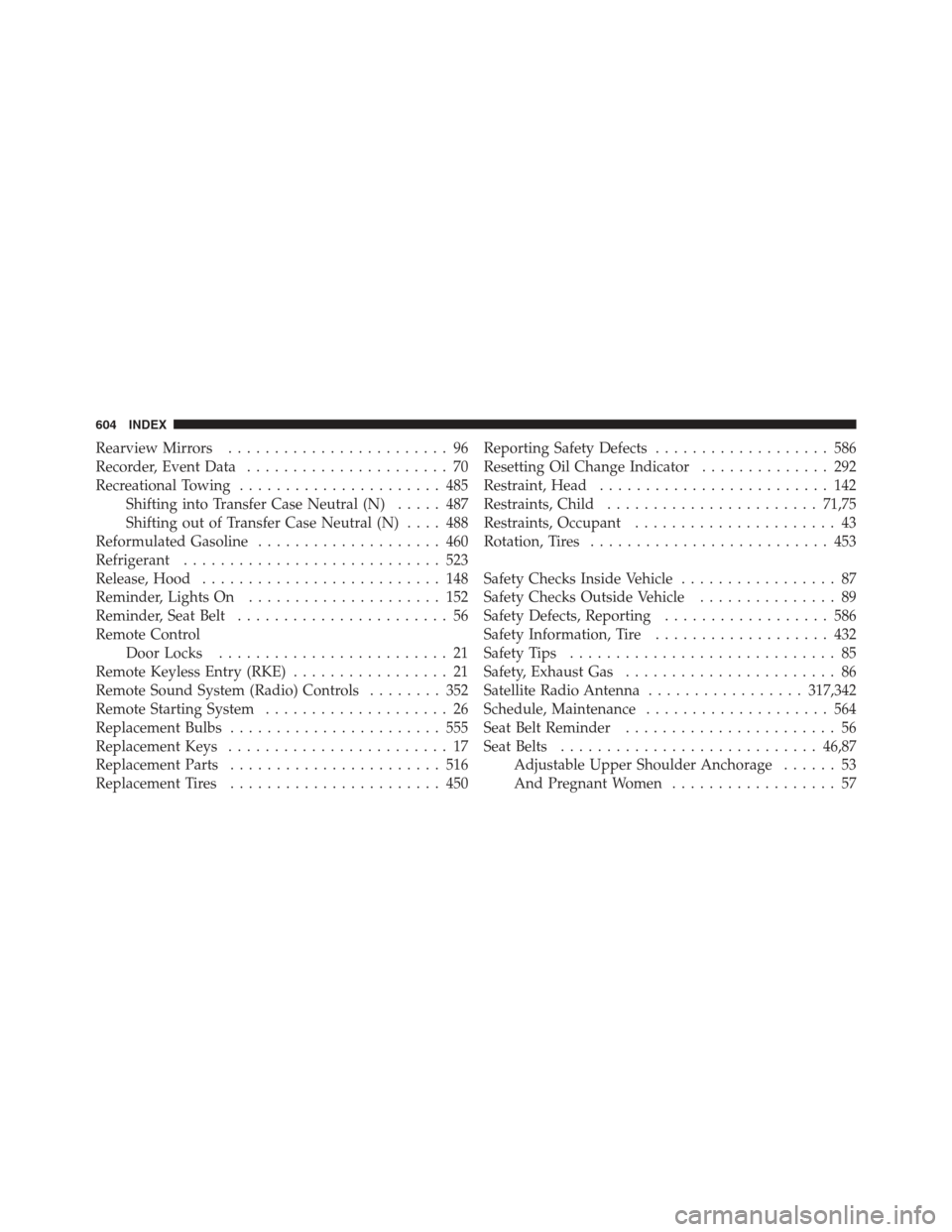

Rearview Mirrors........................ 96
Recorder, Event Data ...................... 70
Recreational Towing ...................... 485
Shifting into Transfer Case Neutral (N) ..... 487
Shifting out of Transfer Case Neutral (N) .... 488
Reformulated Gasoline .................... 460
Refrigerant ............................ 523
Release, Hood .......................... 148
Reminder, Lights On ..................... 152
Reminder, Seat Belt ....................... 56
Remote Control Door Locks ......................... 21
Remote Keyless Entry (RKE) ................. 21
Remote Sound System (Radio) Controls ........ 352
Remote Starting System .................... 26
Replacement Bulbs ....................... 555
Replacement Keys ........................ 17
Replacement Parts ....................... 516
Replacement Tires ....................... 450 Reporting Safety Defects
................... 586
Resetting Oil Change Indicator .............. 292
Restraint, Head ......................... 142
Restraints, Child ....................... 71,75
Restraints, Occupant ...................... 43
Rotation, Tires .......................... 453
Safety Checks Inside Vehicle ................. 87
Safety Checks Outside Vehicle ............... 89
Safety Defects, Reporting .................. 586
Safety Information, Tire ................... 432
Safety Tips ............................. 85
Safety, Exhaust Gas ....................... 86
Satellite Radio Antenna .................317,342
Schedule, Maintenance .................... 564
Seat Belt Reminder ....................... 56
Seat Belts ............................ 46,87
Adjustable Upper Shoulder Anchorage ...... 53
And Pregnant Women .................. 57
604 INDEX
