wipers JEEP WRANGLER 2012 JK / 3.G Owners Manual

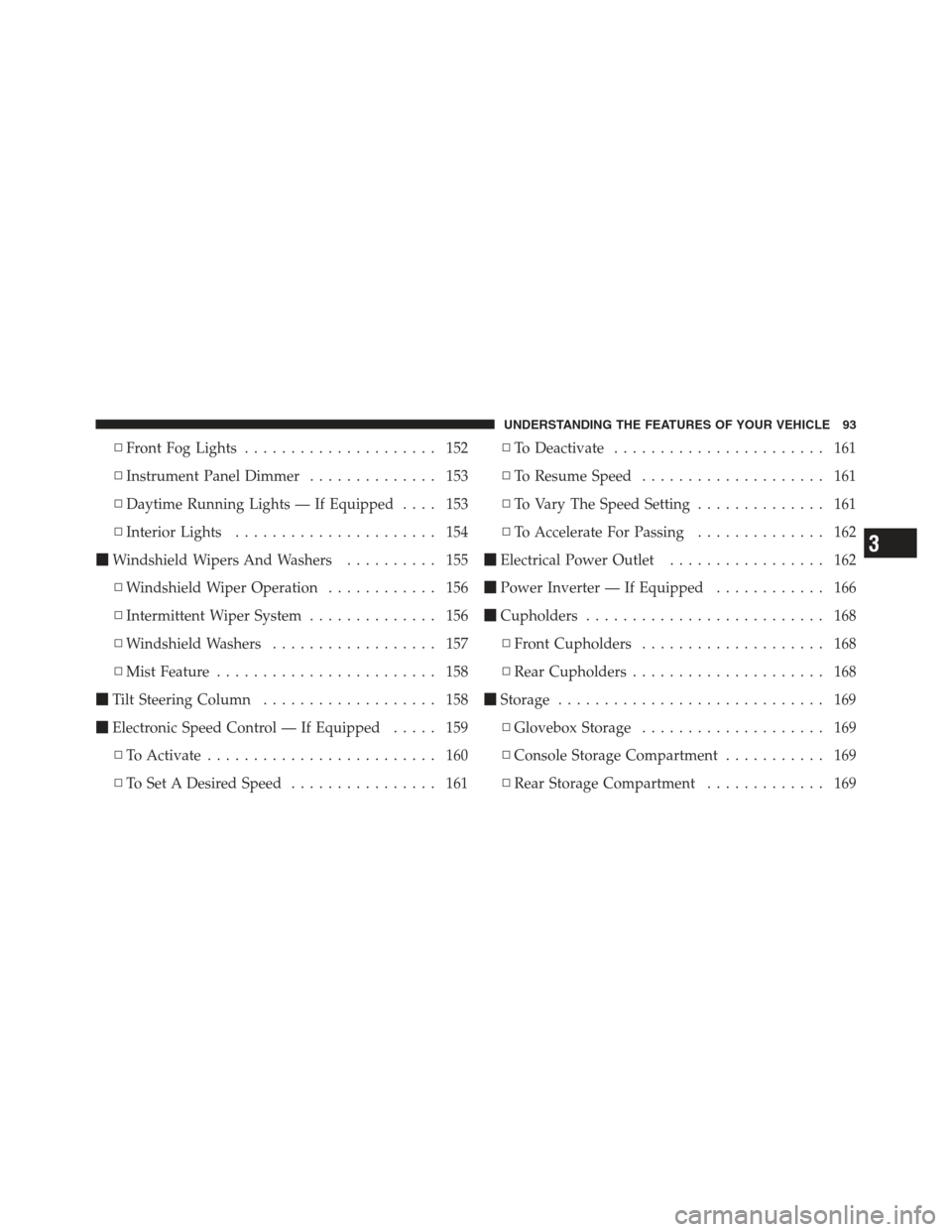

▫Front Fog Lights ..................... 152
▫ Instrument Panel Dimmer .............. 153
▫ Daytime Running Lights — If Equipped .... 153
▫ Interior Lights ...................... 154
 Windshield Wipers And Washers .......... 155
▫ Windshield Wiper Operation ............ 156
▫ Intermittent Wiper System .............. 156
▫ Windshield Washers .................. 157
▫ Mist Feature ........................ 158
 Tilt Steering Column ................... 158
 Electronic Speed Control — If Equipped ..... 159
▫ To Activate ......................... 160
▫ To Set A Desired Speed ................ 161 ▫
To Deactivate ....................... 161
▫ To Resume Speed .................... 161
▫ To Vary The Speed Setting .............. 161
▫ To Accelerate For Passing .............. 162
 Electrical Power Outlet ................. 162
 Power Inverter — If Equipped ............ 166
 Cupholders .......................... 168
▫ Front Cupholders .................... 168
▫ Rear Cupholders ..................... 168
 Storage ............................. 169
▫ Glovebox Storage .................... 169
▫ Console Storage Compartment ........... 169
▫ Rear Storage Compartment ............. 169
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93

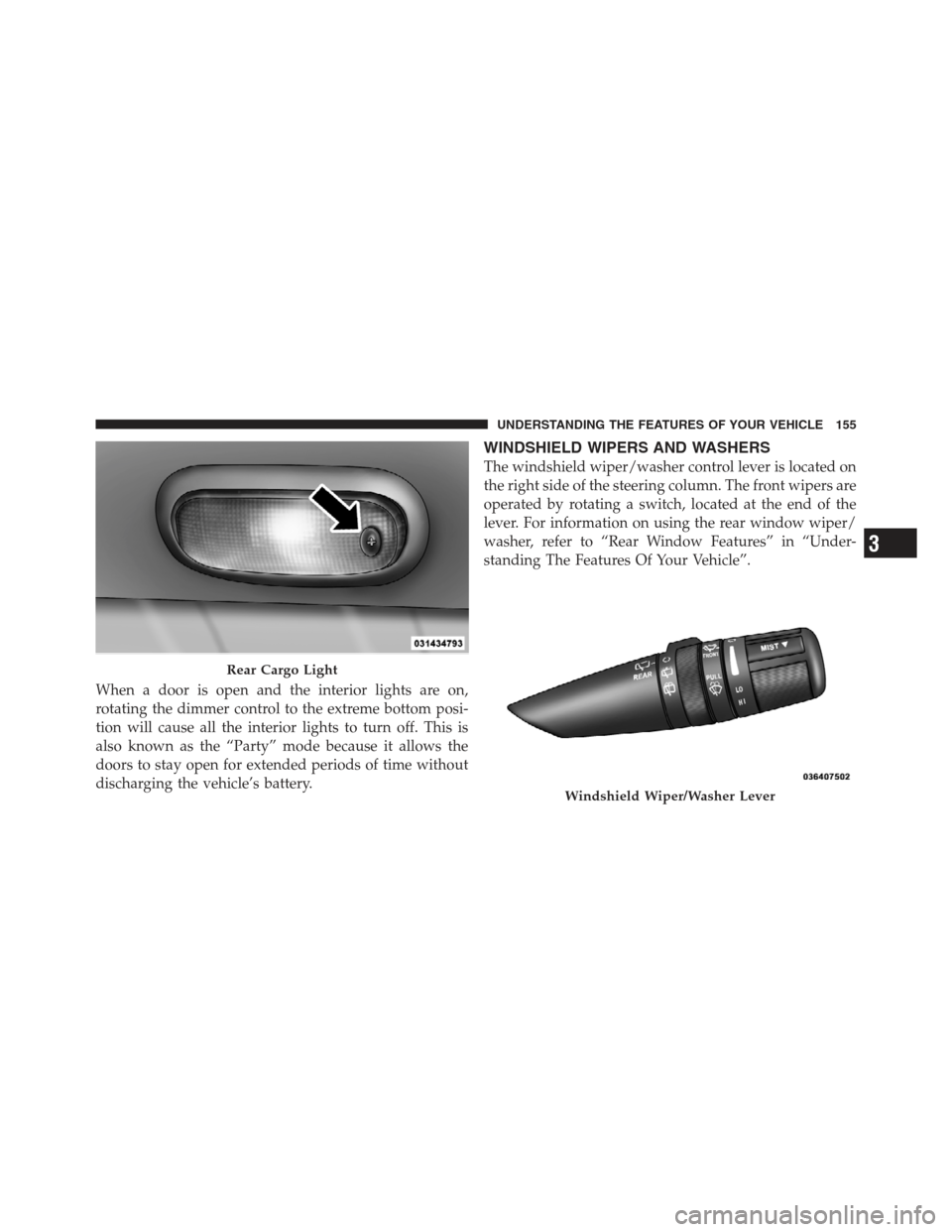

When a door is open and the interior lights are on,
rotating the dimmer control to the extreme bottom posi-
tion will cause all the interior lights to turn off. This is
also known as the “Party” mode because it allows the
doors to stay open for extended periods of time without
discharging the vehicle’s battery.
WINDSHIELD WIPERS AND WASHERS
The windshield wiper/washer control lever is located on
the right side of the steering column. The front wipers are
operated by rotating a switch, located at the end of the
lever. For information on using the rear window wiper/
washer, refer to “Rear Window Features” in “Under-
standing The Features Of Your Vehicle”.
Rear Cargo Light
Windshield Wiper/Washer Lever
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 155

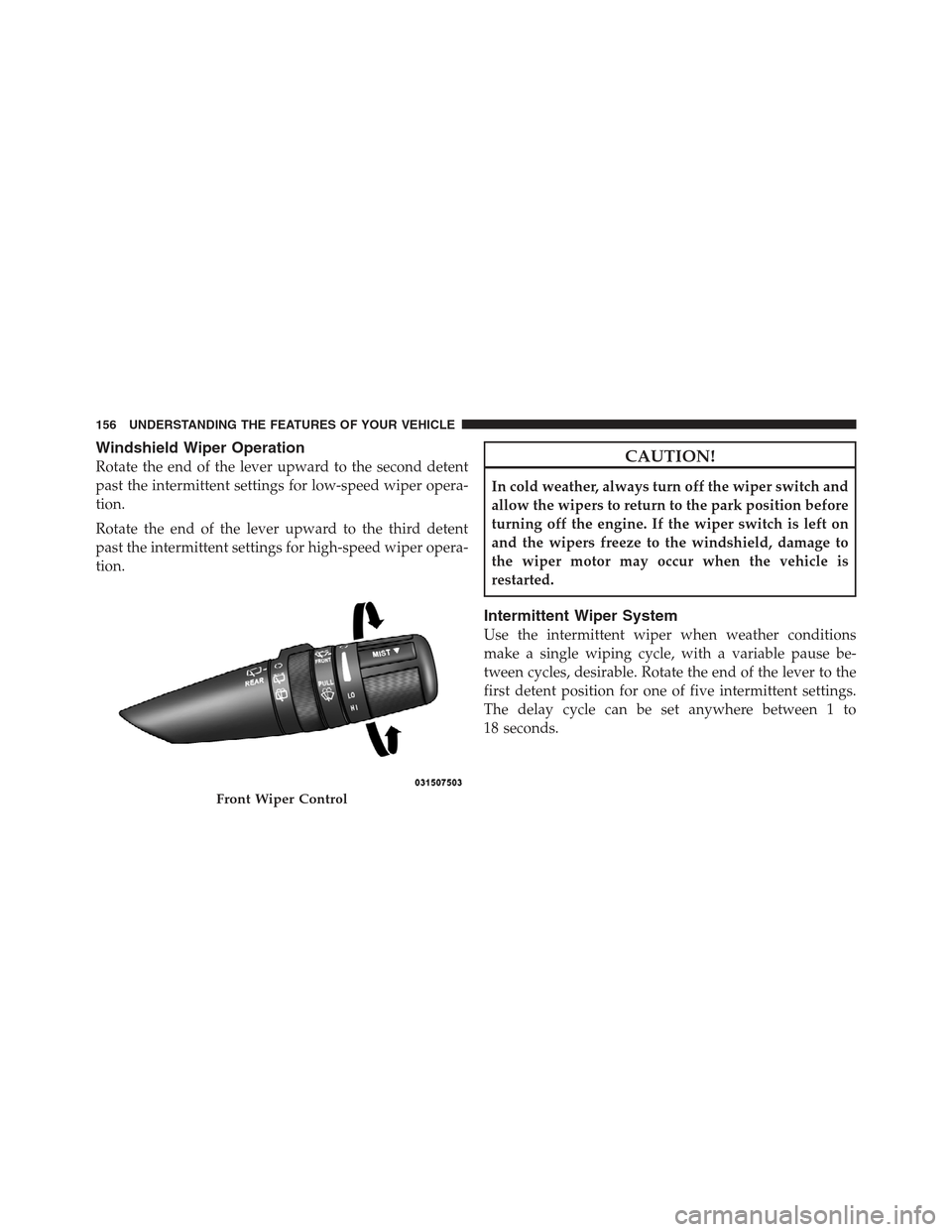

Windshield Wiper Operation
Rotate the end of the lever upward to the second detent
past the intermittent settings for low-speed wiper opera-
tion.
Rotate the end of the lever upward to the third detent
past the intermittent settings for high-speed wiper opera-
tion.CAUTION!
In cold weather, always turn off the wiper switch and
allow the wipers to return to the park position before
turning off the engine. If the wiper switch is left on
and the wipers freeze to the windshield, damage to
the wiper motor may occur when the vehicle is
restarted.
Intermittent Wiper System
Use the intermittent wiper when weather conditions
make a single wiping cycle, with a variable pause be-
tween cycles, desirable. Rotate the end of the lever to the
first detent position for one of five intermittent settings.
The delay cycle can be set anywhere between 1 to
18 seconds.
Front Wiper Control
156 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

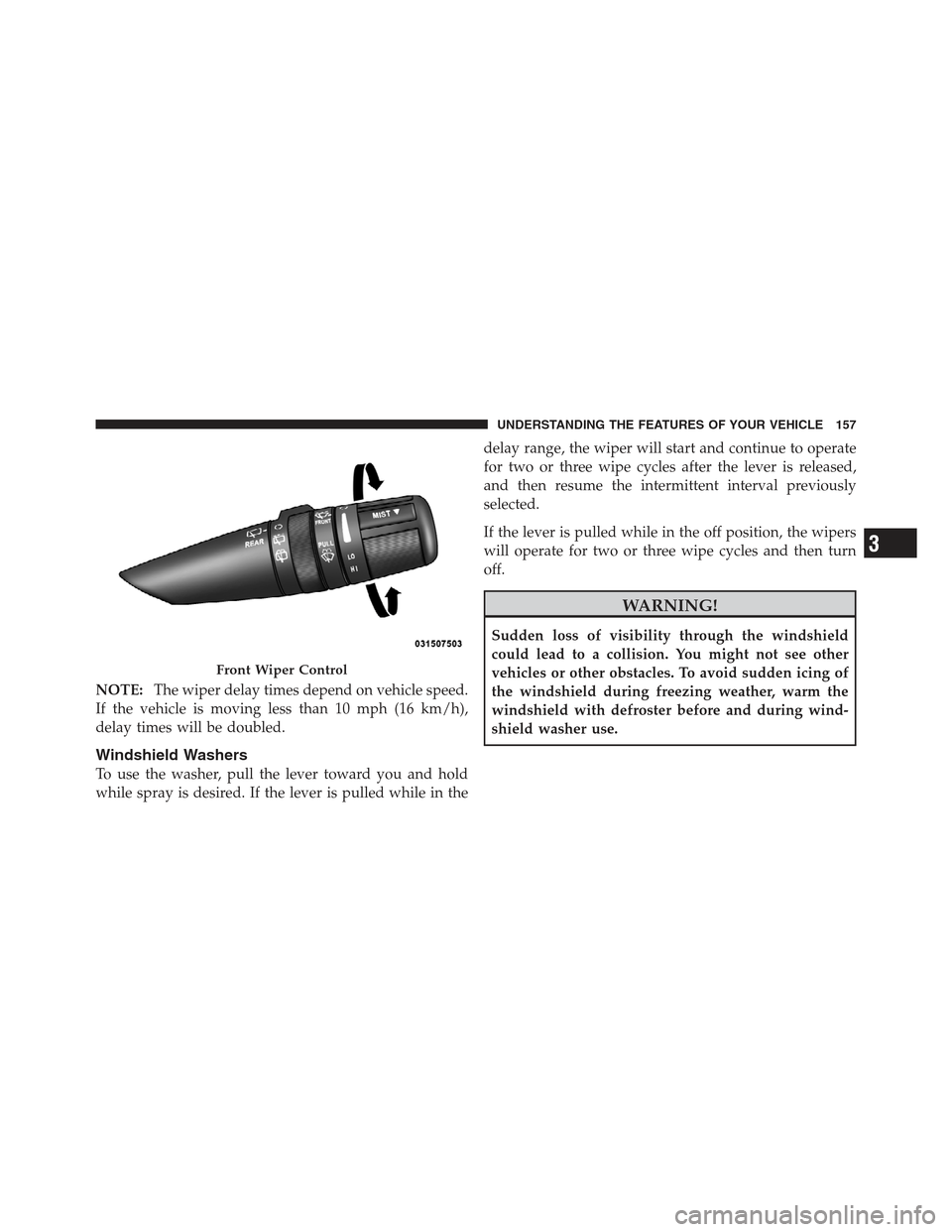

NOTE:The wiper delay times depend on vehicle speed.
If the vehicle is moving less than 10 mph (16 km/h),
delay times will be doubled.
Windshield Washers
To use the washer, pull the lever toward you and hold
while spray is desired. If the lever is pulled while in the delay range, the wiper will start and continue to operate
for two or three wipe cycles after the lever is released,
and then resume the intermittent interval previously
selected.
If the lever is pulled while in the off position, the wipers
will operate for two or three wipe cycles and then turn
off.
WARNING!
Sudden loss of visibility through the windshield
could lead to a collision. You might not see other
vehicles or other obstacles. To avoid sudden icing of
the windshield during freezing weather, warm the
windshield with defroster before and during wind-
shield washer use.
Front Wiper Control
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 157

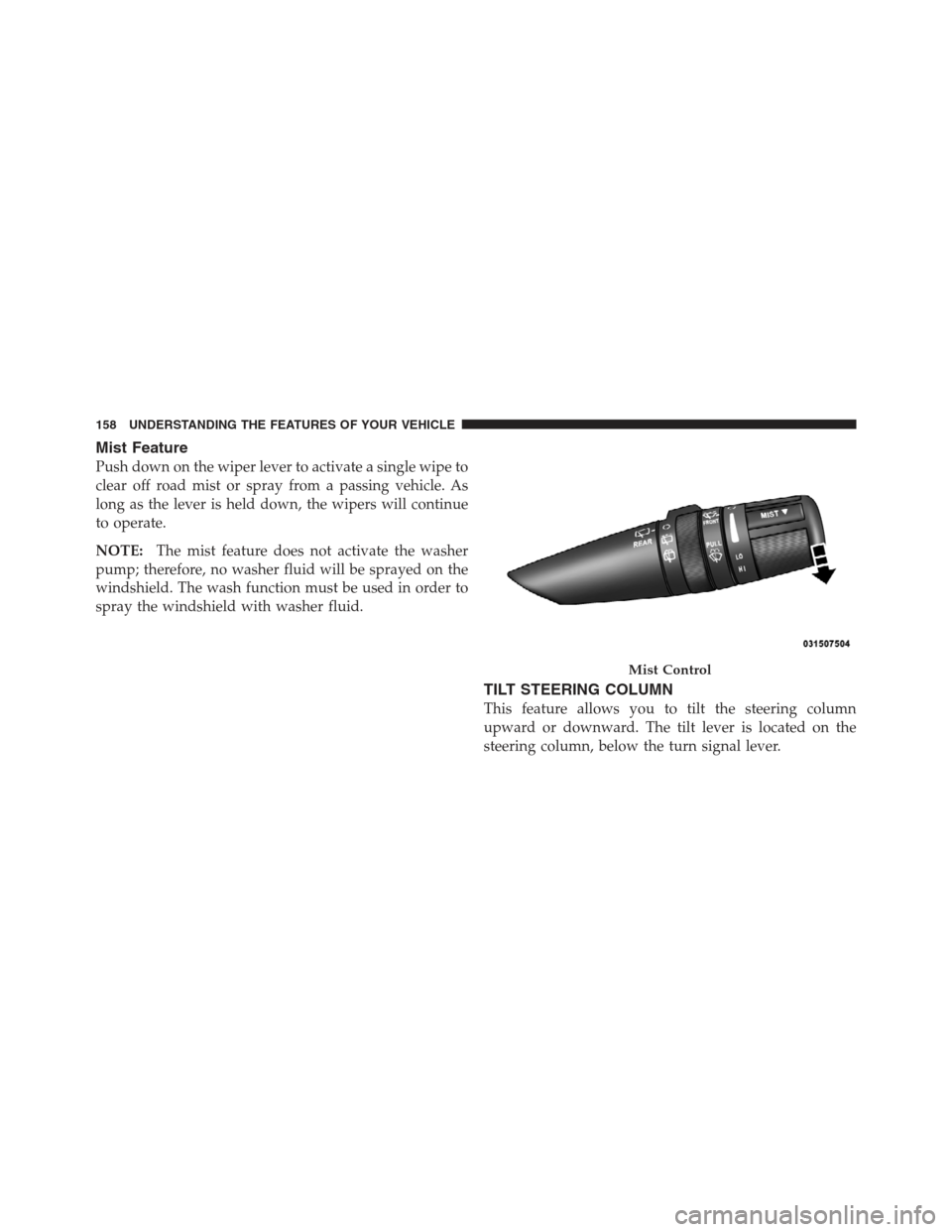

Mist Feature
Push down on the wiper lever to activate a single wipe to
clear off road mist or spray from a passing vehicle. As
long as the lever is held down, the wipers will continue
to operate.
NOTE:The mist feature does not activate the washer
pump; therefore, no washer fluid will be sprayed on the
windshield. The wash function must be used in order to
spray the windshield with washer fluid.
TILT STEERING COLUMN
This feature allows you to tilt the steering column
upward or downward. The tilt lever is located on the
steering column, below the turn signal lever.
Mist Control
158 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

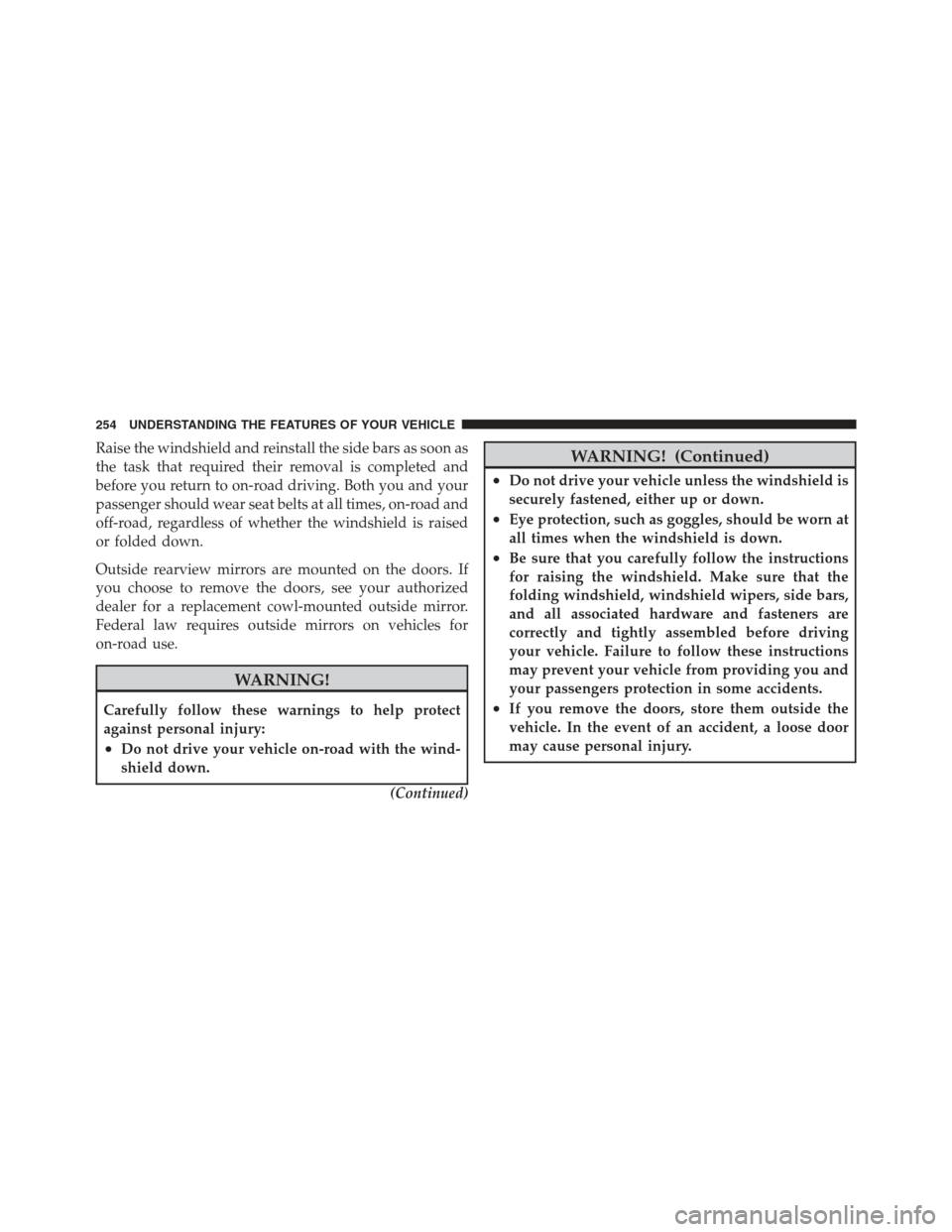

Raise the windshield and reinstall the side bars as soon as
the task that required their removal is completed and
before you return to on-road driving. Both you and your
passenger should wear seat belts at all times, on-road and
off-road, regardless of whether the windshield is raised
or folded down.
Outside rearview mirrors are mounted on the doors. If
you choose to remove the doors, see your authorized
dealer for a replacement cowl-mounted outside mirror.
Federal law requires outside mirrors on vehicles for
on-road use.
WARNING!
Carefully follow these warnings to help protect
against personal injury:
•Do not drive your vehicle on-road with the wind-
shield down.(Continued)
WARNING! (Continued)
•Do not drive your vehicle unless the windshield is
securely fastened, either up or down.
•Eye protection, such as goggles, should be worn at
all times when the windshield is down.
•Be sure that you carefully follow the instructions
for raising the windshield. Make sure that the
folding windshield, windshield wipers, side bars,
and all associated hardware and fasteners are
correctly and tightly assembled before driving
your vehicle. Failure to follow these instructions
may prevent your vehicle from providing you and
your passengers protection in some accidents.
•If you remove the doors, store them outside the
vehicle. In the event of an accident, a loose door
may cause personal injury.
254 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

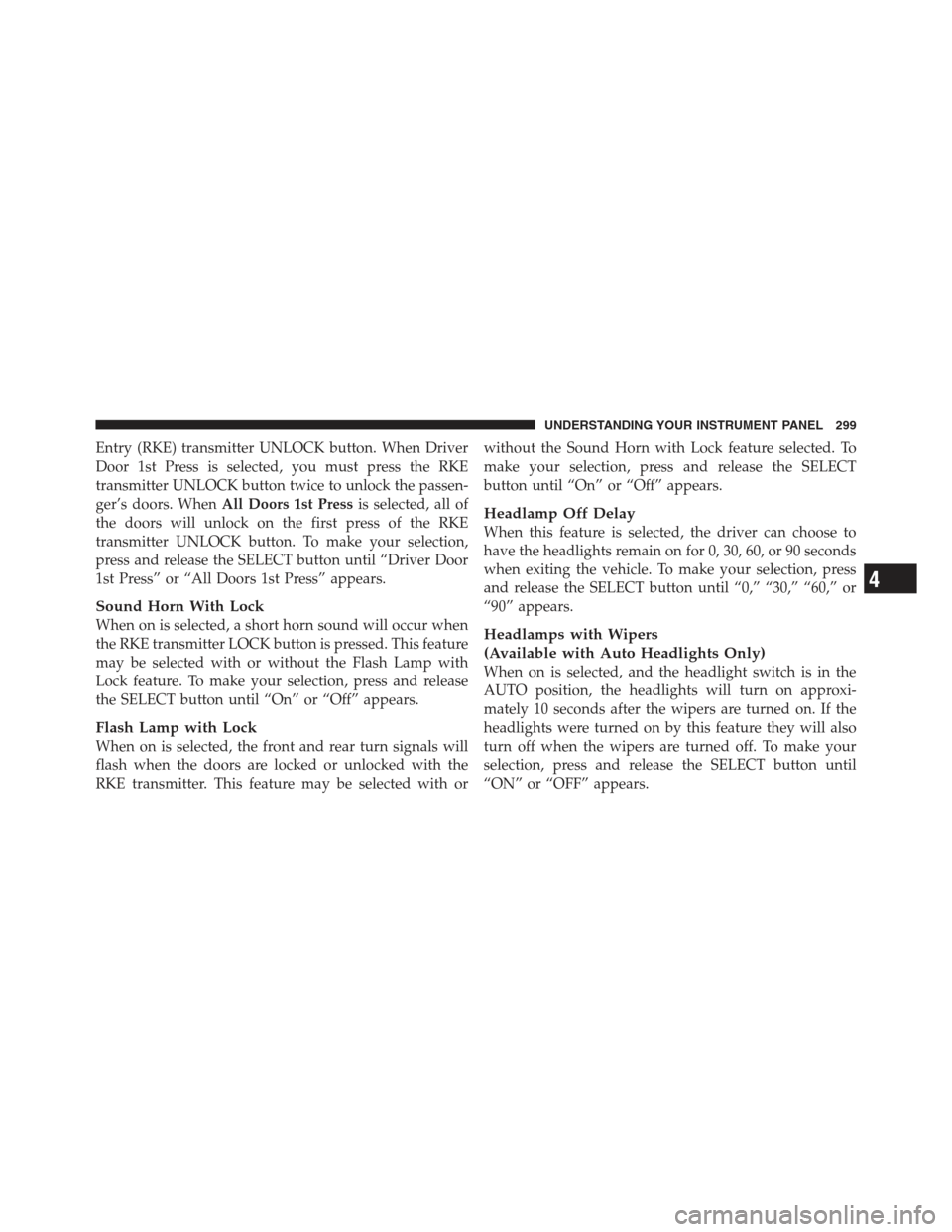

Entry (RKE) transmitter UNLOCK button. When Driver
Door 1st Press is selected, you must press the RKE
transmitter UNLOCK button twice to unlock the passen-
ger’s doors. WhenAll Doors 1st Press is selected, all of
the doors will unlock on the first press of the RKE
transmitter UNLOCK button. To make your selection,
press and release the SELECT button until “Driver Door
1st Press” or “All Doors 1st Press” appears.
Sound Horn With Lock
When on is selected, a short horn sound will occur when
the RKE transmitter LOCK button is pressed. This feature
may be selected with or without the Flash Lamp with
Lock feature. To make your selection, press and release
the SELECT button until “On” or “Off” appears.
Flash Lamp with Lock
When on is selected, the front and rear turn signals will
flash when the doors are locked or unlocked with the
RKE transmitter. This feature may be selected with or without the Sound Horn with Lock feature selected. To
make your selection, press and release the SELECT
button until “On” or “Off” appears.
Headlamp Off Delay
When this feature is selected, the driver can choose to
have the headlights remain on for 0, 30, 60, or 90 seconds
when exiting the vehicle. To make your selection, press
and release the SELECT button until “0,” “30,” “60,” or
“90” appears.
Headlamps with Wipers
(Available with Auto Headlights Only)
When on is selected, and the headlight switch is in the
AUTO position, the headlights will turn on approxi-
mately 10 seconds after the wipers are turned on. If the
headlights were turned on by this feature they will also
turn off when the wipers are turned off. To make your
selection, press and release the SELECT button until
“ON” or “OFF” appears.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 299

Proper towing or lifting equipment is required to prevent
damage to your vehicle. Use only tow bars and other
equipment designed for this purpose, following equip-
ment manufacturer ’s instructions. Use of safety chains is
mandatory. Attach a tow bar or other towing device to
main structural members of the vehicle, not to bumpers
or associated brackets. State and local laws applying to
vehicles under tow must be observed.
If you must use the accessories (wipers, defrosters, etc.)
while being towed, the ignition must be in the ON/RUN
position, not the ACC position.
If the vehicle’s battery is discharged, refer to “Shift Lever
Override” in “What To Do In Emergencies” for instruc-
tions on shifting the automatic transmission out of the
PARK position for towing.CAUTION!
•Do not attempt to use sling type equipment when
towing. When securing the vehicle to a flatbed
truck, do not attach to front or rear suspension
components. Damage to your vehicle may result
from improper towing.
•If the vehicle being towed requires steering. the
ignition switch must be in the ON/RUN or ACC
position, not the LOCK/OFF position.
Towing Without The Ignition Key Fob
Special care must be taken when the vehicle is towed
with the ignition in the LOCK/OFF position. The only
approved method of towing without the ignition key is
with a flatbed truck. Proper towing equipment is neces-
sary to prevent damage to the vehicle.
6
WHAT TO DO IN EMERGENCIES 509

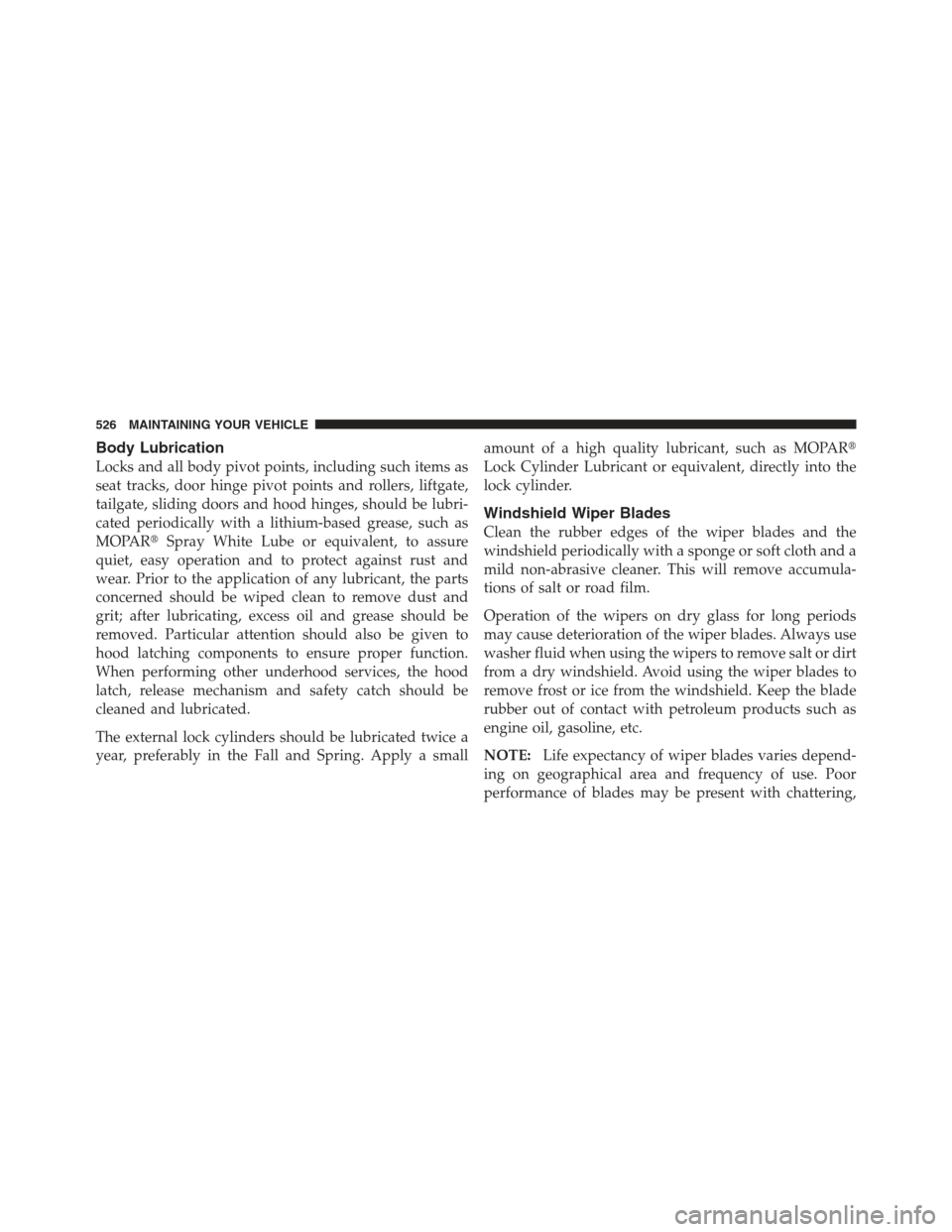

Body Lubrication
Locks and all body pivot points, including such items as
seat tracks, door hinge pivot points and rollers, liftgate,
tailgate, sliding doors and hood hinges, should be lubri-
cated periodically with a lithium-based grease, such as
MOPARSpray White Lube or equivalent, to assure
quiet, easy operation and to protect against rust and
wear. Prior to the application of any lubricant, the parts
concerned should be wiped clean to remove dust and
grit; after lubricating, excess oil and grease should be
removed. Particular attention should also be given to
hood latching components to ensure proper function.
When performing other underhood services, the hood
latch, release mechanism and safety catch should be
cleaned and lubricated.
The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small amount of a high quality lubricant, such as MOPAR
Lock Cylinder Lubricant or equivalent, directly into the
lock cylinder.
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild non-abrasive cleaner. This will remove accumula-
tions of salt or road film.
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield. Avoid using the wiper blades to
remove frost or ice from the windshield. Keep the blade
rubber out of contact with petroleum products such as
engine oil, gasoline, etc.
NOTE:
Life expectancy of wiper blades varies depend-
ing on geographical area and frequency of use. Poor
performance of blades may be present with chattering,
526 MAINTAINING YOUR VEHICLE

Defroster, Rear Window................... 261
Defroster, Windshield ................87,356,362
Delay (Intermittent) Wipers ................. 156
Diagnostic System, Onboard ................ 514
Dimmer Switch, Headlight ................. 152
Dipsticks Oil (Engine) ........................ 518
Power Steering ...................... 413
Disabled Vehicle Towing ................... 508
Disarming, Theft System ................... 20
Disposal Engine Oil ......................... 520
Used Coolant (Antifreeze) .............. 533
Door Locks ............................. 34
Door Locks, Automatic .................... 37
Doors ................................. 29
Driver’s Seat Back Tilt .................... 137 Driving
............................... 398
Off-Pavement ....................... 399
Off-Road .......................... 399
Dual Top .............................. 170
Electric Remote Mirrors .................... 98
Electrical Outlet, Auxiliary (Power Outlet) ...... 162
Electrical Power Outlets ................... 162
Electronic Brake Control System ............. 419
Brake Assist System ................... 420
Electronic Roll Mitigation ............... 424
Traction Control System ................ 419
Electronic Roll Mitigation (ERM) ............. 424
Electronic Speed Control (Cruise Control) ...... 159
Electronic Stability Control (ESC) ............. 425
Electronic Throttle Control Warning Light ...... 283
Electronic Vehicle Information
Center (EVIC) ....................... 283,289
Emergency Brake ........................ 414
10
INDEX 595
