- Engine Temperature Warning Light
• This light warns of an overheated engine condition.
• If the light turns on and a warning chime sounds while driving, safely pull
over and stop the vehicle. If the A/C system is on, turn it off. Also, shift
the transmission into NEUTRAL and idle the vehicle. If the temperature
reading does not return to normal, turn the engine off immediately.
• We recommend that you do not operate the vehicle or engine damage
will occur. Have the vehicle serviced immediately.
WARNING!
A hot engine cooling system is dangerous. You or others could be
badly burned by steam or boiling coolant. You may want to call an
authorized service center for service if your vehicle overheats.
BRAKE- Brake Warning Light
• The Brake Warning light illuminates when there is either a system
malfunction or the parking brake is applied. If the light is on and the
parking brake is not applied, it indicates a possible brake hydraulic
malfunction, brake booster problem or an Anti-Lock Brake System
problem.
• Please have your vehicle serviced immediately.
WARNING!
Driving a vehicle with the red brake light on is dangerous. Part of the
brake system may have failed. It will take longer to stop the vehicle.
You could have a collision. Have the vehicle checked immediately.
- Malfunction Indicator Light (MIL)
• Certain conditions, such as a loose or missing gas cap, poor fuel quality,
etc., may illuminate the MIL after engine start. The vehicle should be
serviced if the light stays on through several typical driving cycles. In
most situations, the vehicle will drive normally and not require towing.
• If the MIL flashes when the engine is running, serious conditions may
exist that could lead to immediate loss of power or severe catalytic
converter damage. We recommend you do not operate the vehicle. Have
the vehicle serviced immediately.
- Electronic Stability Control OFF Warning Light
• If the ESC OFF warning light comes on continuously with the engine
running, a malfunction has been detected.
• If this light remains on after several ignition cycles, and the vehicle has
been driven several miles (kilometers) at speeds greater than 30 mph
(48 km/h), we recommend you drive to the nearest service center and
have the vehicle serviced immediately.
WHAT TO DO IN EMERGENCIES
86

CAUTION!
Driving with a hot cooling system could damage your vehicle. If the
temperature gauge reads 240°F (116 °C) or greater pull over and stop
the vehicle. Idle the vehicle with the air conditioner turned off until the
pointer drops back into the normal range 200–230°F (93–110°C). If
the pointer remains at 240°F (116°C) or greater and you hear a chime,
turn the engine off immediately and call for service.
WARNING!
You or others can be badly burned by hot engine coolant (antifreeze)
or steam from your radiator. If you see or hear steam coming from
under the hood, do not open the hood until the radiator has had time
to cool. Never try to open a cooling system pressure cap when the
radiator or coolant bottle is hot.
JACKING AND TIRE CHANGING
Jack Location
• The jack and lug wrench are located in the rear storage compartment.
NOTE:Turn the black plastic wing nut counter clockwise to loosen the jack
from the storage bin.
Spare Tire Stowage
• To remove the spare tire from the carrier, remove the tire cover, if
equipped, and remove the lug nuts with the lug wrench turning them
counterclockwise.
NOTE:If you have added aftermarket accessories to the spare tire mounted
carrier, it cannot exceed a gross weight of 70 lbs (32 kg) including the
weight of the spare tire.
WHAT TO DO IN EMERGENCIES
89

FLUIDS AND CAPACITIES
ComponentFluid, Lubricant, or
Genuine PartCapacities
Engine Coolant 3.6L MOPAR® Antifreeze/
Coolant 5
Year/100,000 Mile
Formula HOAT (Hybrid
Organic Additive
Technology) or
equivalent.10.5 Quarts (9.9 Liters)
Includes coolant
recovery bottle filled to
MAX level.
Engine Oil with filter
3.6LUse API Certified SAE
5W-30 Engine Oil,
meeting the
requirements of
Chrysler Material
Standard MS-6395.
Refer to your engine oil
filler cap for correct
SAE grade.6 quarts (5.7 Liters)
Engine Oil Filter 3.6L MOPAR® Engine Oil
Filter or equivalent.—
Spark Plug 3.6L RER8ZWYCB4 (Gap
0.043 in [1.1 mm])—
Automatic Transmission MOPAR® ATF+4®
Automatic Transmission
Fluid or equivalent
licensed ATF+4®
product.—
Manual Transmission MOPAR® Manual
Transmission Lubricant
or equivalent (meeting
the requirements of
Chrysler Material
Standard MS-9224).—
Transfer Case MOPAR® ATF+4®
Automatic Transmission
Fluid or equivalent
licensed ATF+4®
product.—
Axle differential (front) MOPAR® Gear & Axle
Lubricant (SAE
80W-90) (API GL-5) or
equivalent.—
MAINTAINING YOUR VEHICLE
101

Miles:
8,000 16,000 24,000 32,000 40,000 48,000 56,000 64,000 72,000 80,000 88,000 96,000 104,000
Or Months: 6 12 18 24 30 36 42 48 54 60 66 72 78
Or Kilometers:
13,000 26,000 39,000 52,000 65,000 78,000 91,000 104,000 117,000 130,000 143,000 156,000 169,000
Change the manual transmission fluid if using
your vehicle for any of the following: trailer
towing, snow plowing, heavy loading, taxi, po-
lice, delivery service (commercial service), off-
road, desert operation or more than 50% of
your driving is at sustained high speeds during
hot weather, above 90°F (32 °C).XXX
Inspect front suspension, tie rod ends, and
boot seals; replace if necessary.XXXXXX
Replace the ignition cables.X
Replace the spark plugs.X
Inspect and replace PCV valve if necessary.X
Inspect all door latches for presence of grease
- reapply as necessary.XXXXXXXXXXXXX
Flush and replace the engine coolant at
60 months or 104,000 miles (169,000 km)
whichever comes first.X
Flush and replace the engine coolant at
104,000 miles (169,000 km) or 60 months
whichever comes first.X• Refer to the Owner's Manual on the DVD for complete maintenance schedule.
MAINTAINING YOUR VEHICLE
104

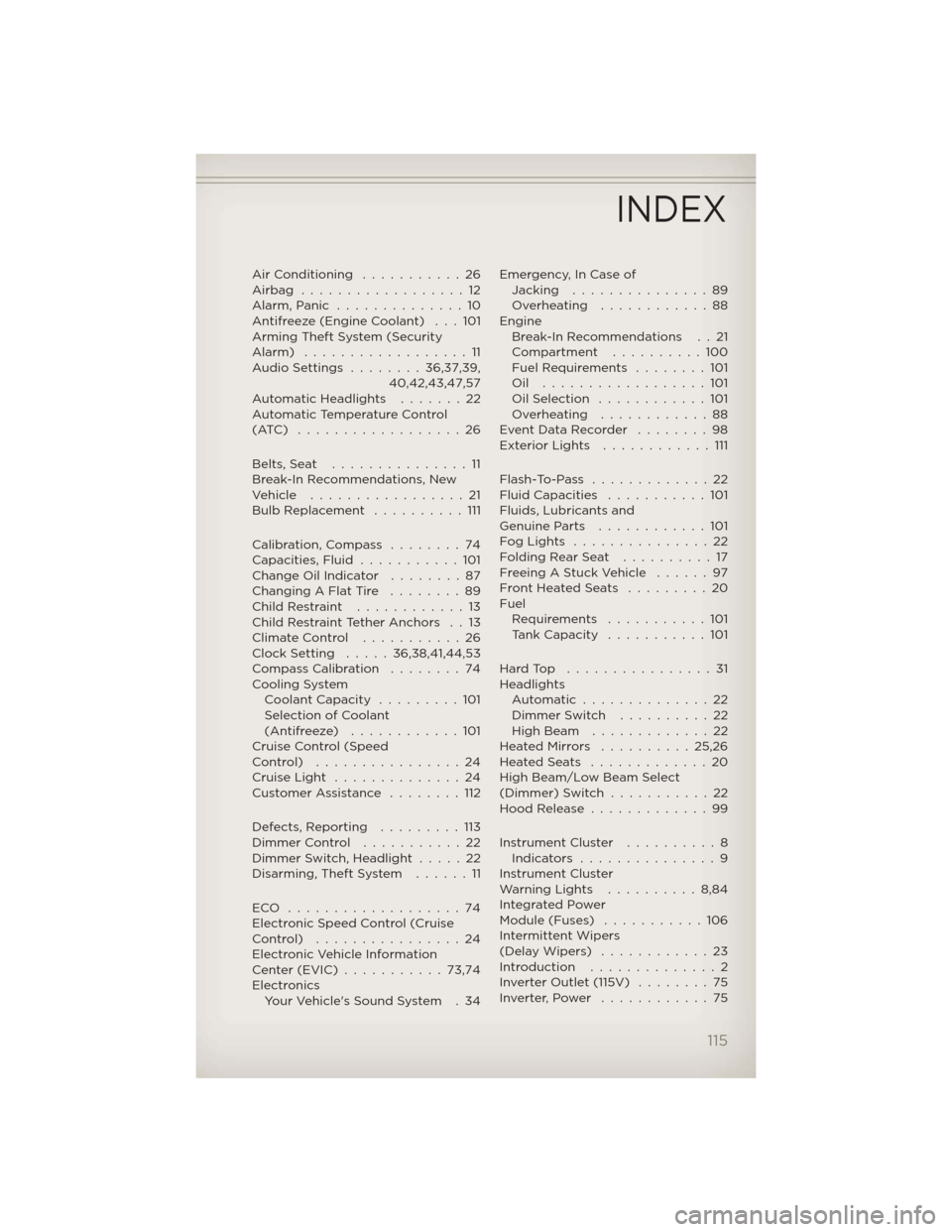

AirConditioning ...........26
Airbag ..................12
Alarm,Panic ..............10
Antifreeze (Engine Coolant) . . . 101
Arming Theft System (Security
Alarm) ..................11
AudioSettings ........36,37,39,
40,42,43,47,57
Automatic Headlights . . . . . . . 22
Automatic Temperature Control
(ATC) ..................26
Belts, Seat...............11
Break-In Recommendations, New
Vehicle .................21
Bulb Replacement..........111
Calibration, Compass . . . . . . . . 74
Capacities, Fluid...........101
Change Oil Indicator........87
Changing A Flat Tire........89
ChildRestraint ............13
Child Restraint Tether Anchors . . 13
ClimateControl ...........26
Clock Setting.....36,38,41,44,53
Compass Calibration . . . . . . . . 74
Cooling System
Coolant Capacity.........101
Selection of Coolant
(Antifreeze)............101
Cruise Control (Speed
Control) ................24
CruiseLight ..............24
Customer Assistance . . . .....112
Defects, Reporting.........113
Dimmer Control...........22
Dimmer Switch, Headlight . . . . . 22
Disarming, Theft System . . . . . . 11
ECO ...................74
Electronic Speed Control (Cruise
Control) ................24
Electronic Vehicle Information
Center(EVIC)...........73,74
Electronics
Your Vehicle's Sound System . 34Emergency, In Case of
Jacking...............89
Overheating ............88
Engine
Break-In Recommendations . . 21
Compartment . . . . . . . . . . 100
Fuel Requirements . . . .....101
Oil ..................101
OilSelection ............101
Overheating ............88
EventDataRecorder ........98
ExteriorLights ............111
Flash-To-Pass .............22
Fluid Capacities . . . . . . . . . . . 101
Fluids, Lubricants and
Genuine Parts . . . . . . . . . . . . 101
FogLights ...............22
FoldingRearSeat ..........17
FreeingAStuckVehicle ......97
Front Heated Seats . . . . . . . . . 20
Fuel
Requirements . . . . .......101
Tank Capacity . . . . . . . . . . . 101
HardTop ................31
Headlights
Automatic..............22
Dimmer Switch . . . . . . . . . . 22
High Beam . . . . . . . . . . . . . 22
HeatedMirrors ..........25,26
HeatedSeats .............20
High Beam/Low Beam Select
(Dimmer) Switch . . . . .......22
Hood Release . . . . . . . . . . . . . 99
Instrument Cluster . . . . . . . . . . 8
Indicators ...............9
Instrument Cluster
WarningLights ..........8,84
Integrated Power
Module (Fuses) . . . . . . . . . . . 106
Intermittent Wipers
(DelayWipers) ............23
Introduction . . . . . . . . . . . . . . 2
InverterOutlet(115V) ........75
Inverter,Power ............75
INDEX
115

Supplemental Restraint System -
Airbag ..................12
Sway Bar Disconnect,
Electronic ...............78
Temperature Control, Automatic
(ATC) ..................26
Temperature Gauge, Engine
Coolant.................89
TextMessaging ............72
Theft Alarm (Security Alarm) . . . 11
TheftSystemArming ........11
TheftSystemDisarming .......11
TiltSteeringColumn.........19
Tires
AirPressure ............110
Changing..............89
Jacking.............89,90
Pressure Warning Light . . . . . 84
Spare Tire..............89
Tow Hooks, Emergency . . . . . . 95
Towing .................79
24-Hour Towing Assistance . . 84Disabled Vehicle . . . . . . . . . 96
Recreational . ...........81
Trailer Towing
Trailer and Tongue Weight . . . 79
TrailerWeight.............79
Turn Signals ..............23
Uconnect™ Phone..........68
Uconnect™ Voice Command....71
Voice Commands...........71
Warning,RollOver ..........4
Washer
Rear .................23
Washers, Windshield . . . . . . . . 23
Wheel and Wheel Trim Care . . . . 111
Wind Buffeting . . . . . . . . . . . . 33
Windshield Washers . . . . . . . . 23
Windshield Wipers . . . . . . . . . 23
Wiper,Rear ..............23
INDEX
117
