mirror JEEP WRANGLER 2012 JK / 3.G User Guide

A. Electronic Vehicle Information
Center (EVIC) Controls pg. 73
B. Turn Signal/Lights Lever (behind
steering wheel) pg. 22
C. Electronic Vehicle Information
Center (EVIC) Display (behind
steering wheel) pg. 73
D. Instrument Cluster pg. 8
E. Wiper/Washer Lever (behind
steering wheel) pg. 23
F. Power Windows
G. Audio System (touch-screen-radio
shown) pg. 34H. Climate Controls pg. 25
I. Power Outlet/Cigar Lighter pg. 76
J. SWITCH PANEL
− Heated Seat Switches pg. 20
− Electronic Stability Control
pg. 84
− Hill Descent
− Hazard SwitchK. Transmission Gear Selector
L. Transfer Case Gear Selector
M. Power Mirrors
N. Speed Control pg. 24
O. Ignition Switch
P. Tilt Steering Column Lever pg. 19
Q. Power Door Locks
CONTROLS AT A GLANCE
7

MANUAL CLIMATE CONTROLS
Air Recirculation
• Use recirculation for maximum A/C operation.
• For window defogging, turn the recirculation button off.
• Recirculation is not allowed in defrost, floor, defrost/floor (mix) modes.
Heated Mirrors
• The mirrors are heated to melt frost or ice. This feature is activated
whenever you turn on the rear window defroster.
OPERATING YOUR VEHICLE
25

AUTOMATIC TEMPERATURE CONTROLS (ATC)
Automatic Operation
• Turn the Mode and Blower Controls to the AUTO position.
• Select the desired temperature by rotating the Temperature Control.
• The system will maintain the set temperature automatically.
Air Conditioning (A/C)
• If the air conditioning button is pressed while in the AUTO mode, the
indicator light may flash three times to indicate the cabin air is being
controlled automatically.
Air Recirculation
• Use recirculation for maximum A/C operation.
• For window defogging, turn the air recirculation button off.
• If the recirculation button is pressed while in the AUTO mode, the
indicator light may flash three times to indicate the cabin air is being
controlled automatically.
Heated Mirrors
• The mirrors are heated to melt frost or ice. This feature is activated
whenever you turn on the rear window defroster.
OPERATING YOUR VEHICLE
26

CavityCartridge
FuseMini Fuse Description
M6 20 Amp
YellowPower Outlet #1/Rain Sensor
M7 20 Amp
YellowPower Outlet #2 (BATT/ACC
SELECT)
M8 20 Amp
YellowFront Heated Seat
M9 20 Amp
YellowRear Heated Seat (If Equipped)
M10 15 Amp Blue Ignition Off Draw — Vehicle
Entertainment System
(IOD-VES), Satellite Digital
Audio Receiver (SDARS), DVD,
Hands-Free Module (HFM),
RADIO, Antenna (ANT),
Universal Garage Door Opener
(UGDO), Vanity Lamp (VANITY
LP)
M11 10 Amp Red (Ignition Off Draw) IOD-HVAC/
ATC, MW SENSR, Underhood
Lamp (UH LMP)
M12 30 Amp Green Amplifier (AMP)
M13 20 Amp
YellowIgnition Off Draw— Cabin
Compartment Node (IOD-CCN),
Wireless Control Module (WCM),
SIREN, Multifunction Control
Switch (MULTIFCTN SW)
M14 20 Amp
YellowTrailer Tow (Export Only)
M15 20 Amp
YellowCOL MOD, IR SNS, Heater
Ventilation, Air Conditioning/
Automatic Temperature Control
(HVAC/ATC), Rear View Mirror
(RR VW MIR), Cabin
Compartment Node (CCN),
Transfer Case Switch (T-CASE
SW), RUN/ST, Multi-Function
Control Switch (MULTIFTCN
SW), Tire Pressure Monitor
(TPM), Glow Plug Module (GLW
PLG MOD) — Export Diesel Only
M16 10 Amp Red Occupant Restraint Controller
(ORC)
M17 15 Amp Blue Left Tail/License/Park Lamp
(LT-TAIL/LIC/PRK LMP)
M18 15 Amp Blue Right Tail/Park/Run Lamp
(RT-TAIL/PRK/RUN LMP)
MAINTAINING YOUR VEHICLE
108

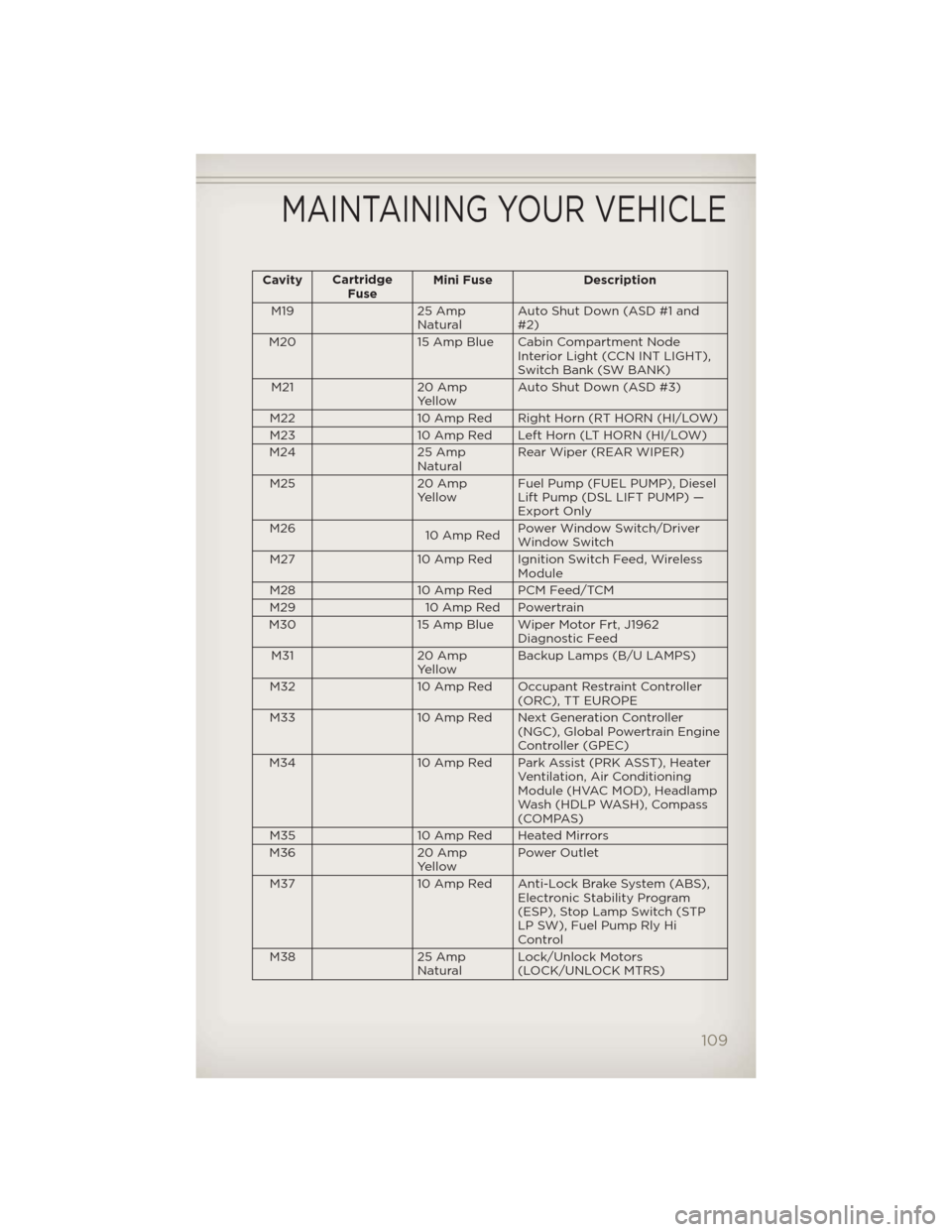

CavityCartridge
FuseMini Fuse Description
M19 25 Amp
NaturalAuto Shut Down (ASD #1 and
#2)
M20 15 Amp Blue Cabin Compartment Node
Interior Light (CCN INT LIGHT),
Switch Bank (SW BANK)
M21 20 Amp
YellowAuto Shut Down (ASD #3)
M22 10 Amp Red Right Horn (RT HORN (HI/LOW)
M23 10 Amp Red Left Horn (LT HORN (HI/LOW)
M24 25 Amp
NaturalRear Wiper (REAR WIPER)
M25 20 Amp
YellowFuel Pump (FUEL PUMP), Diesel
Lift Pump (DSL LIFT PUMP) —
Export Only
M26
10 Amp RedPower Window Switch/Driver
Window Switch
M27 10 Amp Red Ignition Switch Feed, Wireless
Module
M28 10 Amp Red PCM Feed/TCM
M29 10 Amp Red Powertrain
M30 15 Amp Blue Wiper Motor Frt, J1962
Diagnostic Feed
M31 20 Amp
YellowBackup Lamps (B/U LAMPS)
M32 10 Amp Red Occupant Restraint Controller
(ORC), TT EUROPE
M33 10 Amp Red Next Generation Controller
(NGC), Global Powertrain Engine
Controller (GPEC)
M34 10 Amp Red Park Assist (PRK ASST), Heater
Ventilation, Air Conditioning
Module (HVAC MOD), Headlamp
Wash (HDLP WASH), Compass
(COMPAS)
M35 10 Amp Red Heated Mirrors
M36 20 Amp
YellowPower Outlet
M37 10 Amp Red Anti-Lock Brake System (ABS),
Electronic Stability Program
(ESP), Stop Lamp Switch (STP
LP SW), Fuel Pump Rly Hi
Control
M38 25 Amp
NaturalLock/Unlock Motors
(LOCK/UNLOCK MTRS)
MAINTAINING YOUR VEHICLE
109

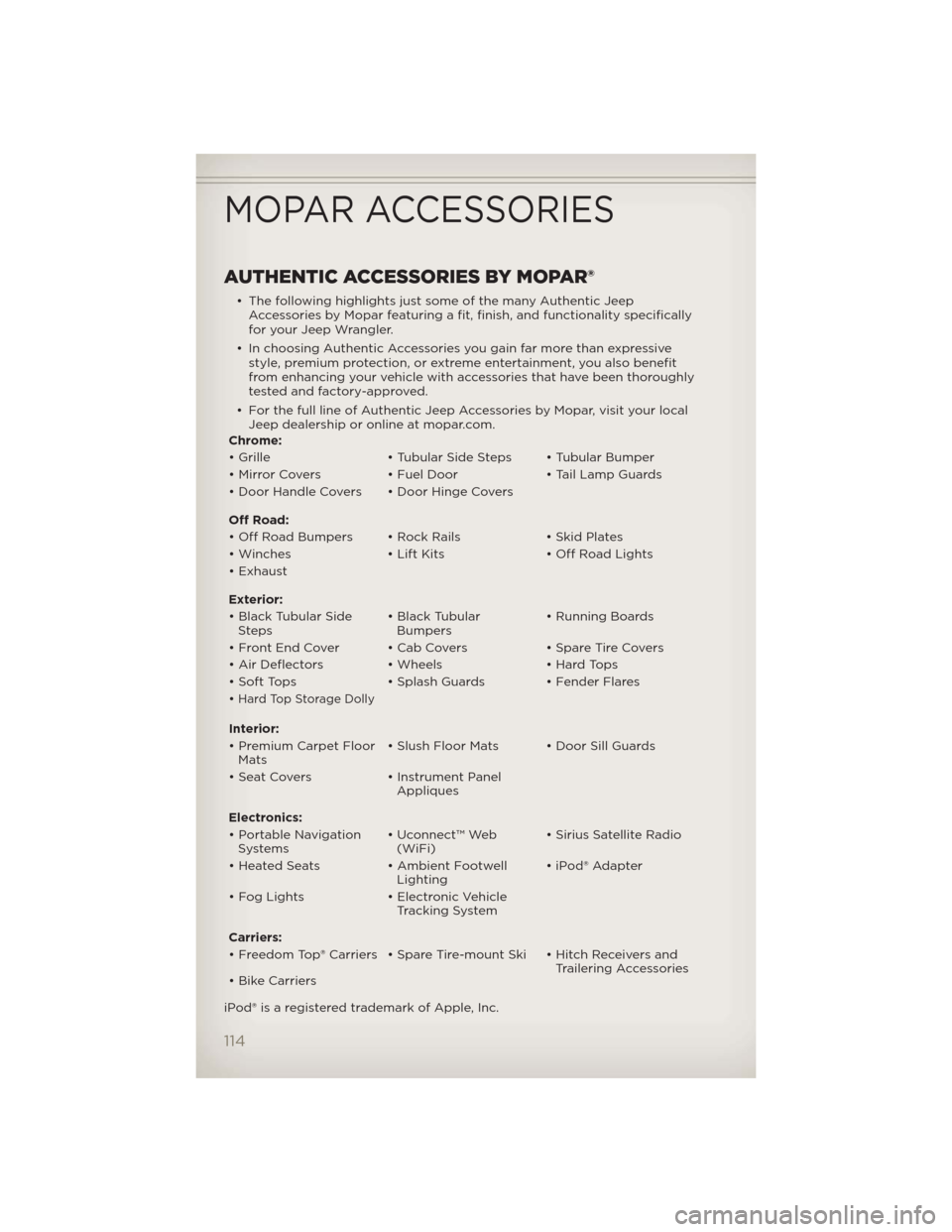

AUTHENTIC ACCESSORIES BY MOPAR®
• The following highlights just some of the many Authentic Jeep
Accessories by Mopar featuring a fit, finish, and functionality specifically
for your Jeep Wrangler.
• In choosing Authentic Accessories you gain far more than expressive
style, premium protection, or extreme entertainment, you also benefit
from enhancing your vehicle with accessories that have been thoroughly
tested and factory-approved.
• For the full line of Authentic Jeep Accessories by Mopar, visit your local
Jeep dealership or online at mopar.com.
Chrome:
• Grille • Tubular Side Steps • Tubular Bumper
• Mirror Covers • Fuel Door • Tail Lamp Guards
• Door Handle Covers • Door Hinge Covers
Off Road:
• Off Road Bumpers • Rock Rails • Skid Plates
• Winches • Lift Kits • Off Road Lights
• Exhaust
Exterior:
• Black Tubular Side
Steps• Black Tubular
Bumpers• Running Boards
• Front End Cover • Cab Covers • Spare Tire Covers
• Air Deflectors • Wheels • Hard Tops
• Soft Tops • Splash Guards • Fender Flares
•
Hard Top Storage Dolly
Interior:
• Premium Carpet Floor
Mats• Slush Floor Mats • Door Sill Guards
• Seat Covers • Instrument Panel
Appliques
Electronics:
• Portable Navigation
Systems• Uconnect™ Web
(WiFi)• Sirius Satellite Radio
• Heated Seats • Ambient Footwell
Lighting• iPod® Adapter
• Fog Lights • Electronic Vehicle
Tracking System
Carriers:
• Freedom Top® Carriers • Spare Tire-mount Ski • Hitch Receivers and
Trailering Accessories
• Bike Carriers
iPod® is a registered trademark of Apple, Inc.
MOPAR ACCESSORIES
114

AirConditioning ...........26
Airbag ..................12
Alarm,Panic ..............10
Antifreeze (Engine Coolant) . . . 101
Arming Theft System (Security
Alarm) ..................11
AudioSettings ........36,37,39,
40,42,43,47,57
Automatic Headlights . . . . . . . 22
Automatic Temperature Control
(ATC) ..................26
Belts, Seat...............11
Break-In Recommendations, New
Vehicle .................21
Bulb Replacement..........111
Calibration, Compass . . . . . . . . 74
Capacities, Fluid...........101
Change Oil Indicator........87
Changing A Flat Tire........89
ChildRestraint ............13
Child Restraint Tether Anchors . . 13
ClimateControl ...........26
Clock Setting.....36,38,41,44,53
Compass Calibration . . . . . . . . 74
Cooling System
Coolant Capacity.........101
Selection of Coolant
(Antifreeze)............101
Cruise Control (Speed
Control) ................24
CruiseLight ..............24
Customer Assistance . . . .....112
Defects, Reporting.........113
Dimmer Control...........22
Dimmer Switch, Headlight . . . . . 22
Disarming, Theft System . . . . . . 11
ECO ...................74
Electronic Speed Control (Cruise
Control) ................24
Electronic Vehicle Information
Center(EVIC)...........73,74
Electronics
Your Vehicle's Sound System . 34Emergency, In Case of
Jacking...............89
Overheating ............88
Engine
Break-In Recommendations . . 21
Compartment . . . . . . . . . . 100
Fuel Requirements . . . .....101
Oil ..................101
OilSelection ............101
Overheating ............88
EventDataRecorder ........98
ExteriorLights ............111
Flash-To-Pass .............22
Fluid Capacities . . . . . . . . . . . 101
Fluids, Lubricants and
Genuine Parts . . . . . . . . . . . . 101
FogLights ...............22
FoldingRearSeat ..........17
FreeingAStuckVehicle ......97
Front Heated Seats . . . . . . . . . 20
Fuel
Requirements . . . . .......101
Tank Capacity . . . . . . . . . . . 101
HardTop ................31
Headlights
Automatic..............22
Dimmer Switch . . . . . . . . . . 22
High Beam . . . . . . . . . . . . . 22
HeatedMirrors ..........25,26
HeatedSeats .............20
High Beam/Low Beam Select
(Dimmer) Switch . . . . .......22
Hood Release . . . . . . . . . . . . . 99
Instrument Cluster . . . . . . . . . . 8
Indicators ...............9
Instrument Cluster
WarningLights ..........8,84
Integrated Power
Module (Fuses) . . . . . . . . . . . 106
Intermittent Wipers
(DelayWipers) ............23
Introduction . . . . . . . . . . . . . . 2
InverterOutlet(115V) ........75
Inverter,Power ............75
INDEX
115

iPod®/USB/MP3 Control......67
Bluetooth Streaming Audio . . 73
Jack Location............89
Jack Operation.........89,90
Jacking Instructions........90
Jump Starting............93
KeyFob.................10
Key Fob Programmable
Features ................74
Lane Change Assist.........23
LATCH (Lower Anchors and
TetherforCHildren) .........13
Lights
Turn Signal.............23
Warning (Instrument Cluster
Description) .............8
Maintenance Record........105
Maintenance Schedule......103
Media Center Radio.....36,38,41
Mirrors
Heated ..............25,26
Navigation ............50,60
New Vehicle Break-In Period . . . 21
Oil Change Indicator........87
Oil, Engine
Capacity..............101
Recommendation........101
Viscosity..............101
Outlet
Power ................76
Overheating, Engine........88
PanicAlarm ..............10
Phone (Pairing)...........68
Phone (Uconnect)..........68
Placard, Tire and Loading
Information ..............110
Power
Inverter ...............75
Outlet (Auxiliary Electrical
Outlet) ................76Preparation for Jacking . . . . . . 90
Programmable Electronic
Features ................74
Radio Operation . . . . . . . . . 44,53
Rain Sensitive Wiper System . . . 23
RearSeat,Folding ..........17
Recreational Towing . . . . . . . . . 81
Shifting into Transfer Case
Neutral (N) . . . . . . . . . . . . . 81
Shifting out of Transfer Case
Neutral (N) . . . . . . . . . . . . . 82
Remote Starting System . . . . . . 10
Replacement Bulbs . . . . . . . . . 111
Reporting Safety Defects . . . . . 113
Restraints, Child . . . . . . . . . . . 13
Roll Over Warning . . . . . . . . . . 4
SeatBelts ................11
Seats ..................16
Adjustment.............16
EasyEntry ..............16
Heated................20
RearFolding ............17
Seek Button.....37,39,40,42,43
Setting the Clock . . . 36,38,41,44,53
Shift Lever Override . . . . . . . . 96
Shifting
Transfer Case, Shifting into
Transfer Case Neutral (N) . . . . 81
Transfer Case, Shifting out of
Transfer Case Neutral (N) . . . . 82
Short Message Service (SMS) . . 72
Signals,Turn .............23
SIRIUS Travel Link . . . . . . . . . . 66
SoftTop ................27
Spare Tire . . . . . . . . . . . . . . . 89
Speed Control (Cruise
Control) ................24
Starting
Remote...............10
Steering
TiltColumn .............19
Steering Wheel Audio
Controls ................67
Store Radio Presets . . . . . 37,39,42
Stuck, Freeing . . . . . . . . . . . . 97
INDEX
116
