JEEP WRANGLER 2014 JK / 3.G Owner's Manual

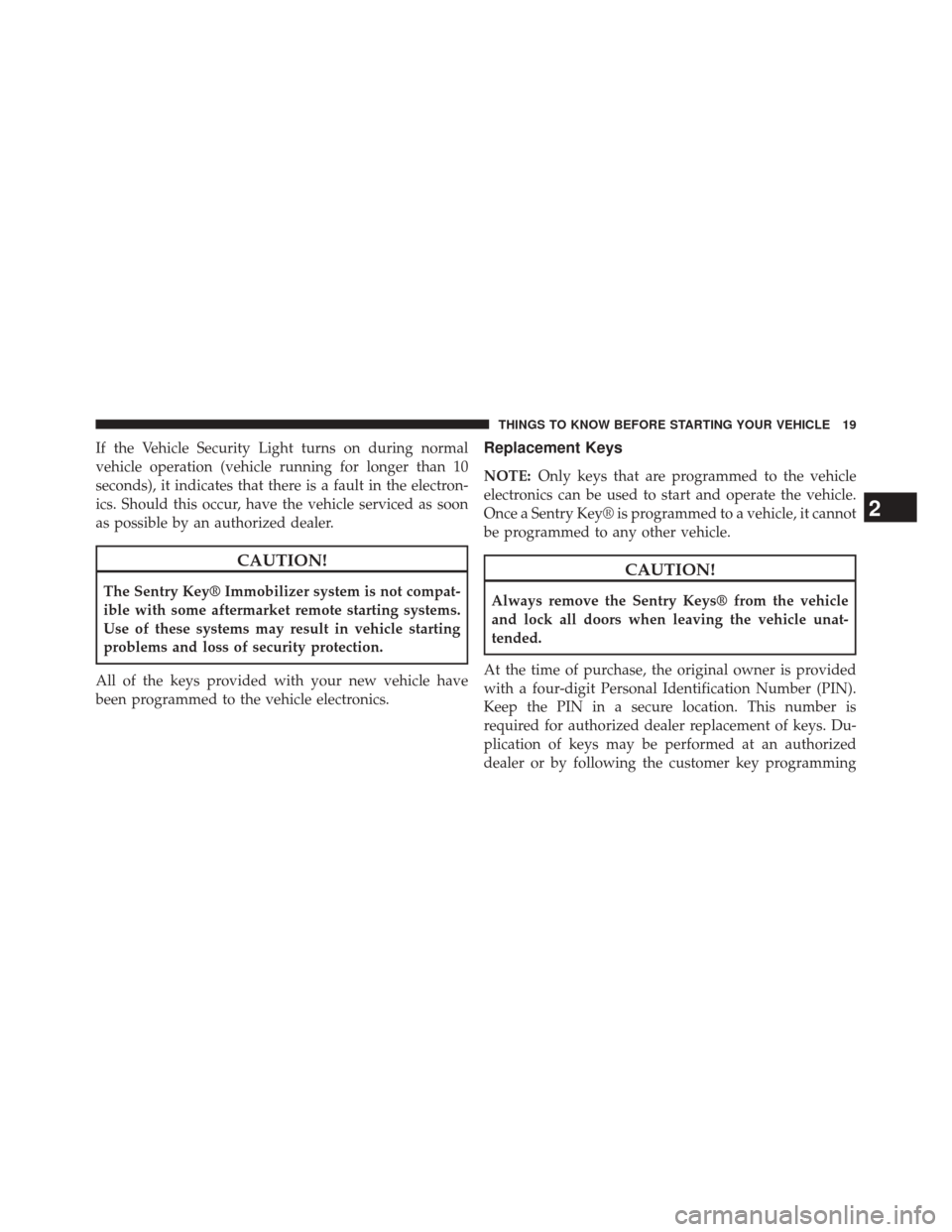

If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10
seconds), it indicates that there is a fault in the electron-
ics. Should this occur, have the vehicle serviced as soon
as possible by an authorized dealer.
CAUTION!
The Sentry Key® Immobilizer system is not compat-
ible with some aftermarket remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only keys that are programmed to the vehicle
electronics can be used to start and operate the vehicle.
Once a Sentry Key® is programmed to a vehicle, it cannot
be programmed to any other vehicle.
CAUTION!
Always remove the Sentry Keys® from the vehicle
and lock all doors when leaving the vehicle unat-
tended.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of keys. Du-
plication of keys may be performed at an authorized
dealer or by following the customer key programming
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19

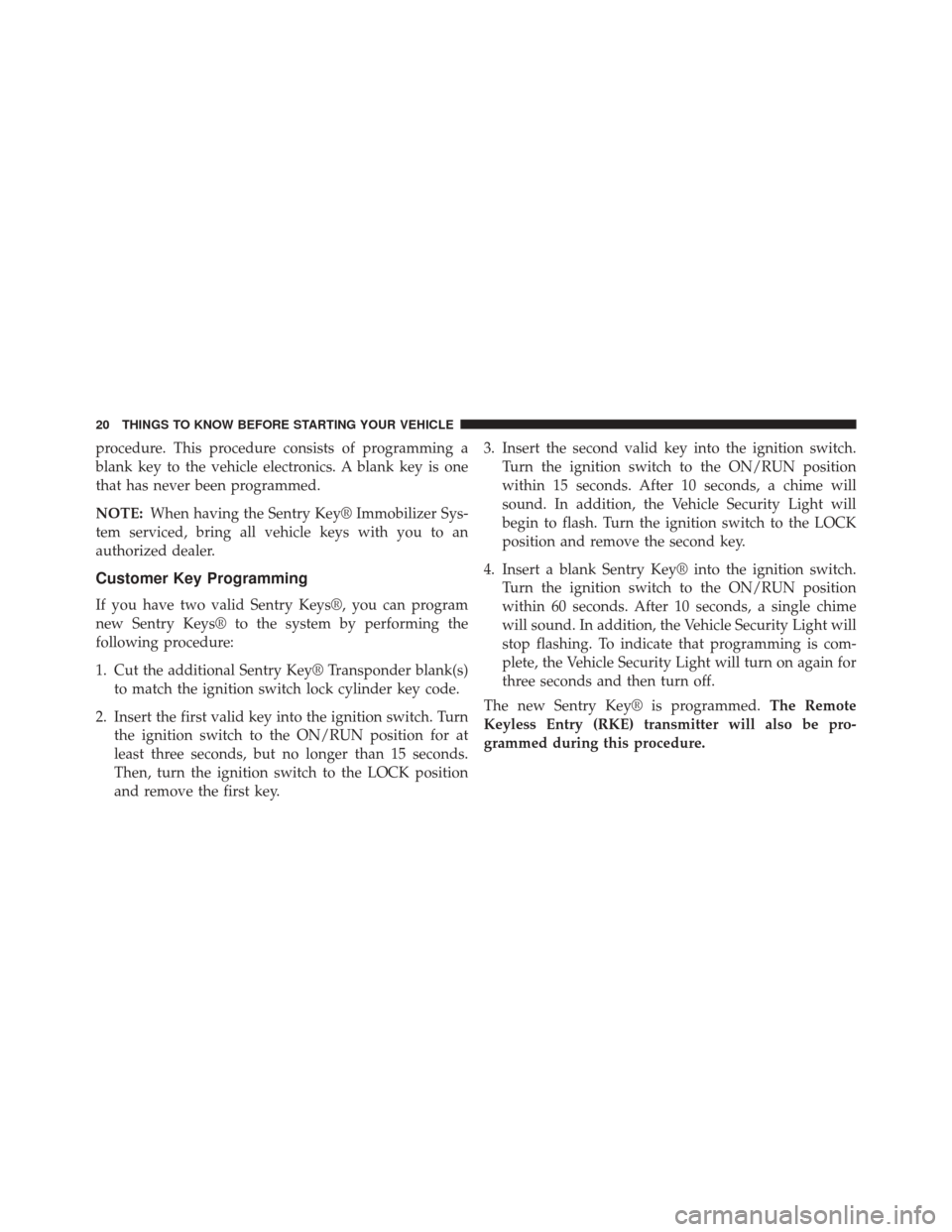

procedure. This procedure consists of programming a
blank key to the vehicle electronics. A blank key is one
that has never been programmed.
NOTE:When having the Sentry Key® Immobilizer Sys-
tem serviced, bring all vehicle keys with you to an
authorized dealer.
Customer Key Programming
If you have two valid Sentry Keys®, you can program
new Sentry Keys® to the system by performing the
following procedure:
1. Cut the additional Sentry Key® Transponder blank(s) to match the ignition switch lock cylinder key code.
2. Insert the first valid key into the ignition switch. Turn the ignition switch to the ON/RUN position for at
least three seconds, but no longer than 15 seconds.
Then, turn the ignition switch to the LOCK position
and remove the first key. 3. Insert the second valid key into the ignition switch.
Turn the ignition switch to the ON/RUN position
within 15 seconds. After 10 seconds, a chime will
sound. In addition, the Vehicle Security Light will
begin to flash. Turn the ignition switch to the LOCK
position and remove the second key.
4. Insert a blank Sentry Key® into the ignition switch. Turn the ignition switch to the ON/RUN position
within 60 seconds. After 10 seconds, a single chime
will sound. In addition, the Vehicle Security Light will
stop flashing. To indicate that programming is com-
plete, the Vehicle Security Light will turn on again for
three seconds and then turn off.
The new Sentry Key® is programmed. The Remote
Keyless Entry (RKE) transmitter will also be pro-
grammed during this procedure.
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

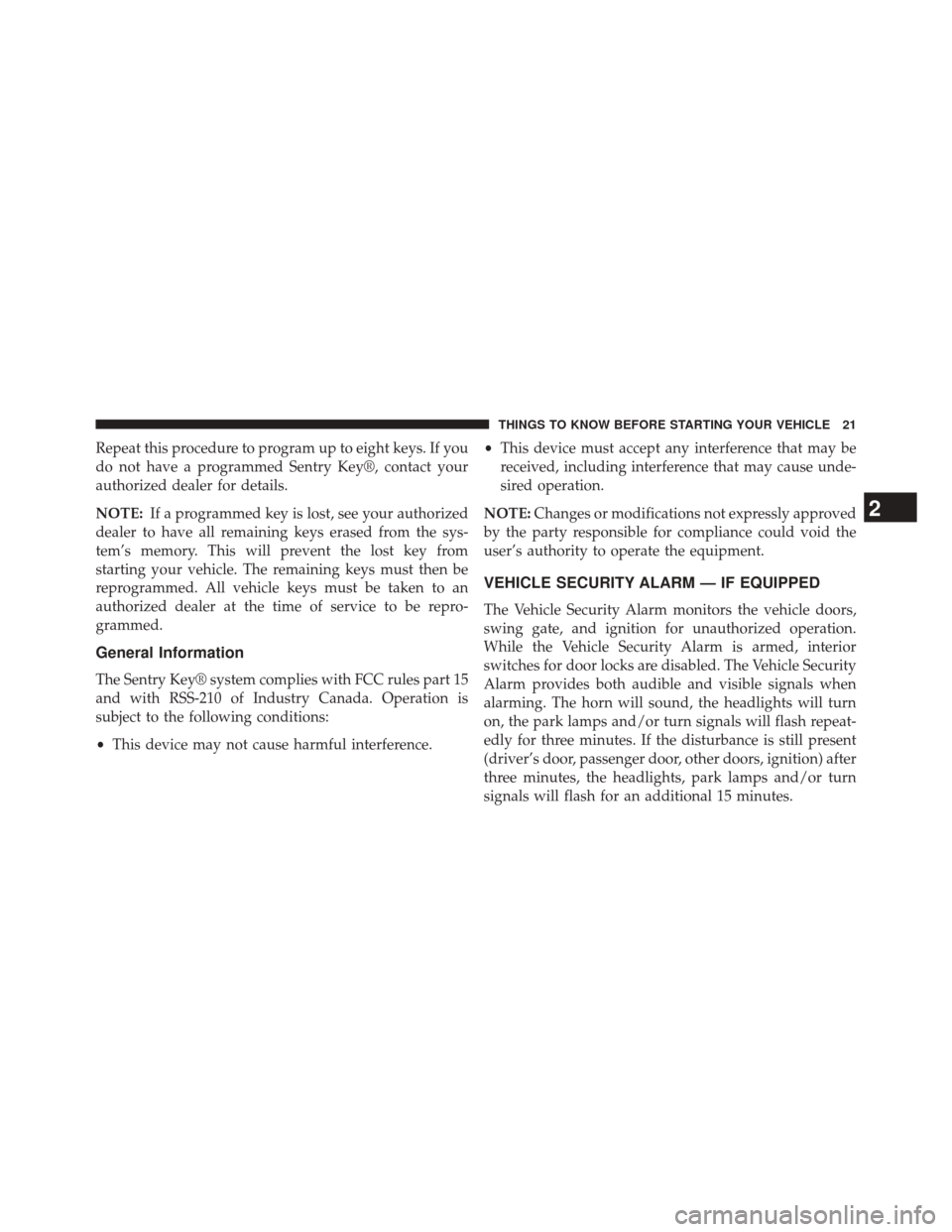

Repeat this procedure to program up to eight keys. If you
do not have a programmed Sentry Key®, contact your
authorized dealer for details.
NOTE:If a programmed key is lost, see your authorized
dealer to have all remaining keys erased from the sys-
tem’s memory. This will prevent the lost key from
starting your vehicle. The remaining keys must then be
reprogrammed. All vehicle keys must be taken to an
authorized dealer at the time of service to be repro-
grammed.
General Information
The Sentry Key® system complies with FCC rules part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
• This device may not cause harmful interference. •
This device must accept any interference that may be
received, including interference that may cause unde-
sired operation.
NOTE: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user’s authority to operate the equipment.
VEHICLE SECURITY ALARM — IF EQUIPPED
The Vehicle Security Alarm monitors the vehicle doors,
swing gate, and ignition for unauthorized operation.
While the Vehicle Security Alarm is armed, interior
switches for door locks are disabled. The Vehicle Security
Alarm provides both audible and visible signals when
alarming. The horn will sound, the headlights will turn
on, the park lamps and/or turn signals will flash repeat-
edly for three minutes. If the disturbance is still present
(driver’s door, passenger door, other doors, ignition) after
three minutes, the headlights, park lamps and/or turn
signals will flash for an additional 15 minutes.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21

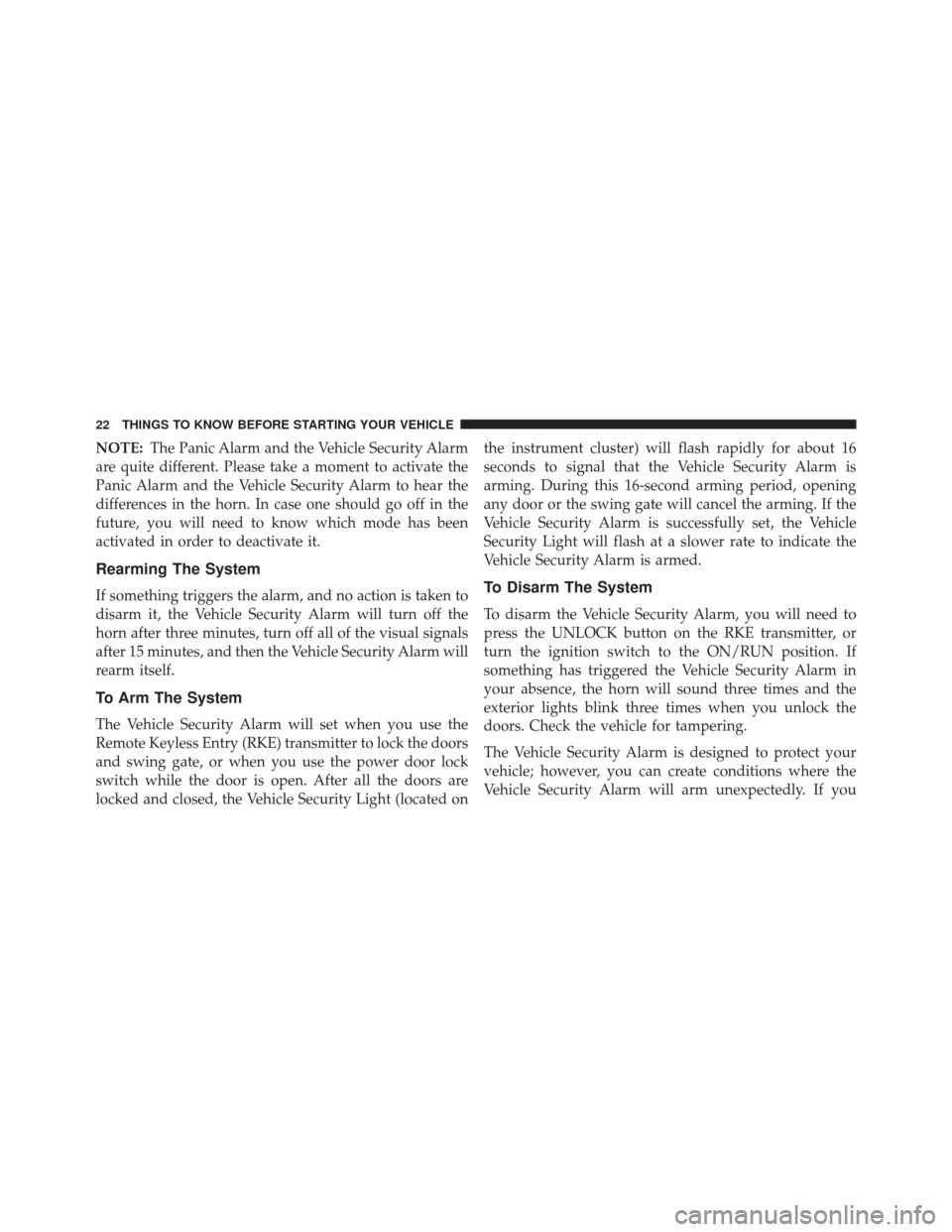

NOTE:The Panic Alarm and the Vehicle Security Alarm
are quite different. Please take a moment to activate the
Panic Alarm and the Vehicle Security Alarm to hear the
differences in the horn. In case one should go off in the
future, you will need to know which mode has been
activated in order to deactivate it.
Rearming The System
If something triggers the alarm, and no action is taken to
disarm it, the Vehicle Security Alarm will turn off the
horn after three minutes, turn off all of the visual signals
after 15 minutes, and then the Vehicle Security Alarm will
rearm itself.
To Arm The System
The Vehicle Security Alarm will set when you use the
Remote Keyless Entry (RKE) transmitter to lock the doors
and swing gate, or when you use the power door lock
switch while the door is open. After all the doors are
locked and closed, the Vehicle Security Light (located on the instrument cluster) will flash rapidly for about 16
seconds to signal that the Vehicle Security Alarm is
arming. During this 16-second arming period, opening
any door or the swing gate will cancel the arming. If the
Vehicle Security Alarm is successfully set, the Vehicle
Security Light will flash at a slower rate to indicate the
Vehicle Security Alarm is armed.
To Disarm The System
To disarm the Vehicle Security Alarm, you will need to
press the UNLOCK button on the RKE transmitter, or
turn the ignition switch to the ON/RUN position. If
something has triggered the Vehicle Security Alarm in
your absence, the horn will sound three times and the
exterior lights blink three times when you unlock the
doors. Check the vehicle for tampering.
The Vehicle Security Alarm is designed to protect your
vehicle; however, you can create conditions where the
Vehicle Security Alarm will arm unexpectedly. If you
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

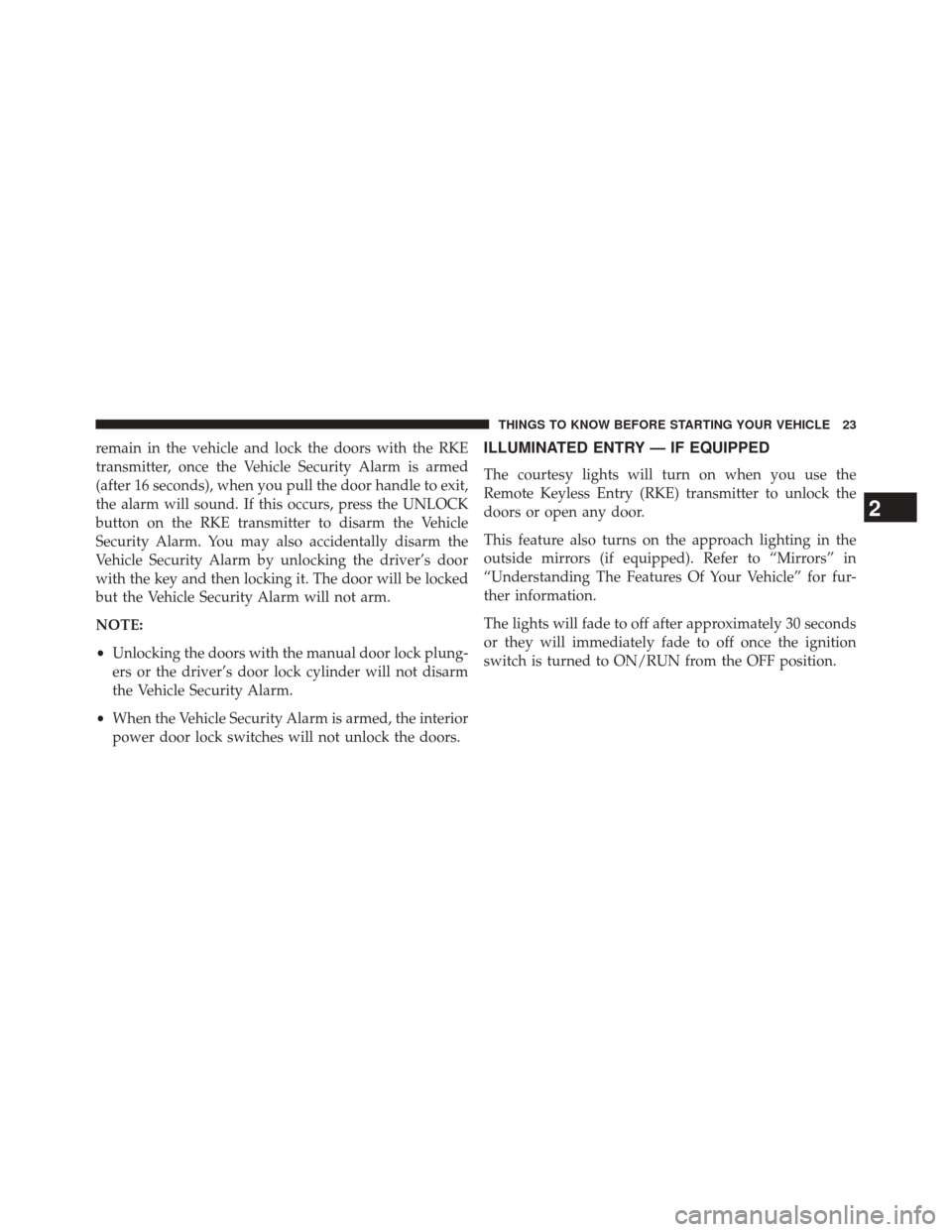

remain in the vehicle and lock the doors with the RKE
transmitter, once the Vehicle Security Alarm is armed
(after 16 seconds), when you pull the door handle to exit,
the alarm will sound. If this occurs, press the UNLOCK
button on the RKE transmitter to disarm the Vehicle
Security Alarm. You may also accidentally disarm the
Vehicle Security Alarm by unlocking the driver’s door
with the key and then locking it. The door will be locked
but the Vehicle Security Alarm will not arm.
NOTE:
•Unlocking the doors with the manual door lock plung-
ers or the driver’s door lock cylinder will not disarm
the Vehicle Security Alarm.
• When the Vehicle Security Alarm is armed, the interior
power door lock switches will not unlock the doors.ILLUMINATED ENTRY — IF EQUIPPED
The courtesy lights will turn on when you use the
Remote Keyless Entry (RKE) transmitter to unlock the
doors or open any door.
This feature also turns on the approach lighting in the
outside mirrors (if equipped). Refer to “Mirrors” in
“Understanding The Features Of Your Vehicle” for fur-
ther information.
The lights will fade to off after approximately 30 seconds
or they will immediately fade to off once the ignition
switch is turned to ON/RUN from the OFF position.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23

NOTE:
•The front courtesy overhead console and door cour-
tesy lights will turn on if the dimmer control is in the
Dome ON position (extreme top position).
• The Illuminated Entry system will not operate if the
dimmer control is in the “Dome defeat” position
(extreme bottom position).
REMOTE KEYLESS ENTRY (RKE) — IF
EQUIPPED
This system allows you to lock or unlock the doors,
swing gate, and activate the Panic Alarm from a maxi-
mum distance of 66 ft (20 m) using a Remote Keyless
Entry (RKE) transmitter. The RKE transmitter does not
need to be pointed at the vehicle to activate the system.Three Button RKE Transmitter
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:The line of transmission must not be blocked
with metal objects.
To Unlock The Doors And Swing Gate
Press and release the RKE transmitter UNLOCK button
once to unlock the driver’s door only, or twice to unlock all the doors and swing gate. When the RKE transmitter
UNLOCK button is pressed, the Illuminated Entry will
initiate and the turn signal lights will flash twice.
Remote Key Unlock On First Press
This feature lets you program the system to unlock either
the driver’s side, or all doors and swing gate on the first
press of the UNLOCK button on the RKE transmitter.
•
For vehicles equipped with an Electronic Vehicle Infor-
mation Center (EVIC), refer to “Electronic Vehicle Infor-
mation Center (EVIC)/Personal Settings (Customer-
Programmable Features)” in “Understanding Your
Instrument Panel” for further information.
• For vehicles not equipped with the EVIC, the Remote
Unlock feature can be enabled or disabled by perform-
ing the following steps:
1. Press and hold the LOCK button on a programmed RKE transmitter.
Four Button RKE Transmitter
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25

2. Continue to hold the RKE transmitter LOCK buttonfor at least four seconds, but not longer than 10
seconds, then press and hold the RKE transmitter
UNLOCK button.
3. Release both buttons at the same time.
4. Test this feature while outside of the vehicle by pressing the LOCK/UNLOCK button on the RKE
transmitter.
NOTE: Pressing the RKE transmitter LOCK button while
you are inside of the vehicle will activate the Vehicle
Security Alarm. Opening a door with the Vehicle Security
Alarm activated will cause the alarm to sound. Press the
RKE transmitter UNLOCK button to deactivate the Ve-
hicle Security Alarm. 5. If the desired programming was not achieved or to
reactivate this feature, repeat the above steps.
NOTE: Pressing the RKE transmitter LOCK button while
you are inside of the vehicle will activate the Vehicle
Security Alarm. Opening a door with the Vehicle Security
Alarm activated will cause the alarm to sound. Press the
RKE transmitter UNLOCK button to deactivate the Ve-
hicle Security Alarm.
To Lock The Doors And Swing Gate
Press and release the LOCK button on the RKE transmit-
ter to lock all doors. The turn signals will flash and the
horn will chirp once to acknowledge the lock signal.
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Sound Horn On Lock
This feature will cause the horn to chirp when the doors
are locked with the RKE transmitter. This feature can be
turned on or turned off. To change the current setting,
proceed as follows:
•For vehicles equipped with the EVIC, refer to “Elec-
tronic Vehicle Information Center (EVIC)/Personal
Settings (Customer-Programmable Features)” in “Un-
derstanding Your Instrument Panel” for further infor-
mation.
• For vehicles not equipped with the EVIC, perform the
following steps:
1. Press the RKE transmitter LOCK button for 4 to 10 seconds.
2. While the LOCK button is pressed (after four seconds), press the RKE transmitter PANIC button. Release both
buttons. The “Sound Horn On Lock” feature can be reactivated by
repeating this procedure.
Using The Panic Alarm
To turn the Panic Alarm feature on or off, press and hold
the PANIC button on the RKE transmitter for at least one
second and release. When the Panic Alarm is activated,
the headlights will turn on, the park lights will flash, the
horn will pulse on and off and the interior lights will turn
on.
The Panic Alarm will stay on for three minutes unless
you turn it off by pressing the PANIC button a second
time, or if the vehicle speed is 5 mph (8 km/h) or greater.
NOTE:
When you turn off the Panic Alarm by pressing
the PANIC button a second time, you may have to move
closer to the vehicle due to the radio frequency noises of
the system.2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27

To Turn Off Flash Lights With Lock
This feature will cause the turn signal lights to flash when
the doors are locked or unlocked with the RKE transmit-
ter. This feature can be turned on or turned off. To change
the current setting, proceed as follows:
•For vehicles equipped with the EVIC, refer to “Elec-
tronic Vehicle Information Center (EVIC)/Personal
Settings (Customer-Programmable Features)” in “Un-
derstanding Your Instrument Panel” for further infor-
mation.
• For vehicles not equipped with the EVIC, perform the
following steps:
1. Press the RKE transmitter UNLOCK button for 4 to 10 seconds.
2. While the UNLOCK button is pressed, (after four seconds) press the RKE transmitter LOCK button.
Release both buttons. 3. Test the “Flash Lights With Lock” feature outside of
the vehicle by pressing the RKE transmitter LOCK
button with the ignition switch in the LOCK position
and the ignition key removed.
NOTE: Pressing the RKE transmitter LOCK button while
you are in the vehicle will activate the Vehicle Security
Alarm. Opening a door with the Vehicle Security Alarm
activated will cause the alarm to sound. Press the RKE
transmitter UNLOCK button to deactivate the Vehicle
Security Alarm.
The “Flash Lights With Lock” feature can be reactivated
by repeating this procedure.
Programming Additional Transmitters
Refer to Sentry Key® “Customer Key Programming”.
If you do not have a programmed RKE transmitter,
contact your authorized dealer for details.
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
