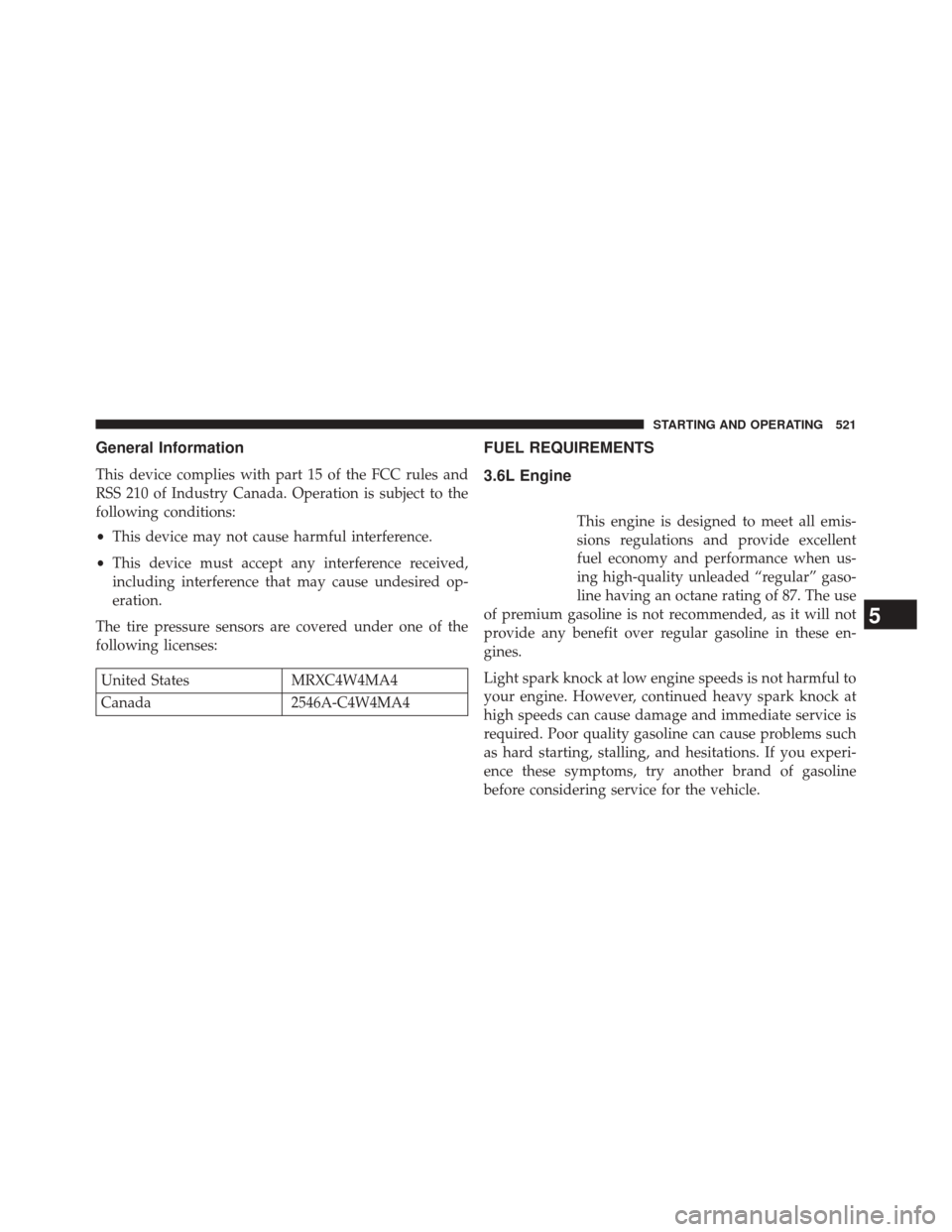

General Information
This device complies with part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
•This device may not cause harmful interference.
• This device must accept any interference received,
including interference that may cause undesired op-
eration.
The tire pressure sensors are covered under one of the
following licenses:
United States MRXC4W4MA4
Canada 2546A-C4W4MA4
FUEL REQUIREMENTS
3.6L Engine
This engine is designed to meet all emis-
sions regulations and provide excellent
fuel economy and performance when us-
ing high-quality unleaded “regular” gaso-
line having an octane rating of 87. The use
of premium gasoline is not recommended, as it will not
provide any benefit over regular gasoline in these en-
gines.
Light spark knock at low engine speeds is not harmful to
your engine. However, continued heavy spark knock at
high speeds can cause damage and immediate service is
required. Poor quality gasoline can cause problems such
as hard starting, stalling, and hesitations. If you experi-
ence these symptoms, try another brand of gasoline
before considering service for the vehicle.
5
STARTING AND OPERATING 521

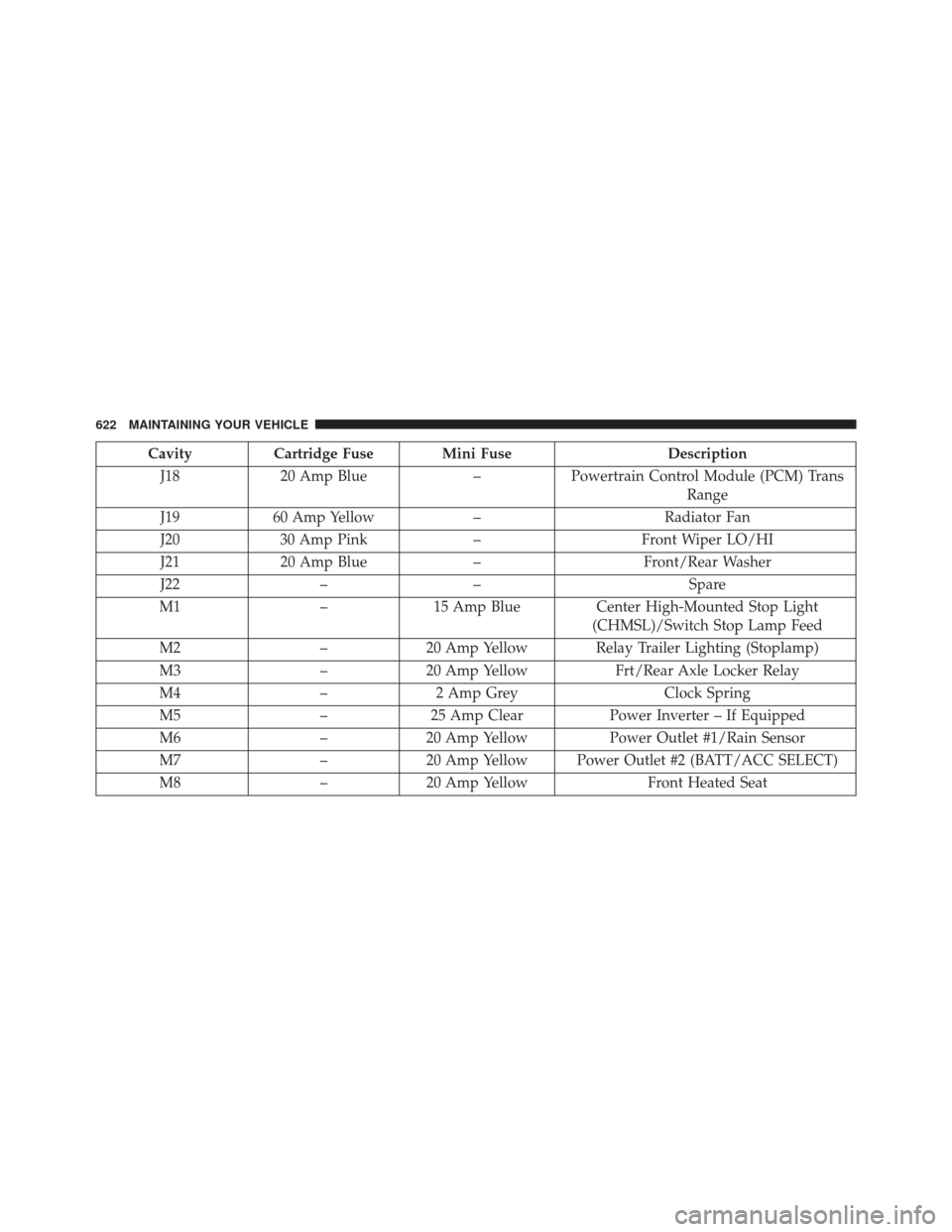

CavityCartridge Fuse Mini Fuse Description
J18 20 Amp Blue –Powertrain Control Module (PCM) Trans
Range
J19 60 Amp Yellow –Radiator Fan
J20 30 Amp Pink –Front Wiper LO/HI
J21 20 Amp Blue –Front/Rear Washer
J22 –– Spare
M1 –15 Amp Blue Center High-Mounted Stop Light
(CHMSL)/Switch Stop Lamp Feed
M2 –20 Amp Yellow Relay Trailer Lighting (Stoplamp)
M3 –20 Amp Yellow Frt/Rear Axle Locker Relay
M4 –2 Amp Grey Clock Spring
M5 –25 Amp Clear Power Inverter – If Equipped
M6 –20 Amp Yellow Power Outlet #1/Rain Sensor
M7 –20 Amp Yellow Power Outlet #2 (BATT/ACC SELECT)
M8 –20 Amp Yellow Front Heated Seat
