Compass/Temperature Display
NOTE:If the vehicle is equipped with a Chrysler
Uconnect® gps (Navigation Radio), the NAV system will
provide the compass direction, and the variance and
calibration menus will be unavailable. The compass will
perform accurately, based on GPS signals instead of the
Earth’s magnetic field.
Compass Variance
Compass Variance is the difference between Magnetic
North and Geographic North. To compensate for the
differences, the variance should be set for the zone where
the vehicle is driven, per the zone map. Once properly
set, the compass will automatically compensate for the
differences and provide the most accurate compass head-
ing.

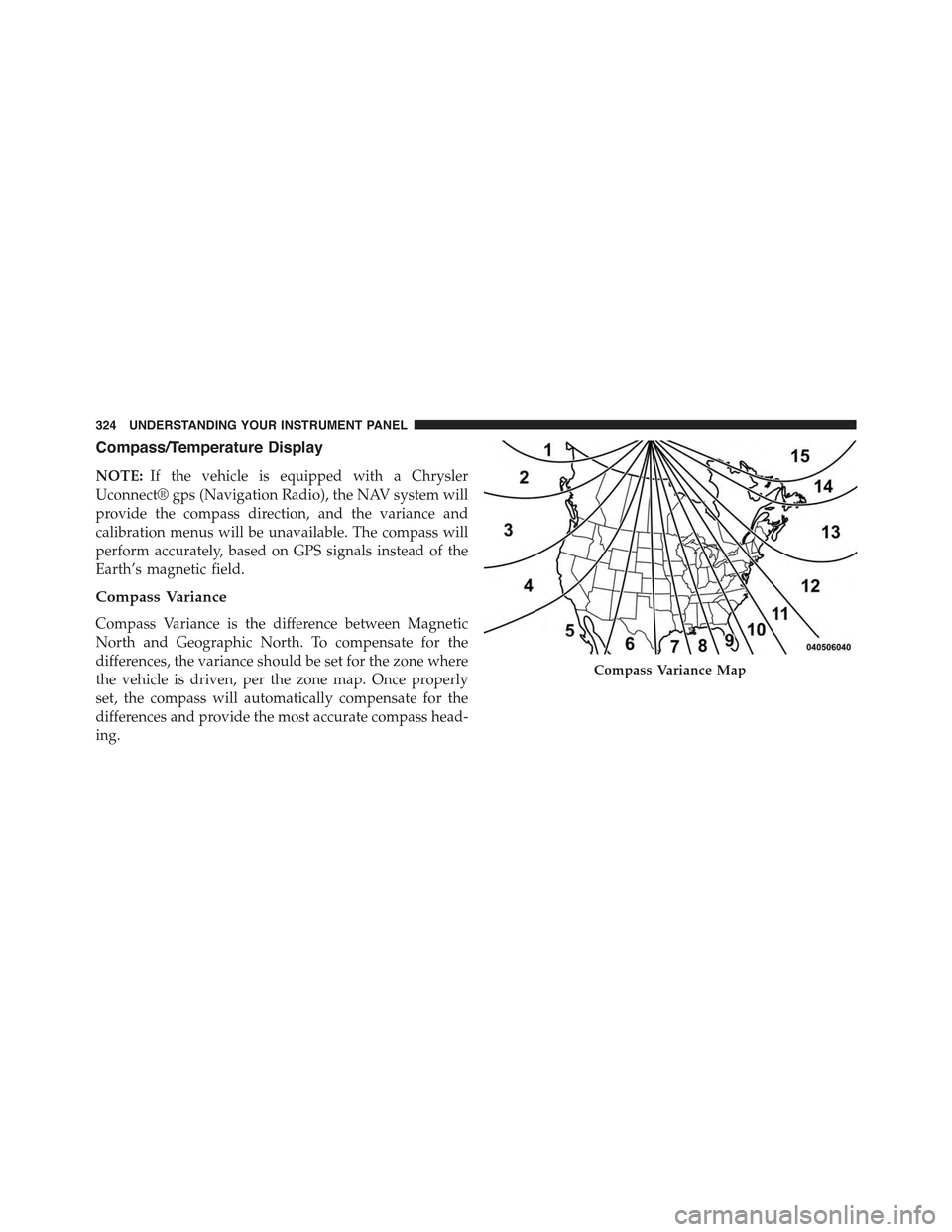

Compass Variance Map
324 UNDERSTANDING YOUR INSTRUMENT PANEL

the DOWN button when SYSTEM WARNINGS PRES-
ENT is displayed will display each stored warning for
each button push. Push and release the MENU button to
return to the Main Menu.
Personal Settings (Customer-Programmable
Features)
Personal Settings allows the driver to set and recall
features when the vehicle speed is at 0 mph (0 km/h)
(manual transmission) or when the shift lever is in PARK
(auto transmission).
Push and release the MENU button until Personal Set-
tings displays in the EVIC.
Use the DOWN button to display one of the following
choices:
Language
When in this display you may select one of five lan-
guages for all display nomenclature, including the trip
functions and the navigation system (if equipped). Press
the SELECT button while in this display to select English,
Espanol or Francais. Then, as you continue, the informa-
tion will display in the selected language.
Auto Lock Doors
When this feature is selected, all doors will lock automati-
cally when the vehicle reaches a speed of 15 mph (24 km/h).
The auto door lock feature can be enabled or disabled, to
make your selection, press and release the SELECT button
until a check-mark appears next to the feature showing the
system has been activated or the check-mark is removed
showing the system has been deactivated.
Auto Unlk On Exit
When ON is selected, all doors will unlock when the
vehicle is stopped and the transmission is in the PARK or
NEUTRAL position and the driver’s door is opened. To
make your selection, press and release the SELECT
button until “On” or “Off” appears.
338 UNDERSTANDING YOUR INSTRUMENT PANEL

Display Units In
The EVIC can be changed between English and Metric
units of measure. The units apply to the Outside Tem-
perature, Average Fuel Economy, and Distance to Empty.
To make your selection, press and release the SELECT
button until “U.S.” or#METRIC#appears.
Nav–Turn By Turn — If Equipped
When on enables display of Navigation System street
name, turn direction, and distance to turn information in
the EVIC. To make your selection, press and release the
SELECT button until “On” or “Off” appears.
Display Fuel Saver — If Equipped
The “ECO” message is located in the compass/outside
temperature/audio information/ECO display. If Display
Fuel Saver is selected as ON, only the ECO message will
display in the audio information/ECO line of the display.
If Display Fuel Saver is selected as OFF, only the audio
information will display in the audio information/ECO
line of the display when the audio system is on. To make
your selection, press and release the SELECT button until
“ON” or “OFF” appears.
Compass Variance
Refer to “Compass/Temperature Display” in “Electronic
Vehicle Information (EVIC)” in “Understanding Your
Instrument Panel” for more information.
Calibrate Compass
Refer to “Automatic Compass Calibration” in “Electronic
Vehicle Information (EVIC)” in “Understanding Your
Instrument Panel” for more information.
Tire PSI
Press and release the UP or DOWN button until “Tire
PSI:” displays highlighted in the EVIC. Press the SELECT
button to view a graphic of the vehicle with a tire
pressure value at each corner of the graphic.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 341
