Page 481 of 695

This mode is intended to be used if the vehicle is in deep
snow, sand, or gravel conditions and more wheel spin
than ESC would normally allow is required to gain
traction. To turn ESC on again, momentarily press the
ESC OFF switch. This will restore the normal “ESC On”
mode of operation.
NOTE:To improve the vehicle’s traction when driving
with snow chains, or starting off in deep snow, sand, or
gravel, it may be desirable to switch to the#ESC Partial
Off#mode by pressing the ESC OFF switch. Once the
situation requiring ESC to be switched to the#ESC Partial
Off#mode is overcome, turn ESC back on by momen-
tarily pressing the ESC OFF switch. This may be done
while the vehicle is in motion.
WARNING!
•When in%ESC Partial Off%mode, the TCS function-
ality of ESC, (except for the limited slip feature
described in the TCS section), has been disabled
and the “ESC Off Indicator Light” will be illumi-
nated. When in%ESC Partial Off%mode, the engine
power reduction feature of TCS is disabled, and
the enhanced vehicle stability offered by the ESC
system is reduced.
•Trailer Sway control (TSC) is disabled when the
ESC system is in the%ESC Partial Off%mode.
ESC Full Off
This mode is entered by pressing and holding momen-
tarily pressing the ESC OFF switch for five seconds.
5
STARTING AND OPERATING 479

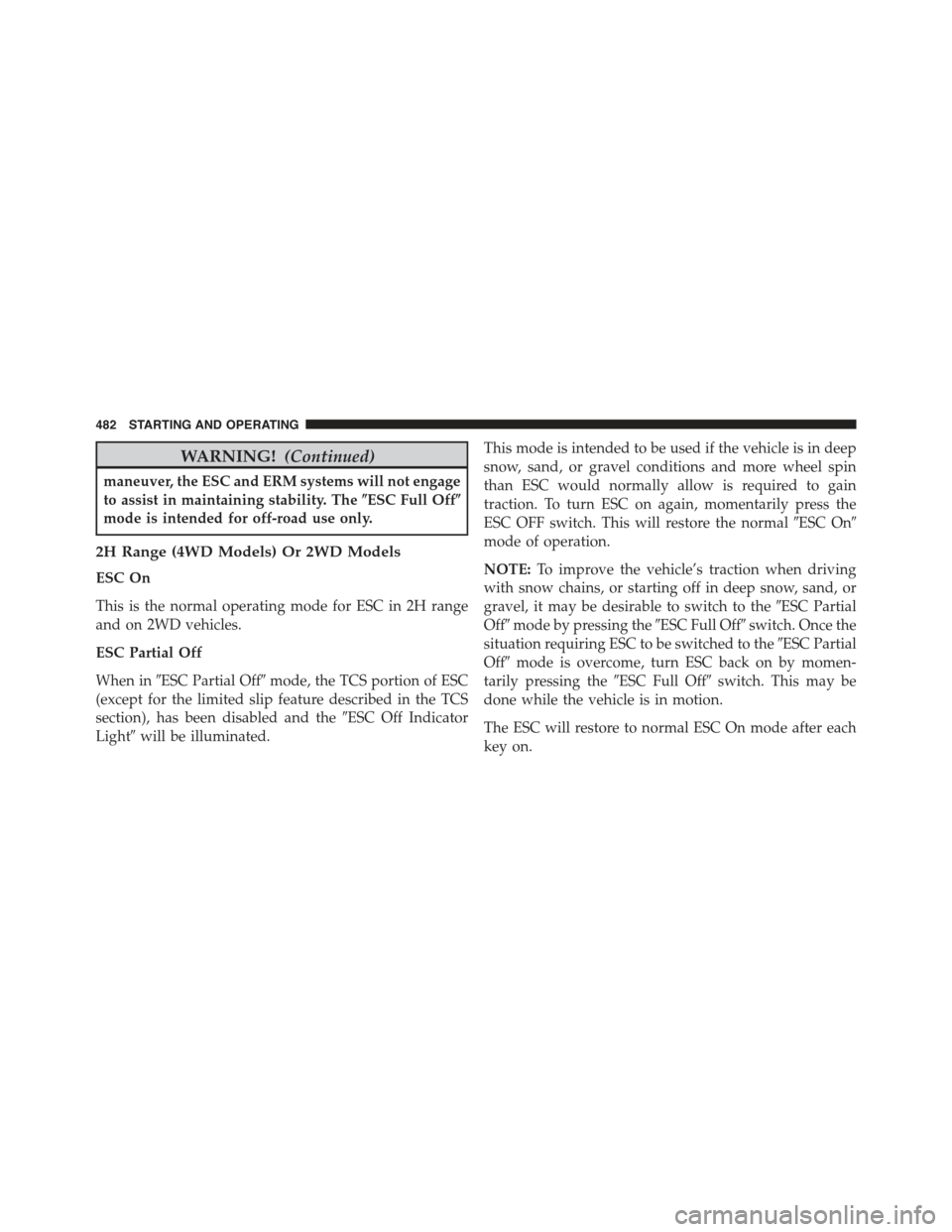

Page 484 of 695

WARNING!(Continued)
maneuver, the ESC and ERM systems will not engage
to assist in maintaining stability. The%ESC Full Off%
mode is intended for off-road use only.
2H Range (4WD Models) Or 2WD Models
ESC On
This is the normal operating mode for ESC in 2H range
and on 2WD vehicles.
ESC Partial Off
When in#ESC Partial Off#mode, the TCS portion of ESC
(except for the limited slip feature described in the TCS
section), has been disabled and the#ESC Off Indicator
Light#will be illuminated.
This mode is intended to be used if the vehicle is in deep
snow, sand, or gravel conditions and more wheel spin
than ESC would normally allow is required to gain
traction. To turn ESC on again, momentarily press the
ESC OFF switch. This will restore the normal#ESC On#
mode of operation.
NOTE:To improve the vehicle’s traction when driving
with snow chains, or starting off in deep snow, sand, or
gravel, it may be desirable to switch to the#ESC Partial
Off#mode by pressing the#ESC Full Off#switch. Once the
situation requiring ESC to be switched to the#ESC Partial
Off#mode is overcome, turn ESC back on by momen-
tarily pressing the#ESC Full Off#switch. This may be
done while the vehicle is in motion.
The ESC will restore to normal ESC On mode after each
key on.
482 STARTING AND OPERATING
Page 520 of 695

The “Tire Pressure Monitoring Telltale Light” will flash
on and off for 75 seconds, and will remain on solid when
a system fault is detected. The system fault will also
sound a chime. If the ignition key is cycled, this sequence
will repeat, providing the system fault still exists. The
“Tire Pressure Monitoring Telltale Light” will turn off
when the fault condition no longer exists. A system fault
can occur by any of the following scenarios:
1. Jamming due to electronic devices or driving next to
facilities emitting the same Radio Frequencies as the
TPM sensors.
2. Installing some form of aftermarket window tinting
that affects radio wave signals.
3. Lots of snow or ice around the wheels or wheel
housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPM sensors.
Vehicles not equipped with EVIC will inform the driver
which tire(s) are low but not provide actual tire pressure.
The low tire ISO telltale will illuminate along with
“LoTIrE” message displayed in the ODO and then it will
scroll to which tire location is lower than the Placard
Value.
Tire location will be displayed as follows:
LF =LeftFront
rF =rightFront
Lr =Leftrear
rr =rightrear
518 STARTING AND OPERATING
Page 524 of 695

the pressure value(s) will stop “flashing,” and the Tire
Pressure Monitoring Telltale Light will extinguish once
the updated tire pressure(s) have been received.
NOTE:When filling warm tires, the tire pressure may
need to be increased up to an additional 4 psi (30 kPa)
above the recommended cold placard pressure in order
to turn the Tire Pressure Monitoring Telltale Light off.
The vehicle may need to be driven for up to 20 minutes
above 15 mph (24 km/h) to receive this information.
SERVICE TPM SYSTEM Warning
The “Tire Pressure Monitoring Telltale Light” will flash
on and off for 75 seconds, and remain on solid when a
system fault is detected. The system fault will also sound
a chime. The EVIC will display a “SERVICE TPM SYS-
TEM” message for a minimum of five seconds. This
message is then followed by a graphic display, with “- -“
in place of the pressure value(s), indicating which Tire
Pressure Monitoring Sensor(s) is not being received.
If the ignition switch is cycled, this sequence will repeat,
providing the system fault still exists. If the system fault
no longer exists, the “Tire Pressure Monitoring Telltale
Light” will no longer flash, the#SERVICE TPM SYSTEM#
message will not be present, and a pressure value will be
displayed instead of dashes. A system fault can occur by
any of the following:
1. Jamming due to electronic devices or driving next to
facilities emitting the same Radio Frequencies as the
TPM sensors.
2. Installing some form of aftermarket window tinting
that affects radio wave signals.
3. Lots of snow or ice around the wheels or wheel
housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPM sensors.
522 STARTING AND OPERATING
Page 689 of 695

Security Alarm............................20
Security System...........................20
Selection of Coolant (Antifreeze)...............647
SENTRY KEY®
FCC General Information..................19
Sentry Key (Immobilizer)....................16
Sentry Key Programming....................18
Sentry Key Replacement.....................17
Service Assistance.........................663
Service Contract..........................665
Service Manuals..........................668
Settings, Personal.........................338
Setting the Clock..........................344
Shifting................................429
Automatic Transmission..................429
Manual Transmission....................424
Transfer Case, Shifting into Transfer Case
Neutral (N)...........................555
Transfer Case, Shifting out of Transfer Case
Neutral (N)...........................556
Shift Lever Override.......................576
Shoulder Belts............................51
Side Window Demisters (Defrosters)............413
Signals, Turn............................103
Snow Chains (Tire Chains)...................510
Snow Tires..............................503
Soft Top................................223
Spare Tire...............................505
Spark Plugs.............................647
Specifications
Fuel (Gasoline).........................647
Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..647
Speed Control (Cruise Control)................179
Speedometer.............................306
Starting.................................29
Automatic Transmission..................421
Cold Weather..........................42110
INDEX 687
